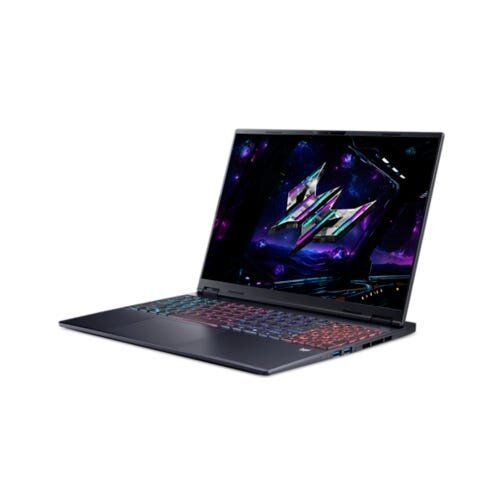

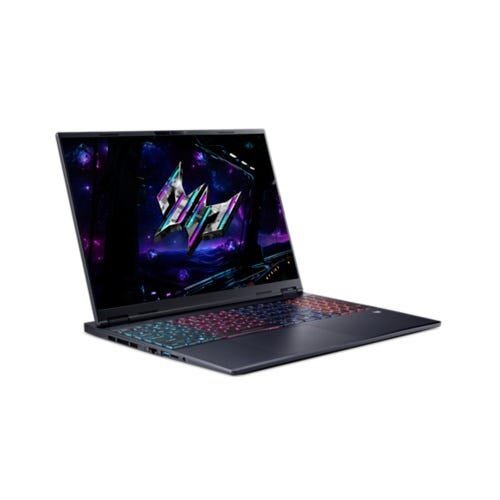

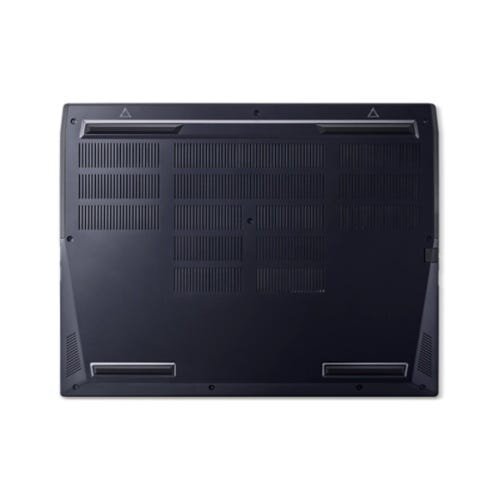

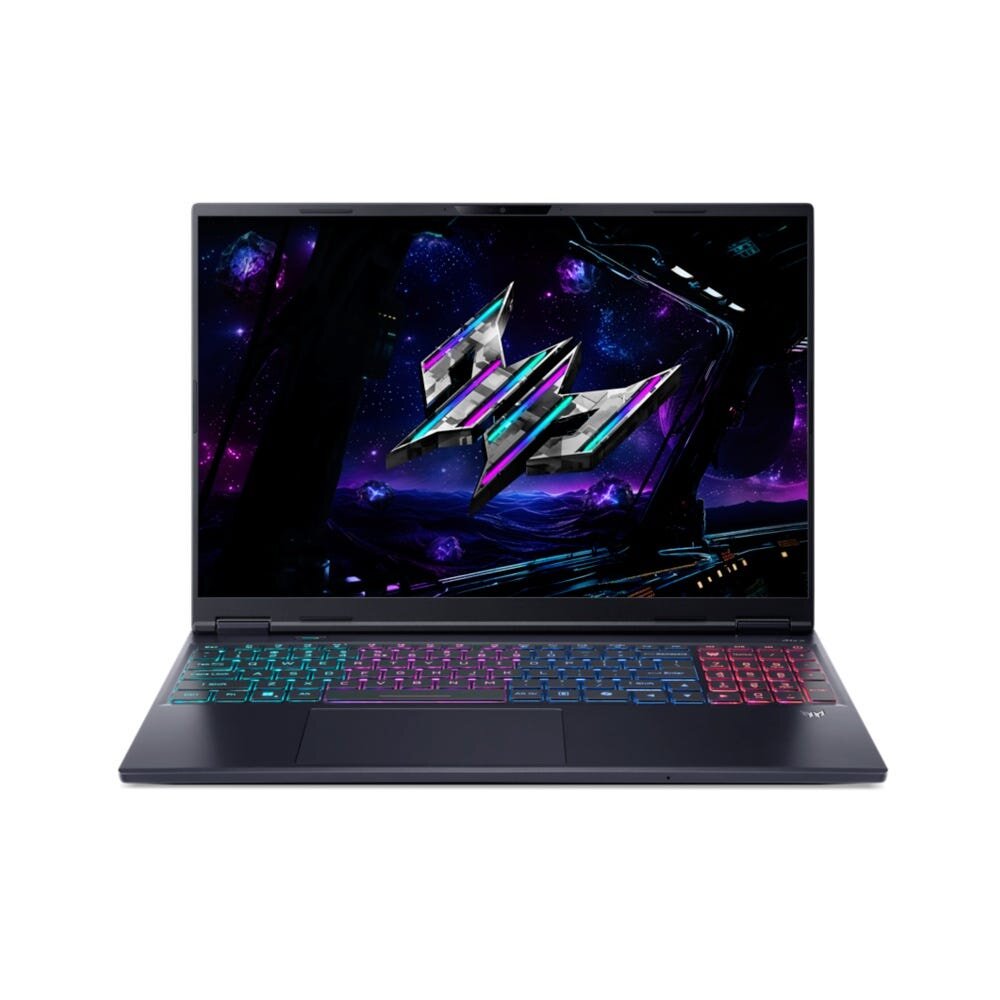

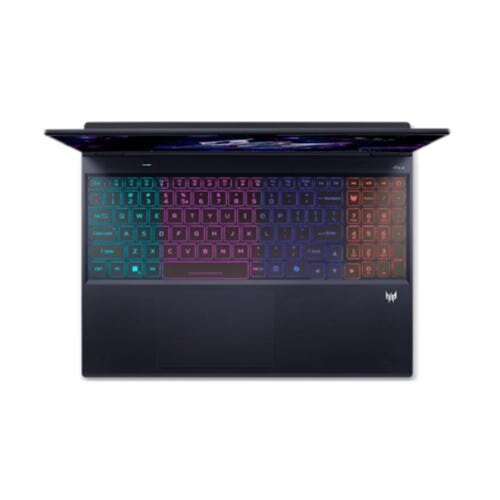

Acer Predator Helios Neo 16S AI PHN16S-71 - NH.QXASI.001
Acer Predator Helios Neo 16S AI PHN16S-71
Product code: NH.QXASI.001
- 💻Display diagonal: 16 inch
- 🔳Processor model: 255HX
- 🎫Internal memory: 16 GB
- 🎮On-board graphics adapter model:
- 🎮Discrete graphics adapter model:
- 💽Total storage capacity: 1 TB
- ⚖️Weight: 2.2 kg
📊 Add to compare
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Product type | Laptop |
| Form factor | Clamshell |
| Market positioning | Gaming |
| Display | |
| Display diagonal | 16 inch |
| HD type | WQXGA |
| Touchscreen | No |
| Display resolution | 2560 x 1600 pixels |
| RGB colour space | DCI-P3 |
| Native aspect ratio | 16:10 |
| Display technology marketing name | CineCrystal |
| Brand | Acer |
| Family | Predator |
| Series | Helios Neo 16S AI |
| Model name | PHN16S-71 |
| Part Number | NH.QXASI.001 |
| EAN/UPC code | 4711474630520 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 7 |
| Processor boost frequency | 5.2 GHz |
| Processor model | 255HX |
| Processor cores | 20 |
| Processor threads | 20 |
| Processor cache | 30 MB |
| Processor socket | BGA 2114 |
| Processor generation | Intel Core Ultra (Series 2) |
| Efficient-core base frequency | 1.8 GHz |
| Efficient cores | 12 |
| Performance cores | 8 |
| Performance-core Max Turbo Frequency | 5.2 GHz |
| Efficient-core Max Turbo Frequency | 4.5 GHz |
| Maximum turbo power | 160 W |
| Processor base power | 55 W |
| Performance-core base frequency | 2.4 GHz |
| Memory | |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | SO-DIMM |
| Memory clock speed | 6400 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 64 GB |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory channels | Dual-channel |
| Graphics | |
| Discrete graphics memory type | GDDR7 |
| Discrete GPU manufacturer | NVIDIA |
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA GeForce RTX 5070 |
| On-board graphics card model | Intel Graphics |
| On-board graphics card family | Intel Graphics |
| Discrete graphics card memory | 8 GB |
| On-board GPU manufacturer | Intel |
| Storage | |
| Total storage capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| Total SSDs capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Storage media | SSD |
| NVMe | Yes |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax), 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| HDMI version | 2.1 |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Intel® Thunderbolt 4 | Yes |
| Audio | |
| Built-in microphone | Yes |
| Number of built-in speakers | 2 |
| Number of microphones | 3 |
| Camera | |
| Front camera | Yes |
| Front camera HD type | Full HD |
| Front camera resolution | 1920 x 1080 pixels |
| Keyboard | |
| Numeric keypad | Yes |
| Keyboard backlit colour | RGB |
| Keyboard backlit | Yes |
| Pointing device | Touchpad |
| Keyboard backlit zone | 4-zone RGB |
| Software | |
| Operating system installed | Windows 11 Home |
| Operating system architecture | 64-bit |
| Copilot+ PC | Yes |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
| Weight & dimensions | |
| Weight | 2.2 kg |
| Height | 26.8 mm |
| Depth | 275.5 mm |
| Width | 356.8 mm |
| Power | |
| AC adapter power | 230 W |
| USB Type-C charging port | Yes |
| Neural processor unit (NPU) | |
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Total processor performance up to | 33 TOPs |
| NPU performance up to | 13 TOPs |
| GPU performance up to | 8 TOPs |
