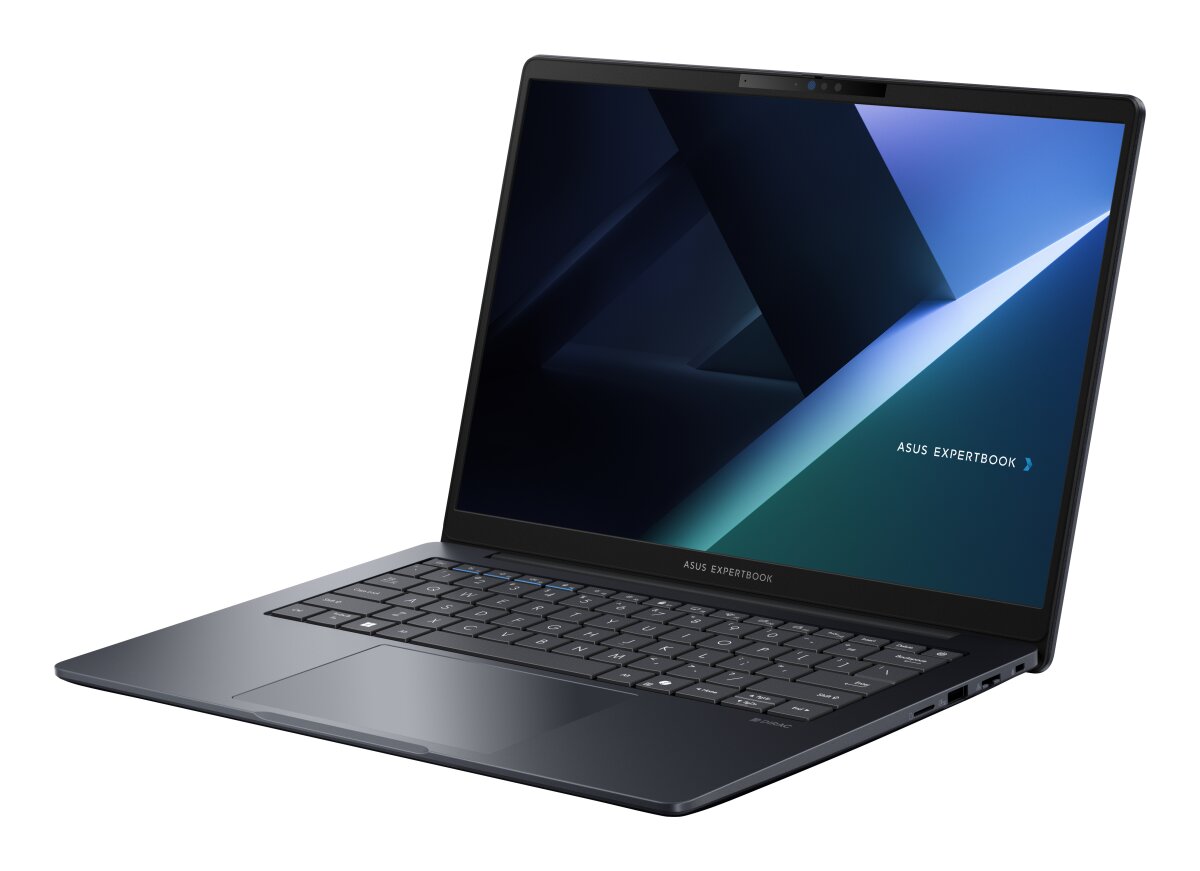

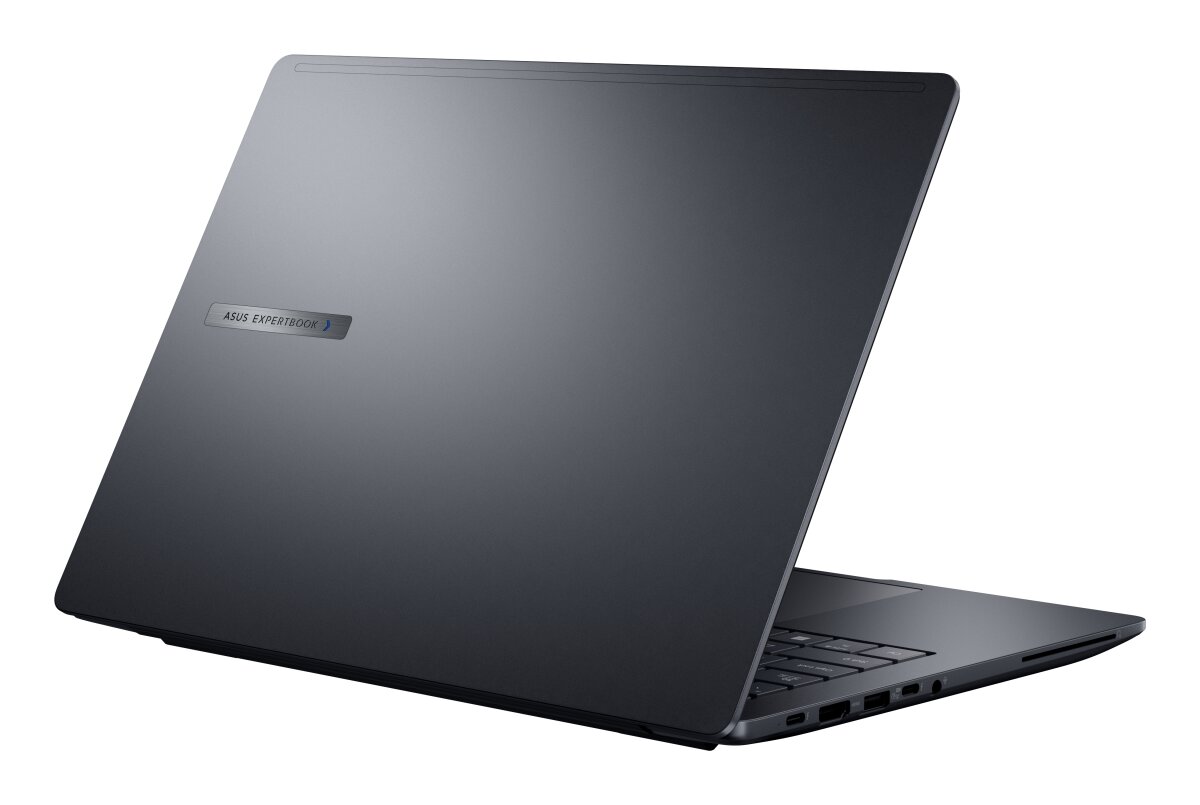

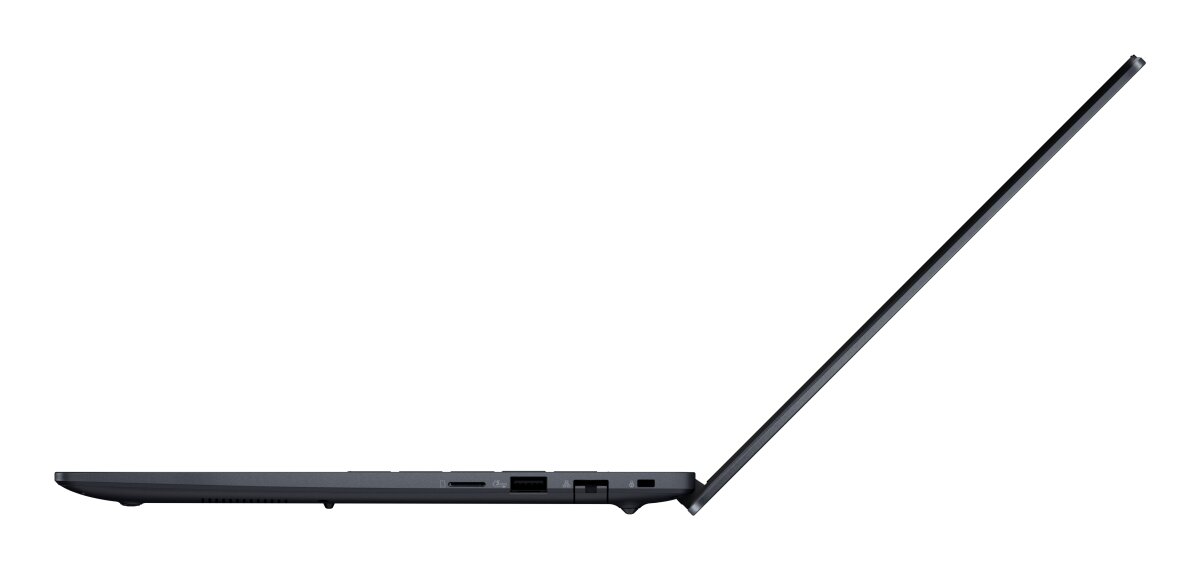

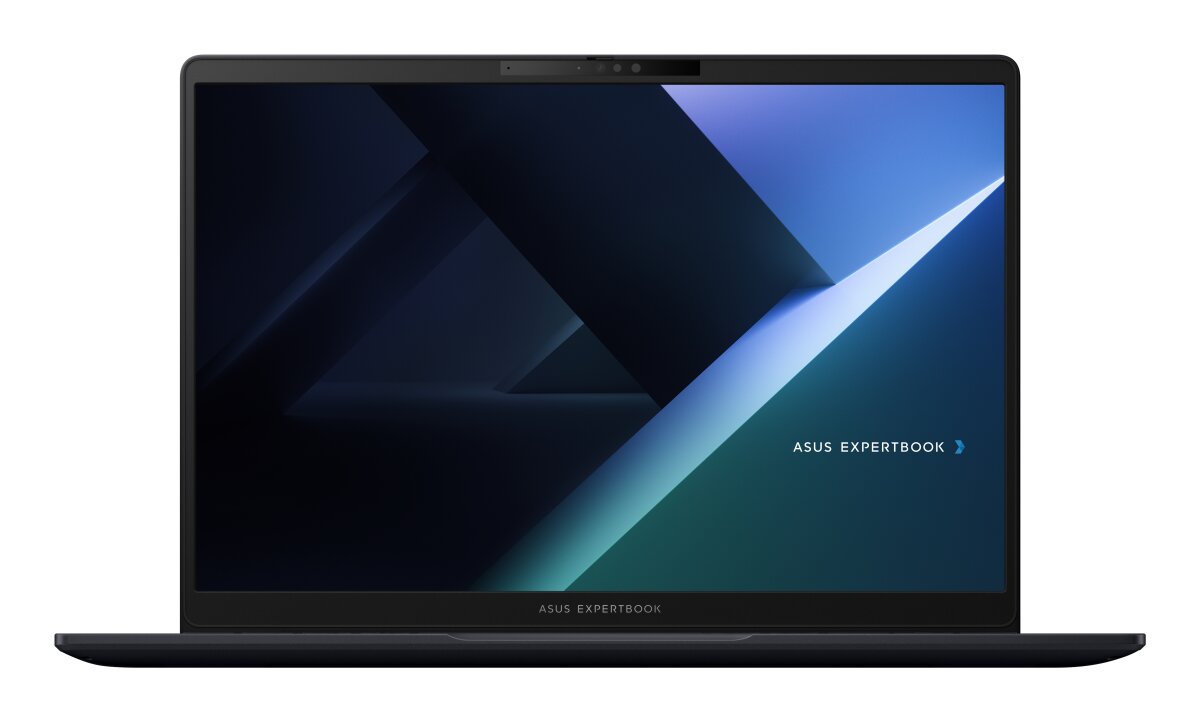

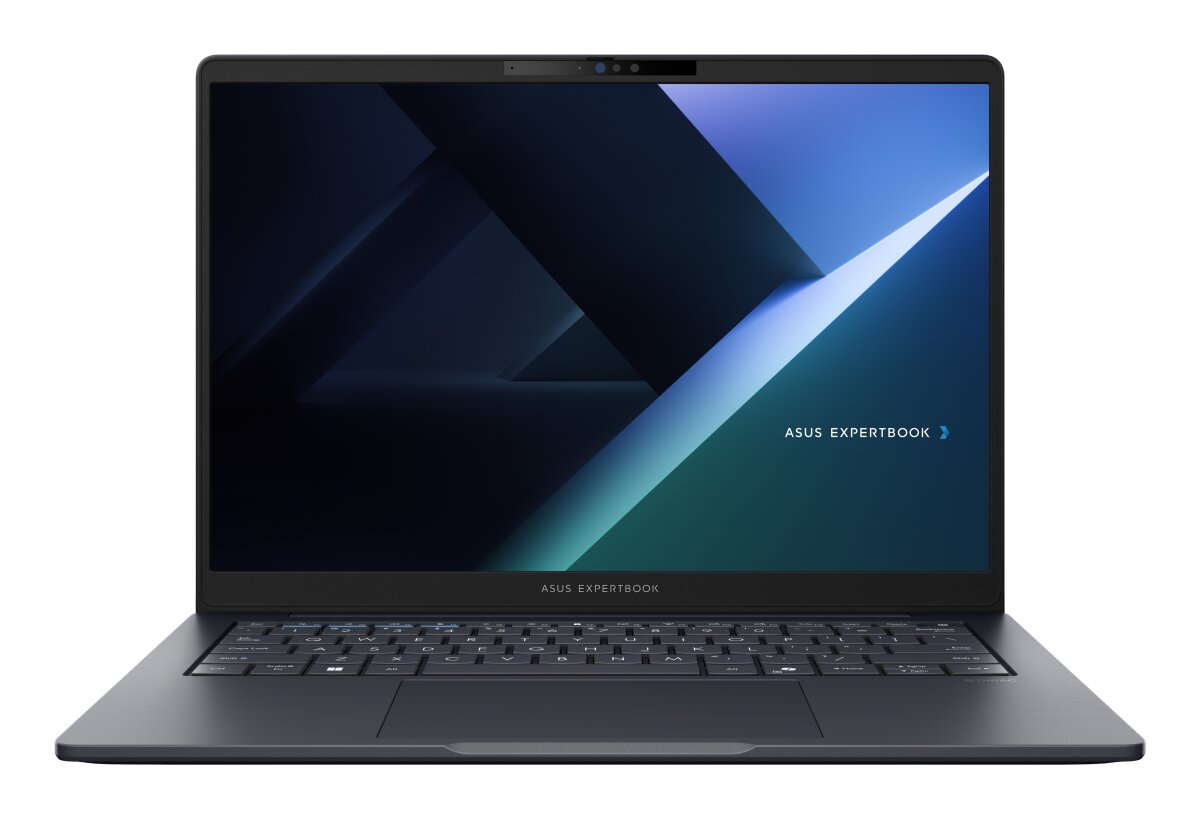

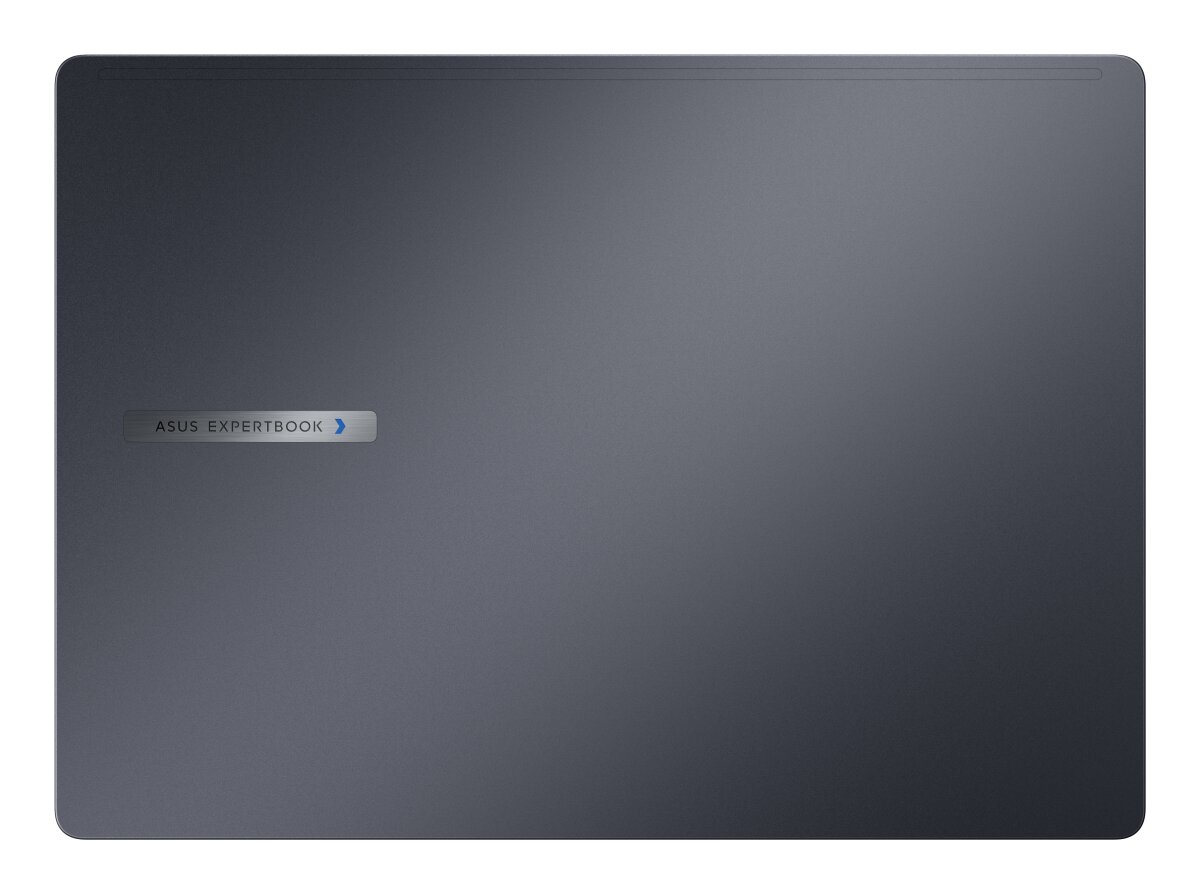

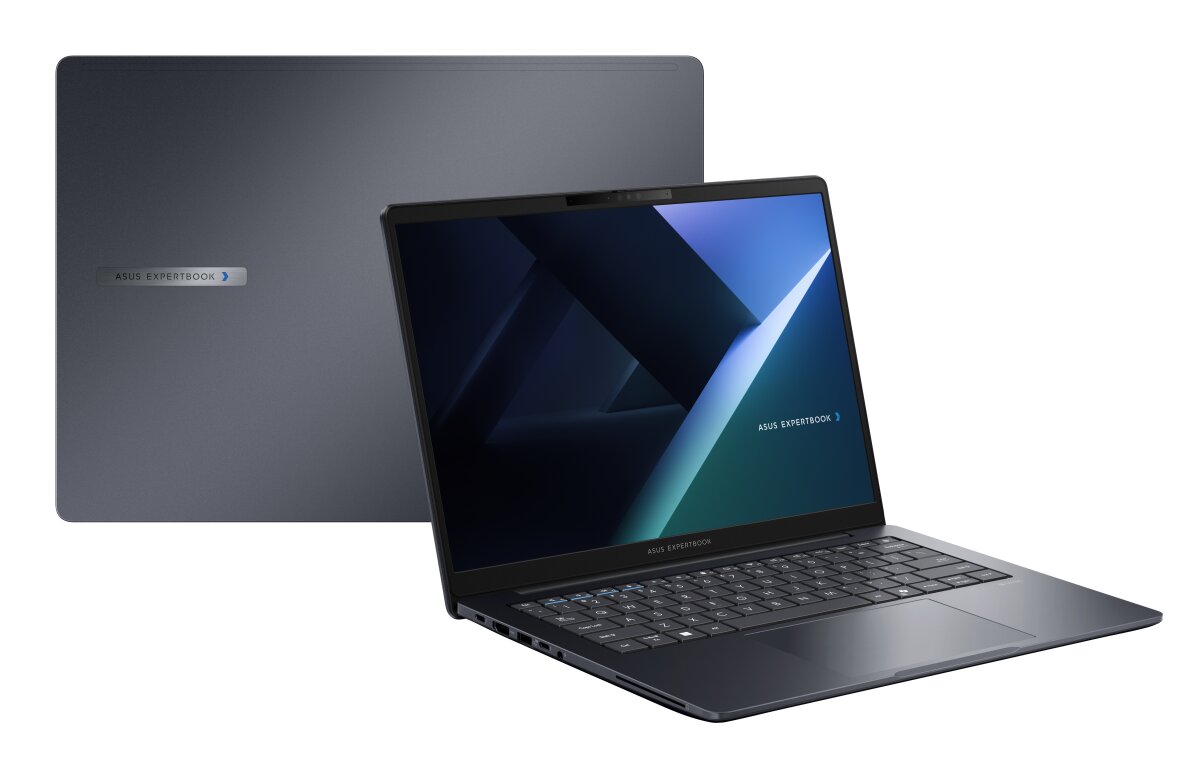

ASUS ExpertBook B5405CCA-LY0324X - 90NX08I1-M00B70

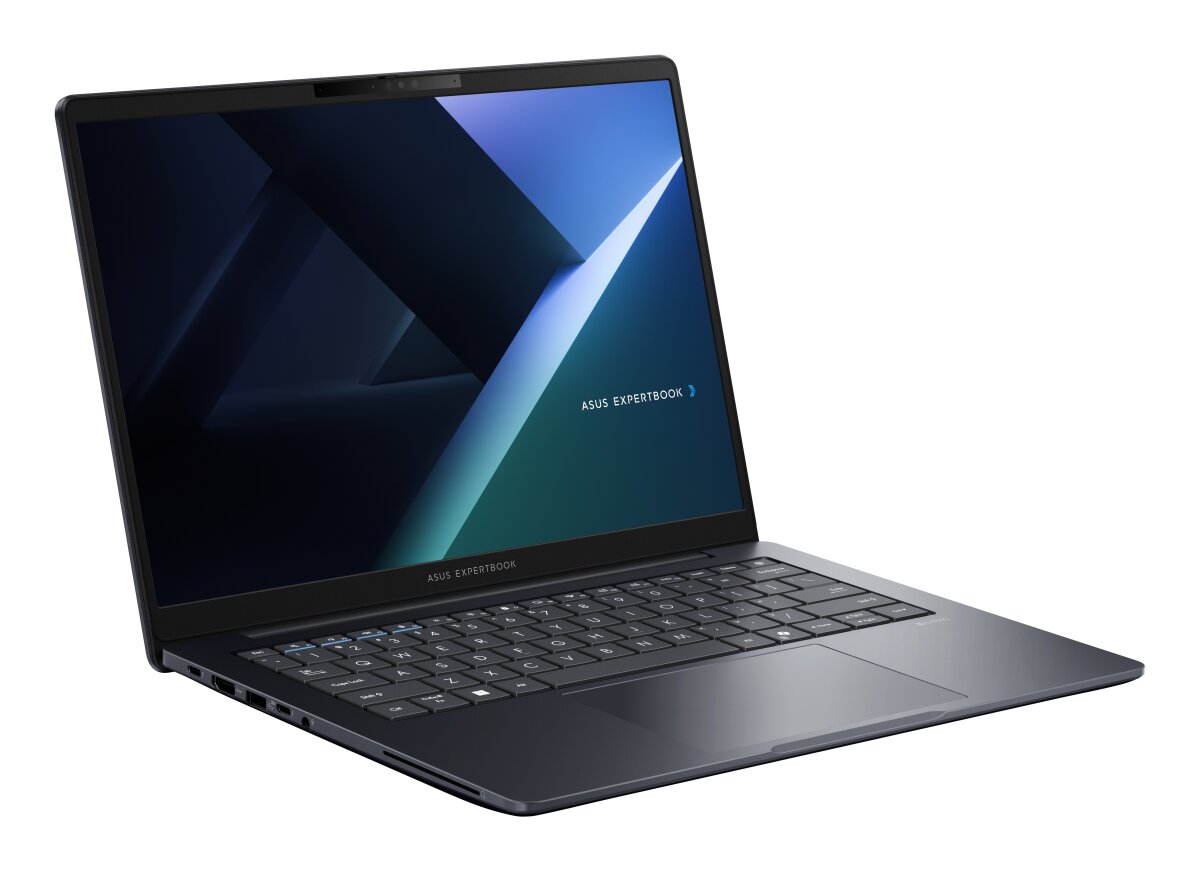

ASUS ExpertBook B5405CCA-LY0324X
Product code: 90NX08I1-M00B70
- 💻Display diagonal: 14 inch
- 🔳Processor model: 255H
- 🎫Internal memory: 32 GB
- 🎮On-board graphics adapter model:
- 🎮Discrete graphics adapter model:
- 💽Total storage capacity: 256 GB
- ⚖️Weight: 1.43 kg
📊 Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Product type | Laptop |
| Form factor | Clamshell |
| Market positioning | Work |
| Housing material | Aluminium |
| Introduction year | 2025 |
| Display | |
| Display diagonal | 14 inch |
| Display brightness | 300 cd/m² |
| HD type | WUXGA |
| LED backlight | Yes |
| Touchscreen | No |
| Display resolution | 1920 x 1200 pixels |
| RGB colour space | NTSC |
| Colour gamut | 45% |
| Native aspect ratio | 16:10 |
| Brand | ASUS |
| Family | ExpertBook |
| Series | B5 |
| Model name | B5405CCA-LY0324X |
| Part Number | 90NX08I1-M00B70 |
| EAN/UPC code | 4711636034418, 0199291034419, 199291034419 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 7 |
| Processor boost frequency | 5.1 GHz |
| Processor model | 255H |
| Processor cores | 16 |
| Processor threads | 16 |
| Processor cache | 24 MB |
| Processor generation | Intel Core Ultra (Series 2) |
| Efficient-core base frequency | 1.5 GHz |
| Efficient cores | 8 |
| Performance cores | 6 |
| Performance-core Max Turbo Frequency | 5.1 GHz |
| Efficient-core Max Turbo Frequency | 4.4 GHz |
| Maximum turbo power | 115 W |
| Processor base power | 28 W |
| Performance-core base frequency | 2 GHz |
| Low Power Efficient-cores | 2 |
| Low Power Efficient-core Max Turbo Frequency | 2.5 GHz |
| Low Power Efficient-core Base Frequency | 700 MHz |
| Memory | |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 32 GB |
| Memory form factor | SO-DIMM |
| Memory slots | 2x SO-DIMM |
| Memory layout (slots x size) | 2 x 16 GB |
| Graphics | |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Arc 140T |
| On-board graphics card family | Intel Arc Graphics |
| On-board GPU manufacturer | Intel |
| Storage | |
| Total storage capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| Total SSDs capacity | 256 GB |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Storage media | SSD |
| NVMe | Yes |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| HDMI version | 2.1 |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| USB Power Delivery (USB PD) | Yes |
| Audio | |
| Audio system | Dirac |
| Camera | |
| Front camera | Yes |
| Privacy camera | Yes |
| Windows Hello | Yes |
| Infrared (IR) camera | Yes |
| Front camera HD type | Full HD |
| Privacy type | Privacy shutter |
| Front camera resolution | 1920 x 1080 pixels |

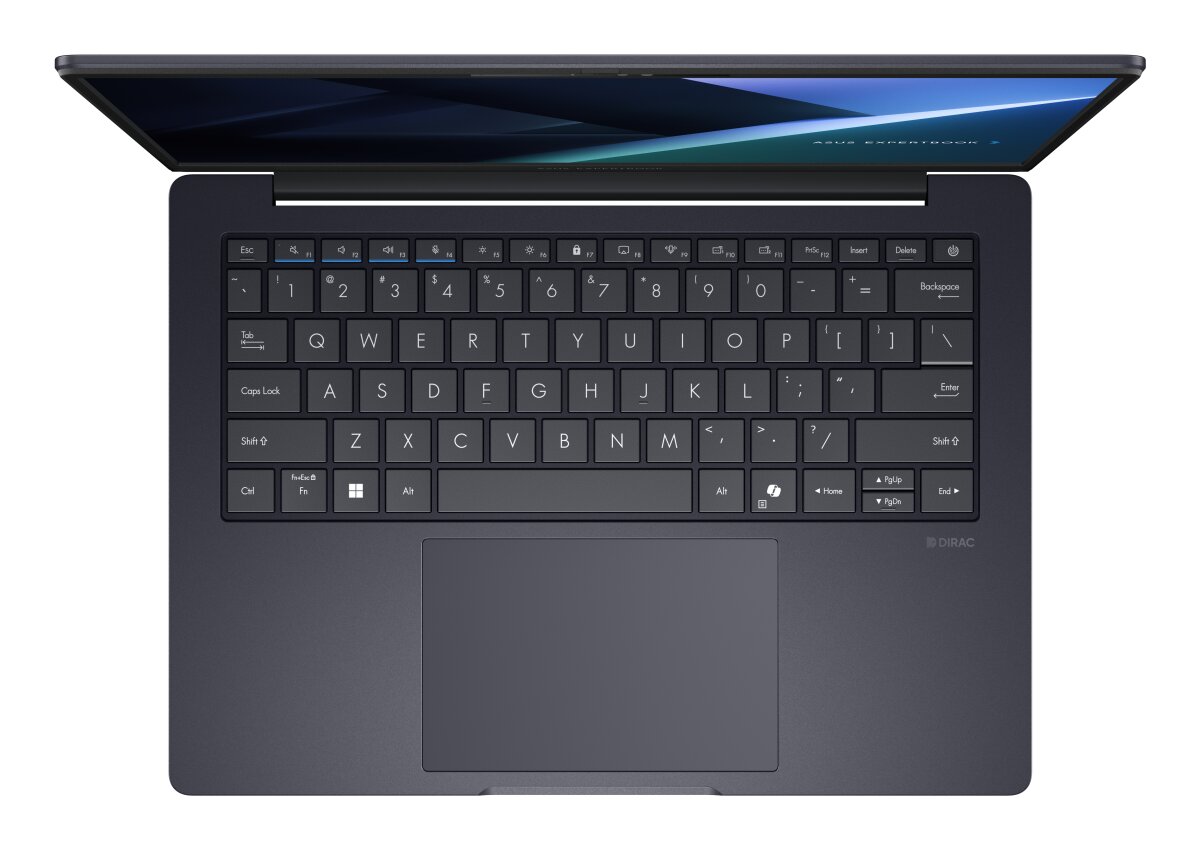

| Keyboard | |
| Numeric keypad | No |
| Keyboard layout | QWERTY |
| Keyboard backlit | Yes |
| Pointing device | Touchpad |
| Keyboard language | US International |
| Software | |
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Trial software | 1-month trial for new Microsoft 365 customers |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 3 |
| Battery capacity | 63 Wh |
| Weight & dimensions | |
| Weight | 1.43 kg |
| Height (rear) | 1.79 cm |
| Height (front) | 1.75 cm |
| Depth | 226.8 mm |
| Width | 315.1 mm |
| Power | |
| AC adapter power | 65 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 20 V |
| AC adapter output current | 3.25 A |
| USB Type-C charging port | Yes |
| Security | |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Face recognition | Yes |
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | BIOS, HDD, User |
| Other features | |
| Anti-glare screen | Yes |
| Neural processor unit (NPU) | |
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Total processor performance up to | 96 TOPs |
| NPU performance up to | 13 TOPs |
| GPU performance up to | 74 TOPs |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
