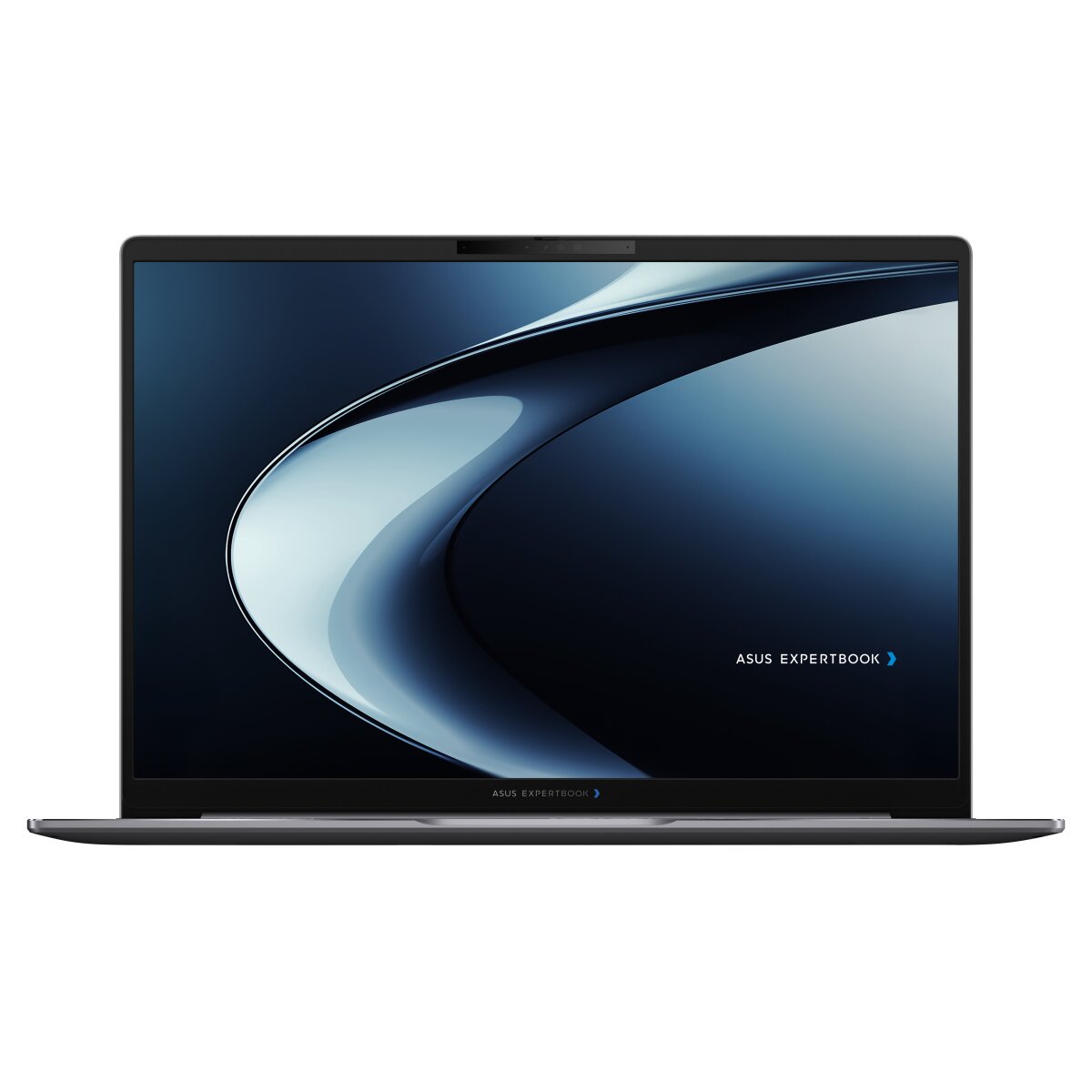

ASUS ExpertBook P5605CAA-PL0042X - 90NX0AC1-M003J0
ASUS ExpertBook P5605CAA-PL0042X
Product code: 90NX0AC1-M003J0
- 💻Display diagonal: 16 inch
- 🔳Processor model: 356H
- 🎫Internal memory: 64 GB
- 🎮On-board graphics adapter model:
- 🎮Discrete graphics adapter model:
- 💽Total storage capacity: 1 TB
- ⚖️Weight: 1.69 kg
📊 Add to compare
Specifications
| Design | |
|---|---|
| Product colour | Grey |
| Product type | Laptop |
| Form factor | Clamshell |
| Market positioning | Work |
| Housing material | Aluminium |
| Introduction year | 2026 |
| Display back cover material | Aluminium |
| Display | |
| Display diagonal | 16 inch |
| Maximum refresh rate | 144 Hz |
| Contrast ratio (typical) | 1500:1 |
| Display brightness | 400 cd/m² |
| HD type | WQXGA |
| Touchscreen | No |
| Display resolution | 2560 x 1600 pixels |
| RGB colour space | sRGB |
| Colour gamut | 100% |
| Native aspect ratio | 16:10 |
| Brand | ASUS |
| Family | ExpertBook |
| Series | P5 G2 |
| Model name | P5605CAA-PL0042X |
| Part Number | 90NX0AC1-M003J0 |
| EAN/UPC code | 4711636534673, 0199291534674, 199291534674 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 7 |
| Processor boost frequency | 4.7 GHz |
| Processor model | 356H |
| Processor cores | 16 |
| Processor threads | 16 |
| Processor cache | 18 MB |
| Processor generation | Intel Core Ultra (Series 3) |
| Efficient-core base frequency | 1.5 GHz |
| Efficient cores | 8 |
| Performance cores | 4 |
| Performance-core Max Turbo Frequency | 4.7 GHz |
| Efficient-core Max Turbo Frequency | 3.7 GHz |
| Maximum turbo power | 80 W |
| Processor base power | 25 W |
| Performance-core base frequency | 1.9 GHz |
| Low Power Efficient-cores | 4 |
| Low Power Efficient-core Max Turbo Frequency | 3.3 GHz |
| Low Power Efficient-core Base Frequency | 1500 MHz |
| Memory | |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 64 GB |
| Memory form factor | SO-DIMM |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 64 GB |
| Memory layout (slots x size) | 2 x 32 GB |
| Graphics | |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Graphics |
| On-board graphics card family | Intel Graphics |
| On-board GPU manufacturer | Intel |
| Storage | |
| Total storage capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| Total SSDs capacity | 1 TB |
| SSD interface | PCI Express 5.0 |
| SSD form factor | M.2 |
| Storage media | SSD |
| NVMe | Yes |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI version | 2.1 |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| Audio | |
| Built-in microphone | Yes |
| Audio system | Dirac |
| Camera | |
| Front camera | Yes |
| Privacy camera | Yes |
| Windows Hello | Yes |
| Infrared (IR) camera | Yes |
| Privacy type | Privacy shutter |
| Front camera resolution (numeric) | 5 MP |
| Keyboard | |
| Numeric keypad | Yes |
| Keyboard backlit | Yes |
| Pointing device | Touchpad |
| Copilot key | Yes |
| Software | |
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Trial software | 1-month trial for new Microsoft 365 customers; McAfee 1 year |
| Microsoft Copilot | Yes |
| Copilot+ PC | Yes |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 3 |
| Battery capacity | 63 Wh |
| Weight & dimensions | |
| Weight | 1.69 kg |
| Height (rear) | 1.8 cm |
| Height (front) | 1 cm |
| Depth | 253.9 mm |
| Width | 358.4 mm |
| Power | |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| USB Type-C charging port | Yes |
| USB Type-C required charging power (min) | 55 W |
| USB Type-C required charging power (max) | 65 W |
| Security | |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Face recognition | Yes |
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | BIOS, User |
| Trusted Platform Module (TPM) version | 2.0 |
| Other features | |
| Anti-glare screen | Yes |
| Neural processor unit (NPU) | |
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| NPU performance up to | 50 TOPs |
| GPU performance up to | 40 TOPs |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
