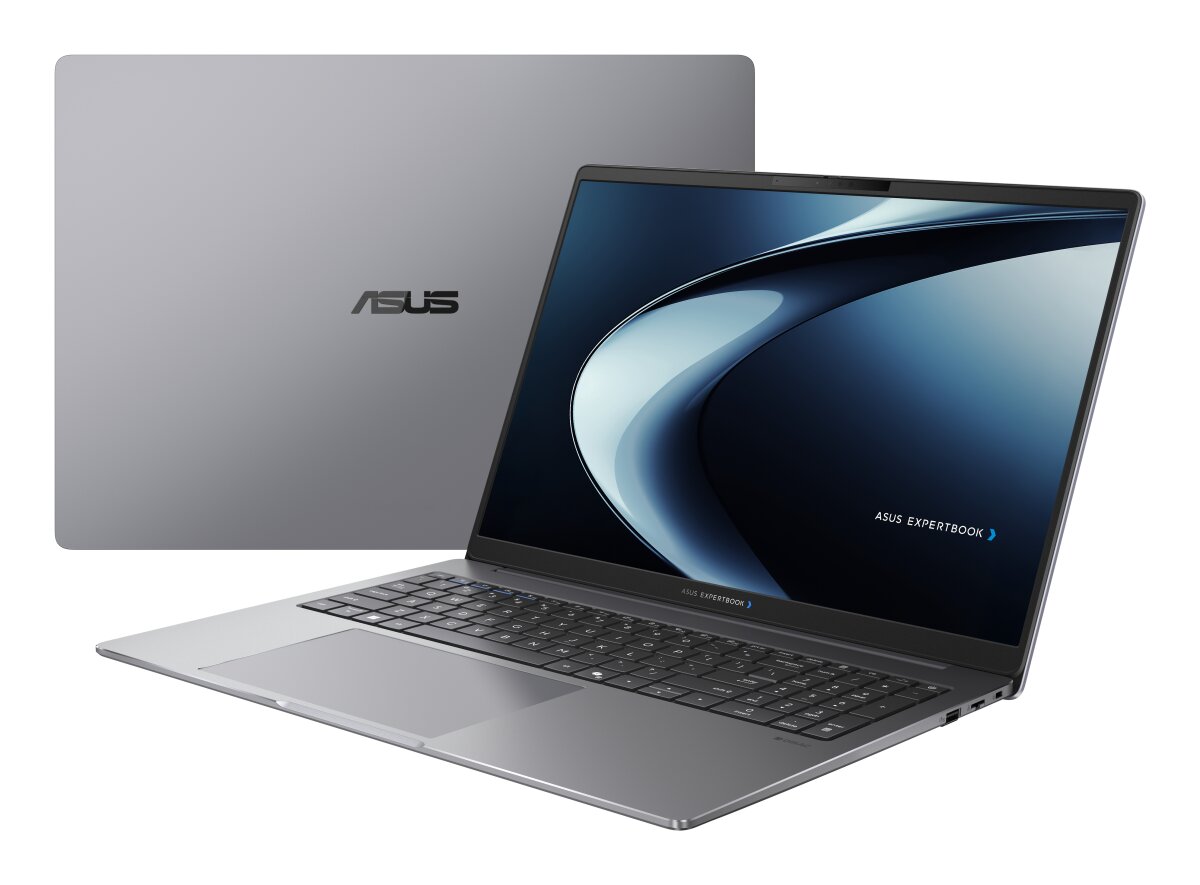

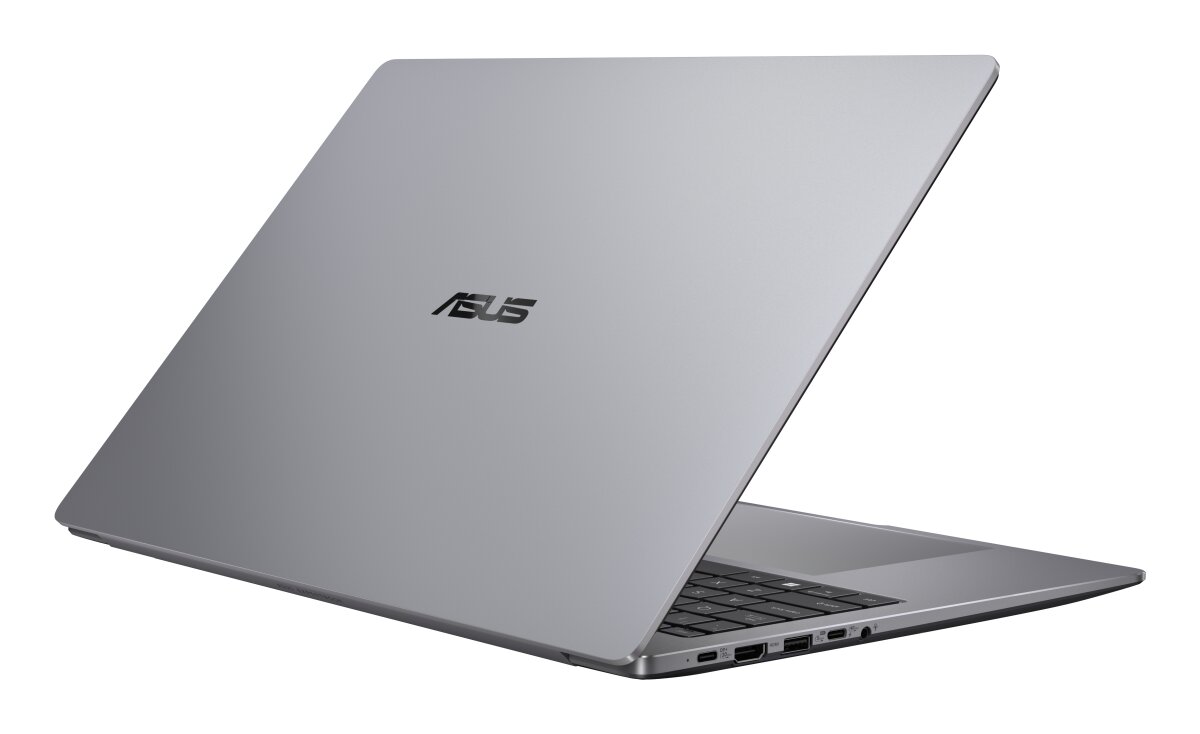

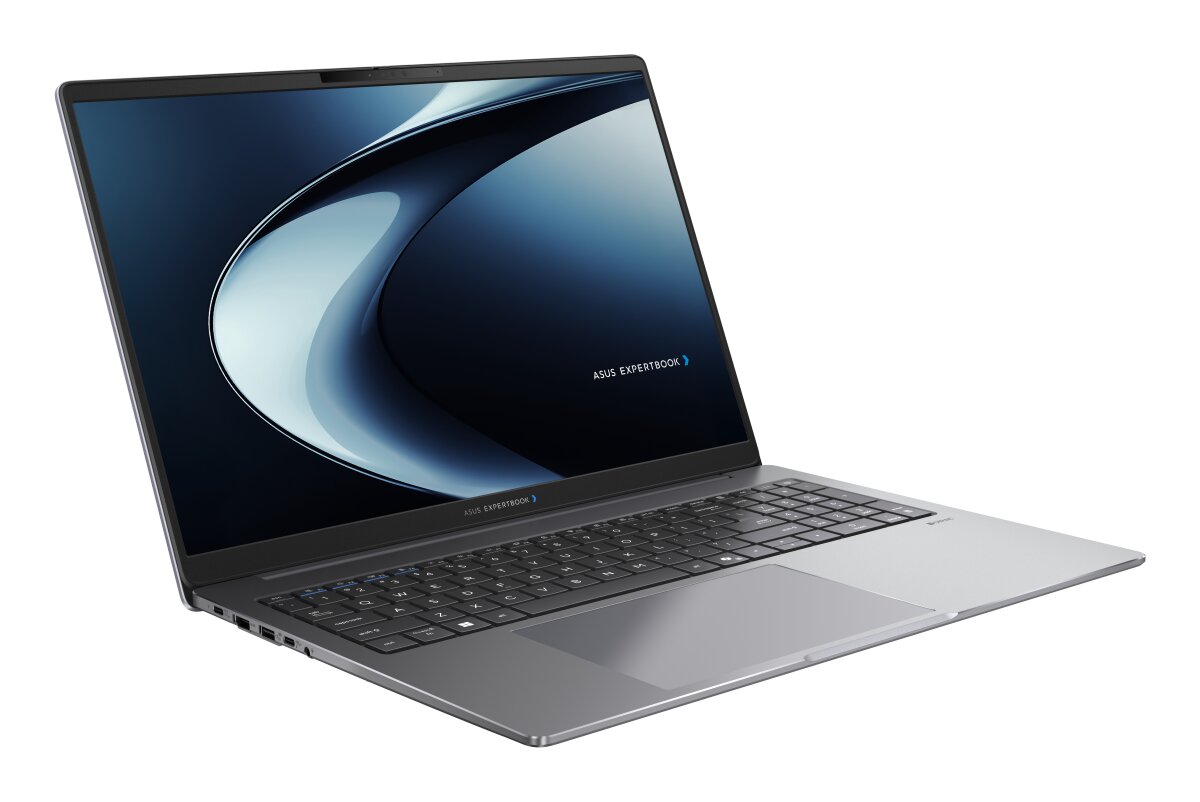

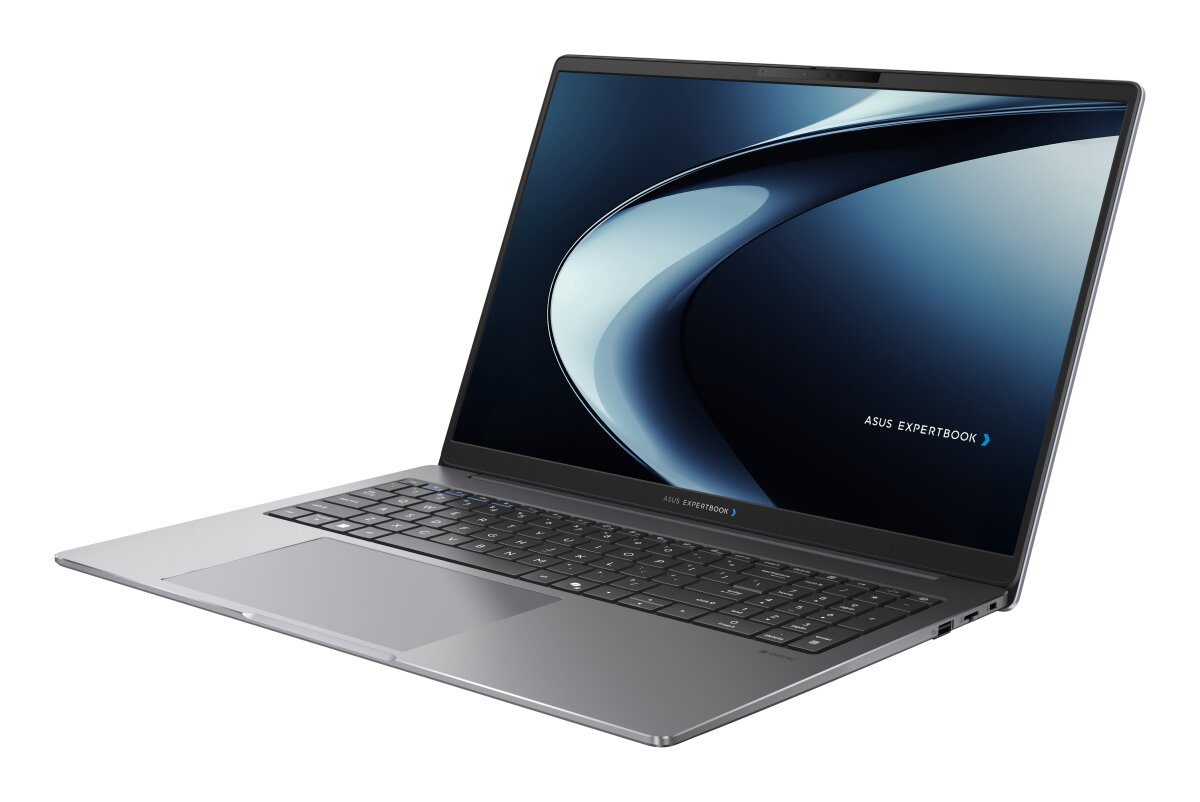

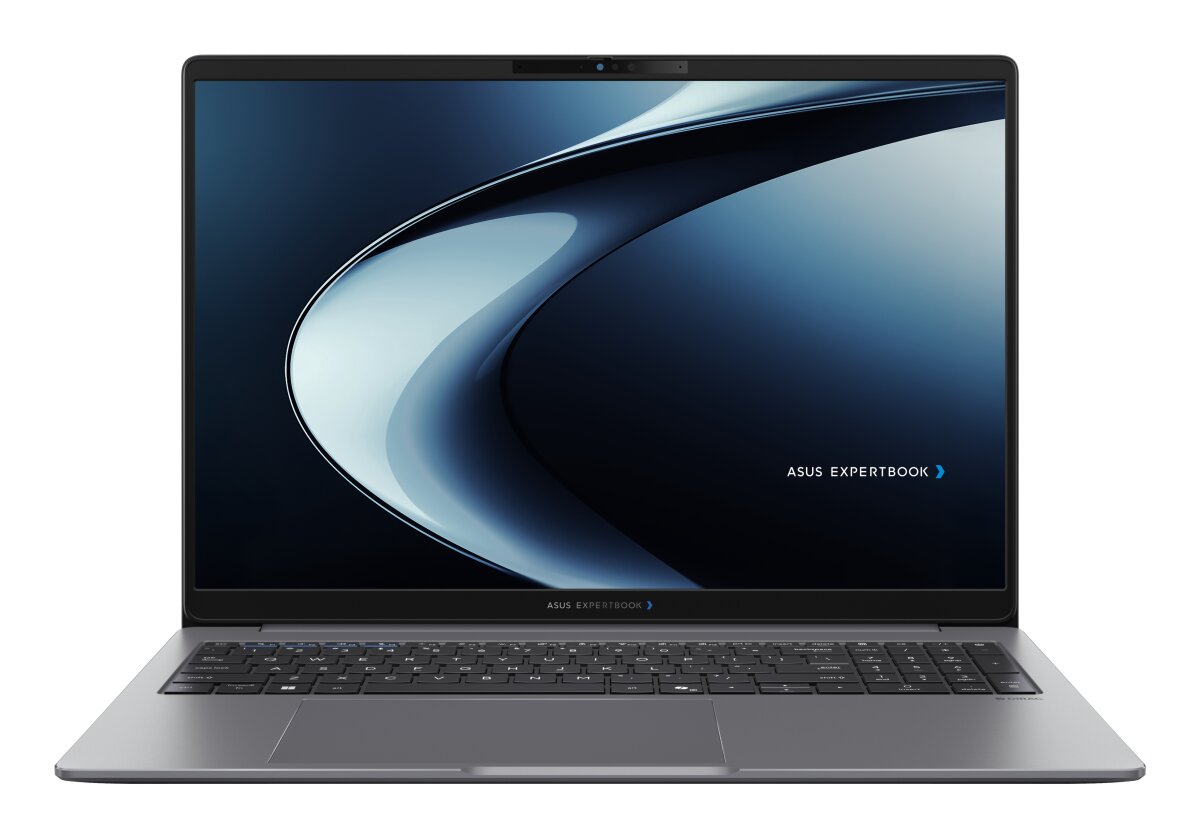

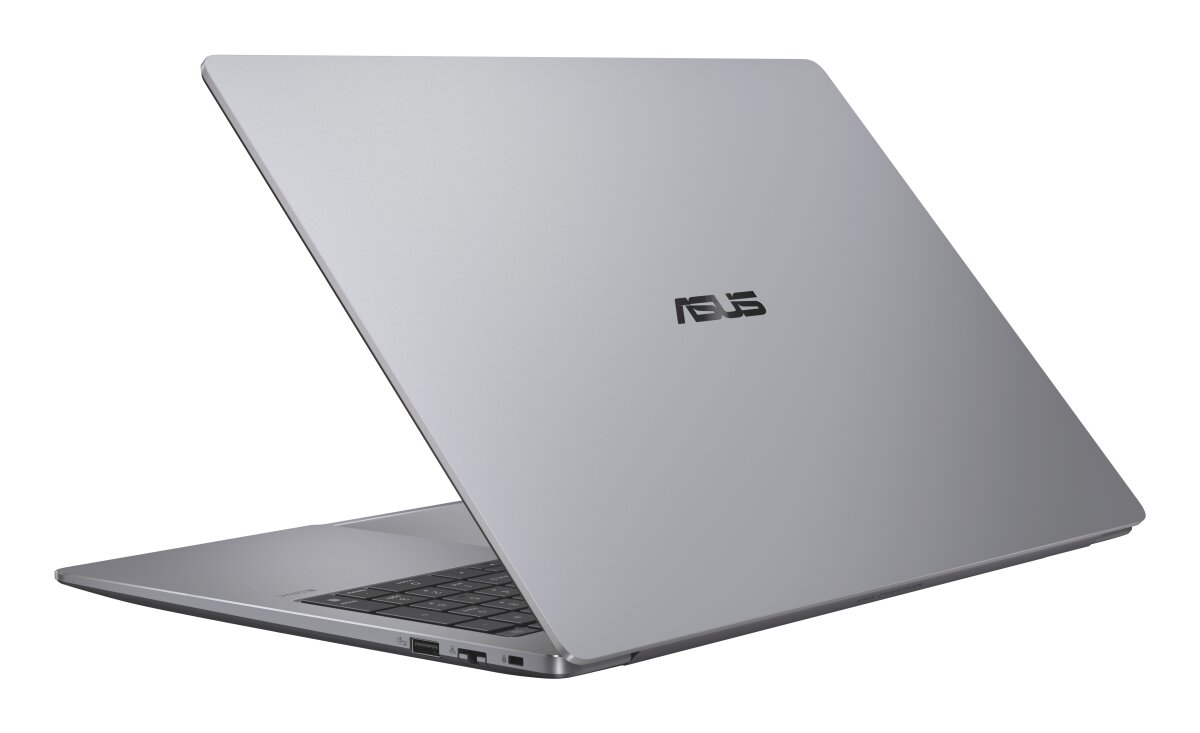

ASUS ExpertBook PM5606CGA-SH0018X - 90NX0AB1-M000K0
ASUS ExpertBook PM5606CGA-SH0018X
Product code: 90NX0AB1-M000K0
- 💻Display diagonal: 16 inch
- 🔳Processor model: 470
- 🎫Internal memory: 32 GB
- 🎮On-board graphics adapter model:
- 🎮Discrete graphics adapter model:
- 💽Total storage capacity: 1 TB
- ⚖️Weight:
📊 Add to compare
Specifications
| Design | |
|---|---|
| Product colour | Grey |
| Product type | Laptop |
| Form factor | Clamshell |
| Market positioning | Work |
| Housing material | Aluminium |
| Introduction year | 2026 |
| Display back cover material | Aluminium |
| Display | |
| Display diagonal | 16 inch |
| Display brightness | 300 cd/m² |
| Panel type | OLED |
| Display surface | Gloss |
| HD type | WUXGA |
| Touchscreen | No |
| Display resolution | 1920 x 1200 pixels |
| RGB colour space | DCI-P3 |
| Colour gamut | 95% |
| Native aspect ratio | 16:10 |
| Brand | ASUS |
| Family | ExpertBook |
| Series | P5 G2 |
| Model name | PM5606CGA-SH0018X |
| Part Number | 90NX0AB1-M000K0 |
| EAN/UPC code | 4711636306164 |
|
|
|
| Processor | |
| Processor manufacturer | AMD |
| L3 cache | 24 MB |
| Processor family | AMD Ryzen AI 9 HX |
| Processor frequency | 2 GHz |
| Processor boost frequency | 5.2 GHz |
| Processor model | 470 |
| Processor cores | 12 |
| Processor threads | 24 |
| Processor generation | AMD Ryzen AI 400 Series |
| Memory | |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 32 GB |
| Memory form factor | SO-DIMM |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 64 GB |
| Memory layout (slots x size) | 1 x 16 GB |
| Graphics | |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | AMD Radeon 890M |
| On-board graphics card family | AMD Radeon |
| On-board GPU manufacturer | AMD |
| Storage | |
| Total storage capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| Total SSDs capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| Card reader integrated | No |
| Storage media | SSD |
| NVMe | Yes |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |

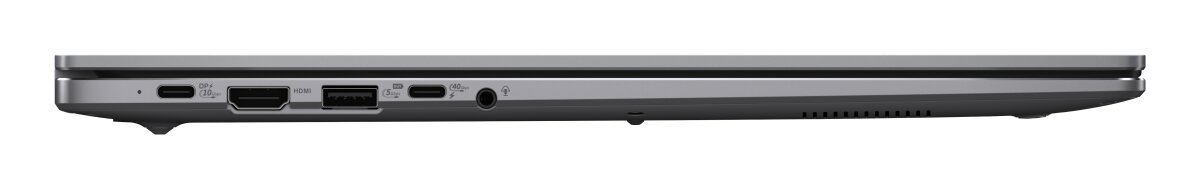

| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI version | 2.1 |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB4 Gen 3x2 ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| Audio | |
| Built-in microphone | Yes |
| Number of built-in speakers | 2 |
| Audio system | Dirac |
| Camera | |
| Front camera | Yes |
| Windows Hello | Yes |

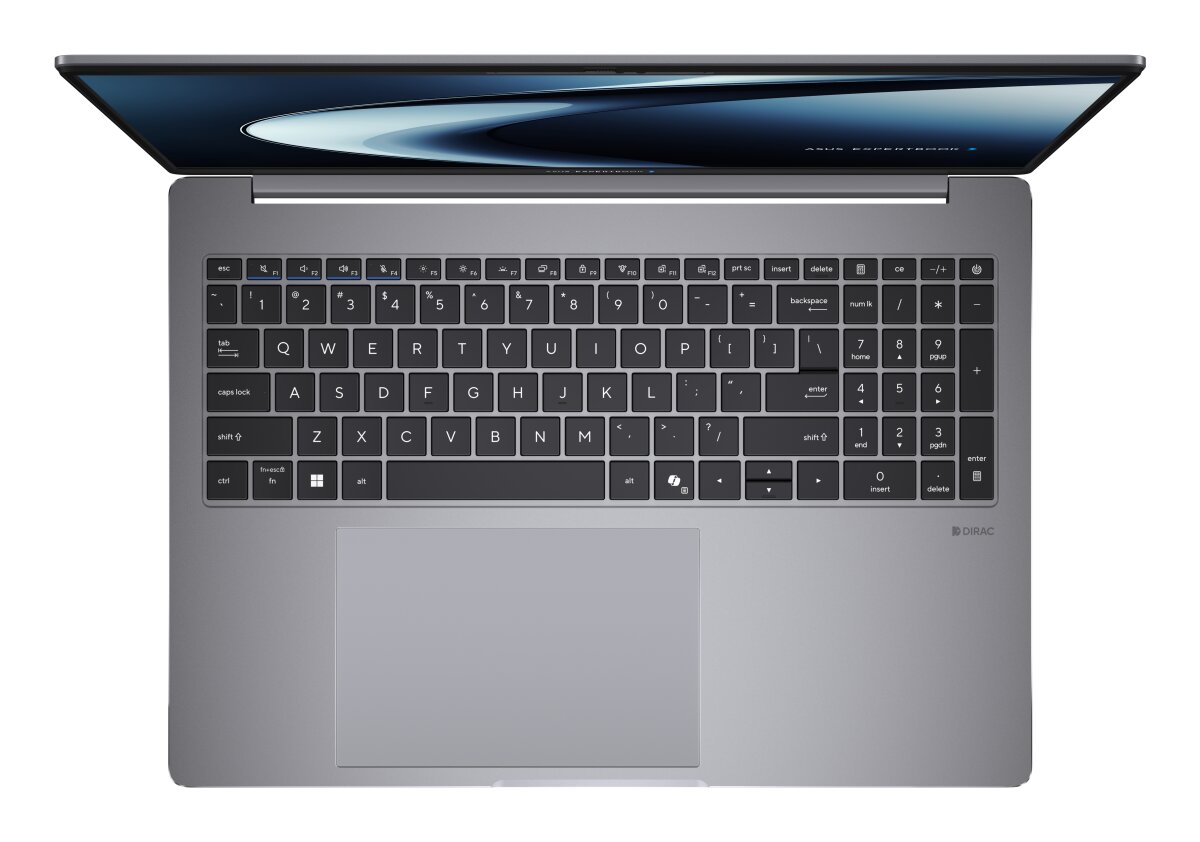

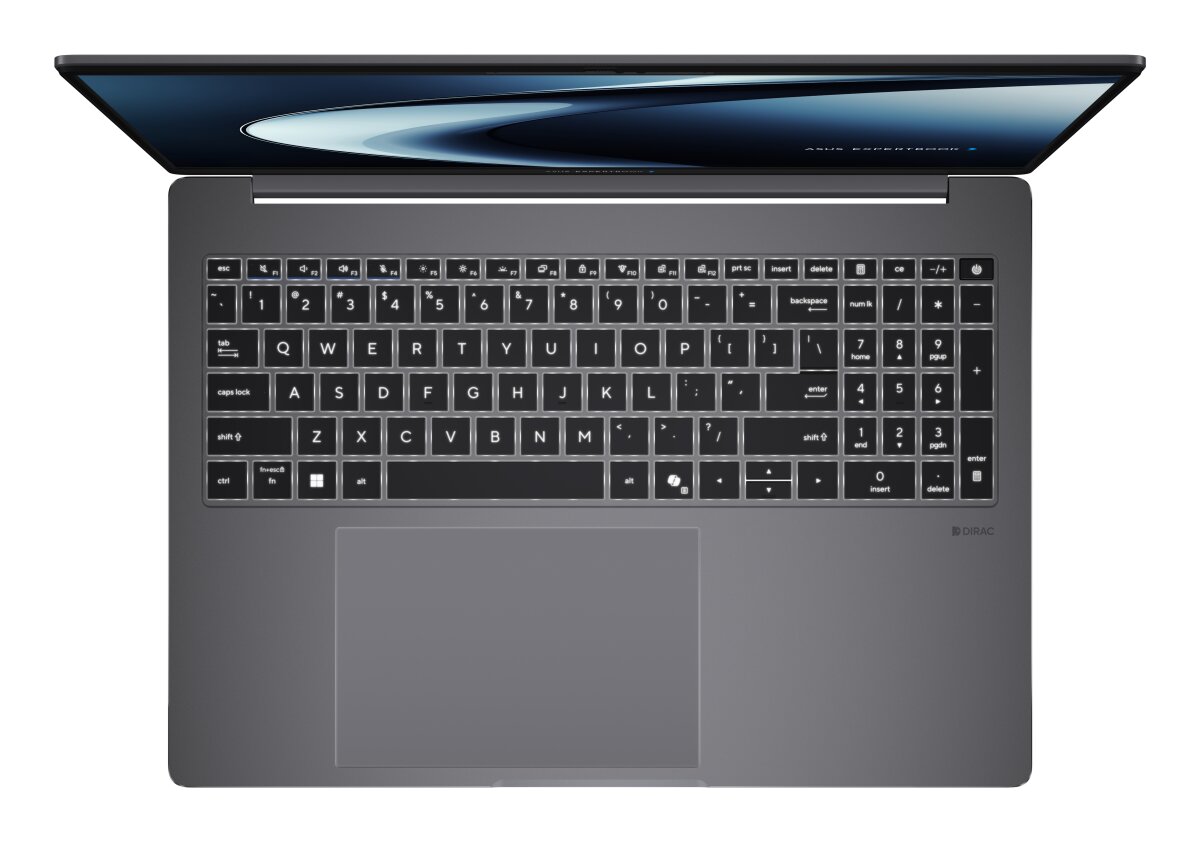

| Keyboard | |
| Numeric keypad | Yes |
| Keyboard backlit | Yes |
| Pointing device | Touchpad |
| Copilot key | Yes |
| Software | |
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Microsoft Copilot | Yes |
| Copilot+ PC | Yes |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
| Battery capacity | 70 Wh |
| Weight & dimensions | |
| Height (rear) | 1.8 cm |
| Height (front) | 9.8 mm |
| Depth | 253.5 mm |
| Width | 358.4 mm |
| Power | |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| USB Type-C charging port | Yes |
| Security | |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Face recognition | Yes |
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Other features | |
| L2 cache | 12 MB |
| Neural processor unit (NPU) | |
| Neural processor unit (NPU) | AMD Ryzen AI |
| Total processor performance up to | 86 TOPs |
| NPU performance up to | 55 TOPs |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
