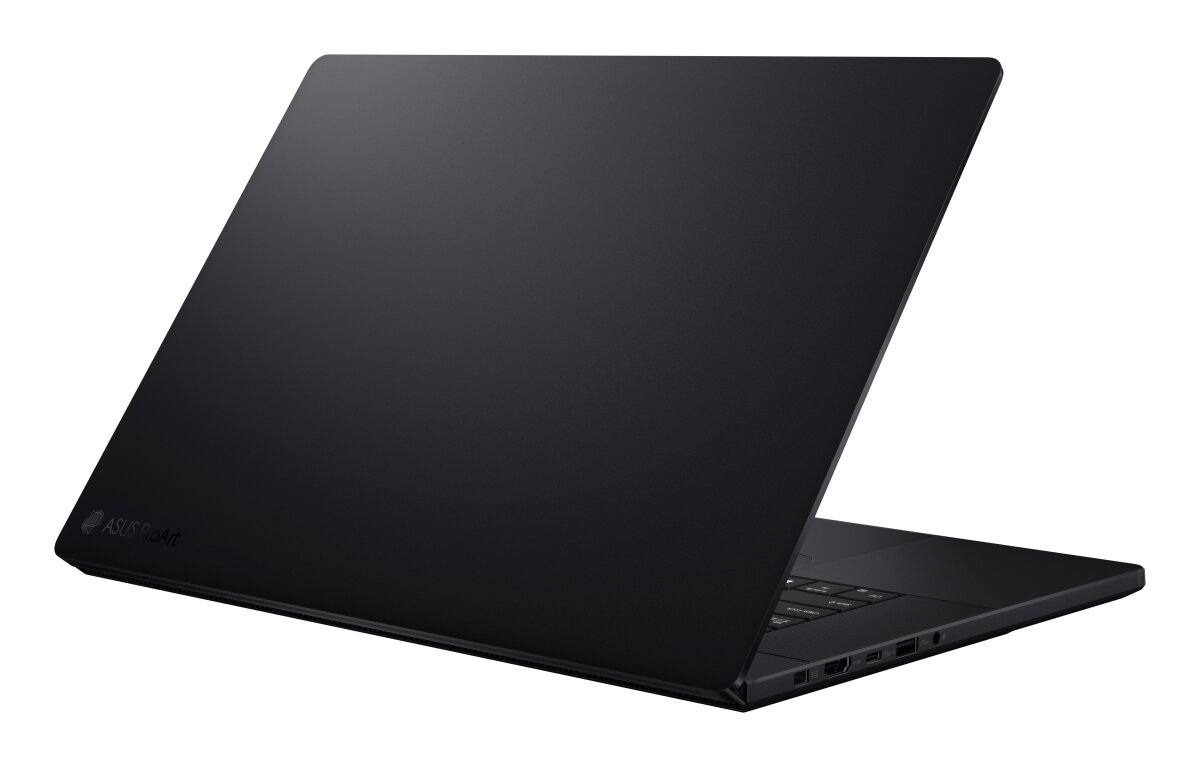

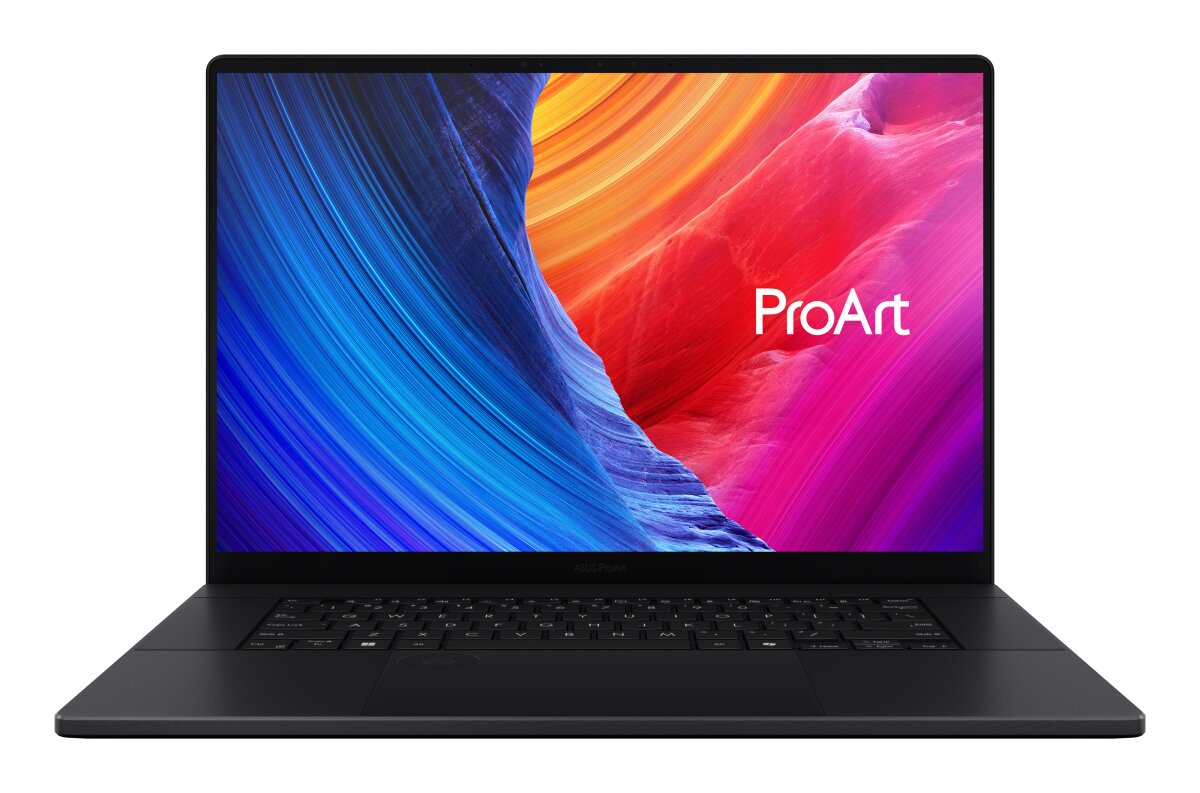

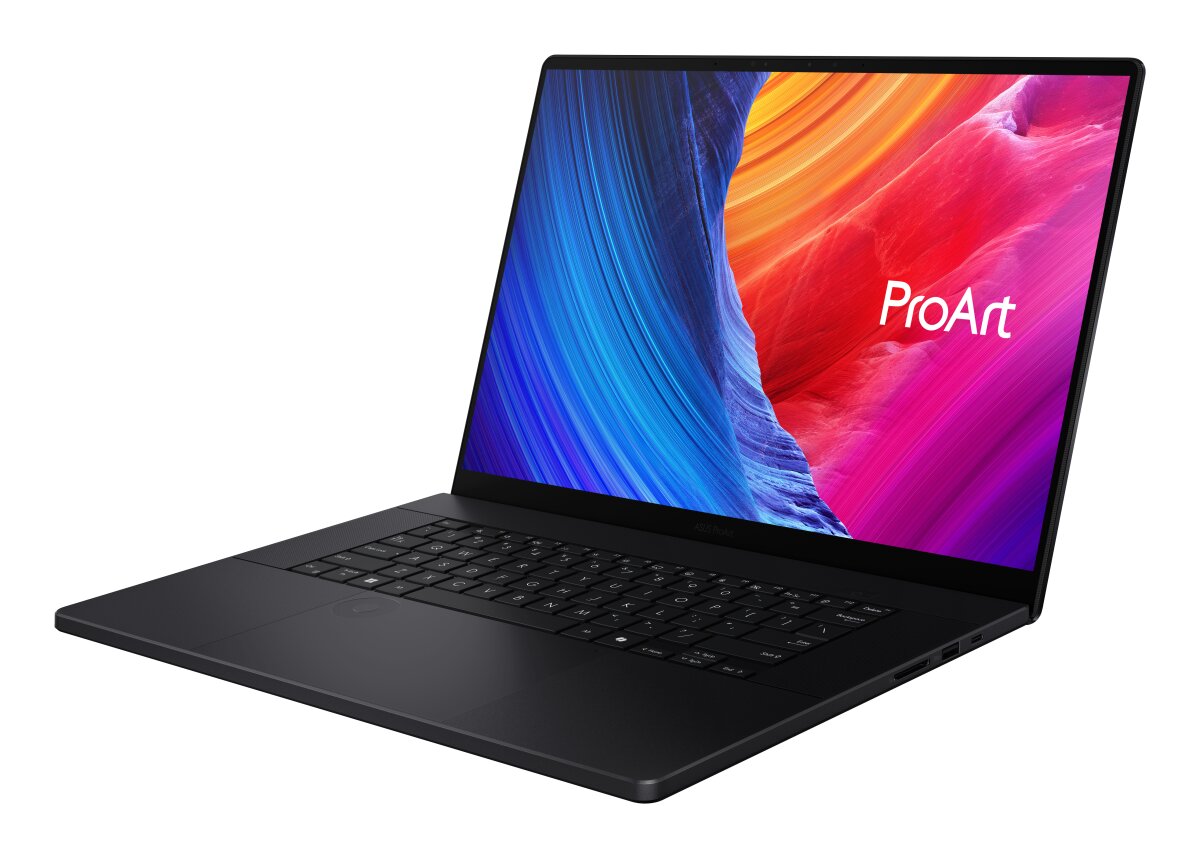

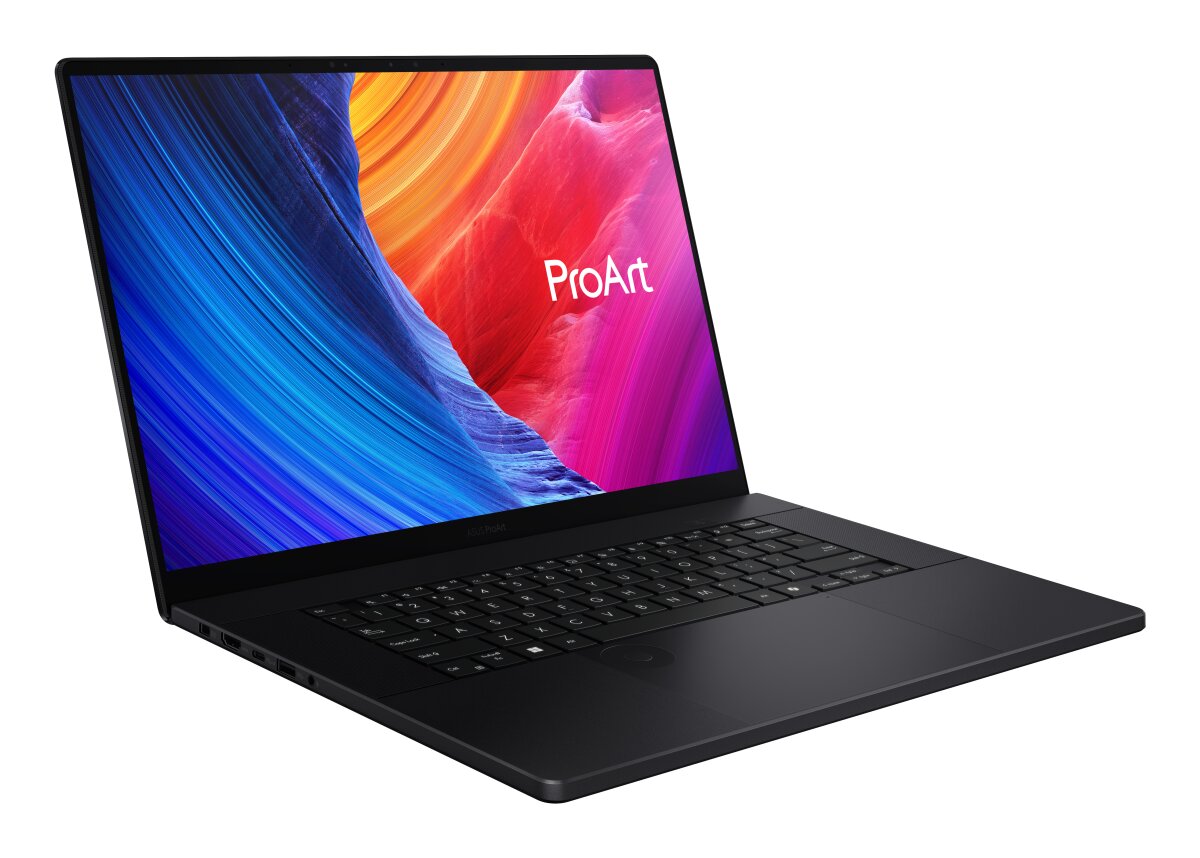

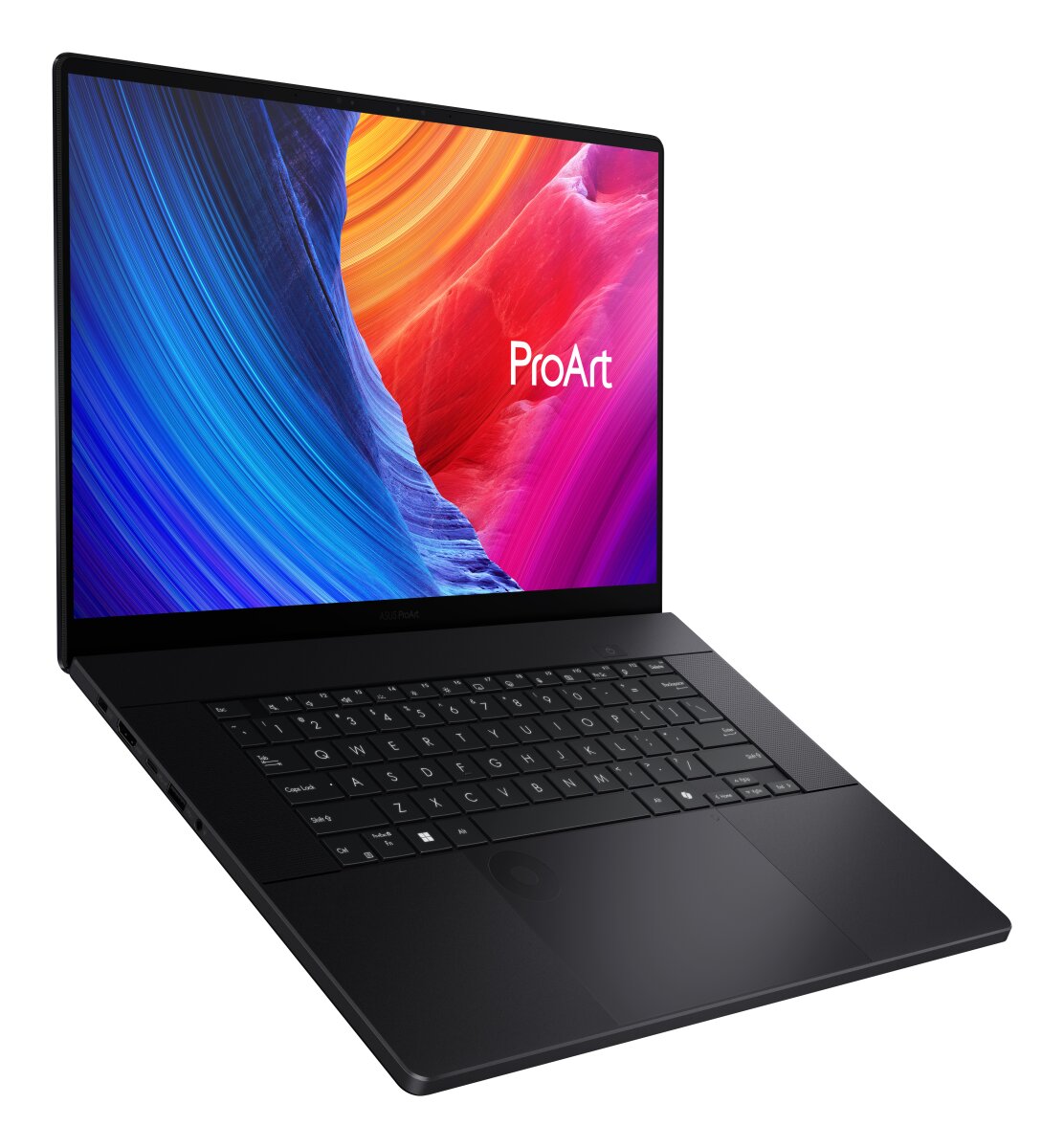

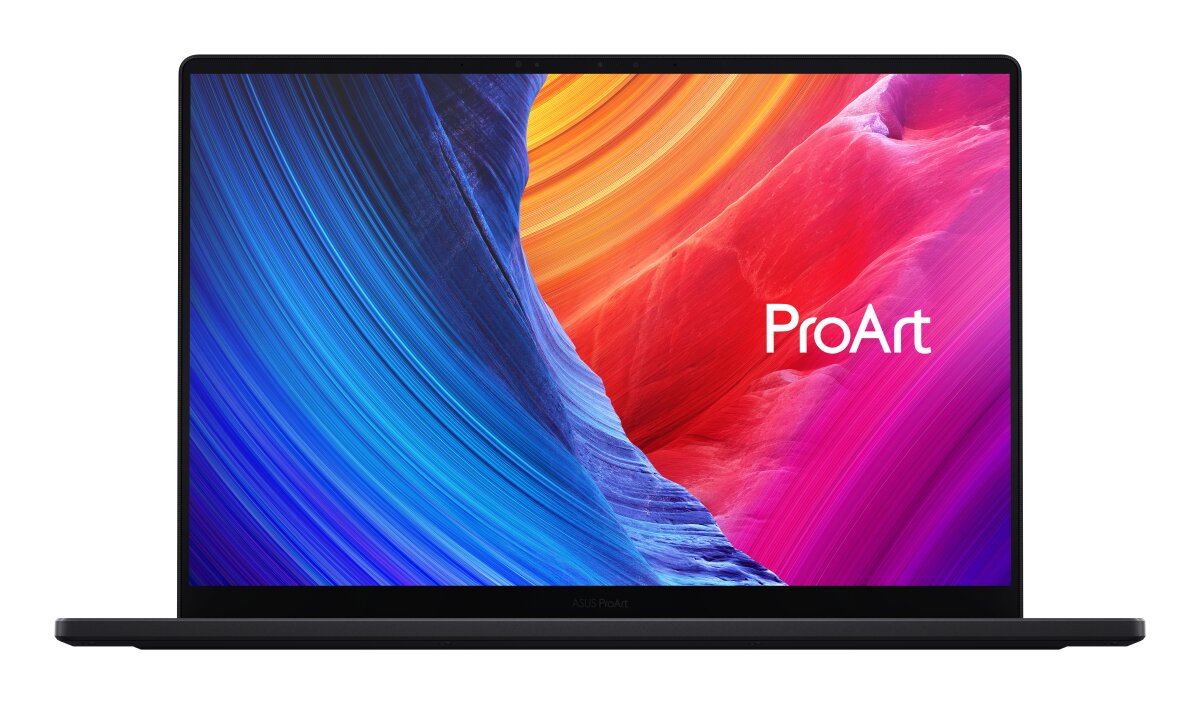

ASUS ProArt P16 H7606WX-SE011X - 90NB17E1-M001Y0
ASUS ProArt P16 H7606WX-SE011X
Product code: 90NB17E1-M001Y0
- 💻Display diagonal: 16 inch
- 🔳Processor model: 370
- 🎫Internal memory: 64 GB
- 🎮On-board graphics adapter model:
- 🎮Discrete graphics adapter model:
- 💽Total storage capacity: 4 TB
- ⚖️Weight: 1.95 kg
📊 Add to compare
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Product type | Laptop |
| Form factor | Clamshell |
| Market positioning | Performance |
| Housing material | Aluminium |
| Introduction year | 2024 |
| Display back cover material | Aluminium |
| Display | |
| Display diagonal | 16 inch |
| Maximum refresh rate | 120 Hz |
| Display response rise/fall | 0.2 ms |
| Contrast ratio (typical) | 1000000:1 |
| Panel type | OLED |
| Display surface | Gloss |
| HD type | 4K Ultra HD |
| Touchscreen | Yes |
| Display resolution | 3840 x 2400 pixels |
| Display number of colours | 1.07 billion colours |
| High Dynamic Range (HDR) technology | DisplayHDR True Black 1000 |
| RGB colour space | DCI-P3 |
| Colour gamut | 100% |
| Native aspect ratio | 16:10 |
| High Dynamic Range (HDR) supported | Yes |
| Maximum display brightness (HDR) | 1600 cd/m² |
| Brand | ASUS |
| Family | ProArt |
| Series | P16 |
| Model name | H7606WX-SE011X |
| Part Number | 90NB17E1-M001Y0 |
| EAN/UPC code | 4711636196932, 4711636262163 |
|
|
|
| Processor | |
| Processor manufacturer | AMD |
| L3 cache | 24 MB |
| Processor family | AMD Ryzen AI 9 HX |
| Processor frequency | 2 GHz |
| Processor boost frequency | 5.1 GHz |
| Processor model | 370 |
| Processor cores | 12 |
| Processor threads | 24 |
| Processor generation | AMD Ryzen AI 300 Series |
| Memory | |
| Internal memory type | LPDDR5x-SDRAM |
| Internal memory | 64 GB |
| Memory form factor | On-board |
| Maximum internal memory | 64 GB |
| Graphics | |
| Discrete graphics memory type | GDDR7 |
| Discrete GPU manufacturer | NVIDIA |
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA GeForce RTX 5090 |
| On-board graphics card model | AMD Radeon 890M |
| On-board graphics card family | AMD Radeon |
| Discrete graphics card memory | 24 GB |
| On-board GPU manufacturer | AMD |
| Storage | |
| Total storage capacity | 4 TB |
| Number of SSDs installed | 2 |
| SSD capacity | 2 TB |
| Total SSDs capacity | 4 TB |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| Compatible memory cards | SD |
| Card reader integrated | Yes |
| Storage media | SSD |
| NVMe | Yes |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | No |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |

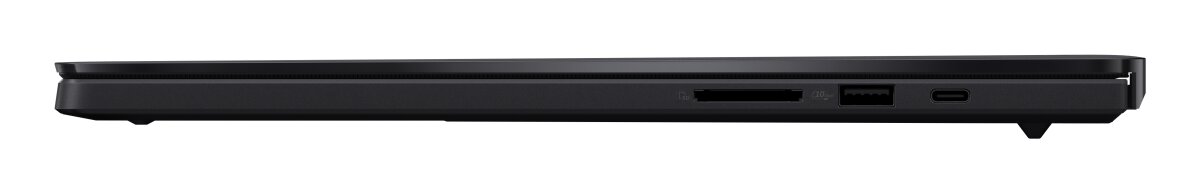

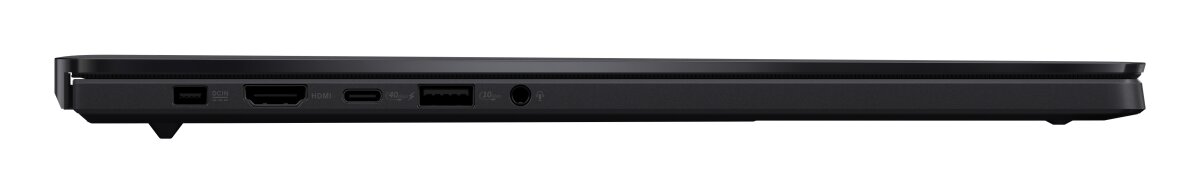

| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI version | 2.1 |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
| HDMI ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB4 Gen 3x2 ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| Audio | |
| Built-in microphone | Yes |
| Audio system | Smart Amp |
| Camera | |
| Front camera | Yes |
| Windows Hello | Yes |
| Infrared (IR) camera | Yes |
| Front camera HD type | Full HD |
| Front camera resolution | 1920 x 1080 pixels |

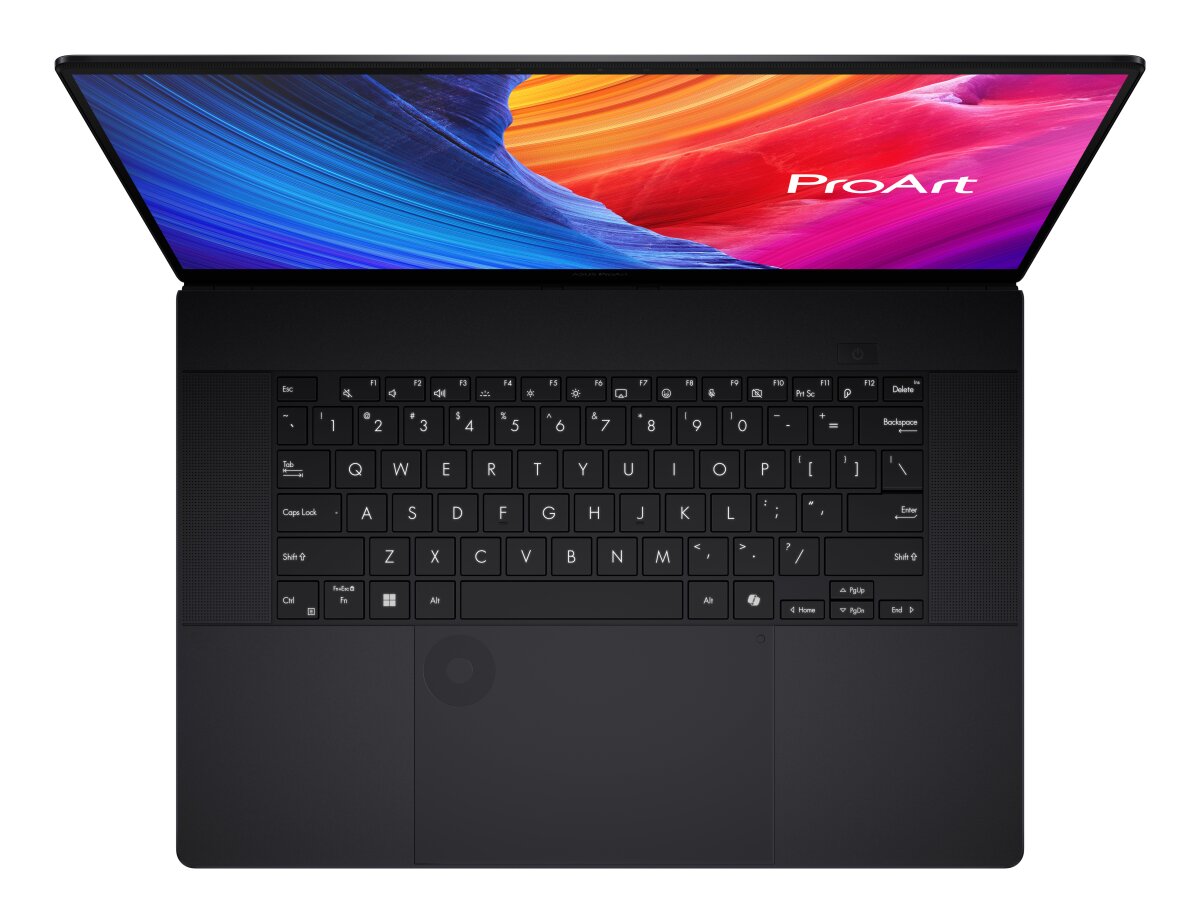

| Keyboard | |
| Numeric keypad | No |
| Keyboard backlit | Yes |
| Pointing device | Touchpad + DialPad |
| Copilot key | Yes |
| Software | |
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Bundled software | 6-month GoPro Premium+ subscription 3-month Adobe Creative Cloud All Apps, Individual subscription (all apps). Activation available from September 15, 2021, to August 31, 2026. Xbox Game Pass Premium_2 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass Premium. Eligible markets are determined at activation. Game catalog varies by region, device, and time.) |
| Trial software | 1-month trial for new Microsoft 365 customers |
| Microsoft Copilot | Yes |
| Copilot+ PC | Yes |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
| Battery capacity | 90 Wh |
| Weight & dimensions | |
| Weight | 1.95 kg |
| Height (rear) | 1.83 cm |
| Height (front) | 1.49 cm |
| Depth | 246.9 mm |
| Width | 354.9 mm |
| Power | |
| AC adapter power | 240 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 20 V |
| AC adapter output current | 12 A |
| USB Type-C charging port | Yes |
| Security | |
| Face recognition | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Other features | |
| L2 cache | 12 MB |
| Neural processor unit (NPU) | |
| Neural processor unit (NPU) | AMD Ryzen AI |
| Total processor performance up to | 80 TOPs |
| NPU performance up to | 50 TOPs |
