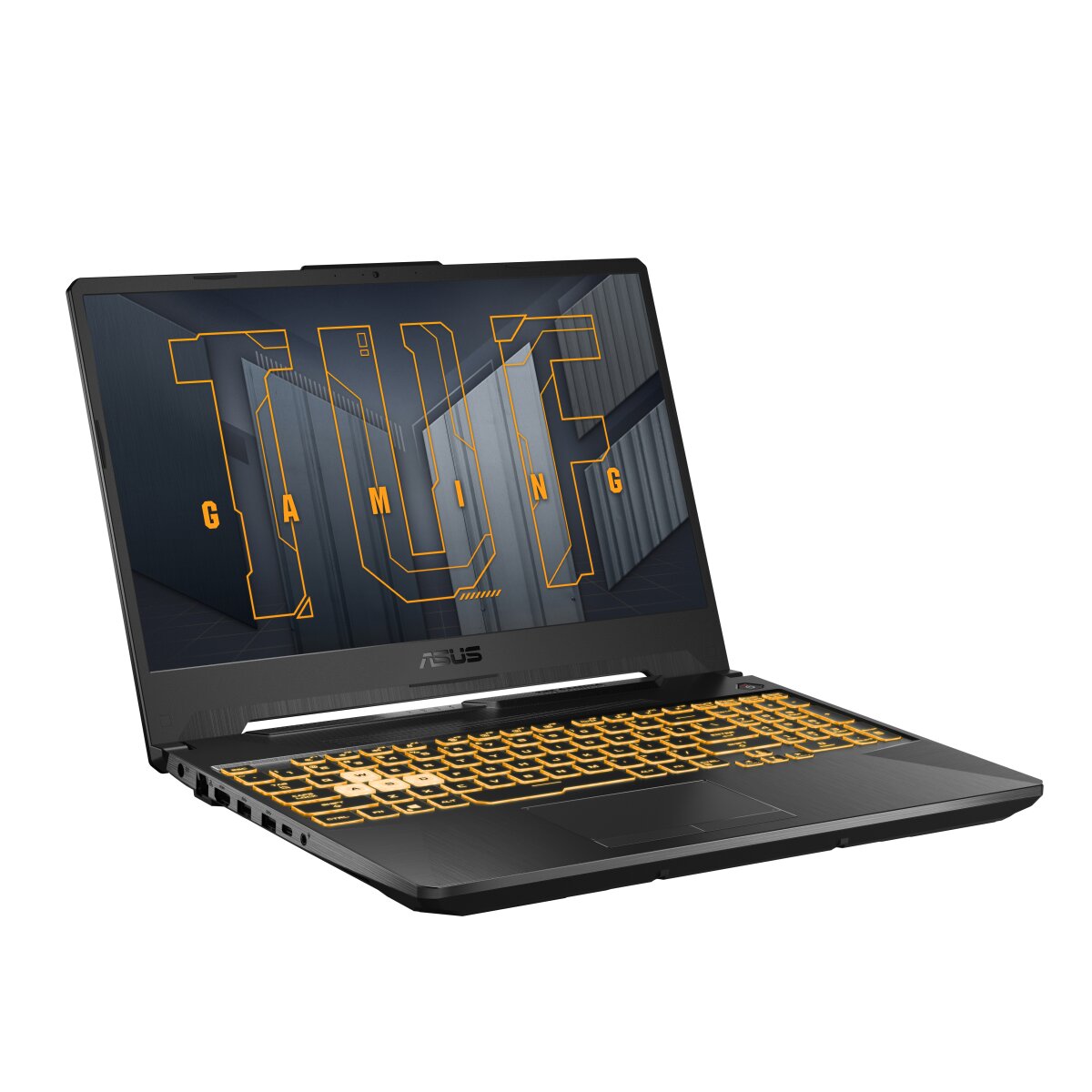

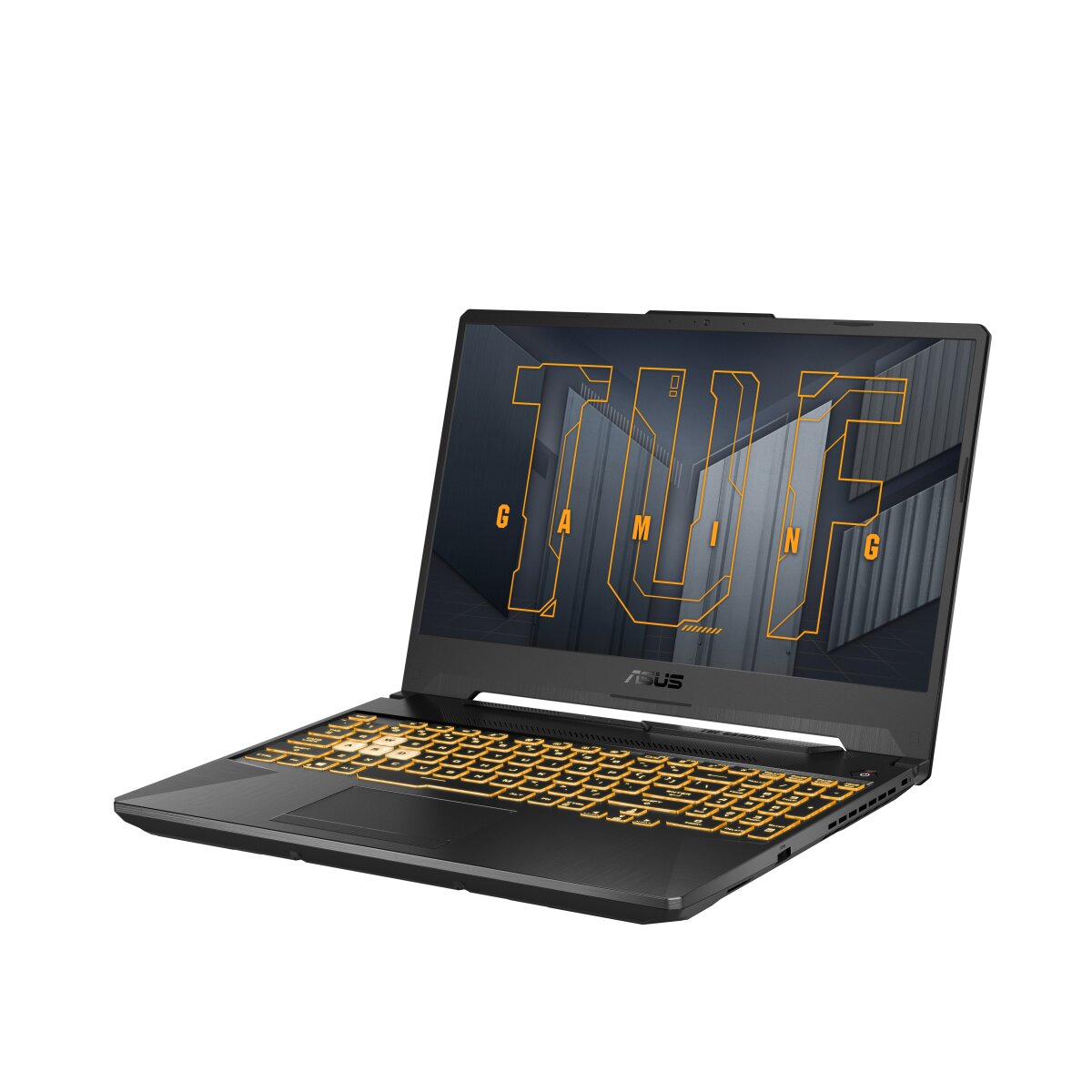

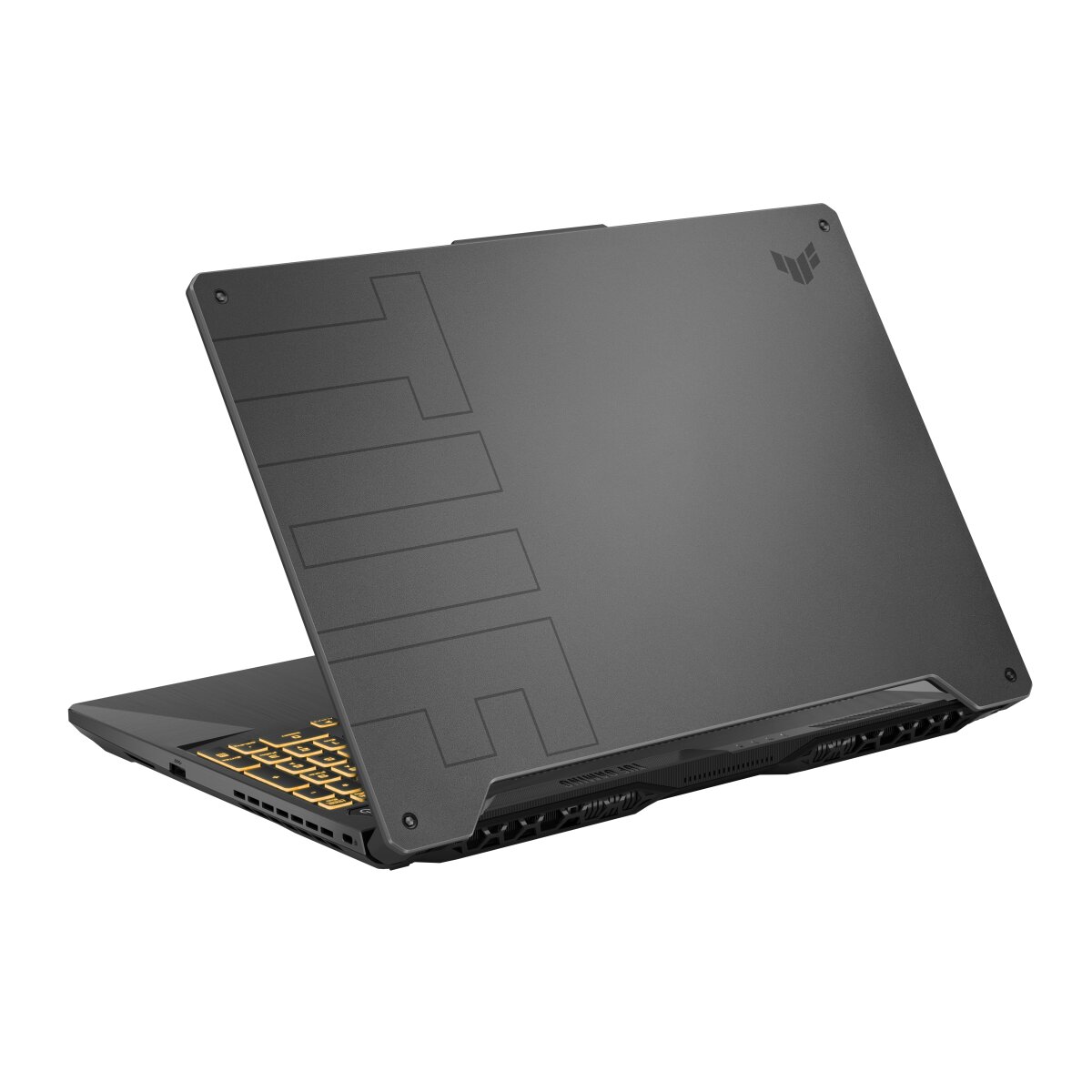

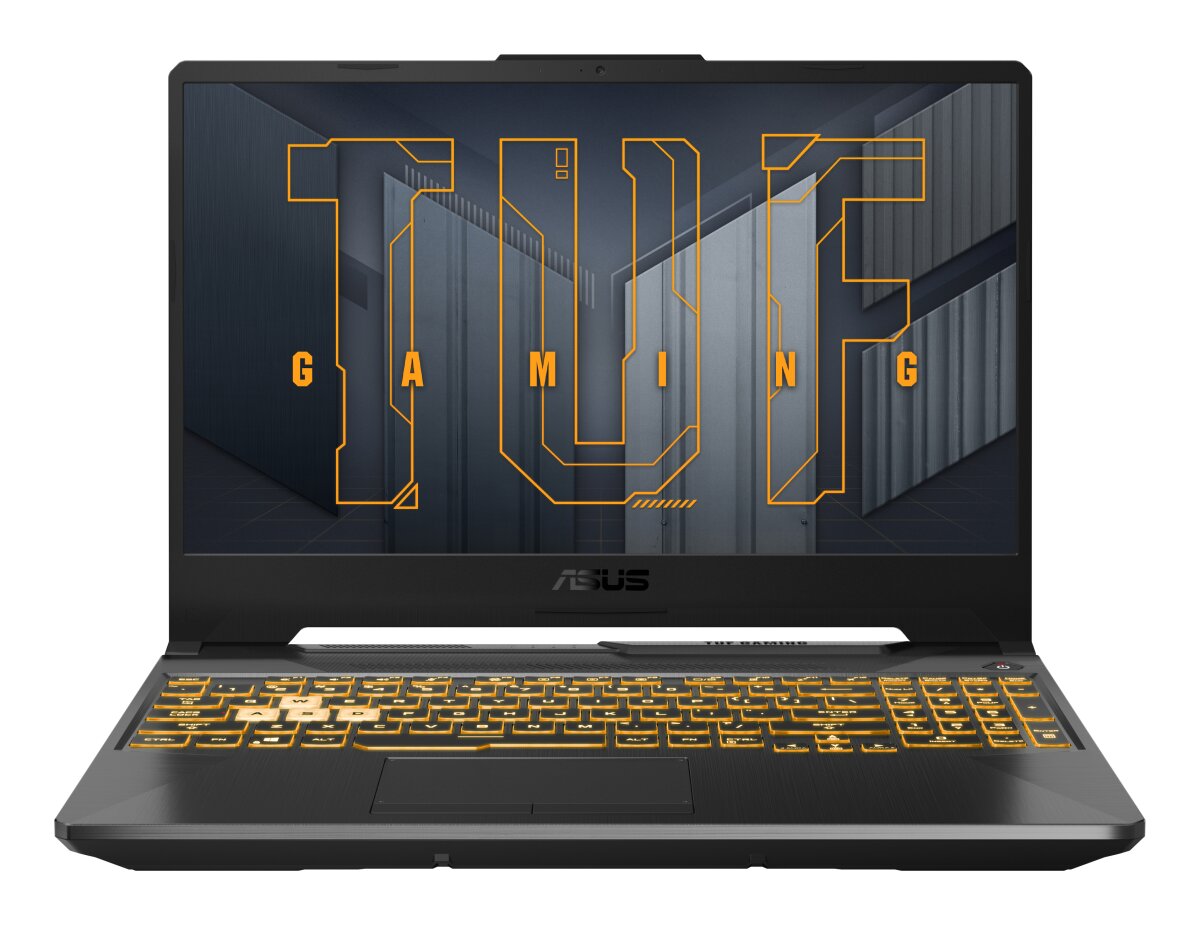

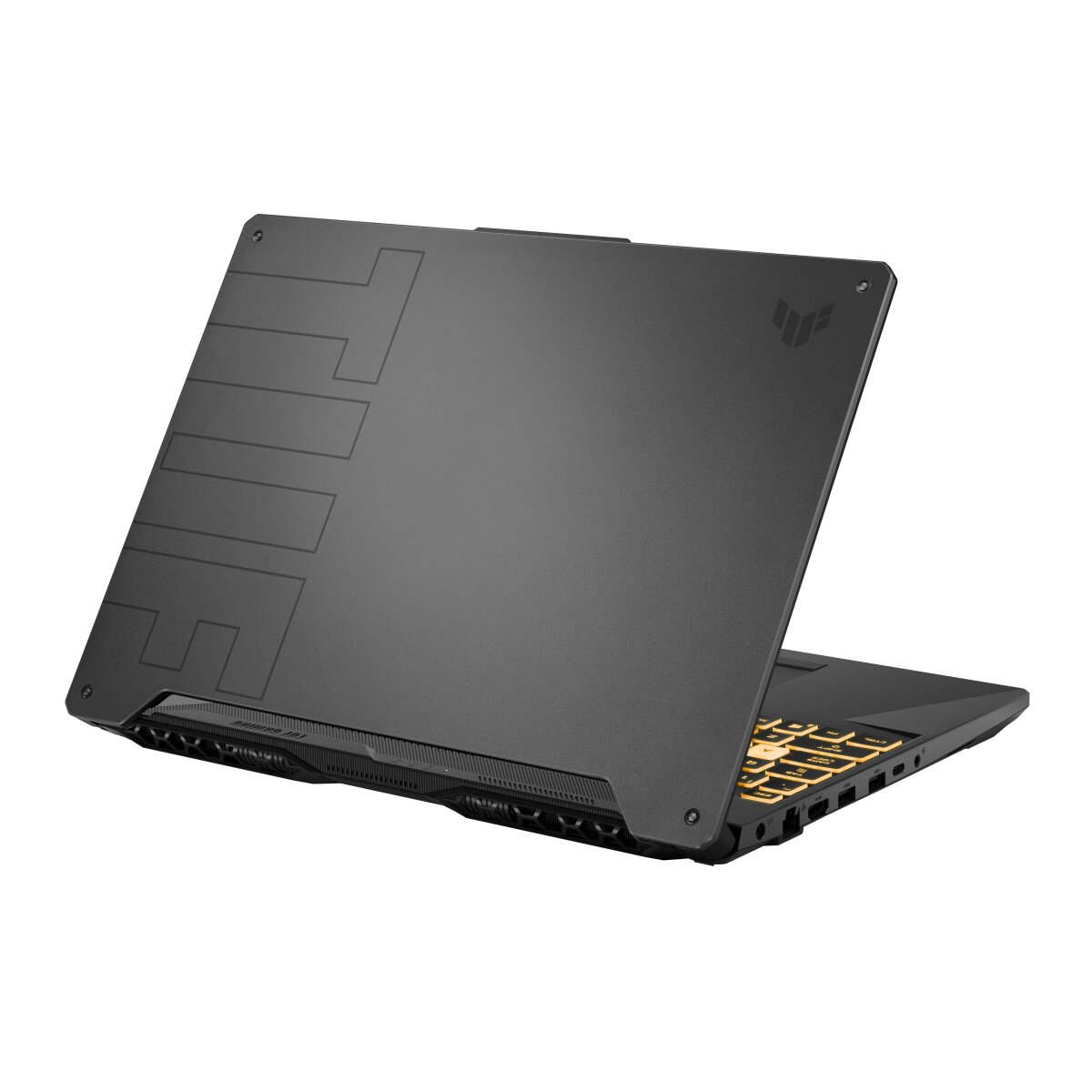

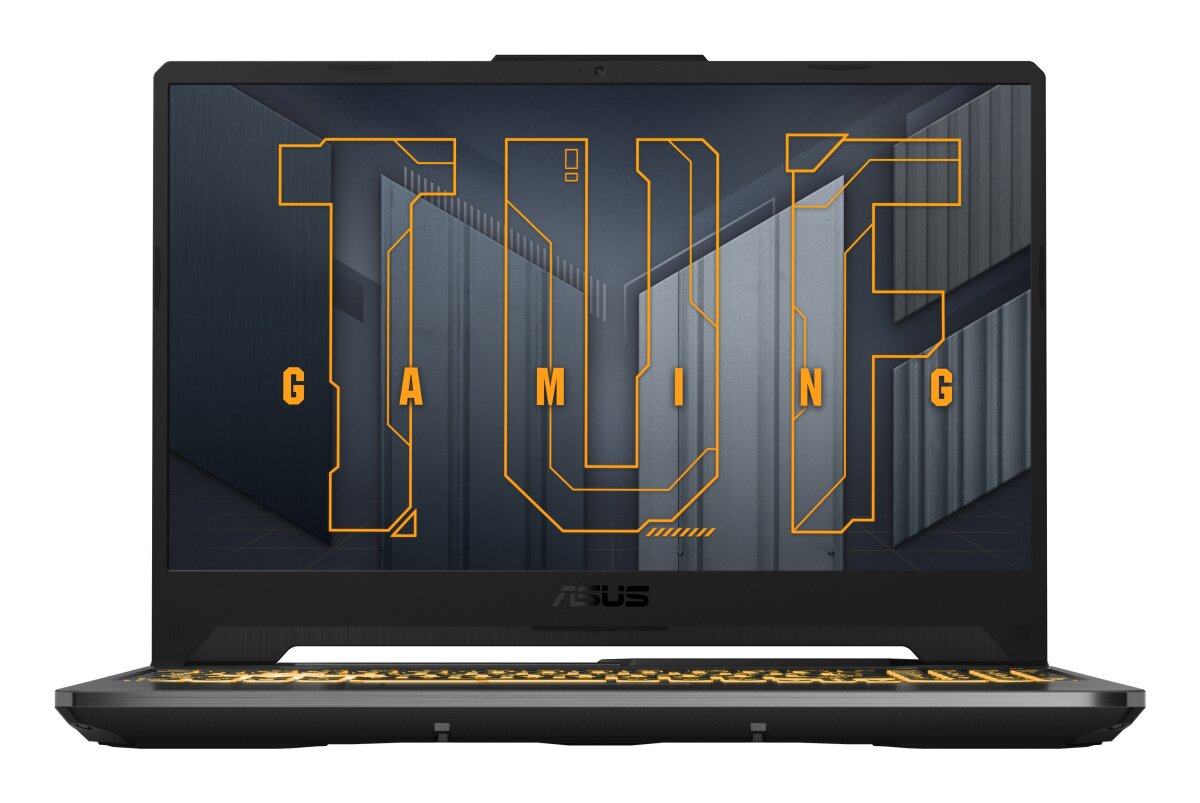

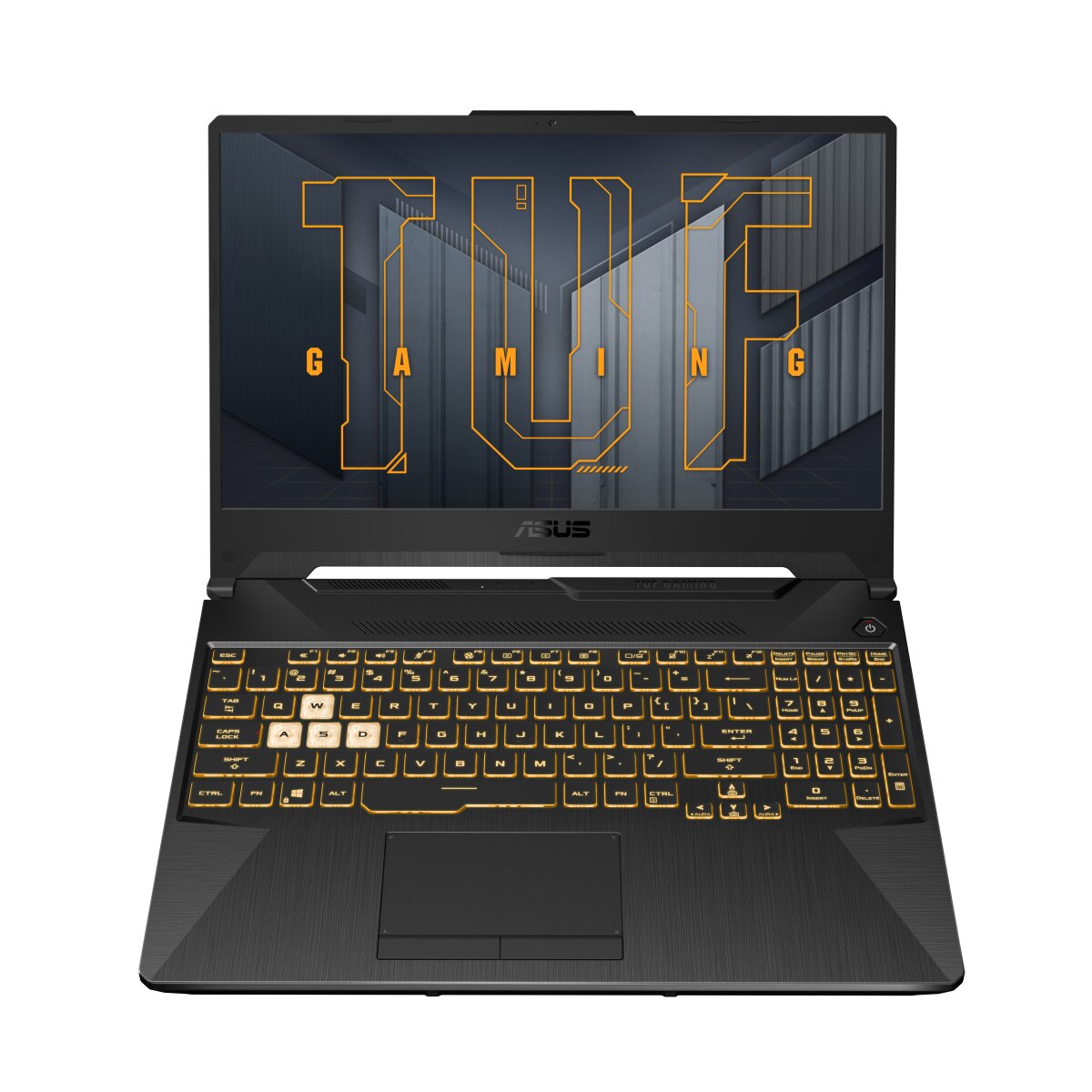

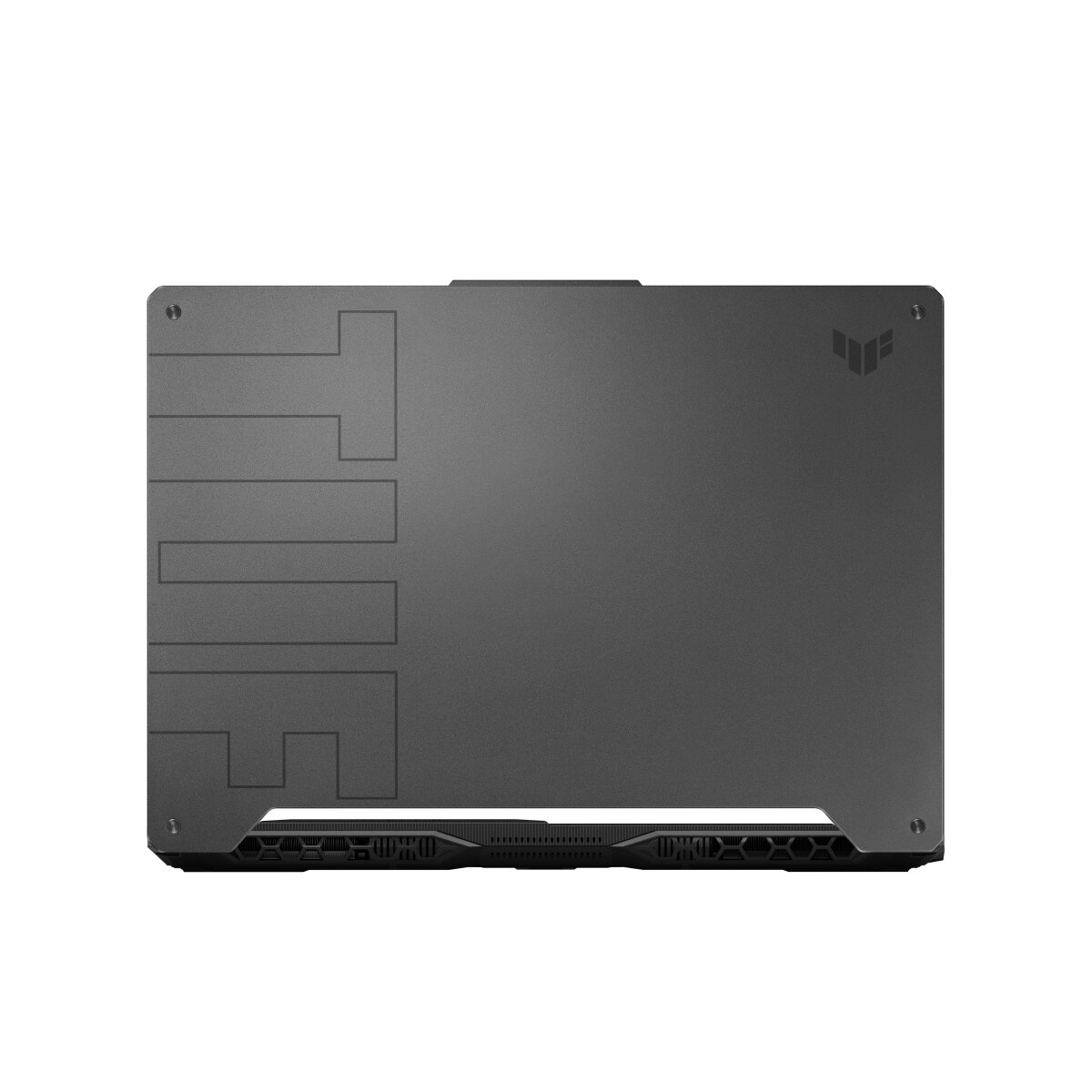

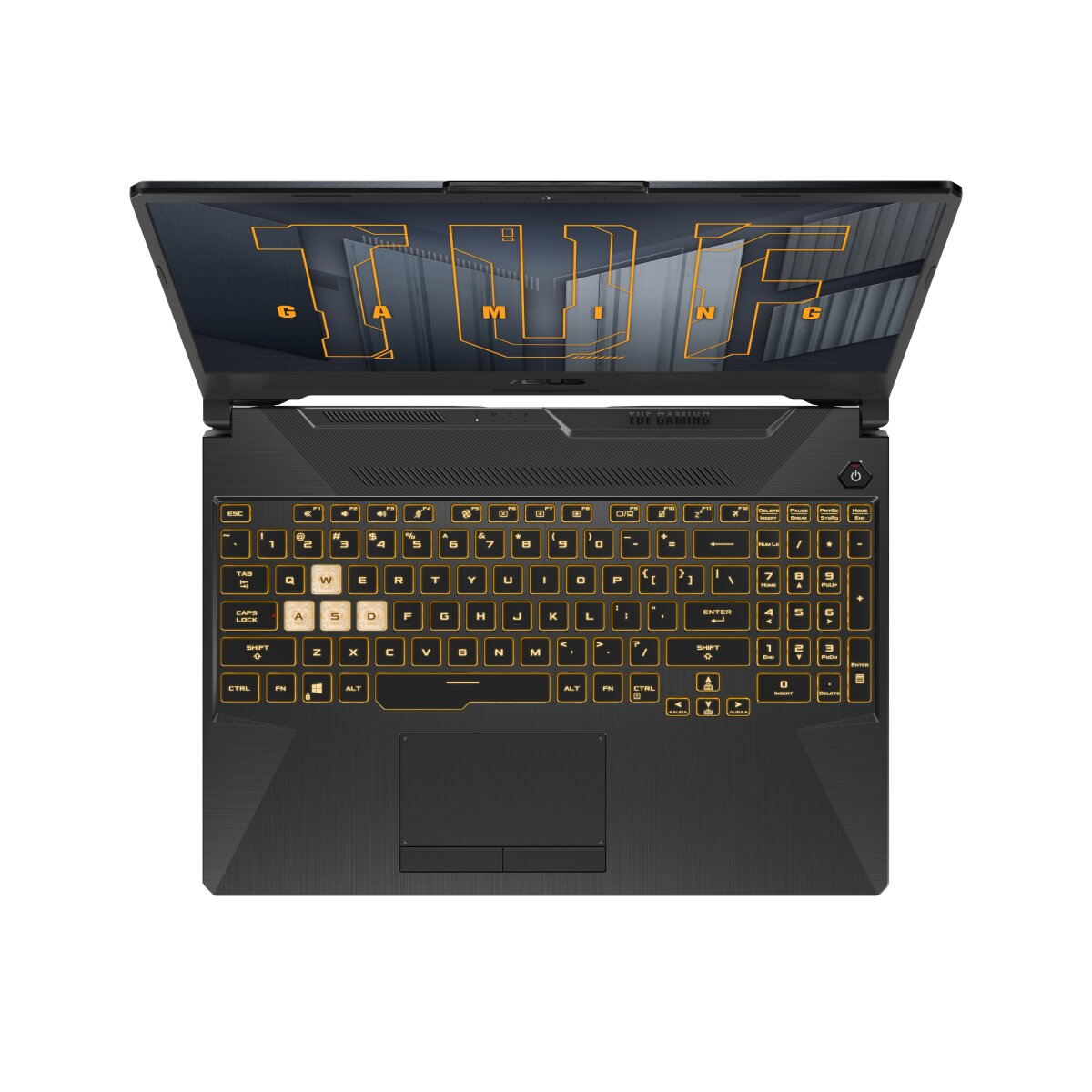

ASUS TUF Gaming A15 FA506NC-DS53 - 90NR0JF7-M00E20
ASUS TUF Gaming A15 FA506NC-DS53
Product code: 90NR0JF7-M00E20
- 💻Display diagonal: 15.6 inch
- 🔳Processor model: 7535HS
- 🎫Internal memory: 16 GB
- 🎮On-board graphics adapter model:
- 🎮Discrete graphics adapter model:
- 💽Total storage capacity: 512 GB
- ⚖️Weight: 2.3 kg
📊 Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Black, Grey |
| Product type | Laptop |
| Form factor | Clamshell |
| Market positioning | Gaming |
| Housing material | Plastic |
| Display | |
| Display diagonal | 15.6 inch |
| Maximum refresh rate | 144 Hz |
| Display brightness | 250 cd/m² |
| Panel type | IPS-Level |
| HD type | Full HD |
| Touchscreen | No |
| Display resolution | 1920 x 1080 pixels |
| RGB colour space | sRGB |
| Colour gamut | 62.5% |
| Native aspect ratio | 16:9 |
| Brand | ASUS |
| Family | TUF Gaming |
| Series | A15 |
| Model name | FA506NC-DS53 |
| Part Number | 90NR0JF7-M00E20 |
| EAN/UPC code | 0197105896307, 197105896307, 4711387896303 |
|
|
|
| Processor | |
| Processor manufacturer | AMD |
| L3 cache | 16 MB |
| Processor family | AMD Ryzen 5 |
| Processor frequency | 3.3 GHz |
| Processor boost frequency | 4.55 GHz |
| Processor model | 7535HS |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor generation | AMD Ryzen 7000 Series |
| Memory | |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | SO-DIMM |
| Memory clock speed | 5600 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 64 GB |
| Graphics | |
| Discrete graphics memory type | GDDR6 |
| Discrete GPU manufacturer | NVIDIA |
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA GeForce RTX 3050 |
| On-board graphics card model | AMD Radeon 660M |
| On-board graphics card family | AMD Radeon |
| Discrete graphics card memory | 4 GB |
| On-board GPU manufacturer | AMD |
| Storage | |
| Total storage capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Total SSDs capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| Card reader integrated | No |
| Storage media | SSD |
| NVMe | Yes |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI version | 2.1 |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Power adapter barrel connector | 6.0 mm |
| USB Power Delivery (USB PD) | No |
| Audio | |
| Built-in microphone | Yes |
| Number of built-in speakers | 2 |
| Camera | |
| Front camera | Yes |
| Front camera HD type | HD |
| Front camera resolution | 1280 x 720 pixels |
| Keyboard | |
| Numeric keypad | Yes |
| Keyboard backlit colour | RGB |
| Keyboard backlit | Yes |
| Pointing device | Touchpad |
| Keyboard backlit zone | 1-zone RGB |
| Software | |
| Operating system installed | Windows 11 Home |
| Operating system architecture | 64-bit |
| Bundled software | Xbox Game Pass for PC_3 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass for PC. Eligible markets are determined at activation. Game catalog varies by region, device, and time.) |
| Trial software | 1-month trial for new Microsoft 365 customers. Credit card required, McAfee 30 days |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 3 |
| Battery capacity | 48 Wh |
| Fast charging | Yes |
| Fast charging time (50%) | 30 min |
| Weight & dimensions | |
| Weight | 2.3 kg |
| Height (rear) | 2.45 cm |
| Height (front) | 2.28 cm |
| Depth | 256 mm |
| Width | 359 mm |
| Power | |
| AC adapter power | 180 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 20 V |
| AC adapter output current | 9 A |
| USB Type-C charging port | No |
| Security | |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | BIOS, User |
| Other features | |
| L2 cache | 3 MB |
| Anti-glare screen | Yes |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
