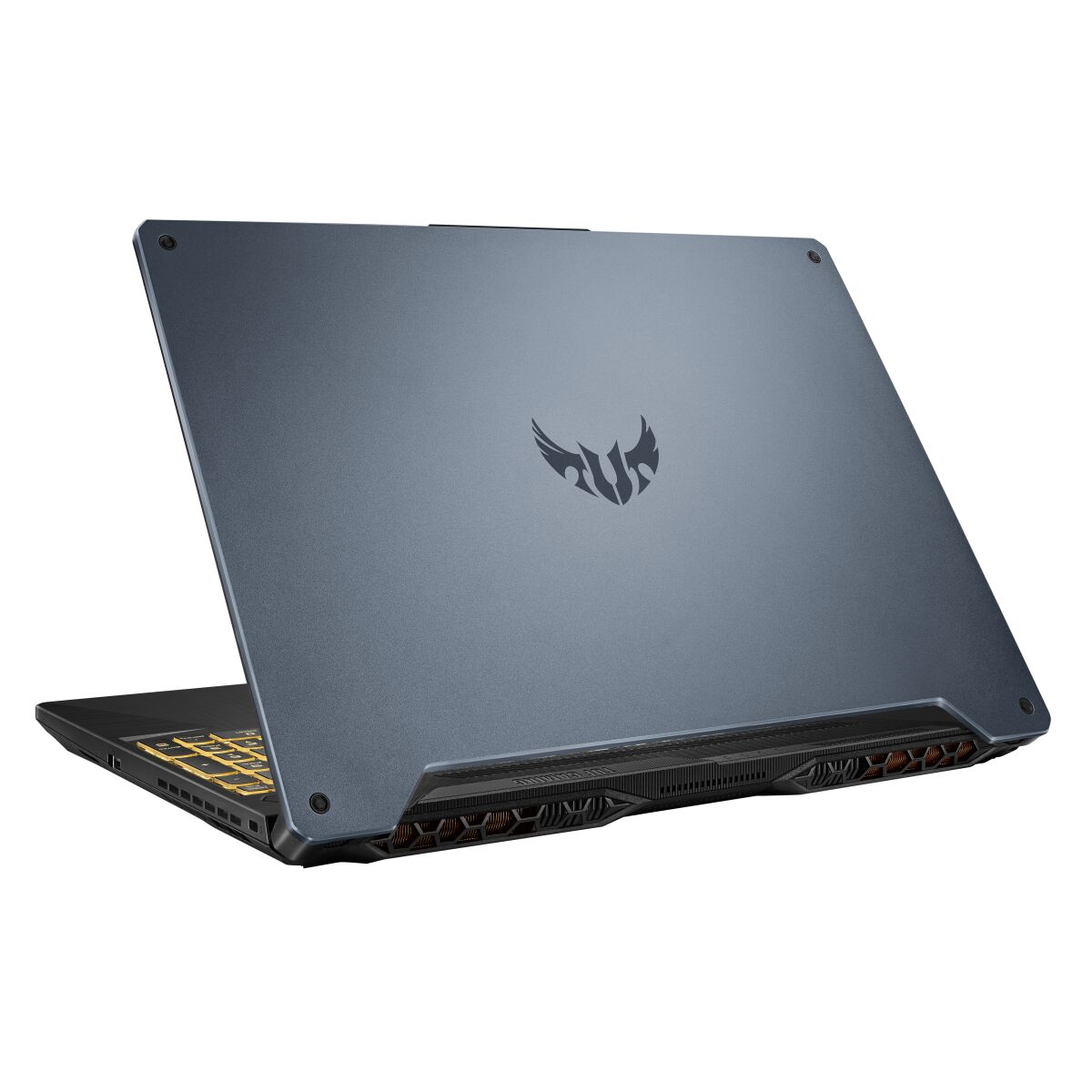

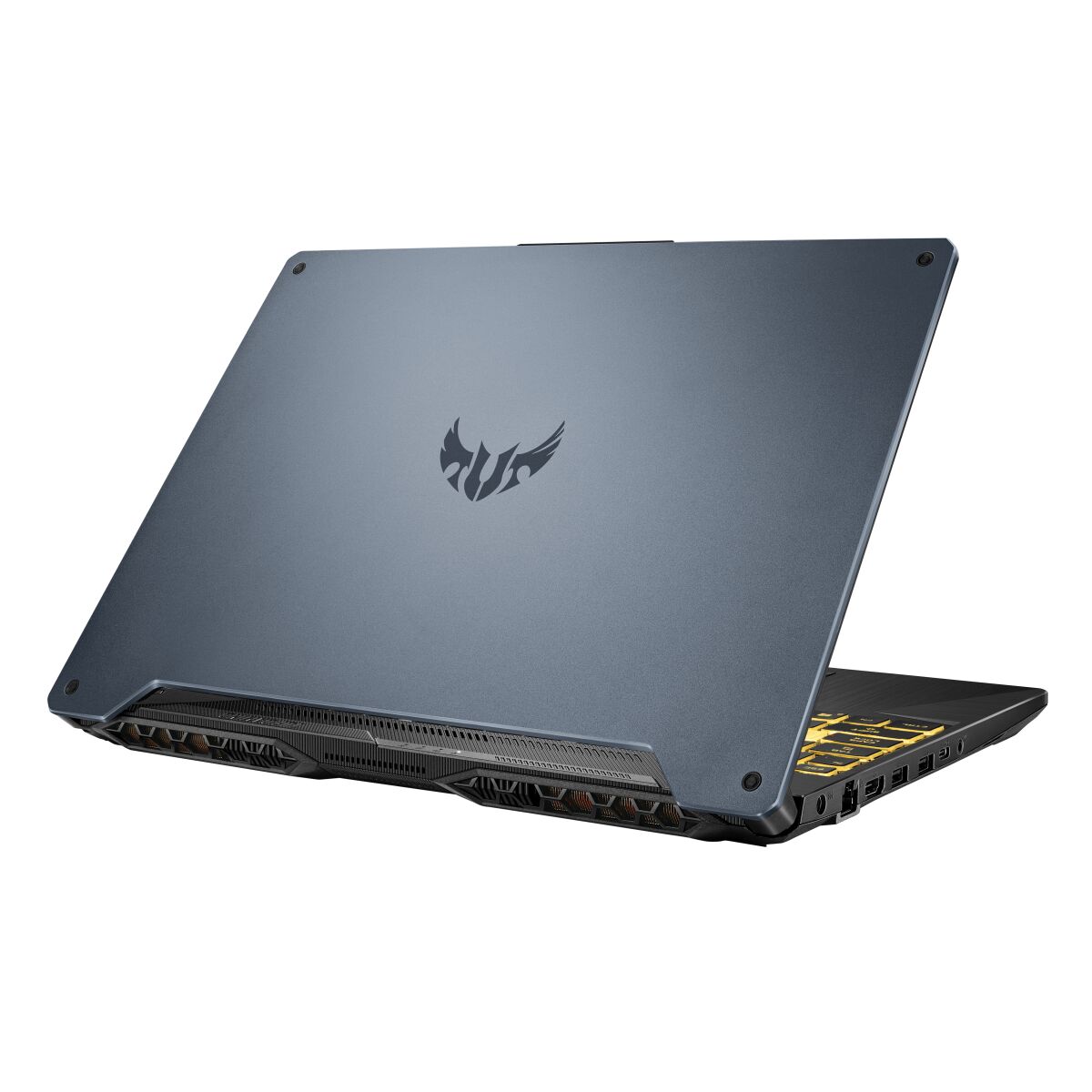

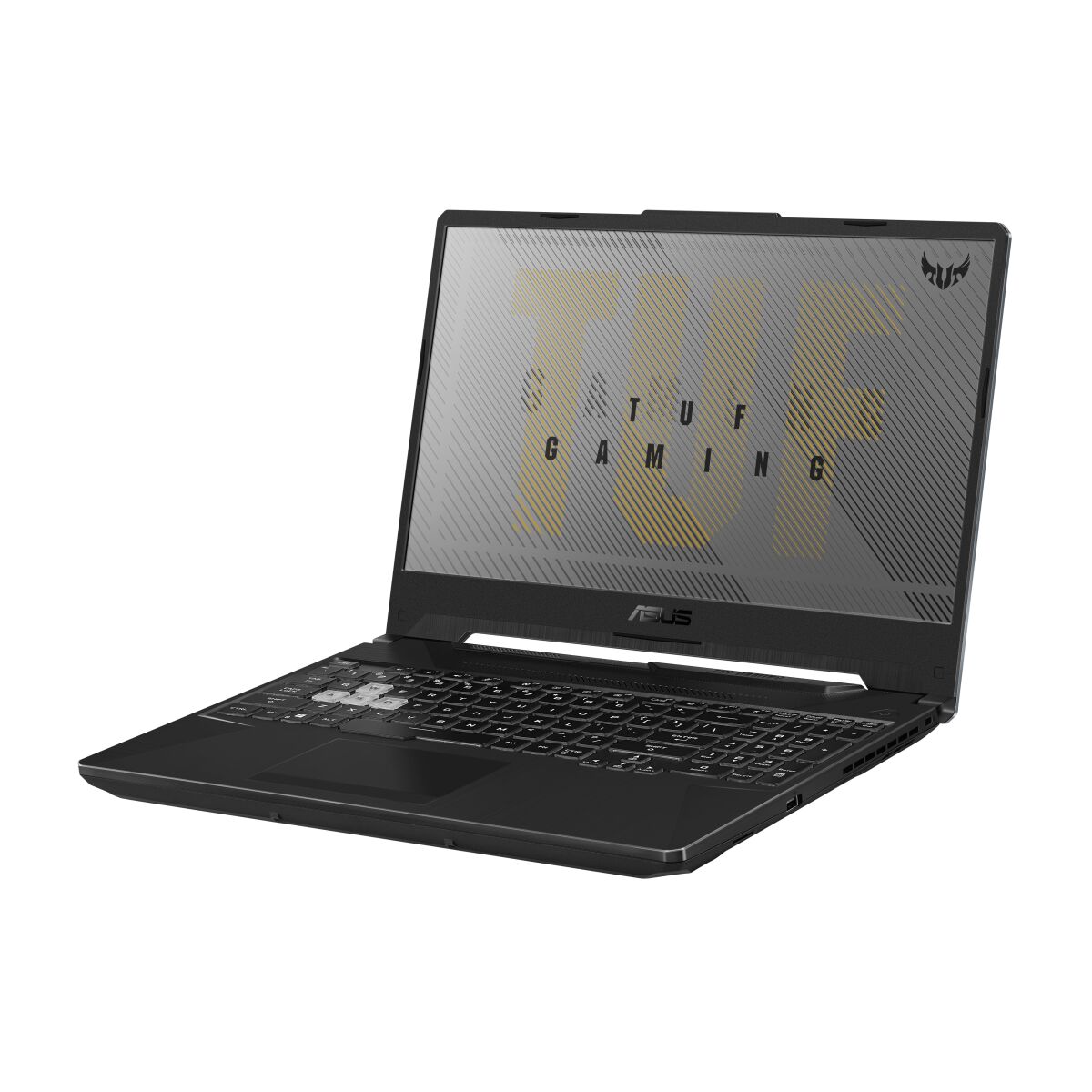

ASUS TUF Gaming A15 FA506QM-HN008T - 90NR0607-M02150
ASUS TUF Gaming A15 FA506QM-HN008T
Product code: 90NR0607-M02150
- đģDisplay diagonal: 15.6 inch
- đŗProcessor model: 5800H
- đĢInternal memory: 16 GB
- đŽOn-board graphics adapter model: AMD Radeon Graphics
- đŽDiscrete graphics adapter model: NVIDIA GeForce RTX 3060
- đŊTotal storage capacity: 512 GB
- âī¸Weight: 2.3 kg
đ Add to compare
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Product type | Laptop |
| Form factor | Clamshell |
| Market positioning | Gaming |
| Model year | 2021 |
| Introduction year | 2021 |

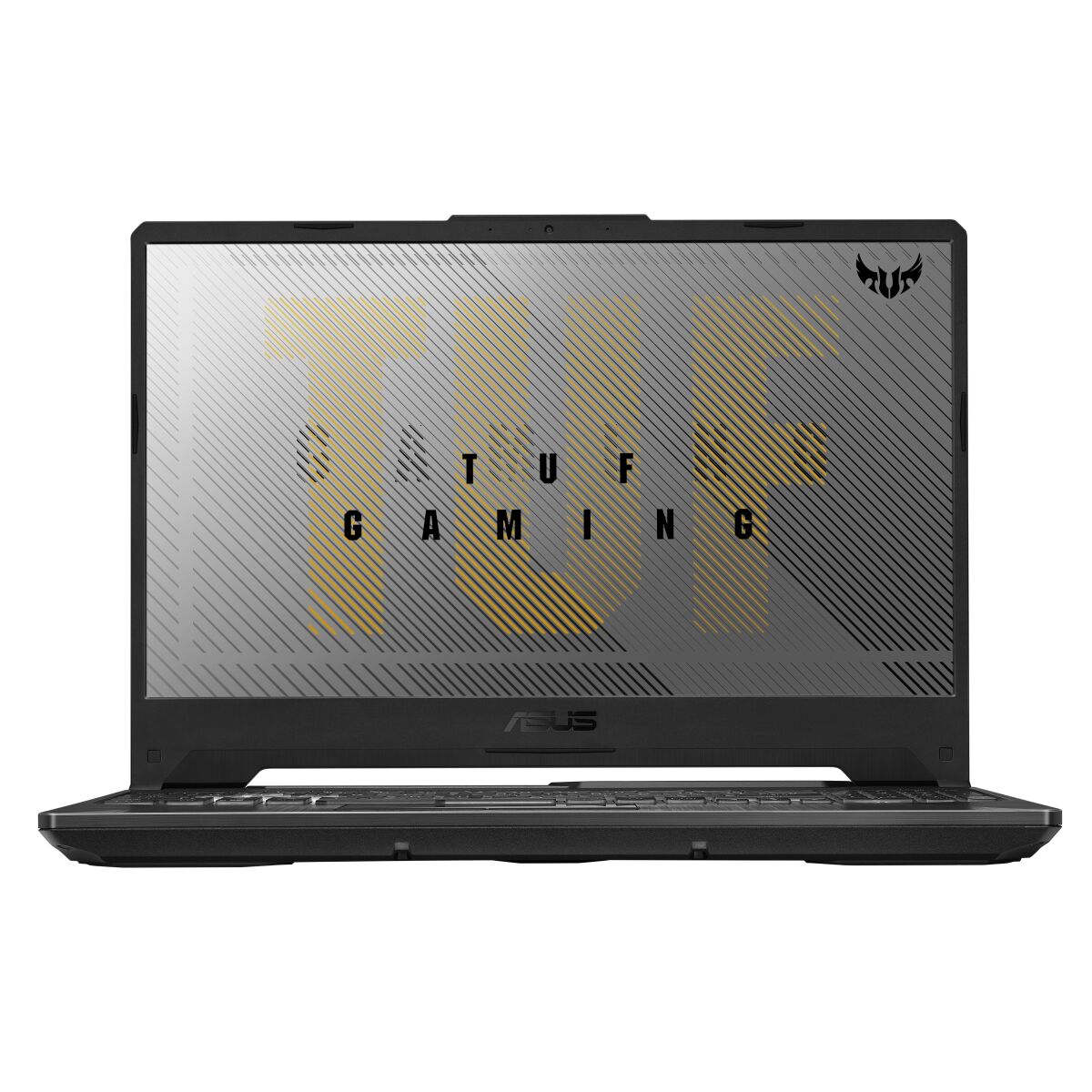

| Display | |
| Display diagonal | 15.6 inch |
| Maximum refresh rate | 144 Hz |
| Panel type | IPS |
| Display surface | Matt |
| HD type | Full HD |
| LED backlight | Yes |
| Touchscreen | No |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Brand | ASUS |
| Family | TUF Gaming |
| Series | A15 |
| Model name | FA506QM-HN008T |
| Part Number | 90NR0607-M02150 |
| Release Date | 01 February 2021 |
| EAN/UPC code | 4711081099017, 0195553099011, 195553099011, 4718017989503 |
|
|
|
| Processor | |
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen 7 |
| Processor frequency | 3.2 GHz |
| Processor boost frequency | 4.4 GHz |
| Processor model | 5800H |
| Processor cores | 8 |
| Processor cache | 16 MB |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | SO-DIMM |
| Memory clock speed | 3200 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 32 GB |
| Memory layout (slots x size) | 2 x 8 GB |
| Graphics | |
| On-board graphics adapter | Y |
| Discrete graphics memory type | GDDR6 |
| Discrete graphics adapter | Y |
| On-board graphics adapter model | AMD Radeon Graphics |
| Discrete graphics adapter model | NVIDIA GeForce RTX 3060 |
| Discrete graphics adapter memory | 6 GB |
| Discrete GPU manufacturer | NVIDIA |
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA GeForce RTX 3060 |
| On-board graphics card model | AMD Radeon Graphics |
| Discrete graphics card memory | 6 GB |
| On-board GPU manufacturer | AMD |
| Storage | |
| Total storage capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Total SSDs capacity | 512 GB |
| SSD interface | NVMe, PCI Express 3.0 |
| SSD form factor | M.2 |
| Compatible memory cards | MS Pro-HG Duo HX |
| Storage media | SSD |
| NVMe | Yes |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |

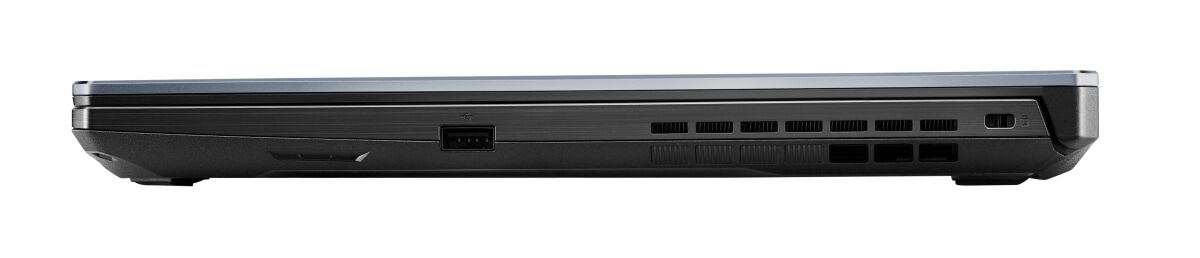

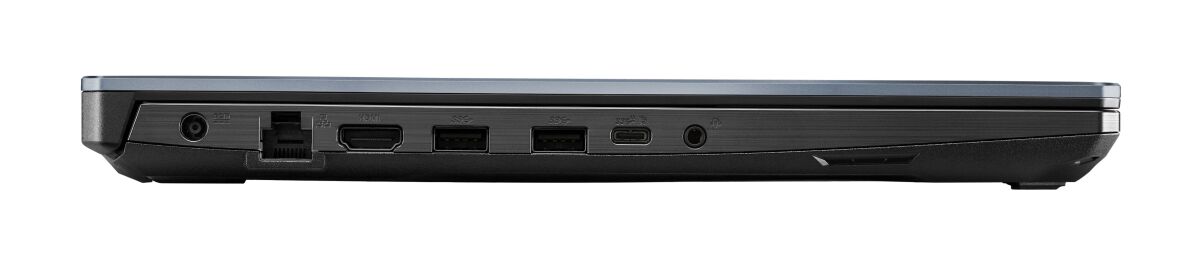

| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Charging port type | DC-in jack |
| HDMI version | 2.0b |
| Combo headphone/mic port | Yes |
| USB 2.0 ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Audio | |
| Built-in microphone | Yes |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Camera | |
| Front camera | Yes |
| Front camera HD type | HD |

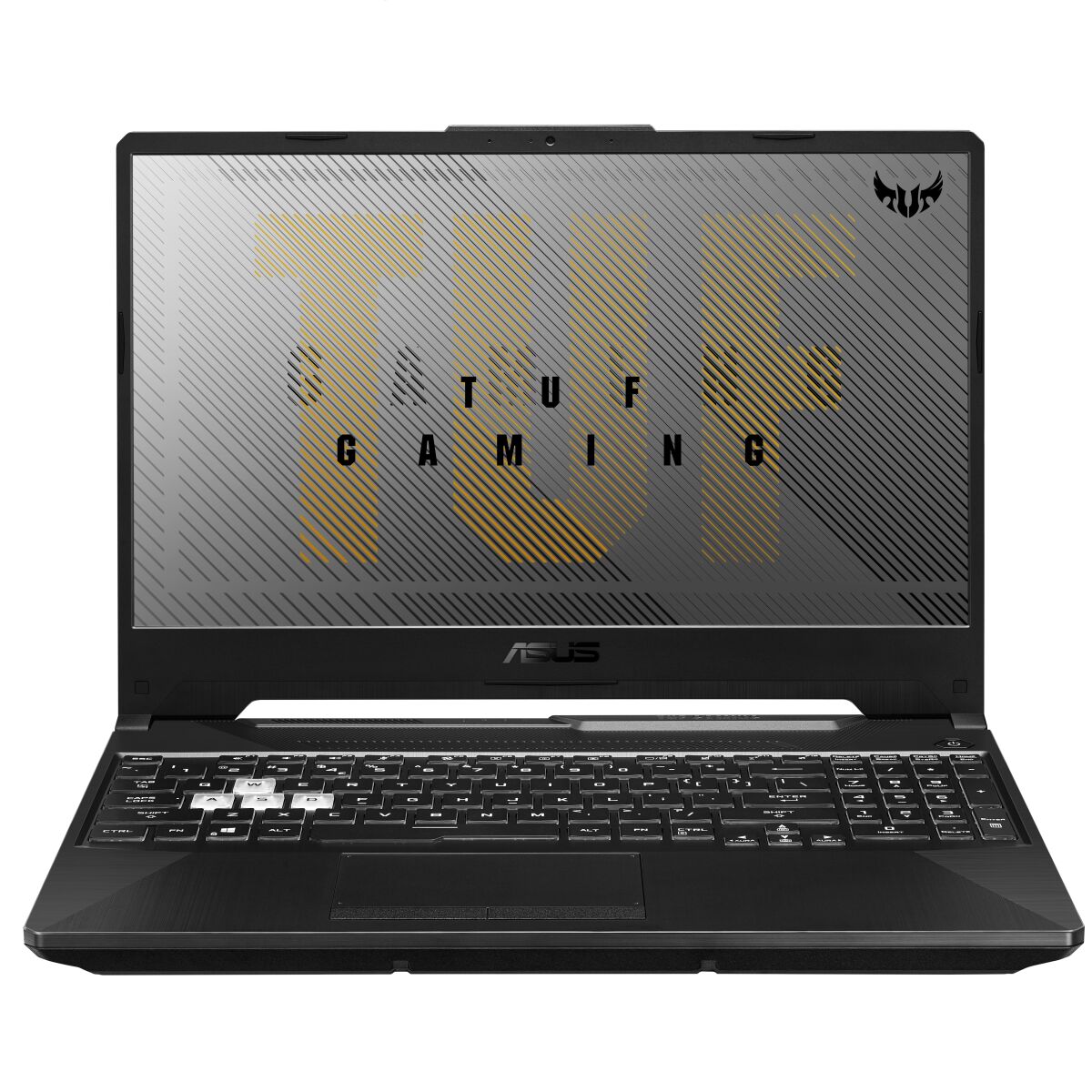

| Keyboard | |
| Numeric keypad | Yes |
| Keyboard backlit | Yes |
| Pointing device | Touchpad |
| Software | |
| Operating system installed | Windows 10 Home |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity (Watt-hours) | 90 Wh |
| Number of battery cells | 4 |
| Battery capacity | 90 Wh |
| Weight & dimensions | |
| Weight | 2.3 kg |
| Height (rear) | 2.49 cm |
| Height (front) | 2.47 cm |
| Depth | 256 mm |
| Width | 359.8 mm |
| Power | |
| AC adapter power | 200 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 20 V |
| AC adapter output current | 10 A |
| Security | |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | BIOS, User |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
