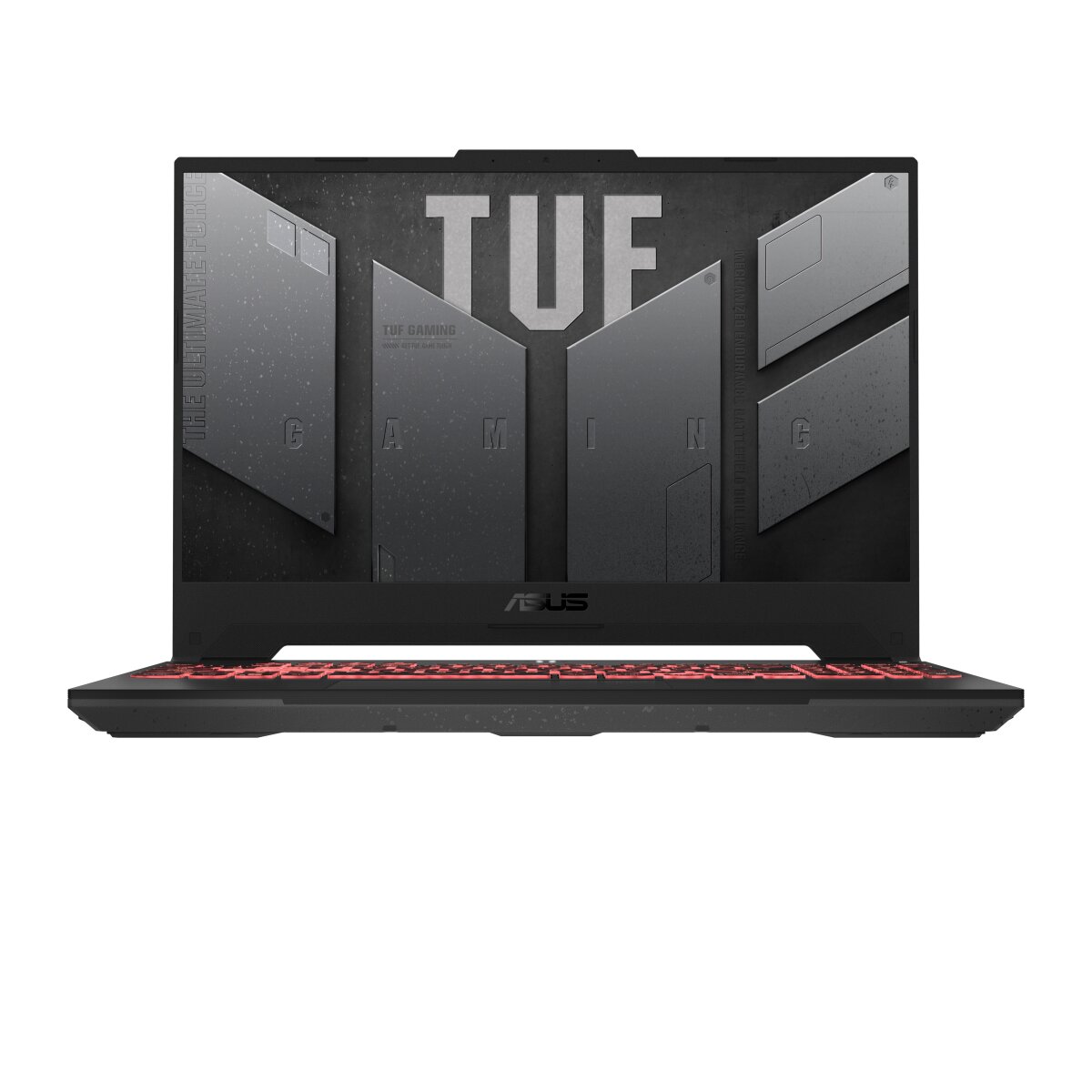

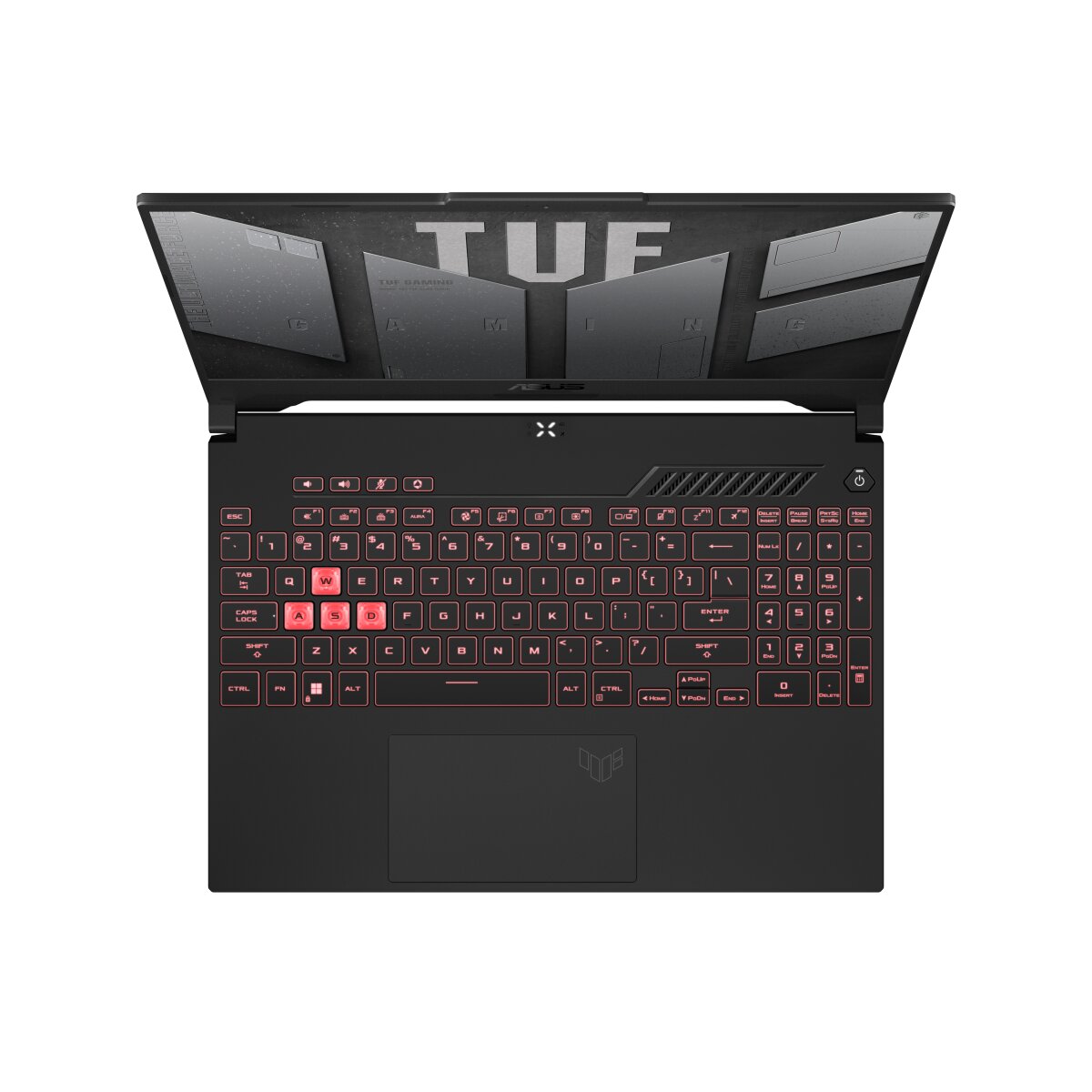

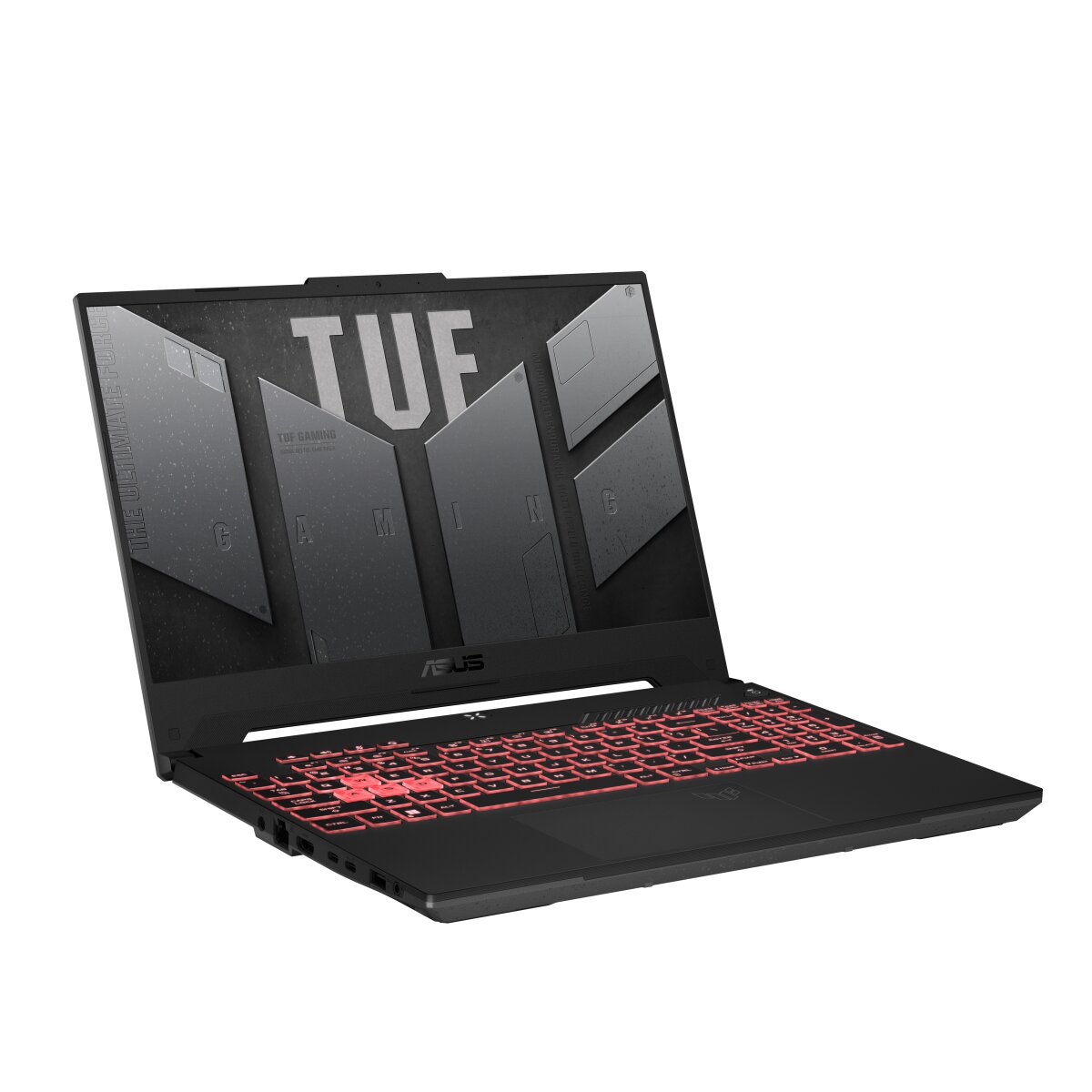

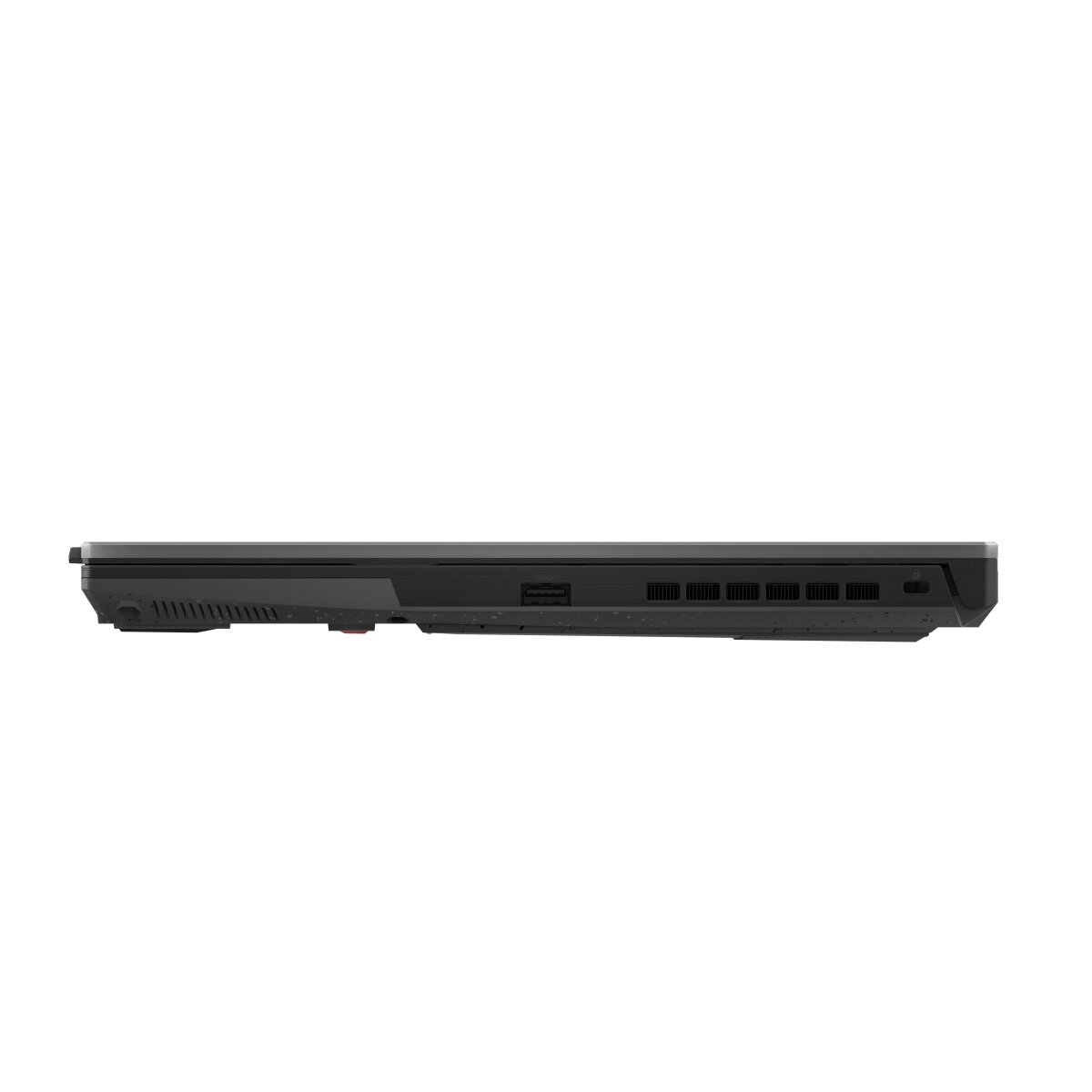

ASUS TUF Gaming A15 TUF507RR-HN030 - 90NR0B31-M001Z0
ASUS TUF Gaming A15 TUF507RR-HN030
Product code: 90NR0B31-M001Z0
- 💻Display diagonal: 15.6 inch
- 🔳Processor model: 6800H
- 🎫Internal memory: 16 GB
- 🎮On-board graphics adapter model:
- 🎮Discrete graphics adapter model:
- 💽Total storage capacity: 1 TB
- ⚖️Weight: 2.2 kg
📊 Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Grey |
| Product type | Laptop |
| Form factor | Clamshell |
| Market positioning | Gaming |
| Introduction year | 2022 |
| Display | |
| Display diagonal | 15.6 inch |
| sRGB coverage (typical) | 62.5% |
| Maximum refresh rate | 144 Hz |
| Contrast ratio (typical) | 1000:1 |
| Display brightness | 250 cd/m² |
| Panel type | IPS |
| HD type | Full HD |
| LED backlight | Yes |
| Touchscreen | No |
| Display resolution | 1920 x 1080 pixels |
| Adobe RGB coverage | 47.34% |
| RGB colour space | NTSC |
| Colour gamut | 45% |
| Native aspect ratio | 16:9 |
| Brand | ASUS |
| Family | TUF Gaming |
| Series | A15 |
| Model name | TUF507RR-HN030 |
| Part Number | 90NR0B31-M001Z0 |
| Release Date | 17 February 2022 |
| EAN/UPC code | 4711081633983, 0195553633987, 195553633987 |
|
|
|
| Processor | |
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen 7 |
| Processor frequency | 3.2 GHz |
| Processor boost frequency | 4.7 GHz |
| Processor model | 6800H |
| Processor cores | 8 |
| Processor cache | 20 MB |
| Memory | |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | SO-DIMM |
| Memory clock speed | 4800 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 32 GB |
| Memory layout (slots x size) | 2 x 8 GB |
| Graphics | |
| NVIDIA G-SYNC | Yes |
| Discrete graphics memory type | GDDR6 |
| Discrete GPU manufacturer | NVIDIA |
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA GeForce RTX 3070 |
| On-board graphics card model | AMD Radeon 680M |
| Discrete graphics card memory | 8 GB |
| On-board GPU manufacturer | AMD |
| Storage | |
| Total storage capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| Total SSDs capacity | 1 TB |
| SSD interface | NVMe, PCI Express 3.0 |
| SSD form factor | M.2 |
| Card reader integrated | No |
| Storage media | SSD |
| NVMe | Yes |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10, 1000, 100 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11g, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |

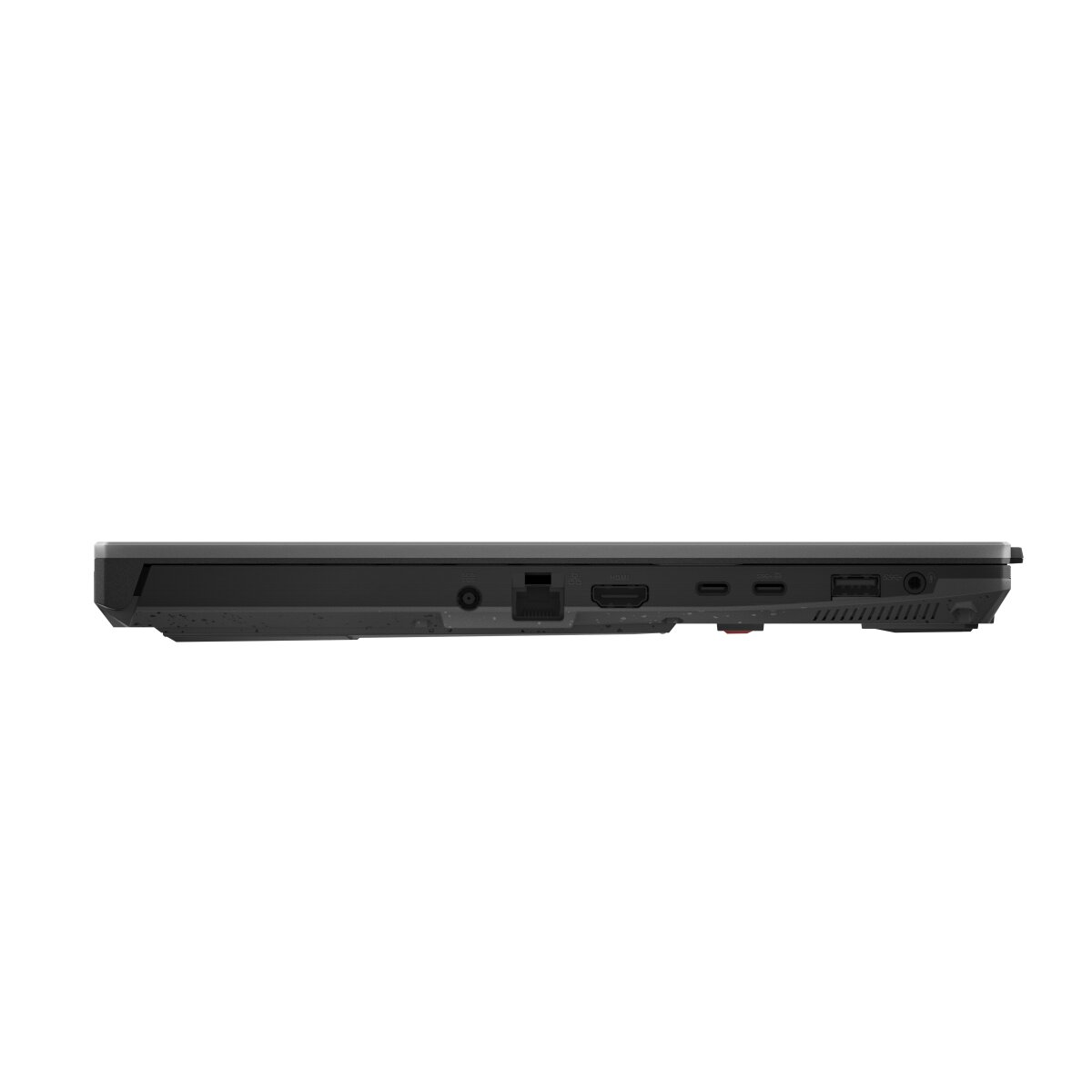

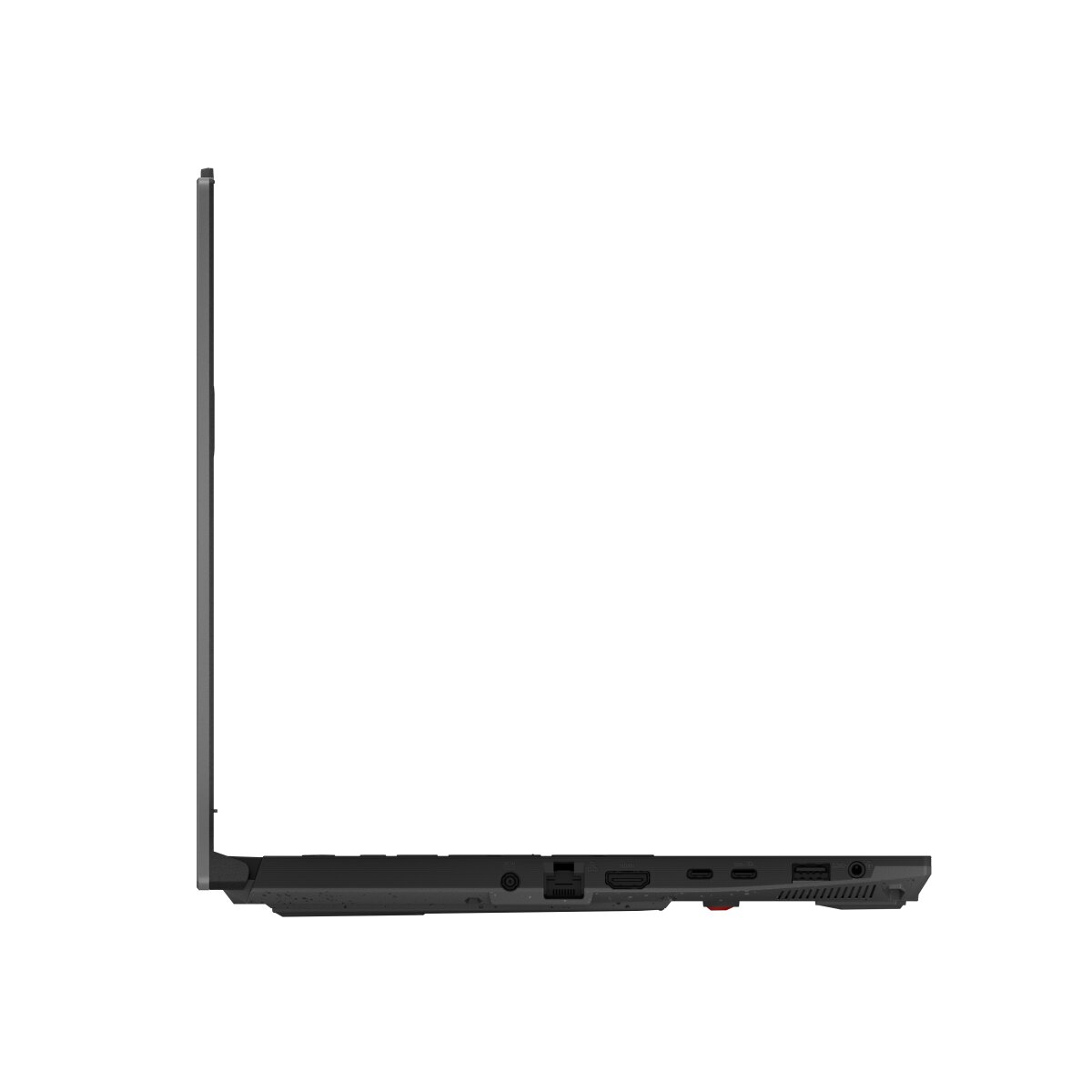

| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Charging port type | DC-in jack |
| HDMI version | 2.0b |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Power adapter barrel connector | 6.0 mm |
| Audio | |
| Built-in microphone | Yes |
| Number of built-in speakers | 2 |
| Audio system | Dolby Atmos |
| Camera | |
| Front camera | Yes |
| Front camera HD type | HD |
| Keyboard | |
| Numeric keypad | Yes |
| Keyboard backlit colour | RGB |
| Keyboard backlit | Yes |
| Pointing device | Touchpad |
| Software | |
| Operating system installed | No |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
| Battery capacity | 90 Wh |
| Weight & dimensions | |
| Weight | 2.2 kg |
| Height (rear) | 2.49 cm |
| Height (front) | 2.24 cm |
| Depth | 251 mm |
| Width | 354 mm |
| Power | |
| AC adapter power | 240 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 20 V |
| AC adapter output current | 12 A |
| Security | |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Password protection | Yes |
| Password protection type | BIOS, User |
| Other features | |
| Anti-glare screen | Yes |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
