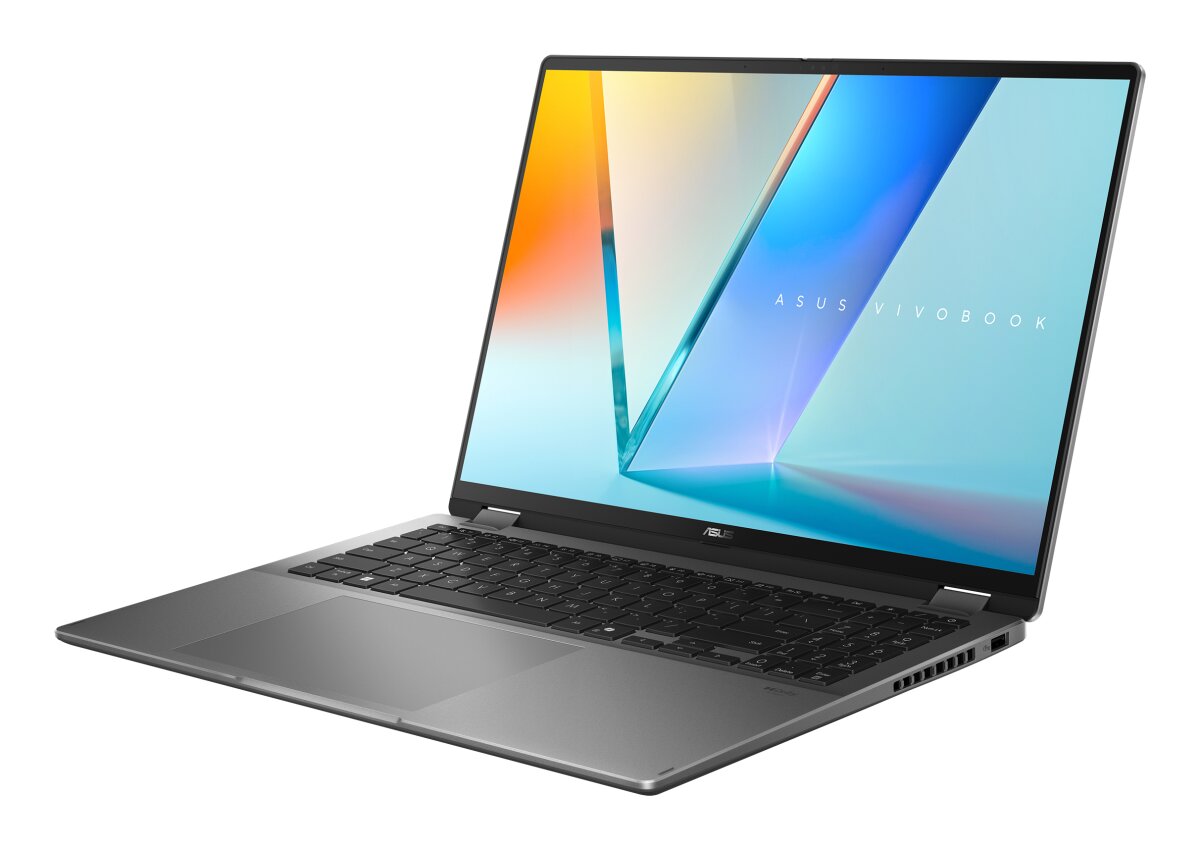

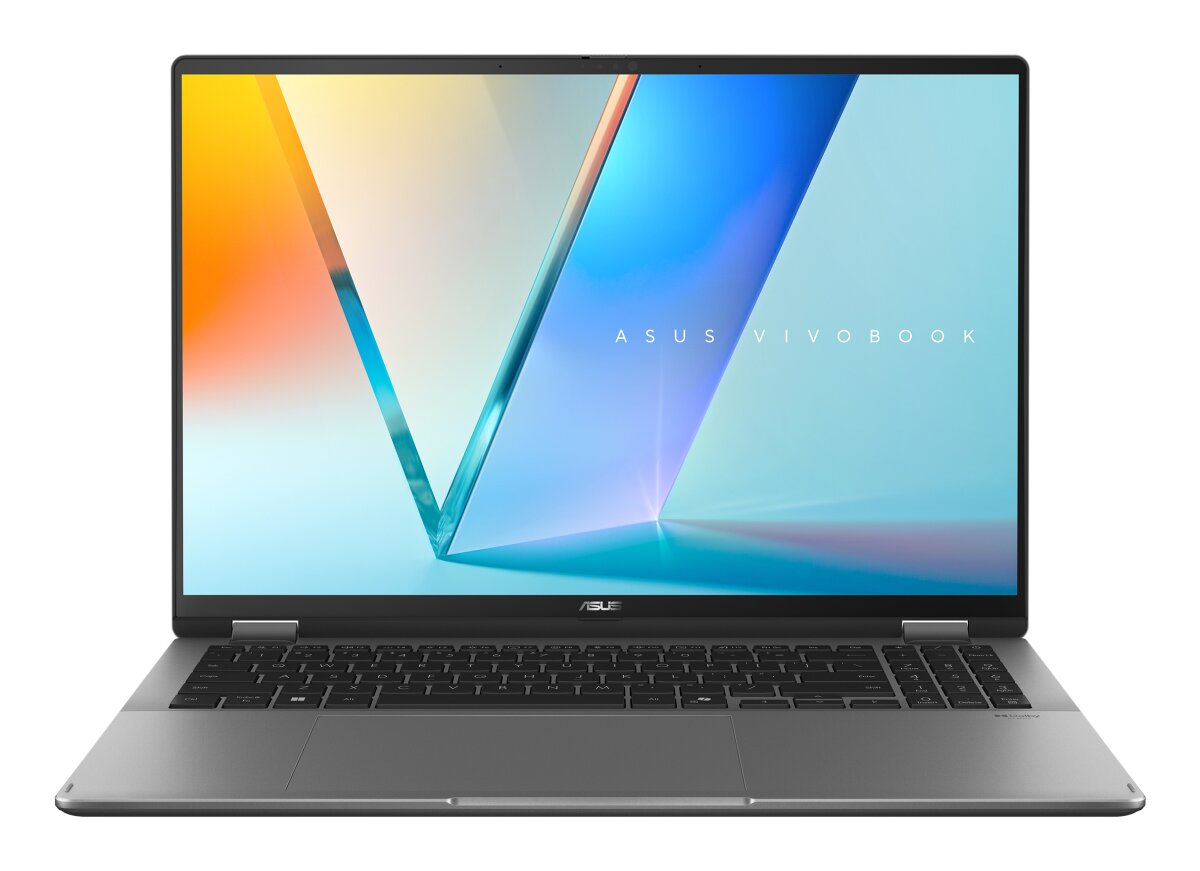

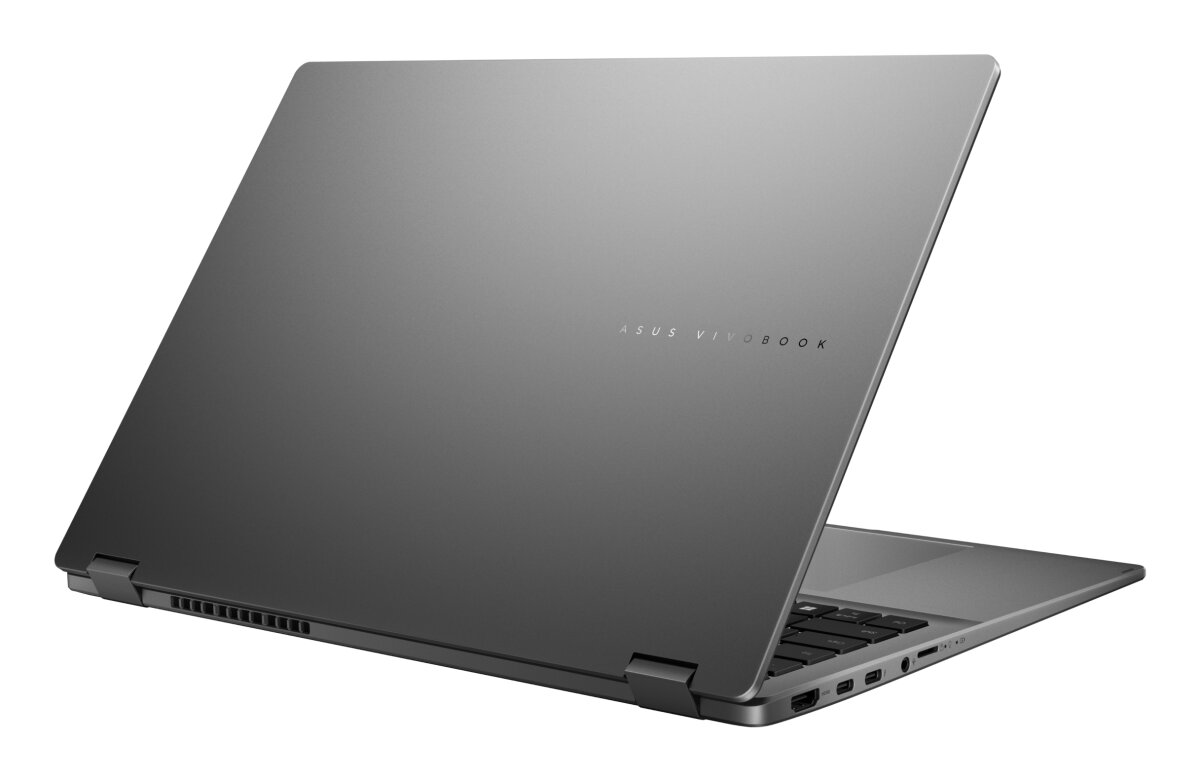

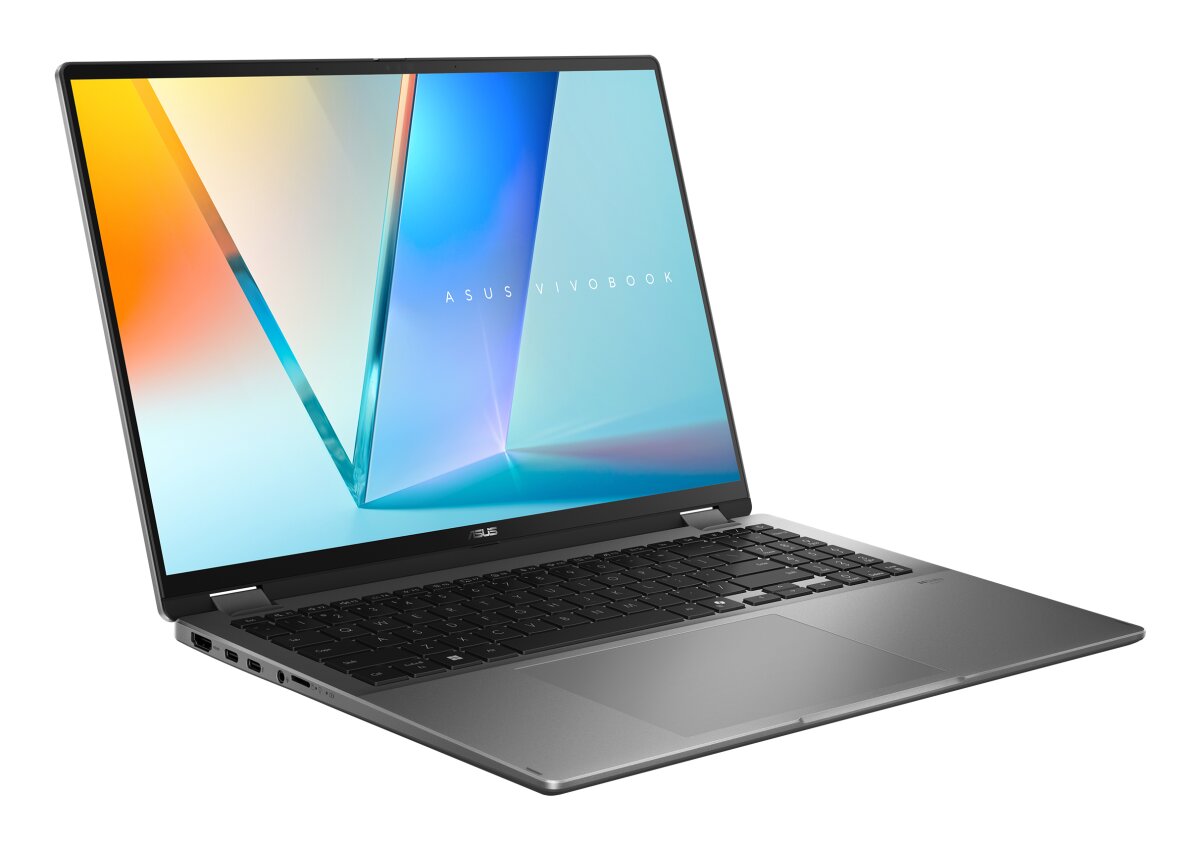

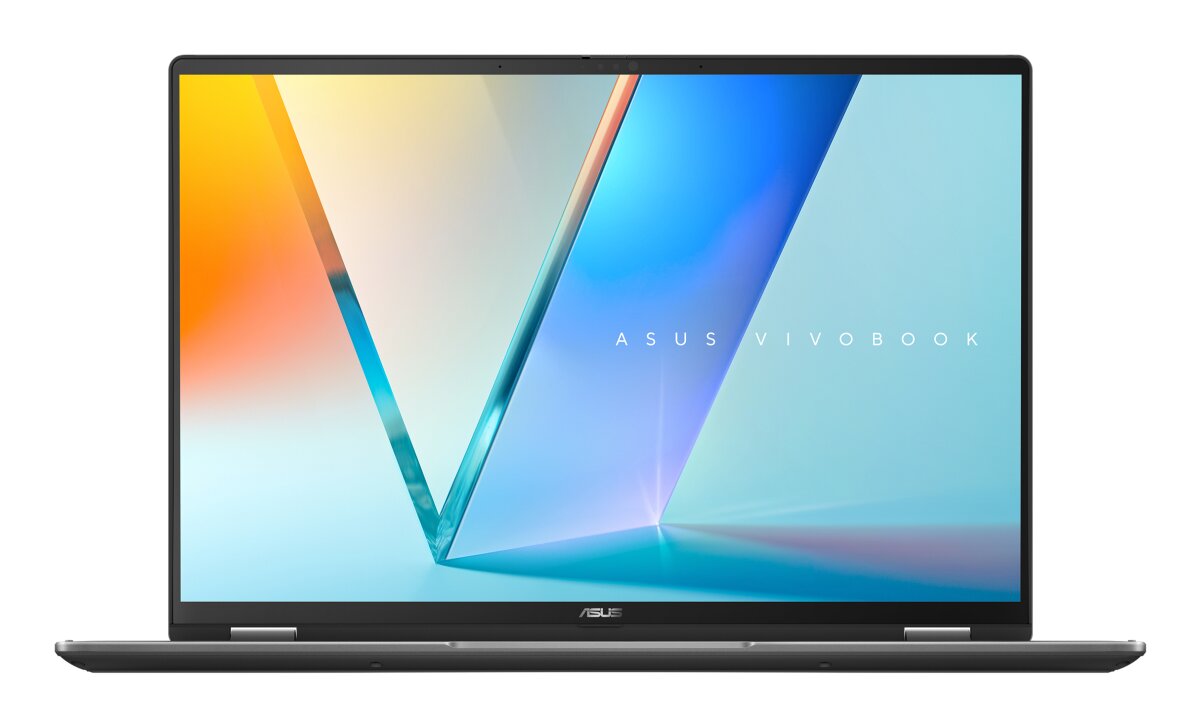

ASUS Vivobook 16 Flip TP3607AA-SI030W - 90NB17B1-M005Y0
ASUS Vivobook 16 Flip TP3607AA-SI030W
Product code: 90NB17B1-M005Y0
- 💻Display diagonal: 16 inch
- 🔳Processor model: 355
- 🎫Internal memory: 16 GB
- 🎮On-board graphics adapter model:
- 🎮Discrete graphics adapter model:
- 💽Total storage capacity: 512 GB
- ⚖️Weight: 1.8 kg
📊 Add to compare
Specifications
| Design | |
|---|---|
| Product colour | Grey |
| Product type | Hybrid (2-in-1) |
| Form factor | Convertible (Folder) |
| Market positioning | Home |
| Housing material | Plastic |
| Stylus pen support | Yes |

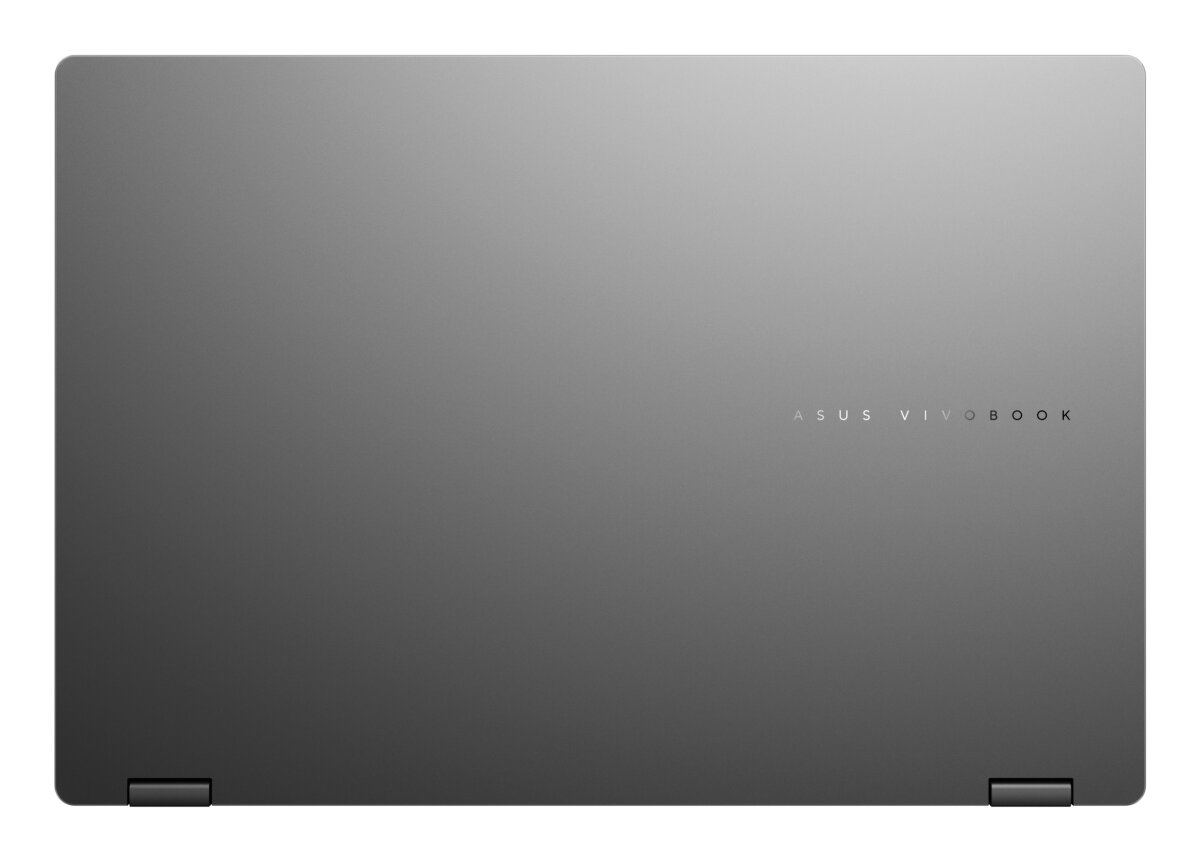

| Display back cover material | Aluminium |
| Display | |
| Display diagonal | 16 inch |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (typical) | 1000000:1 |
| Display brightness | 300 cd/m² |
| Panel type | OLED |
| HD type | WUXGA |
| Touchscreen | Yes |
| Display resolution | 1920 x 1200 pixels |
| Display number of colours | 1.07 billion colours |
| RGB colour space | DCI-P3 |
| Colour gamut | 95% |
| Native aspect ratio | 16:10 |
| Maximum display brightness (HDR) | 300 cd/m² |
| Low Blue Light technology | Yes |
| Brand | ASUS |
| Family | Vivobook |
| Series | 16 Flip |
| Model name | TP3607AA-SI030W |
| Part Number | 90NB17B1-M005Y0 |
| EAN/UPC code | 4711636545808, 0199291545809, 199291545809 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 7 |
| Processor boost frequency | 4.7 GHz |
| Processor model | 355 |
| Processor cores | 8 |
| Processor threads | 8 |
| Processor cache | 12 MB |
| Processor generation | Intel Core Ultra (Series 3) |
| Efficient-core base frequency | 1.7 GHz |
| Performance cores | 4 |
| Performance-core Max Turbo Frequency | 4.7 GHz |
| Maximum turbo power | 55 W |
| Processor base power | 25 W |
| Performance-core base frequency | 2.3 GHz |
| Low Power Efficient-cores | 4 |
| Low Power Efficient-core Max Turbo Frequency | 3.5 GHz |
| Low Power Efficient-core Base Frequency | 1700 MHz |
| Memory | |
| Internal memory type | LPDDR5x-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | On-board |
| Maximum internal memory | 16 GB |
| Graphics | |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Graphics |
| On-board graphics card family | Intel Graphics |
| On-board graphics card 4K support | Yes |
| Graphics card Open GL support | Yes |
| On-board GPU manufacturer | Intel |
| On-board graphics card 8K support | Yes |
| Ray tracing acceleration | Yes |
| Storage | |
| Total storage capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Total SSDs capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Storage media | SSD |
| NVMe | Yes |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 6.0 |

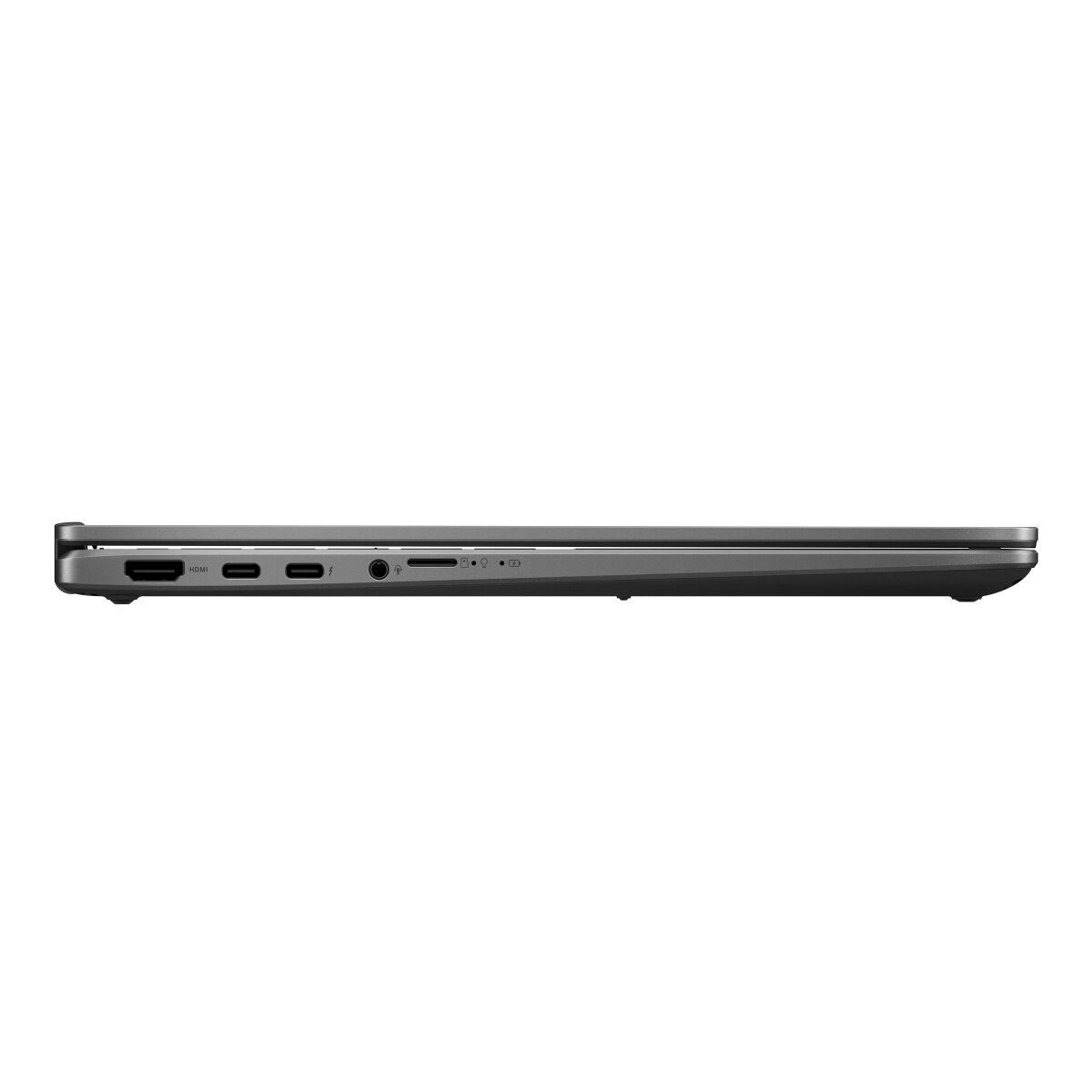

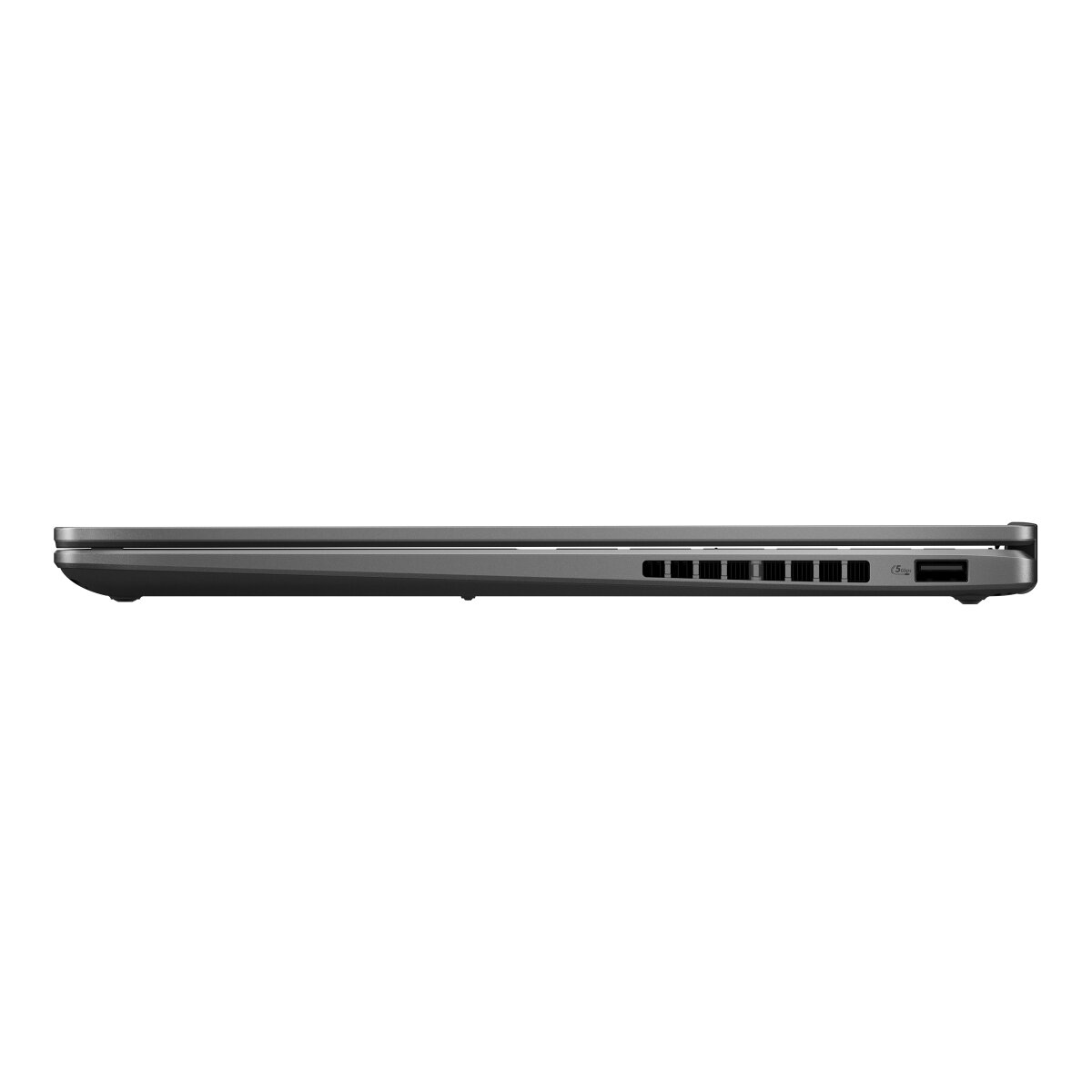

| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI version | 2.1 |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Thunderbolt 4 ports quantity | 1 |
| Intel® Thunderbolt 4 | Yes |
| USB Power Delivery (USB PD) | Yes |
| Audio | |
| Built-in microphone | Yes |
| Audio system | Smart Amp |
| Camera | |
| Front camera | Yes |
| Privacy camera | Yes |
| Windows Hello | Yes |
| Infrared (IR) camera | Yes |
| Front camera HD type | Full HD |
| Privacy type | Privacy shutter |

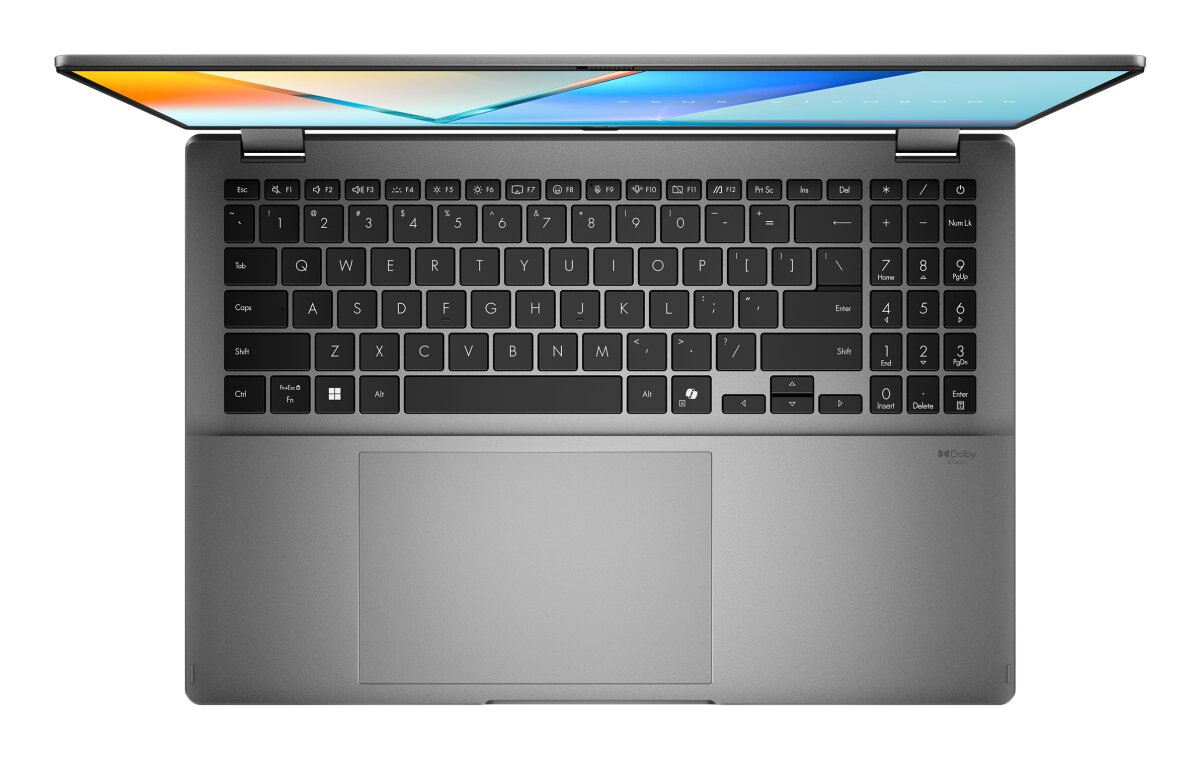

| Keyboard | |
| Numeric keypad | Yes |
| Keyboard backlit | Yes |
| Pointing device | Touchpad |
| Software | |
| Operating system installed | Windows 11 Home |
| Operating system architecture | 64-bit |
| Bundled software | 3-Month GoPro Premium+ Subscription1-Month Membership of Adobe Creative Cloud All Apps, Individual.The redemption duration from September 15, 2021 to August 31, 2026. |
| Trial software | 1-month trial for new Microsoft 365 customers. Credit card required. McAfee 30 days free trial |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
| Battery capacity | 70 Wh |
| Weight & dimensions | |
| Weight | 1.8 kg |
| Height (rear) | 1.74 cm |
| Height (front) | 1.69 cm |
| Depth | 244.3 mm |
| Width | 355 mm |
| Power | |
| AC adapter input voltage | 100 - 240 V |
| USB Type-C charging port | Yes |
| USB Type-C required charging power (min) | 45 W |
| USB Type-C required charging power (max) | 68 W |
| Security | |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | BIOS, User |
| Other features | |
| Anti-glare screen | Yes |
| Neural processor unit (NPU) | |
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI datatype support on NPU | Int8 |
| AI software frameworks supported by NPU | ONNX RT, WebNN, Windows ML, OpenVINO |
| NPU performance up to | 49 TOPs |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
