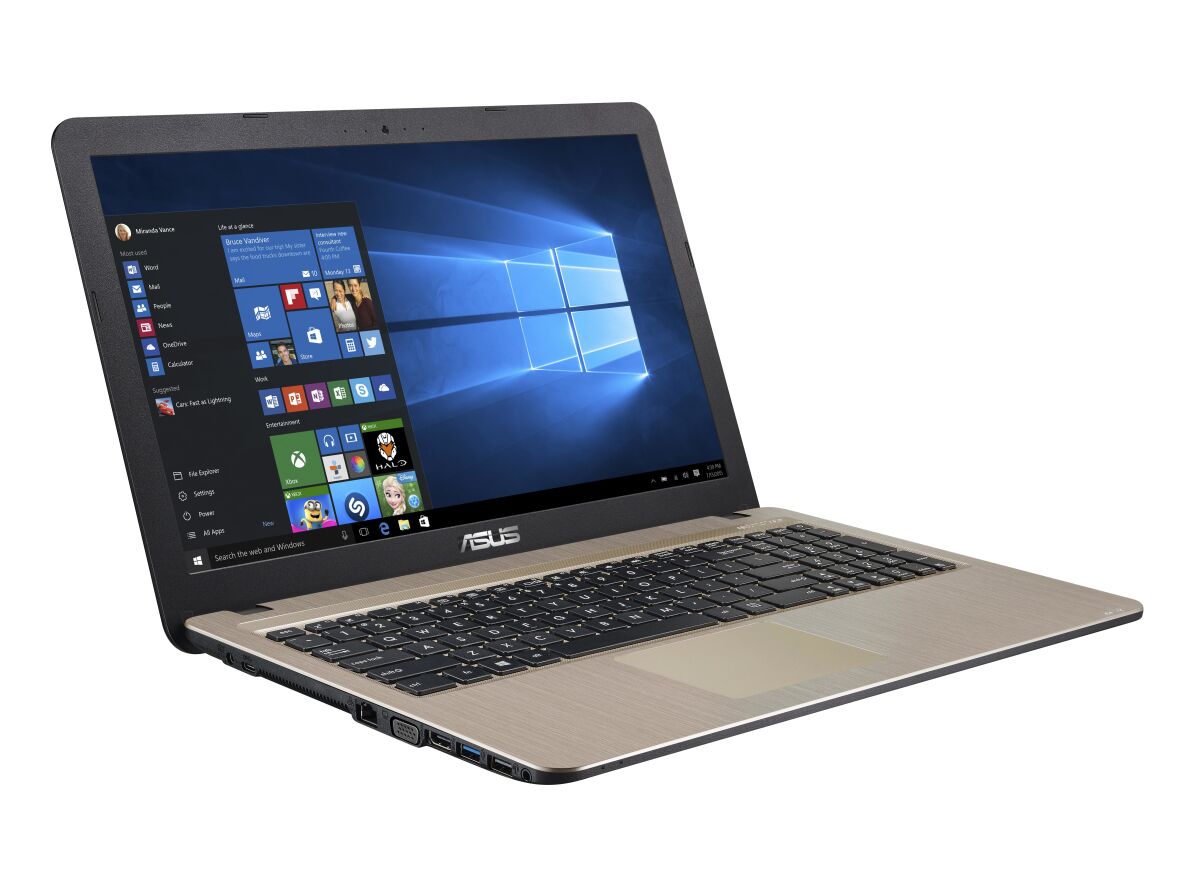

ASUS Vivobook A540UB-DM1597 - 90NB0IM1-M23370

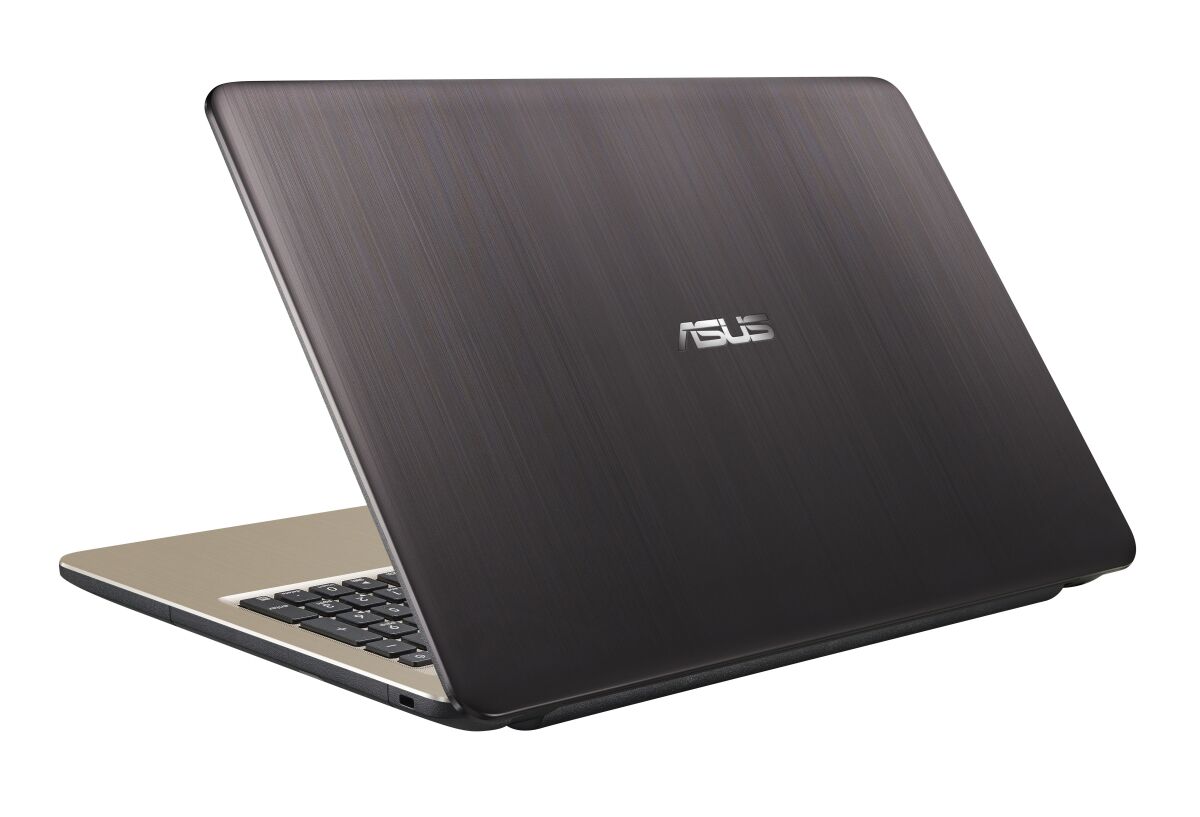

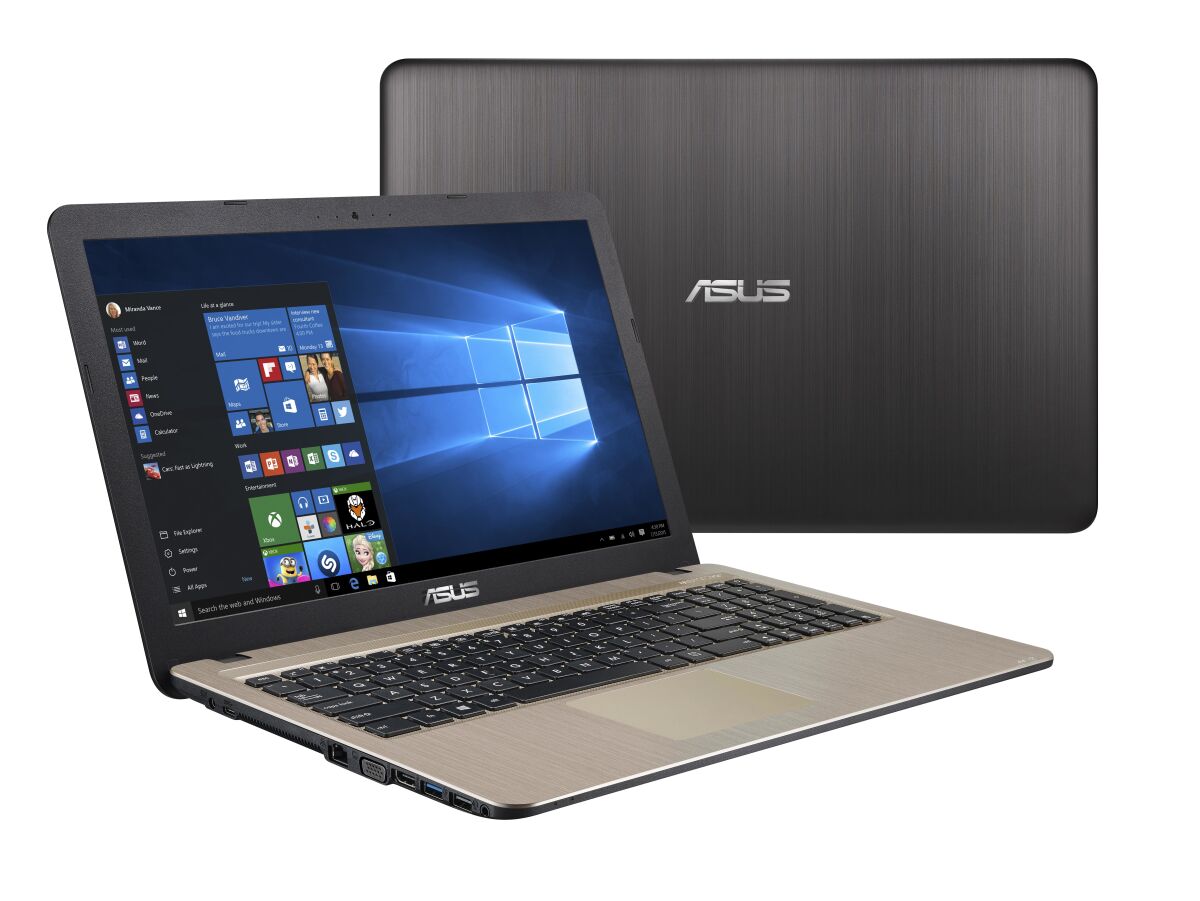

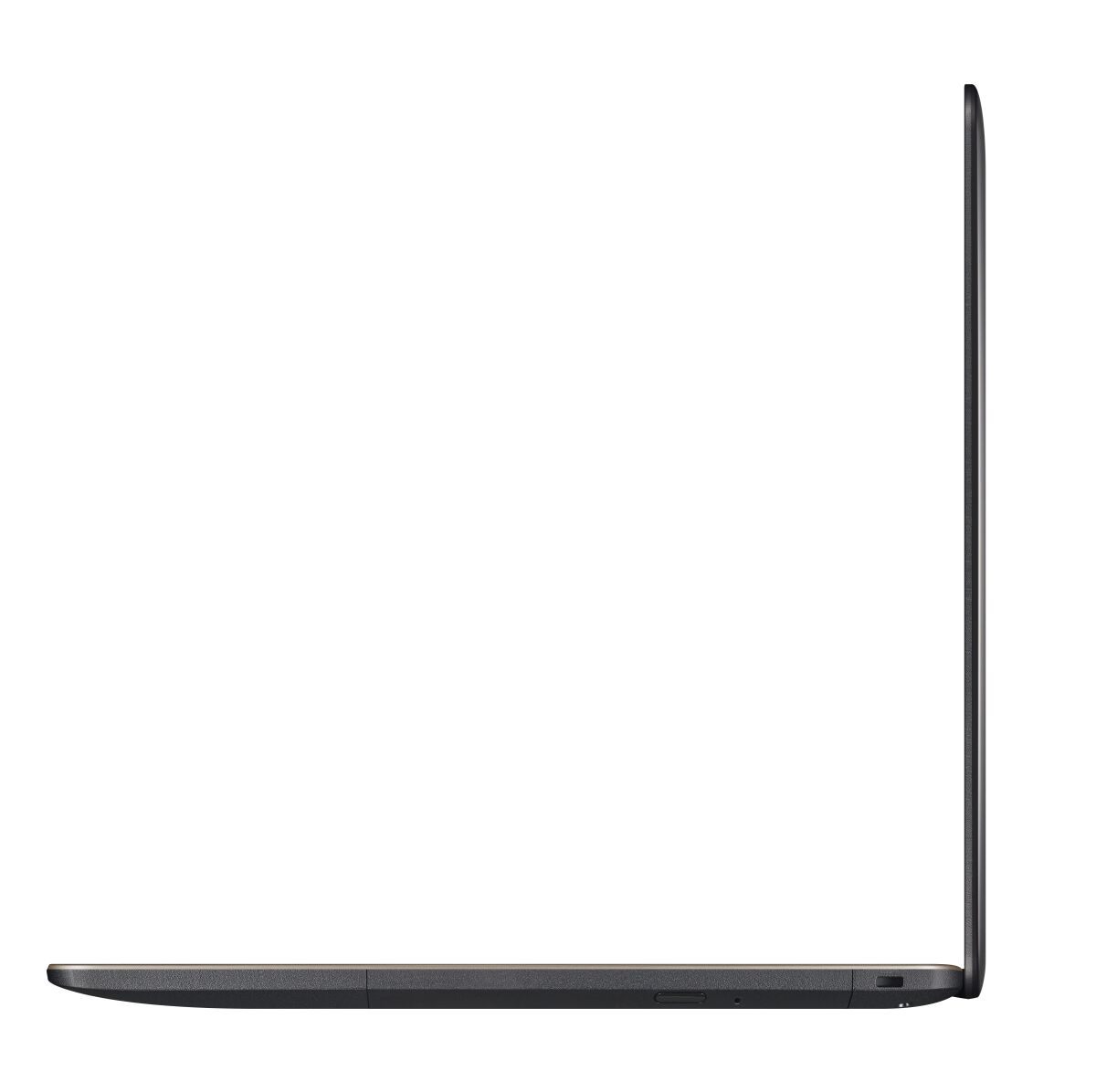

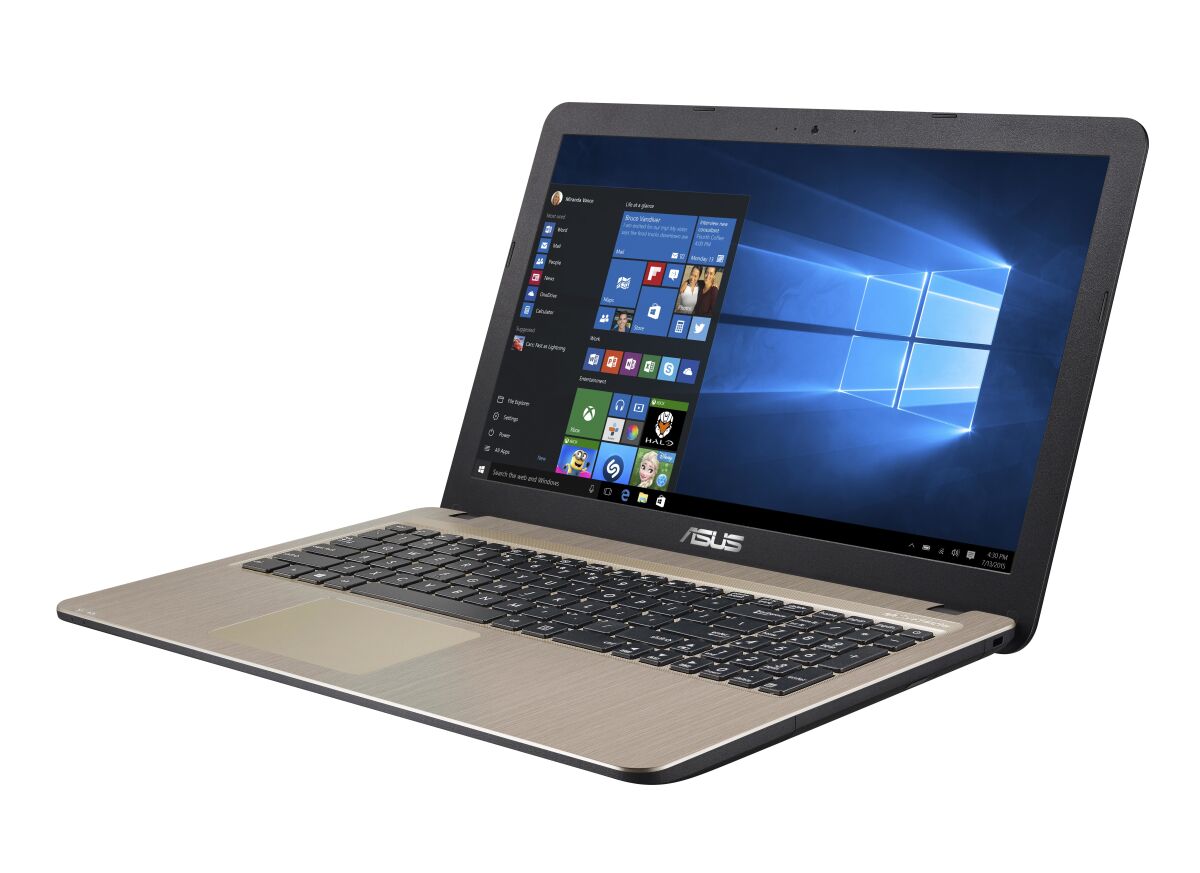

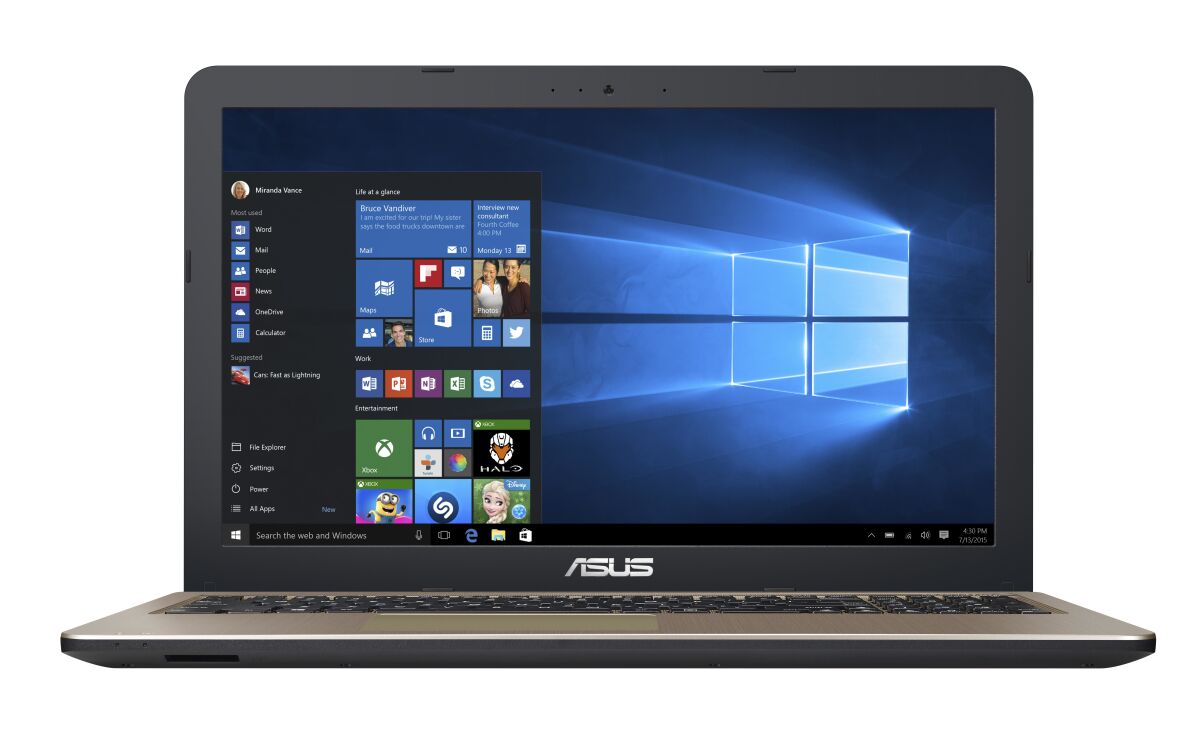

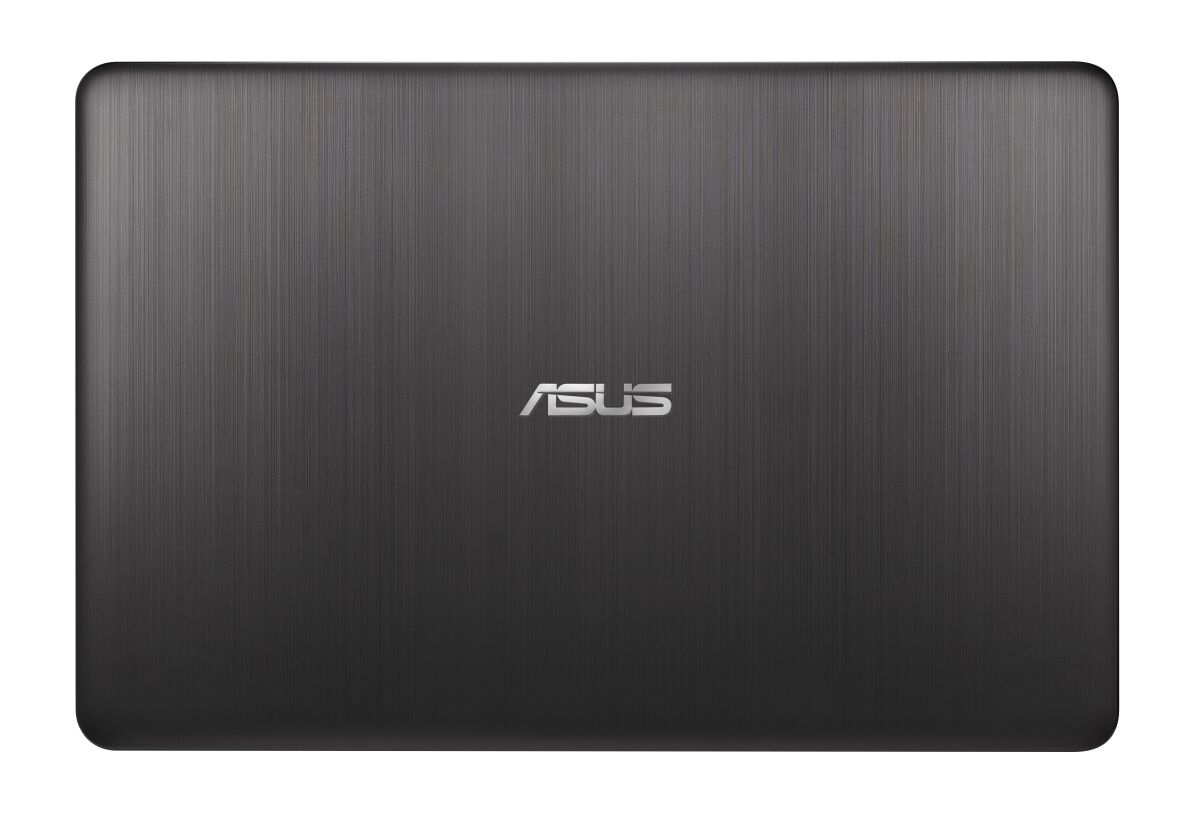

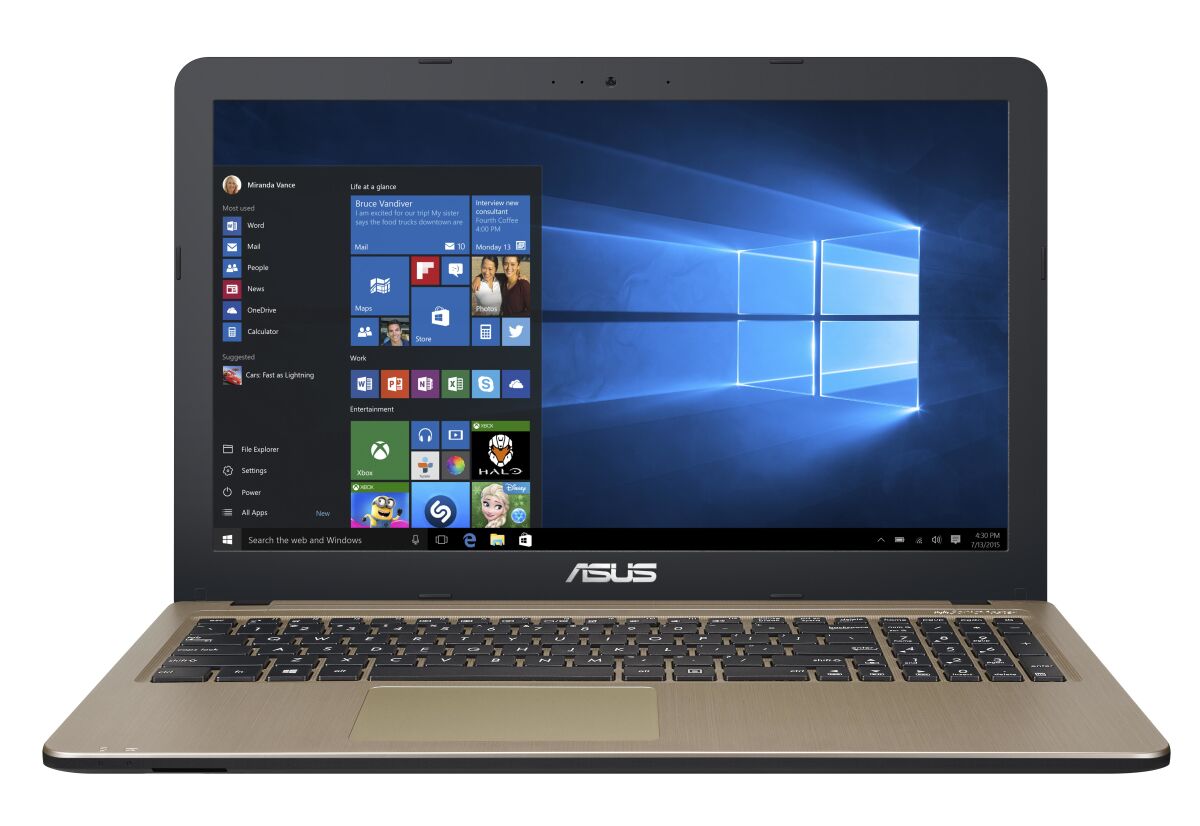

ASUS Vivobook A540UB-DM1597
Product code: 90NB0IM1-M23370
- đģDisplay diagonal: 15.6 inch
- đŗProcessor model: i3-7020U
- đĢInternal memory: 8 GB
- đŽOn-board graphics adapter model: Intel HD Graphics 620
- đŽDiscrete graphics adapter model: NVIDIA GeForce MX110
- đŊTotal storage capacity: 256 GB
- âī¸Weight: 1.9 kg
đ Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Black, Chocolate |
| Product type | Laptop |
| Form factor | Clamshell |
| Display | |
| Display diagonal | 15.6 inch |
| HD type | Full HD |
| LED backlight | Yes |
| Touchscreen | No |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Brand | ASUS |
| Family | Vivobook |
| Model name | A540UB-DM1597 |
| Part Number | 90NB0IM1-M23370 |
| Release Date | 25 February 2020 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i3 |
| Processor frequency | 2.3 GHz |
| Processor codename | Kaby Lake |
| Thermal Design Power (TDP) | 15 W |
| Processor model | i3-7020U |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor cache | 3 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA 1356 |
| Processor generation | 7th gen Intel Core i3 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 8 GB |
| Memory clock speed | 2133 MHz |
| Graphics | |
| On-board graphics adapter | Y |
| On-board graphics adapter DirectX version | 12.0 |
| Discrete graphics adapter | Y |
| On-board graphics adapter model | Intel HD Graphics 620 |
| Discrete graphics adapter model | NVIDIA GeForce MX110 |
| On-board graphics adapter base frequency | 300 MHz |
| On-board graphics adapter dynamic frequency (max) | 1000 MHz |
| Maximum on-board graphics adapter memory | 32 GB |
| On-board graphics adapter OpenGL version | 4.5 |
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA GeForce MX110 |
| On-board graphics card model | Intel HD Graphics 620 |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1000 MHz |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x5916 |
| On-board GPU manufacturer | Intel |
| Storage | |
| Total storage capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| Total SSDs capacity | 256 GB |
| SSD interface | SATA III |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Storage media | SSD |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | No |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 4.1 |

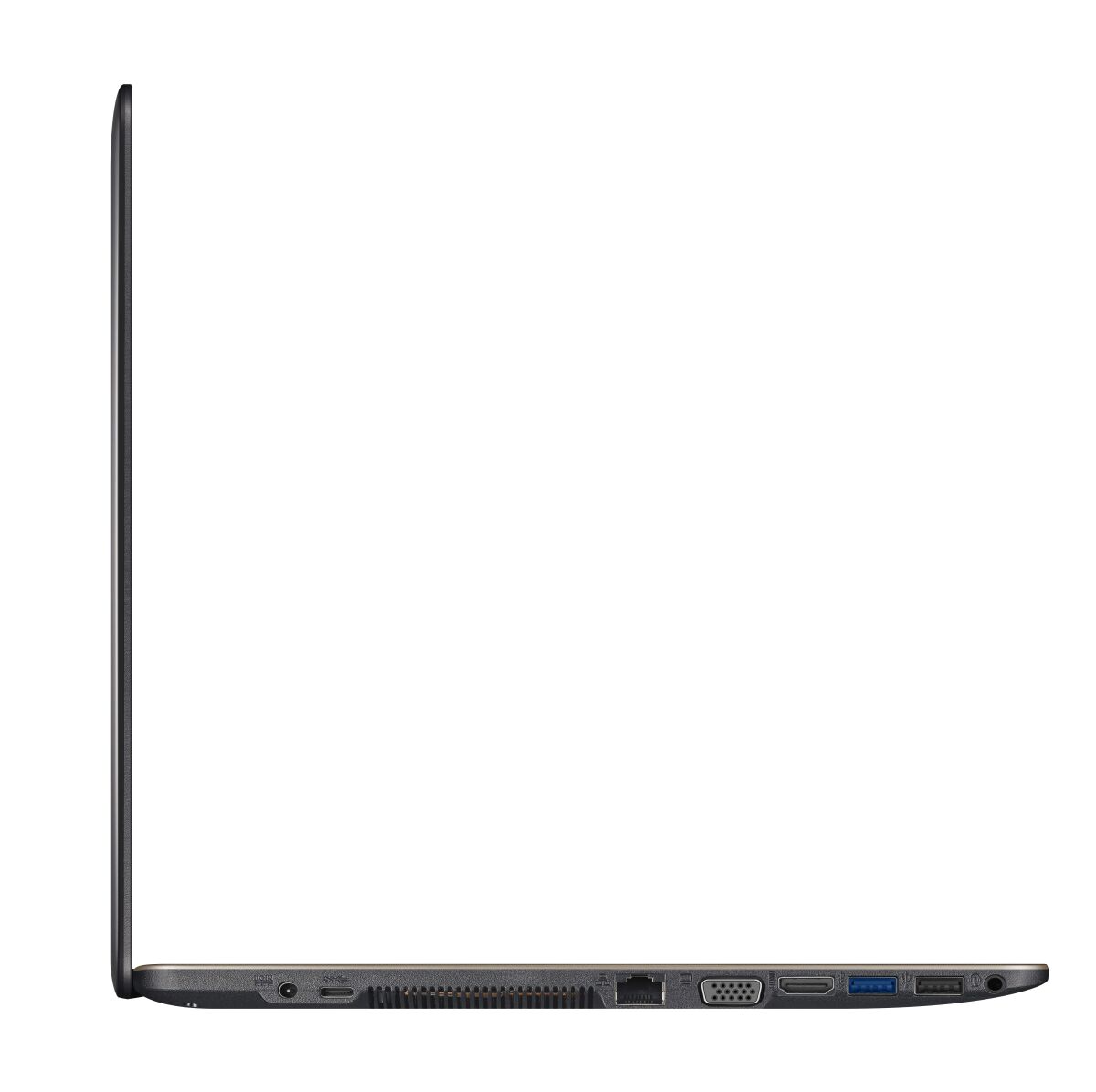

| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Combo headphone/mic port | Yes |
| USB 2.0 ports quantity | 2 |
| HDMI ports quantity | 1 |
| Audio | |
| Built-in microphone | Yes |
| Speaker power | 2 W |
| Camera | |
| Front camera | Yes |
| Keyboard | |
| Numeric keypad | Yes |
| Pointing device | Touchpad |
| Software | |
| Operating system installed | Endless OS |
| Battery | |
| Battery capacity (Watt-hours) | 33 Wh |
| Number of battery cells | 3 |
| Battery capacity | 33 Wh |
| Weight & dimensions | |
| Weight | 1.9 kg |
| Height | 27.2 mm |
| Depth | 251 mm |
| Width | 381 mm |
| Power | |
| AC adapter power | 65 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 19 V |
| AC adapter output current | 2.37 A |
| Security | |
| Cable lock slot | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
