ASUS VivoBook F540NA-GQ078T - 90NB0HG1-M01280

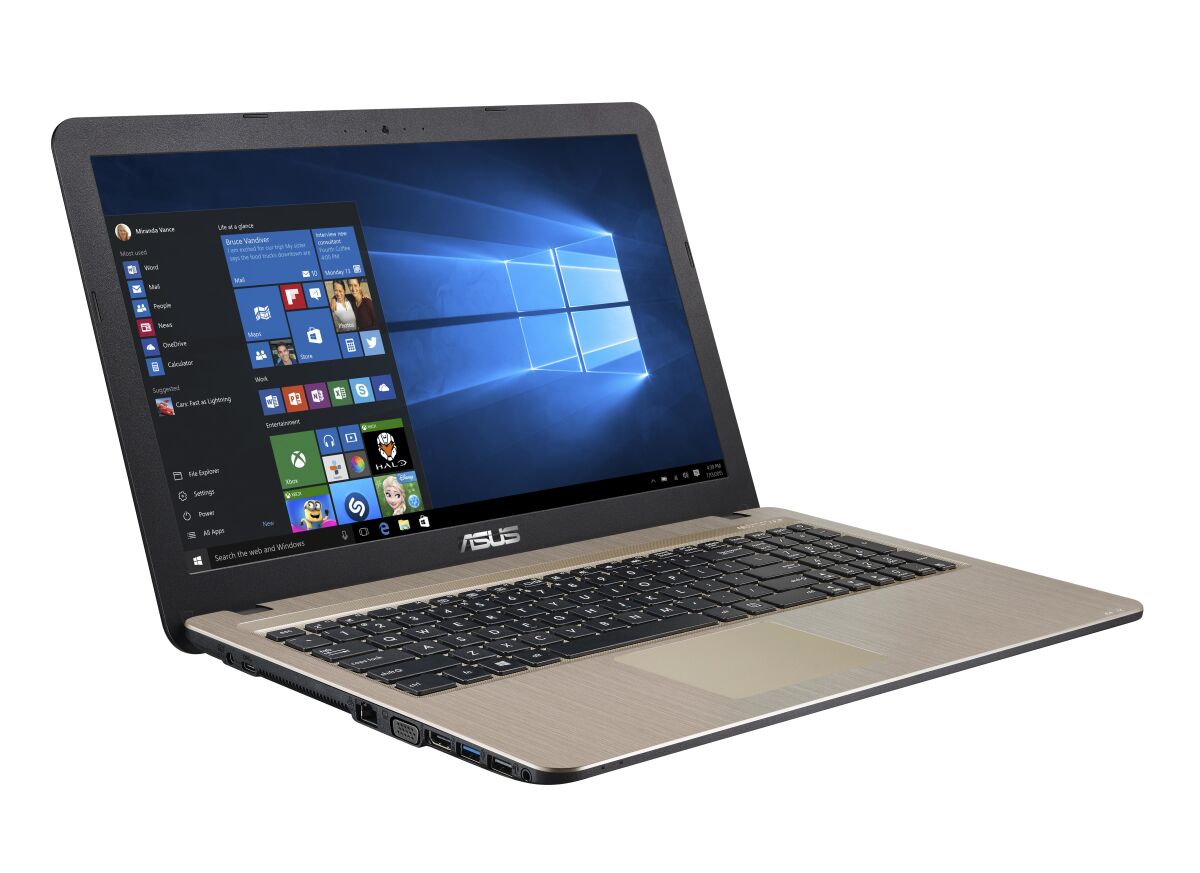

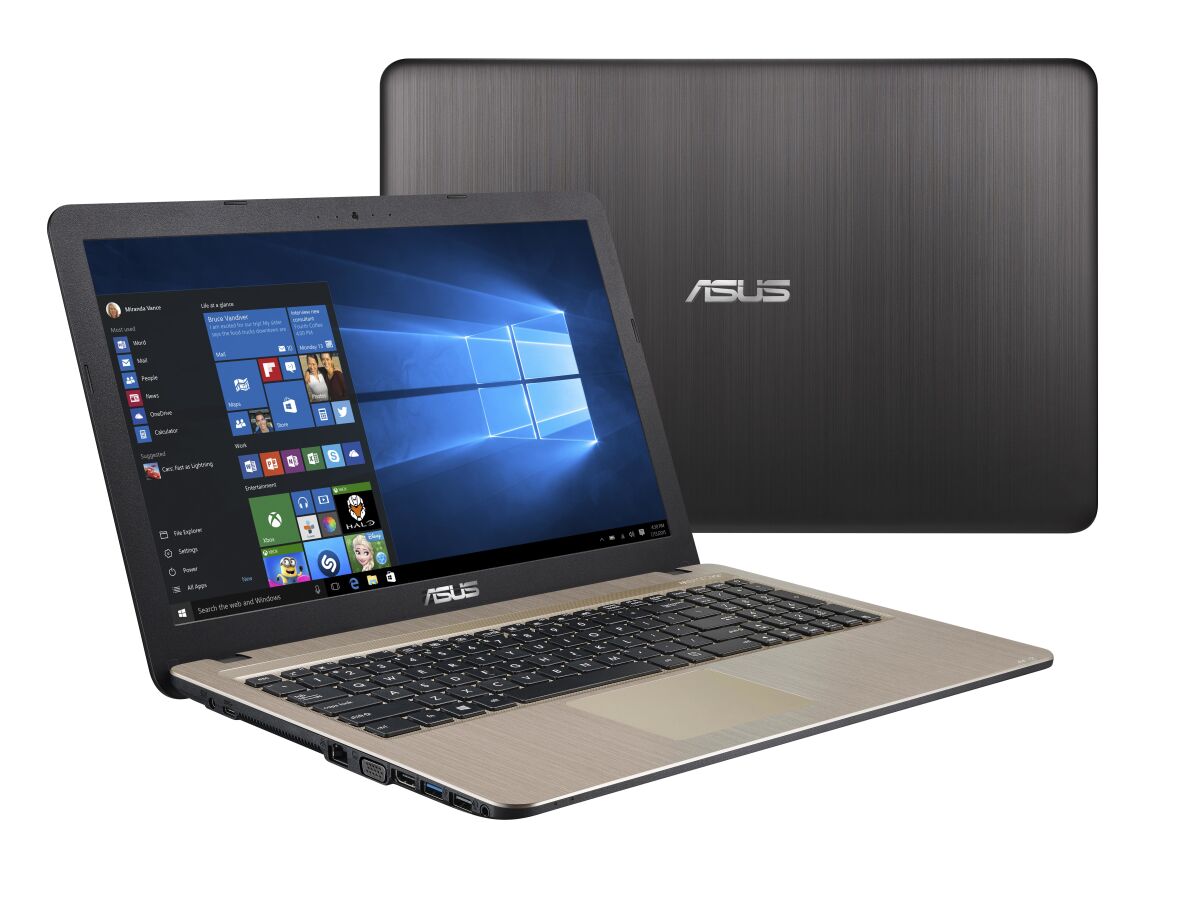

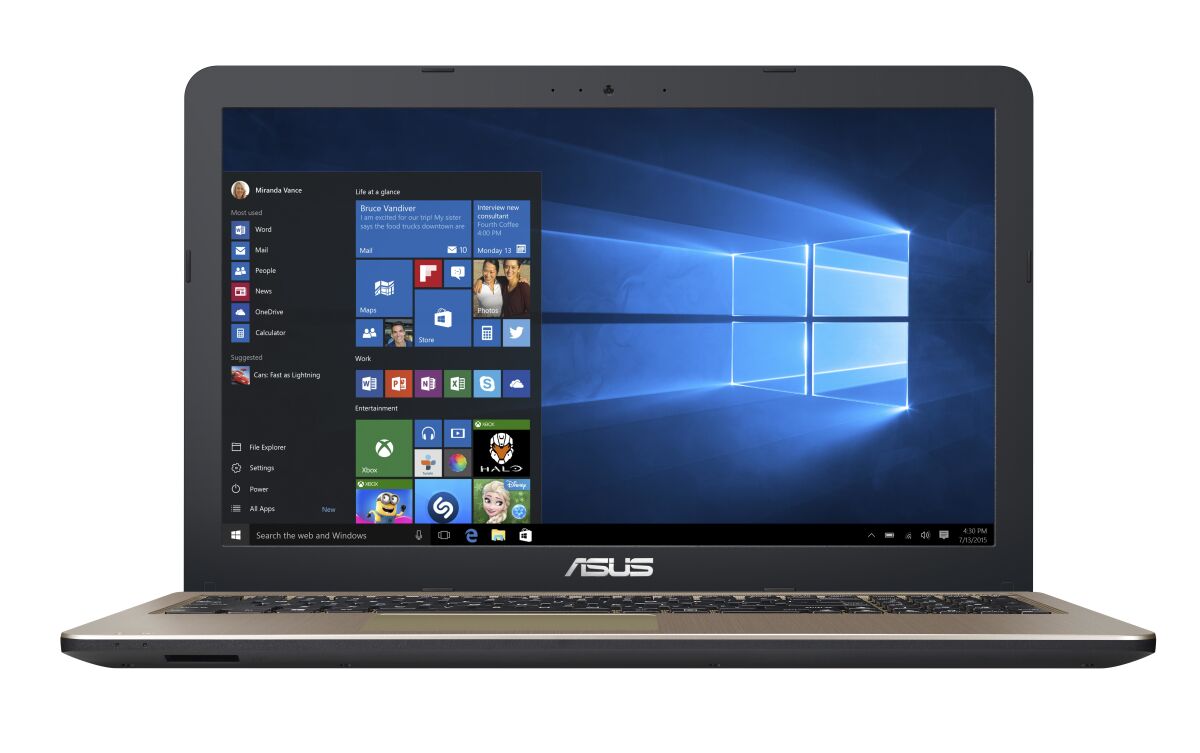

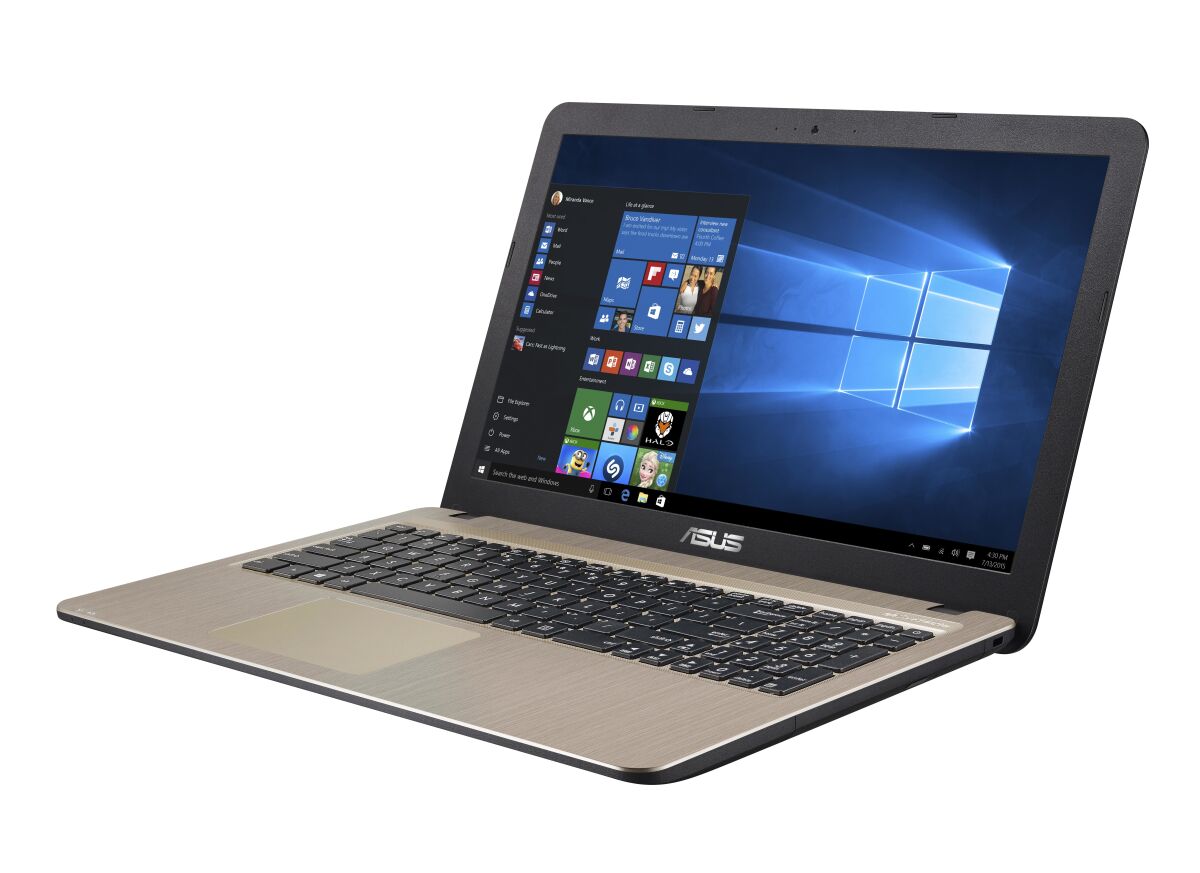

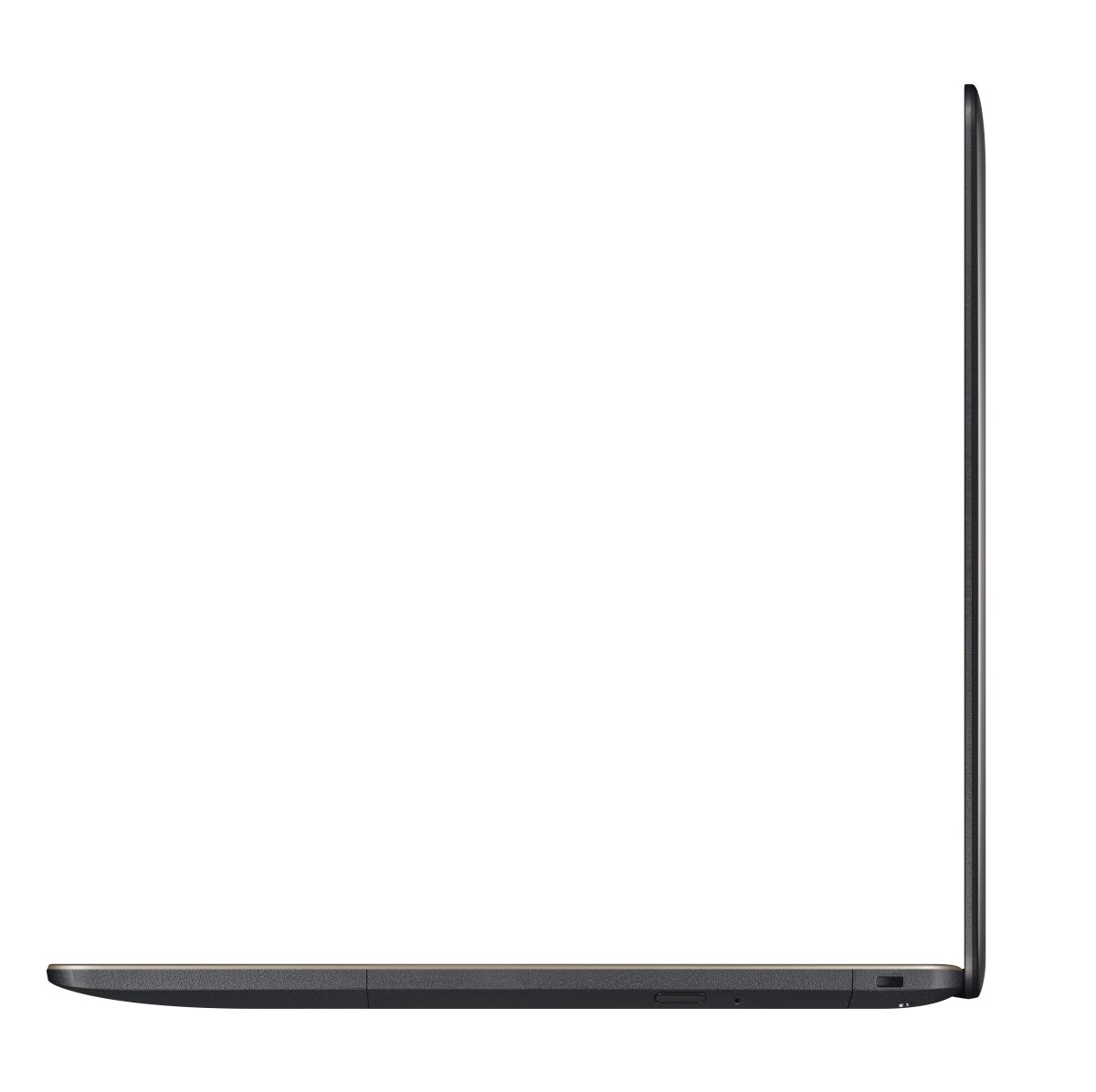

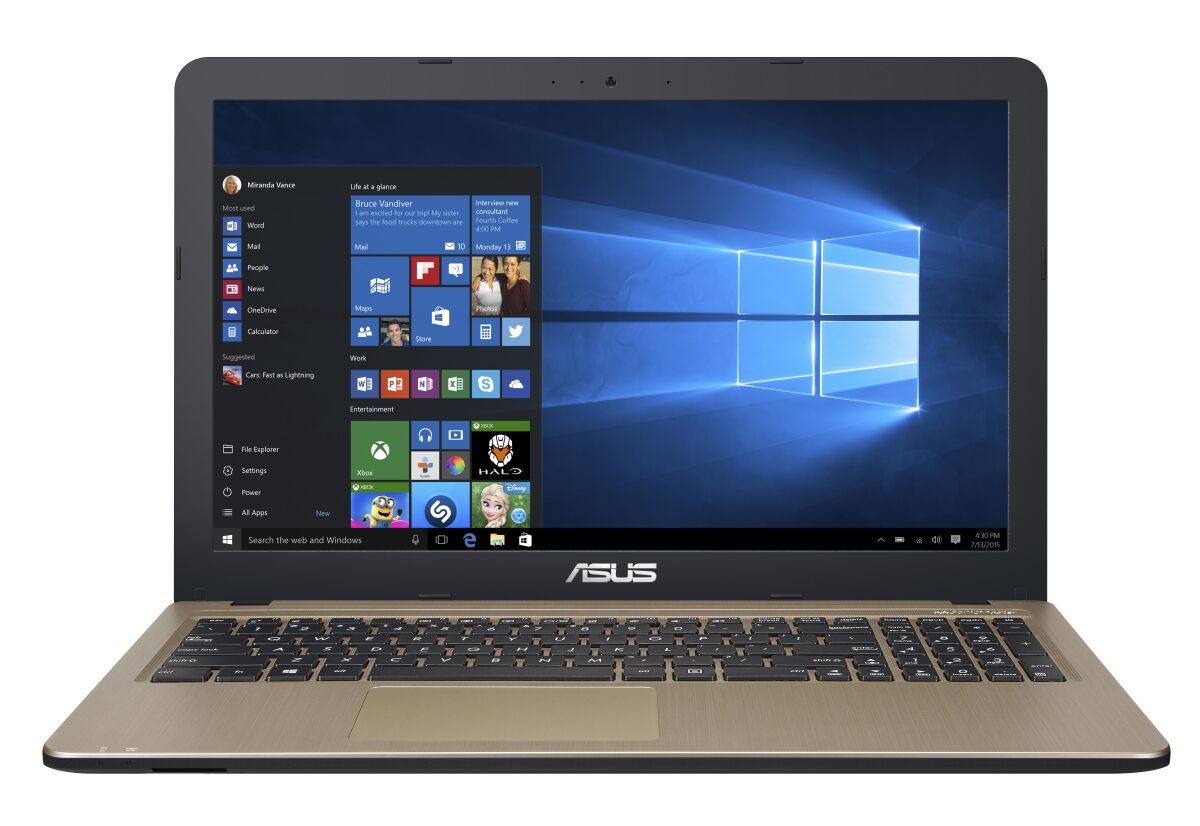

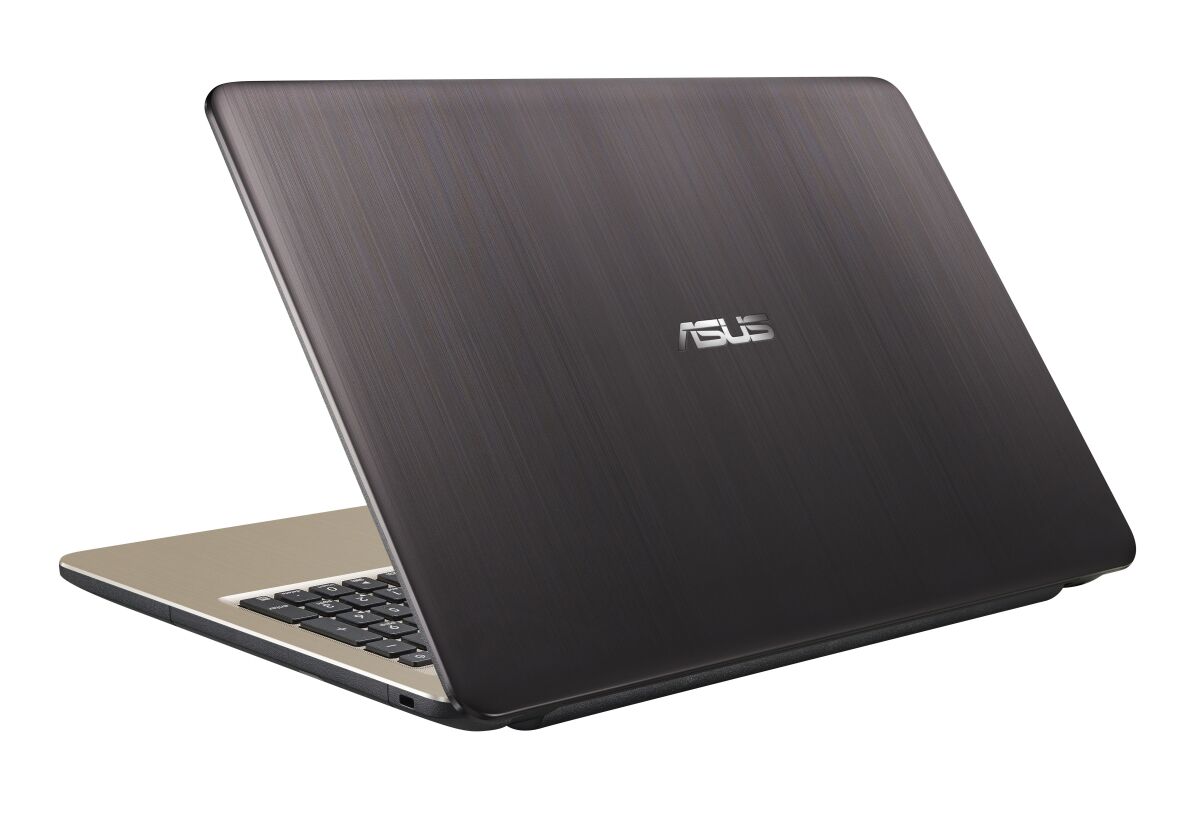

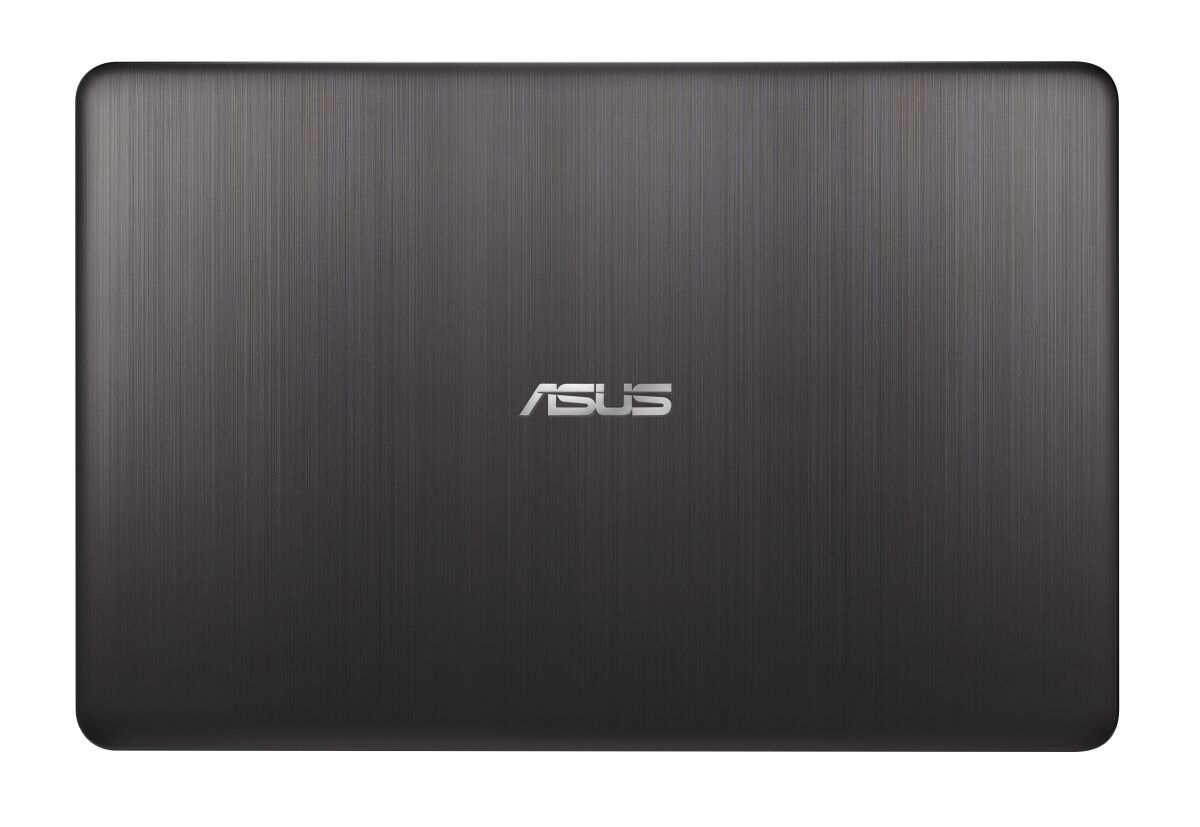

ASUS VivoBook F540NA-GQ078T
Product code: 90NB0HG1-M01280
- đģDisplay diagonal: 15.6 inch
- đŗProcessor model: N4200
- đĢInternal memory: 8 GB
- đŽOn-board graphics adapter model: Intel HD Graphics 505
- đŽDiscrete graphics adapter model: Not available
- đŊTotal storage capacity: 1 TB
- âī¸Weight: 2 kg
đ Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Black, Chocolate |
| Product type | Laptop |
| Form factor | Clamshell |
| Display | |
| Display diagonal | 15.6 inch |
| Display surface | Matt |
| 3D | No |
| HD type | HD |
| LED backlight | Yes |
| Touchscreen | No |
| Display resolution | 1366 x 768 pixels |
| Native aspect ratio | 16:9 |
| Brand | ASUS |
| Family | VivoBook |
| Model name | F540NA-GQ078T |
| Part Number | 90NB0HG1-M01280 |
| Release Date | 14 February 2018 |
| EAN/UPC code | 4712900910704 |
|
|
|
| Processor | |
| Processor series | Intel Pentium Processor N4000 Series for Mobile |
| Processor manufacturer | Intel |
| Processor family | Intel Pentium |
| Processor frequency | 1.1 GHz |
| Processor boost frequency | 2.5 GHz |
| Processor codename | Apollo Lake |
| Thermal Design Power (TDP) | 6 W |
| Processor model | N4200 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor cache | 2 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA 1296 |
| Memory | |
| Internal memory type | LPDDR3-SDRAM |
| Internal memory | 8 GB |
| Memory form factor | SO-DIMM |
| Memory slots | 1x SO-DIMM |
| Maximum internal memory | 8 GB |
| Memory layout (slots x size) | 1 x 8 GB |
| Maximum internal memory (64-bit) | 8 GB |
| Graphics | |
| On-board graphics adapter | Y |
| On-board graphics adapter family | Intel HD Graphics |
| On-board graphics adapter burst frequency | 750 MHz |
| Number of execution units | 18 |
| Discrete graphics adapter | N |
| On-board graphics adapter model | Intel HD Graphics 505 |
| Discrete graphics adapter model | Not available |
| On-board graphics adapter base frequency | 200 MHz |
| On-board graphics adapter dynamic frequency (max) | 750 MHz |
| Maximum on-board graphics adapter memory | 8 GB |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel HD Graphics 505 |
| On-board graphics card family | Intel HD Graphics |
| On-board graphics card base frequency | 200 MHz |
| On-board graphics card dynamic frequency (max) | 750 MHz |
| Maximum on-board graphics card memory | 8 GB |
| On-board graphics card ID | 0x5A84 |
| On-board graphics card burst frequency | 750 MHz |
| Storage | |
| Total storage capacity | 1 TB |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| HDD speed | 5400 RPM |
| HDD size | 2.5" |
| HDD interface | SATA III |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Storage media | HDD |
| Optical drive | |
| Optical drive type | DVD Super Multi DL |
| Networking | |
| Ethernet LAN | No |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Charging port type | DC-in jack |
| DVI port | No |
| Combo headphone/mic port | Yes |
| USB 2.0 ports quantity | 2 |
| HDMI ports quantity | 1 |
| Audio | |
| Built-in microphone | Yes |
| Number of built-in speakers | 2 |
| Audio system | SonicMaster |
| Camera | |
| Front camera | Yes |
| Front camera resolution (numeric) | 0.5 MP |
| Keyboard | |
| Numeric keypad | Yes |
| Island-style keyboard | Yes |
| Full-size keyboard | Yes |
| Windows keys | Yes |
| Pointing device | Touchpad |
| Software | |
| Operating system installed | Windows 10 |
| Operating system architecture | 64-bit |
| Trial software | Microsoft Office 365 |
| Battery | |
| Number of battery cells | 3 |
| Weight & dimensions | |
| Weight | 2 kg |
| Height | 27.2 mm |
| Depth | 252 mm |
| Width | 381 mm |
| Power | |
| AC adapter power | 33 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 19 V |
| AC adapter output current | 1.75 A |
| Security | |
| Password protection | Yes |
| Password protection type | BIOS, HDD, User |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
