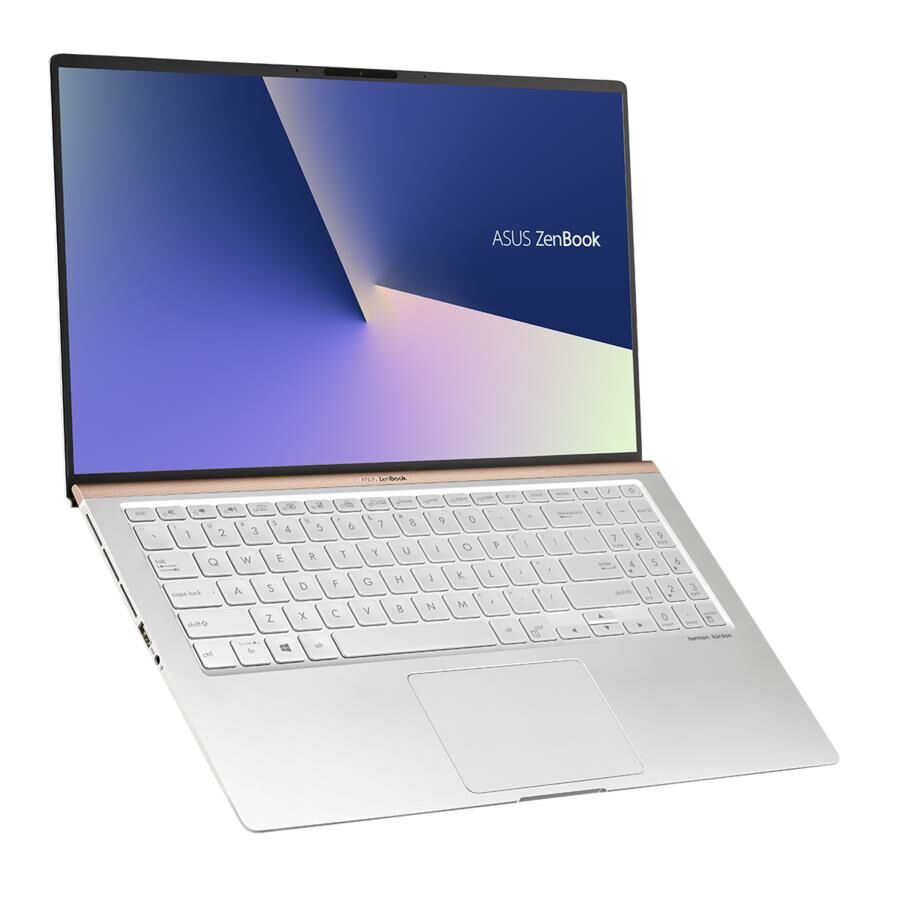

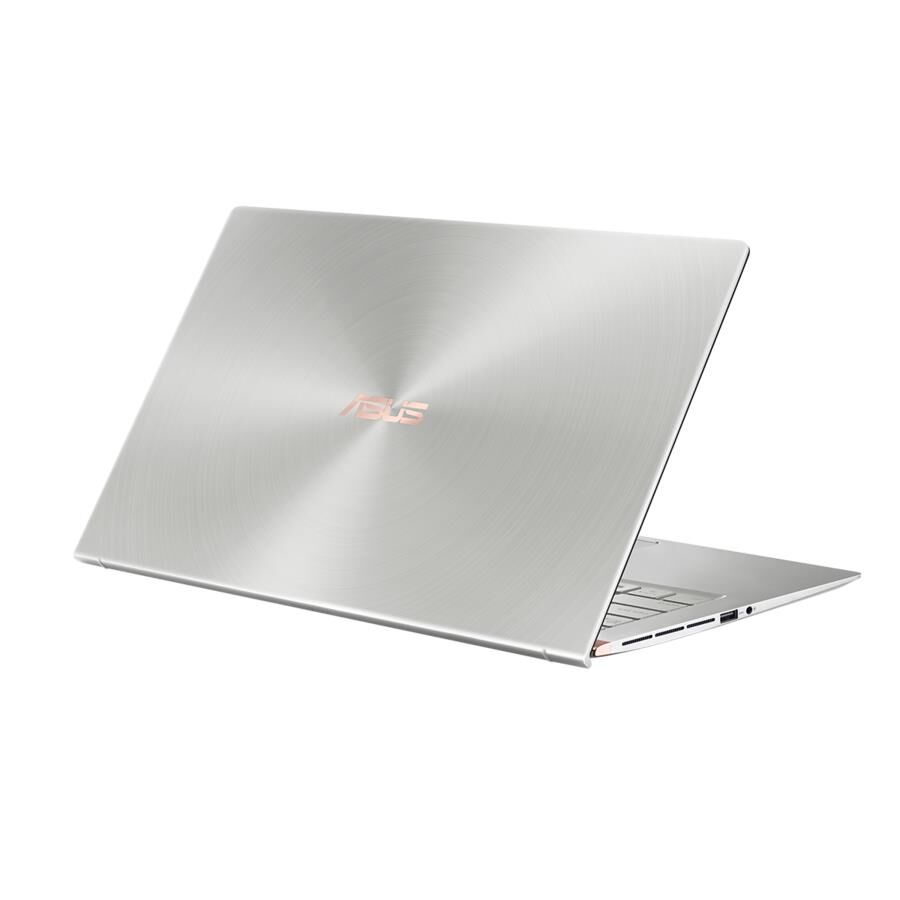

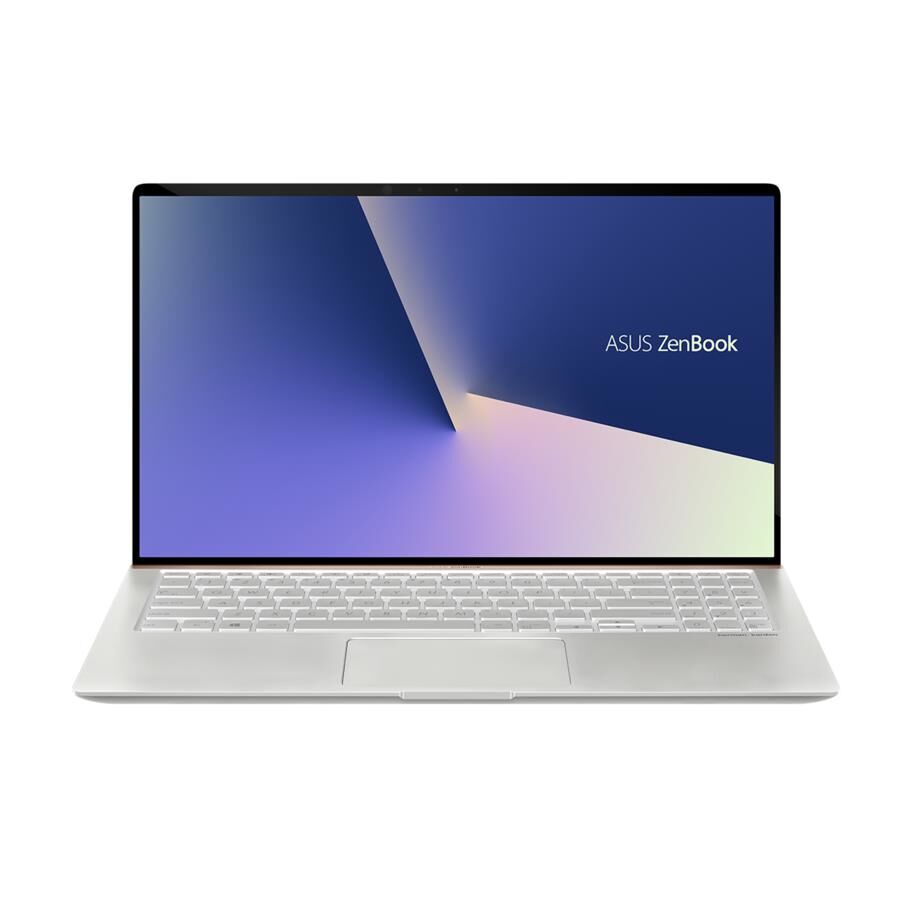

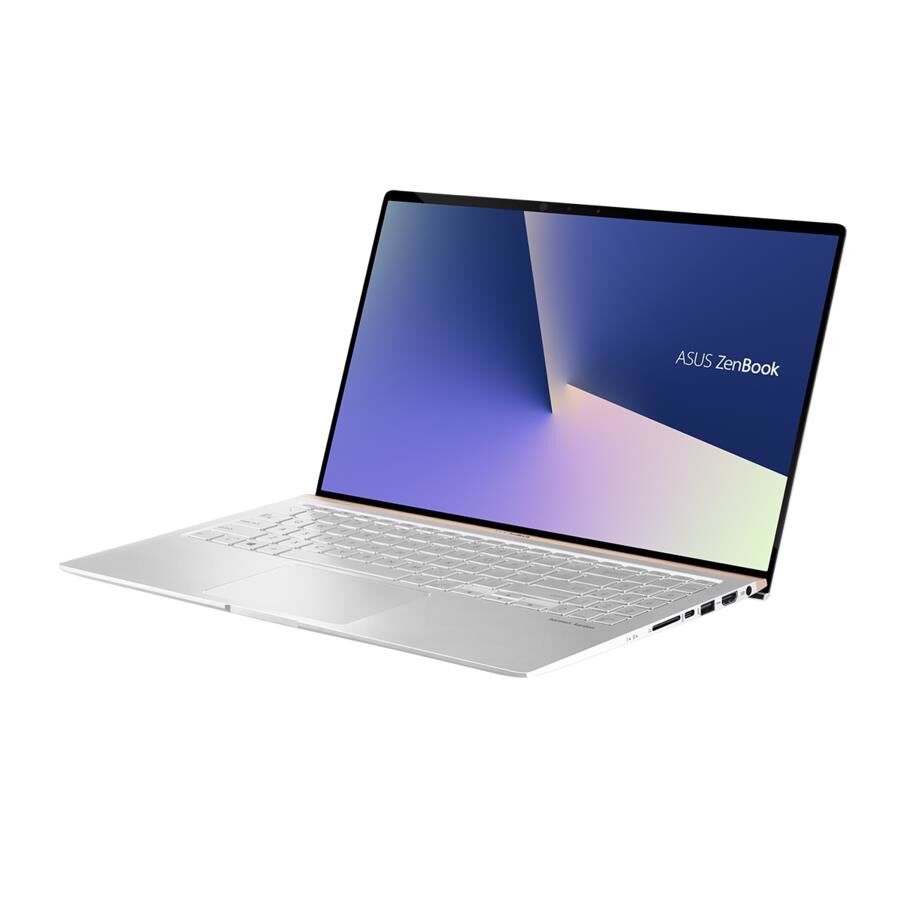

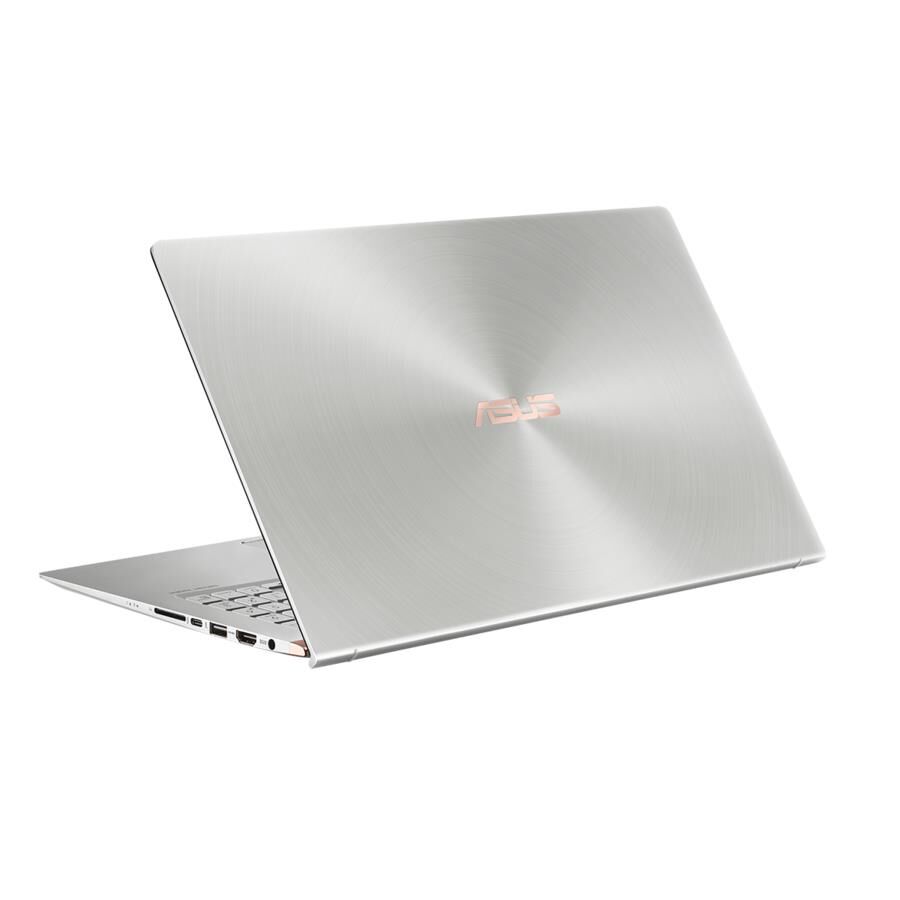

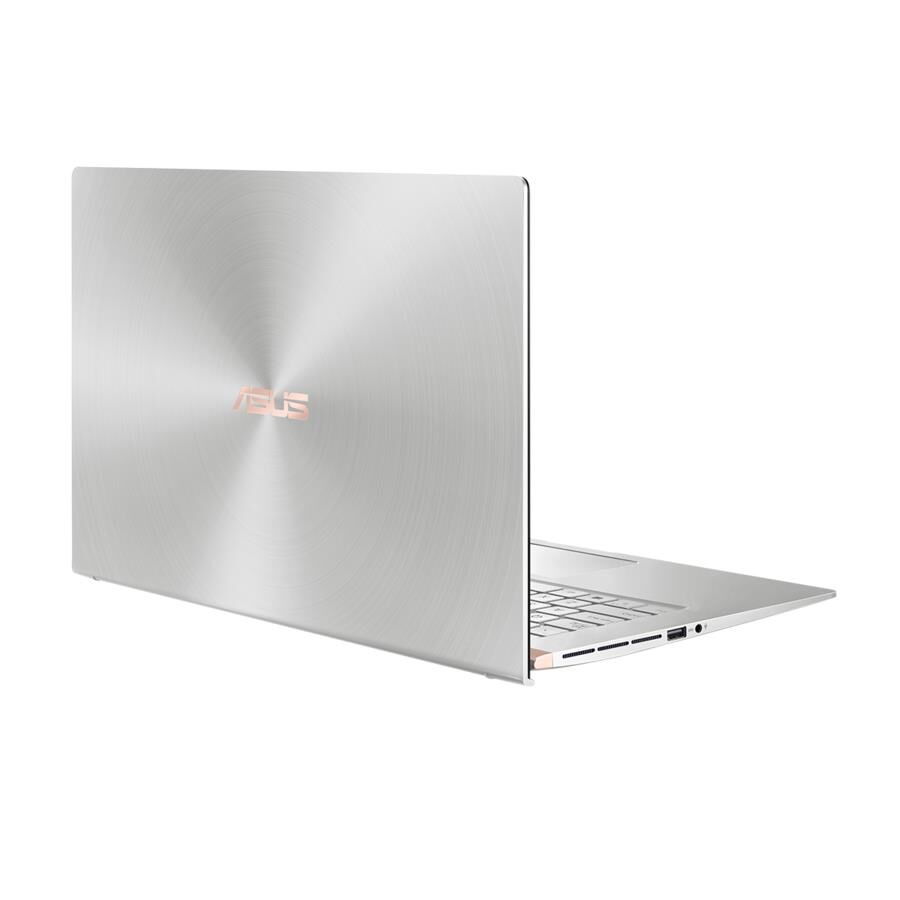

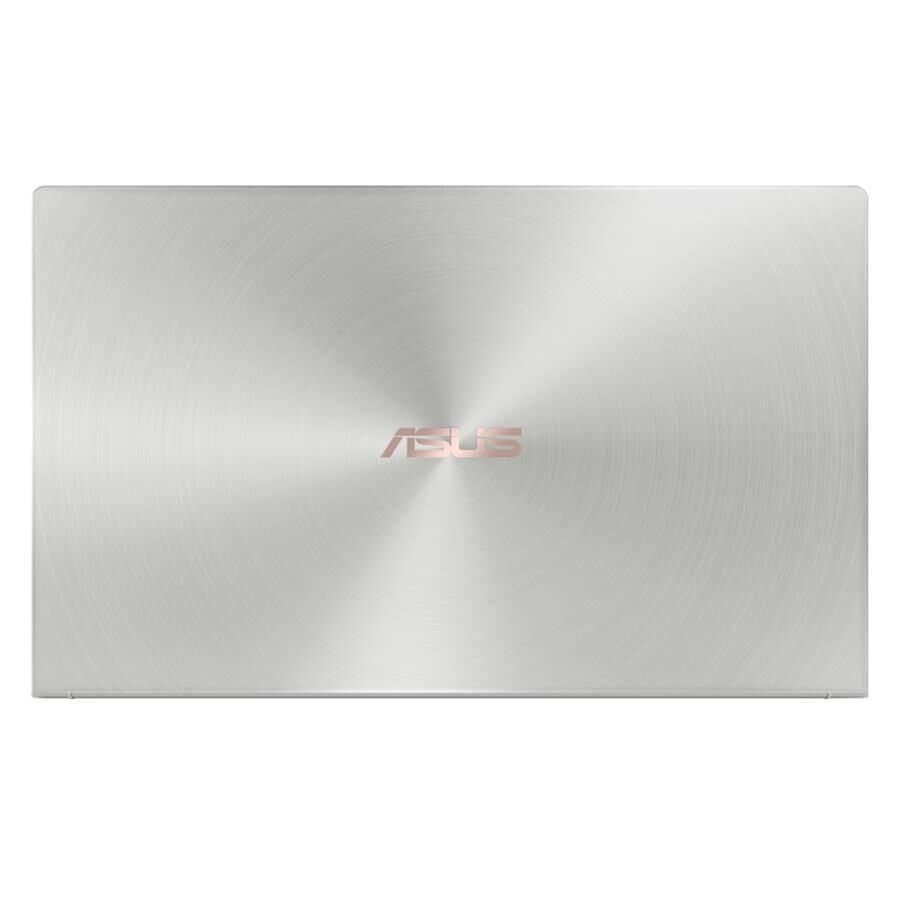

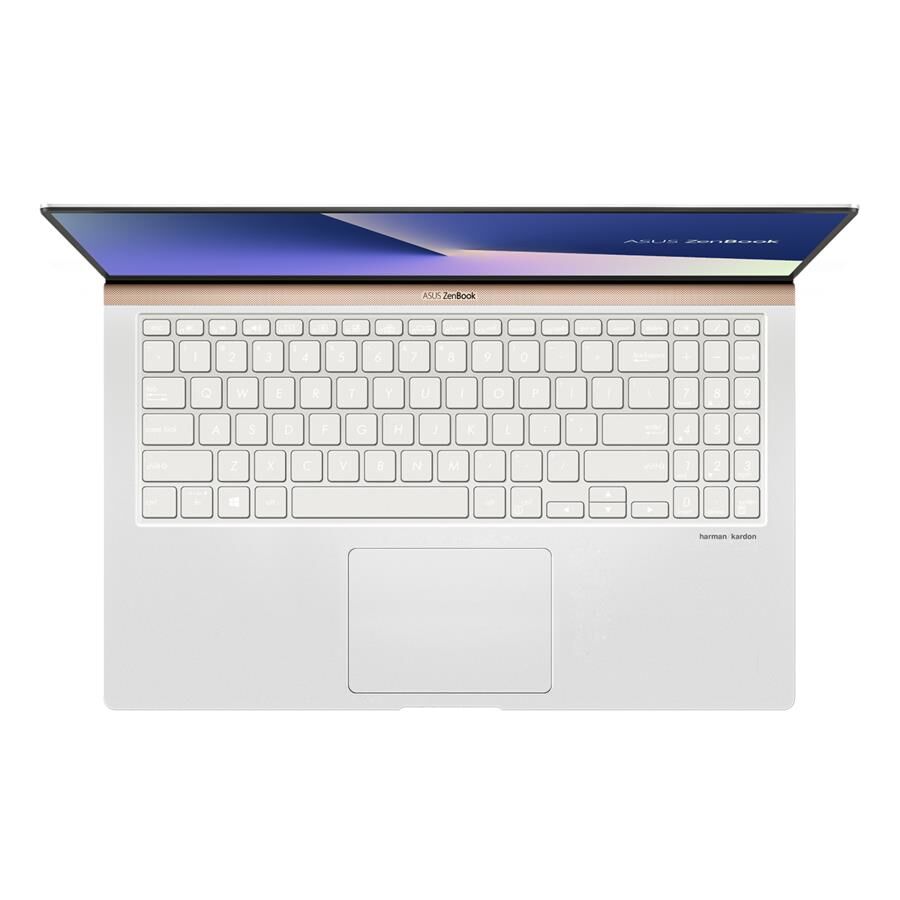

ASUS ZenBook 15 UX533FD-NS76 - 90NB0JX4-M02850
ASUS ZenBook 15 UX533FD-NS76
Product code: 90NB0JX4-M02850
- đģDisplay diagonal: 15.6 inch
- đŗProcessor model: i7-8565U
- đĢInternal memory: 16 GB
- đŽOn-board graphics adapter model: Intel UHD Graphics
- đŽDiscrete graphics adapter model: NVIDIA GeForce GTX 1050 Max-Q
- đŊTotal storage capacity: 1 TB
- âī¸Weight: 1.69 kg
đ Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Silver |
| Product type | Laptop |
| Form factor | Clamshell |
| Display | |
| Display diagonal | 15.6 inch |
| Dual-screen | No |
| sRGB coverage (typical) | 100% |
| Display surface | Gloss |
| Aspect ratio | 16:9 |
| HD type | Full HD |
| LED backlight | Yes |
| Touchscreen | No |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Brand | ASUS |
| Family | ZenBook |
| Series | 15 |
| Model name | UX533FD-NS76 |
| Part Number | 90NB0JX4-M02850 |
| Release Date | 27 May 2019 |
| EAN/UPC code | 0192876217634, 192876217634 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Processor frequency | 1.8 GHz |
| Processor boost frequency | 4.6 GHz |
| Processor codename | Whiskey Lake |
| Thermal Design Power (TDP) | 15 W |
| Processor model | i7-8565U |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor cache | 8 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA 1528 |
| Configurable TDP-up frequency | 2 GHz |
| Configurable TDP-up | 25 W |
| Processor generation | 8th gen Intel Core i7 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | On-board |
| Memory clock speed | 2400 MHz |
| Maximum internal memory | 16 GB |
| Graphics | |
| On-board graphics adapter | Y |
| On-board graphics adapter family | Intel UHD Graphics |
| Discrete graphics memory type | GDDR5 |
| On-board graphics adapter DirectX version | 12.0 |
| Discrete graphics adapter | Y |
| On-board graphics adapter model | Intel UHD Graphics |
| Discrete graphics adapter model | NVIDIA GeForce GTX 1050 Max-Q |
| On-board graphics adapter base frequency | 300 MHz |
| On-board graphics adapter dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics adapter memory | 32 GB |
| On-board graphics adapter OpenGL version | 4.5 |
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA GeForce GTX 1050 Max-Q |
| On-board graphics card model | Intel UHD Graphics |
| On-board graphics card family | Intel UHD Graphics |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3EA0 |
| Storage | |
| Total storage capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| Total SSDs capacity | 1 TB |
| SSD interface | M.2 |
| Compatible memory cards | SD |
| Card reader integrated | Yes |
| Storage media | SSD |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | No |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Charging port type | DC-in jack |
| ExpressCard slot | No |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| Audio | |
| Built-in microphone | Yes |
| Number of built-in speakers | 2 |
| Audio system | SonicMaster |
| Camera | |
| Front camera | Yes |
| Infrared (IR) camera | Yes |
| Keyboard | |
| Numeric keypad | Yes |
| Windows keys | Yes |
| Pointing device | Touchpad |
| Software | |
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
| Battery | |
| Battery technology | Lithium Polymer (LiPo) |
| Battery capacity (Watt-hours) | 73 Wh |
| Number of battery cells | 4 |
| Battery life (max) | 17 h |
| Battery capacity | 73 Wh |
| Weight & dimensions | |
| Weight | 1.69 kg |
| Height | 17.9 mm |
| Depth | 220 mm |
| Width | 354 mm |
| Power | |
| AC adapter power | 90 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 19 V |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
