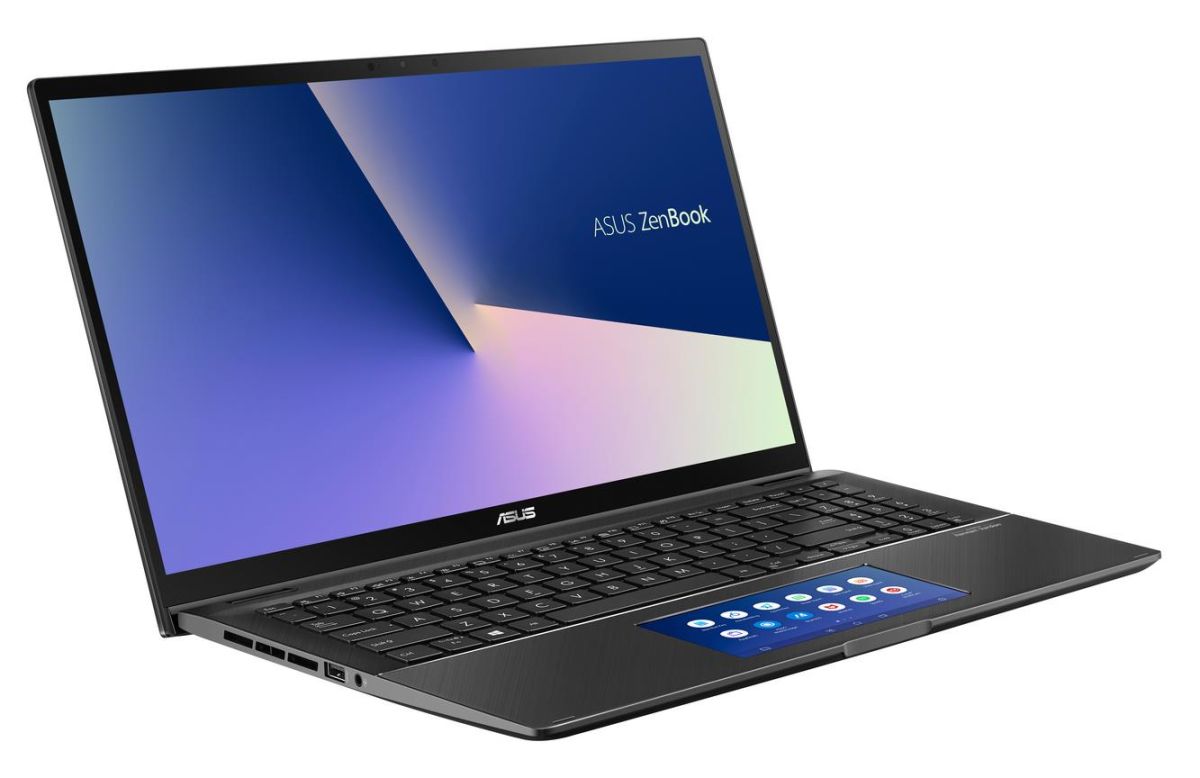

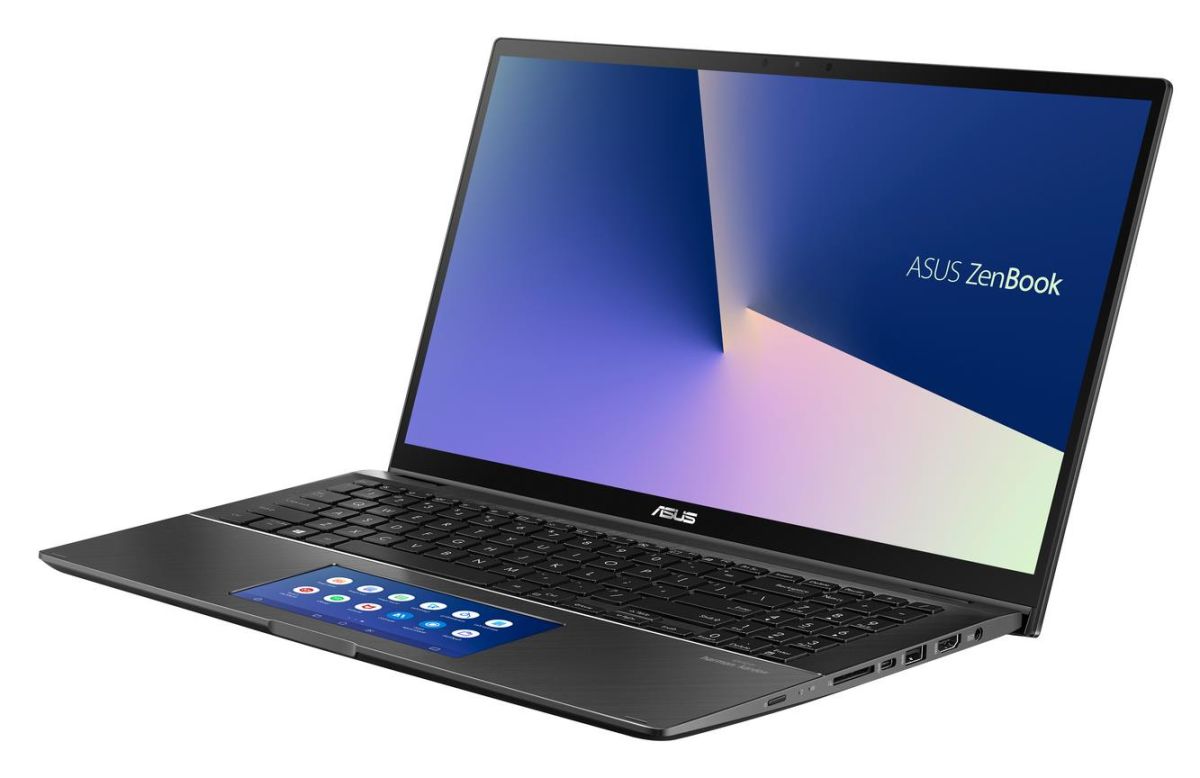

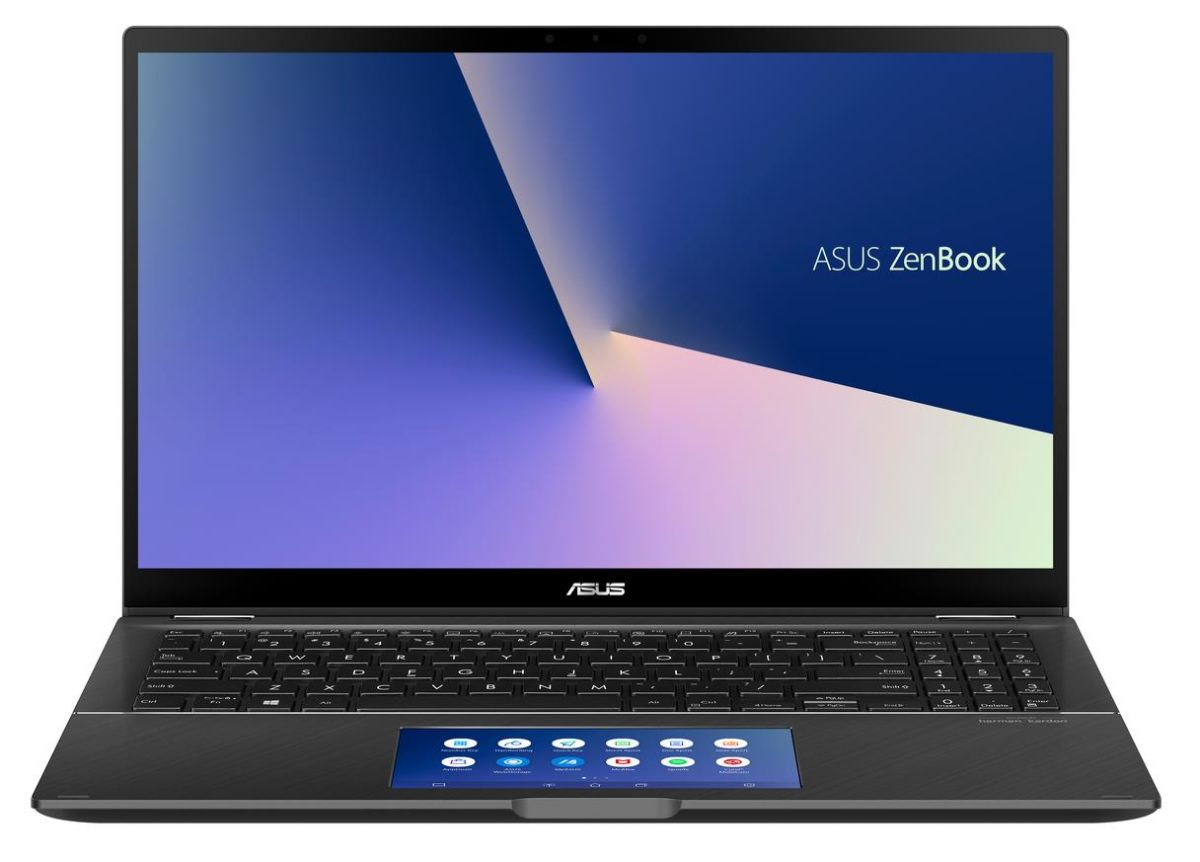

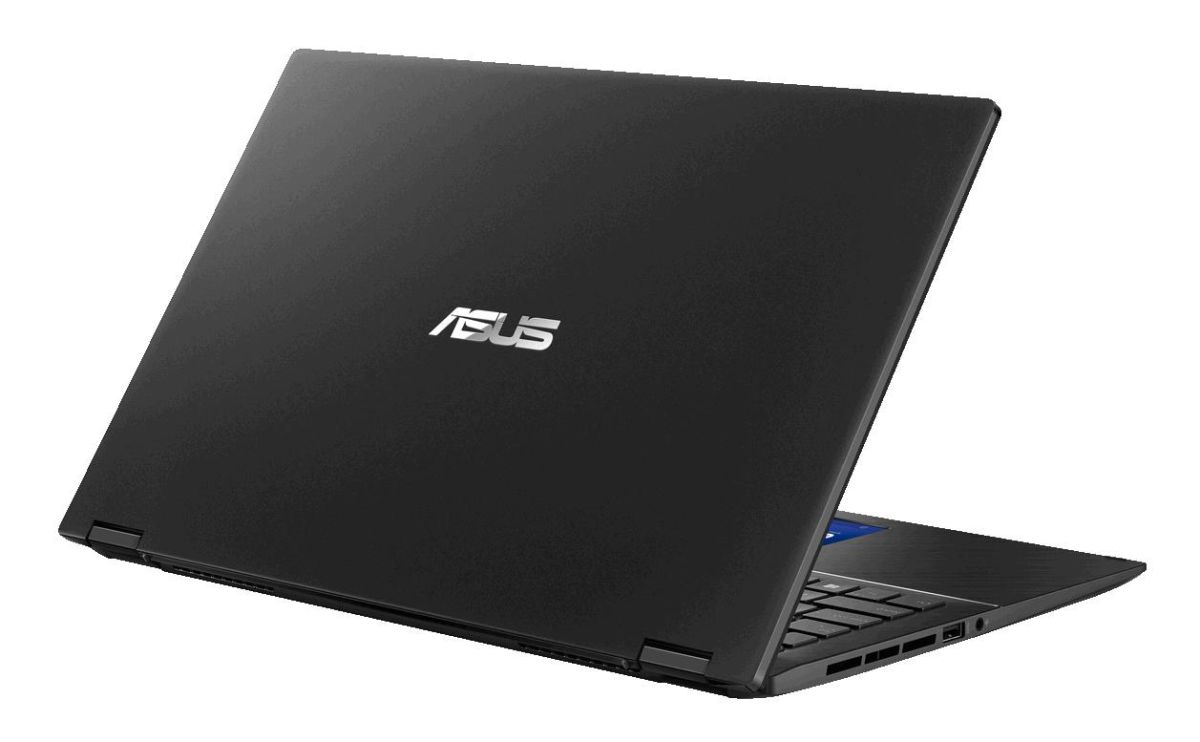

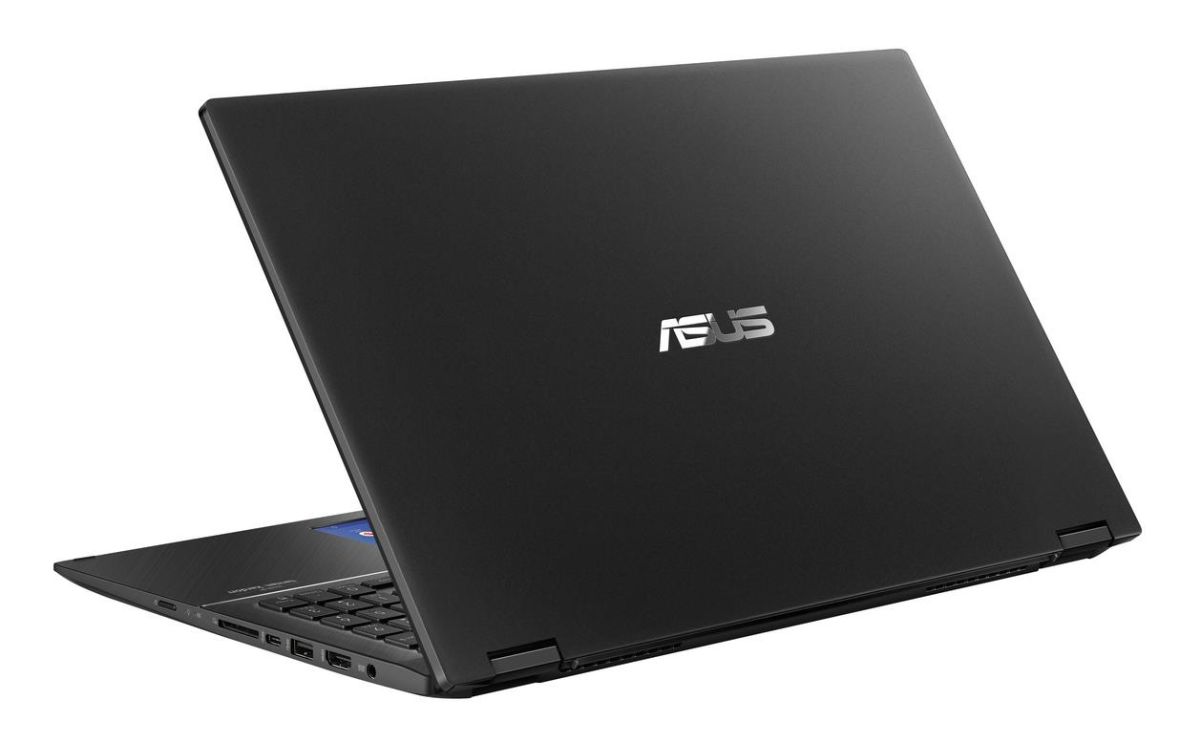

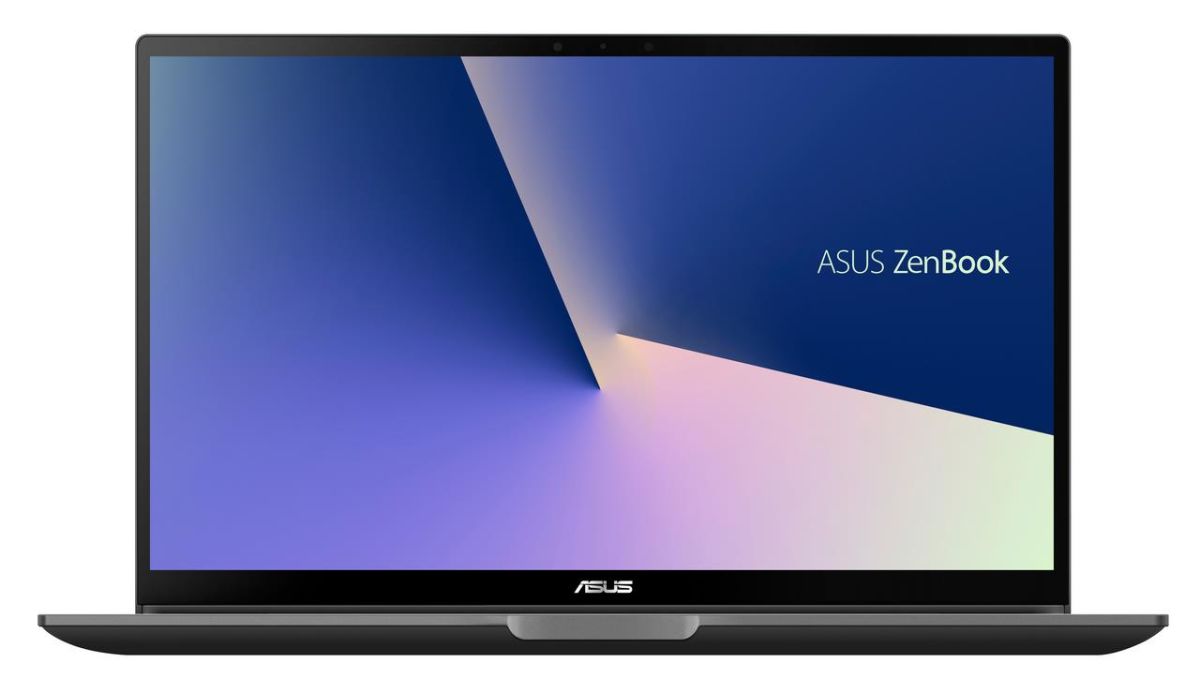

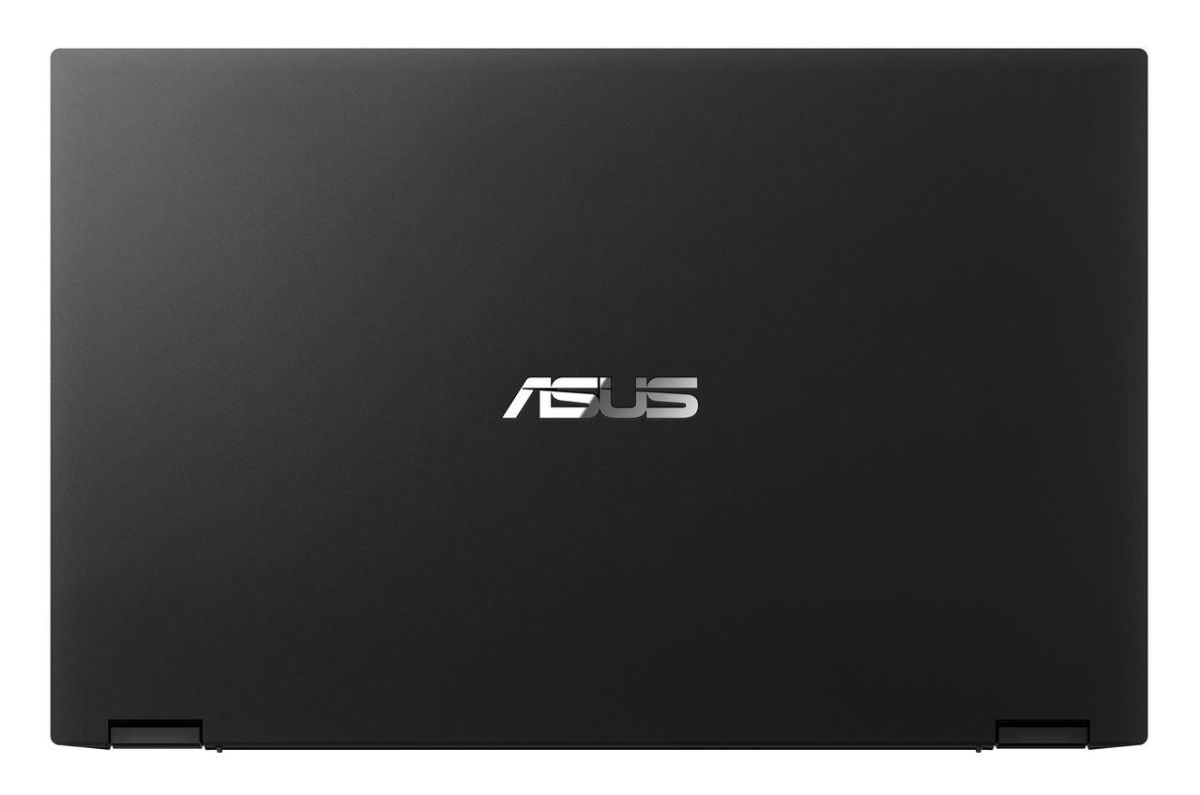

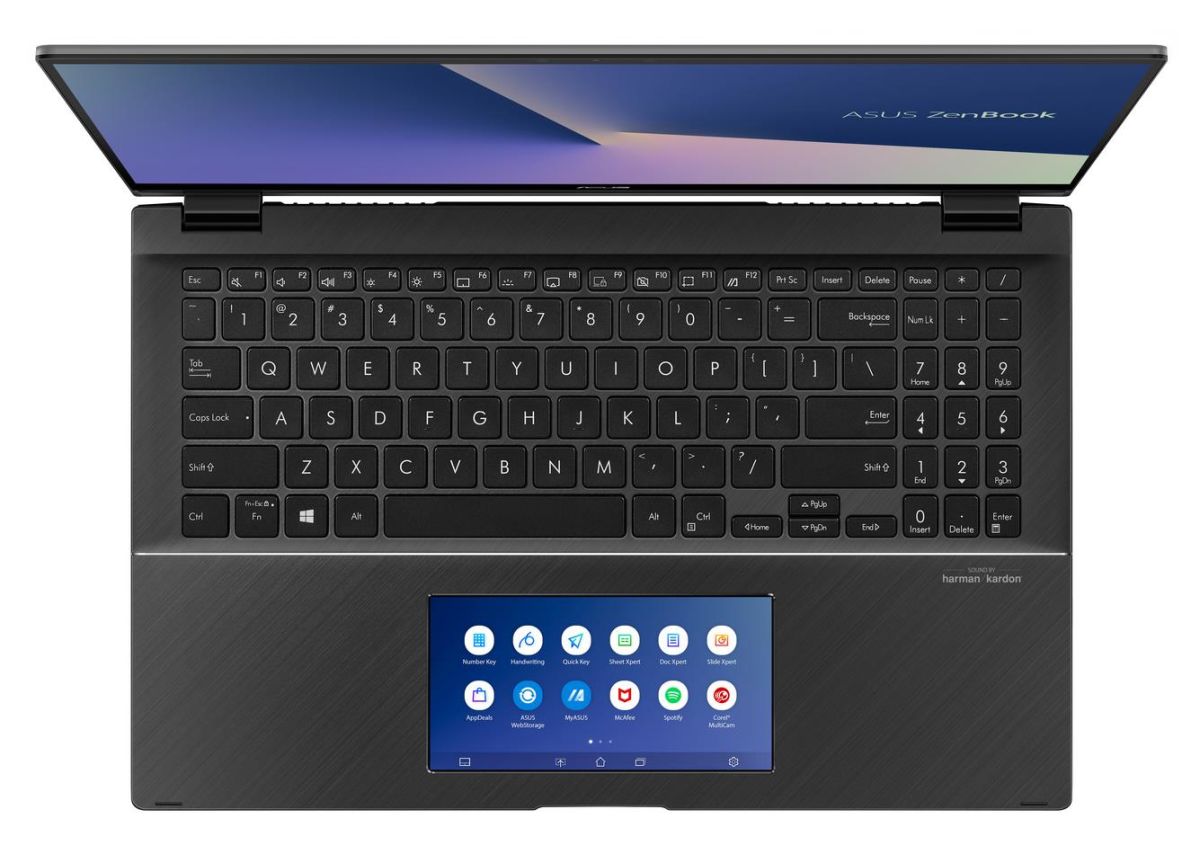

ASUS ZenBook Flip 15 UX563FD-A1045T
ASUS ZenBook Flip 15 UX563FD-A1045T
Product code: UX563FD-A1045T
- 💻Display diagonal: 15.6 inch
- 🔳Processor model: i7-10510U
- 🎫Internal memory: 16 GB
- 🎮On-board graphics adapter model: Intel UHD Graphics
- 🎮Discrete graphics adapter model: NVIDIA GeForce GTX 1050 Max-Q
- 💽Total storage capacity: 512 GB
- ⚖️Weight: 1.9 kg
📊 Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Grey |
| Product type | Hybrid (2-in-1) |
| Form factor | Convertible (Folder) |
| Intel® vPro™ Platform Eligibility | N |
| Display | |
| Display diagonal | 15.6 inch |
| Dual-screen | N |
| NTSC coverage (typical) | 72% |
| Maximum refresh rate | 60 Hz |
| Display surface | Gloss |
| Aspect ratio | 16:9 |
| HD type | 4K Ultra HD |
| LED backlight | Y |
| Touchscreen | Y |
| Display resolution | 3840 x 2160 pixels |
| Native aspect ratio | 16:9 |
| Brand | ASUS |
| Family | ZenBook |
| Series | Flip 15 |
| Model name | UX563FD-A1045T |
| Part Number | UX563FD-A1045T |
| Release Date | 10 August 2019 |
| EAN/UPC code | 4718017480154 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Processor frequency | 1.8 GHz |
| Processor boost frequency | 4.9 GHz |
| Processor codename | Comet Lake |
| Thermal Design Power (TDP) | 15 W |
| Processor model | i7-10510U |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor cache | 8 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA 1528 |
| Configurable TDP-up frequency | 2.3 GHz |
| Configurable TDP-up | 25 W |
| Processor generation | 10th gen Intel Core i7 |
| Memory | |
| Internal memory type | LPDDR3-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | On-board |
| Memory clock speed | 2133 MHz |
| Maximum internal memory | 16 GB |
| Graphics | |
| On-board graphics adapter | Y |
| NVIDIA Max-Q | Y |
| Number of execution units | 24 |
| Discrete graphics memory type | GDDR5 |
| Discrete graphics adapter | Y |
| On-board graphics adapter model | Intel UHD Graphics |
| Discrete graphics adapter model | NVIDIA GeForce GTX 1050 Max-Q |
| Discrete graphics adapter memory | 4 GB |
| On-board graphics card | Y |
| Discrete graphics card | Y |
| Discrete graphics card model | NVIDIA GeForce GTX 1050 Max-Q |
| On-board graphics card model | Intel UHD Graphics |
| On-board graphics card family | Intel UHD Graphics |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x9B41 |
| Discrete graphics card memory | 4 GB |
| Storage | |
| Total storage capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Total SSDs capacity | 512 GB |
| Compatible memory cards | SD |
| Card reader integrated | Y |
| Storage media | SSD |
| Optical drive | |
| Optical drive type | N |
| Networking | |
| Ethernet LAN | N |
| Wi-Fi | Y |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Y |
| Bluetooth version | 5.0 |
| 4G | N |
| 3G | N |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Combo headphone/mic port | Y |
| HDMI ports quantity | 1 |
| Audio | |
| Built-in microphone | Y |
| Camera | |
| Front camera | Y |
| Infrared (IR) camera | Y |
| Keyboard | |
| Numeric keypad | Y |
| Windows keys | Y |
| Pointing device | ScreenPad |
| Software | |
| Operating system installed | Windows 10 Home |
| Battery | |
| Battery technology | Lithium Polymer (LiPo) |
| Number of battery cells | 8 |
| Battery capacity | 71 Wh |
| Battery capacity (Watt hours) | 71 Wh |
| Weight & dimensions | |
| Weight | 1.9 kg |
| Height | 19.9 mm |
| Depth | 229 mm |
| Width | 356 mm |
| Power | |
| AC adapter power | 120 W |
| AC adapter output voltage | 20 V |
| AC adapter output current | 6 A |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
