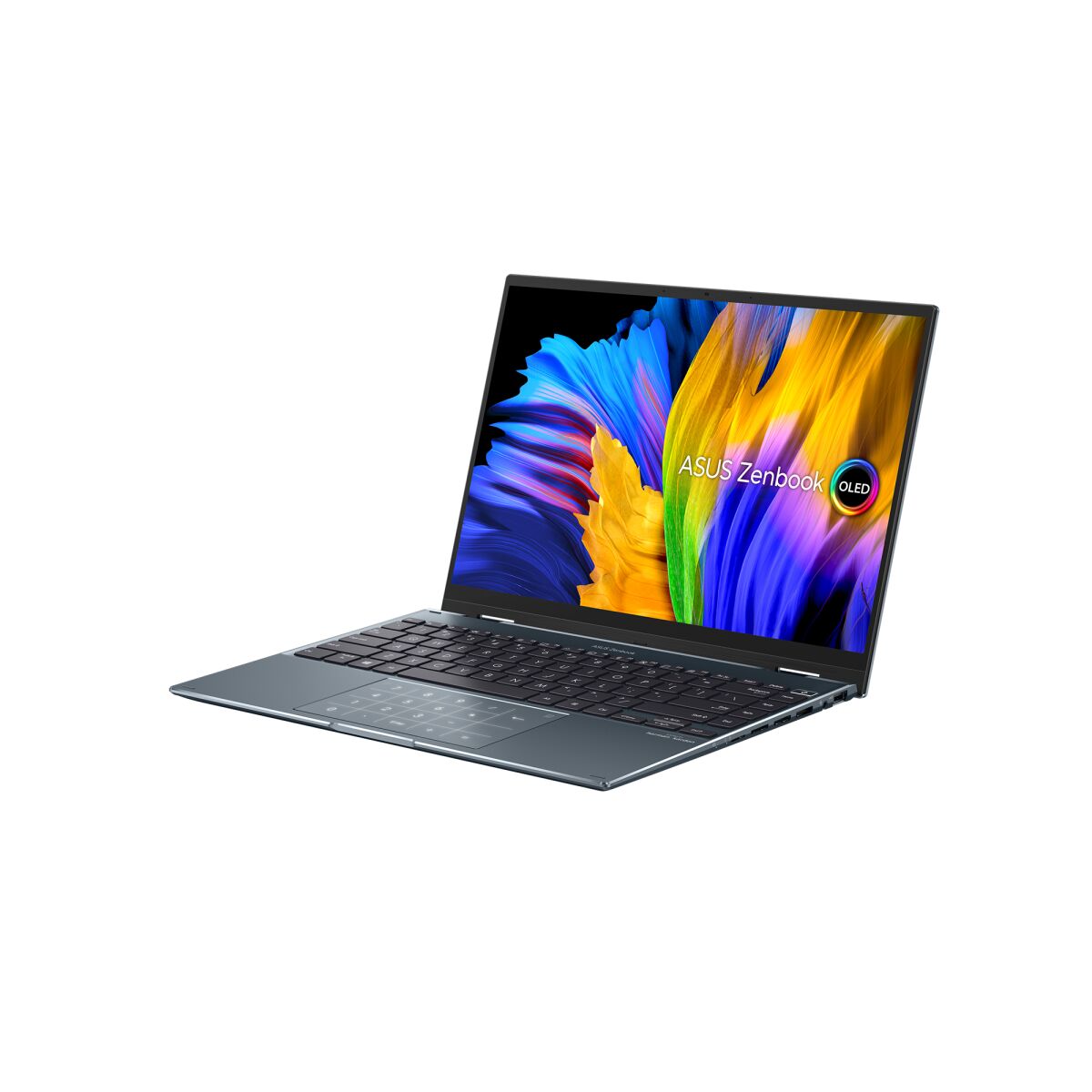

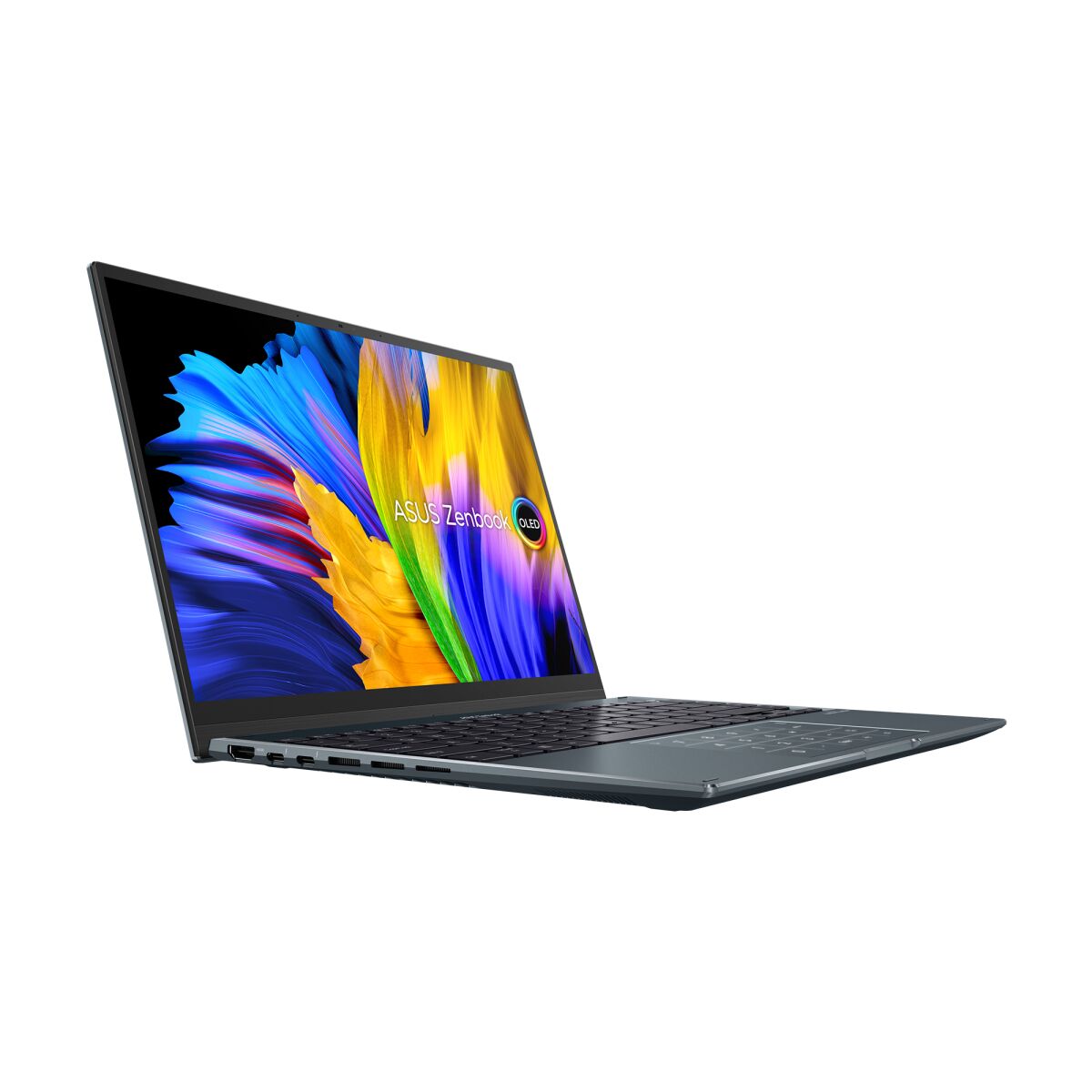

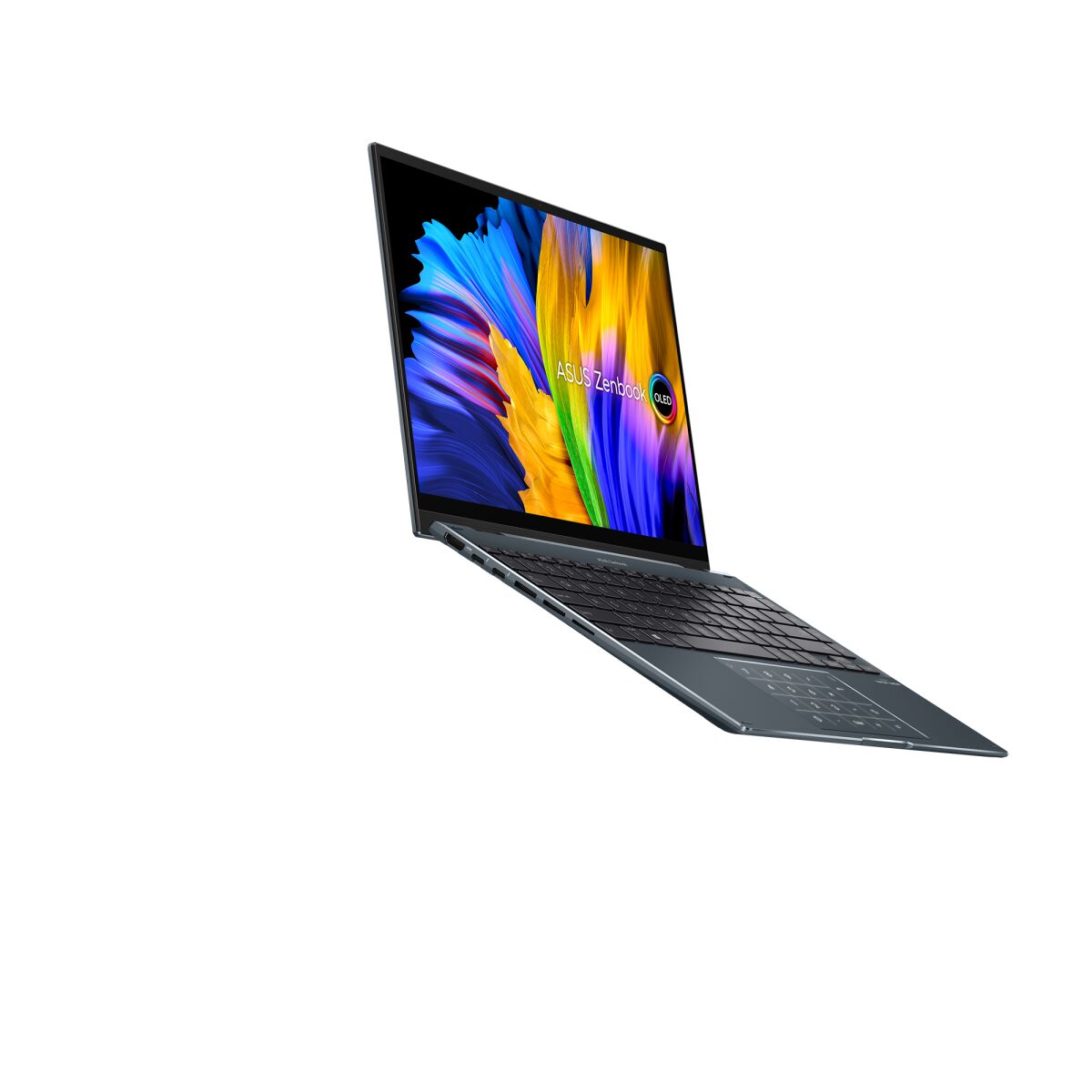

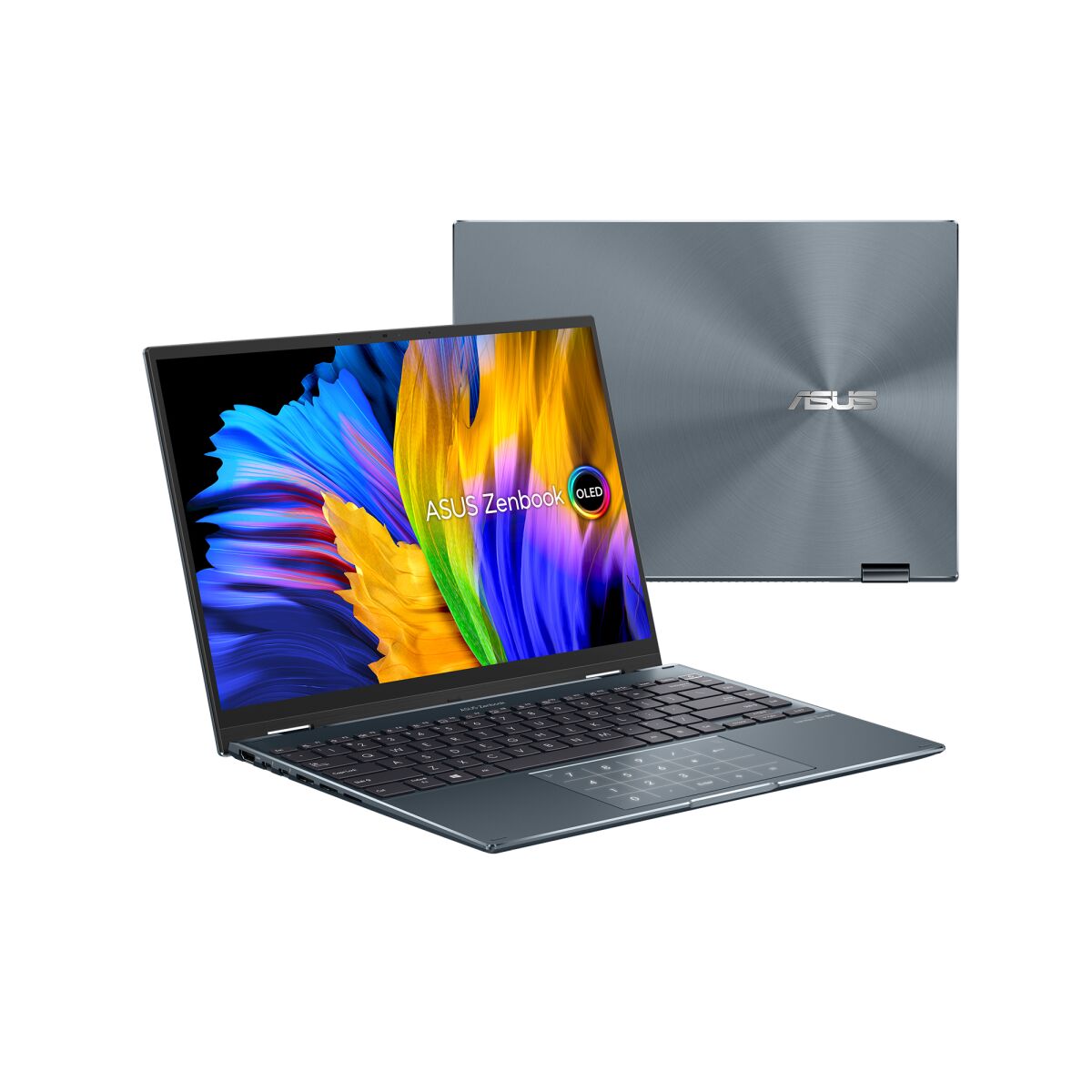

ASUS ZenBook UP5401EA-KN117W - 90NB0V41-M003A0

ASUS ZenBook UP5401EA-KN117W

Product code: 90NB0V41-M003A0

  • Display diagonal: 14 inch
  • Processor: i5-1135G7 2.4 GHz
  • Internal memory: 16 GB LPDDR4x-SDRAM
  • Graphics: Intel Iris Xe Graphics
  • Storage: 512 GB SSD
  • Weight: 1.4 kg
📊 Add to compare

As an Amazon Associate I earn from qualifying purchases.

Specifications
Design
Product colourGrey
Product typeHybrid (2-in-1)
Form factorConvertible (Folder)
Market positioningHome
Housing materialAluminium
Display
Display diagonal14 inch
Maximum refresh rate90 Hz
Display response rise/fall0.2 ms
Contrast ratio (typical)1000000:1
Display brightness550 cd/m²
Panel typeOLED
Display surfaceGloss
HD typeWQXGA+
TouchscreenY
Display resolution2880 x 1800 pixels
Display number of colours1.073 billion colours
High Dynamic Range (HDR) supportedY
Native aspect ratio16:10
Colour gamut100%
RGB colour spaceDCI-P3
High Dynamic Range (HDR) technologyHDR True Black 500
BrandASUS
FamilyZenBook
Series14 Flip OLED
Model nameUP5401EA-KN117W
Part Number90NB0V41-M003A0
Release Date17 January 2022
EAN/UPC code4711081535140
Processor
Processor manufacturerIntel
Processor familyIntel Core i5
Processor frequency2.4 GHz
Processor boost frequency4.2 GHz
Processor modeli5-1135G7
Processor cores4
Processor cache8 MB
Configurable TDP-up frequency2.4 GHz
Configurable TDP-up28 W
Processor generation11th gen Intel Core i5
Memory
Internal memory typeLPDDR4x-SDRAM
Internal memory16 GB
Memory form factorOn-board
Maximum internal memory16 GB
Graphics
On-board graphics cardY
Discrete graphics cardN
Discrete graphics card modelNot available
On-board graphics card modelIntel Iris Xe Graphics
Storage
Total storage capacity512 GB
Number of SSDs installed1
SSD capacity512 GB
Total SSDs capacity512 GB
SSD interfaceNVMe, PCI Express 4.0
SSD form factorM.2
Compatible memory cardsMicroSD (TransFlash)
Card reader integratedY
Storage mediaSSD
Optical drive
Optical drive typeN
Networking
Ethernet LANN
Top Wi-Fi standardWi-Fi 6 (802.11ax)
Wi-Fi standards802.11a, 802.11g, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)
Antenna type2x2
BluetoothY
Bluetooth version5.0
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB Power DeliveryY
Charging port typeUSB Type-C
HDMI version2.0b
Combo headphone/mic portY
HDMI ports quantity1
USB Type-C DisplayPort Alternate ModeY
Intel® Thunderbolt 4Y
Thunderbolt 4 ports quantity2
Audio
Built-in microphoneY
Speakers manufacturerHarman Kardon
Camera
Front cameraY
Front camera HD typeHD
Keyboard
Numeric keypadN
Keyboard layoutQWERTY
Keyboard backlitY
Pointing deviceNumberPad
Software
Operating system installedWindows 11 Home
Operating system architecture64-bit
Trial software1-month trial for new Microsoft 365 customers. Credit card required.
Battery
Battery technologyLithium-Ion (Li-Ion)
Battery capacity (Watt-hours)63 Wh
Number of battery cells3
Weight & dimensions
Weight1.4 kg
Height15.9 mm
Depth223 mm
Width311 mm
Power
AC adapter power100 W
AC adapter frequency50 - 60 Hz
AC adapter input voltage100 - 240 V
AC adapter output voltage20 V
AC adapter output current5 A
Security
Fingerprint readerY
Trusted Platform Module (TPM)Y
Password protectionY
Password protection typeBIOS, User
