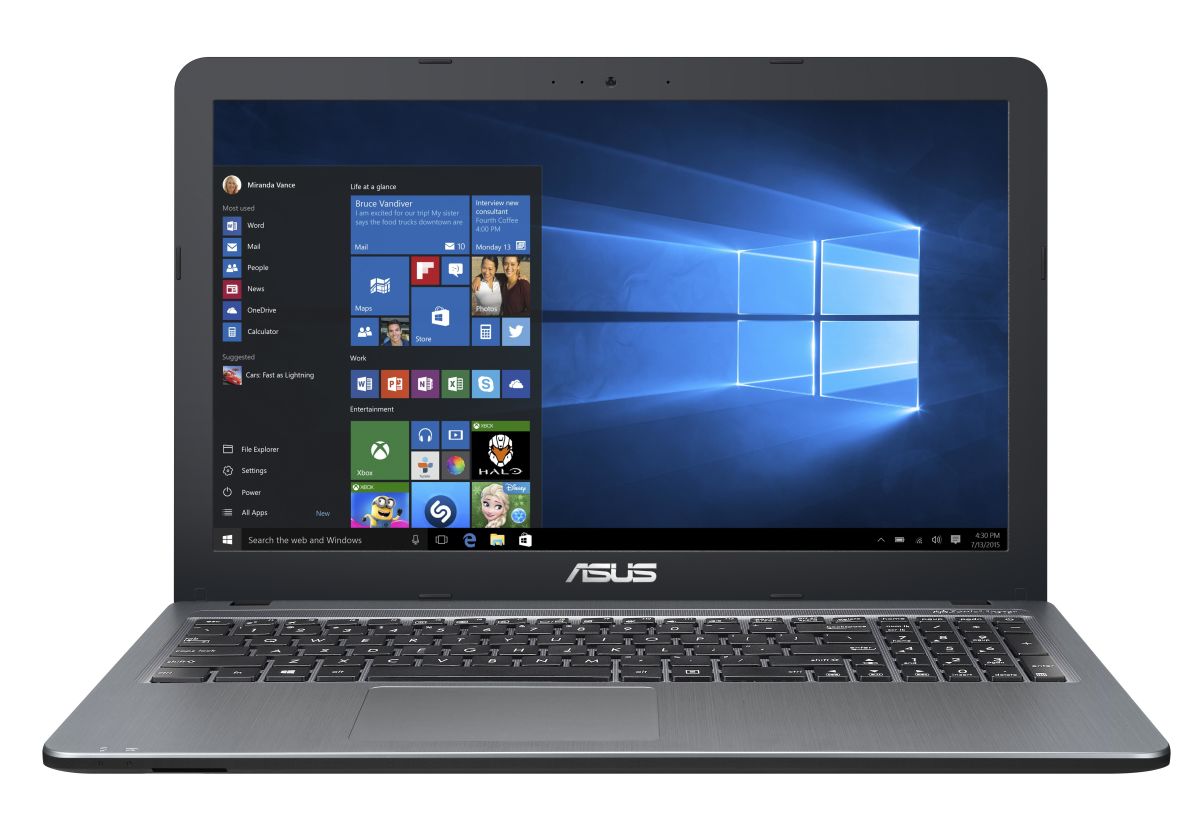

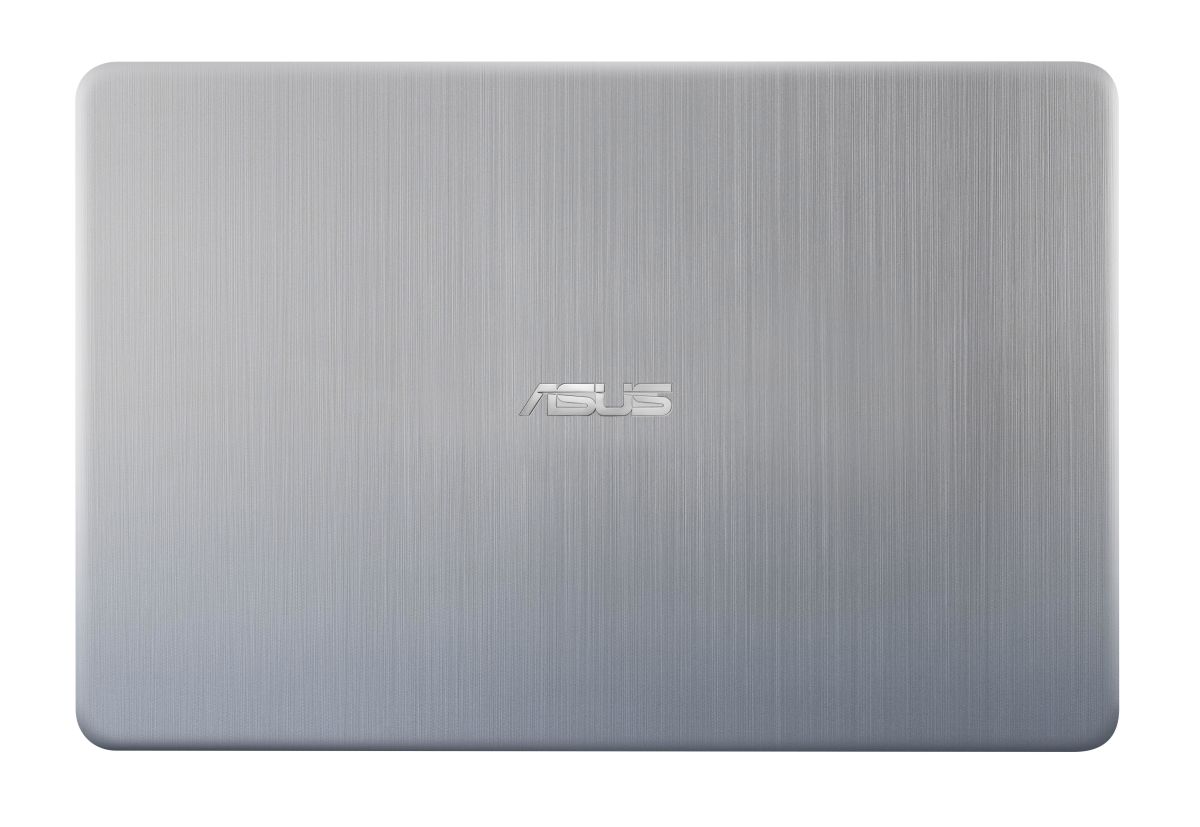

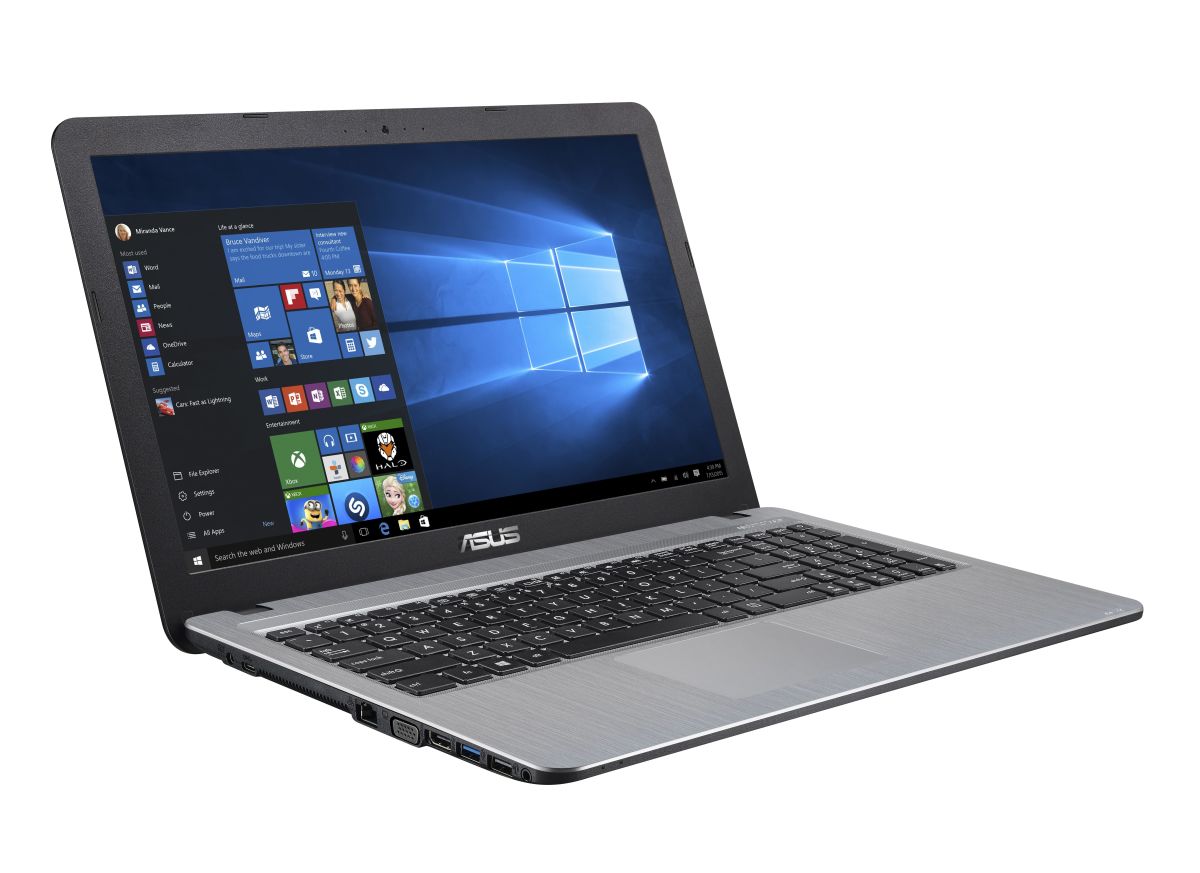

ASUS 540LA-DM1196T - 90NB0B03-M23230
ASUS 540LA-DM1196T
Product code: 90NB0B03-M23230
- đģDisplay diagonal: 15.6 inch
- đŗProcessor model: i3-5005U
- đĢInternal memory: 4 GB
- đŽOn-board graphics adapter model: Intel HD Graphics 5500
- đŽDiscrete graphics adapter model: Not available
- đŊTotal storage capacity: 1000 GB
- âī¸Weight: 1.9 kg
đ Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Silver |
| Product type | Notebook |
| Form factor | Clamshell |
| Display | |
| Display diagonal | 15.6 inch |
| Aspect ratio | 16:9 |
| HD type | Full HD |
| LED backlight | Y |
| Touchscreen | N |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Brand | ASUS |
| Model name | 540LA-DM1196T |
| Part Number | 90NB0B03-M23230 |
| Release Date | 05 May 2019 |
|
|
|
| Processor | |
| Processor series | Intel Core i3-5000 Mobile series |
| Processor manufacturer | Intel |
| Processor family | Intel Core i3 |
| Processor frequency | 2 GHz |
| Processor codename | Broadwell |
| Thermal Design Power (TDP) | 15 W |
| Processor model | i3-5005U |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor cache | 3 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA 1168 |
| Processor generation | 5th gen Intel Core i3 |
| Memory | |
| Internal memory type | DDR3L-SDRAM |
| Internal memory | 4 GB |
| Memory clock speed | 1600 MHz |
| Maximum internal memory | 8 GB |
| Graphics | |
| On-board graphics adapter | Y |
| On-board graphics adapter DirectX version | 11.2 |
| Discrete graphics adapter | N |
| On-board graphics adapter model | Intel HD Graphics 5500 |
| Discrete graphics adapter model | Not available |
| On-board graphics adapter base frequency | 300 MHz |
| On-board graphics adapter dynamic frequency (max) | 850 MHz |
| Maximum on-board graphics adapter memory | 16 GB |
| On-board graphics card | Y |
| Discrete graphics card | N |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel HD Graphics 5500 |
| On-board graphics card family | Intel HD Graphics |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 850 MHz |
| Maximum on-board graphics card memory | 16 GB |
| On-board graphics card DirectX version | 11.2 |
| On-board graphics card ID | 0x1616 |
| Storage | |
| Total storage capacity | 1000 GB |
| Number of HDDs installed | 1 |
| HDD capacity | 1000 GB |
| Total HDDs capacity | 1000 GB |
| Compatible memory cards | SD, SDHC, SDXC |
| Card reader integrated | Y |
| Storage media | HDD |
| Networking | |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10, 100 Mbit/s |
| Wi-Fi | Y |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Y |
| Bluetooth version | 4.0 |
| 4G | N |
| 3G | N |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.0 (3.1 Gen 1) Type-C ports quantity | 1 |
| Combo headphone/mic port | Y |
| USB 2.0 ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Audio | |
| Built-in microphone | Y |
| Audio system | SonicMaster |
| Camera | |
| Front camera | Y |
| Keyboard | |
| Numeric keypad | Y |
| Full-size keyboard | Y |
| Windows keys | Y |
| Pointing device | Touchpad |
| Software | |
| Operating system installed | Windows 10 Home |
| Battery | |
| Number of battery cells | 3 |
| Battery capacity | 33 Wh |
| Battery capacity (Watt hours) | 33 Wh |
| Weight & dimensions | |
| Weight | 1.9 kg |
| Height | 27.2 mm |
| Depth | 251.5 mm |
| Width | 381.4 mm |
| Power | |
| AC adapter power | 45 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 19 V |
| AC adapter output current | 2.47 A |
| Security | |
| Password protection | Y |
| Password protection type | BIOS, HDD, User |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
