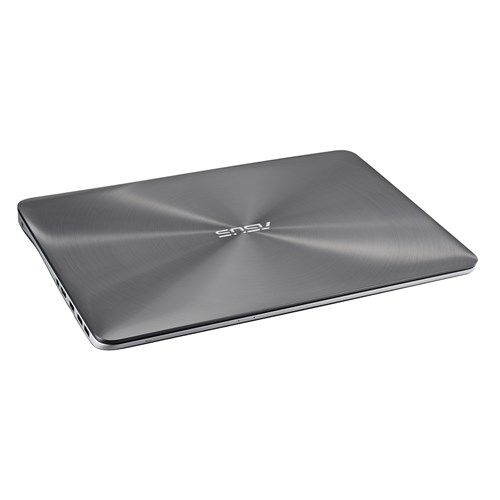

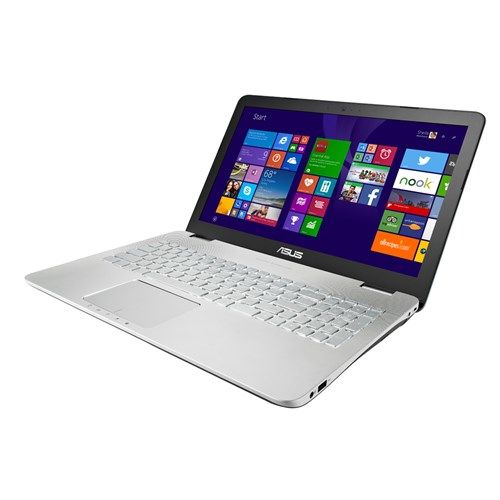

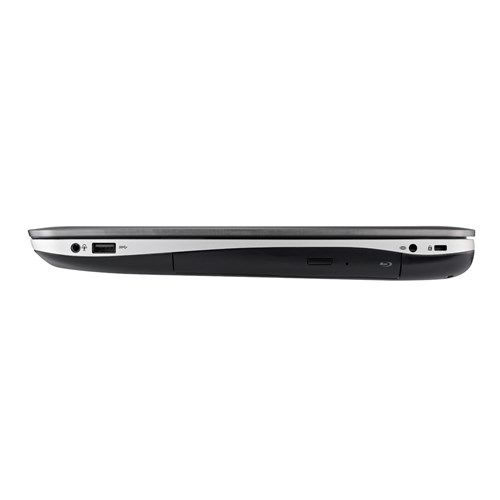

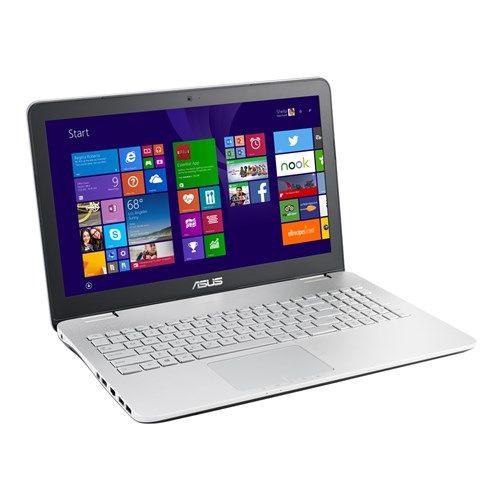

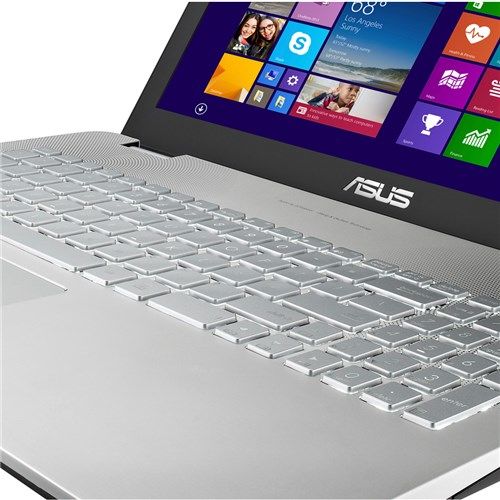

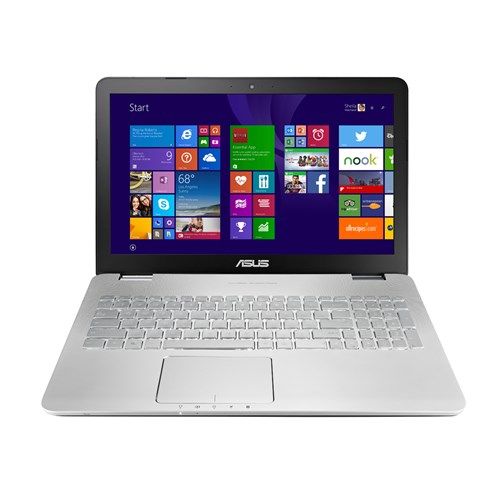

ASUS 551JM-CN221H - 90NB06R1-M02920
ASUS 551JM-CN221H
Product code: 90NB06R1-M02920
- đģDisplay diagonal: 15.6 inch
- đŗProcessor model: i7-4710HQ
- đĢInternal memory: 8 GB
- đŽOn-board graphics adapter model: Intel HD Graphics 4600
- đŽDiscrete graphics adapter model: NVIDIA GeForce GTX 860M
- đŊTotal storage capacity: 1024 GB
- âī¸Weight: 2.7 kg
đ Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Grey |
| Colour of product | Grey |
| Product type | Notebook |
| Form factor | Clamshell |
| Display | |
| Display diagonal | 15.6 inch |
| Display surface | Matt |
| Aspect ratio | 16:9 |
| HD type | Full HD |
| LED backlight | Y |
| Touchscreen | N |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Brand | ASUS |
| Model name | 551JM-CN221H |
| Part Number | 90NB06R1-M02920 |
| Release Date | 03 February 2018 |
|
|
|
| Processor | |
| Processor series | Intel Core i7-4700 Mobile series |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Processor frequency | 2.5 GHz |
| Motherboard chipset | Intel HM86 |
| Processor boost frequency | 3.5 GHz |
| Processor codename | Haswell |
| Thermal Design Power (TDP) | 47 W |
| Processor model | i7-4710HQ |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor cache | 6 MB |
| Processor lithography | 22 nm |
| Processor socket | BGA 1364 |
| Processor generation | 4th gen Intel Core i7 |
| Memory | |
| Internal memory type | DDR3L-SDRAM |
| Internal memory | 8 GB |
| Memory clock speed | 1600 MHz |
| Maximum internal memory | 16 GB |
| Graphics | |
| On-board graphics adapter | Y |
| Discrete graphics memory type | GDDR5 |
| On-board graphics adapter DirectX version | 12.0 |
| Discrete graphics adapter | Y |
| On-board graphics adapter model | Intel HD Graphics 4600 |
| Discrete graphics adapter model | NVIDIA GeForce GTX 860M |
| On-board graphics adapter base frequency | 400 MHz |
| On-board graphics adapter dynamic frequency (max) | 1200 MHz |
| Maximum on-board graphics adapter memory | 1.74 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics adapter OpenGL version | 4.3 |
| On-board graphics card | Y |
| Discrete graphics card | Y |
| Discrete graphics card model | NVIDIA GeForce GTX 860M |
| On-board graphics card model | Intel HD Graphics 4600 |
| On-board graphics card family | Intel HD Graphics |
| On-board graphics card base frequency | 400 MHz |
| On-board graphics card dynamic frequency (max) | 1200 MHz |
| Maximum on-board graphics card memory | 1.74 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.3 |
| On-board graphics card ID | 0x416 |
| Storage | |
| Total storage capacity | 1024 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 24 GB |
| Number of HDDs installed | 1 |
| HDD capacity | 1000 GB |
| HDD size | 2.5" |
| Hard drive size | 2.5" |
| Hard drive capacity | 1000 GB |
| Number of hard drives installed | 1 |
| Compatible memory cards | MMC, MS PRO, MS PRO Duo, Memory Stick (MS), SD, SDHC |
| Solid-state drive capacity | 24 GB |
| Card reader integrated | Y |
| Storage media | HDD+SSD |
| Optical drive | |
| Optical drive type | DVD Super Multi |
| Networking | |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Wi-Fi | Y |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Y |
| Bluetooth version | 4.0 |
| 4G | N |
| 3G | N |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Charging port type | DC-in jack |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity | 3 |
| Microphone in | Y |
| DVI port | N |
| Combo headphone/mic port | Y |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Mini DisplayPorts quantity | 1 |
| Audio | |
| Built-in microphone | Y |
| Number of built-in speakers | 2 |
| Audio system | SonicMaster Premium |
| Speakers manufacturer | Bang & Olufsen |
| Camera | |
| Front camera | Y |
| Keyboard | |
| Numeric keypad | Y |
| Windows keys | Y |
| Pointing device | Touchpad |
| Software | |
| Operating system installed | Windows 8.1 |
| Battery | |
| Number of battery cells | 6 |
| Battery capacity | 5200 mAh |
| Battery capacity (Watt hours) | 56 Wh |
| Weight & dimensions | |
| Weight | 2.7 kg |
| Height (rear) | 3.15 cm |
| Height (front) | 2.8 cm |
| Depth | 255 mm |
| Width | 383 mm |
| Power | |
| AC adapter power | 120 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 19 V |
| AC adapter output current | 6.3 A |
| Security | |
| Cable lock slot | Y |
| Cable lock slot type | Kensington |
| Password protection | Y |
| Password protection type | BIOS, HDD, User |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
