ASUS 556UQ-DM951T - F556UQ-DM951T
ASUS 556UQ-DM951T
Product code: F556UQ-DM951T
- đģDisplay diagonal: 15.6 inch
- đŗProcessor model: i7-7500U
- đĢInternal memory: 8 GB
- đŽOn-board graphics adapter model: Intel HD Graphics 620
- đŽDiscrete graphics adapter model: NVIDIA GeForce 940MX
- đŊTotal storage capacity: 256 GB
- âī¸Weight: 2.3 kg
đ Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Brown |
| Colour of product | Brown |
| Product type | Notebook |
| Form factor | Clamshell |
| Display | |
| Display diagonal | 15.6 inch |
| HD type | Full HD |
| LED backlight | Y |
| Touchscreen | N |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Brand | ASUS |
| Model name | 556UQ-DM951T |
| Part Number | F556UQ-DM951T |
| Release Date | 10 August 2017 |
| EAN/UPC code | 4712900630565 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Processor frequency | 2.7 GHz |
| Processor boost frequency | 3.5 GHz |
| Processor codename | Kaby Lake |
| Thermal Design Power (TDP) | 15 W |
| Processor model | i7-7500U |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor cache | 4 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA 1356 |
| Configurable TDP-up frequency | 2.9 GHz |
| Configurable TDP-up | 25 W |
| Processor generation | 7th gen Intel Core i7 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 8 GB |
| Memory clock speed | 2133 MHz |
| Memory slots | 1x SO-DIMM |
| Maximum internal memory | 16 GB |
| Graphics | |
| On-board graphics adapter | Y |
| On-board graphics adapter DirectX version | 12.0 |
| Discrete graphics adapter | Y |
| On-board graphics adapter model | Intel HD Graphics 620 |
| Discrete graphics adapter model | NVIDIA GeForce 940MX |
| On-board graphics adapter base frequency | 300 MHz |
| On-board graphics adapter dynamic frequency (max) | 1050 MHz |
| Maximum on-board graphics adapter memory | 32 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics adapter OpenGL version | 4.4 |
| Discrete graphics adapter memory | 2 GB |
| On-board graphics card | Y |
| Discrete graphics card | Y |
| Discrete graphics card model | NVIDIA GeForce 940MX |
| On-board graphics card model | Intel HD Graphics 620 |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1050 MHz |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x5916 |
| Discrete graphics card memory | 2 GB |
| Storage | |
| Total storage capacity | 256 GB |
| SSD capacity | 256 GB |
| Compatible memory cards | SD, SDHC, SDXC |
| Solid-state drive capacity | 256 GB |
| Card reader integrated | Y |
| Storage media | SSD |

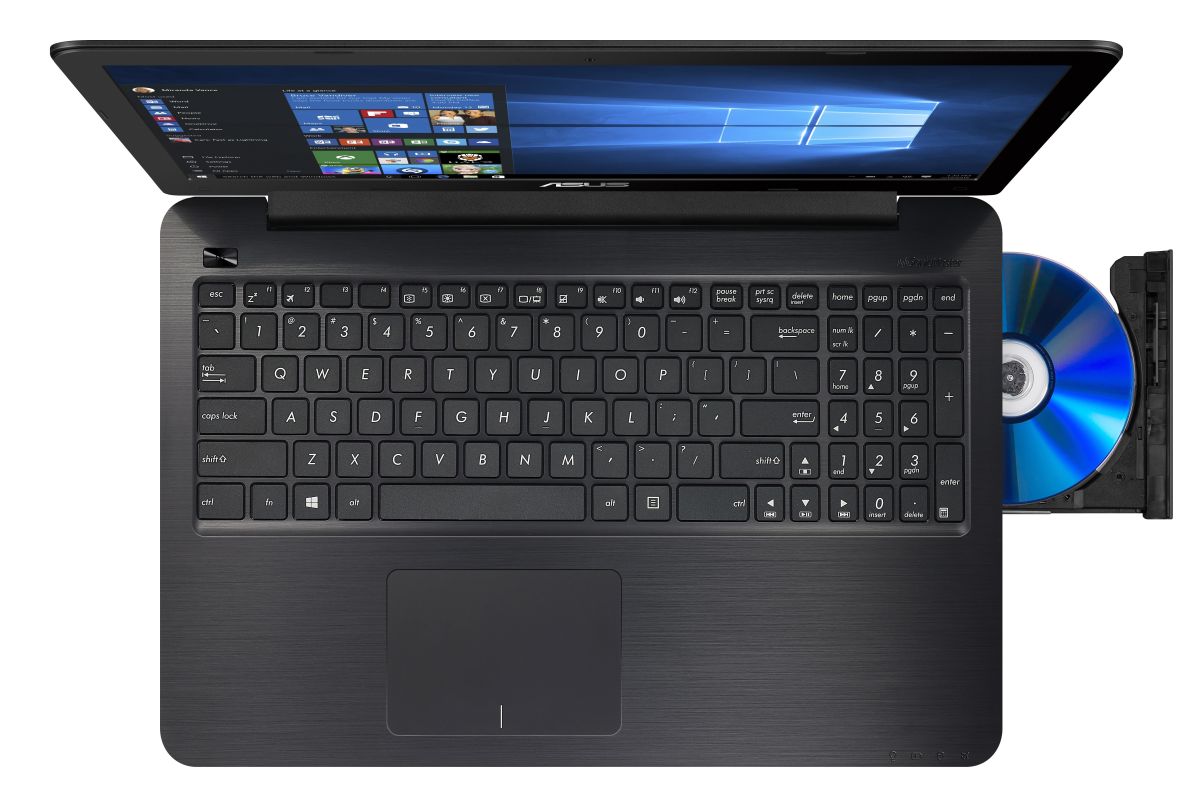

| Optical drive | |
| Optical drive type | DVD Super Multi |
| Networking | |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Wi-Fi | Y |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Y |
| Bluetooth version | 4.0 |
| 4G | N |
| 3G | N |

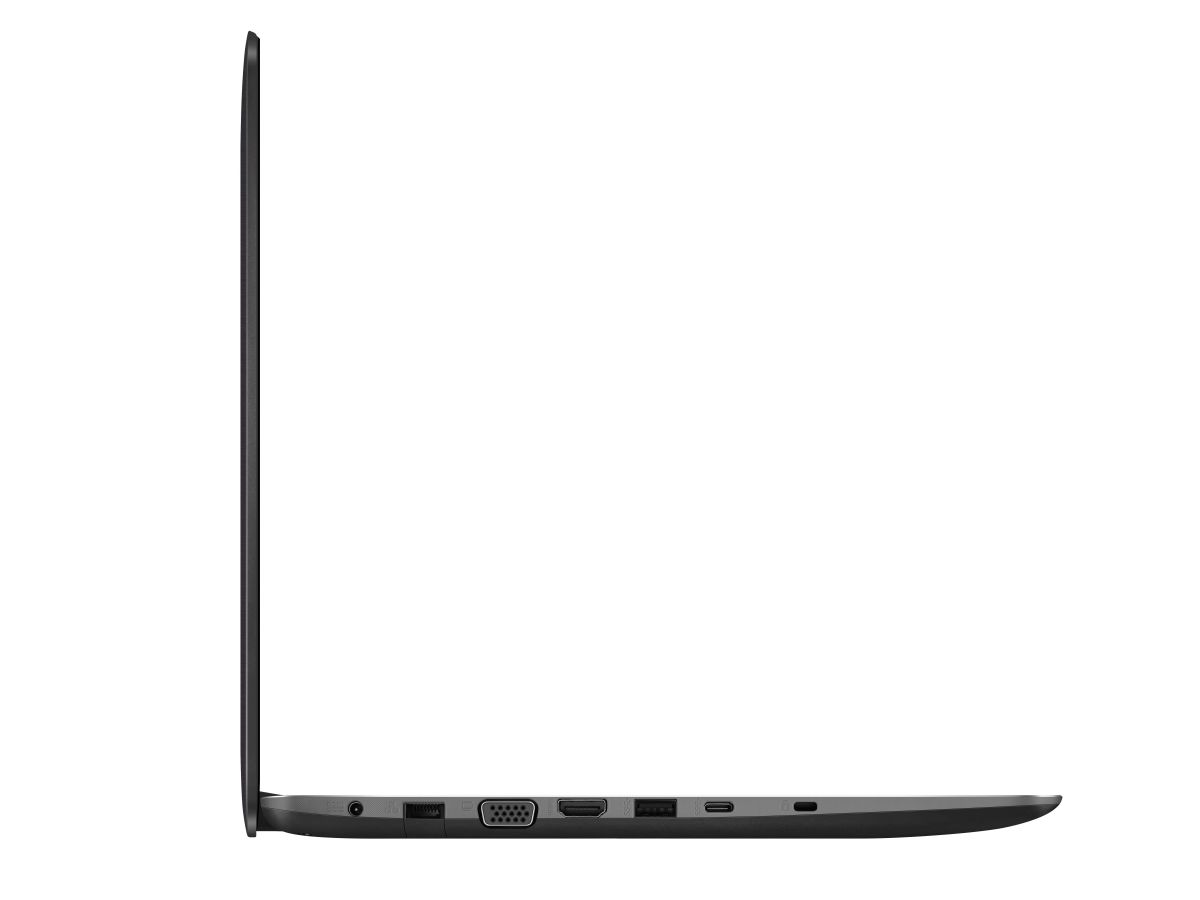

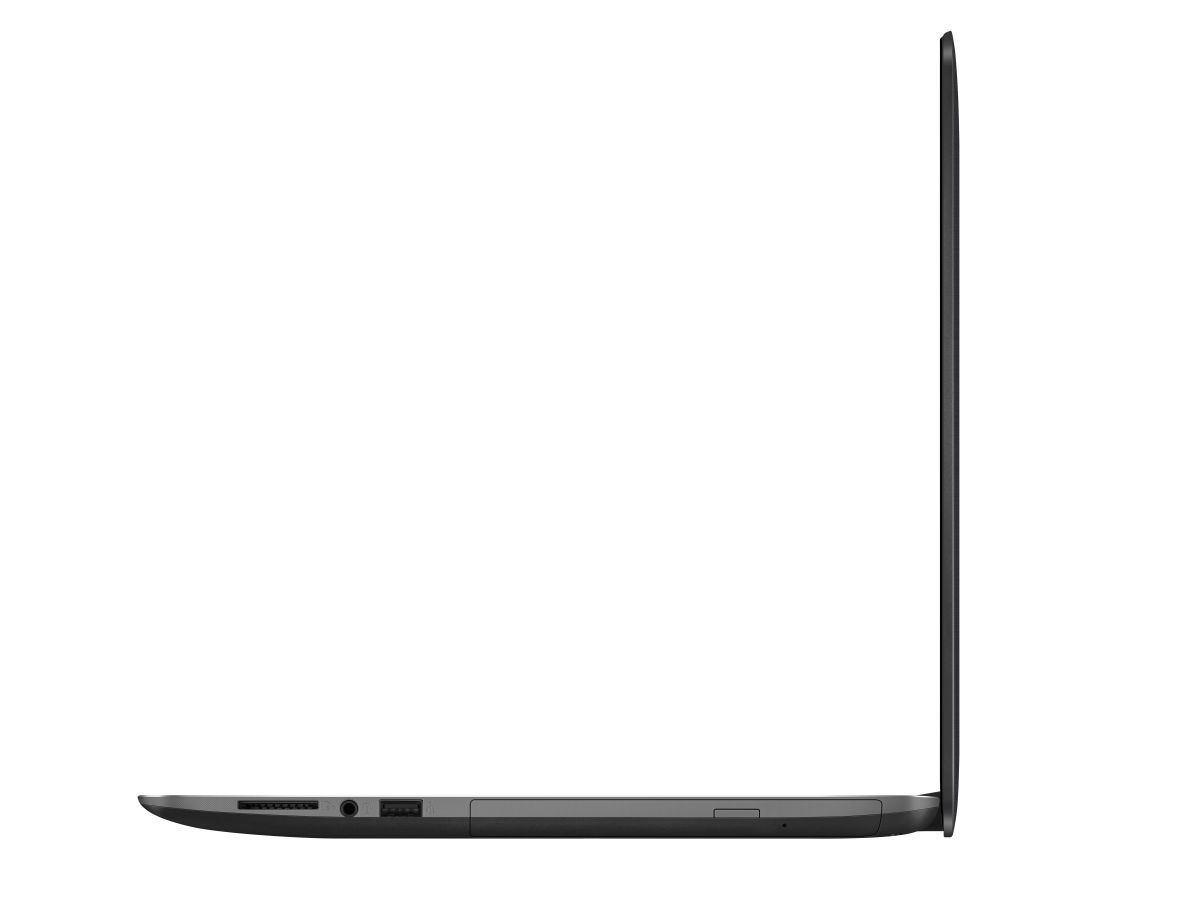

| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Charging port type | DC-in jack |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity | 1 |
| DVI port | N |
| Docking connector | N |
| USB 3.0 (3.1 Gen 1) Type-C ports quantity | 1 |
| Combo headphone/mic port | Y |
| DC-in jack | Y |
| USB 2.0 ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Audio | |
| Built-in microphone | Y |
| Audio system | SonicMaster |
| Camera | |
| Front camera | Y |
| Keyboard | |
| Numeric keypad | Y |
| Full-size keyboard | Y |
| Windows keys | Y |
| Pointing device | Touchpad |
| Software | |
| Operating system installed | Windows 10 Home |
| Operating system architecture | 64-bit |
| Battery | |
| Battery technology | Lithium Polymer (LiPo) |
| Number of battery cells | 2 |
| Battery capacity | 38 Wh |
| Battery capacity (Watt hours) | 38 Wh |
| Weight & dimensions | |
| Weight | 2.3 kg |
| Height | 25.5 mm |
| Depth | 258 mm |
| Width | 382 mm |
| Power | |
| AC adapter power | 65 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 19 V |
| AC adapter output current | 3.42 A |
| Security | |
| Cable lock slot type | Kensington |
| Password protection type | BIOS, HDD |
