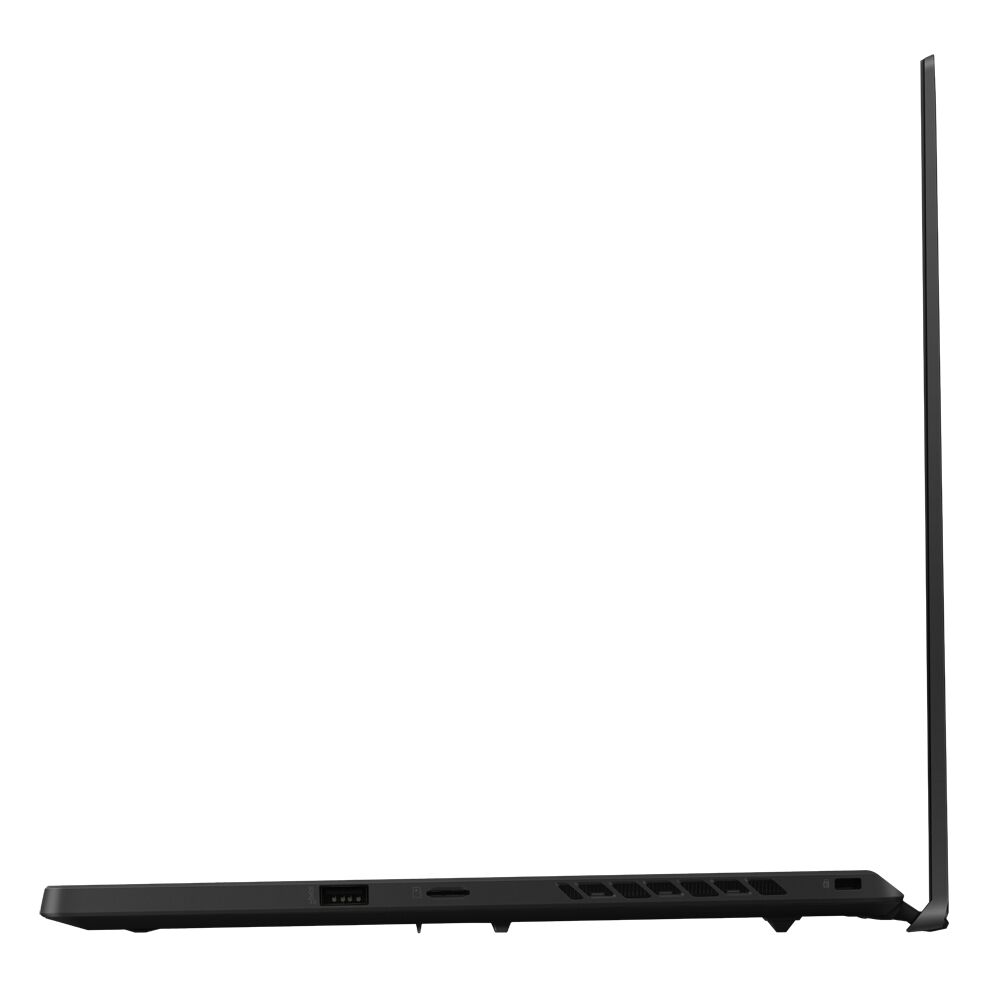

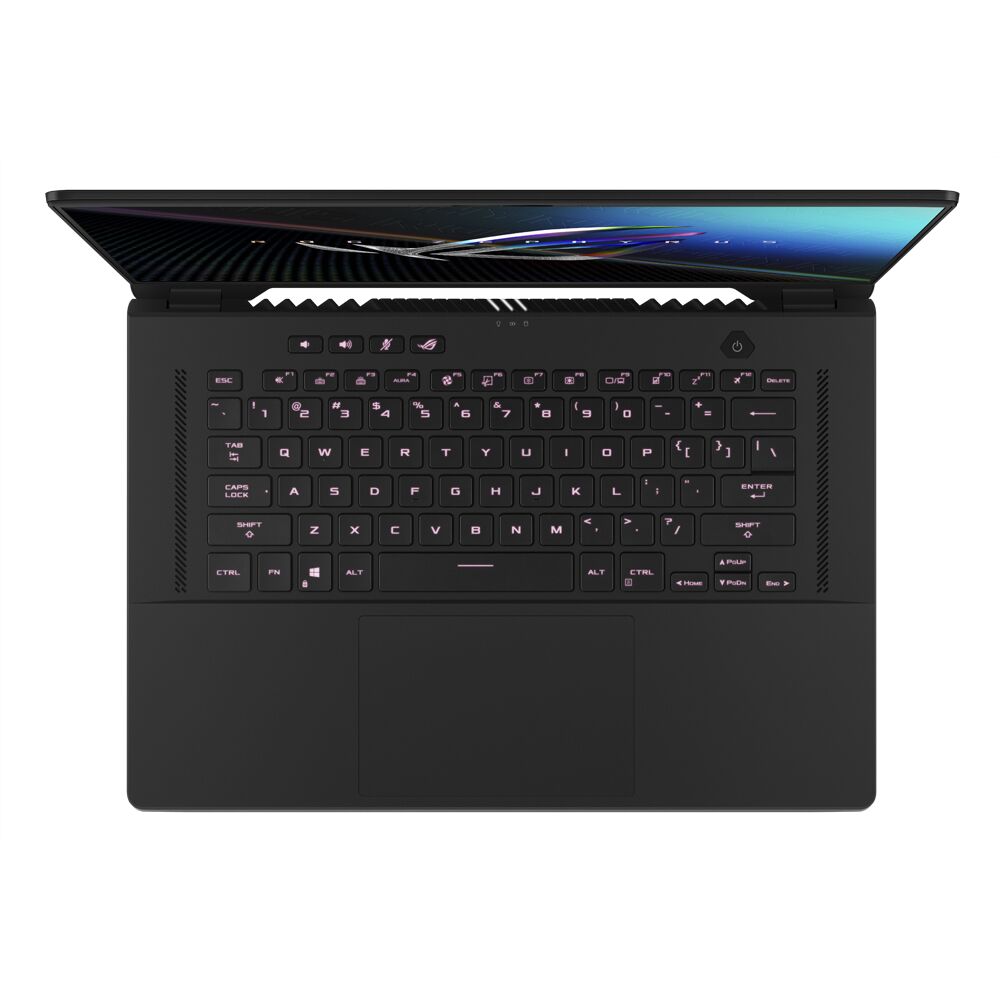

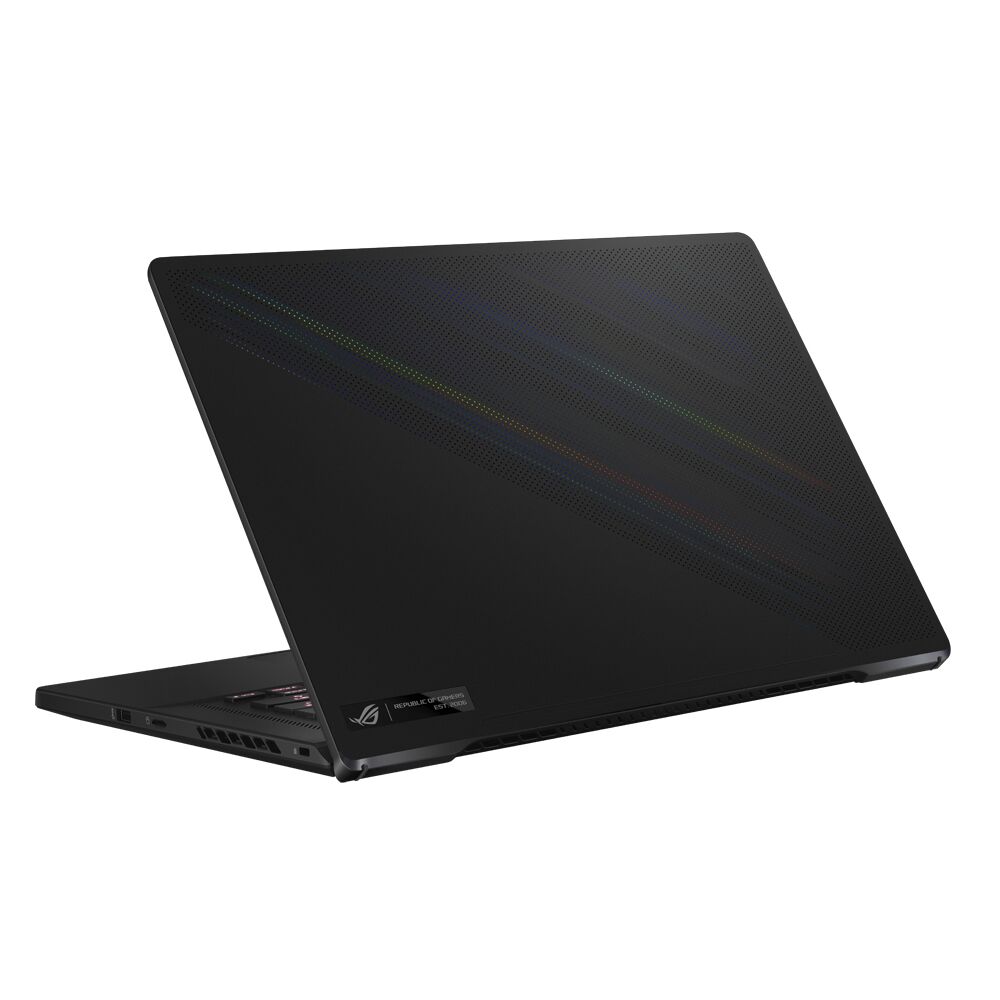

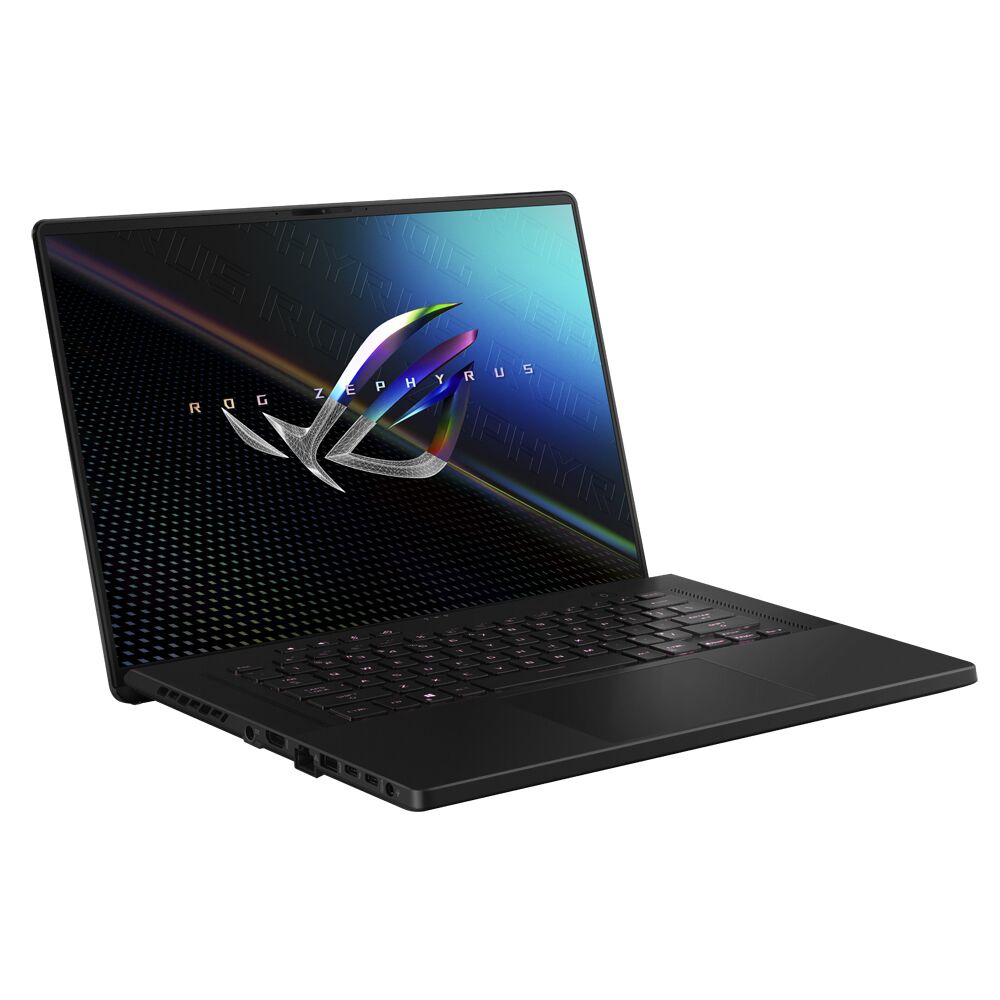

ASUS ROG GU603ZM-LS062W - 90NR0911-M003N0
ASUS ROG GU603ZM-LS062W
Product code: 90NR0911-M003N0
- 💻Display diagonal: 16 inch
- 🔳Processor model: i7-12700H
- 🎫Internal memory: 16 GB
- 🎮On-board graphics adapter model:
- 🎮Discrete graphics adapter model:
- 💽Total storage capacity: 1000 GB
- ⚖️Weight: 2 kg
📊 Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Product type | Notebook |
| Form factor | Clamshell |
| Market positioning | Gaming |
| Model year | 2022 |
| Display | |
| Display diagonal | 16 inch |
| Maximum refresh rate | 165 Hz |
| Display brightness | 500 cd/m² |
| Panel type | IPS |
| Display surface | Matt |
| HD type | WUXGA |
| LED backlight | Y |
| Touchscreen | N |
| Display resolution | 1920 x 1200 pixels |
| High Dynamic Range (HDR) technology | Dolby Vision |
| RGB colour space | sRGB |
| Colour gamut | 100% |
| Native aspect ratio | 16:10 |
| High Dynamic Range (HDR) supported | Y |
| Brand | ASUS |
| Family | ROG |
| Series | Zephyrus M16 |
| Model name | GU603ZM-LS062W |
| Part Number | 90NR0911-M003N0 |
| Release Date | 19 January 2022 |
| EAN/UPC code | 4711081548171 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Processor frequency | 2.3 GHz |
| Processor boost frequency | 4.7 GHz |
| Processor model | i7-12700H |
| Processor cores | 14 |
| Processor cache | 24 MB |
| Processor generation | 12th gen Intel Core i7 |
| Memory | |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | On-board + SO-DIMM |
| Memory clock speed | 4800 MHz |
| Memory slots | 1x SO-DIMM |
| Maximum internal memory | 48 GB |
| Memory layout (slots x size) | 2 x 8 GB |
| Graphics | |
| Discrete graphics memory type | GDDR6 |
| Discrete GPU manufacturer | NVIDIA |
| On-board graphics card | Y |
| Discrete graphics card | Y |
| Discrete graphics card model | NVIDIA GeForce RTX 3060 |
| On-board graphics card model | Intel Iris Xe Graphics |
| Discrete graphics card memory | 6 GB |
| Storage | |
| Total storage capacity | 1000 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 1000 GB |
| Total SSDs capacity | 1000 GB |
| SSD interface | NVMe, PCI Express 4.0 |
| SSD form factor | M.2 |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Y |
| Storage media | SSD |
| Optical drive | |
| Optical drive type | N |
| Networking | |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10, 1000, 100 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Y |
| Bluetooth version | 5.2 |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Power Delivery | Y |
| Charging port type | DC-in jack |
| HDMI version | 2.0b |
| Combo headphone/mic port | Y |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB Type-C DisplayPort Alternate Mode | Y |
| Thunderbolt 4 ports quantity | 1 |
| Intel® Thunderbolt 4 | Y |
| Power adapter barrel connector | 6.0 mm |
| Audio | |
| Built-in microphone | Y |
| Number of built-in speakers | 4 |
| Audio system | Dolby Atmos |
| Speaker power | 2 W |
| Camera | |
| Front camera | Y |
| Windows Hello | Y |
| Infrared (IR) camera | Y |
| Front camera HD type | HD |
| Keyboard | |
| Numeric keypad | N |
| Keyboard backlit colour | RGB |
| Keyboard layout | QWERTY |
| Keyboard backlit | Y |
| Pointing device | Touchpad |
| Software | |
| Operating system installed | Windows 11 Home |
| Operating system architecture | 64-bit |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity (Watt-hours) | 90 Wh |
| Number of battery cells | 4 |
| Weight & dimensions | |
| Weight | 2 kg |
| Height | 19.9 mm |
| Depth | 243 mm |
| Width | 355 mm |
| Power | |
| AC adapter power | 240 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 20 V |
| AC adapter output current | 12 A |
| Security | |
| Cable lock slot | Y |
| Cable lock slot type | Kensington |
| Password protection | Y |
| Password protection type | BIOS, User |
| Other features | |
| Anti-glare screen | Y |
