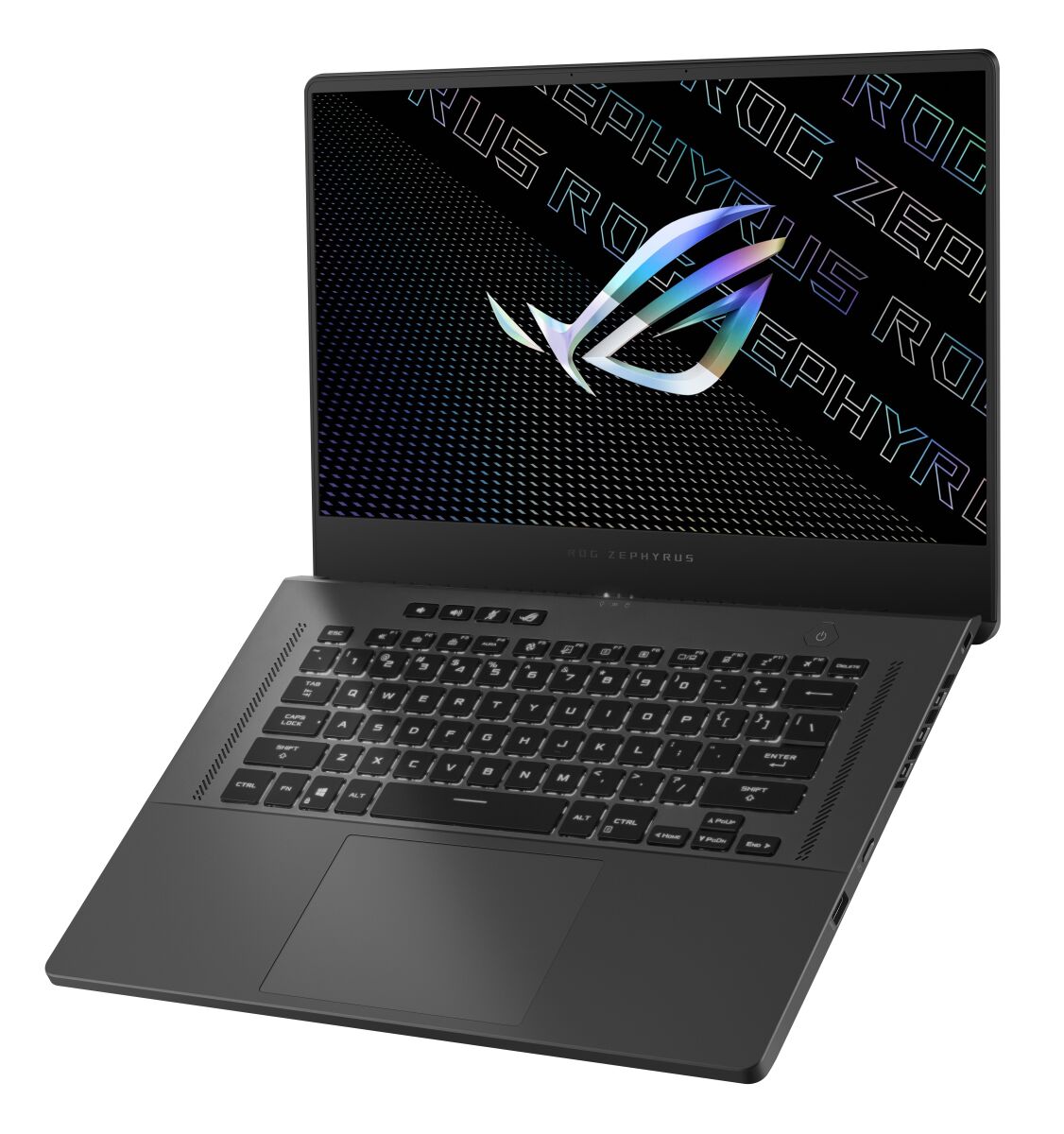

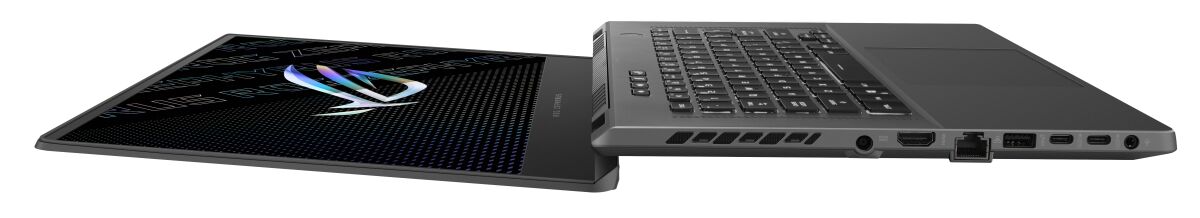

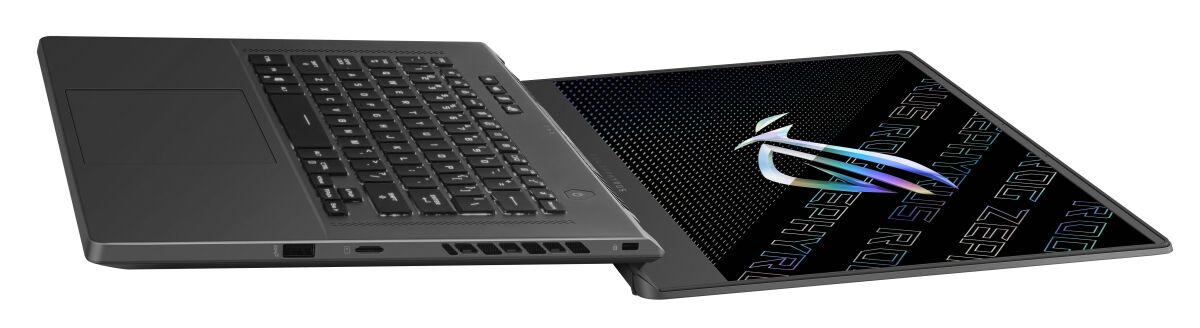

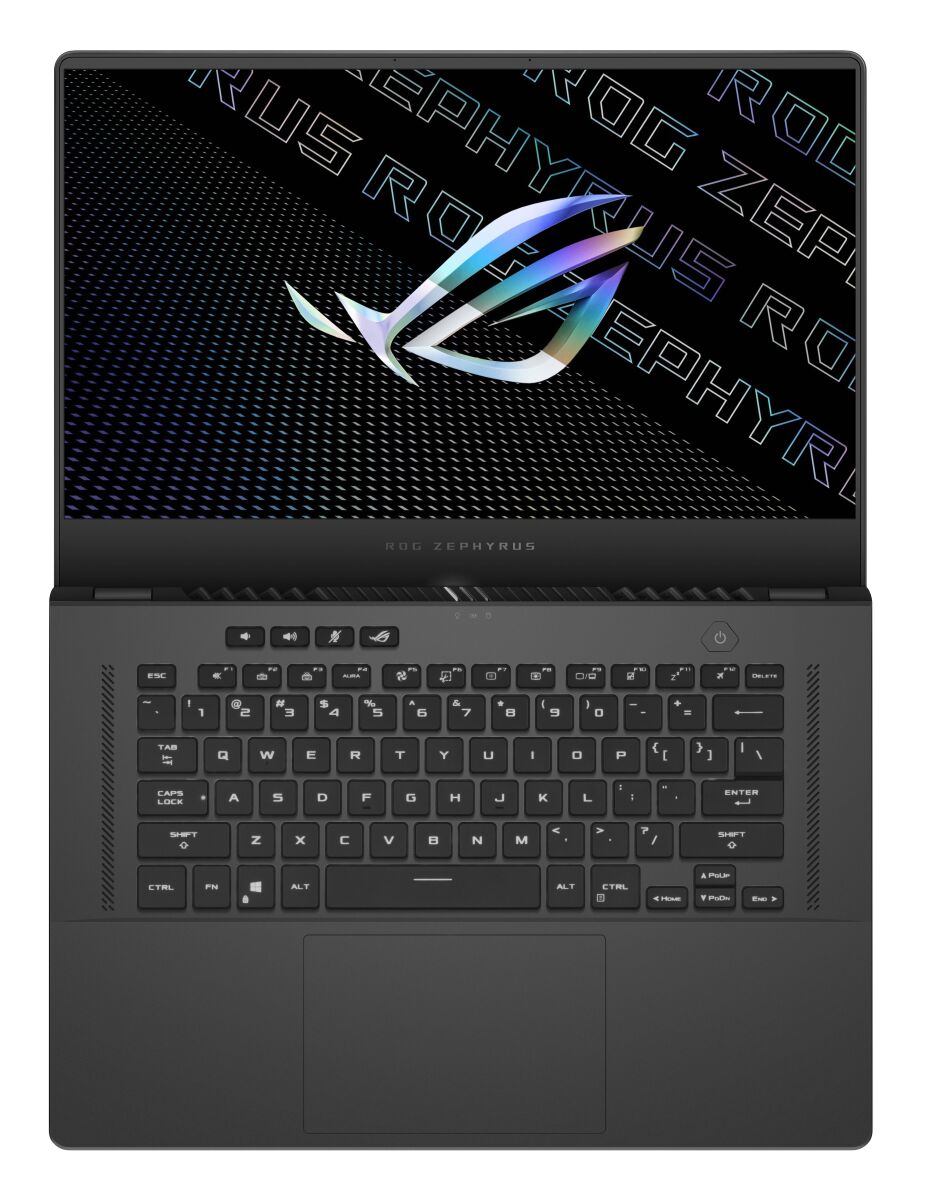

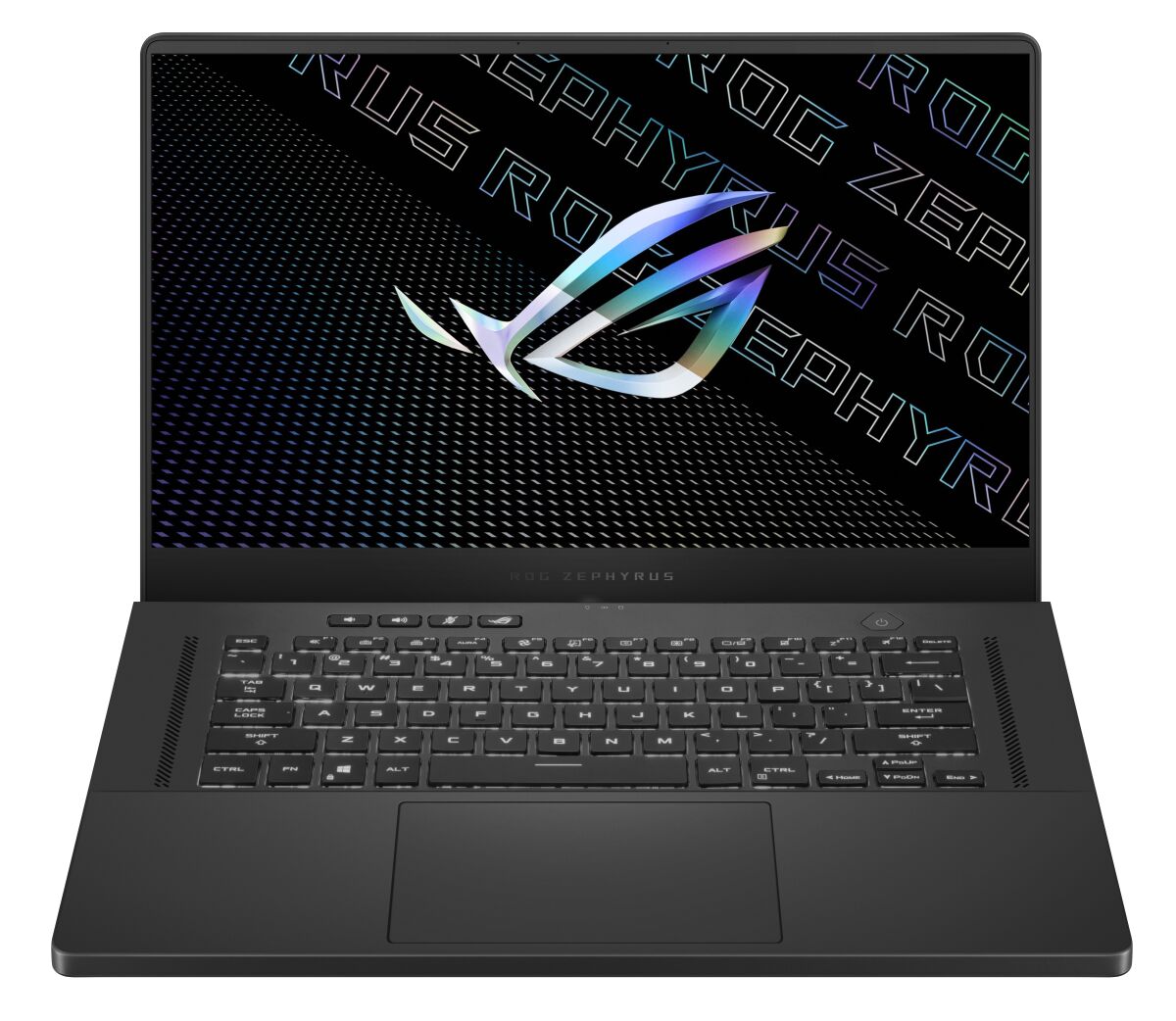

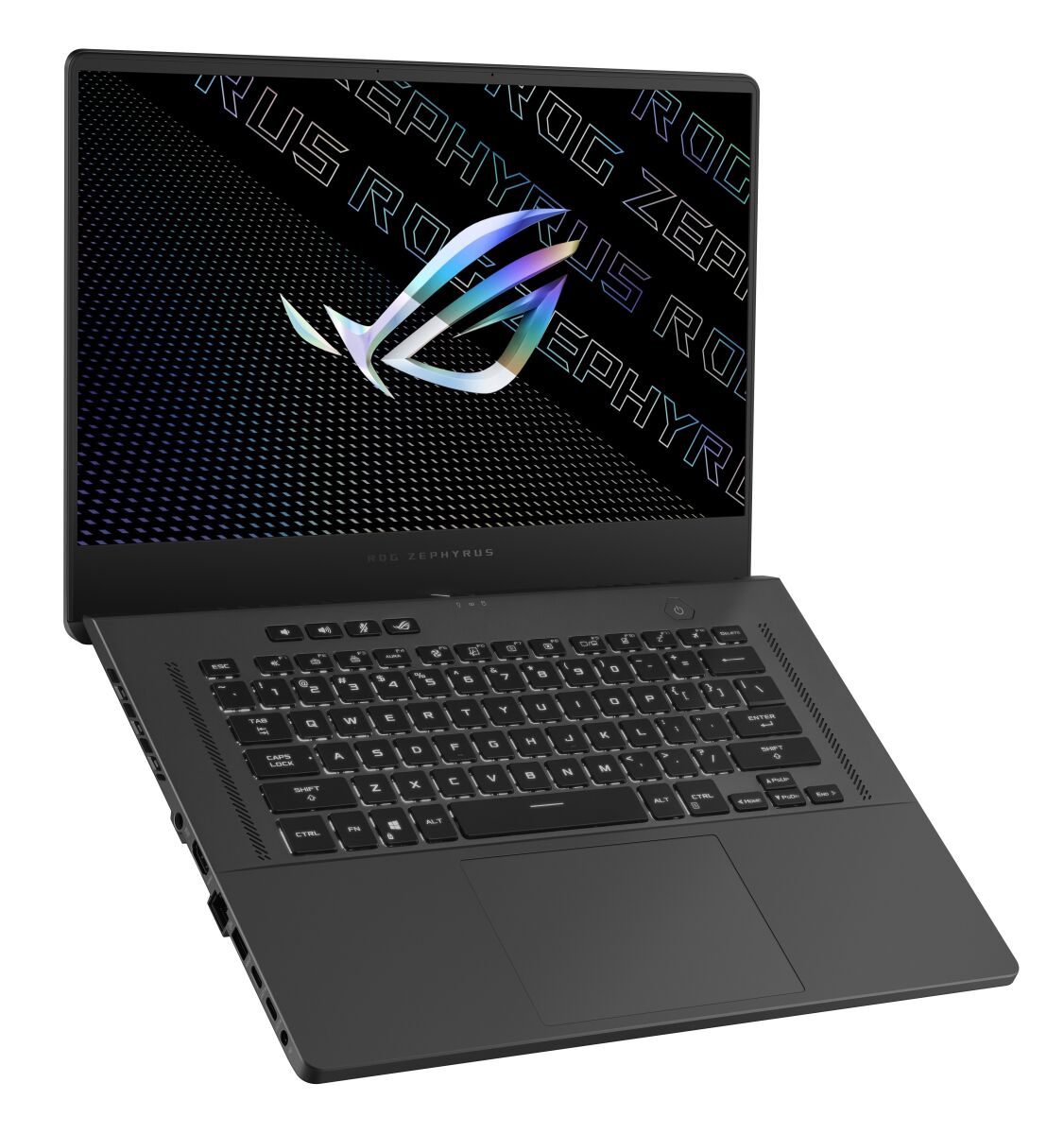

ASUS ROG Zephyrus G15 GA503QM-HQ023T - 90NR04X2-M00940
ASUS ROG Zephyrus G15 GA503QM-HQ023T
Product code: 90NR04X2-M00940
- đģDisplay diagonal: 15.6 inch
- đŗProcessor model: 5800HS
- đĢInternal memory: 16 GB
- đŽOn-board graphics adapter model:
- đŽDiscrete graphics adapter model:
- đŊTotal storage capacity: 512 GB
- âī¸Weight: 1.9 kg
đ Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Grey |
| Product type | Notebook |
| Form factor | Clamshell |
| Market positioning | Gaming |
| Introduction year | 2021 |
| Display | |
| Display diagonal | 15.6 inch |
| Maximum refresh rate | 165 Hz |
| Display response rise/fall | 3 ms |
| Panel type | IPS |
| HD type | Wide Quad HD |
| Touchscreen | N |
| Display resolution | 2560 x 1440 pixels |
| RGB colour space | DCI-P3 |
| Colour gamut | 100% |
| Native aspect ratio | 16:9 |
| Brand | ASUS |
| Family | ROG |
| Series | Zephyrus G15 |
| Model name | GA503QM-HQ023T |
| Part Number | 90NR04X2-M00940 |
| Release Date | 01 May 2021 |
|
|
|
| Processor | |
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen 7 |
| Processor frequency | 2.8 GHz |
| Processor boost frequency | 4.4 GHz |
| Processor model | 5800HS |
| Processor cores | 8 |
| Processor cache | 16 MB |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | On-board + SO-DIMM |
| Memory clock speed | 3200 MHz |
| Maximum internal memory | 40 GB |
| Memory layout (slots x size) | 2 x 8 GB |
| Graphics | |
| AMD FreeSync | Y |
| NVIDIA G-SYNC | Y |
| Discrete graphics memory type | GDDR6 |
| Discrete GPU manufacturer | NVIDIA |
| On-board graphics card | Y |
| Discrete graphics card | Y |
| Discrete graphics card model | NVIDIA GeForce RTX 3060 |
| On-board graphics card model | AMD Radeon Graphics |
| Discrete graphics card memory | 6 GB |
| Storage | |
| Total storage capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Total SSDs capacity | 512 GB |
| SSD interface | NVMe, PCI Express 3.0 |
| SSD form factor | M.2 |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Y |
| Storage media | SSD |
| NVMe | Y |
| Optical drive | |
| Optical drive type | N |
| Networking | |
| Ethernet LAN | Y |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Y |
| Bluetooth version | 5.1 |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery | Y |
| HDMI version | 2.0b |
| Combo headphone/mic port | Y |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB Type-C DisplayPort Alternate Mode | Y |
| Audio | |
| Built-in microphone | Y |
| Audio system | Dolby Atmos |
| Keyboard | |
| Numeric keypad | N |
| Keyboard backlit | Y |
| Pointing device | Touchpad |
| Software | |
| Operating system installed | Windows 10 Home |
| Operating system architecture | 64-bit |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity (Watt-hours) | 90 Wh |
| Number of battery cells | 4 |
| Weight & dimensions | |
| Weight | 1.9 kg |
| Height | 19.9 mm |
| Depth | 243 mm |
| Width | 355 mm |
| Power | |
| AC adapter power | 200 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 20 V |
| AC adapter output current | 10 A |
| Security | |
| Cable lock slot | Y |
| Cable lock slot type | Kensington |
| Fingerprint reader | Y |
| Password protection | Y |
| Password protection type | BIOS, User |
| Other features | |
| Anti-glare screen | Y |
