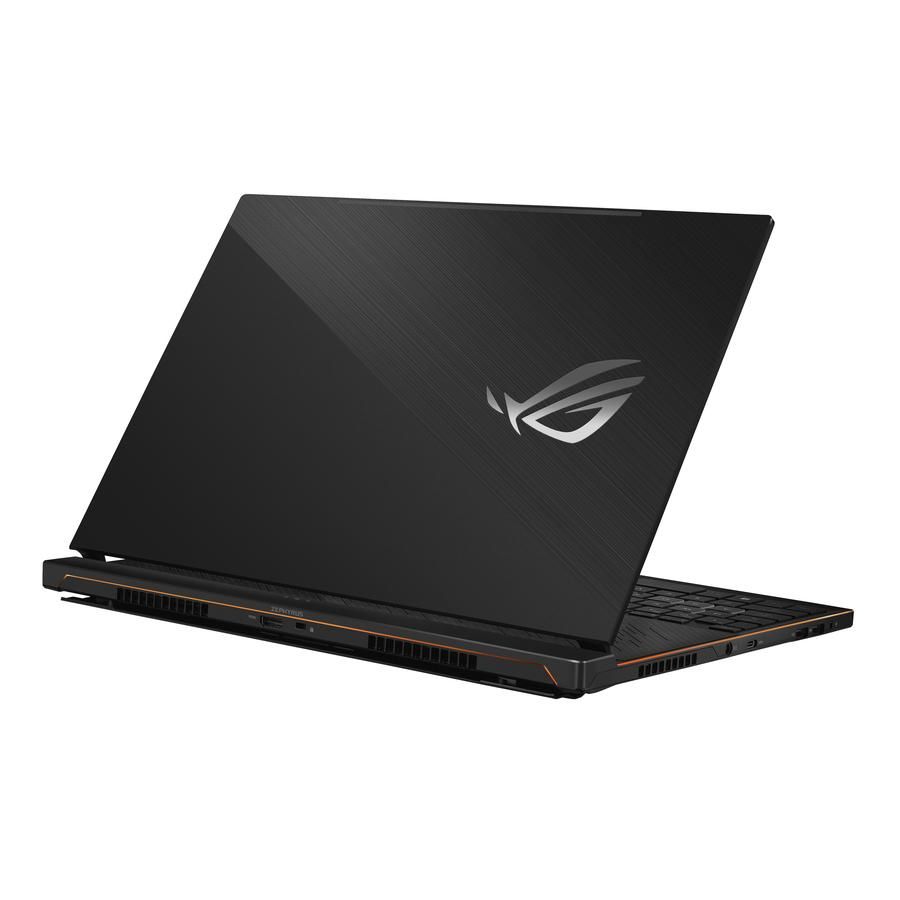

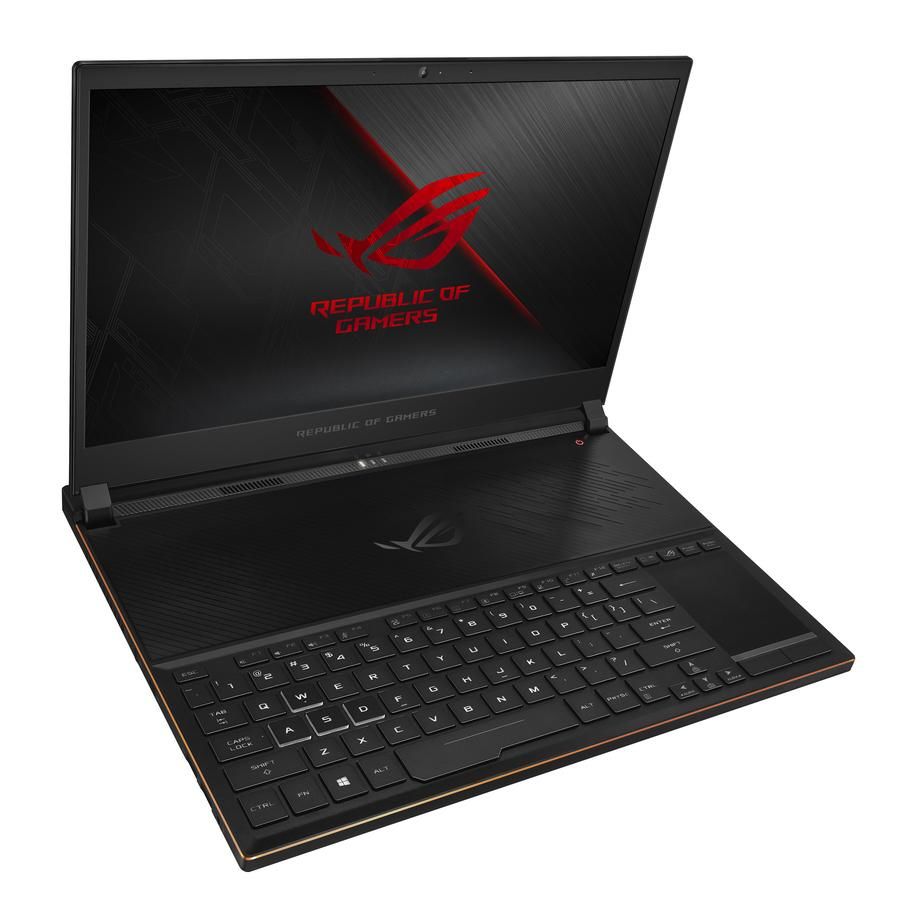

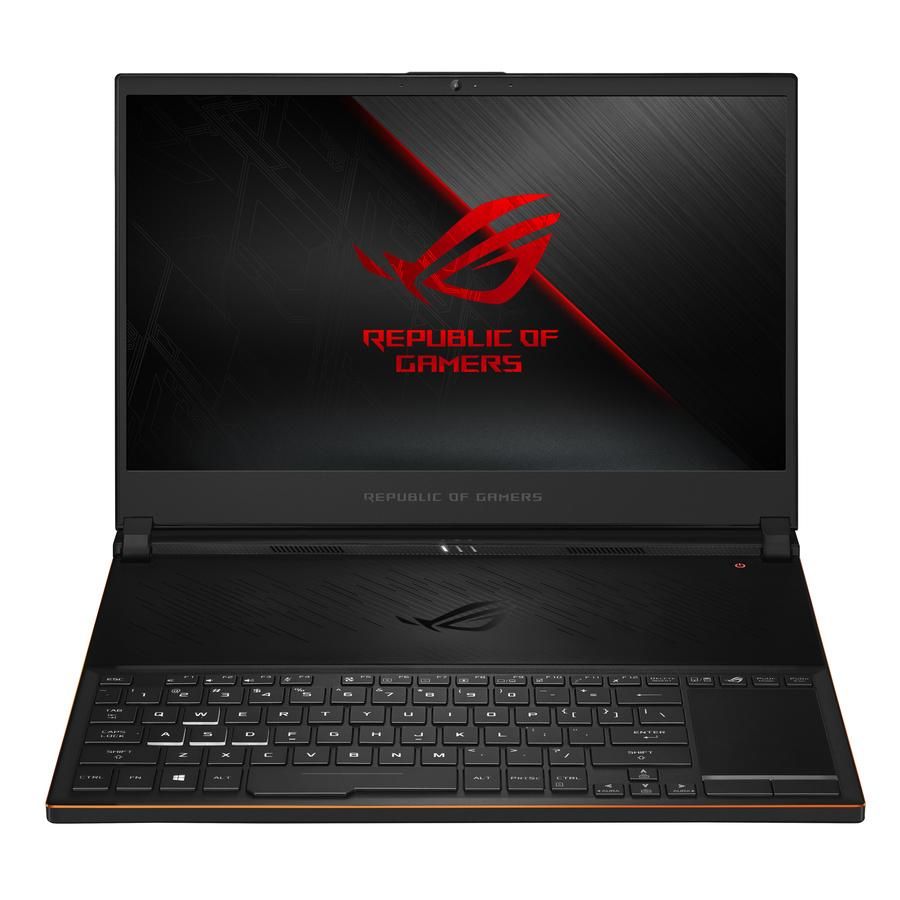

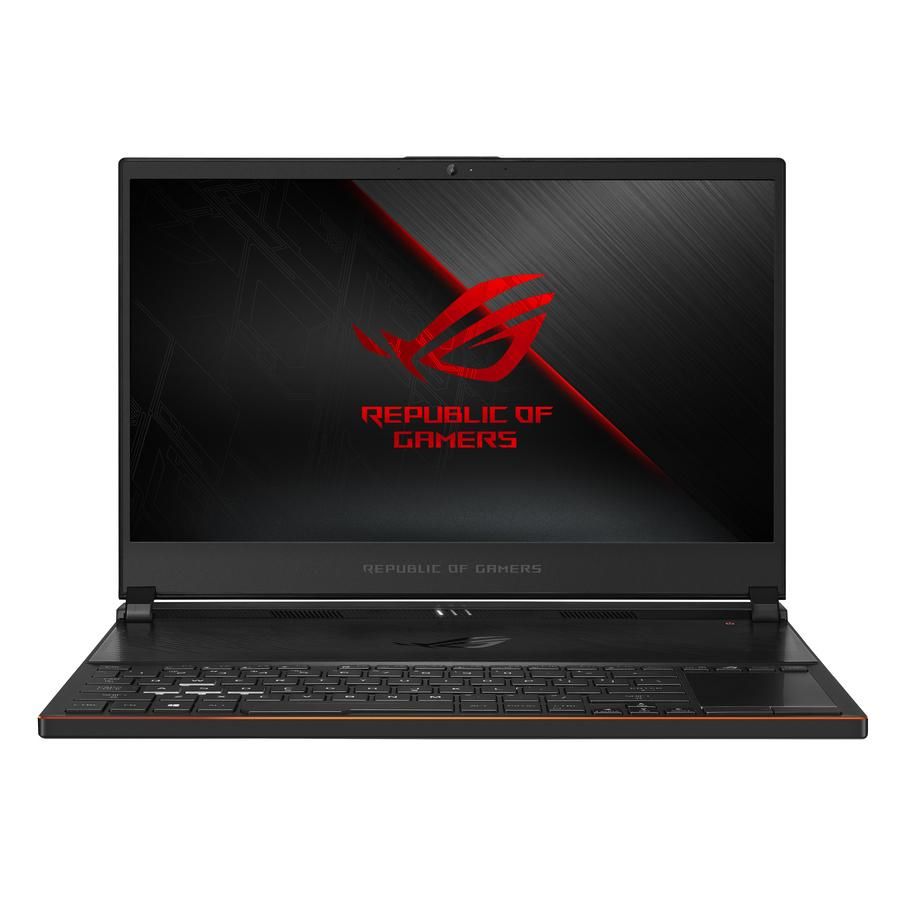

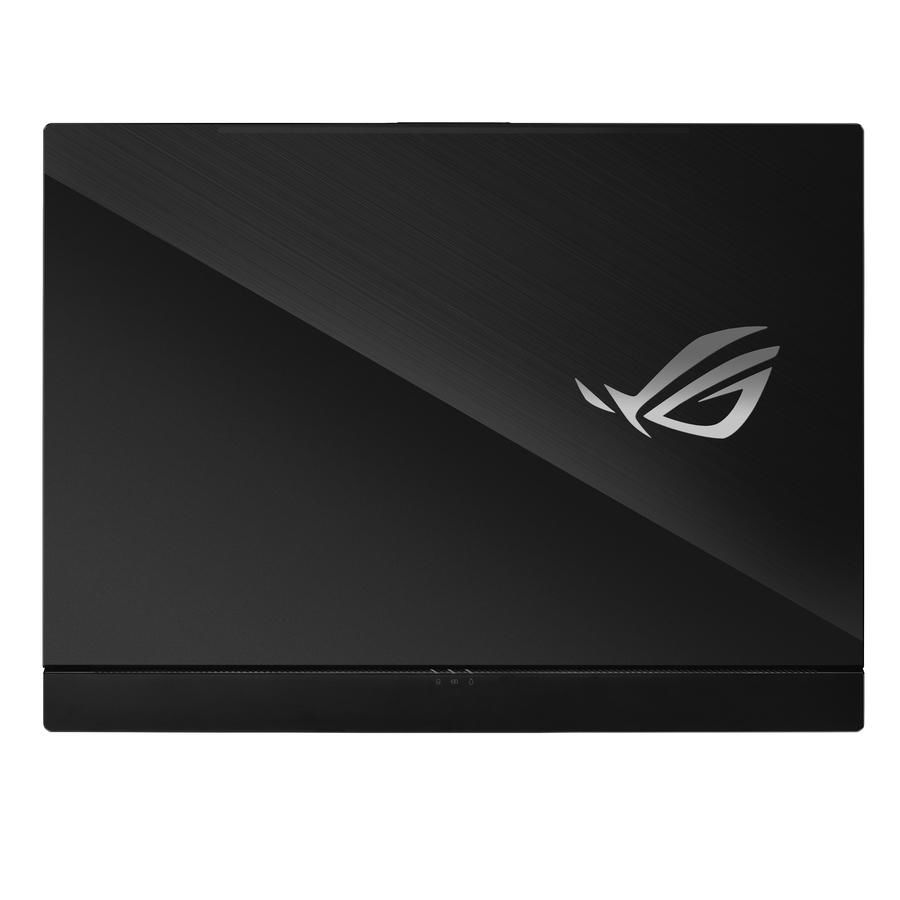

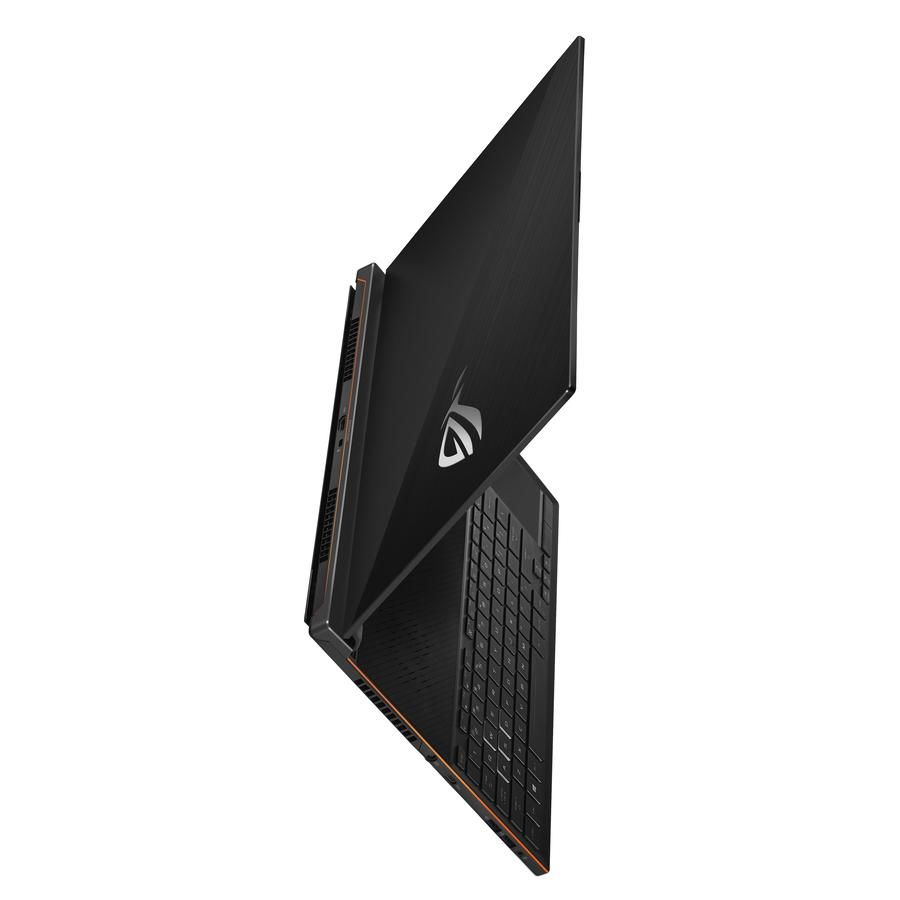

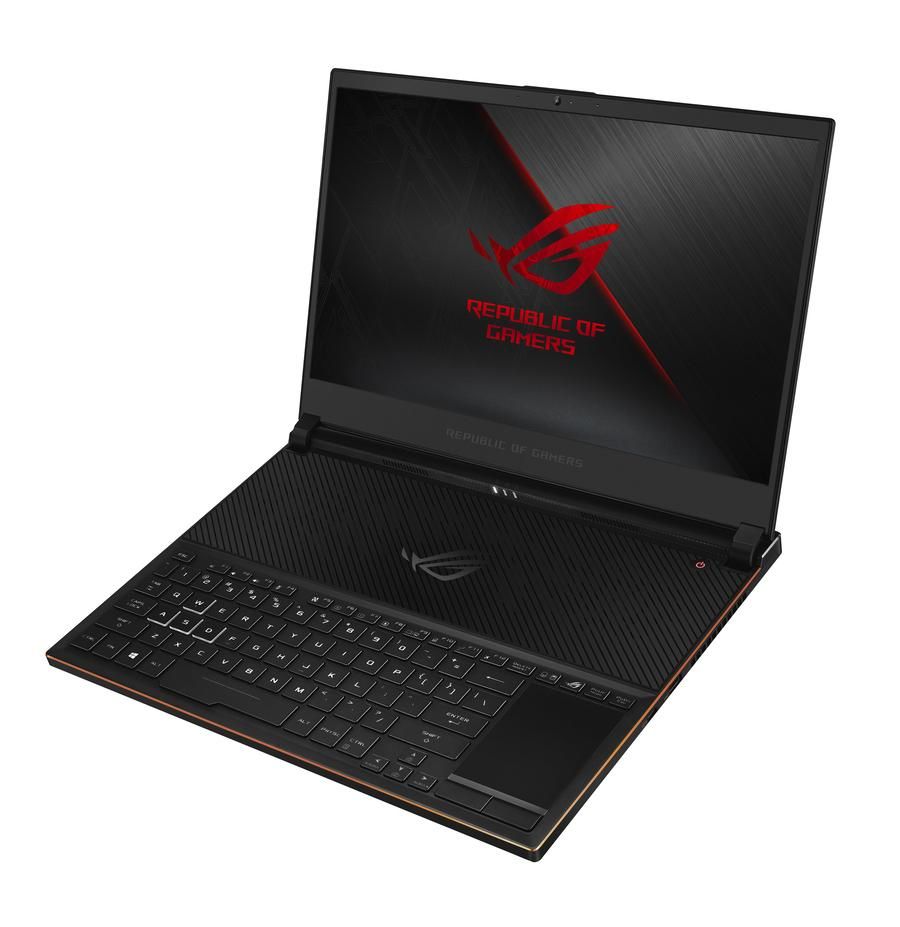

ASUS ROG Zephyrus S GX531GM-DH74
ASUS ROG Zephyrus S GX531GM-DH74
Product code: GX531GM-DH74
- đģDisplay diagonal: 15.6 inch
- đŗProcessor model: i7-8750H
- đĢInternal memory: 16 GB
- đŽOn-board graphics adapter model: Intel UHD Graphics 630
- đŽDiscrete graphics adapter model: NVIDIA GeForce GTX 1060
- đŊTotal storage capacity: 512 GB
- âī¸Weight: 2.1 kg
đ Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Product type | Notebook |
| Form factor | Clamshell |
| Display | |
| Display diagonal | 15.6 inch |
| sRGB coverage (typical) | 100% |
| Maximum refresh rate | 144 Hz |
| Panel type | IPS |
| Aspect ratio | 16:9 |
| HD type | Full HD |
| LED backlight | Y |
| Touchscreen | N |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Brand | ASUS |
| Family | ROG |
| Series | Zephyrus S |
| Model name | GX531GM-DH74 |
| Part Number | GX531GM-DH74 |
| Release Date | 13 December 2018 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Processor frequency | 2.2 GHz |
| Processor boost frequency | 4.1 GHz |
| Processor codename | Coffee Lake |
| Thermal Design Power (TDP) | 45 W |
| Processor model | i7-8750H |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor cache | 9 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA 1440 |
| Processor generation | 8th gen Intel Core i7 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 16 GB |
| Memory clock speed | 2666 MHz |
| Maximum internal memory | 24 GB |
| Graphics | |
| On-board graphics adapter | Y |
| Discrete graphics memory type | GDDR5 |
| On-board graphics adapter DirectX version | 12.0 |
| Discrete graphics adapter | Y |
| On-board graphics adapter model | Intel UHD Graphics 630 |
| Discrete graphics adapter model | NVIDIA GeForce GTX 1060 |
| On-board graphics adapter base frequency | 350 MHz |
| On-board graphics adapter dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics adapter memory | 64 GB |
| On-board graphics adapter OpenGL version | 4.5 |
| Discrete graphics adapter memory | 6 GB |
| On-board graphics card | Y |
| Discrete graphics card | Y |
| Discrete graphics card model | NVIDIA GeForce GTX 1060 |
| On-board graphics card model | Intel UHD Graphics 630 |
| On-board graphics card family | Intel UHD Graphics |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3E9B |
| Discrete graphics card memory | 6 GB |
| Storage | |
| Total storage capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Total SSDs capacity | 512 GB |
| Storage media | SSD |
| Optical drive | |
| Optical drive type | N |
| Networking | |
| Wi-Fi | Y |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Antenna type | 2x2 |
| Bluetooth | Y |
| Bluetooth version | 5.0 |
| 4G | N |
| 3G | N |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI version | 2.0 |
| USB 3.1 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.0 (3.1 Gen 1) Type-C ports quantity | 1 |
| Combo headphone/mic port | Y |
| USB 2.0 ports quantity | 2 |
| HDMI ports quantity | 1 |
| USB 3.1 (3.1 Gen 2) Type-C ports quantity | 1 |
| Audio | |
| Built-in microphone | Y |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Camera | |
| Front camera | Y |
| Keyboard | |
| Numeric keypad | N |
| Windows keys | Y |
| Pointing device | Touchpad |
| Performance | |
| Virtual Reality (VR) ready | Y |
| Software | |
| Operating system installed | Windows 10 Home |
| Weight & dimensions | |
| Weight | 2.1 kg |
| Height (rear) | 1.57 cm |
| Height (front) | 1.5 cm |
| Depth | 268 mm |
| Width | 360 mm |
| Power | |
| AC adapter power | 180 W |
| Security | |
| Cable lock slot | Y |
| Cable lock slot type | Kensington |
