ASUS ROG Zephyrus S GX701GXR-EV004T - 90NR02J1-M00080

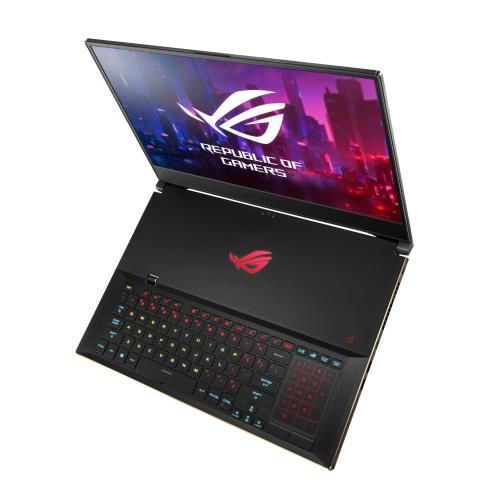

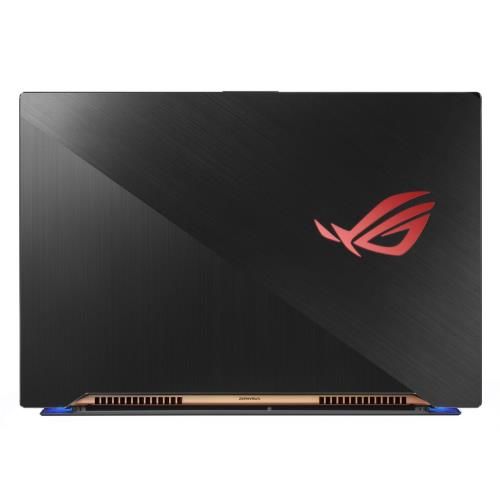

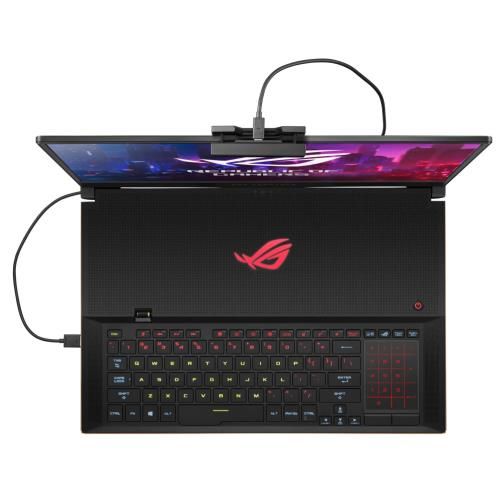

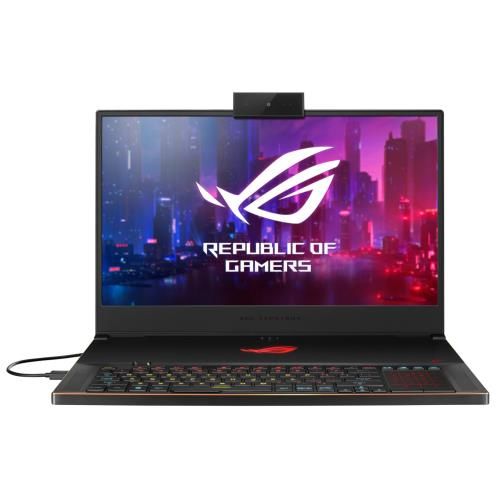

ASUS ROG Zephyrus S GX701GXR-EV004T
Product code: 90NR02J1-M00080
- 💻Display diagonal: 17.3 inch
- 🔳Processor model: i7-9750H
- 🎫Internal memory: 16 GB
- 🎮On-board graphics adapter model: Intel UHD Graphics 630
- 🎮Discrete graphics adapter model: NVIDIA GeForce RTX 2080 Max-Q
- 💽Total storage capacity: 1000 GB
- ⚖️Weight: 2.6 kg
📊 Add to compare
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Product type | Notebook |
| Form factor | Clamshell |
| Market positioning | Gaming |
| Housing material | Metal |
| Display | |
| Display diagonal | 17.3 inch |
| Dual-screen | N |
| sRGB coverage (typical) | 100% |
| NTSC coverage (typical) | 72% |
| Maximum refresh rate | 144 Hz |
| Display response rise/fall | 3 ms |
| Contrast ratio (typical) | 800:1 |
| Display brightness | 300 cd/m² |
| Panel type | IPS |
| Display surface | Matt |
| Aspect ratio | 16:9 |
| HD type | Full HD |
| LED backlight | Y |
| Touchscreen | N |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Brand | ASUS |
| Family | ROG |
| Series | Zephyrus S |
| Model name | GX701GXR-EV004T |
| Part Number | 90NR02J1-M00080 |
| Release Date | 04 June 2019 |
| EAN/UPC code | 4718017277020 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Processor frequency | 2.6 GHz |
| Motherboard chipset | Intel HM370 |
| Processor boost frequency | 4.5 GHz |
| Processor codename | Coffee Lake |
| Thermal Design Power (TDP) | 45 W |
| Processor model | i7-9750H |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor cache | 12 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA 1440 |
| Processor generation | 9th gen Intel Core i7 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | On-board + SO-DIMM |
| Memory clock speed | 2666 MHz |
| Memory slots | 1x SO-DIMM |
| Maximum internal memory | 32 GB |
| Memory layout (slots x size) | 1 x 16 GB |
| Maximum internal memory (64-bit) | 32 GB |
| Graphics | |
| On-board graphics adapter | Y |
| On-board graphics adapter family | Intel UHD Graphics |
| Number of discrete graphics adapters installed | 1 |
| Discrete graphics memory type | GDDR6 |
| On-board graphics adapter DirectX version | 12.0 |
| Discrete graphics adapter | Y |
| On-board graphics adapter model | Intel UHD Graphics 630 |
| Discrete graphics adapter model | NVIDIA GeForce RTX 2080 Max-Q |
| On-board graphics adapter base frequency | 350 MHz |
| On-board graphics adapter dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics adapter memory | 64 GB |
| On-board graphics adapter OpenGL version | 4.5 |
| Discrete graphics adapter memory | 8 GB |
| On-board graphics card | Y |
| Discrete graphics card | Y |
| Discrete graphics card model | NVIDIA GeForce RTX 2080 |
| On-board graphics card model | Intel UHD Graphics 630 |
| On-board graphics card family | Intel UHD Graphics |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3E9B |
| Discrete graphics card memory | 8 GB |
| Number of discrete graphics cards installed | 1 |
| Storage | |
| Total storage capacity | 1000 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 1000 GB |
| SSD interface | PCI Express 3.0 |
| SSD form factor | M.2 |
| Storage media | SSD |
| Optical drive | |
| Optical drive type | N |
| Networking | |
| Ethernet LAN | N |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Wi-Fi | Y |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Antenna type | 2x2 |
| Bluetooth | Y |
| Bluetooth version | 5.0 |
| 4G | N |
| 3G | N |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery | Y |
| Charging port type | DC-in jack |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity | 3 |
| Headphone outputs | 1 |
| HDMI version | 2.0b |
| Docking connector | Y |
| USB 3.0 (3.1 Gen 1) Type-C ports quantity | 2 |
| Combo headphone/mic port | Y |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB Sleep-and-Charge | Y |
| Audio | |
| Built-in microphone | Y |
| Number of built-in speakers | 2 |
| Speaker power | 2.5 W |
| Camera | |
| Front camera | Y |
| Front camera HD type | Full HD |
| Video capturing speed | 60 fps |
| Front camera resolution | 1920 x 1080 pixels |
| Front camera signal format | 1080p |
| Keyboard | |
| Numeric keypad | N |
| Spill-resistant keyboard | Y |
| Keyboard backlit colour | Various |
| Island-style keyboard | Y |
| Full-size keyboard | Y |
| Spill resistant keyboard | Y |
| Keyboard backlit | Y |
| Windows keys | Y |
| Pointing device | Touchpad |
| Performance | |
| Virtual Reality (VR) ready | Y |
| Software | |
| Operating system installed | Windows 10 |
| Operating system architecture | 64-bit |
| Drivers included | Y |
| Trial software | Microsoft Office 365 |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
| Weight & dimensions | |
| Weight | 2.6 kg |
| Height | 18.7 mm |
| Depth | 272 mm |
| Width | 399 mm |
| Power | |
| AC adapter power | 230 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 19.5 V |
| Security | |
| Cable lock slot | Y |
| Cable lock slot type | Kensington |
