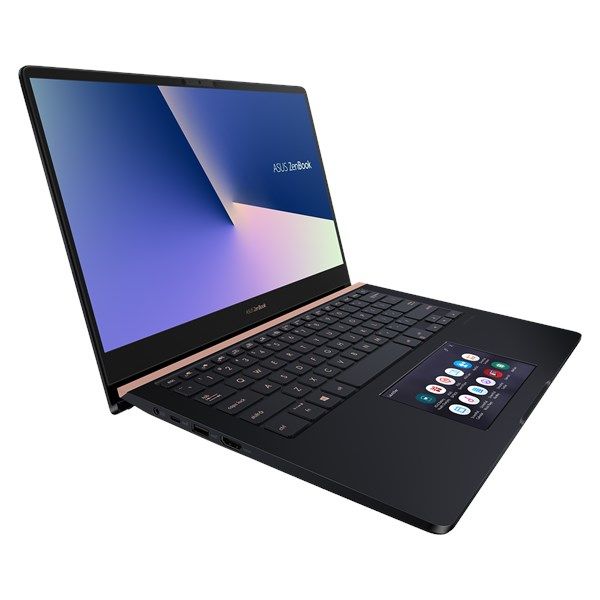

ASUS ZenBook Pro 14 UX480FD-BE027T - 90NB0JT1-M00460

ASUS ZenBook Pro 14 UX480FD-BE027T

Product code: 90NB0JT1-M00460

  • Display diagonal: 14 inch
  • Processor: i7-8565U 1.8 GHz
  • Internal memory: 8 GB DDR4-SDRAM
  • Graphics: Intel UHD Graphics 620
  • Storage: 256 GB SSD
  • Battery: 12.5 hrs 70 Wh
  • Weight: 1.6 kg
📊 Add to compare

As an Amazon Associate I earn from qualifying purchases.

Product colourBlue
Product typeNotebook
Form factorClamshell
Display diagonal14 inch
Second display locationBottom
Second display resolution1920 x 1080 pixels
Second display diagonal14 cm (5.5")
Second display panel typeS-IPS+
sRGB coverage (typical)100%
Aspect ratio16:9
HD typeFull HD
LED backlightY
Display resolution1920 x 1080 pixels
Native aspect ratio16:9
SeriesPro 14
Model nameUX480FD-BE027T
Part Number90NB0JT1-M00460
Release Date03 November 2018
EAN/UPC code4718017079419
Processor manufacturerIntel
Processor familyIntel Core i7
Processor frequency1.8 GHz
Processor boost frequency4.6 GHz
Processor codenameWhiskey Lake
Thermal Design Power (TDP)15 W
Processor modeli7-8565U
Processor cores4
Processor threads8
Processor cache8 MB
Processor lithography14 nm
Processor socketBGA 1528
Configurable TDP-up frequency2 GHz
Configurable TDP-up25 W
Processor generation8th gen Intel Core i7
Internal memory typeDDR4-SDRAM
Internal memory8 GB
Memory clock speed2400 MHz
Maximum internal memory16 GB
Maximum internal memory (64-bit)16 GB
On-board graphics adapterY
On-board graphics adapter familyIntel UHD Graphics
Discrete graphics memory typeGDDR5
On-board graphics adapter DirectX version12.0
Discrete graphics adapterY
On-board graphics adapter modelIntel UHD Graphics 620
Discrete graphics adapter modelNVIDIA GeForce GTX 1050 Max-Q
On-board graphics adapter base frequency300 MHz
On-board graphics adapter dynamic frequency (max)1150 MHz
Maximum on-board graphics adapter memory32 GB
On-board graphics adapter OpenGL version4.5
Discrete graphics adapter memory4 GB
On-board graphics cardY
Discrete graphics cardY
Discrete graphics card modelNVIDIA GeForce GTX 1050 Max-Q
On-board graphics card modelIntel UHD Graphics
On-board graphics card familyIntel UHD Graphics
On-board graphics card base frequency300 MHz
On-board graphics card dynamic frequency (max)1150 MHz
Maximum on-board graphics card memory32 GB
On-board graphics card DirectX version12.0
On-board graphics card OpenGL version4.5
On-board graphics card ID0x3EA0
Discrete graphics card memory4 GB
Total storage capacity256 GB
Number of SSDs installed1
SSD capacity256 GB
SSD interfacePCI Express
Compatible memory cardsMicroSD (TransFlash)
Card reader integratedY
Storage mediaSSD
Optical drive
Optical drive typeN
Ethernet LANN
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi standards802.11a, 802.11b, 802.11g
Antenna type2x2
Bluetooth version5.0
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Charging port typeDC-in jack
Combo headphone/mic portY
USB 2.0 ports quantity1
HDMI ports quantity1
Built-in microphoneY
Audio systemSonicMaster
Speakers manufacturerHarman Kardon
Front cameraY
Windows HelloY
Numeric keypadN
Windows keysY
Pointing deviceScreenPad
Battery technologyLithium Polymer (LiPo)
Battery capacity (Watt-hours)70 Wh
Number of battery cells4
Battery life (max)12.5 h
Battery capacity70 Wh
Weight & dimensions
Weight1.6 kg
Height17.9 mm
Depth225 mm
Width323 mm
AC adapter power90 W
AC adapter frequency50 - 60 Hz
AC adapter input voltage100 - 240 V
AC adapter output voltage19 V
AC adapter output current7.7 A
