ASUS ZenBook Pro 17 UM6702RA-M2014W - 90NB0VU1-M001A0

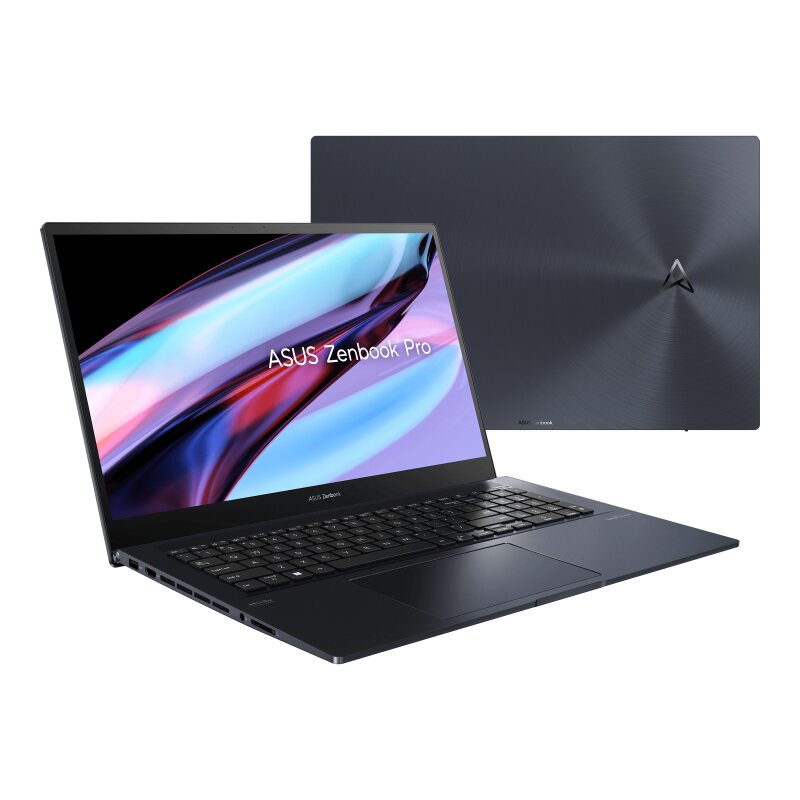

ASUS ZenBook Pro 17 UM6702RA-M2014W
Product code: 90NB0VU1-M001A0
- 💻Display diagonal: 17.3 inch
- 🔳Processor model: 6800H
- 🎫Internal memory: 16 GB
- 🎮On-board graphics adapter model:
- 🎮Discrete graphics adapter model:
- 💽Total storage capacity: 1000 GB
- ⚖️Weight: 1.99 kg
📊 Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Product type | Notebook |
| Form factor | Clamshell |
| Market positioning | Performance |
| Housing material | Aluminium |
| Display | |
| Display diagonal | 17.3 inch |
| Maximum refresh rate | 60 Hz |
| Display brightness | 400 cd/m² |
| Panel type | IPS |
| HD type | Full HD |
| LED backlight | Y |
| Touchscreen | N |
| Display resolution | 1920 x 1080 pixels |
| RGB colour space | sRGB |
| Colour gamut | 100% |
| Native aspect ratio | 16:9 |
| Brand | ASUS |
| Family | ZenBook |
| Series | Pro 17 |
| Model name | UM6702RA-M2014W |
| Part Number | 90NB0VU1-M001A0 |
| Release Date | 10 February 2023 |
| EAN/UPC code | 4711081648352 |
|
|
|
| Processor | |
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen 7 |
| Processor frequency | 3.2 GHz |
| Processor boost frequency | 4.7 GHz |
| Processor model | 6800H |
| Processor cores | 8 |
| Processor cache | 16 MB |
| Memory | |
| Internal memory type | LPDDR5-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | On-board |
| Maximum internal memory | 16 GB |
| Memory layout (slots x size) | 1 x 16 GB |
| Graphics | |
| On-board graphics card | Y |
| Discrete graphics card | N |
| Discrete graphics card model | Not available |
| On-board graphics card model | AMD Radeon 680M |
| Storage | |
| Total storage capacity | 1000 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 1000 GB |
| Total SSDs capacity | 1000 GB |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| Compatible memory cards | SD |
| Card reader integrated | Y |
| Storage media | SSD |
| NVMe | Y |
| Optical drive | |
| Optical drive type | N |
| Networking | |
| Ethernet LAN | N |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Y |
| Bluetooth version | 5.0 |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery | Y |
| Charging port type | DC-in jack |
| HDMI version | 2.1 |
| Combo headphone/mic port | Y |
| HDMI ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Y |
| Power adapter barrel connector | 4.5 mm |
| Audio | |
| Built-in microphone | Y |
| Speakers manufacturer | Harman Kardon |
| Camera | |
| Front camera | Y |
| Front camera HD type | Full HD |
| Keyboard | |
| Numeric keypad | Y |
| Keyboard layout | AZERTY |
| Keyboard backlit | Y |
| Pointing device | Touchpad |
| Software | |
| Operating system installed | Windows 11 Home |
| Operating system architecture | 64-bit |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
| Battery capacity | 76 Wh |
| Weight & dimensions | |
| Weight | 1.99 kg |
| Height | 18.9 mm |
| Depth | 258.6 mm |
| Width | 395 mm |
| Power | |
| AC adapter power | 90 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 19 V |
| AC adapter output current | 4.74 A |
| Security | |
| Fingerprint reader | Y |
| Trusted Platform Module (TPM) | Y |
| Password protection | Y |
| Password protection type | BIOS, User |
| Trusted Platform Module (TPM) version | 2.0 |
| Other features | |
| Anti-glare screen | Y |
