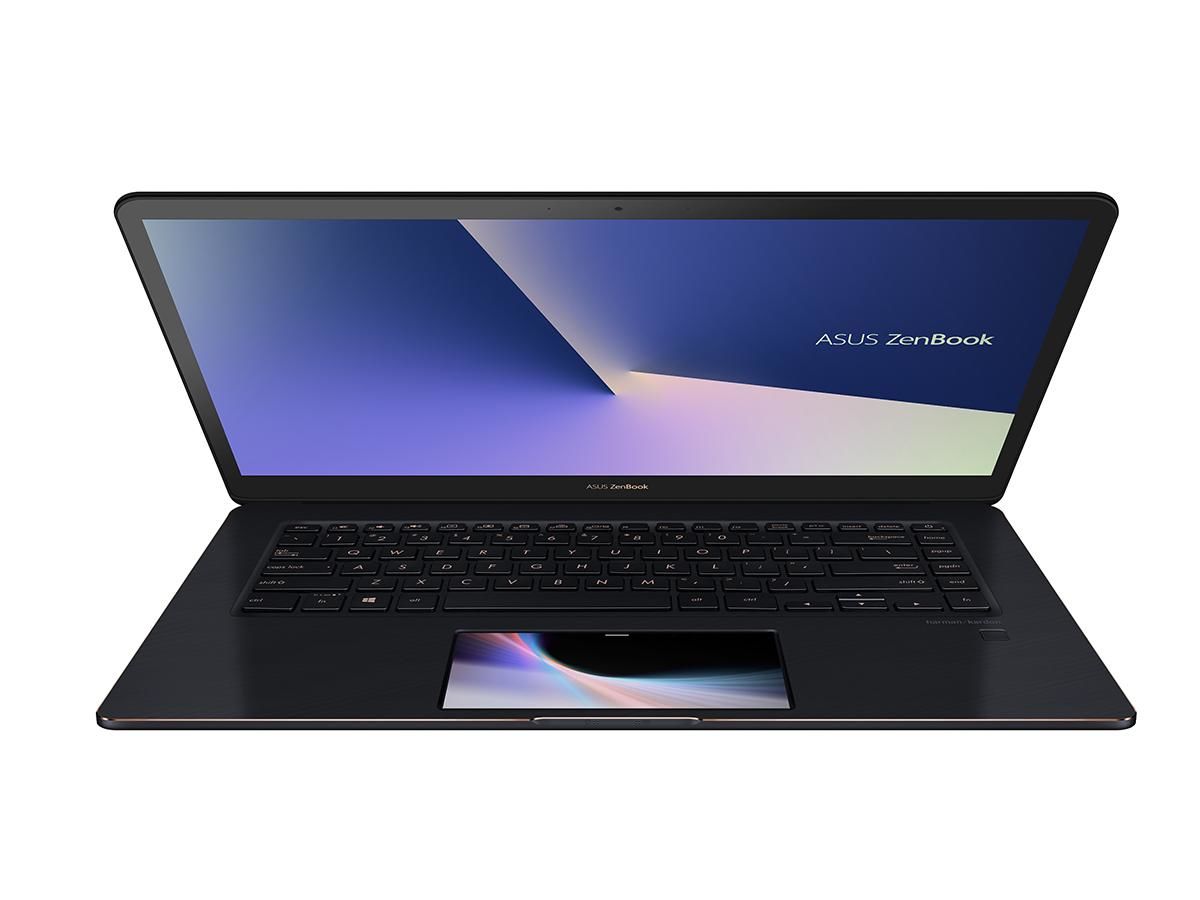

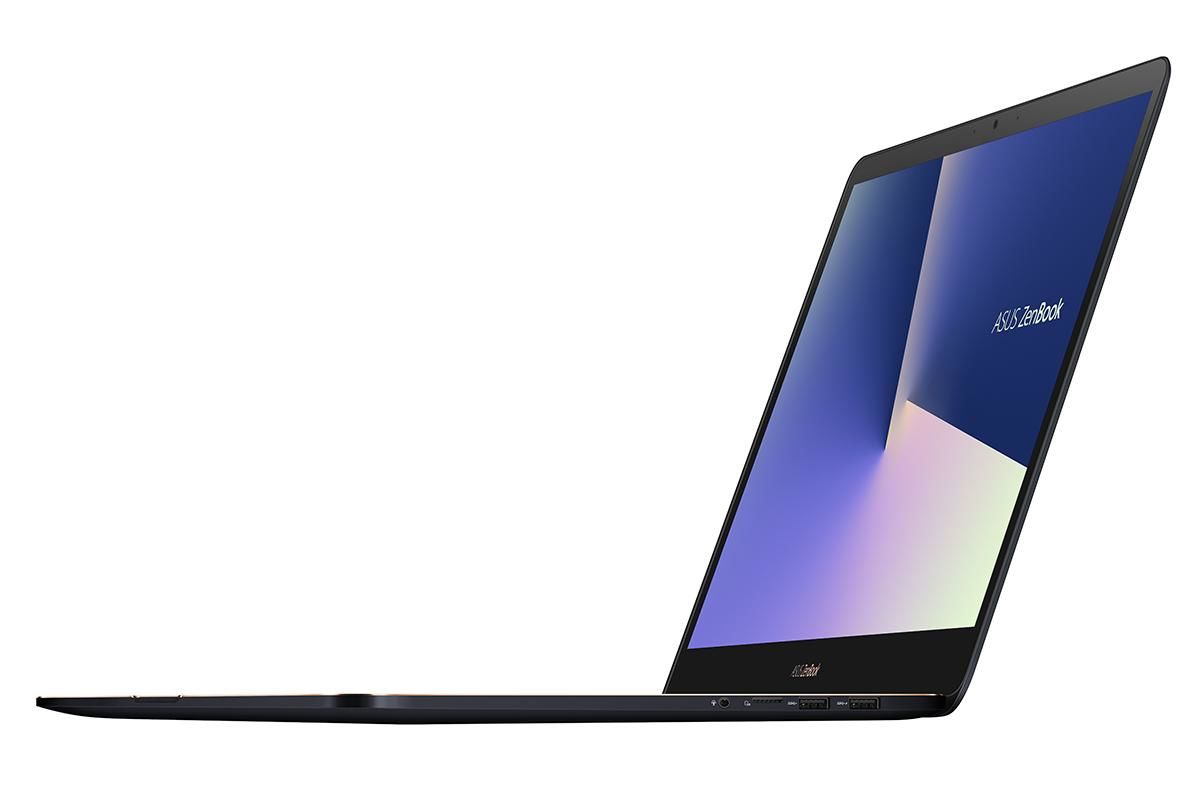

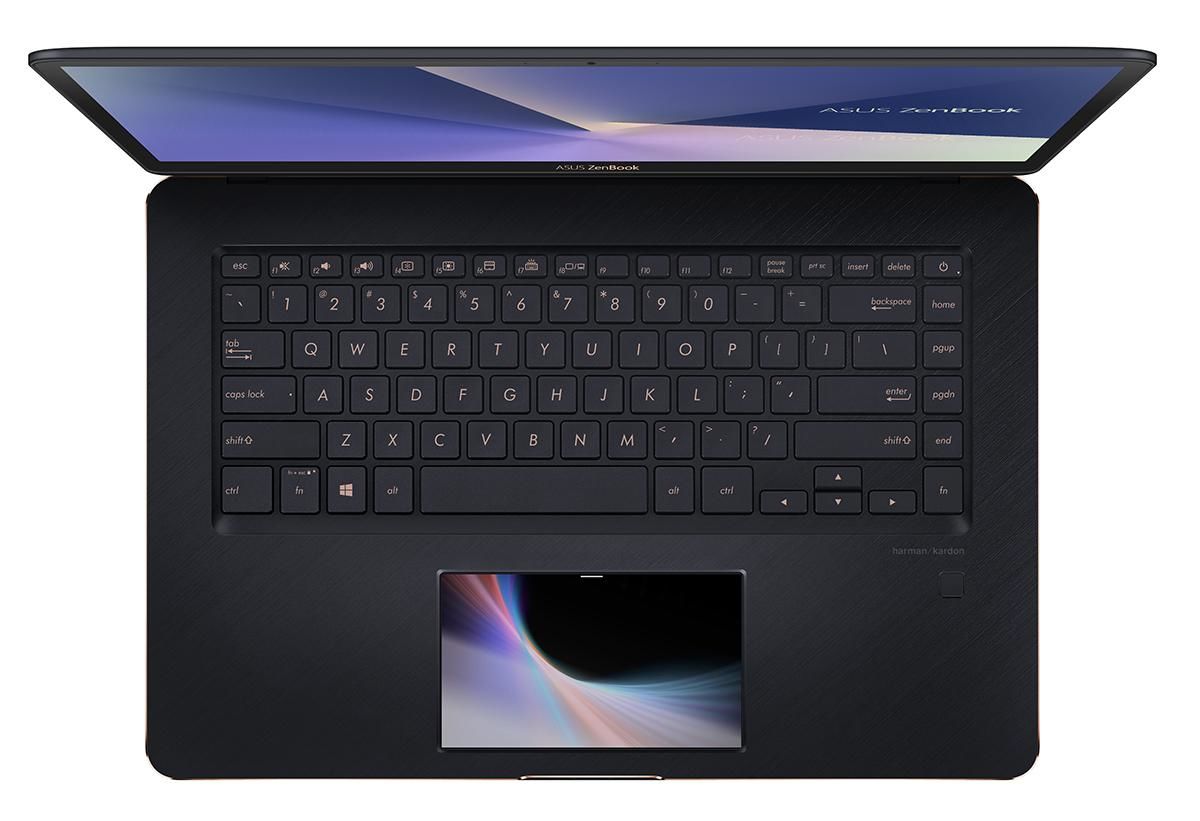

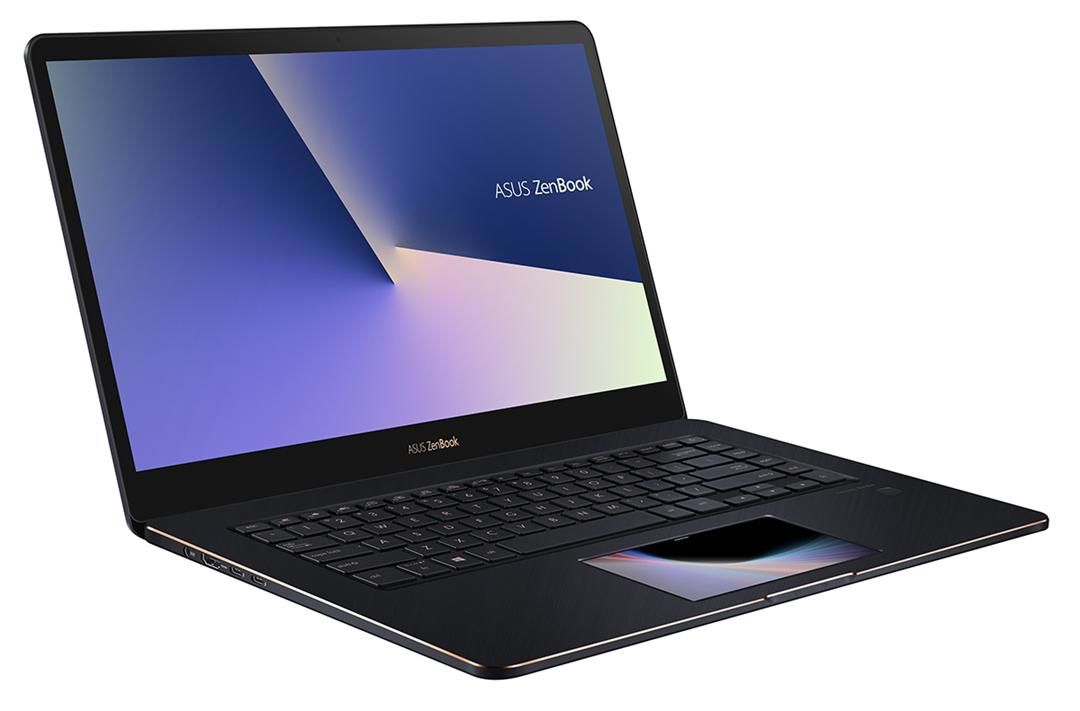

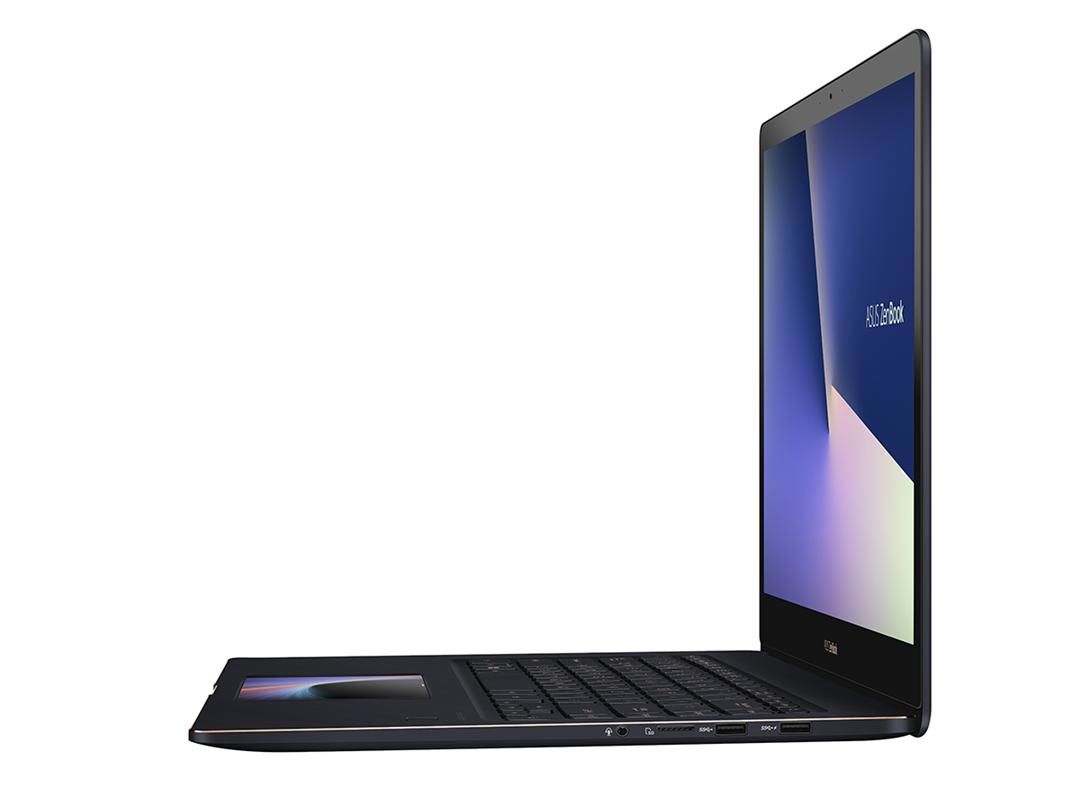

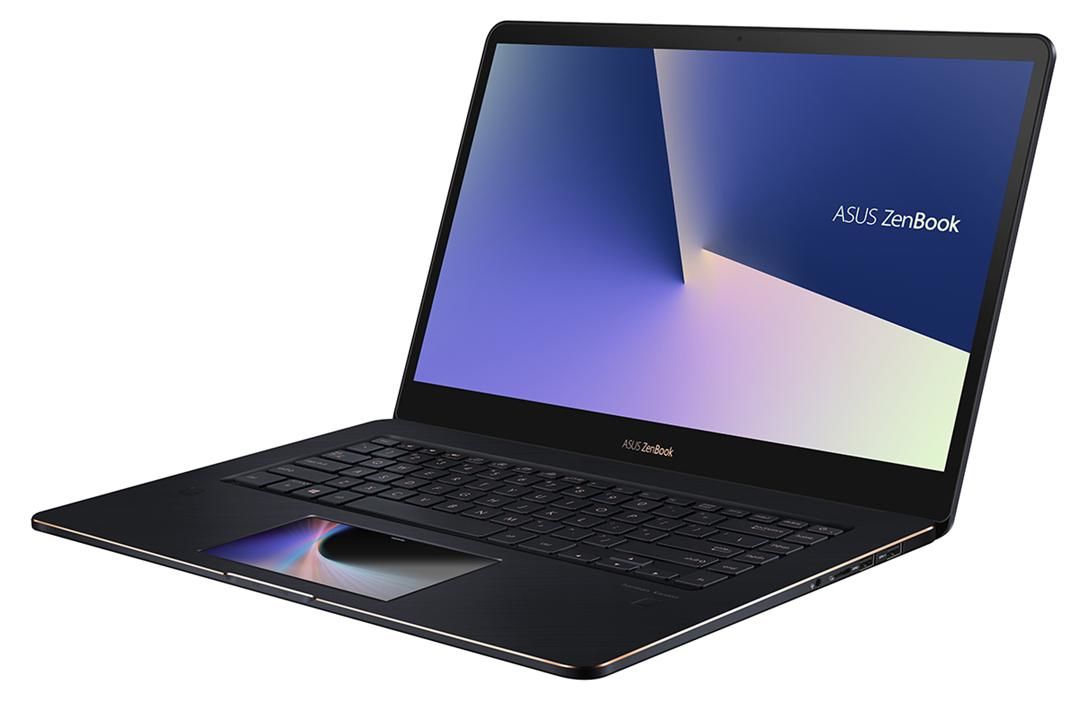

ASUS ZenBook Pro UX580GD-E2006R - 90NB0I73-M00060
ASUS ZenBook Pro UX580GD-E2006R
Product code: 90NB0I73-M00060
- đģDisplay diagonal: 15.6 inch
- đŗProcessor model: i7-8750H
- đĢInternal memory: 16 GB
- đŽOn-board graphics adapter model: Intel UHD Graphics 630
- đŽDiscrete graphics adapter model: NVIDIA GeForce GTX 1050
- đŊTotal storage capacity: 512 GB
- âī¸Weight: 1.88 kg
đ Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Blue |
| Product type | Notebook |
| Form factor | Clamshell |
| Display | |
| Display diagonal | 15.6 inch |
| Touchscreen type | Capacitive |
| Touch technology | Multi-touch |
| Aspect ratio | 16:9 |
| HD type | 4K Ultra HD |
| LED backlight | Y |
| Touchscreen | Y |
| Display resolution | 3840 x 2160 pixels |
| Native aspect ratio | 16:9 |
| Brand | ASUS |
| Family | ZenBook |
| Series | Pro |
| Model name | UX580GD-E2006R |
| Part Number | 90NB0I73-M00060 |
| Release Date | 30 June 2018 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Processor frequency | 2.2 GHz |
| Processor boost frequency | 4.1 GHz |
| Processor codename | Coffee Lake |
| Thermal Design Power (TDP) | 45 W |
| Processor model | i7-8750H |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor cache | 9 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA 1440 |
| Processor generation | 8th gen Intel Core i7 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | On-board |
| Memory clock speed | 2400 MHz |
| Maximum internal memory | 16 GB |
| Graphics | |
| On-board graphics adapter | Y |
| Discrete graphics memory type | GDDR5 |
| On-board graphics adapter DirectX version | 12.0 |
| Discrete graphics adapter | Y |
| On-board graphics adapter model | Intel UHD Graphics 630 |
| Discrete graphics adapter model | NVIDIA GeForce GTX 1050 |
| On-board graphics adapter base frequency | 350 MHz |
| On-board graphics adapter dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics adapter memory | 64 GB |
| On-board graphics adapter OpenGL version | 4.5 |
| Discrete graphics adapter memory | 4 GB |
| On-board graphics card | Y |
| Discrete graphics card | Y |
| Discrete graphics card model | NVIDIA GeForce GTX 1050 |
| On-board graphics card model | Intel UHD Graphics 630 |
| On-board graphics card family | Intel UHD Graphics |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3E9B |
| Discrete graphics card memory | 4 GB |
| Storage | |
| Total storage capacity | 512 GB |
| SSD interface | SATA III |
| SSD form factor | M.2 |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Y |
| Storage media | SSD |
| Optical drive | |
| Optical drive type | N |
| Networking | |
| Ethernet LAN | N |
| Wi-Fi | Y |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Y |
| Bluetooth version | 5.0 |
| 4G | N |
| 3G | N |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| LAN/VGA combo port | N |
| Charging port type | DC-in jack |
| Microphone in | N |
| ExpressCard slot | N |
| CardBus PCMCIA slot type | N |
| S/PDIF out port | N |
| Alienware graphics amplifier port | N |
| Line-in | N |
| SmartCard slot | N |
| DVI port | N |
| Combo headphone/mic port | Y |
| HDMI ports quantity | 1 |
| Audio | |
| Built-in microphone | Y |
| Number of built-in speakers | 2 |
| Audio system | SonicMaster |
| Camera | |
| Front camera | Y |
| Keyboard | |
| Numeric keypad | N |
| Windows keys | Y |
| Pointing device | ScreenPad |
| Software | |
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
| Battery | |
| Battery technology | Lithium Polymer (LiPo) |
| Battery capacity (Watt-hours) | 71 Wh |
| Number of battery cells | 8 |
| Battery life (max) | 9.5 h |
| Battery capacity | 71 Wh |
| Weight & dimensions | |
| Weight | 1.88 kg |
| Height | 18.9 mm |
| Depth | 241 mm |
| Width | 365 mm |
| Power | |
| AC adapter power | 150 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 19.5 V |
| AC adapter output current | 7.7 A |
