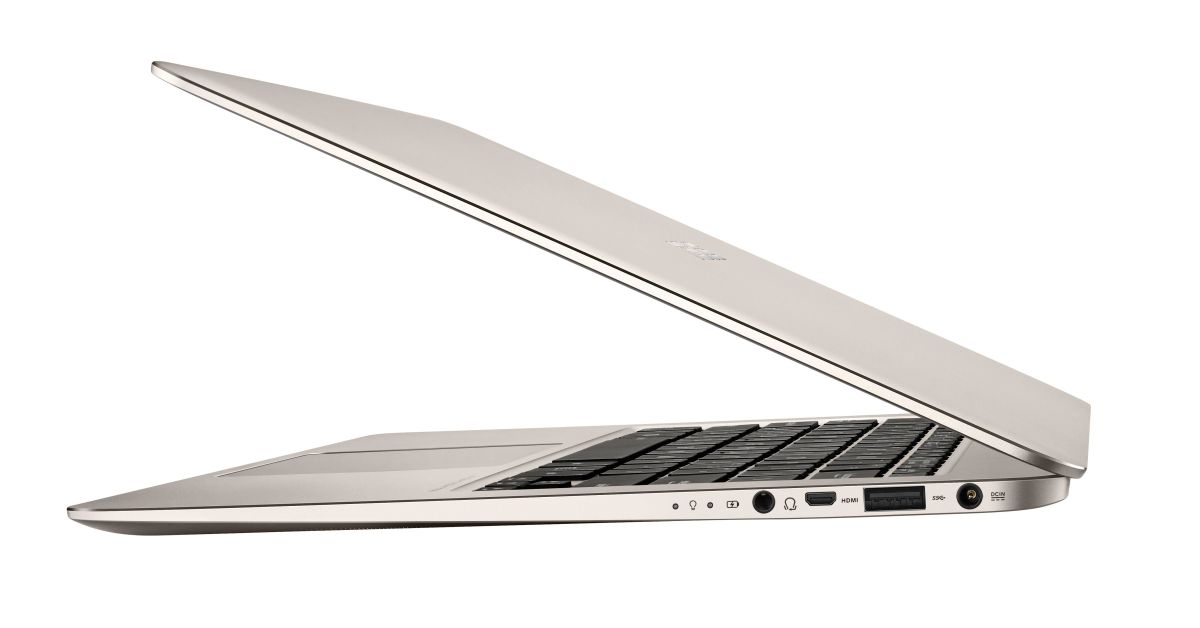

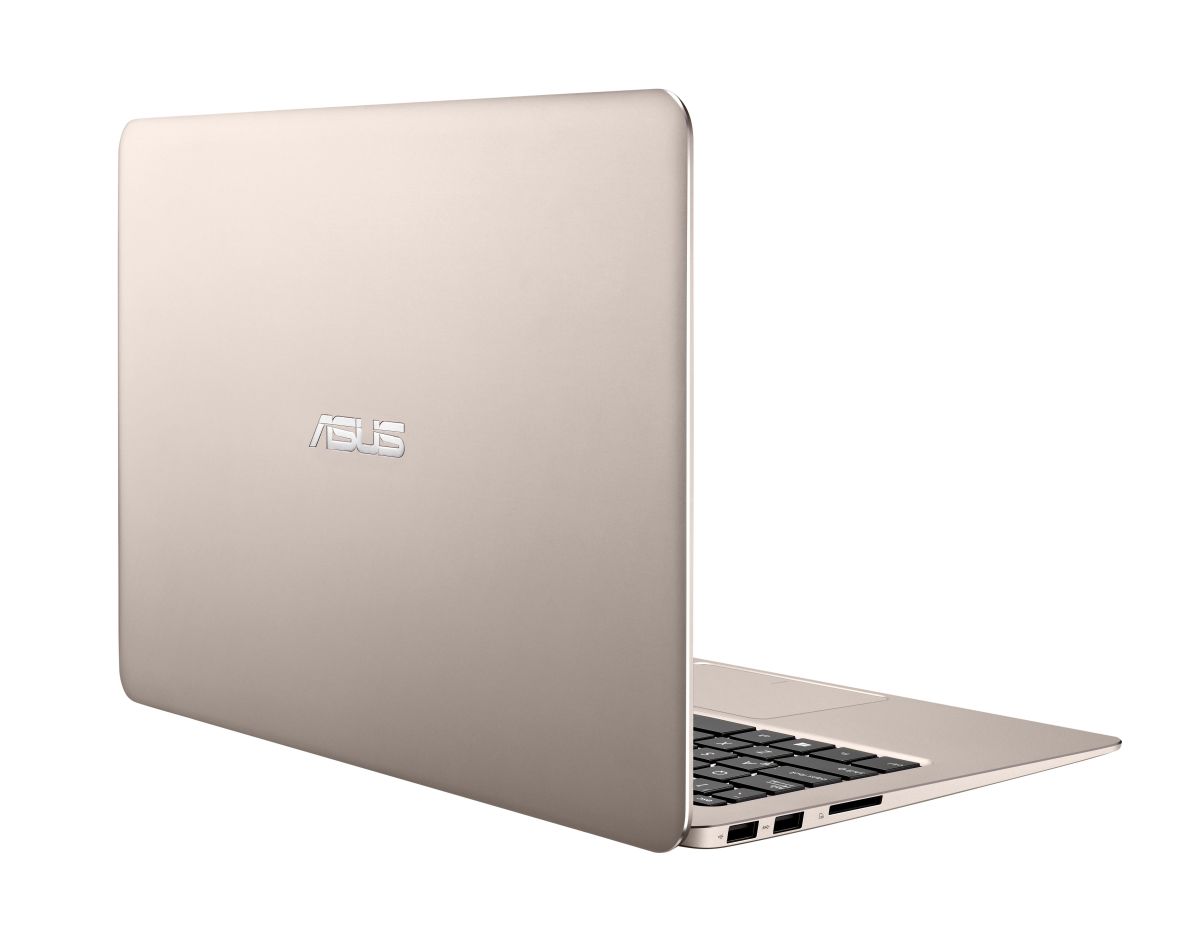

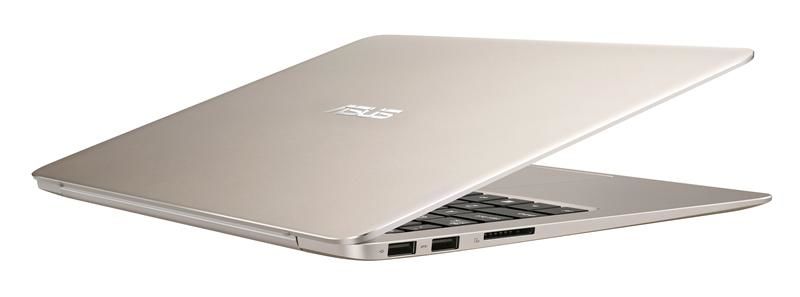

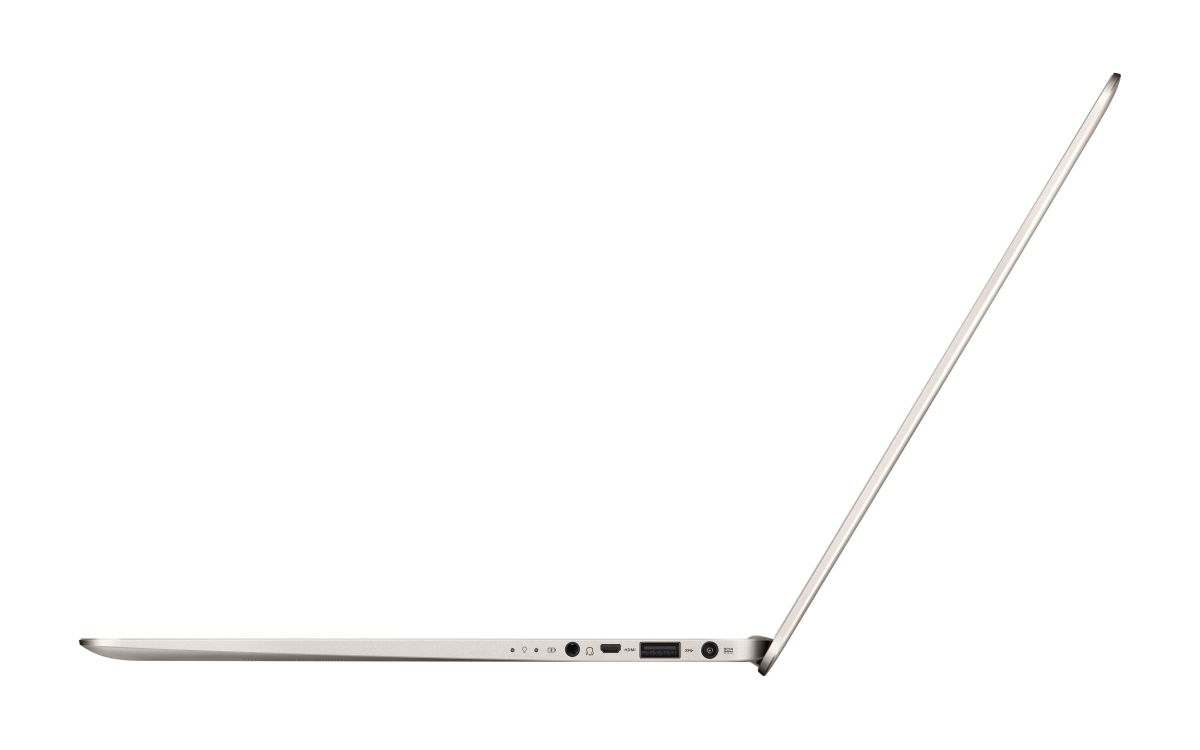

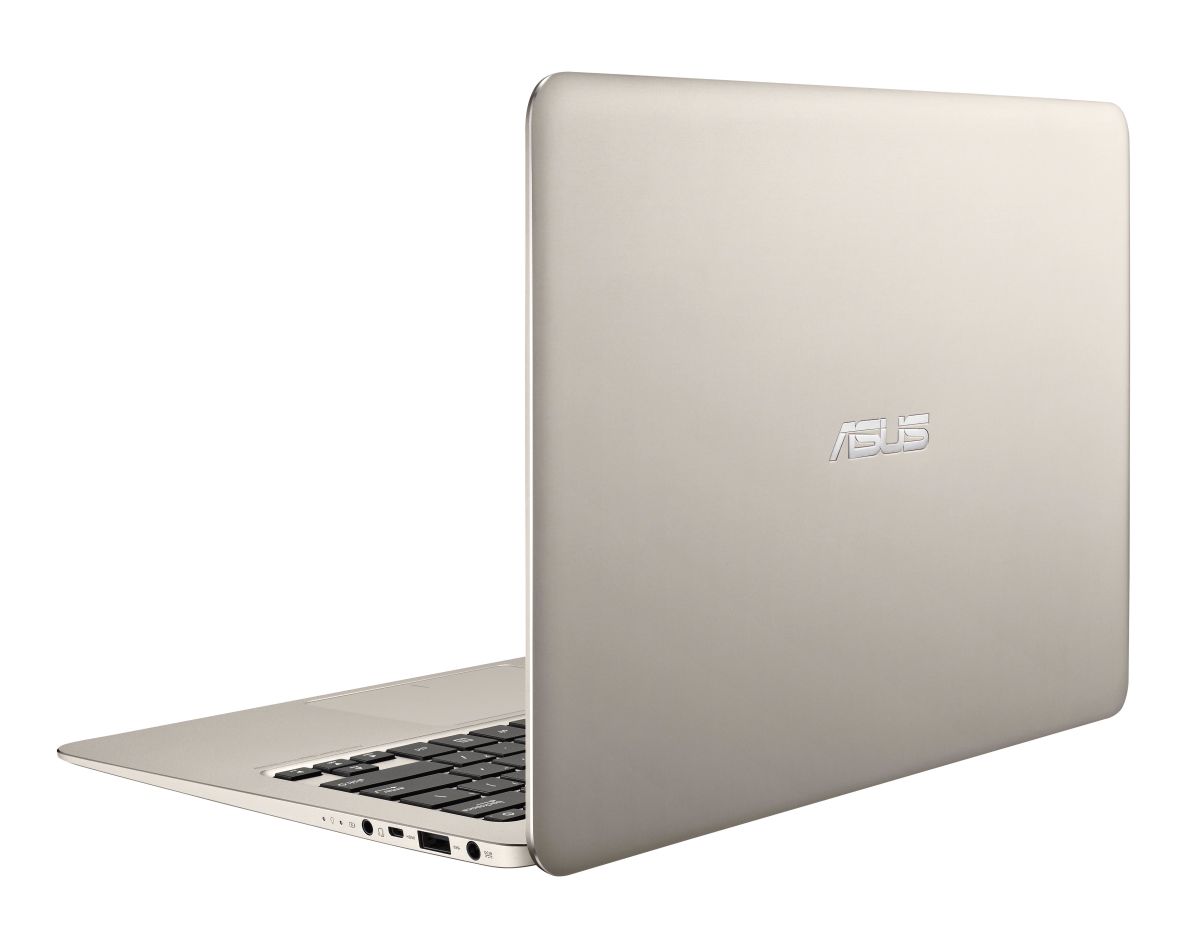

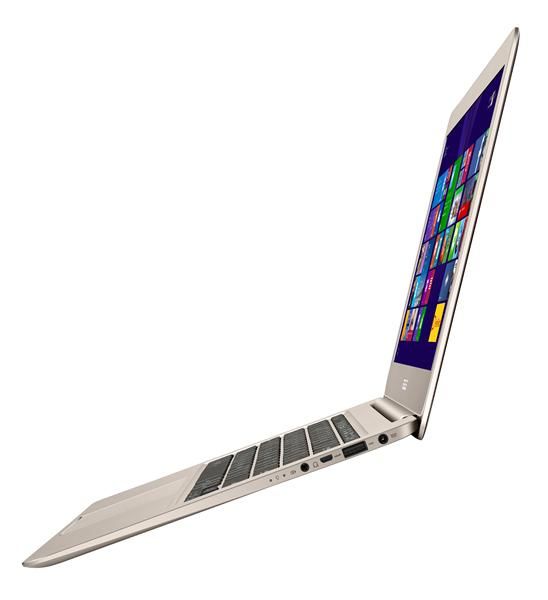

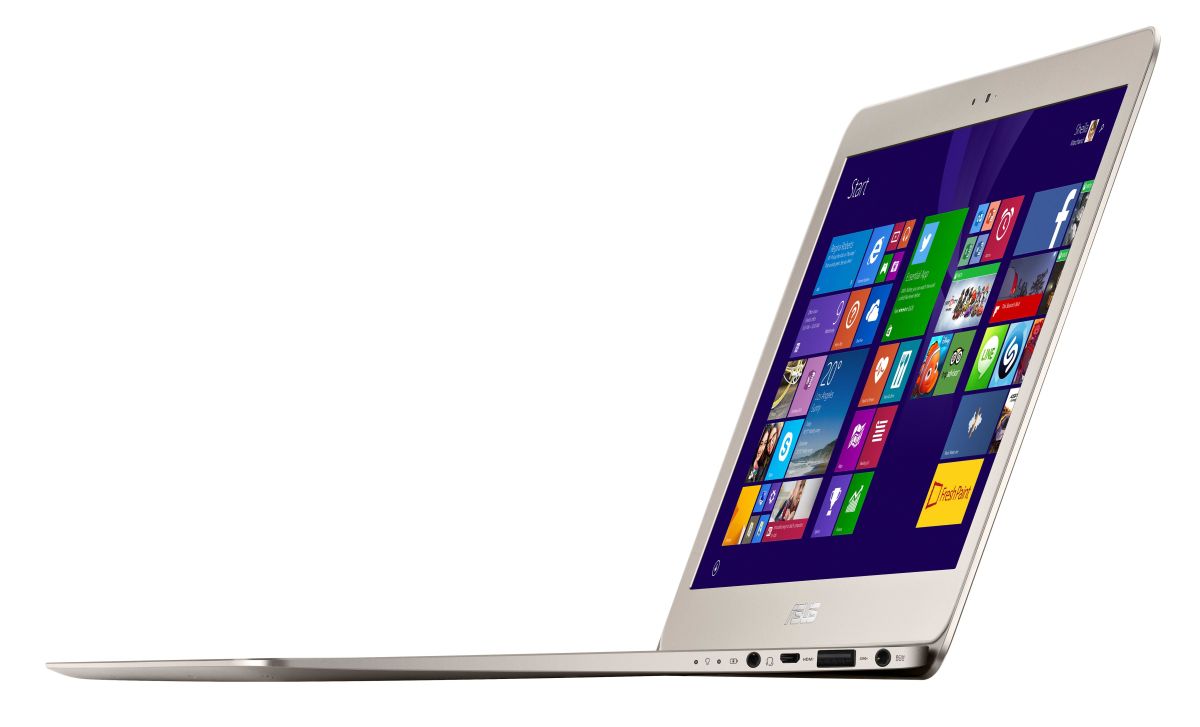

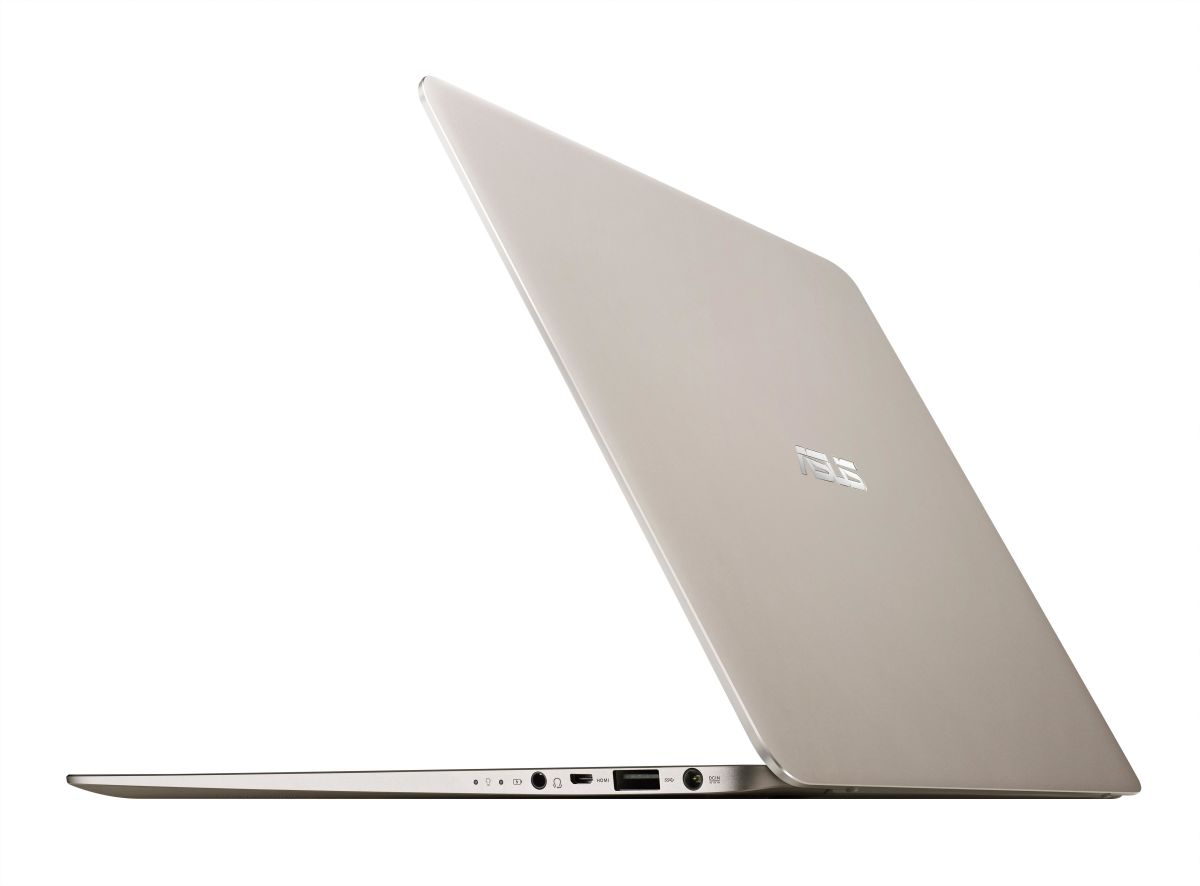

ASUS ZenBook UX305CA-FC094T - 90NB0AA5-M01800
ASUS ZenBook UX305CA-FC094T
Product code: 90NB0AA5-M01800
- đģDisplay diagonal: 13.3 inch
- đŗProcessor model: m3-6Y30
- đĢInternal memory: 8 GB
- đŽOn-board graphics adapter model: Intel HD Graphics 515
- đŽDiscrete graphics adapter model: Not available
- đŊTotal storage capacity: 256 GB
- âī¸Weight: 1.2 kg
đ Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Gold |
| Colour of product | Gold |
| Product type | Notebook |
| Form factor | Clamshell |
| Display | |
| Display diagonal | 13.3 inch |
| Aspect ratio | 16:9 |
| HD type | Full HD |
| LED backlight | Y |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Brand | ASUS |
| Family | ZenBook |
| Model name | UX305CA-FC094T |
| Part Number | 90NB0AA5-M01800 |
| Release Date | 09 June 2018 |
|
|
|
| Processor | |
| Processor series | Intel Core m3-6Y series |
| Processor manufacturer | Intel |
| Processor family | Intel Core m3 |
| Processor frequency | 0.9 GHz |
| Processor boost frequency | 2.2 GHz |
| Processor codename | Skylake |
| Thermal Design Power (TDP) | 4.5 W |
| Processor model | m3-6Y30 |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor cache | 4 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA 1515 |
| Configurable TDP-up | 7 W |
| Processor generation | 6th gen Intel Core m3 |
| Memory | |
| Internal memory type | LPDDR3-SDRAM |
| Internal memory | 8 GB |
| Memory clock speed | 1600 MHz |
| Maximum internal memory | 8 GB |
| Graphics | |
| On-board graphics adapter | Y |
| Discrete graphics adapter | N |
| On-board graphics adapter model | Intel HD Graphics 515 |
| Discrete graphics adapter model | Not available |
| On-board graphics adapter base frequency | 300 MHz |
| On-board graphics adapter dynamic frequency (max) | 850 MHz |
| Maximum on-board graphics adapter memory | 1.74 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics adapter OpenGL version | 4.4 |
| On-board graphics card | Y |
| Discrete graphics card | N |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel HD Graphics 515 |
| On-board graphics card family | Intel HD Graphics |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 850 MHz |
| Maximum on-board graphics card memory | 1.74 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x191E |
| Storage | |
| Total storage capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | M.2 |
| Compatible memory cards | SD, SDHC |
| Solid-state drive interface | M.2 |
| Solid-state drive capacity | 256 GB |
| Card reader integrated | Y |
| Storage media | SSD |
| Networking | |
| Ethernet LAN | N |
| Wi-Fi | Y |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| 4G | N |
| 3G | N |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Charging port type | DC-in jack |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity | 3 |
| Headphone outputs | 1 |
| Microphone in | N |
| Micro HDMI ports quantity | 1 |
| DVI port | N |
| Combo headphone/mic port | Y |
| Audio | |
| Built-in microphone | Y |
| Camera | |
| Front camera | Y |
| Keyboard | |
| Numeric keypad | N |
| Full-size keyboard | Y |
| Windows keys | Y |
| Pointing device | Touchpad |
| Software | |
| Operating system installed | Windows 10 Home |
| Battery | |
| Battery capacity | 45 Wh |
| Battery capacity (Watt hours) | 45 Wh |
| Weight & dimensions | |
| Weight | 1.2 kg |
| Height | 12.3 mm |
| Depth | 226 mm |
| Width | 324 mm |
| Power | |
| AC adapter power | 45 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 19 V |
| Security | |
| Password protection | Y |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
