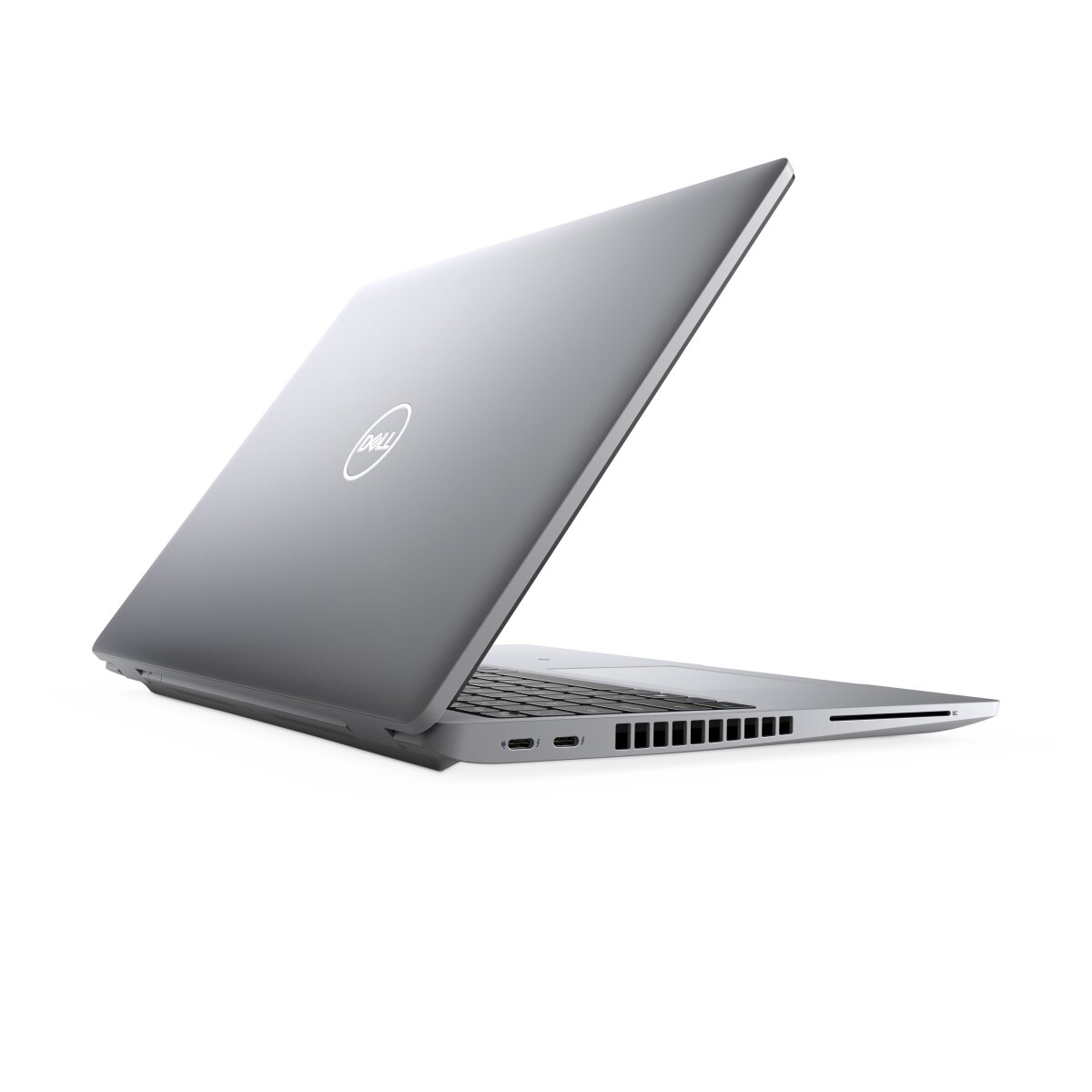

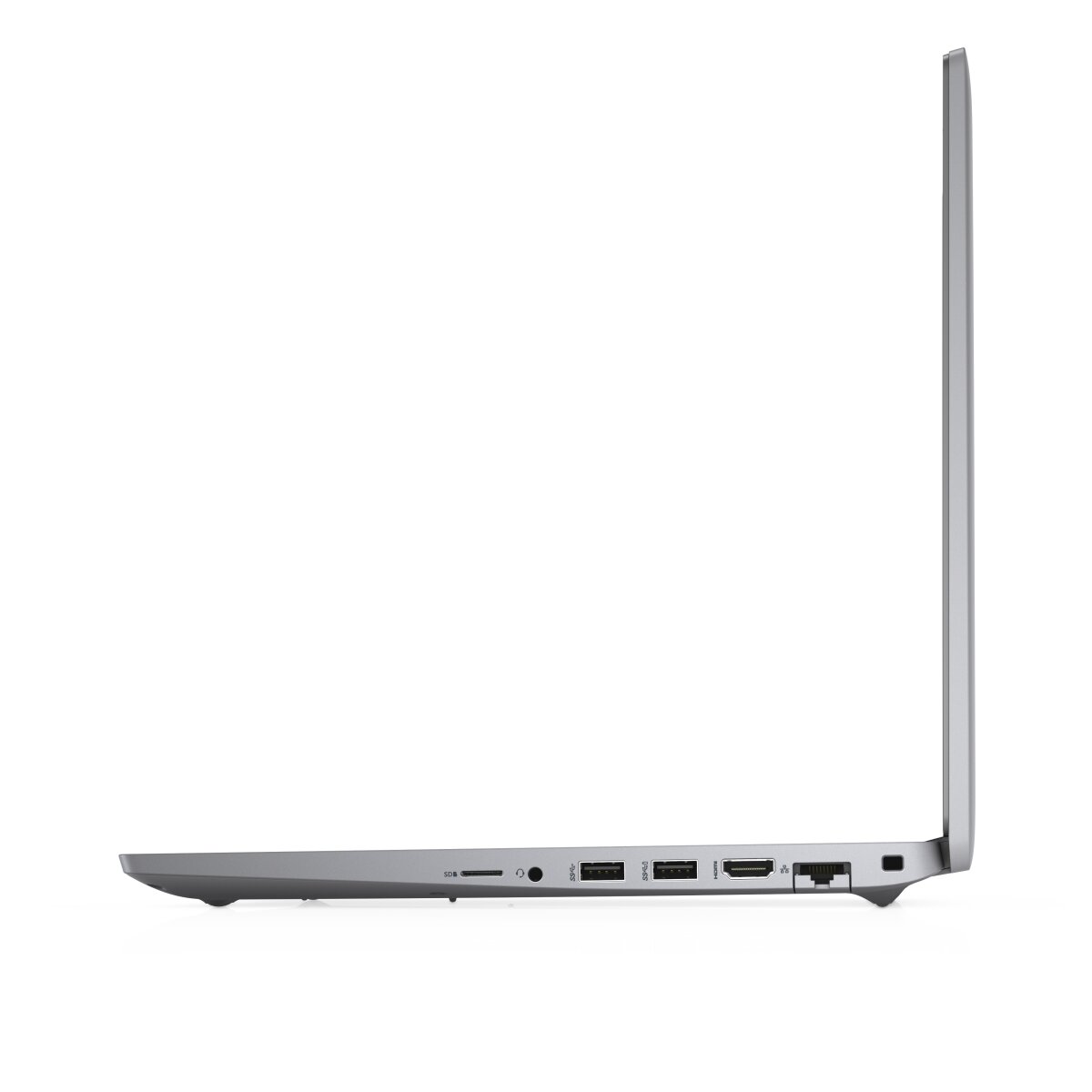

DELL Latitude 5520 - 210-AYQX
DELL Latitude 5520
Product code: 210-AYQX
- 💻Display diagonal: 15.6 inch
- 🔳Processor model: i5-1145G7
- 🎫Internal memory: 8 GB
- 🎮On-board graphics adapter model:
- 🎮Discrete graphics adapter model:
- 💽Total storage capacity: 256 GB
- ⚖️Weight: 1.59 kg
📊 Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Grey |
| Product type | Laptop |
| Form factor | Clamshell |
| Market positioning | Business |
| Display | |
| Display diagonal | 15.6 inch |
| Maximum refresh rate | 60 Hz |
| Display brightness | 250 cd/m² |
| HD type | Full HD |
| LED backlight | Yes |
| Touchscreen | No |
| Display resolution | 1920 x 1080 pixels |
| RGB colour space | NTSC |
| Colour gamut | 45% |
| Native aspect ratio | 16:9 |
| Brand | DELL |
| Family | Latitude |
| Series | 5000 |
| Model name | 5520 |
| Part Number | 210-AYQX |
| Release Date | 31 May 2022 |
| EAN/UPC code | 5056489751426 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i5 |
| Processor boost frequency | 4.4 GHz |
| Processor model | i5-1145G7 |
| Processor cores | 4 |
| Processor cache | 8 MB |
| Configurable TDP-up frequency | 2.6 GHz |
| Configurable TDP-up | 28 W |
| Processor generation | 11th gen Intel Core i5 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 8 GB |
| Memory form factor | SO-DIMM |
| Memory clock speed | 3200 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 64 GB |
| Memory layout (slots x size) | 1 x 8 GB |
| Graphics | |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board GPU manufacturer | Intel |
| Storage | |
| Total storage capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| Total SSDs capacity | 256 GB |
| SSD interface | NVMe, PCI Express |
| SSD form factor | M.2 |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Storage media | SSD |
| NVMe | Yes |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi data rate (max) | 2400 Mbit/s |
| Antenna type | 2x2 |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| PowerShare | Yes |
| Number of USB ports with PowerShare support | 1 |
| USB Power Delivery | Yes |
| Charging port type | USB Type-C |
| HDMI version | 2.0 |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB4 Gen 3x2 ports quantity | 2 |
| Audio | |
| Built-in microphone | Yes |
| Number of built-in speakers | 2 |
| Audio system | MaxxAudio Pro |
| Speaker power | 2 W |
| Audio chip | Realtek ALC3204 |
| Speakers manufacturer | Waves |
| Camera | |
| Front camera | Yes |
| Front camera HD type | HD |
| Video capturing speed | 30 fps |
| Front camera resolution | 1280 x 720 pixels |
| Front camera resolution (numeric) | 0.92 MP |
| Keyboard | |
| Numeric keypad | Yes |
| Keyboard backlit | Yes |
| Pointing device | Clickpad |
| Performance | |
| Accelerometer | Yes |
| Software | |
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery weight | 250 g |
| Battery recharge time | 3 h |
| Number of battery cells | 4 |
| Battery capacity | 63 Wh |
| Battery voltage | 15.2 V |
| Fast charging | Yes |
| Weight & dimensions | |
| Weight | 1.59 kg |
| Height (rear) | 2.21 cm |
| Height (front) | 1.99 cm |
| Depth | 236.2 mm |
| Width | 357.8 mm |
| Power | |
| AC adapter power | 65 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| Security | |
| Cable lock slot | Yes |
| Password protection | Yes |
| Other features | |
| Anti-glare screen | Yes |
| Harmonized System (HS) code | 84713000 |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
Download drivers: ➡️ DELL Latitude 5520 210-AYQX Drivers Windows 10
