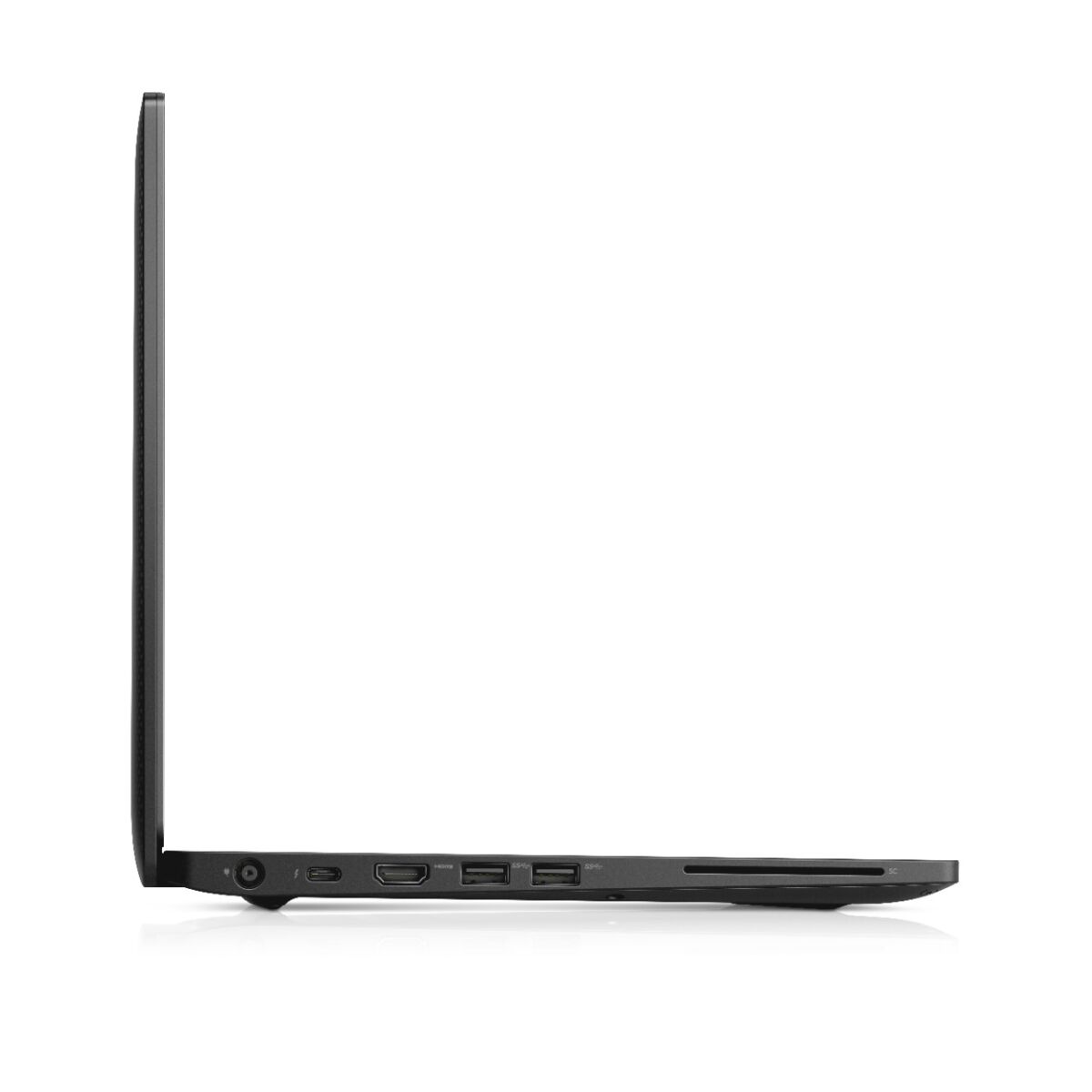

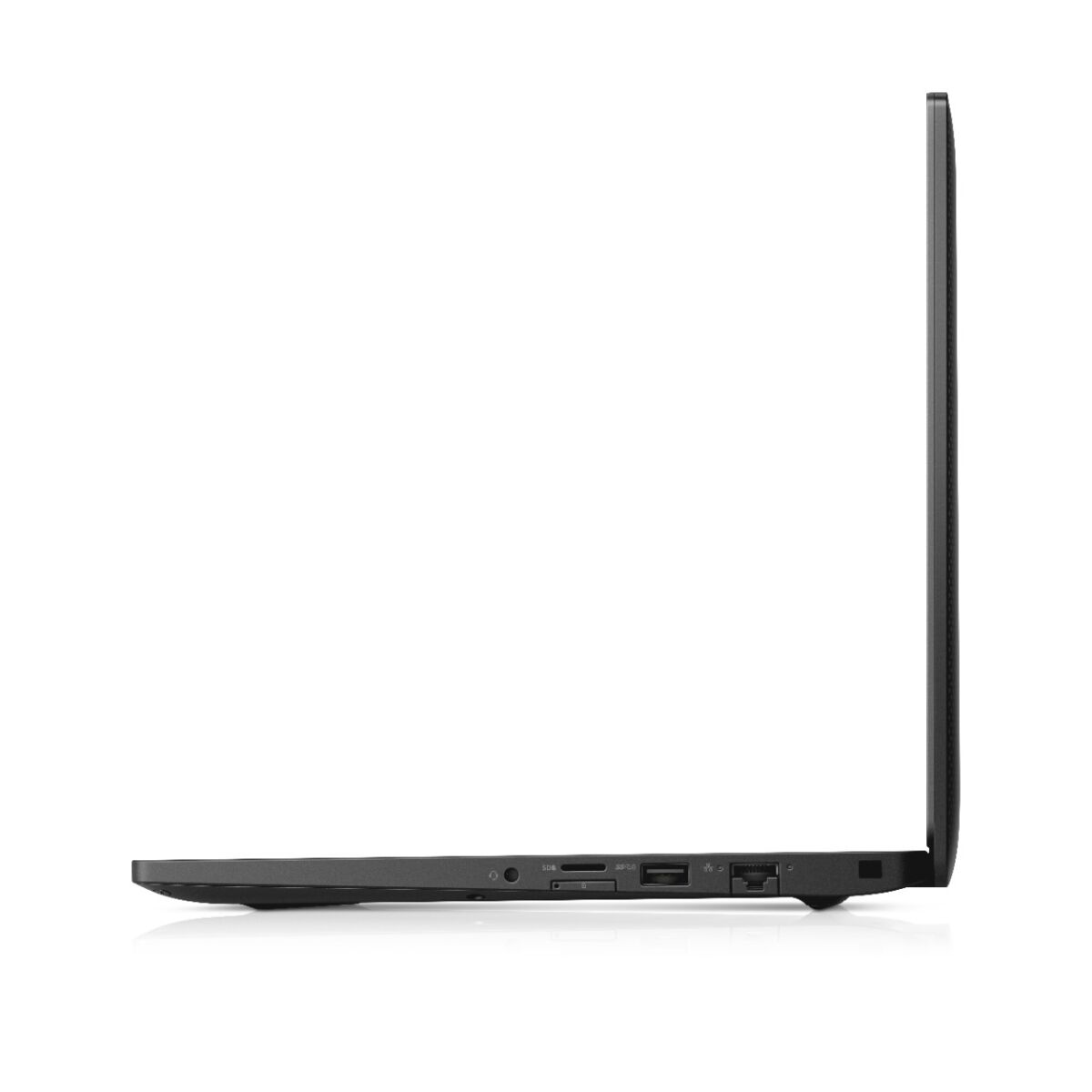

DELL Latitude 7480 - CTO09L748014USSKL
DELL Latitude 7480
Product code: CTO09L748014USSKL
- 💻Display diagonal: 14 inch
- 🔳Processor model: i5-6300U
- 🎫Internal memory: 8 GB
- 🎮On-board graphics adapter model: Intel HD Graphics 520
- 🎮Discrete graphics adapter model: Not available
- 💽Total storage capacity: 128 GB
- ⚖️Weight: 1.36 kg
📊 Add to compare
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Product type | Laptop |
| Form factor | Clamshell |
| Market positioning | Business |
| Display | |
| Display diagonal | 14 inch |
| Dual-screen | No |
| Pixel pitch | 0.161 x 0.161 mm |
| Display brightness | 300 cd/m² |
| HD type | Full HD |
| LED backlight | Yes |
| Touchscreen | No |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Brand | DELL |
| Family | Latitude |
| Series | 7000 |
| Model name | 7480 |
| Part Number | CTO09L748014USSKL |
| Release Date | 29 May 2019 |
|
|
|
| Processor | |
| Processor series | Intel Core i5-6300 Mobile Series |
| Processor manufacturer | Intel |
| Processor family | Intel Core i5 |
| Processor frequency | 2.4 GHz |
| Processor boost frequency | 3 GHz |
| Processor codename | Skylake |
| Thermal Design Power (TDP) | 15 W |
| Processor model | i5-6300U |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor cache | 3 MB |
| Processor lithography | 14 nm |
| Processor socket | LGA 1356 (Socket B2) |
| Configurable TDP-up frequency | 2.5 GHz |
| Configurable TDP-up | 25 W |
| Processor generation | 6th gen Intel Core i5 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 8 GB |
| Memory form factor | SO-DIMM |
| Memory clock speed | 2133 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 32 GB |
| Memory layout (slots x size) | 1 x 8 GB |
| Maximum internal memory (64-bit) | 32 GB |
| Graphics | |
| On-board graphics adapter | Y |
| On-board graphics adapter family | Intel HD Graphics |
| On-board graphics adapter DirectX version | 12.0 |
| Discrete graphics adapter | N |
| On-board graphics adapter model | Intel HD Graphics 520 |
| Discrete graphics adapter model | Not available |
| On-board graphics adapter base frequency | 300 MHz |
| On-board graphics adapter dynamic frequency (max) | 1000 MHz |
| Maximum on-board graphics adapter memory | 1.74 GB |
| On-board graphics adapter OpenGL version | 4.4 |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel HD Graphics 520 |
| On-board graphics card family | Intel HD Graphics |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1000 MHz |
| Maximum on-board graphics card memory | 1.74 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 1916 |
| Storage | |
| Total storage capacity | 128 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 128 GB |
| SSD interface | SATA |
| SSD form factor | M.2 |
| Compatible memory cards | SD |
| Card reader integrated | Yes |
| Storage media | SSD |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Wi-Fi | Yes |
| WLAN controller model | Intel Dual Band Wireless-AC 8265 |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| PowerShare | Yes |
| Number of USB ports with PowerShare support | 1 |
| Charging port type | DC-in jack |
| HDMI version | 1.4 |
| USB Sleep-and-Charge ports | 1 |
| DVI port | No |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB Sleep-and-Charge | Yes |
| Audio | |
| Built-in microphone | Yes |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Audio chip | Realtek ALC3246 |
| Camera | |
| Front camera | Yes |
| Front camera HD type | HD |
| Video capturing speed | 30 fps |
| Front camera resolution | 1280 x 720 pixels |
| Front camera signal format | 720p |
| Front camera resolution (numeric) | 0.92 MP |
| Keyboard | |
| Numeric keypad | No |
| Island-style keyboard | Yes |
| Full-size keyboard | Yes |
| Keyboard backlit | Yes |
| Windows keys | Yes |
| Pointing device | Touchpad |
| Software | |
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
| Battery | |
| Battery technology | Lithium |
| Battery capacity (Watt-hours) | 60 Wh |
| Number of battery cells | 4 |
| Battery capacity | 60 Wh |
| Weight & dimensions | |
| Weight | 1.36 kg |
| Height (rear) | 1.84 cm |
| Height (front) | 1.16 cm |
| Depth | 220.9 mm |
| Width | 331 mm |
| Power | |
| AC adapter power | 65 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 19.5 V |
| AC adapter output current | 3.34 A |
| Security | |
| Cable lock slot | Yes |
| Cable lock slot type | Noble |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
