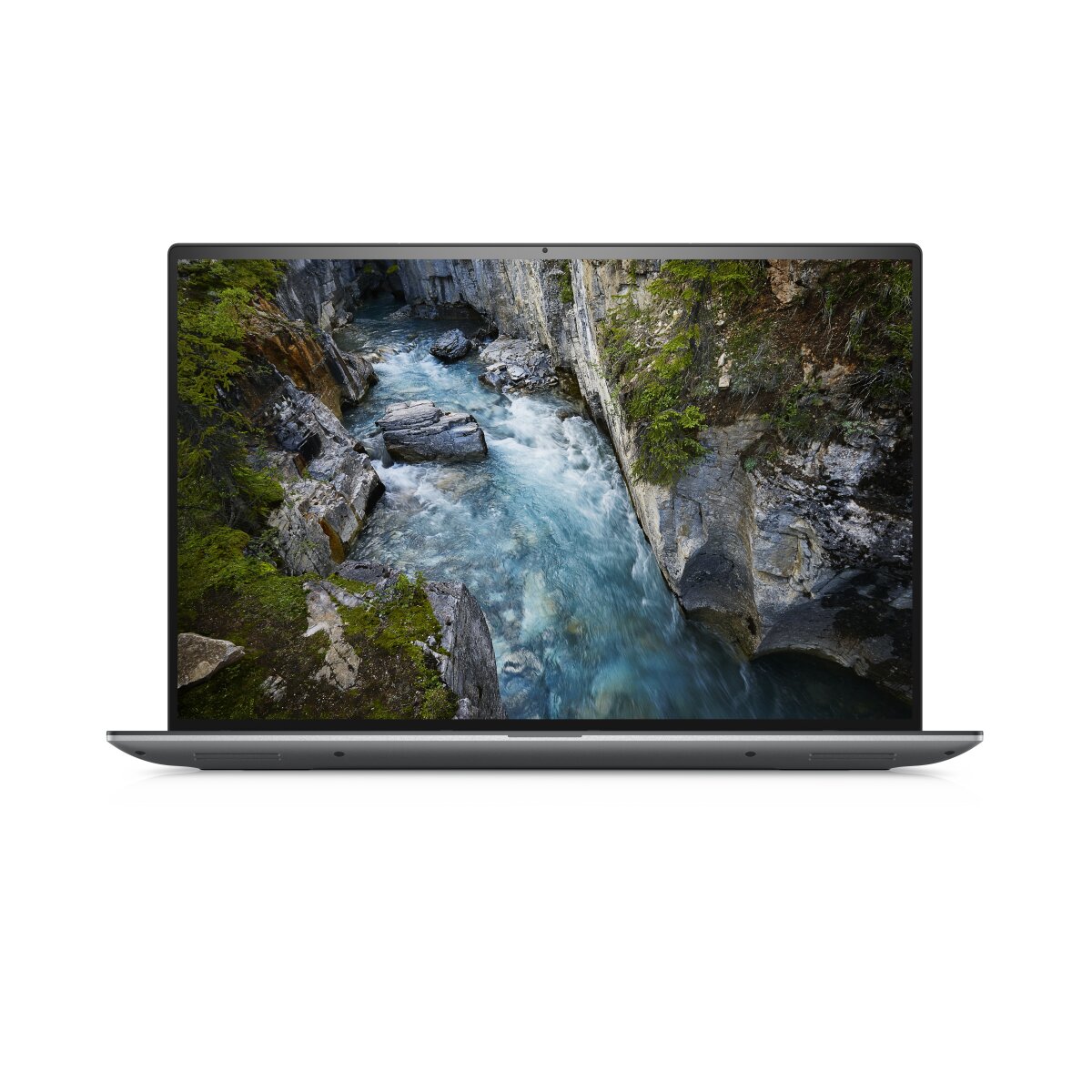

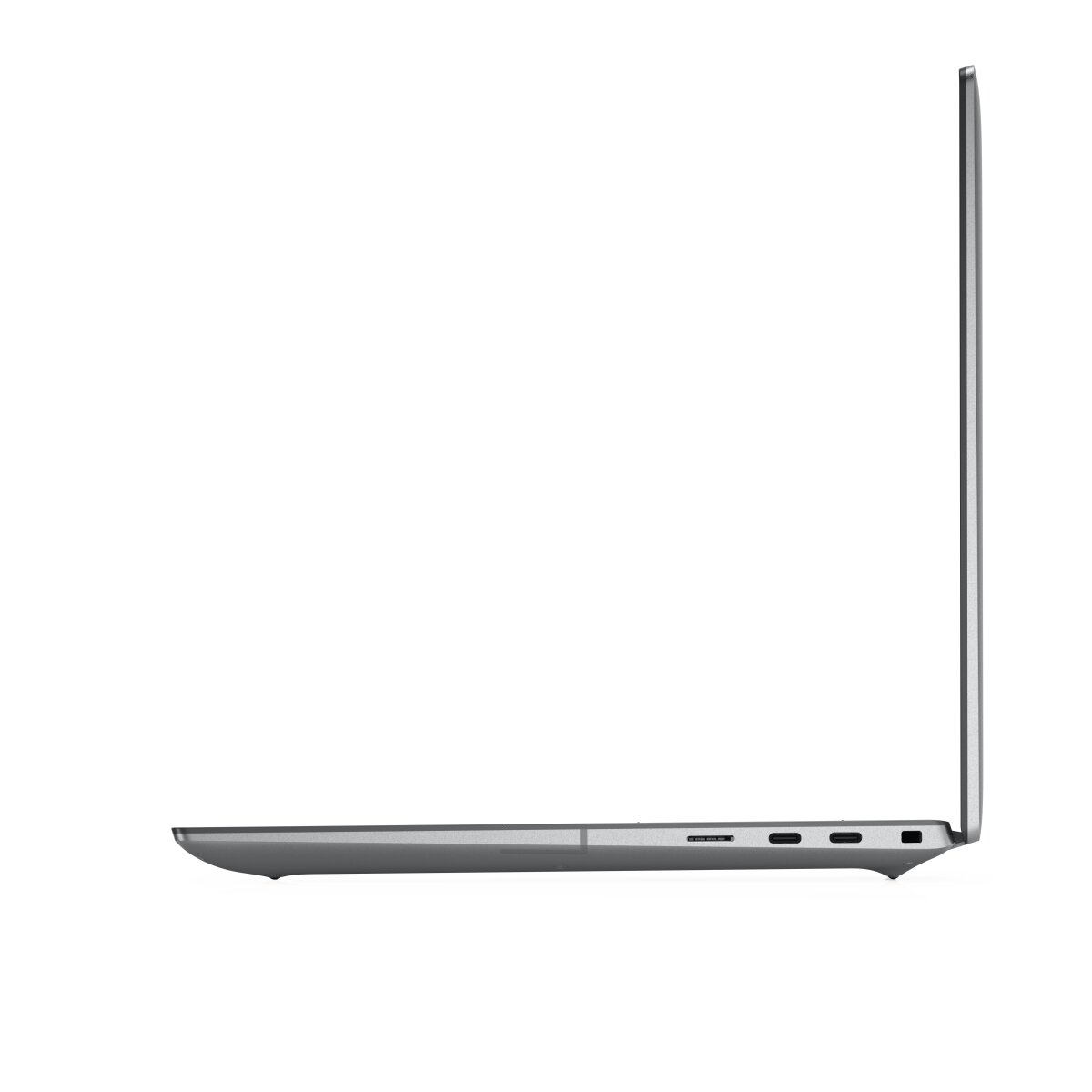

DELL Precision 5480 - VWPGF
DELL Precision 5480
Product code: VWPGF
- 💻Display diagonal: 14 inch
- 🔳Processor model: i7-13800H
- 🎫Internal memory: 32 GB
- 🎮On-board graphics adapter model:
- 🎮Discrete graphics adapter model:
- 💽Total storage capacity: 1 TB
- ⚖️Weight: 1.48 kg
📊 Add to compare
Specifications
| Design | |
|---|---|
| Product colour | Grey |
| Product type | Mobile workstation |
| Form factor | Clamshell |
| Intel® vPro™ Platform Eligibility | Yes |
| Display | |
| Display diagonal | 14 inch |
| Display response rise/fall | 35 ms |
| Pixel density | 161 ppi |
| Contrast ratio (typical) | 1000:1 |
| Pixel pitch | 0.1578 x 0.1578 mm |
| Display brightness | 500 cd/m² |
| Panel type | WVA |
| HD type | Full HD+ |
| LED backlight | Yes |
| Touchscreen | No |
| Display resolution | 1920 x 1200 pixels |
| RGB colour space | sRGB |
| Colour gamut | 100% |
| Native aspect ratio | 16:10 |
| Brand | DELL |
| Family | Precision |
| Series | 5000 |
| Model name | 5480 |
| Part Number | VWPGF |
| EAN/UPC code | 5397184816943 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Processor boost frequency | 5.2 GHz |
| Processor model | i7-13800H |
| Processor cores | 14 |
| Processor threads | 20 |
| Processor cache | 24 MB |
| Processor generation | 13th gen Intel Core i7 |
| Efficient cores | 8 |
| Performance cores | 6 |
| Performance-core Max Turbo Frequency | 5.2 GHz |
| Efficient-core Max Turbo Frequency | 4 GHz |
| Maximum turbo power | 115 W |
| Processor base power | 45 W |
| Memory | |
| Internal memory type | LPDDR5-SDRAM |
| Internal memory | 32 GB |
| Memory form factor | On-board |
| Memory clock speed | 6000 MHz |
| Maximum internal memory | 32 GB |
| Graphics | |
| Discrete graphics memory type | GDDR6 |
| Discrete GPU manufacturer | NVIDIA |
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA RTX 2000 Ada |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board graphics card family | Intel Iris Xe Graphics |
| Discrete graphics card memory | 8 GB |
| On-board GPU manufacturer | Intel |
| Storage | |
| Total storage capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| Total SSDs capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Storage media | SSD |
| NVMe | Yes |
| SSD performance class | 40 |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | No |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax) |
| Wi-Fi data rate (max) | 2400 Mbit/s |
| Antenna type | 2x2 |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Bluetooth | Yes |
| Ports & interfaces | |
| USB Power Delivery | Yes |
| Charging port type | USB Type-C |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Thunderbolt 4 ports quantity | 4 |
| Intel® Thunderbolt 4 | Yes |
| Audio | |
| Built-in microphone | Yes |
| Number of built-in speakers | 4 |
| Audio chip | Realtek ALC711-VD |
| Number of microphones | 2 |
| Camera | |
| Front camera | Yes |
| Infrared (IR) camera | Yes |
| Front camera HD type | HD |
| Video capturing speed | 30 fps |
| Front camera resolution | 1280 x 720 pixels |
| Front camera resolution (numeric) | 0.92 MP |
| Keyboard | |
| Numeric keypad | No |
| Keyboard backlit | Yes |
| Pointing device | Touchpad |
| Keyboard language | UK English |
| Performance | |
| Ambient light sensor | Yes |
| Accelerometer | Yes |
| Hall sensor | Yes |
| Software | |
| Operating system installed | Windows 11 Pro |
| Operating system language | Multilingual |
| Operating system architecture | 64-bit |
| Bundled software | Windows System Driver |
| Trial software | No Microsoft Office License Included 30 day Trial Offer Only |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery weight | 285 g |
| Battery recharge time | 3 h |
| Number of battery cells | 4 |
| Battery capacity | 72 Wh |
| Battery voltage | 15.4 V |
| Fast charging | Yes |
| Weight & dimensions | |
| Weight | 1.48 kg |
| Height (rear) | 1.11 cm |
| Height (front) | 7.49 mm |
| Depth | 210.3 mm |
| Width | 310.6 mm |
| Power | |
| AC adapter power | 130 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| USB charging voltage | 20, 5 V |
| USB charging current | 6.5 A |
| Security | |
| Cable lock slot | Yes |
| Cable lock slot type | Wedge |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Other features | |
| Anti-glare screen | Yes |
| Carbon footprint | |
| PAIA version | 1.3.2 |
| Total carbon footprint (kg of CO2e) | 390 |
| Total carbon emissions, standard deviation (kg of CO2e) | 84 |
| Carbon emissions, manufacturing (kg of CO2e) | 334 |
| Carbon emissions, logistics (kg of CO2e) | 13 |
| Carbon emissions, energy usage (kg of CO2e) | 41 |
| Carbon emissions, end-of-life (kg of CO2e) | 2 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 349 |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
Download drivers: ➡️ DELL Precision 5480 VWPGF Drivers Windows 10
