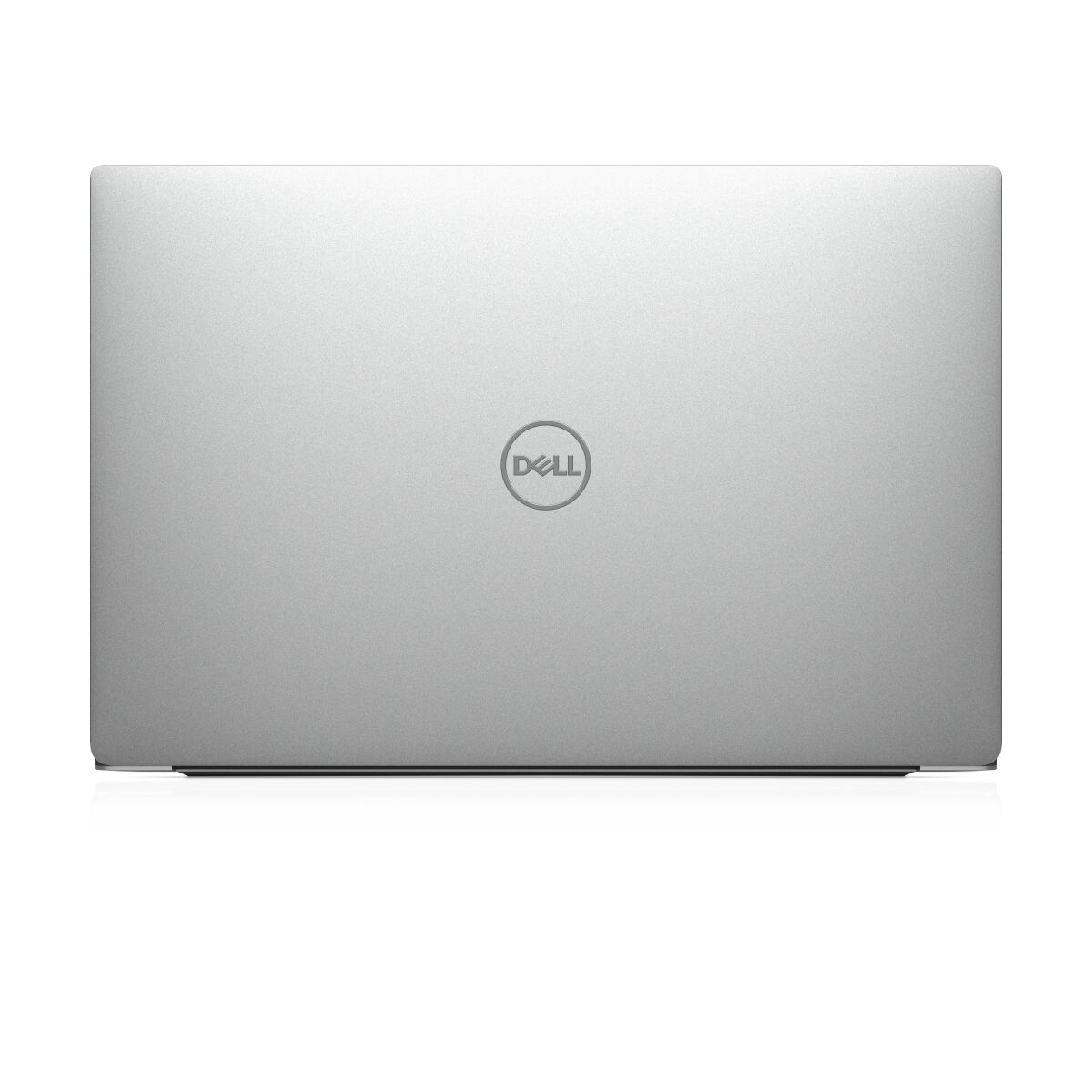

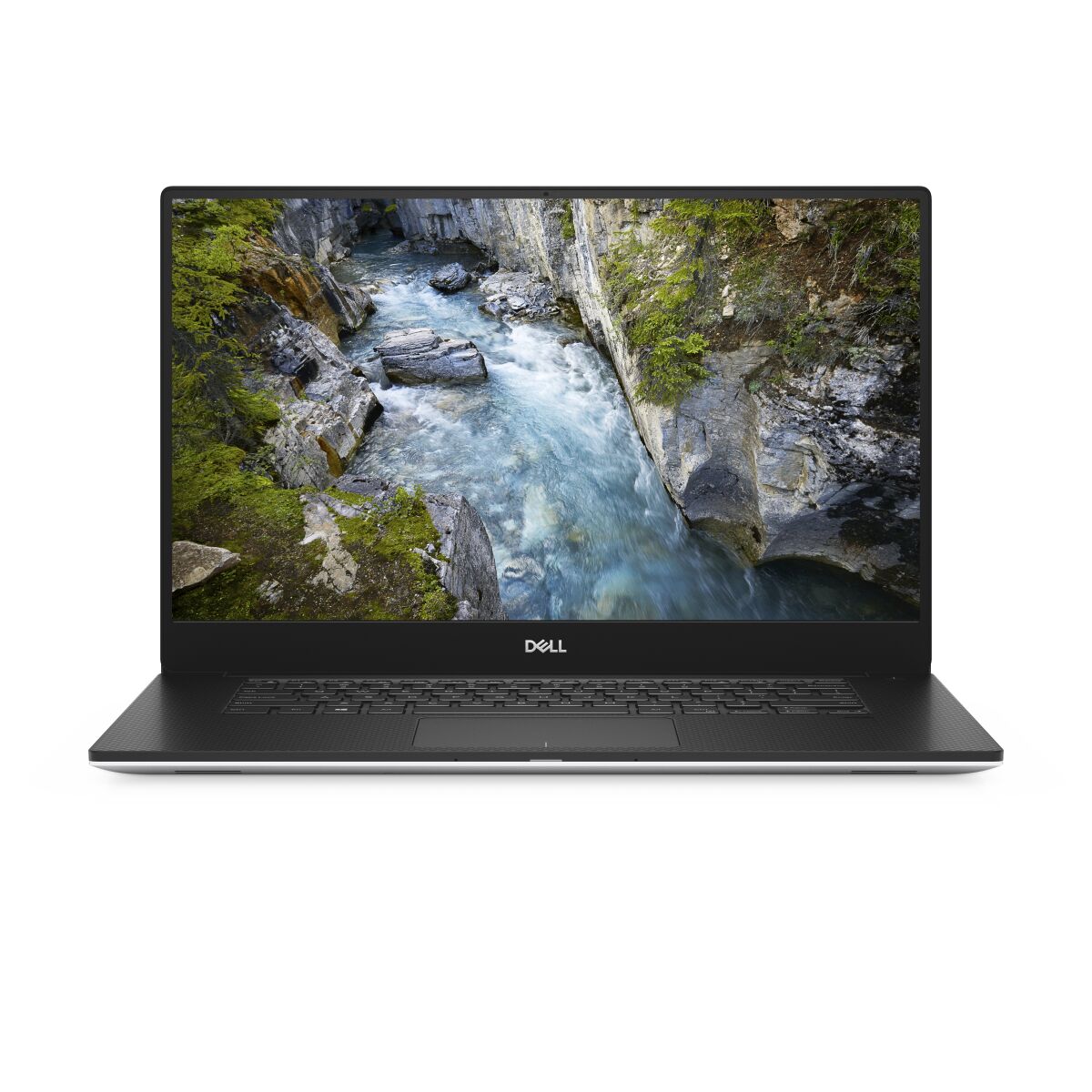

DELL Precision 5540 - XCTOP554015US2
DELL Precision 5540
Product code: XCTOP554015US2
- đģDisplay diagonal: 15.6 inch
- đŗProcessor model: i5-9400H
- đĢInternal memory: 16 GB
- đŽOn-board graphics adapter model: Intel UHD Graphics 630
- đŽDiscrete graphics adapter model: NVIDIA Quadro T1000
- đŊTotal storage capacity: 256 GB
- âī¸Weight: 1.8 kg
đ Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Black, Silver |
| Product type | Mobile workstation |
| Form factor | Clamshell |
| Display | |
| Display diagonal | 15.6 inch |
| Dual-screen | No |
| Maximum refresh rate | 60 Hz |
| Pixel density | 141 ppi |
| Contrast ratio (typical) | 1500:1 |
| Pixel pitch | 0.18 x 0.18 mm |
| Panel type | IGZO |
| Aspect ratio | 16:9 |
| HD type | Full HD |
| LED backlight | Yes |
| Touchscreen | No |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Brand | DELL |
| Family | Precision |
| Series | 5000 |
| Model name | 5540 |
| Part Number | XCTOP554015US2 |
| Release Date | 05 November 2019 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i5 |
| Processor frequency | 2.5 GHz |
| Processor boost frequency | 4.3 GHz |
| Processor codename | Coffee Lake |
| Thermal Design Power (TDP) | 45 W |
| Processor model | i5-9400H |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor cache | 8 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA 1440 |
| Processor generation | 9th gen Intel Core i5 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 16 GB |
| Memory clock speed | 2666 MHz |
| Maximum internal memory | 64 GB |
| Memory layout (slots x size) | 1 x 16 GB |
| Maximum internal memory (64-bit) | 64 GB |
| ECC | No |
| Graphics | |
| On-board graphics adapter | Y |
| Number of discrete graphics adapters installed | 1 |
| CUDA | Yes |
| CUDA cores | 768 |
| Discrete graphics memory type | GDDR5 |
| On-board graphics adapter DirectX version | 12.0 |
| Discrete graphics adapter | Y |
| On-board graphics adapter model | Intel UHD Graphics 630 |
| Discrete graphics adapter model | NVIDIA Quadro T1000 |
| On-board graphics adapter base frequency | 350 MHz |
| On-board graphics adapter dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics adapter memory | 64 GB |
| On-board graphics adapter OpenGL version | 4.5 |
| Discrete graphics adapter memory | 4 GB |
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA Quadro T1000 |
| On-board graphics card model | Intel UHD Graphics 630 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3E9B |
| Discrete graphics card memory | 4 GB |
| Number of discrete graphics cards installed | 1 |
| Storage | |
| Total storage capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| Total SSDs capacity | 256 GB |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
| Compatible memory cards | SD |
| Card reader integrated | Yes |
| Storage media | SSD |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | No |
| Wi-Fi | Yes |
| WLAN controller model | Intel Dual Band Wireless-AC 9260 |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Antenna type | 2x2 |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| PowerShare | Yes |
| Number of USB ports with PowerShare support | 2 |
| USB Power Delivery | Yes |
| Charging port type | DC-in jack |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| Thunderbolt 3 ports quantity | 1 |
| Audio | |
| Built-in microphone | Yes |
| Number of built-in speakers | 2 |
| Audio system | MaxxAudio Pro |
| Speakers manufacturer | Waves |
| Camera | |
| Front camera | Yes |
| Video capturing speed | 30 fps |
| Front camera resolution | 1280 x 720 pixels |
| Front camera signal format | 720p |
| Front camera resolution (numeric) | 0.92 MP |
| Keyboard | |
| Numeric keypad | No |
| Keyboard backlit | Yes |
| Windows keys | Yes |
| Software | |
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
| Battery | |
| Battery technology | Lithium Polymer (LiPo) |
| Battery weight | 250 g |
| Battery capacity (Watt-hours) | 56 Wh |
| Battery recharge time | 4 h |
| Number of battery cells | 3 |
| Battery capacity | 56 Wh |
| Battery voltage | 11.4 V |
| Weight & dimensions | |
| Weight | 1.8 kg |
| Height | 11.2 mm |
| Depth | 235 mm |
| Width | 357 mm |
| Power | |
| AC adapter power | 130 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 19.5 V |
| AC adapter output current | 6.67 A |
| Security | |
| Cable lock slot | Yes |
| Cable lock slot type | Noble |
| Password protection | Yes |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
