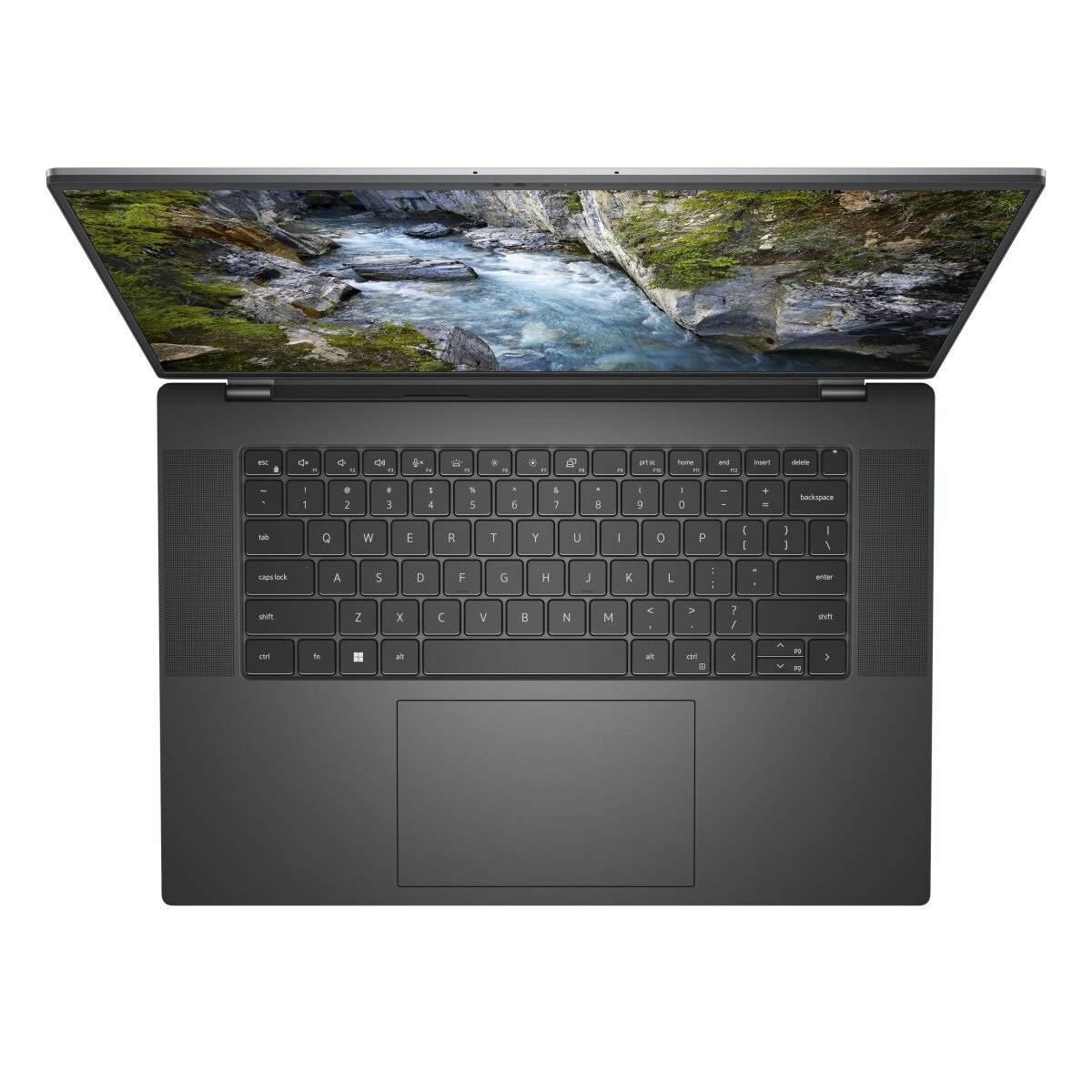

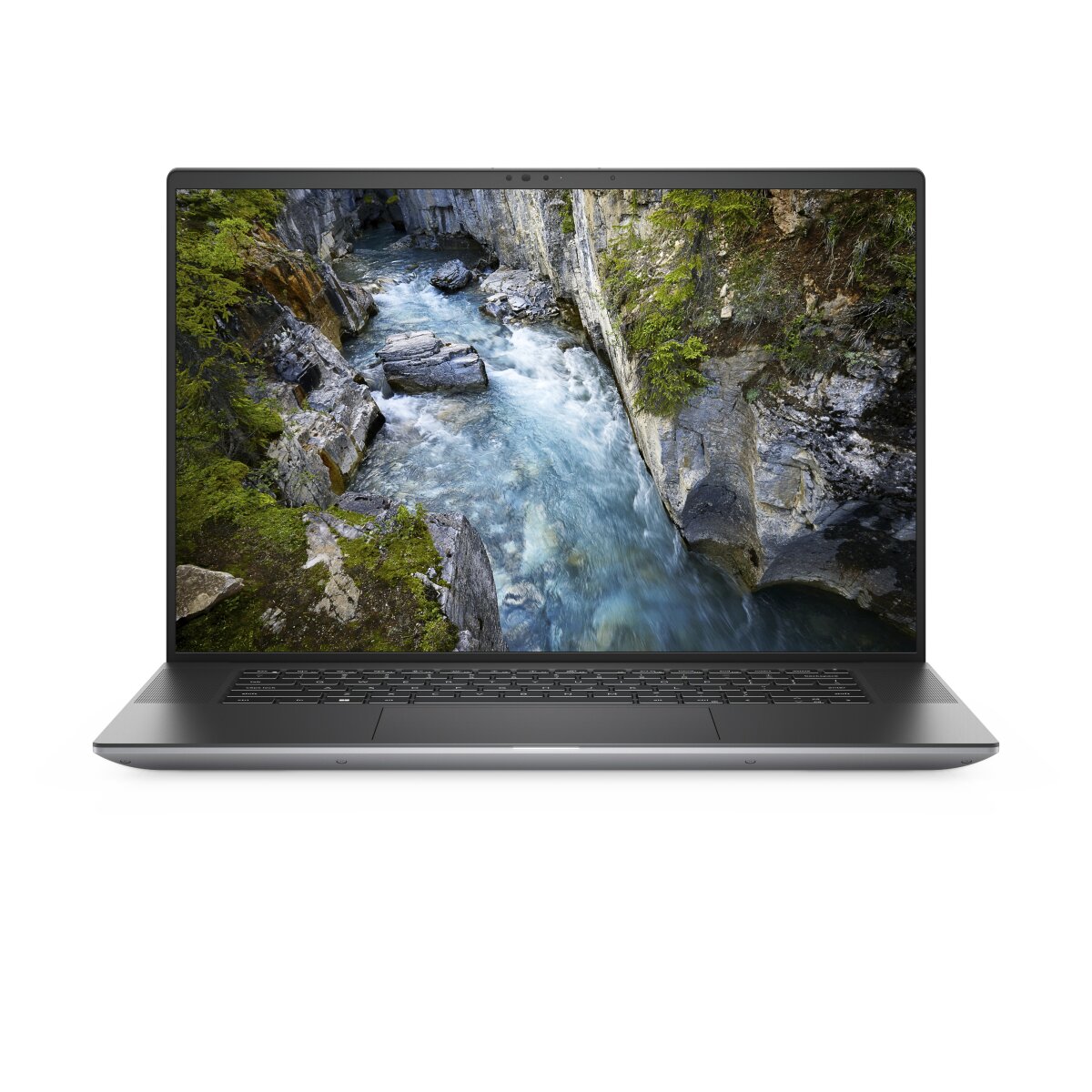

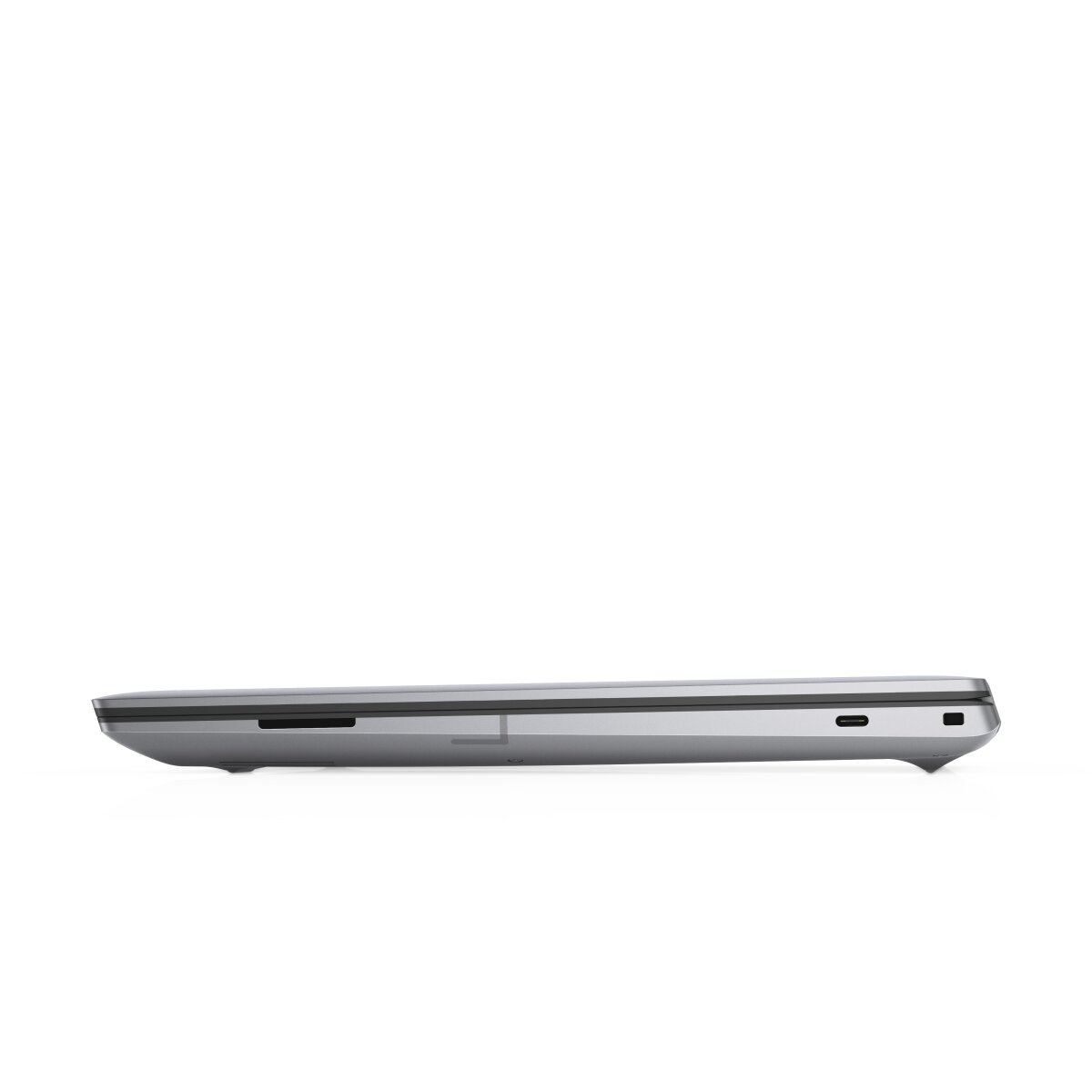

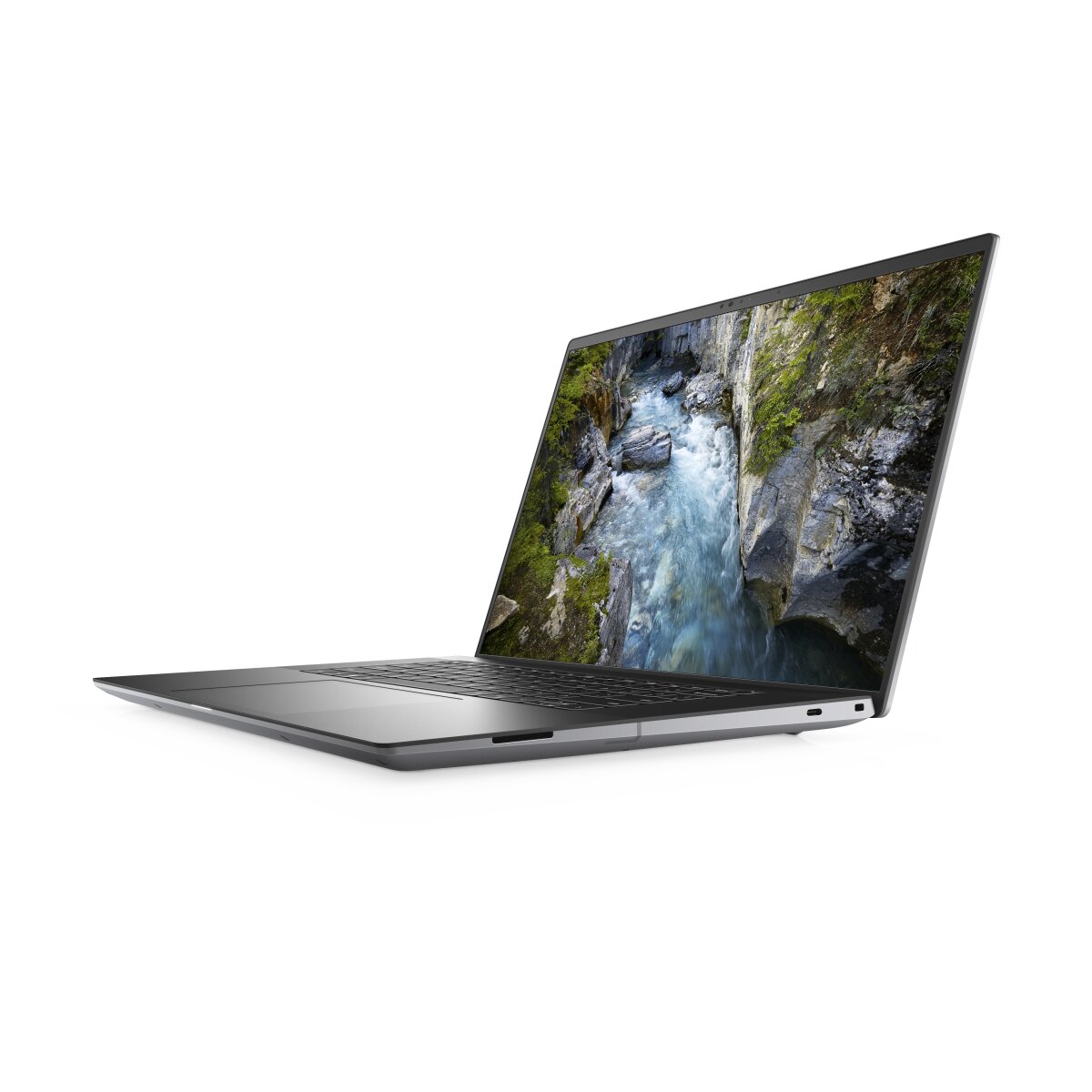

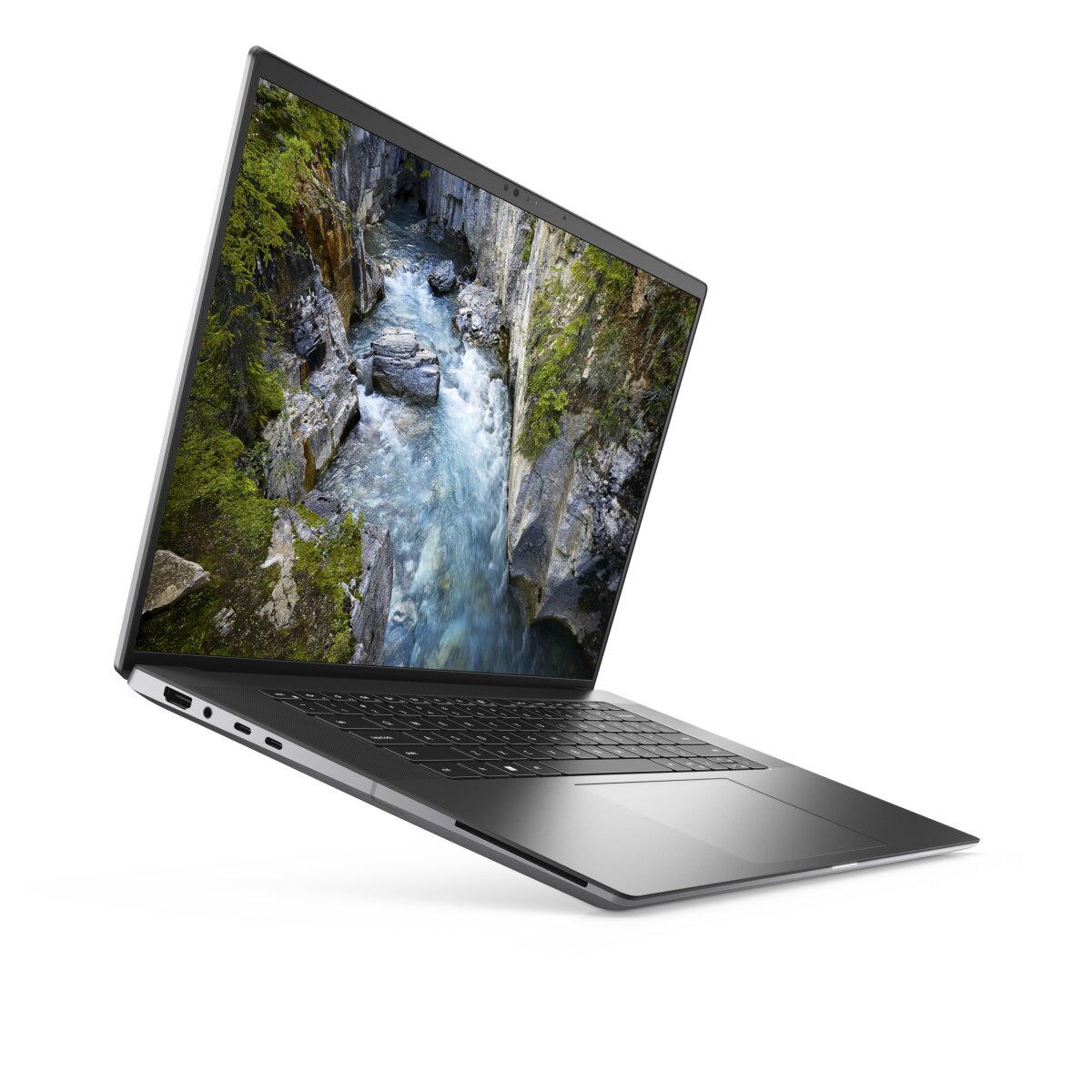

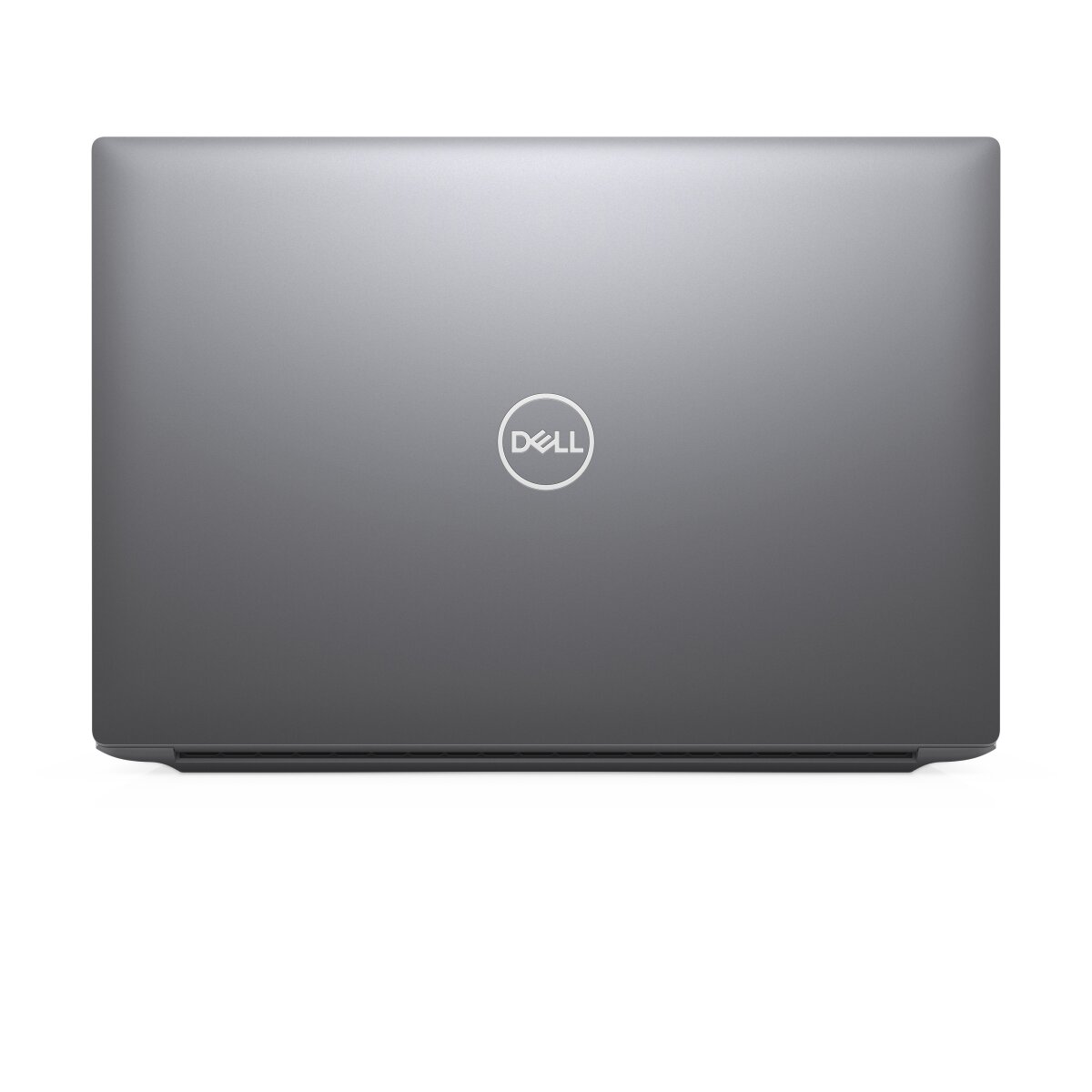

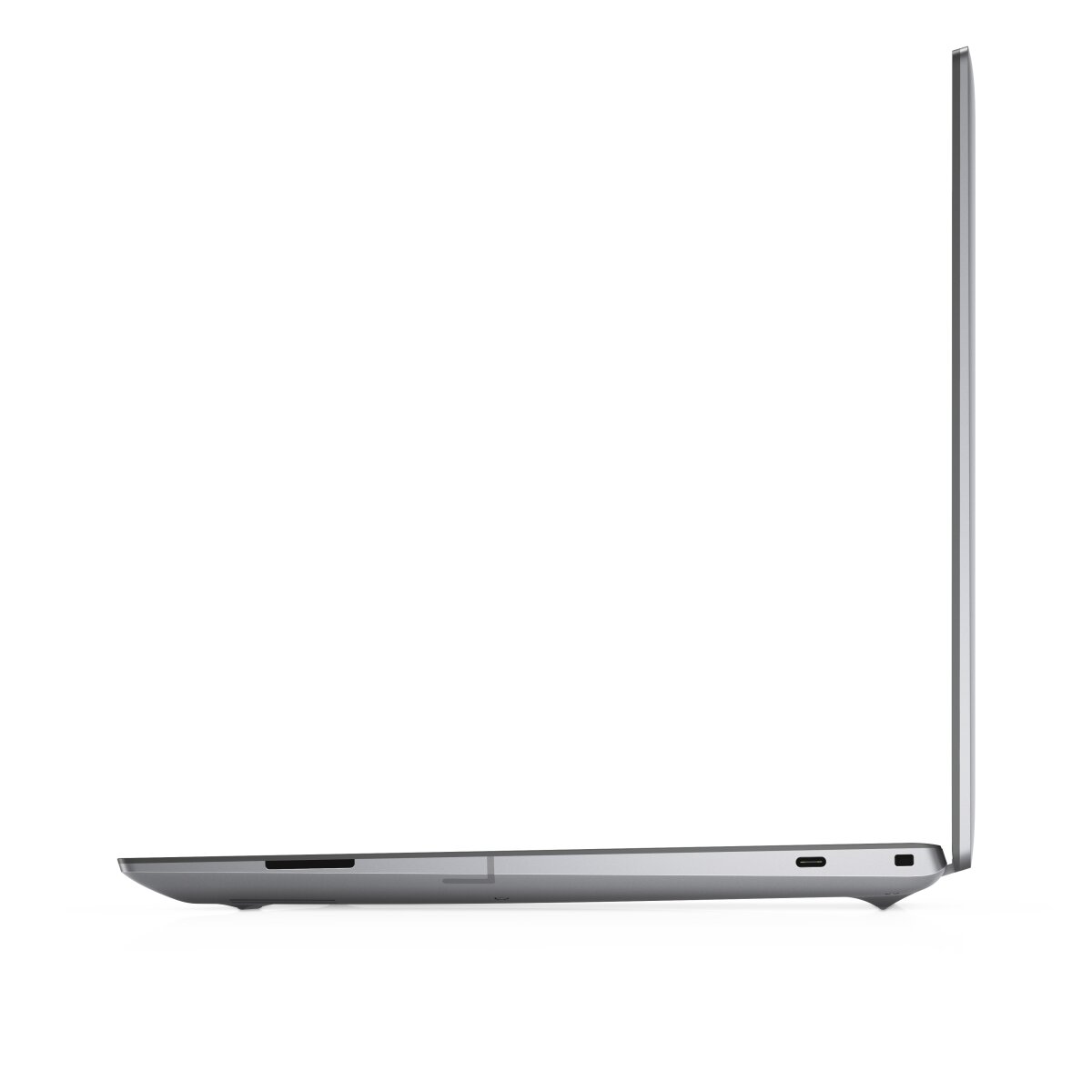

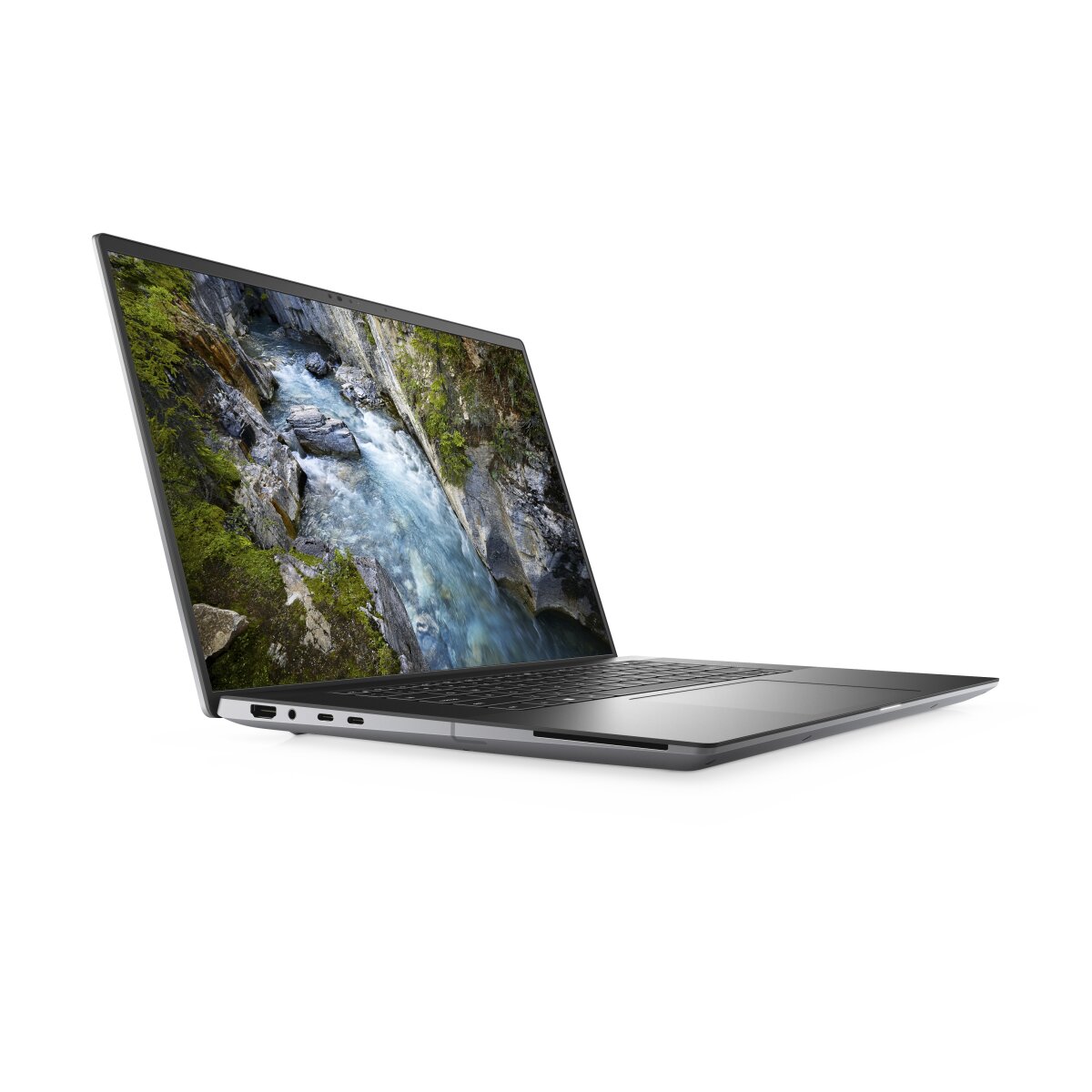

DELL Precision 5680 - DXM5Y
DELL Precision 5680
Product code: DXM5Y
- 💻Display diagonal: 16 inch
- 🔳Processor model: i7-13800H
- 🎫Internal memory: 32 GB
- 🎮On-board graphics adapter model:
- 🎮Discrete graphics adapter model:
- 💽Total storage capacity: 512 GB
- ⚖️Weight: 1.91 kg
📊 Add to compare
Specifications
| Design | |
|---|---|
| Product colour | Grey |
| Product type | Mobile workstation |
| Form factor | Clamshell |
| Market positioning | Business |
| Housing material | Aluminium |
| Display | |
| Display diagonal | 16 inch |
| Maximum refresh rate | 60 Hz |
| Pixel density | 142 ppi |
| Contrast ratio (typical) | 1300:1 |
| Display brightness | 500 cd/m² |
| Panel type | WLED |
| HD type | Full HD+ |
| LED backlight | Yes |
| Touchscreen | No |
| Display resolution | 1920 x 1200 pixels |
| RGB colour space | DCI-P3 |
| Colour gamut | 100% |
| Native aspect ratio | 16:10 |
| Brand | DELL |
| Family | Precision |
| Series | 5000 |
| Model name | 5680 |
| Part Number | DXM5Y |
| EAN/UPC code | 0884116452980, 884116452980 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Processor boost frequency | 5.2 GHz |
| Processor model | i7-13800H |
| Processor cores | 14 |
| Processor cache | 24 MB |
| Processor generation | 13th gen Intel Core i7 |
| Efficient cores | 8 |
| Performance cores | 6 |
| Performance-core Max Turbo Frequency | 5.2 GHz |
| Efficient-core Max Turbo Frequency | 4 GHz |
| Maximum turbo power | 115 W |
| Processor base power | 45 W |
| Memory | |
| Internal memory type | LPDDR5-SDRAM |
| Internal memory | 32 GB |
| Memory form factor | On-board |
| Maximum internal memory | 32 GB |
| Graphics | |
| Discrete graphics memory type | GDDR6 |
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA RTX 2000 Ada |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board graphics card family | Intel Iris Xe Graphics |
| Discrete graphics card memory | 8 GB |
| On-board GPU manufacturer | Intel |
| Storage | |
| Total storage capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Total SSDs capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Storage media | SSD |
| NVMe | Yes |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | No |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax) |
| Wi-Fi data rate (max) | 2400 Mbit/s |
| Antenna type | 2x2 |
| Bluetooth | Yes |

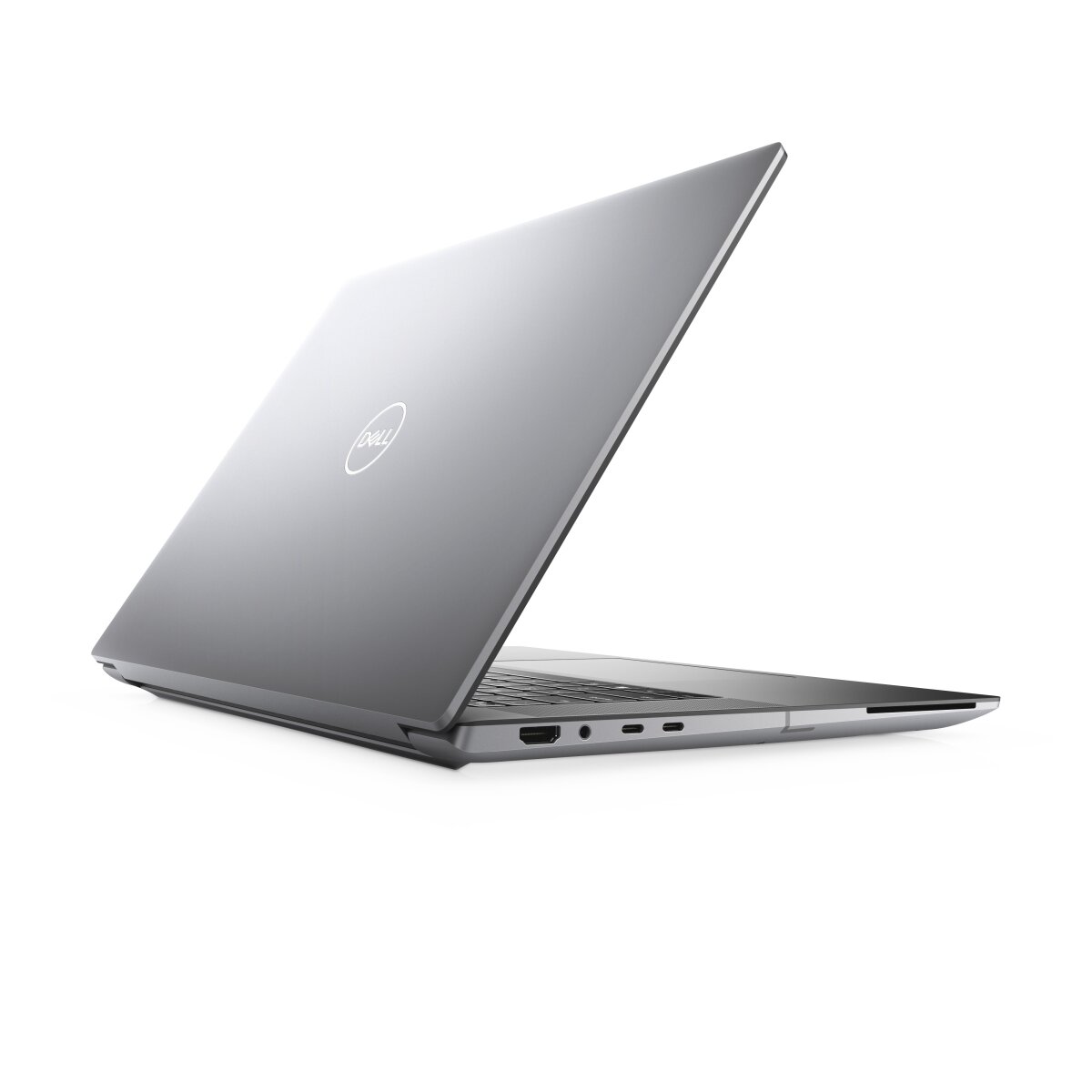

| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Charging port type | USB Type-C |
| HDMI version | 2.0b |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| Audio | |
| Built-in microphone | Yes |
| Number of built-in speakers | 4 |
| Speaker power | 8 W |
| Audio chip | Realtek ALC711-VD |
| Number of microphones | 2 |

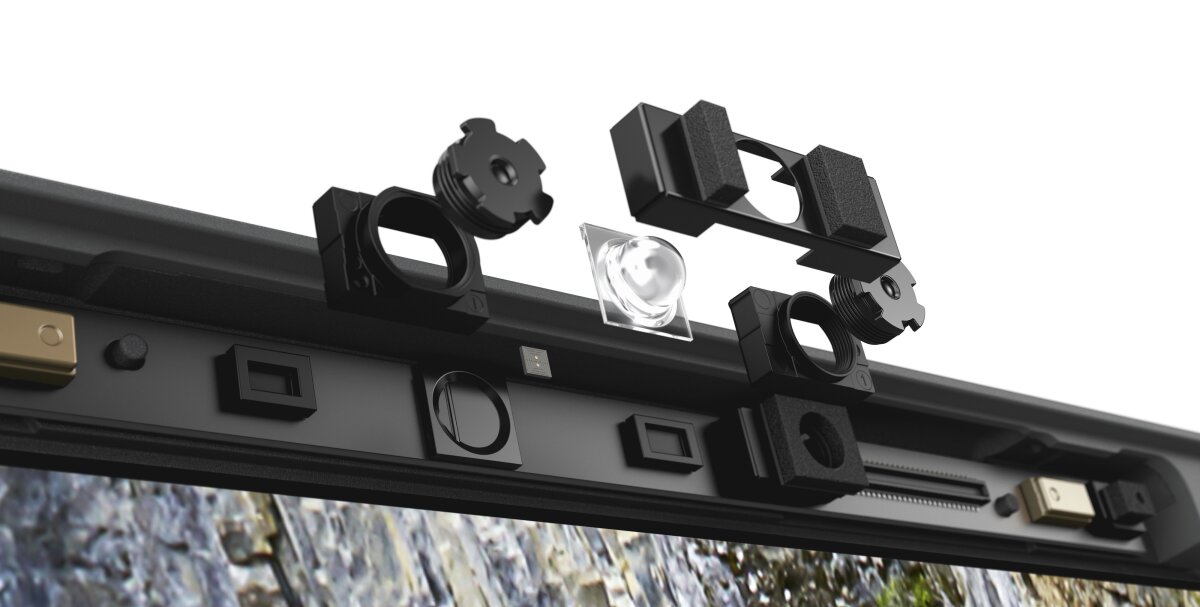

| Camera | |
| Front camera | Yes |
| Infrared (IR) camera | Yes |
| Front camera HD type | Full HD |
| Video capturing speed | 30 fps |
| Front camera resolution | 1920 x 1080 pixels |
| Front camera resolution (numeric) | 0.9 MP |
| Keyboard | |
| Numeric keypad | No |
| Keyboard backlit | Yes |
| Pointing device | Trackpad |
| Performance | |
| Accelerometer | Yes |
| Software | |
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery weight | 363 g |
| Battery recharge time | 3 h |
| Number of battery cells | 6 |
| Battery capacity | 99.5 Wh |
| Battery voltage | 11.55 V |
| Fast charging | Yes |
| Weight & dimensions | |
| Weight | 1.91 kg |
| Height (rear) | 2.62 cm |
| Height (front) | 2.62 cm |
| Depth | 240.3 mm |
| Width | 353.7 mm |
| Power | |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| USB charging voltage | 20, 5, 9, 15 V |
| Security | |
| Cable lock slot | Yes |
| Cable lock slot type | Wedge |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Other features | |
| Anti-glare screen | Yes |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
