DELL Pro 7 P714260 - CTO535 P714260 AU

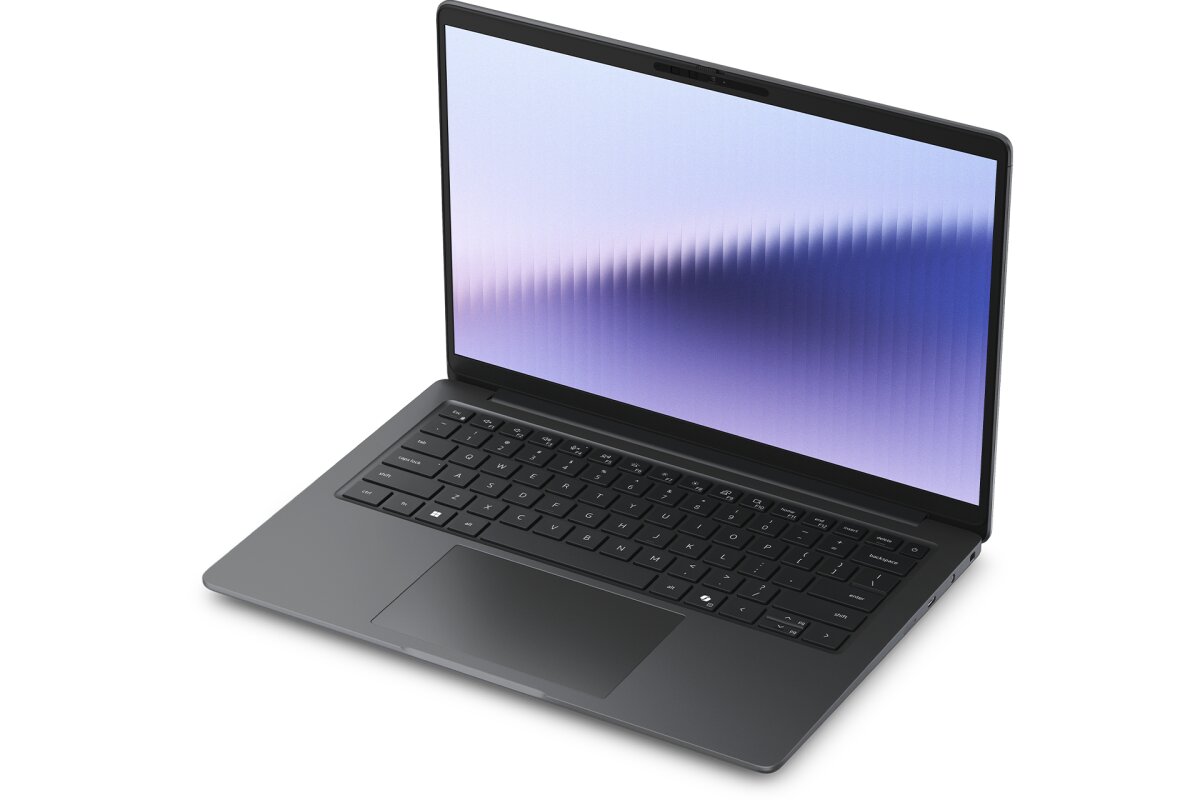

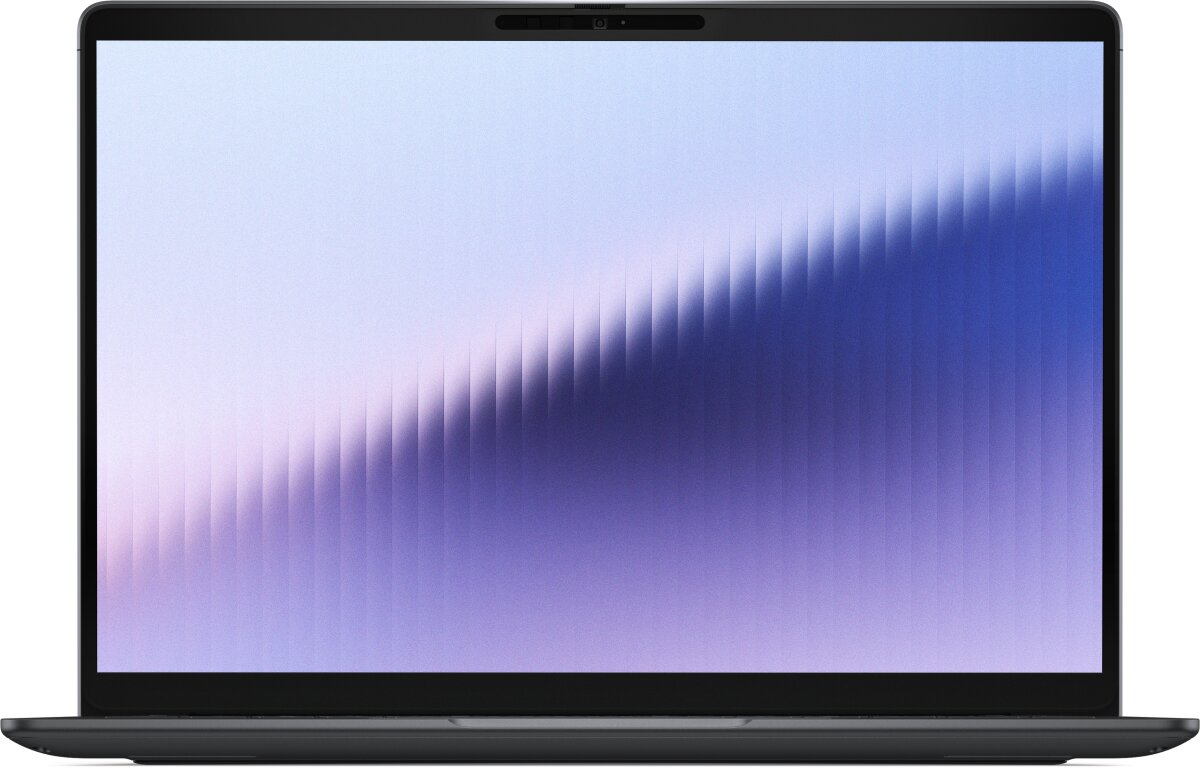

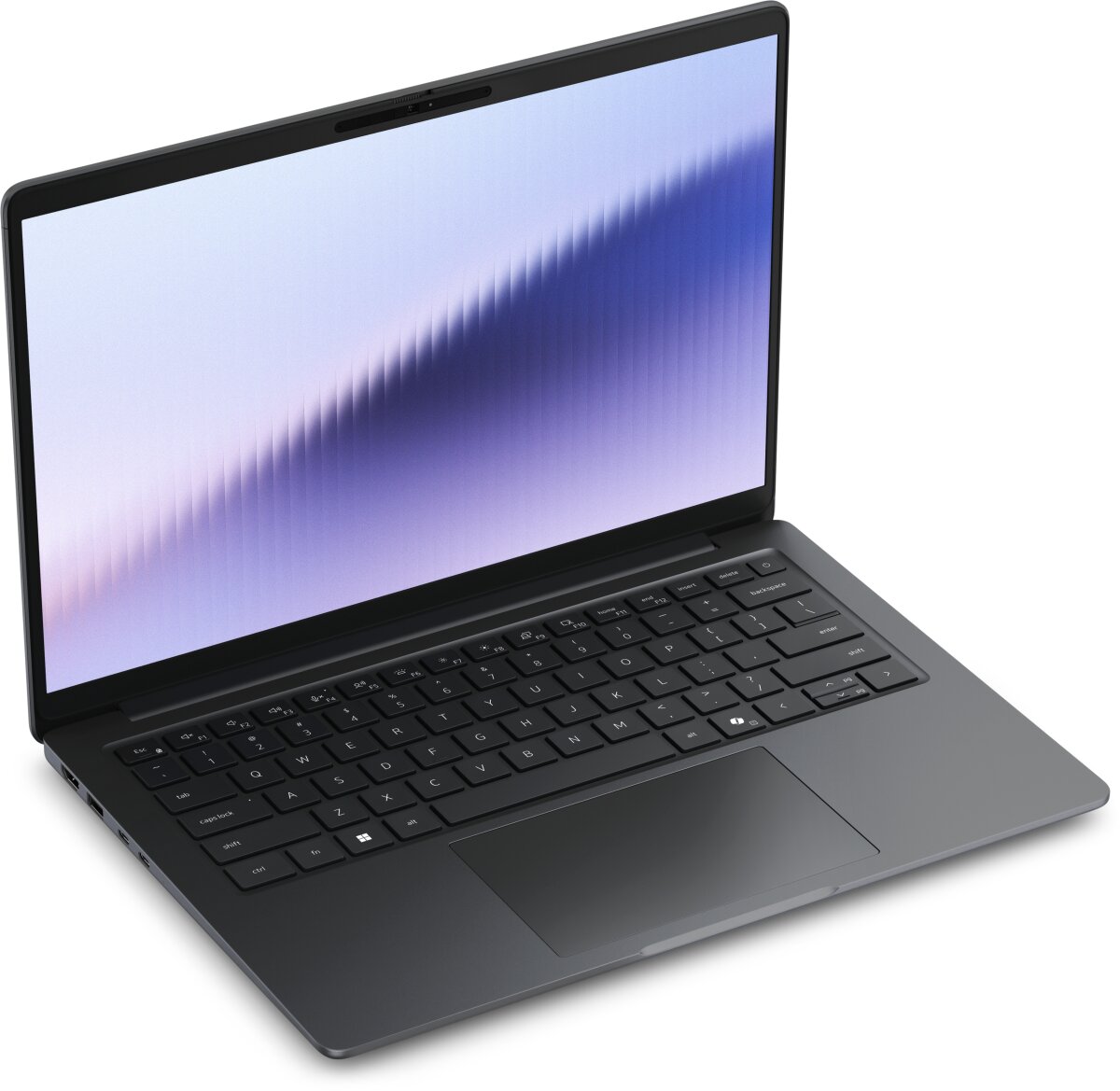

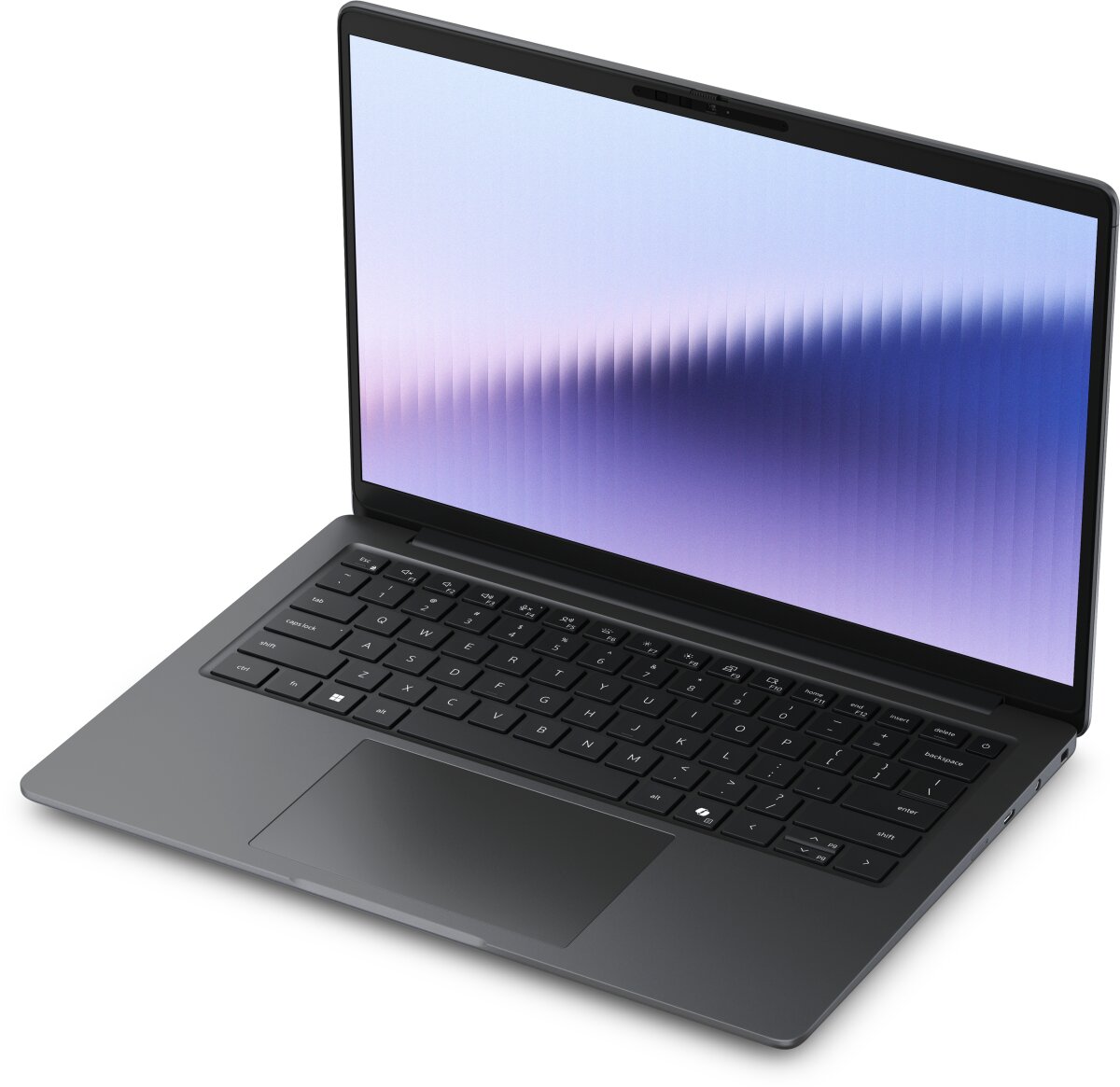

DELL Pro 7 P714260
Product code: CTO535 P714260 AU
- 💻Display diagonal: 14 inch
- 🔳Processor model: 335
- 🎫Internal memory: 32 GB
- 🎮On-board graphics adapter model:
- 🎮Discrete graphics adapter model:
- 💽Total storage capacity: 512 GB
- ⚖️Weight: 1.27 kg
📊 Add to compare
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Product type | Laptop |
| Form factor | Clamshell |
| Intel® vPro™ Platform Eligibility | Yes |

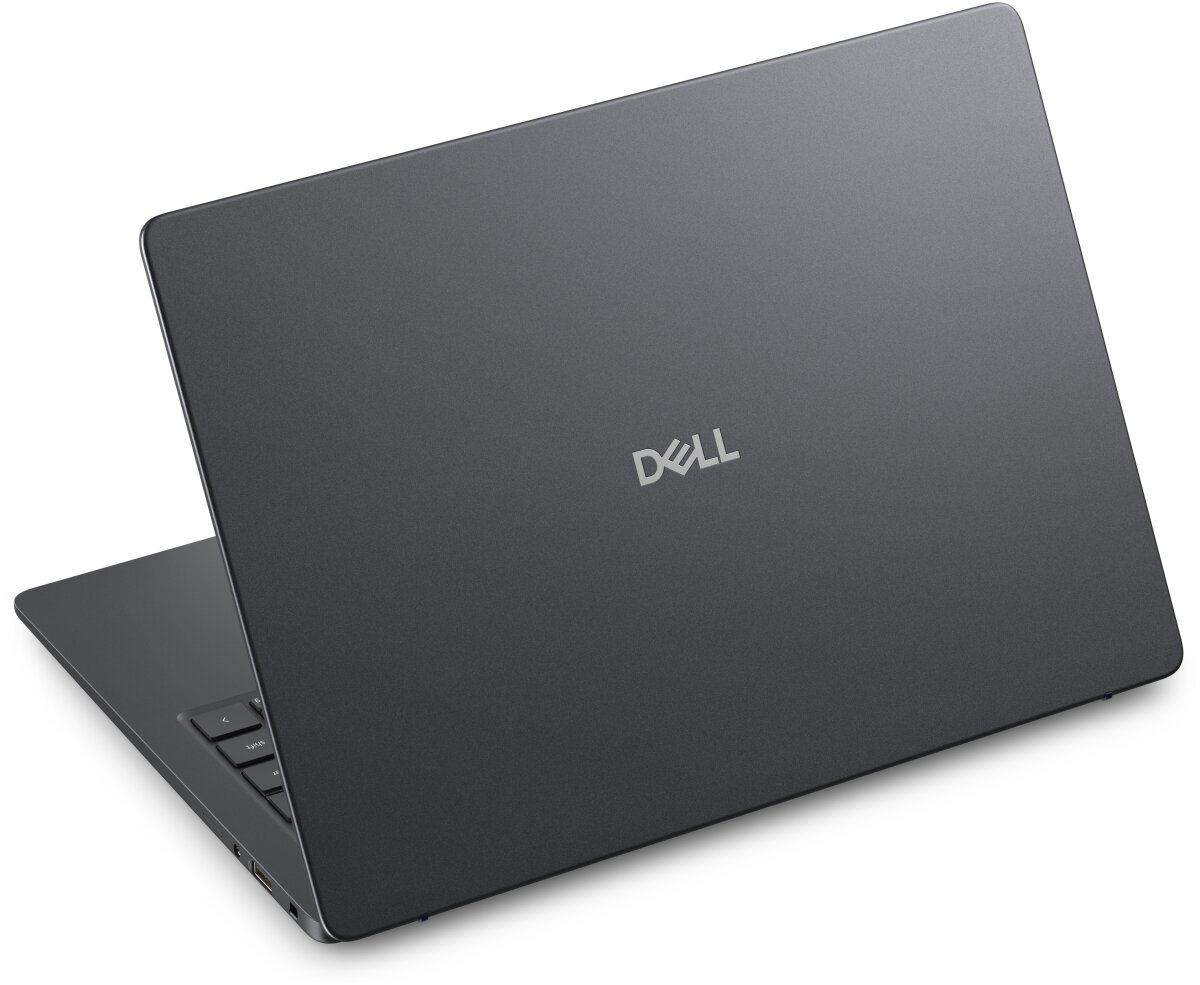

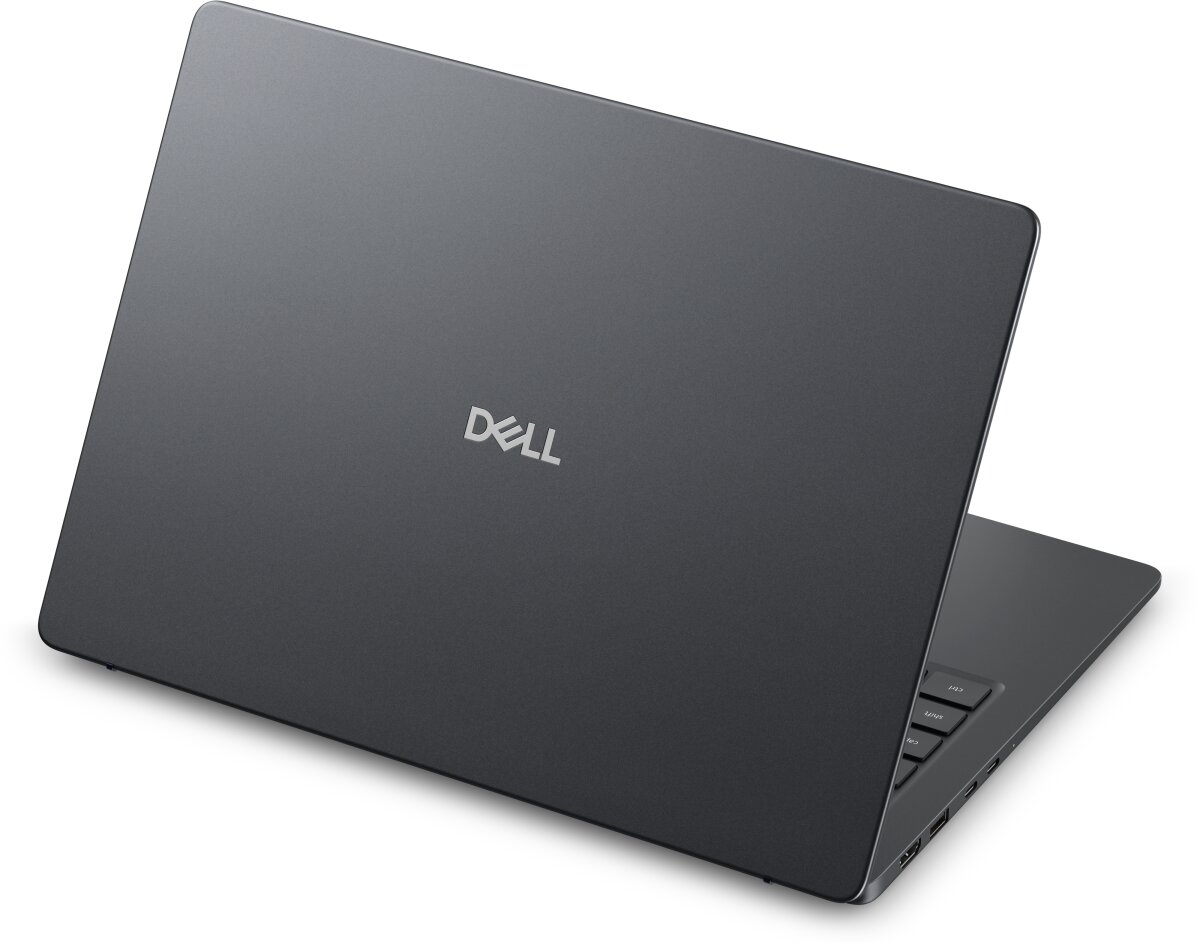

| Display back cover material | Aluminium |
| Display | |
| Display diagonal | 14 inch |
| Maximum refresh rate | 60 Hz |
| Display response rise/fall | 35 ms |
| Pixel density | 162 ppi |
| Contrast ratio (typical) | 800:1 |
| Display brightness | 400 cd/m² |
| Panel type | IPS |
| HD type | WUXGA |
| Touchscreen | No |
| Display resolution | 1920 x 1200 pixels |
| RGB colour space | sRGB |
| Colour gamut | 62.5% |
| Brand | DELL |
| Family | Pro 7 |
| Series | 14 |
| Model name | P714260 |
| Part Number | CTO535_P714260_AU |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 5 |
| Motherboard chipset | Intel SoC |
| Processor boost frequency | 4.6 GHz |
| Processor model | 335 |
| Processor cores | 8 |
| Processor threads | 8 |
| Processor cache | 12 MB |
| Processor socket | FCBGA2540 |
| Processor generation | Intel Core Ultra (Series 3) |
| Efficient-core base frequency | 1.6 GHz |
| Performance cores | 4 |
| Performance-core Max Turbo Frequency | 4.6 GHz |
| Maximum turbo power | 55 W |
| Processor base power | 25 W |
| Performance-core base frequency | 2.2 GHz |
| Low Power Efficient-cores | 4 |
| Low Power Efficient-core Max Turbo Frequency | 3.4 GHz |
| Low Power Efficient-core Base Frequency | 1600 MHz |
| Memory | |
| Internal memory type | LPDDR5x-SDRAM |
| Internal memory | 32 GB |
| Memory form factor | On-board |
| Maximum internal memory | 32 GB |
| Memory channels | Dual-channel |
| Memory data transfer rate | 8533 MT/s |
| Graphics | |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Graphics |
| On-board graphics card family | Intel Graphics |
| On-board GPU manufacturer | Intel |
| Ray tracing acceleration | Yes |
| Storage | |
| Total storage capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Total SSDs capacity | 512 GB |
| Storage media | SSD |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | No |
| WLAN controller model | Intel Wi-Fi 7 BE211 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Wi-Fi data rate (max) | 5760 Mbit/s |
| Bluetooth | Yes |

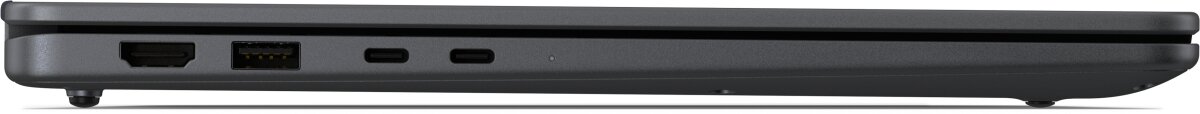

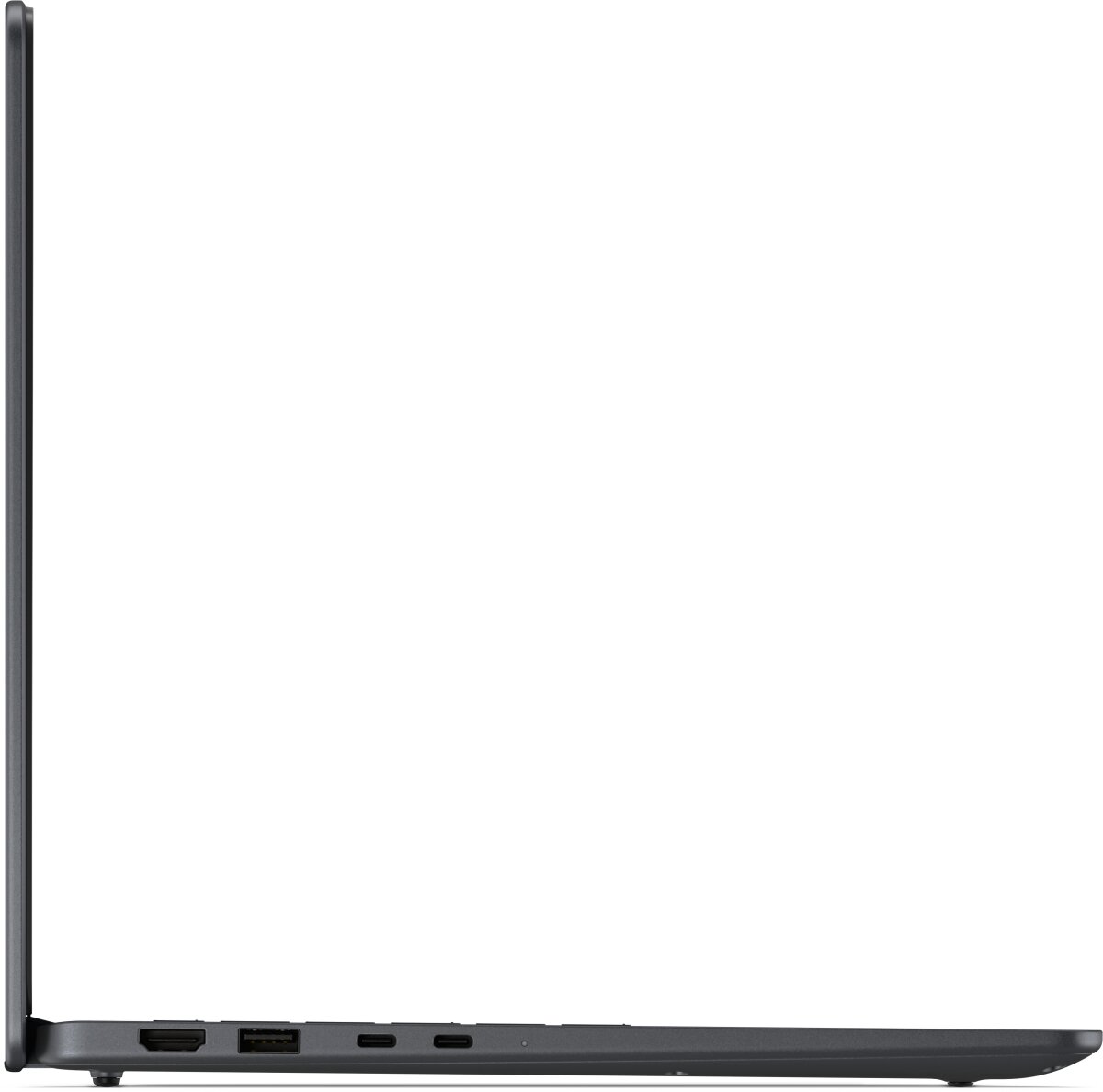

| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI version | 2.1 |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| USB Power Delivery (USB PD) | Yes |
| Audio | |
| Built-in microphone | Yes |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Audio chip | Cirrus Logic CS42L45 |
| Number of microphones | 2 |
| Camera | |
| Front camera | Yes |
| Privacy camera | Yes |
| Infrared (IR) camera | Yes |
| Front camera HD type | Full HD |
| Privacy type | Privacy shutter |
| Video capturing speed | 30 fps |
| Front camera resolution | 1920 x 1080 pixels |
| Front camera resolution (numeric) | 2.07 MP |
| Keyboard | |
| Numeric keypad | No |
| Pointing device | Touchpad |
| Software | |
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Copilot+ PC | Yes |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery weight | 200 g |
| Removable battery | Yes |
| Battery recharge time | 4 h |
| Number of battery cells | 3 |
| Battery capacity | 55.8 Wh |
| Battery voltage | 11.7 V |
| Weight & dimensions | |
| Weight | 1.27 kg |
| Height (rear) | 1.47 cm |
| Height (front) | 1.03 cm |
| Depth | 226 mm |
| Width | 315.5 mm |
| Power | |
| AC adapter power | 65 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| USB charging voltage | 5, 9, 15, 20 V |
| USB Type-C charging port | Yes |
| USB Type-C required charging power (min) | 27 W |
| USB Type-C required charging power (max) | 60 W |
| Security | |
| Cable lock slot | Yes |
| Cable lock slot type | Wedge |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Brand-specific features | |
| Brand specific technologies | Presence Detection, Express Charge Boost capable |
| Other features | |
| Anti-glare screen | Yes |
| Neural processor unit (NPU) | |
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | OpenVINO, Windows ML, ONNX RT, WebNN |
| NPU performance up to | 47 TOPs |
| GPU performance up to | 40 TOPs |
