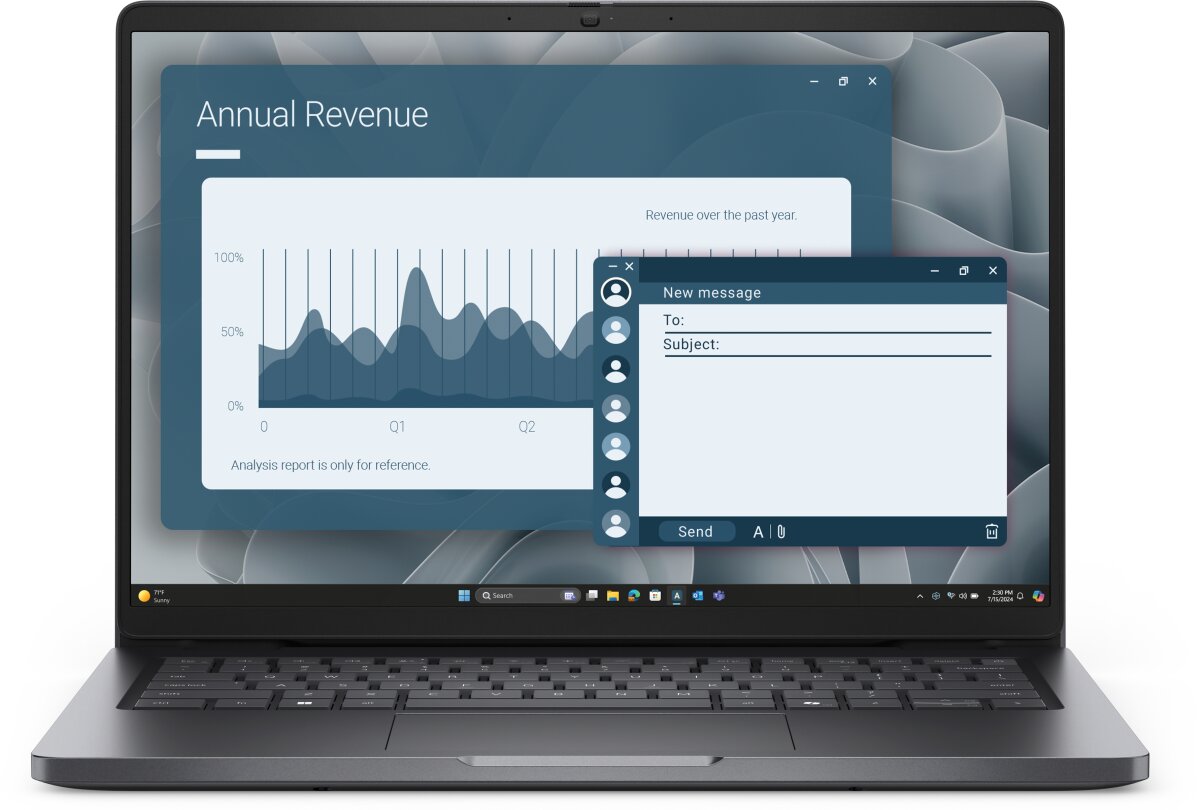

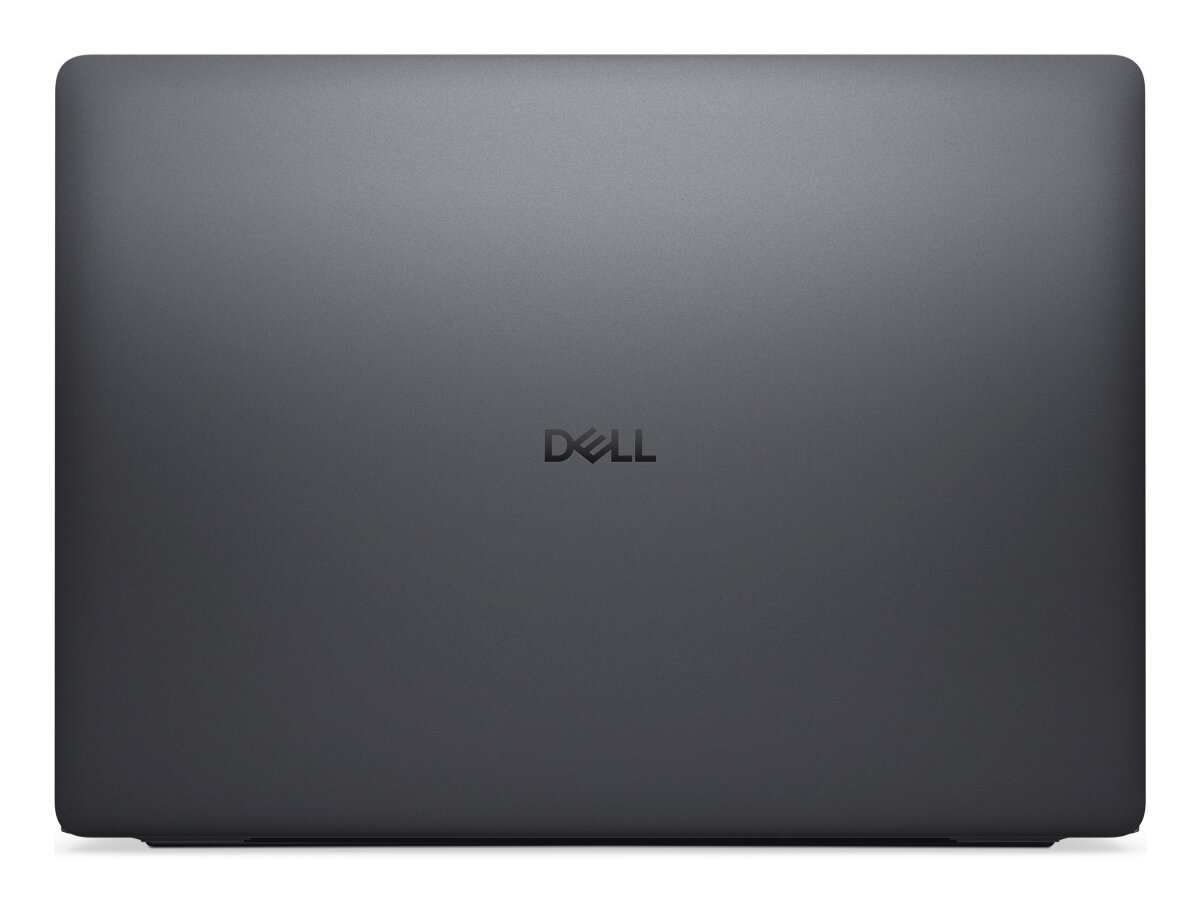

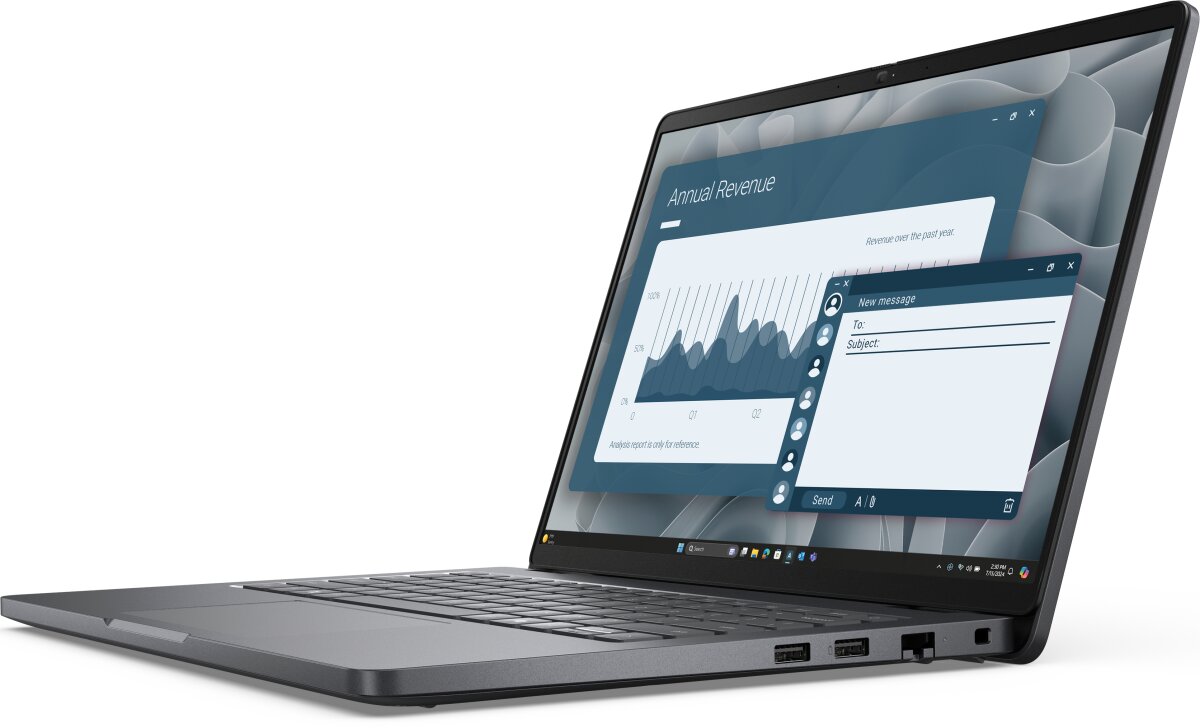

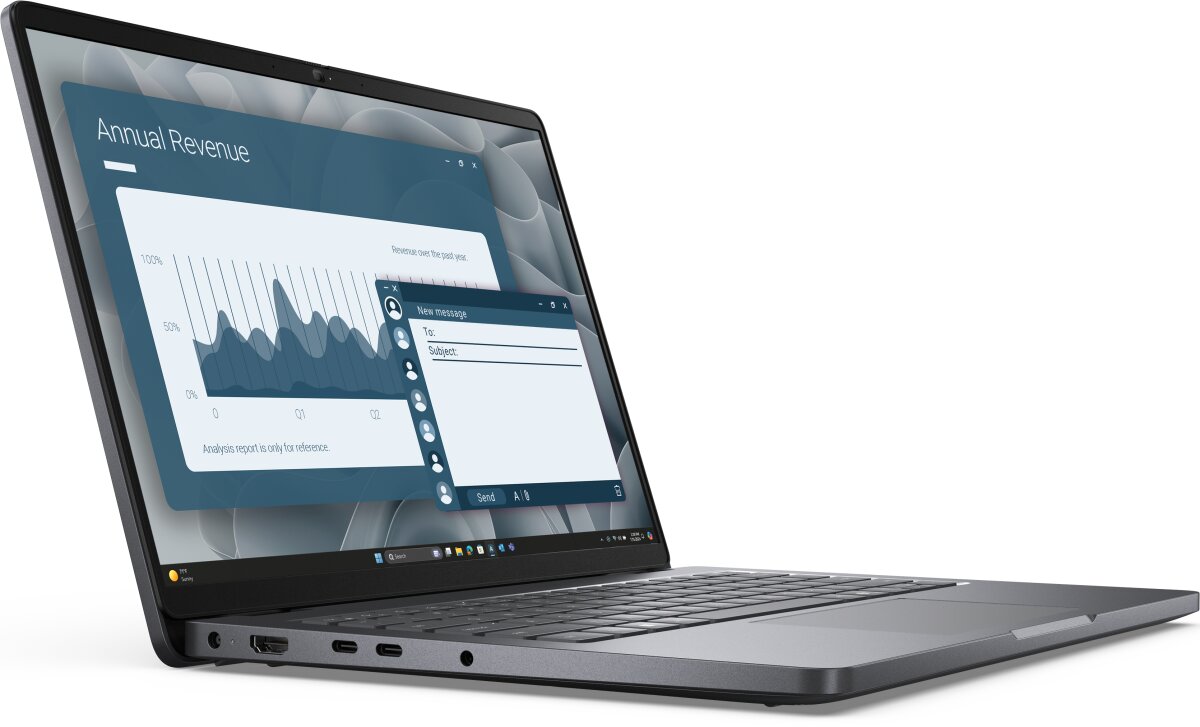

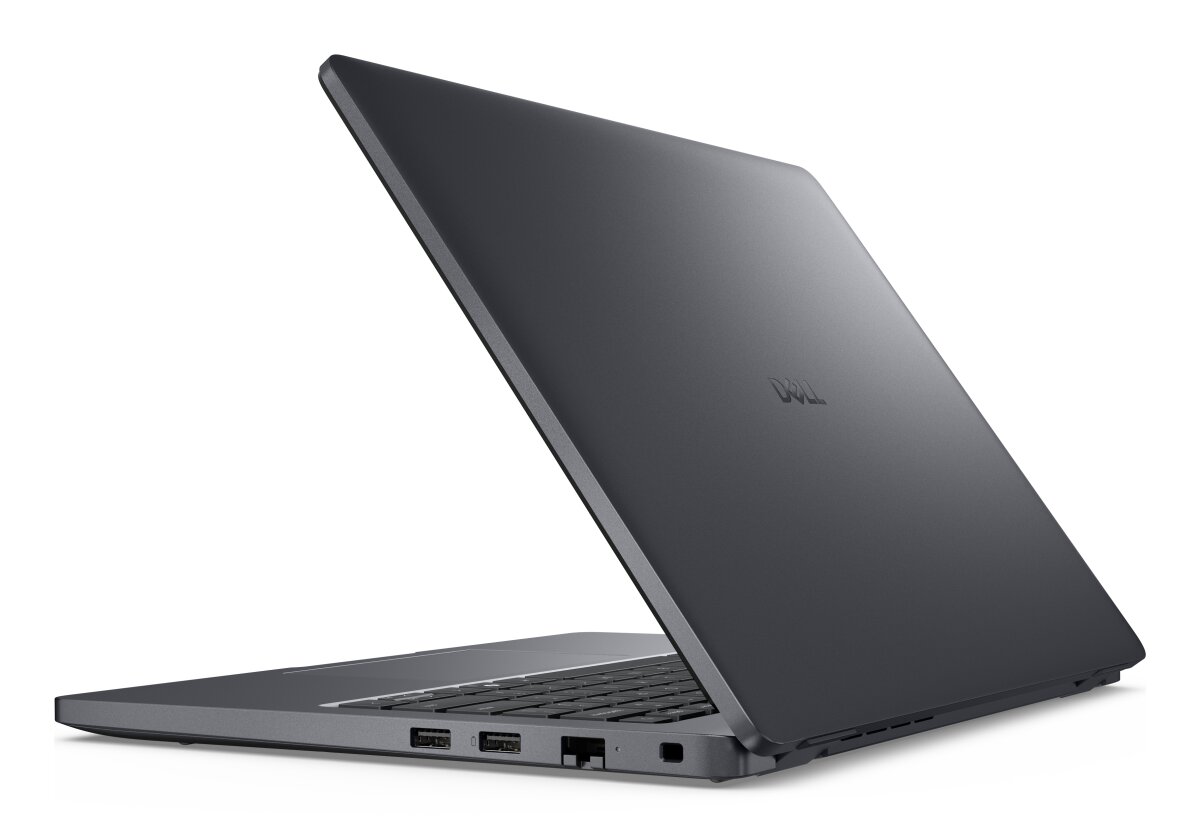

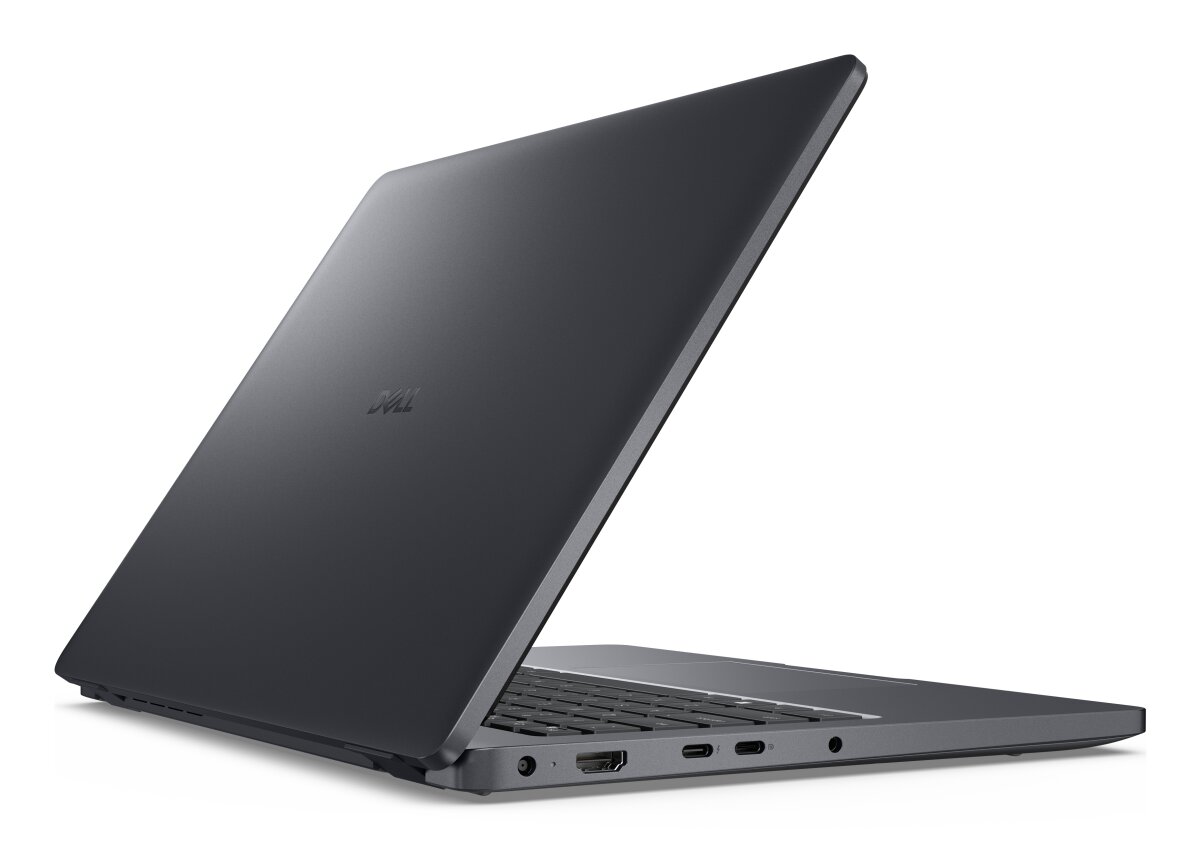

DELL Pro PC14255 - BTO509 PC14255 NZ
DELL Pro PC14255
Product code: BTO509 PC14255 NZ
- 💻Display diagonal: 14 inch
- 🔳Processor model: PRO 230
- 🎫Internal memory: 16 GB
- 🎮On-board graphics adapter model:
- 🎮Discrete graphics adapter model:
- 💽Total storage capacity: 512 GB
- ⚖️Weight: 1.36 kg
📊 Add to compare
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Product type | Laptop |
| Form factor | Clamshell |
| Display | |
| Display diagonal | 14 inch |
| Maximum refresh rate | 60 Hz |
| Pixel density | 162 ppi |
| Contrast ratio (typical) | 800:1 |
| Display brightness | 300 cd/m² |
| Panel type | IPS |
| HD type | Full HD+ |
| Touchscreen | No |
| Display resolution | 1920 x 1200 pixels |
| RGB colour space | NTSC |
| Colour gamut | 45% |
| Native aspect ratio | 16:10 |
| Brand | DELL |
| Family | Pro |
| Series | 14 |
| Model name | PC14255 |
| Part Number | BTO509_PC14255_NZ |
|
|
|
| Processor | |
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen 5 PRO |
| Processor frequency | 3.5 GHz |
| Processor boost frequency | 4.9 GHz |
| Processor model | PRO 230 |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor generation | AMD Ryzen PRO 200 Series |
| Memory | |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | SO-DIMM |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 64 GB |
| Memory data transfer rate | 5600 MT/s |
| Graphics | |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | AMD Radeon 760M |
| Storage | |
| Total storage capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Total SSDs capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| Storage media | SSD |
| NVMe | Yes |
| M.2 SSD size | 2230 (22 x 30 mm) |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| WLAN controller model | MediaTek MT7922 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) |
| Wi-Fi data rate (max) | 2400 Mbit/s |
| Antenna type | 2x2 |
| Bluetooth | Yes |

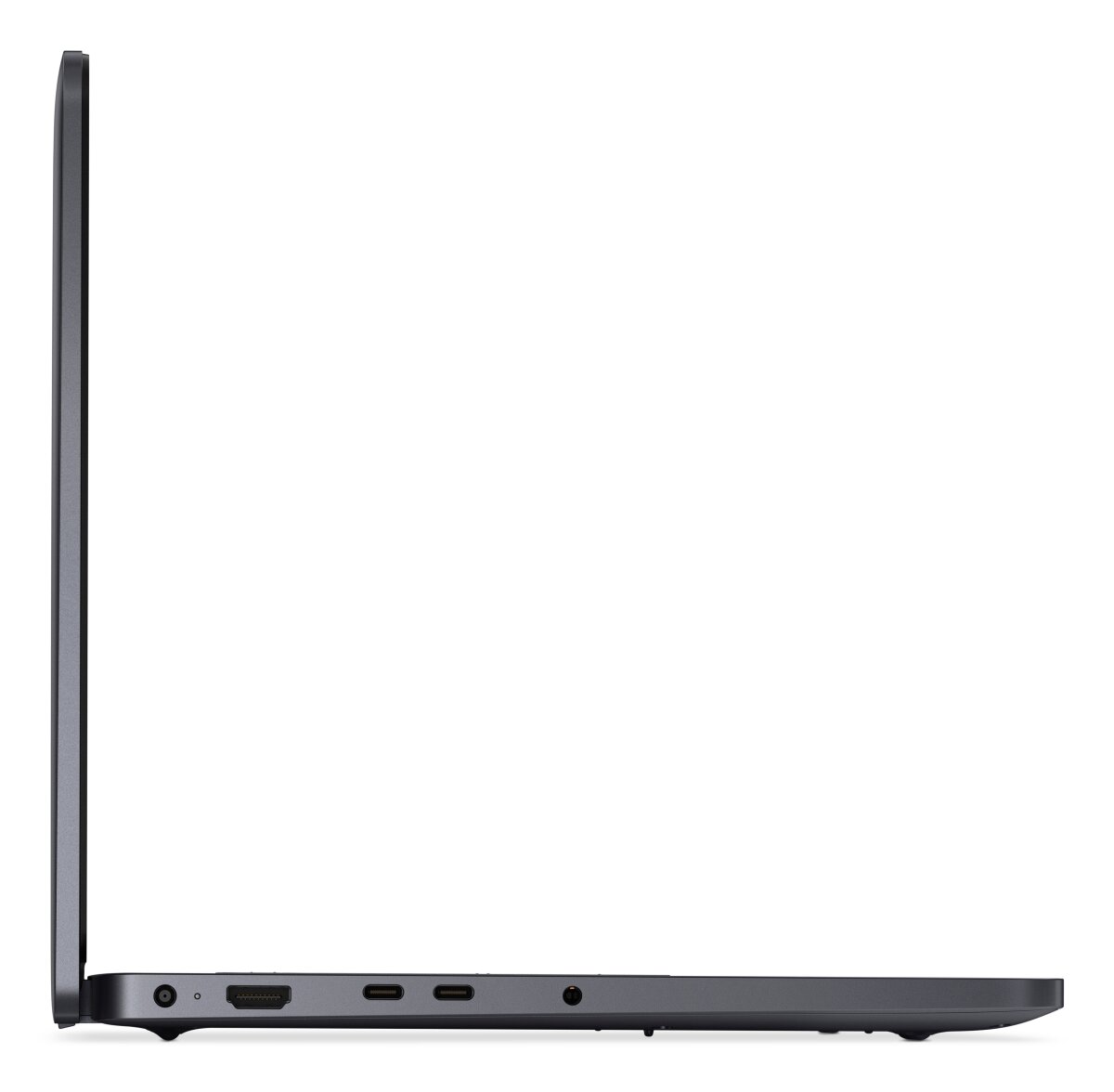

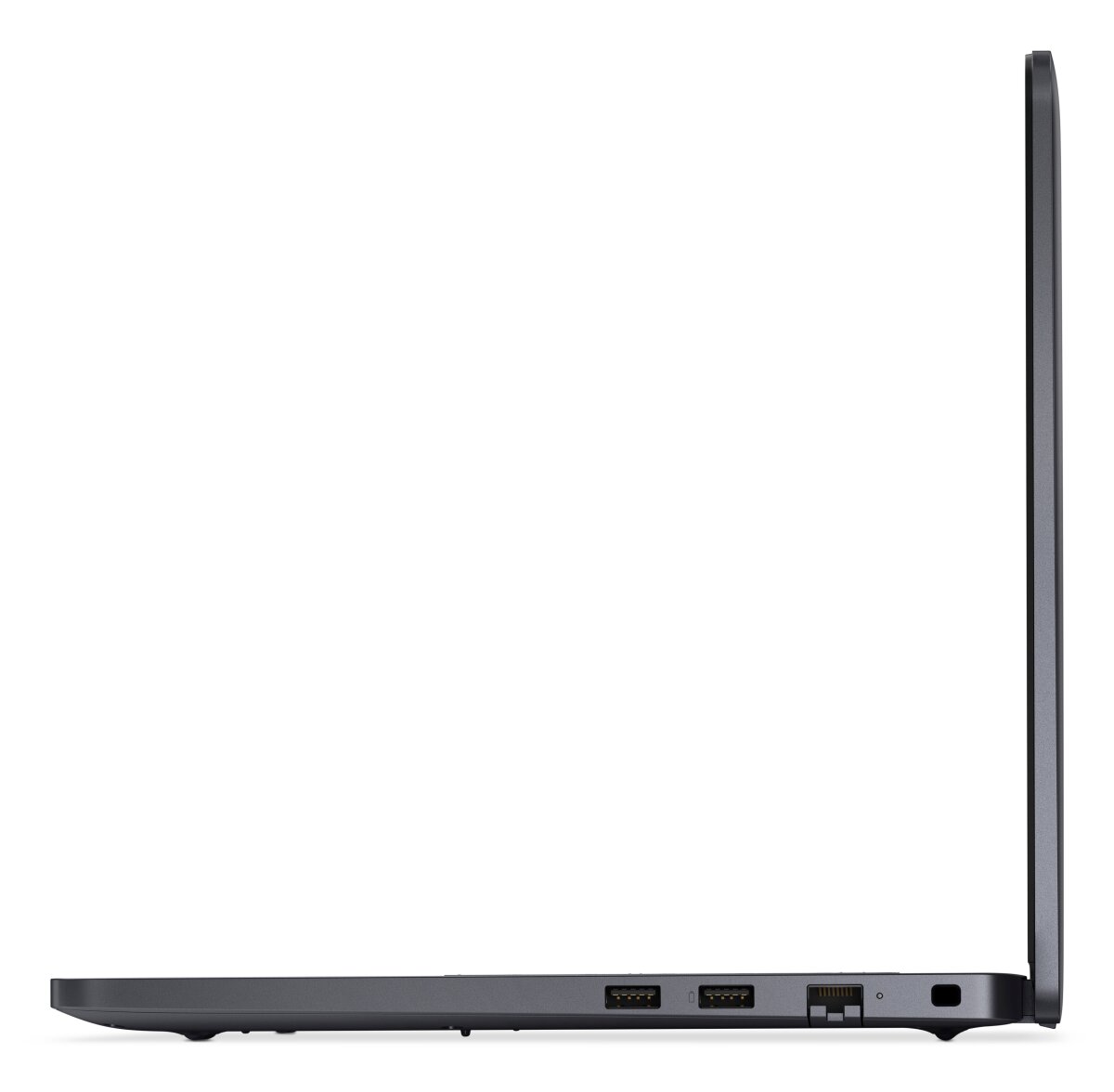

| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| PowerShare | Yes |
| Number of USB ports with PowerShare support | 1 |
| HDMI version | 2.1 |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| Power adapter barrel connector | 4.5 mm |
| USB Power Delivery (USB PD) | Yes |
| Audio | |
| Built-in microphone | Yes |
| Number of built-in speakers | 2 |
| Audio system | High Definition Audio |
| Speaker power | 2.5 W |
| Audio chip | Realtek ALC3204 |
| Number of microphones | 2 |
| Camera | |
| Front camera | Yes |
| Video capturing speed | 30 fps |

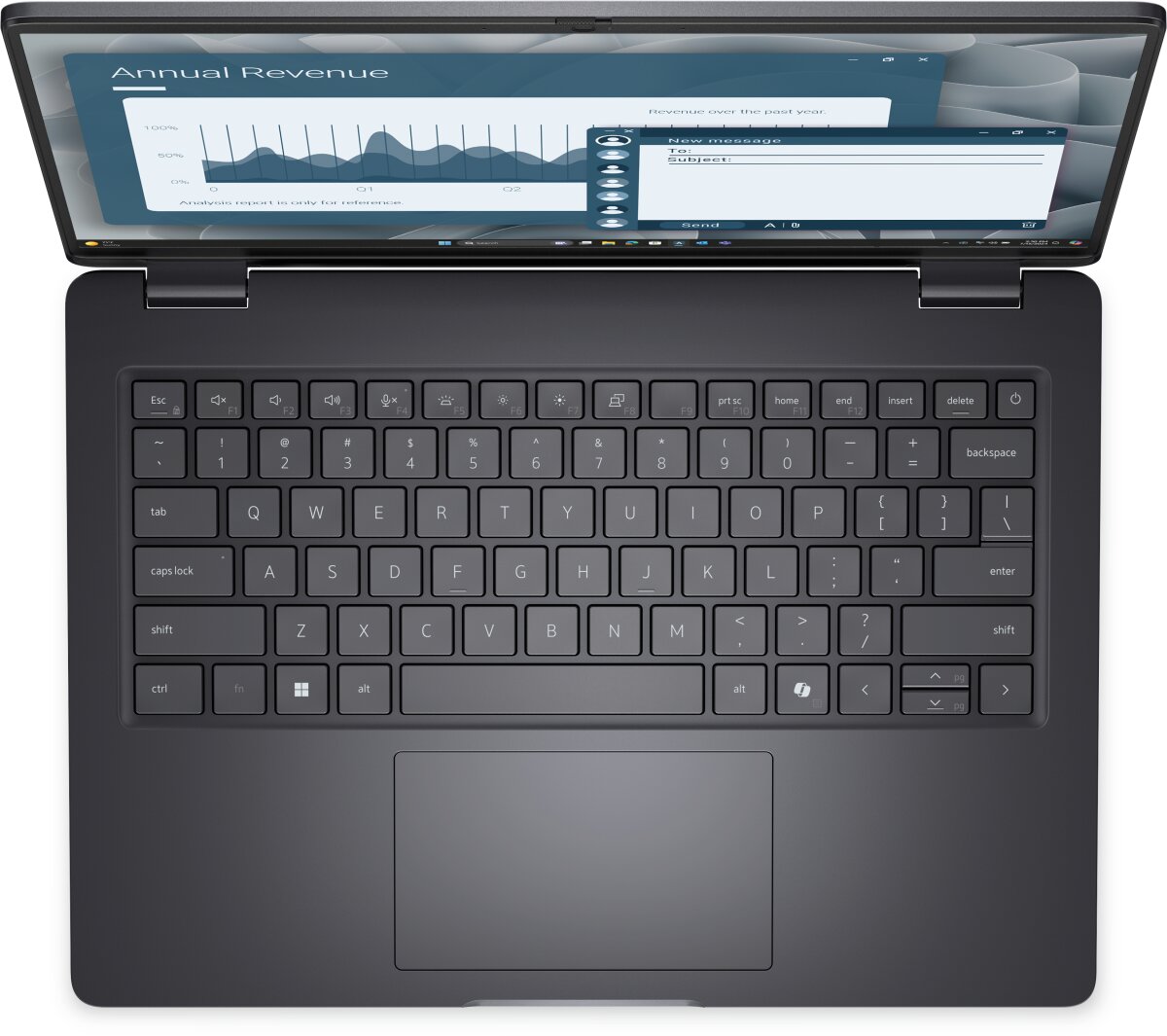

| Keyboard | |
| Numeric keypad | No |
| Keyboard backlit | Yes |
| Pointing device | Touchpad |
| Copilot key | Yes |
| Performance | |
| Hall sensor | Yes |
| Software | |
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Battery | |
| Battery recharge time | 4 h |
| Number of battery cells | 3 |
| Fast charging | Yes |
| Weight & dimensions | |
| Weight | 1.36 kg |
| Height (rear) | 2.04 cm |
| Height (front) | 1.89 cm |
| Depth | 225.3 mm |
| Width | 313.7 mm |
| Power | |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| USB charging voltage | 5, 9, 15, 20 V |
| USB Type-C charging port | Yes |
| USB Type-C required charging power (min) | 45 W |
| USB Type-C required charging power (max) | 65 W |
| Security | |
| Cable lock slot | Yes |
| Cable lock slot type | Wedge |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Other features | |
| Anti-glare screen | Yes |
| Neural processor unit (NPU) | |
| Neural processor unit (NPU) | AMD Ryzen AI |
| Total processor performance up to | 31 TOPs |
| NPU performance up to | 16 TOPs |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
