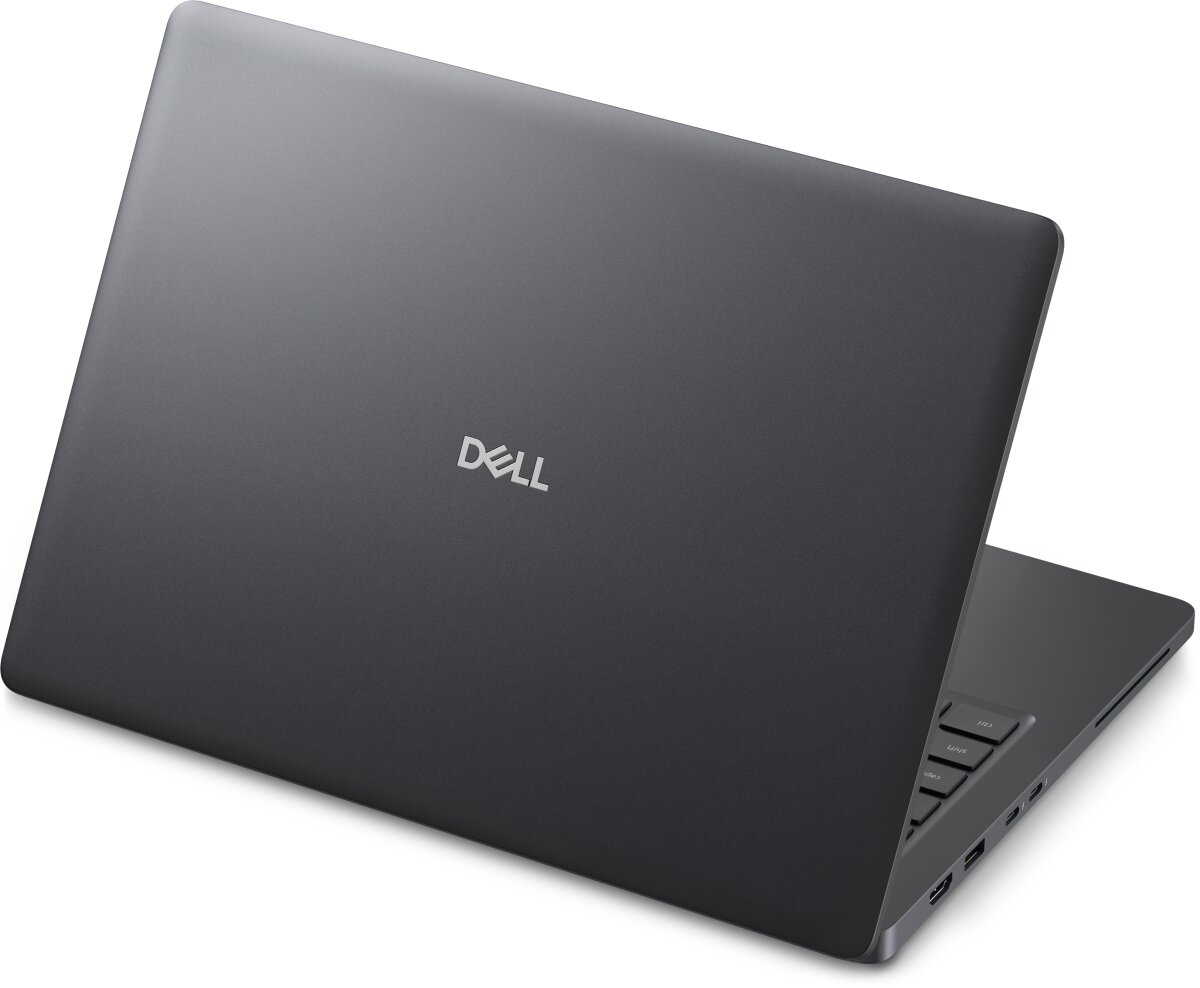

DELL Pro Precision 5 PW514261 - V3PXK
DELL Pro Precision 5 PW514261
Product code: V3PXK
- 💻Display diagonal: 14 inch
- 🔳Processor model: 366H
- 🎫Internal memory: 32 GB
- 🎮On-board graphics adapter model:
- 🎮Discrete graphics adapter model:
- 💽Total storage capacity: 1 TB
- ⚖️Weight: 1.81 kg
📊 Add to compare
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Product type | Mobile workstation |
| Form factor | Clamshell |
| Intel® vPro™ Platform Eligibility | Yes |

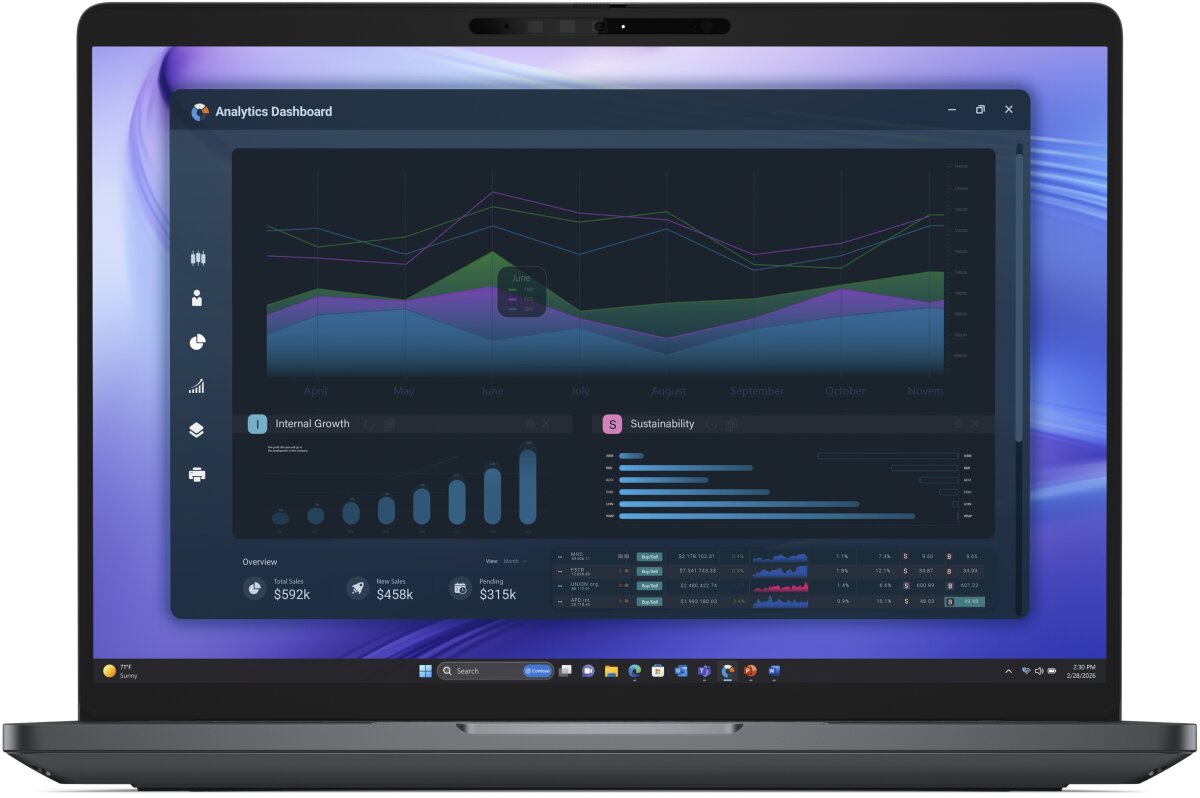

| Display | |
| Display diagonal | 14 inch |
| Maximum refresh rate | 60 Hz |
| Display response rise/fall | 35 ms |
| Pixel density | 162 ppi |
| Contrast ratio (typical) | 800:1 |
| Display brightness | 400 cd/m² |
| Panel type | WVA |
| HD type | WUXGA |
| Touchscreen | No |
| Display resolution | 1920 x 1200 pixels |
| RGB colour space | NTSC |
| Colour gamut | 45% |
| Native aspect ratio | 16:10 |
| Brand | DELL |
| Family | Pro Precision 5 |
| Series | 14 |
| Model name | PW514261 |
| Part Number | V3PXK |
| EAN/UPC code | 5397184979983 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 7 |
| Motherboard chipset | Intel SoC |
| Processor boost frequency | 4.8 GHz |
| Processor model | 366H |
| Processor cores | 16 |
| Processor threads | 16 |
| Processor cache | 18 MB |
| Processor socket | FCBGA2540 |
| Processor generation | Intel Core Ultra (Series 3) |
| Efficient-core base frequency | 1.6 GHz |
| Efficient cores | 8 |
| Performance cores | 4 |
| Performance-core Max Turbo Frequency | 4.8 GHz |
| Efficient-core Max Turbo Frequency | 3.6 GHz |
| Maximum turbo power | 80 W |
| Processor base power | 25 W |
| Performance-core base frequency | 2 GHz |
| Low Power Efficient-cores | 4 |
| Low Power Efficient-core Max Turbo Frequency | 3.4 GHz |
| Low Power Efficient-core Base Frequency | 1600 MHz |
| Memory | |
| Internal memory type | LPDDR5x-SDRAM |
| Internal memory | 32 GB |
| Memory form factor | LPCAMM2 |
| Maximum internal memory | 32 GB |
| Memory channels | Dual-channel |
| Memory data transfer rate | 8533 MT/s |
| Graphics | |
| Discrete graphics memory type | GDDR7 |
| Discrete GPU manufacturer | NVIDIA |
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA RTX PRO 500 Blackwell |
| On-board graphics card model | Intel Graphics |
| On-board graphics card family | Intel Graphics |
| Discrete graphics card memory | 6 GB |
| On-board GPU manufacturer | Intel |
| Ray tracing acceleration | Yes |
| Storage | |
| Total storage capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| Total SSDs capacity | 1 TB |
| SSD interface | PCI Express 5.0 |
| SSD form factor | M.2 |
| Storage media | SSD |
| Self-Encrypting Drive (SED) | Yes |
| NVMe | Yes |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| WLAN controller model | Intel Wi-Fi 7 BE211 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Wi-Fi data rate (max) | 5760 Mbit/s |
| Antenna type | 2x2 |
| Bluetooth | Yes |

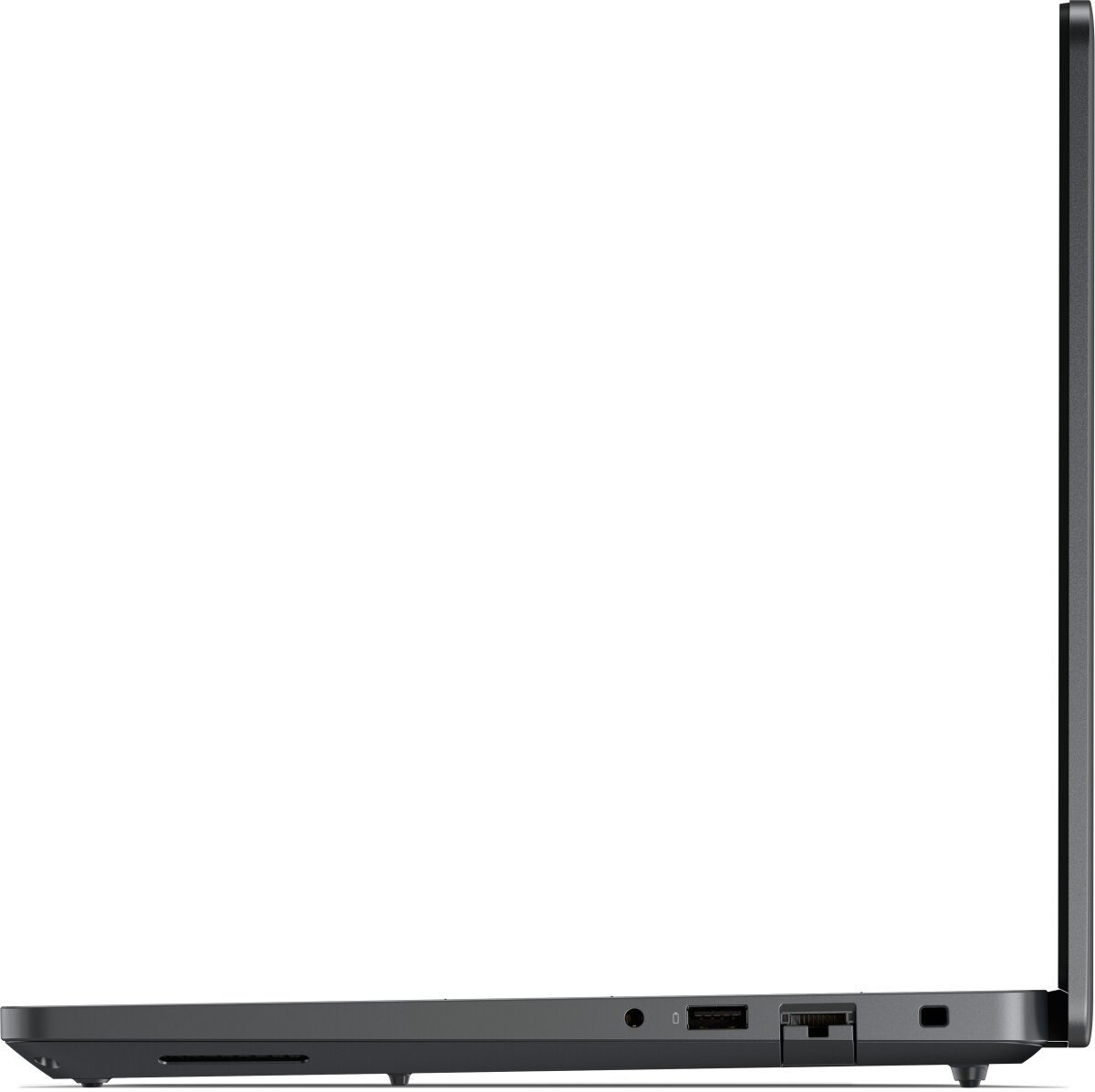

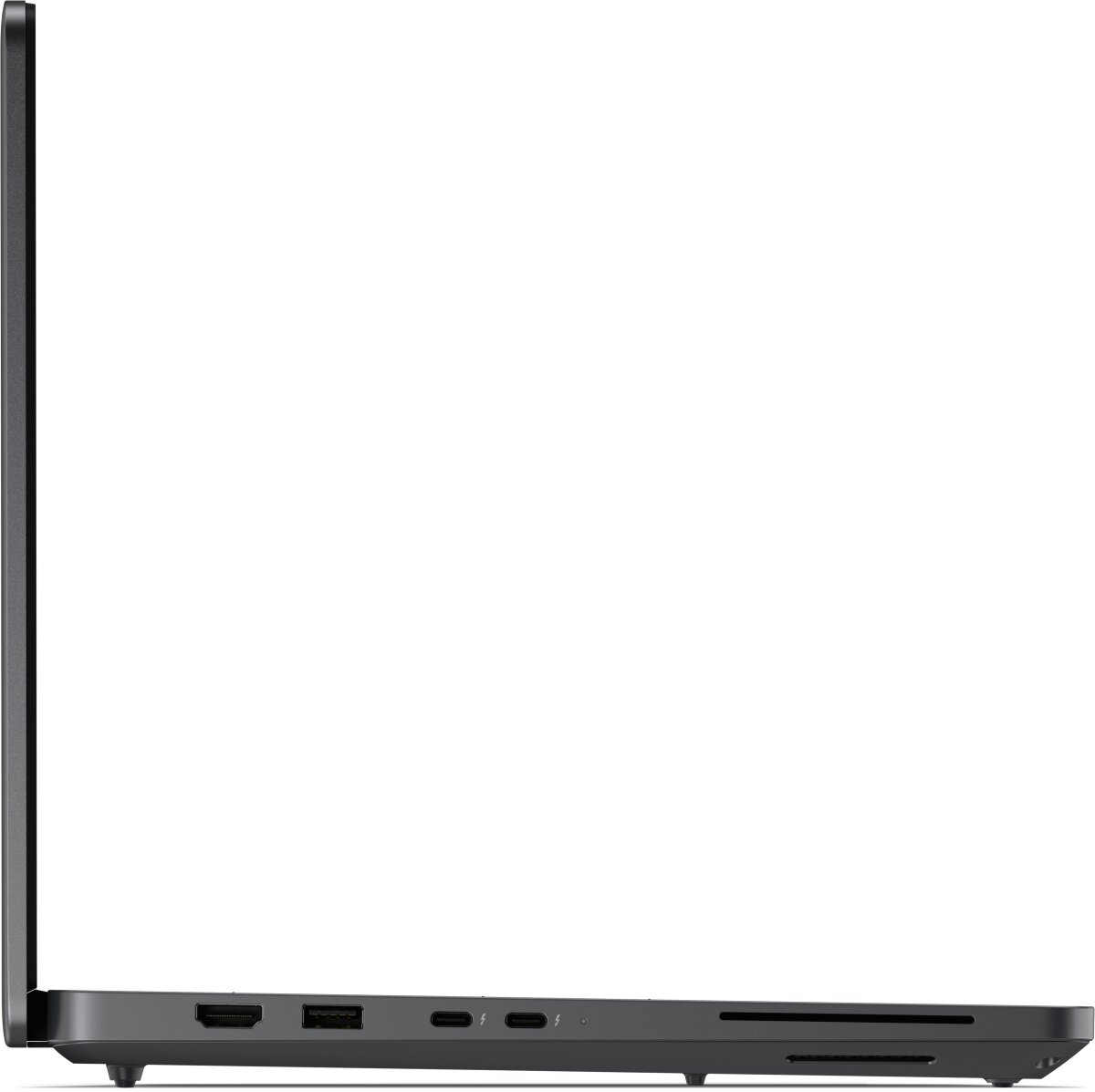

| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| PowerShare | Yes |
| HDMI version | 2.1 |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| USB Power Delivery (USB PD) | Yes |
| Audio | |
| Built-in microphone | Yes |
| Number of built-in speakers | 2 |
| Speaker power | 5 W |
| Audio chip | Realtek ALC3333 |
| Number of microphones | 2 |
| Camera | |
| Front camera | Yes |
| Infrared (IR) camera | Yes |
| Front camera HD type | Quad HD |
| Video capturing speed | 30 fps |
| Front camera resolution | 2560 x 1440 pixels |
| Front camera resolution (numeric) | 8.29 MP |

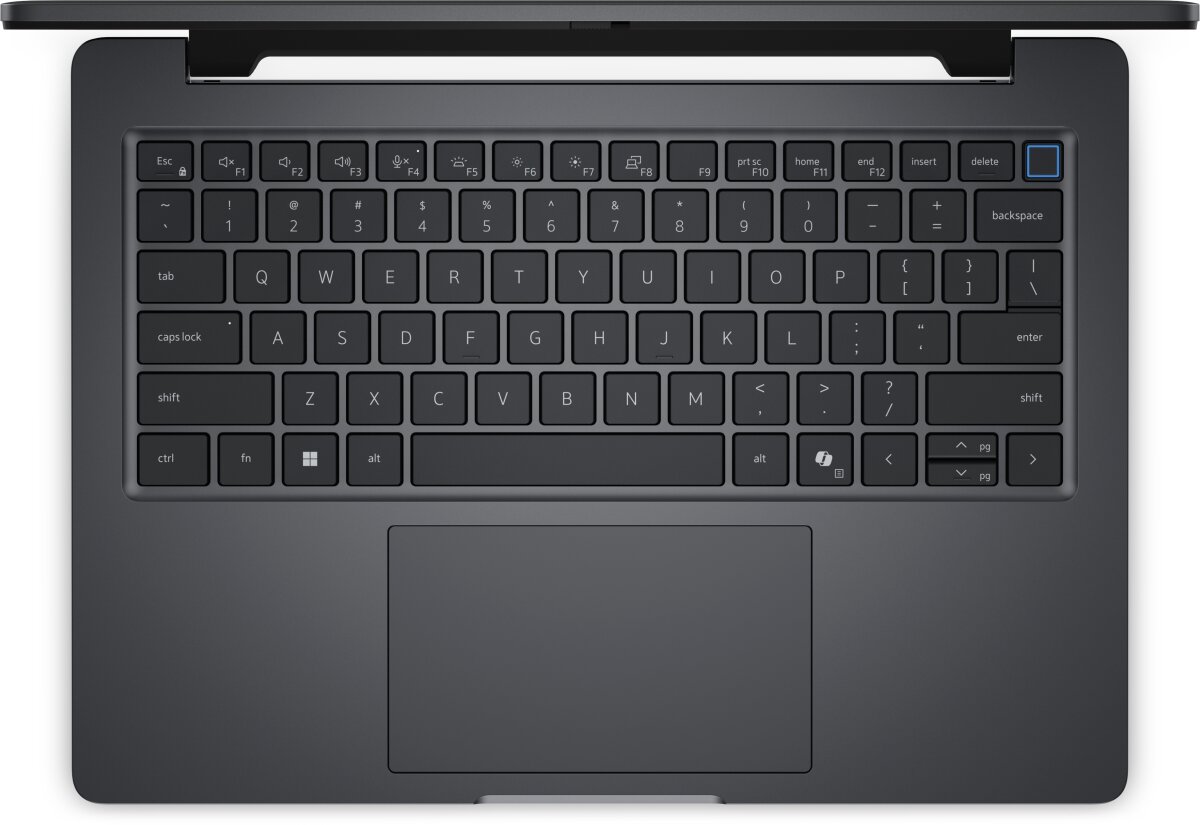

| Keyboard | |
| Numeric keypad | No |
| Keyboard backlit | Yes |
| Pointing device | Touchpad |
| Keyboard language | Swiss |
| Copilot key | Yes |
| Software | |
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Trial software | Activate Your Microsoft 365 For A 30 Day Trial |
| Copilot+ PC | Yes |
| Battery | |
| Battery technology | Lithium Polymer (LiPo) |
| Battery weight | 270 g |
| Battery recharge time | 3 h |
| Number of battery cells | 4 |
| Battery capacity | 72 Wh |
| Battery voltage | 15.6 V |
| Fast charging | Yes |
| Weight & dimensions | |
| Weight | 1.81 kg |
| Height (rear) | 1.83 cm |
| Height (front) | 1.4 cm |
| Depth | 227.3 mm |
| Width | 313 mm |
| Power | |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| USB charging voltage | 5, 9, 15, 20 V |
| USB charging current | 3.25 A |
| USB Type-C charging port | Yes |
| USB Type-C required charging power (min) | 45 W |
| USB Type-C required charging power (max) | 100 W |
| Security | |
| Cable lock slot | Yes |
| Smart card reader | Yes |
| Cable lock slot type | Wedge |
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Brand-specific features | |
| Brand specific technologies | Express Charge Boost capable, HDR Camera, TNR, Presence Detection, Control Vault 3+ |
| Other features | |
| Anti-glare screen | Yes |
| Neural processor unit (NPU) | |
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | OpenVINO, Windows ML, ONNX RT, WebNN |
| NPU performance up to | 50 TOPs |
| GPU performance up to | 40 TOPs |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
