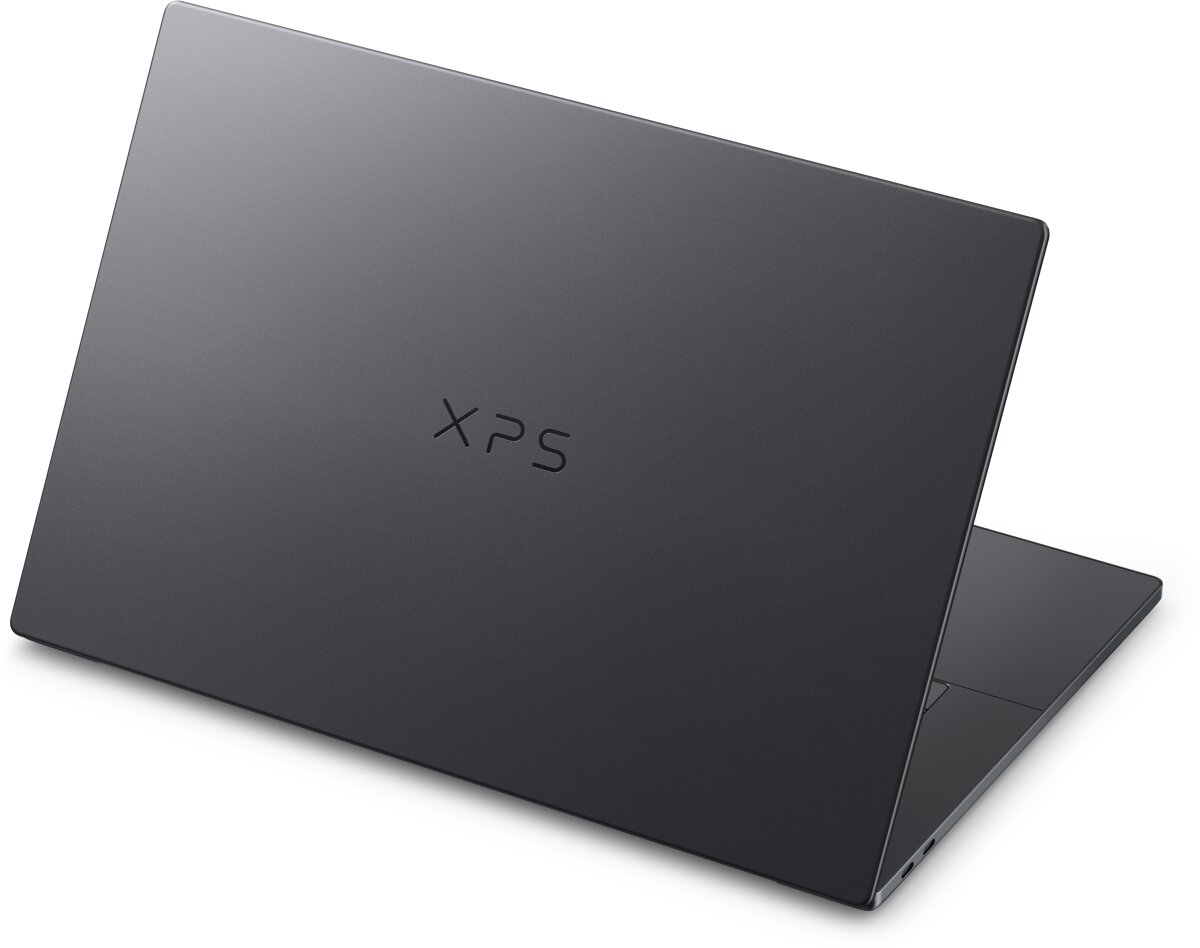

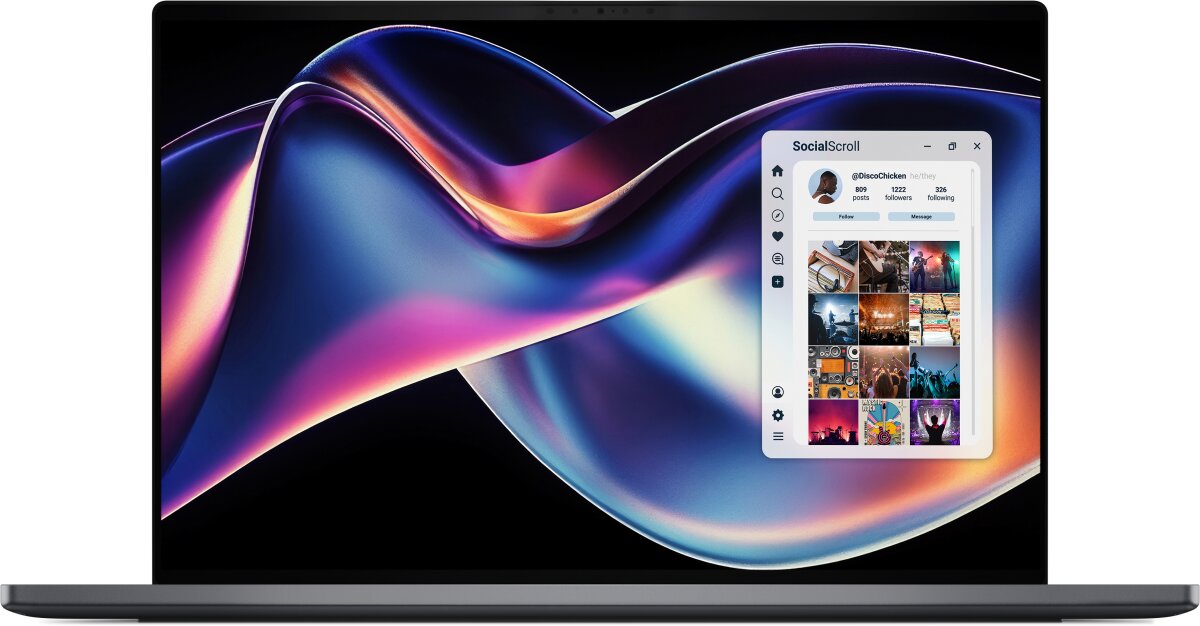

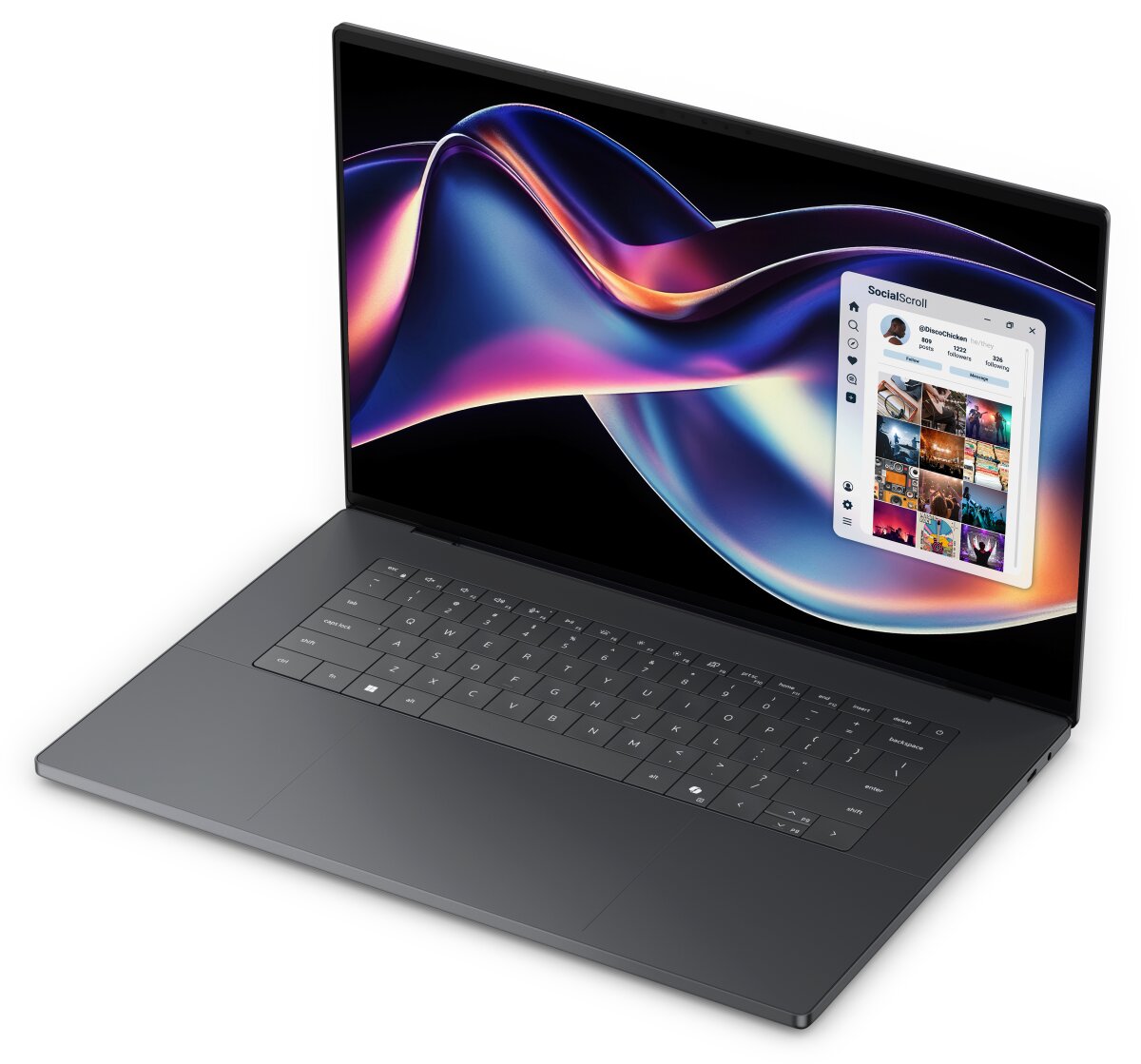

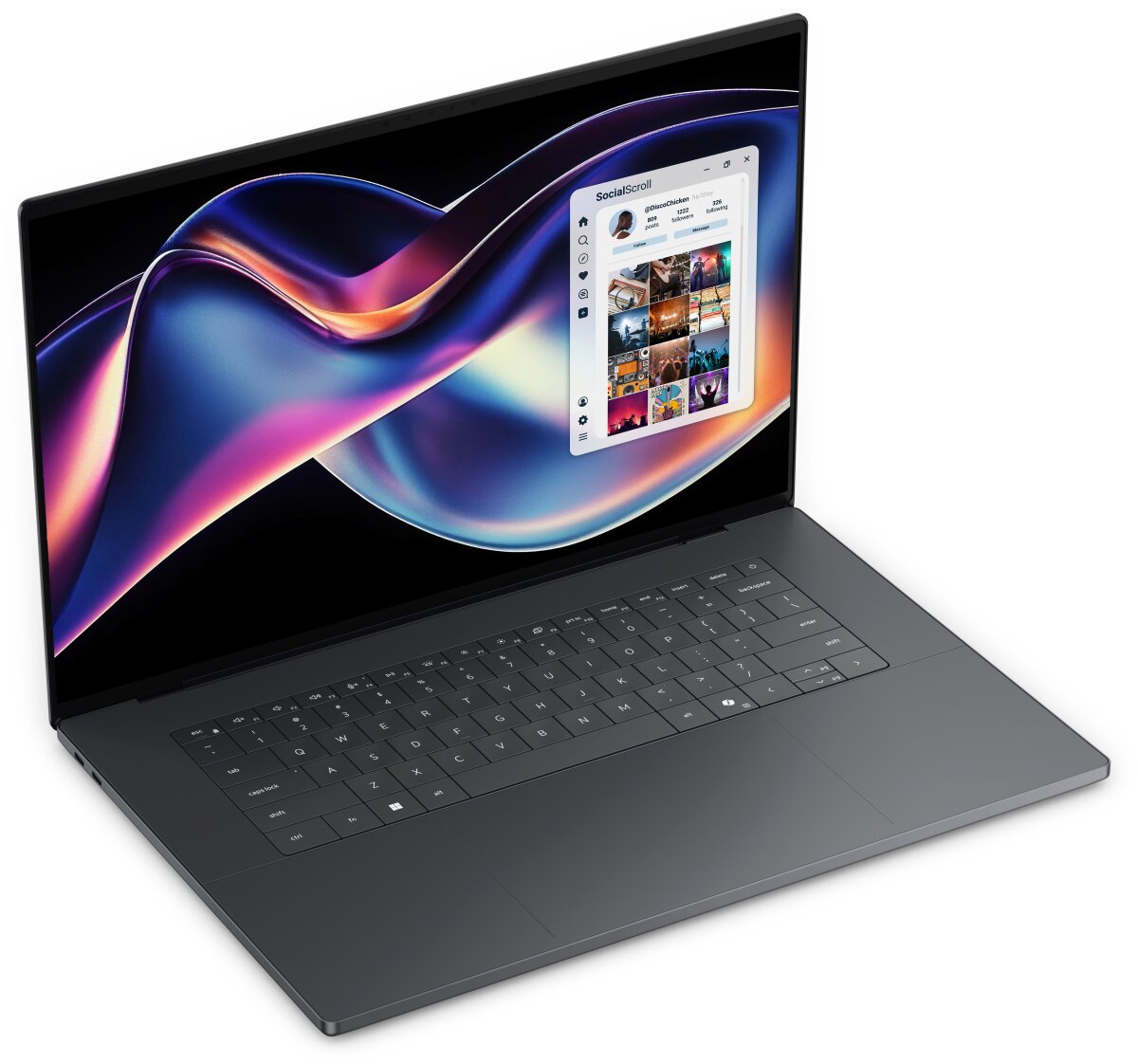

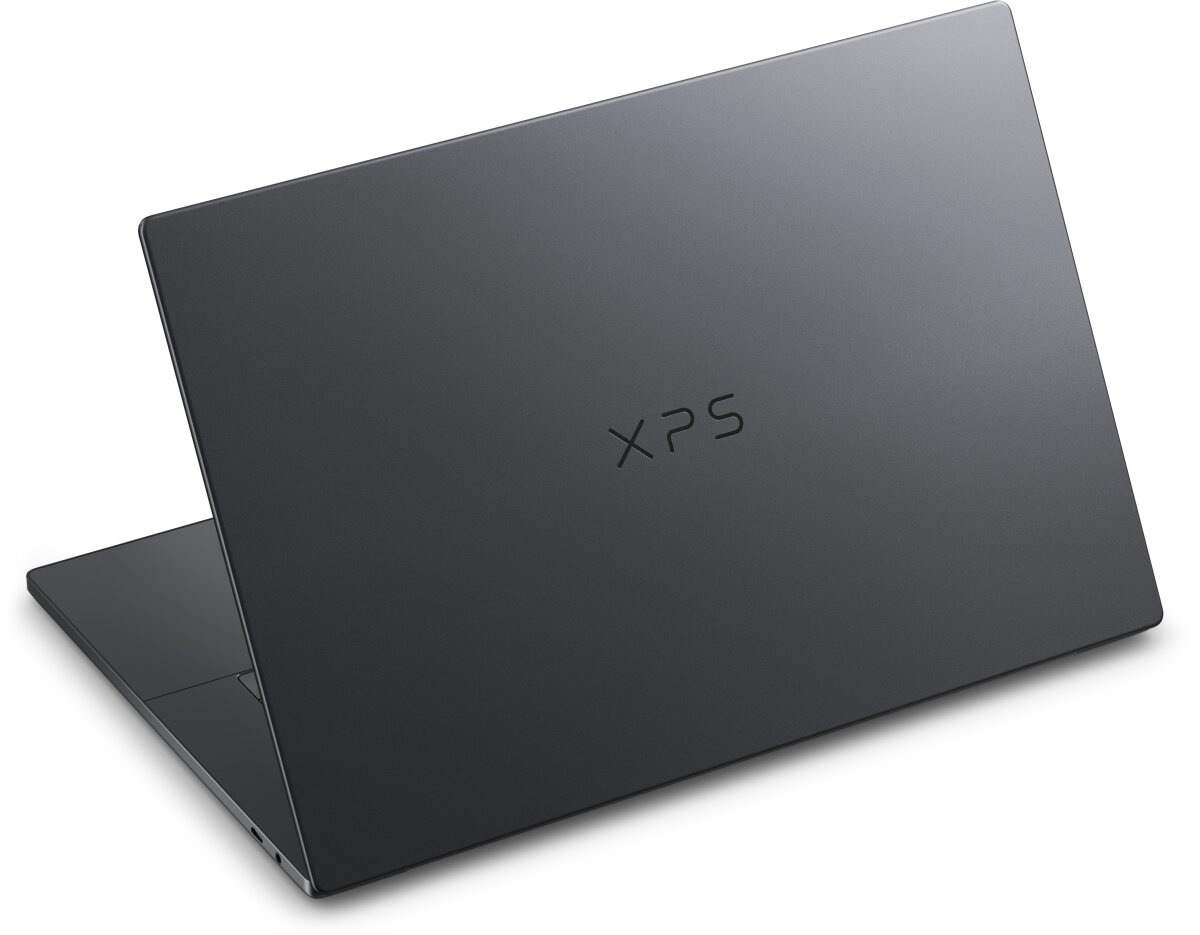

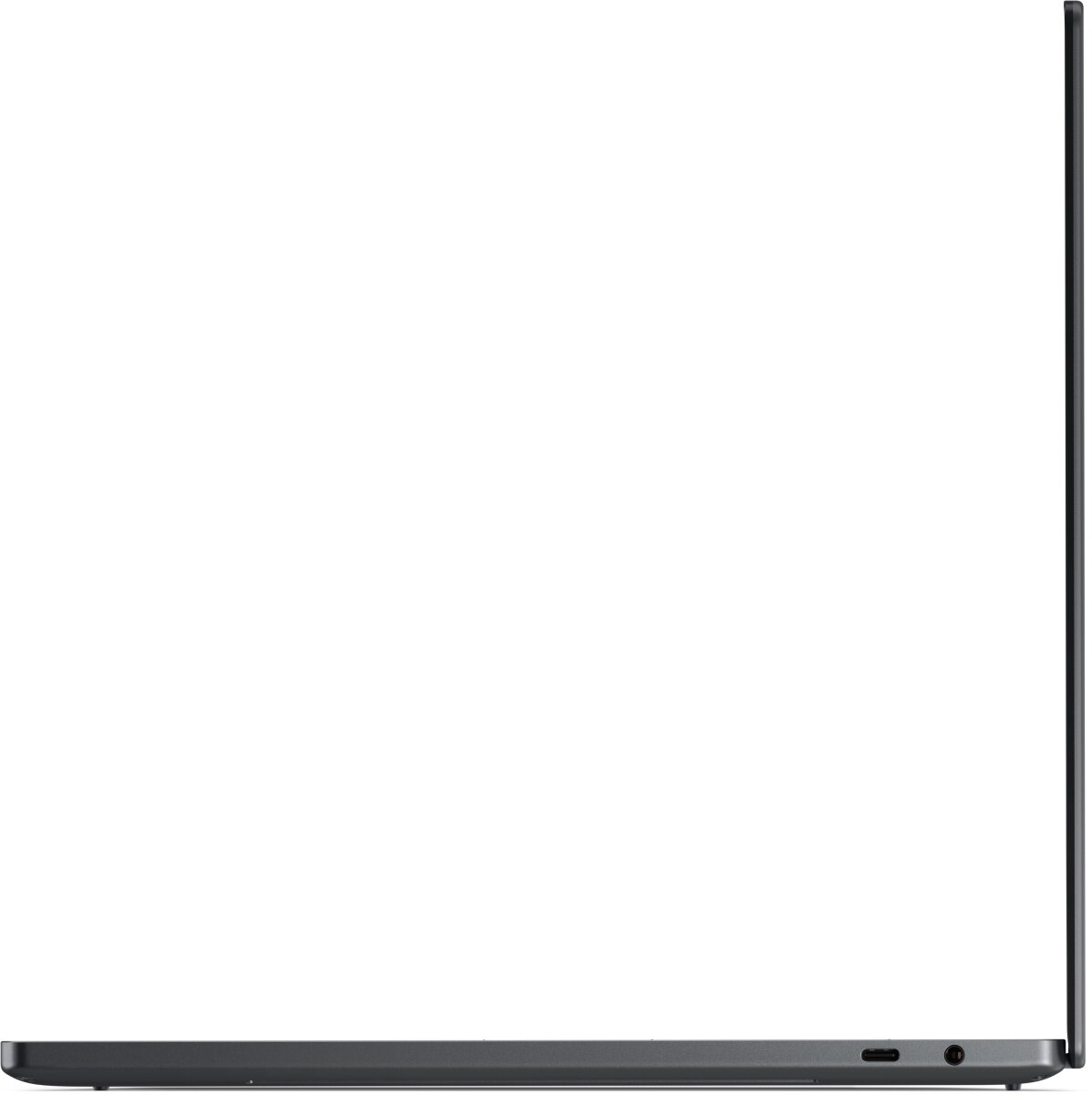

DELL XPS DA16260 - 945YK
DELL XPS DA16260
Product code: 945YK
- 💻Display diagonal: 16 inch
- 🔳Processor model: 388H
- 🎫Internal memory: 32 GB
- 🎮On-board graphics adapter model:
- 🎮Discrete graphics adapter model:
- 💽Total storage capacity: 1 TB
- ⚖️Weight: 1.65 kg
📊 Add to compare
Specifications
| Design | |
|---|---|
| Product colour | Graphite |
| Product type | Laptop |
| Form factor | Clamshell |
| Housing material | Aluminium |
| Display | |
| Display diagonal | 16 inch |
| Maximum refresh rate | 120 Hz |
| Display glass type | Gorilla Glass |
| Pixel density | 235.8 ppi |
| Contrast ratio (typical) | 1000000:1 |
| Display brightness | 400 cd/m² |
| Panel type | OLED |
| HD type | 3.2K |
| Touchscreen | Yes |
| Display resolution | 3200 x 2000 pixels |
| Low Blue Light technology | Yes |
| Anti-smudge coating | Yes |
| RGB colour space | DCI-P3 |
| Colour gamut | 100% |
| Anti-reflective coating | Yes |
| Brand | DELL |
| Family | XPS |
| Series | 16 |
| Model name | DA16260 |
| Part Number | 945YK |
| EAN/UPC code | 5397184973653 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra X9 |
| Processor boost frequency | 5.1 GHz |
| Processor model | 388H |
| Processor cores | 16 |
| Processor threads | 16 |
| Processor cache | 18 MB |
| Processor socket | FCBGA2540 |
| Processor generation | Intel Core Ultra (Series 3) |
| Efficient-core base frequency | 1.6 GHz |
| Efficient cores | 8 |
| Performance cores | 4 |
| Performance-core Max Turbo Frequency | 5.1 GHz |
| Efficient-core Max Turbo Frequency | 3.8 GHz |
| Maximum turbo power | 80 W |
| Processor base power | 25 W |
| Performance-core base frequency | 2.1 GHz |
| Low Power Efficient-cores | 4 |
| Low Power Efficient-core Max Turbo Frequency | 3.7 GHz |
| Low Power Efficient-core Base Frequency | 1600 MHz |
| Memory | |
| Internal memory type | LPDDR5x-SDRAM |
| Internal memory | 32 GB |
| Memory form factor | On-board |
| Maximum internal memory | 32 GB |
| Memory channels | Dual-channel |
| Memory data transfer rate | 9600 MT/s |
| Graphics | |
| On-board GPU manufacturer | Intel |
| Ray tracing acceleration | Yes |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Arc B390 |
| On-board graphics card family | Intel Arc Graphics |
| Storage | |
| Total storage capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| Total SSDs capacity | 1 TB |
| SSD form factor | M.2 |
| Storage media | SSD |
| NVMe | Yes |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| WLAN controller model | Intel Wi-Fi 7 BE211 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Wi-Fi data rate (max) | 5000 Mbit/s |
| Antenna type | 2x2 |
| Bluetooth | Yes |

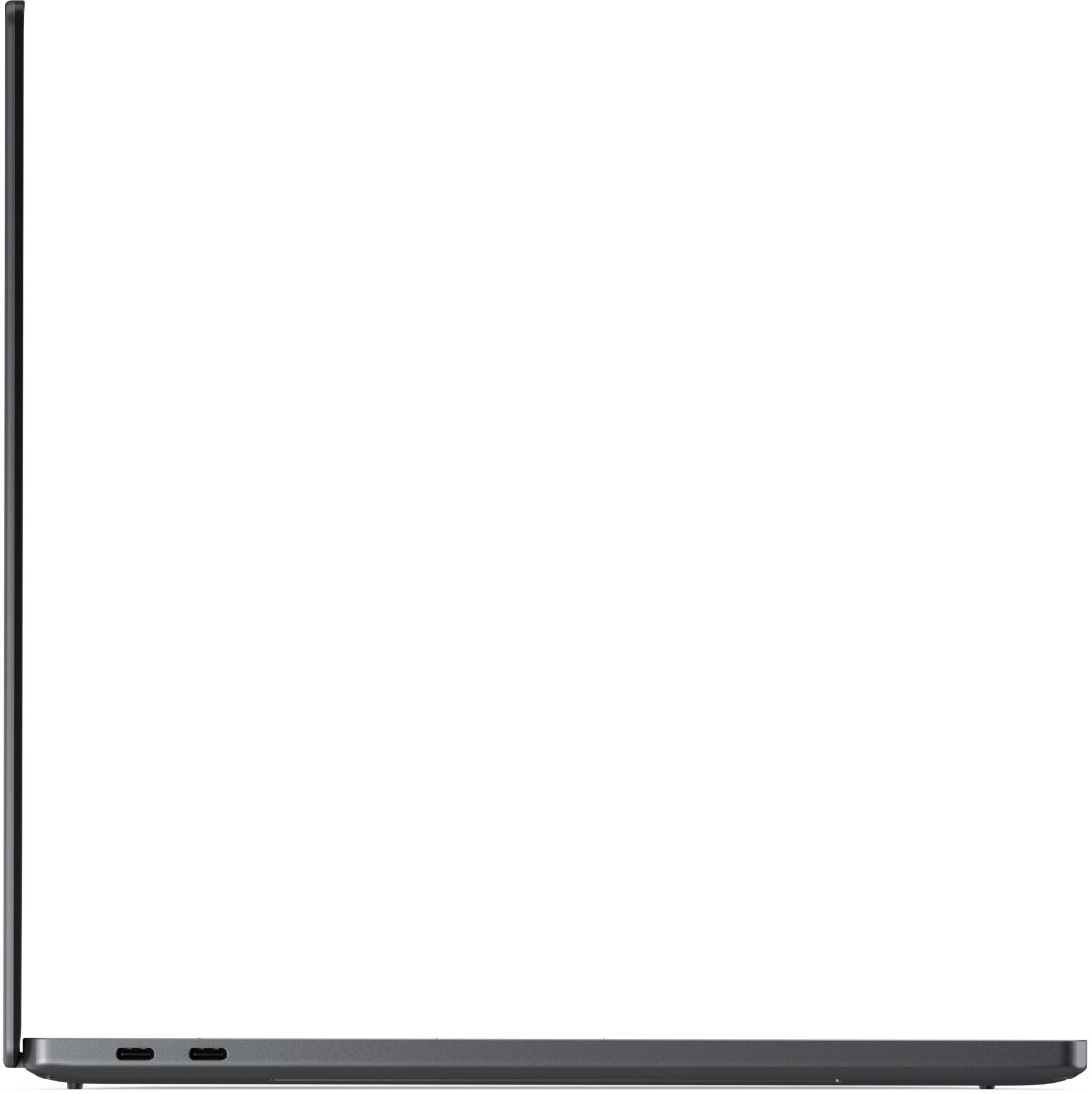

| Ports & interfaces | |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Power Delivery (USB PD) | Yes |
| Thunderbolt 4 ports quantity | 3 |
| Intel® Thunderbolt 4 | Yes |
| Audio | |
| Built-in microphone | Yes |
| Number of built-in speakers | 4 |
| Audio system | MaxxAudio |
| Audio chip | Cirrus Logic CS42L45 |
| Speakers manufacturer | Waves |
| Number of microphones | 2 |
| Camera | |
| Front camera | Yes |
| Windows Hello | Yes |
| Infrared (IR) camera | Yes |
| Front camera HD type | Ultra HD |
| Video capturing speed | 30 fps |
| Front camera resolution | 3840 x 2160 pixels |
| Front camera resolution (numeric) | 8 MP |

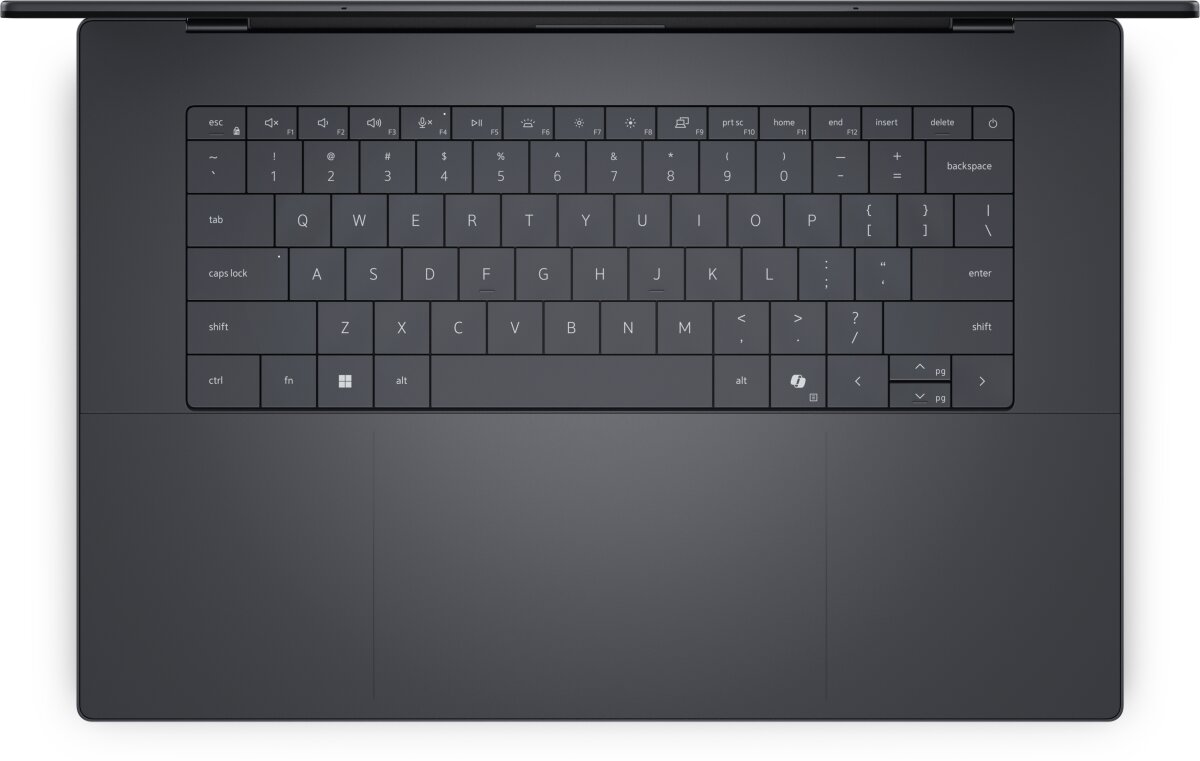

| Keyboard | |
| Numeric keypad | No |
| Keyboard backlit | Yes |
| Pointing device | Touchpad |
| Software | |
| Operating system installed | Windows 11 Home |
| Operating system architecture | 64-bit |

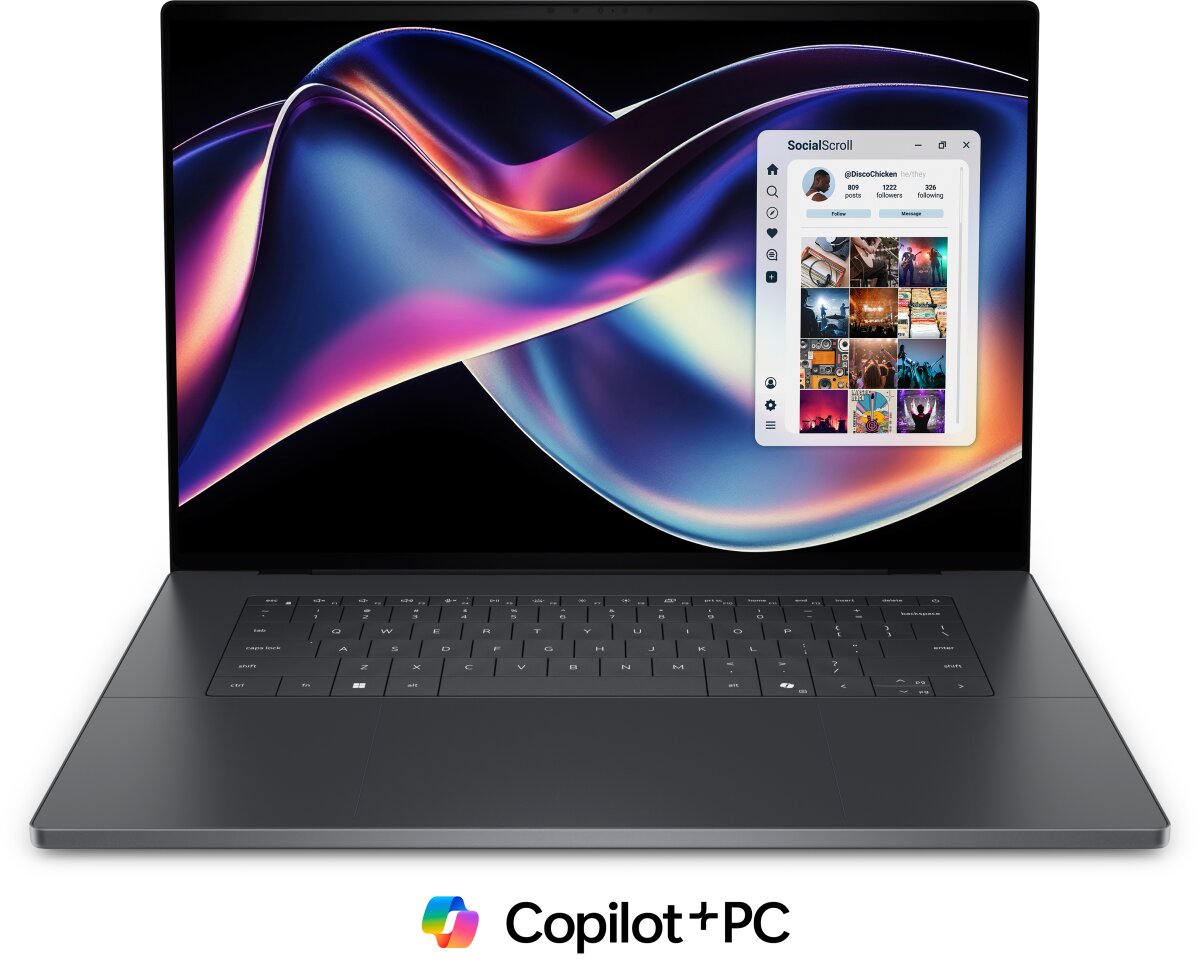

| Copilot+ PC | Yes |
| Battery | |
| Battery technology | Lithium Polymer (LiPo) |
| Battery weight | 252 g |
| Number of battery cells | 3 |
| Battery capacity | 70 Wh |
| Battery voltage | 11.49 V |
| Fast charging | Yes |
| Weight & dimensions | |
| Weight | 1.65 kg |
| Height | 14.6 mm |
| Depth | 237.5 mm |
| Width | 352.6 mm |
| Power | |
| AC adapter power | 100 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| USB Type-C charging port | Yes |
| USB Type-C required charging power (min) | 45 W |
| USB Type-C required charging power (max) | 93 W |
| Security | |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Sustainability | |
| Doesn't contain | PVC/BFR |
| Neural processor unit (NPU) | |
| GPU performance up to | 122 TOPs |
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | OpenVINO, Windows ML, ONNX RT, WebNN |
| NPU performance up to | 50 TOPs |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
