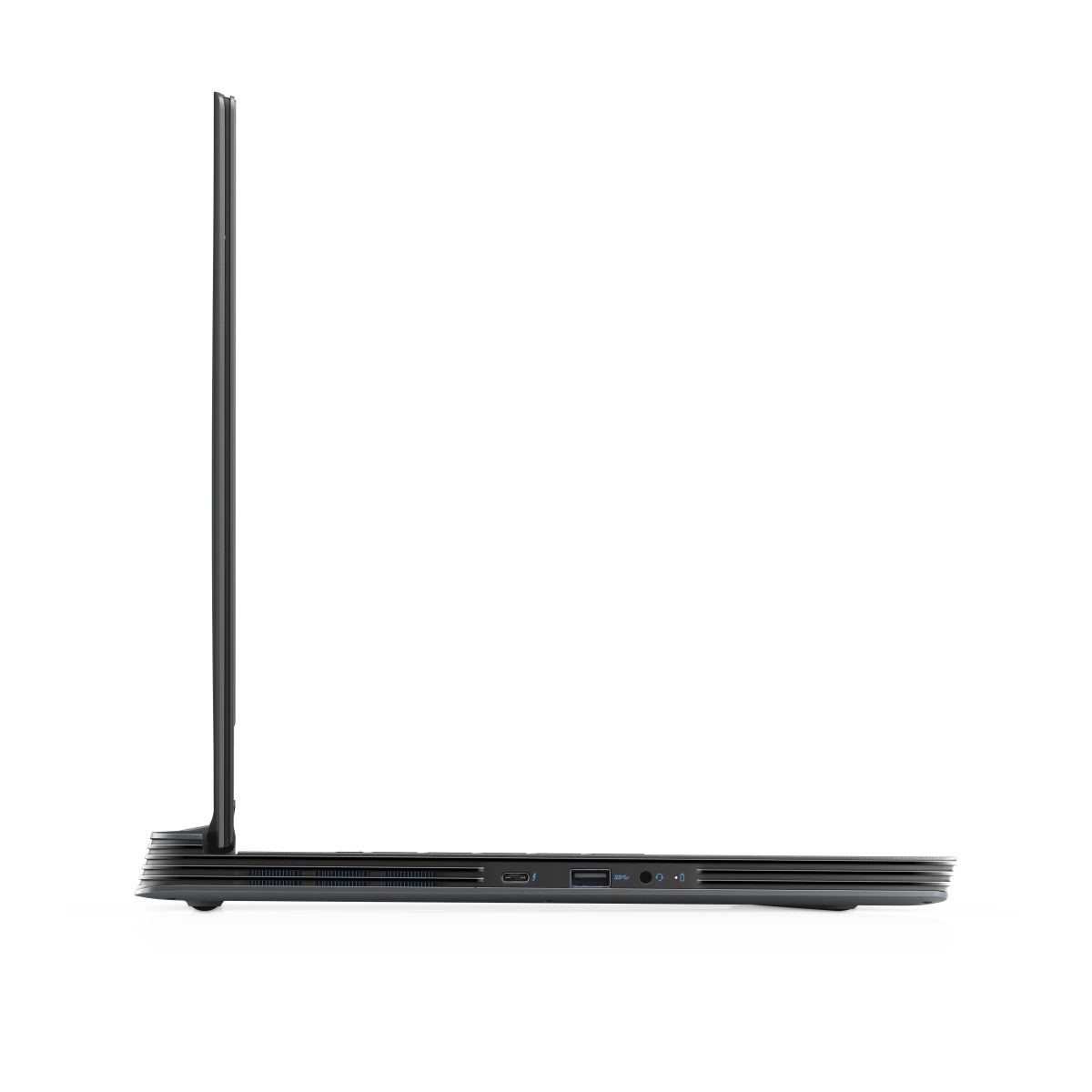

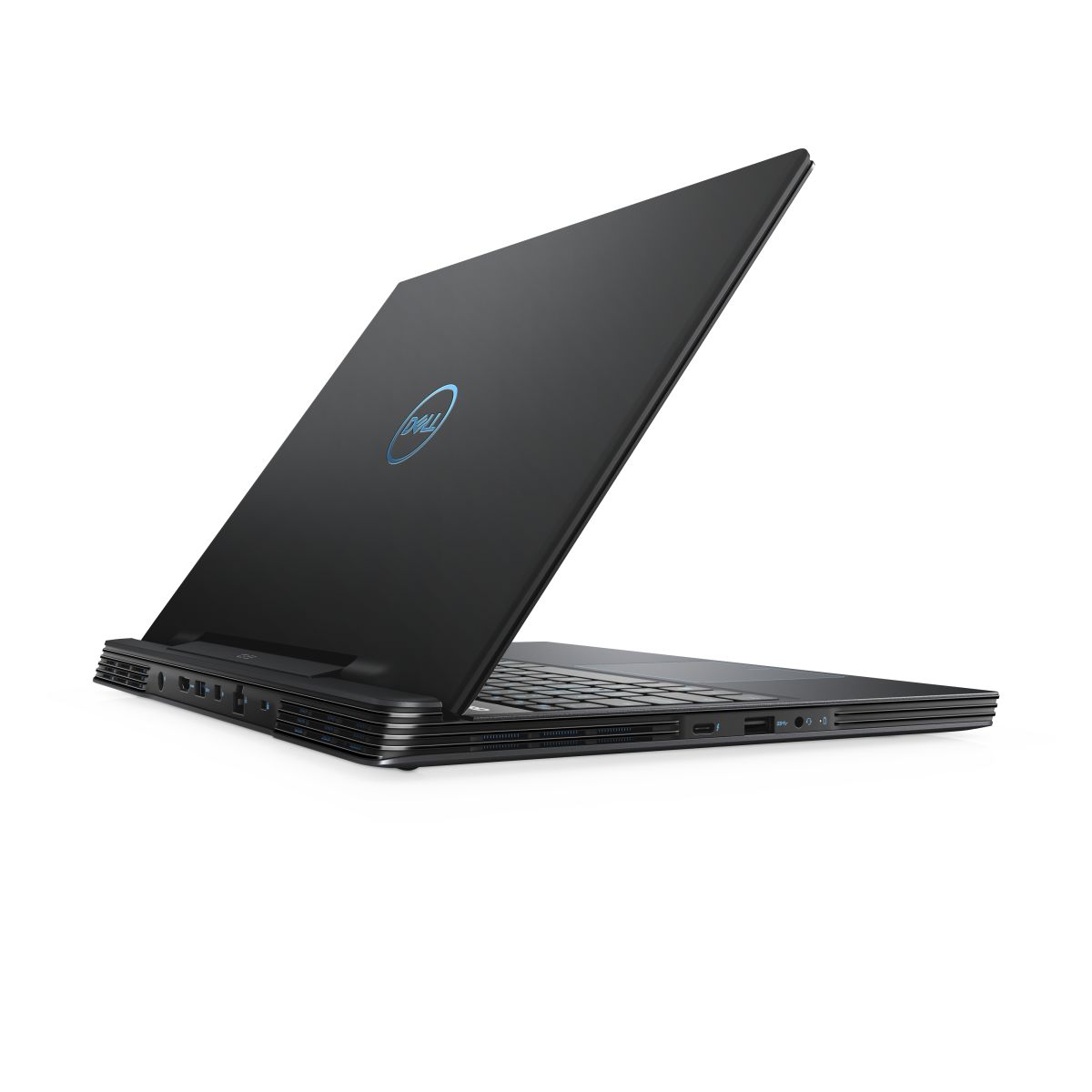

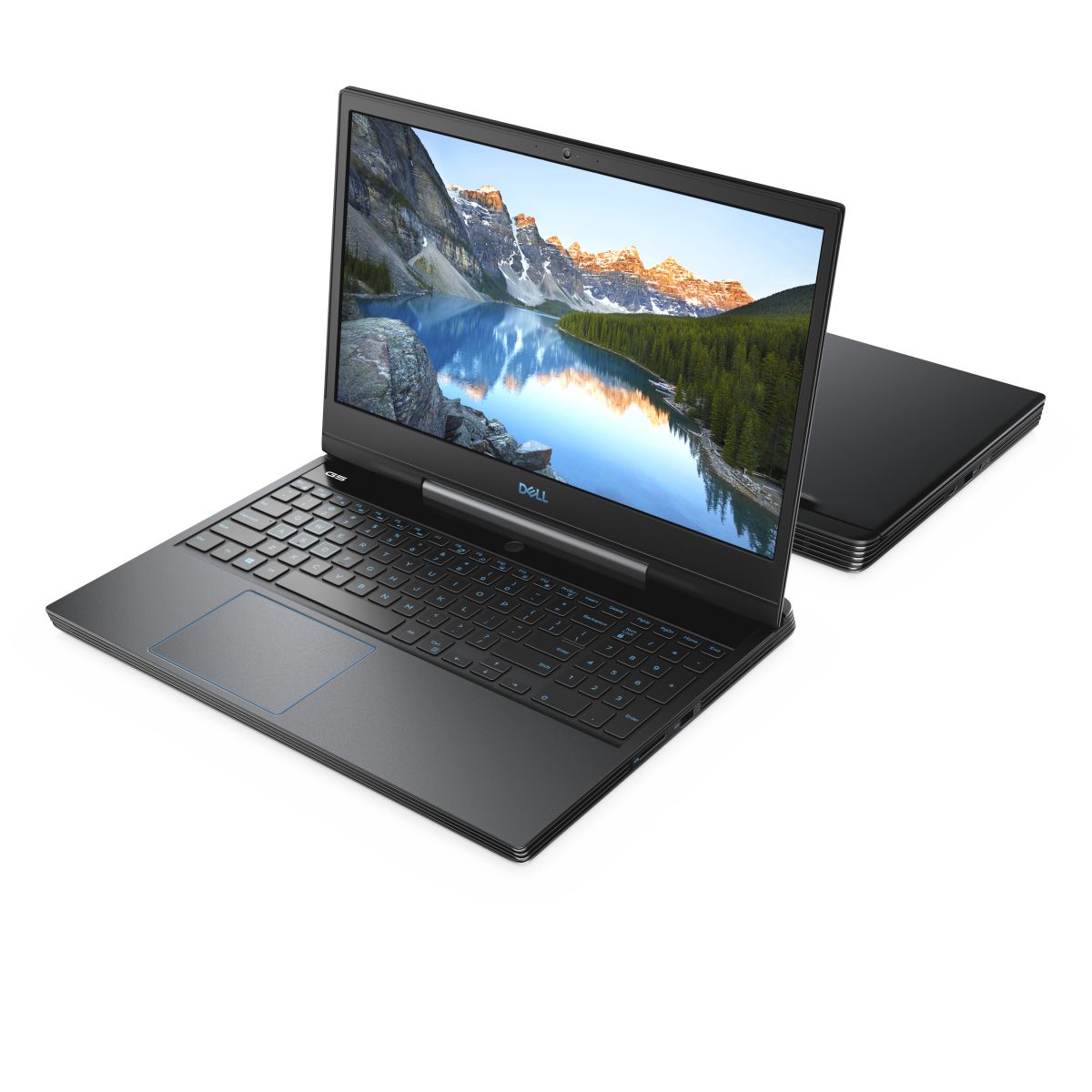

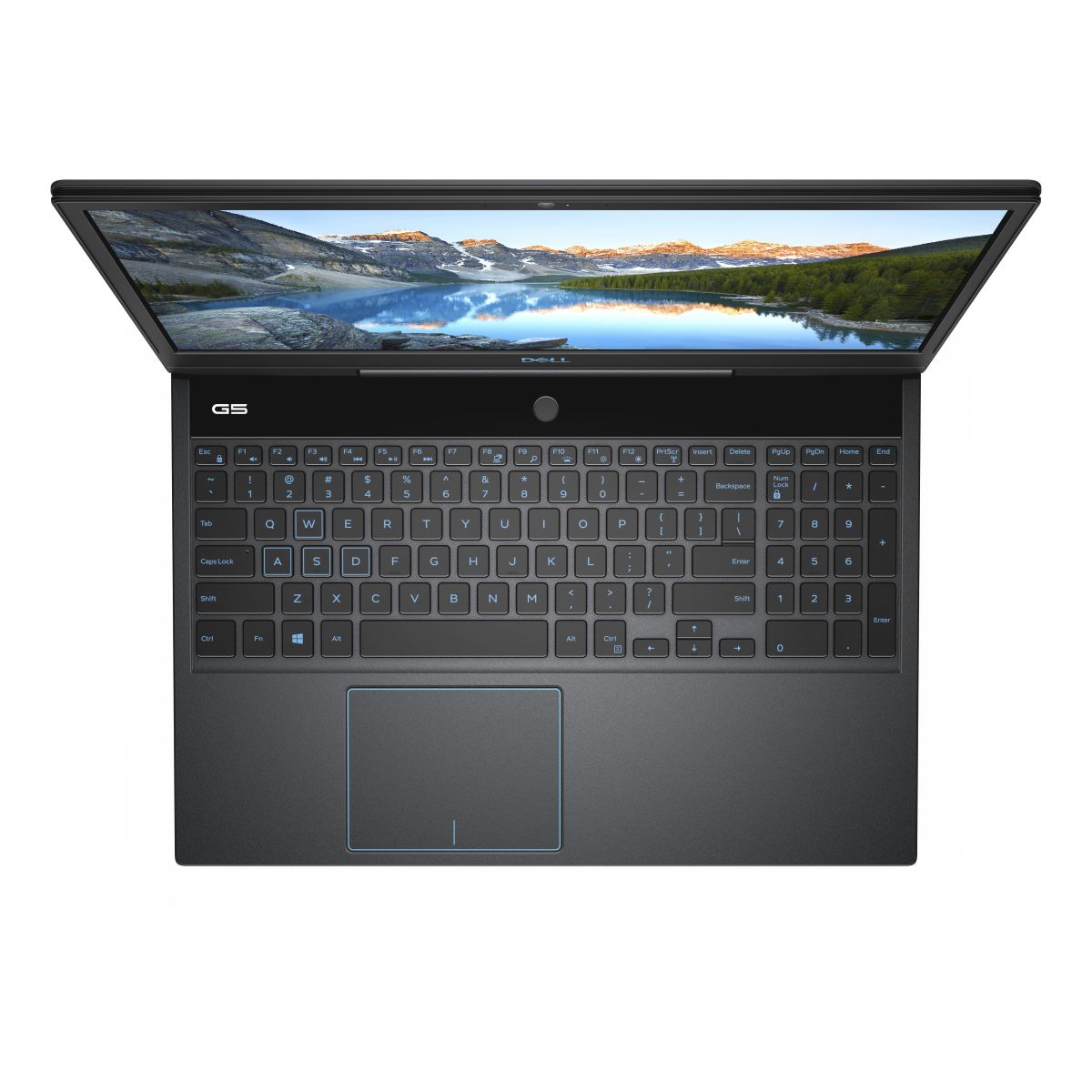

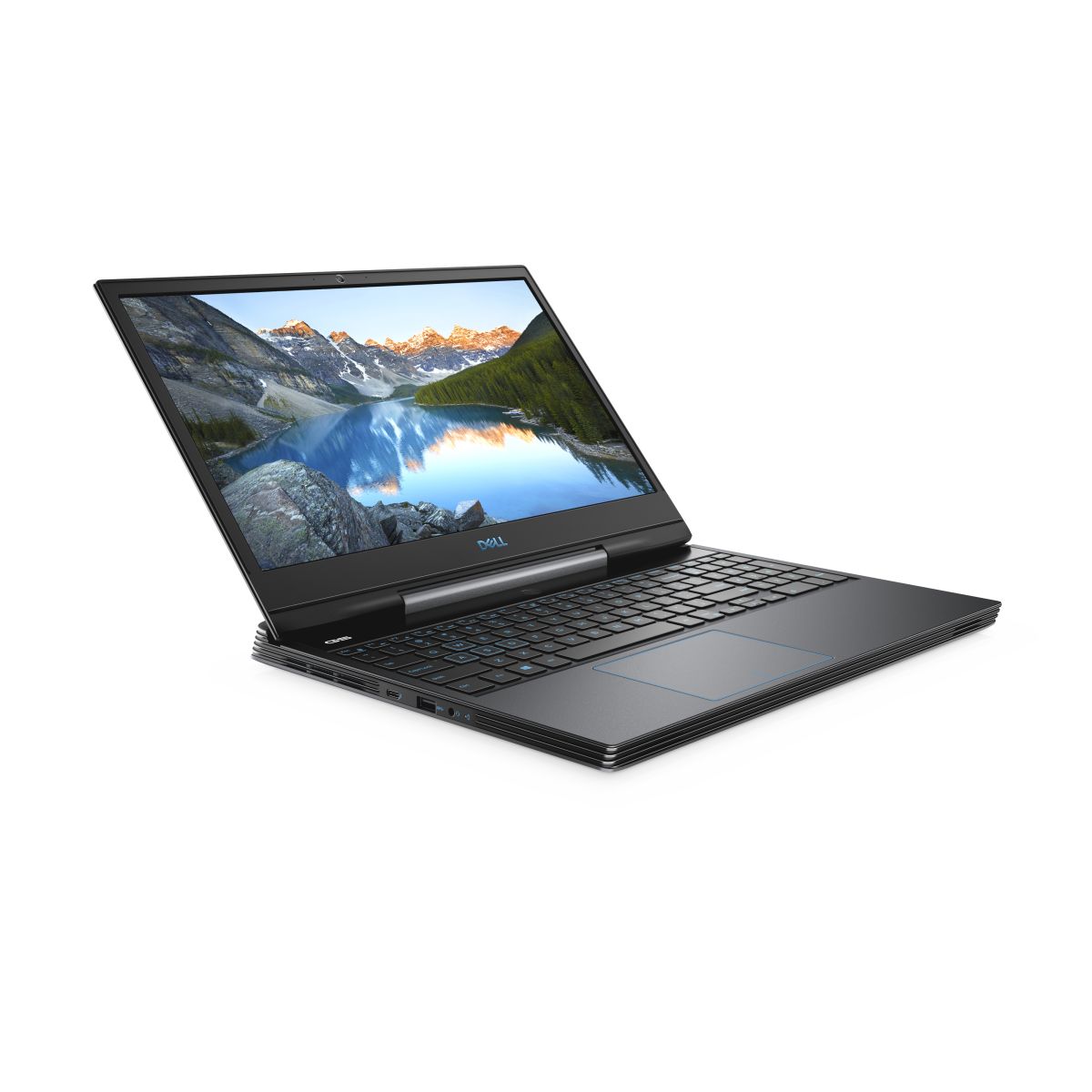

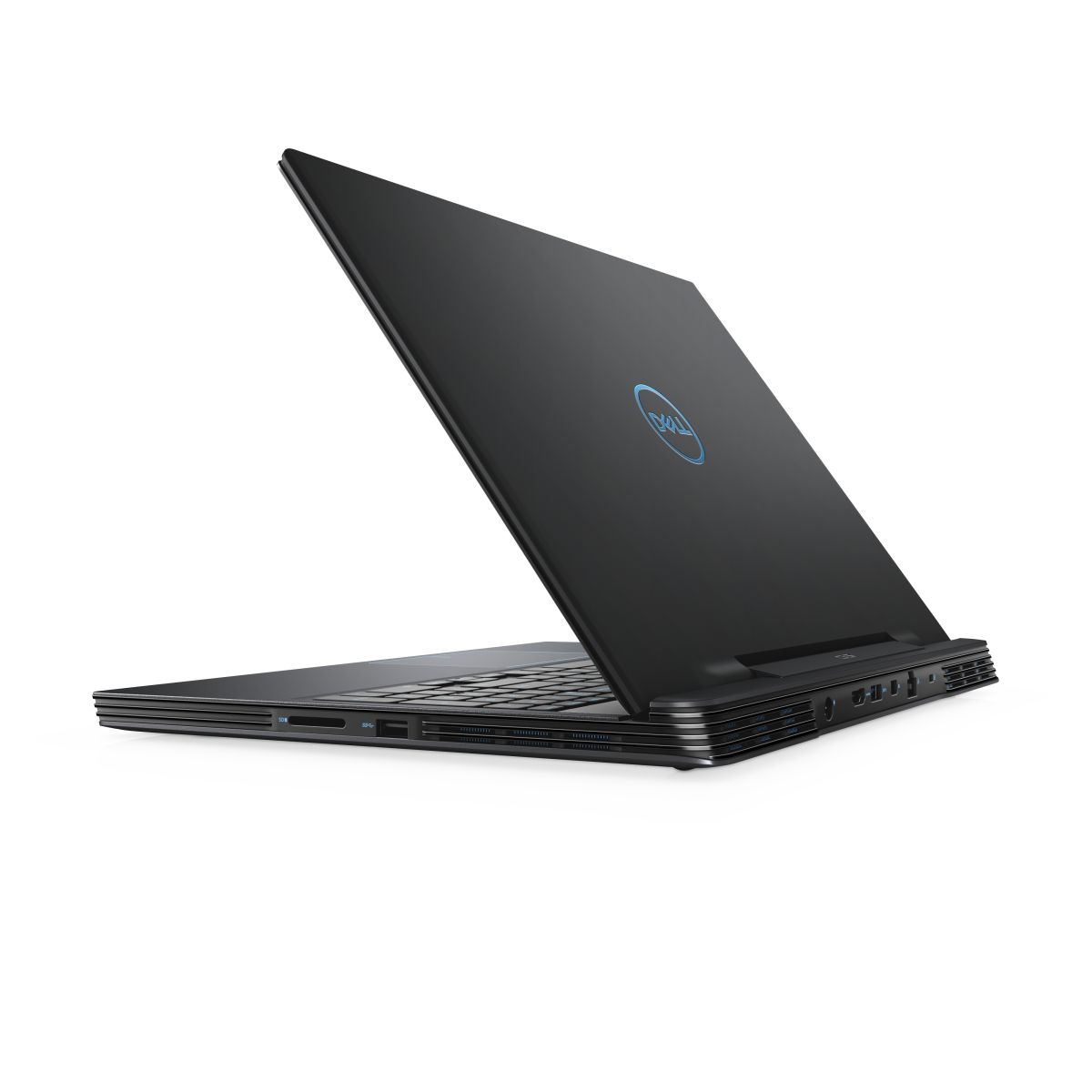

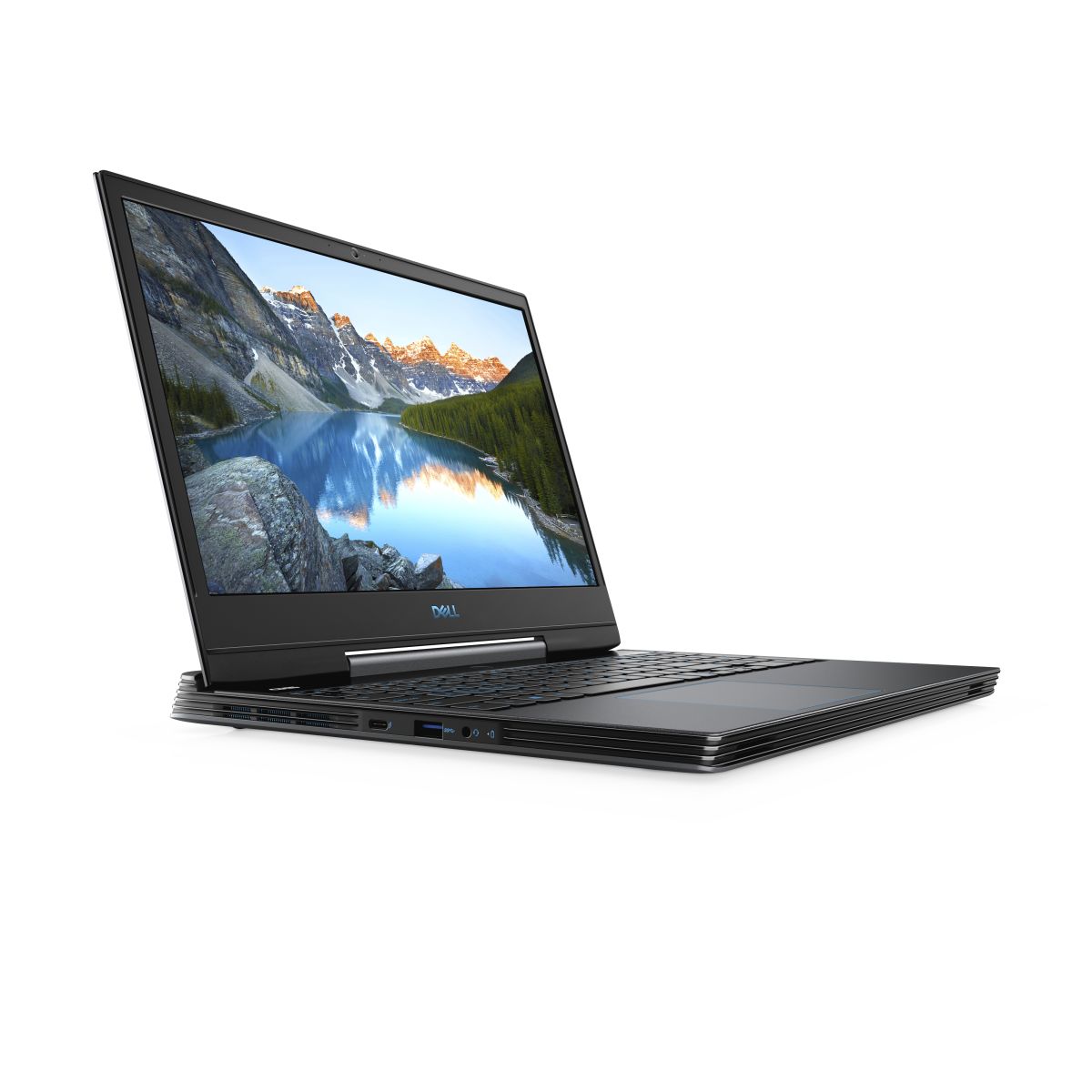

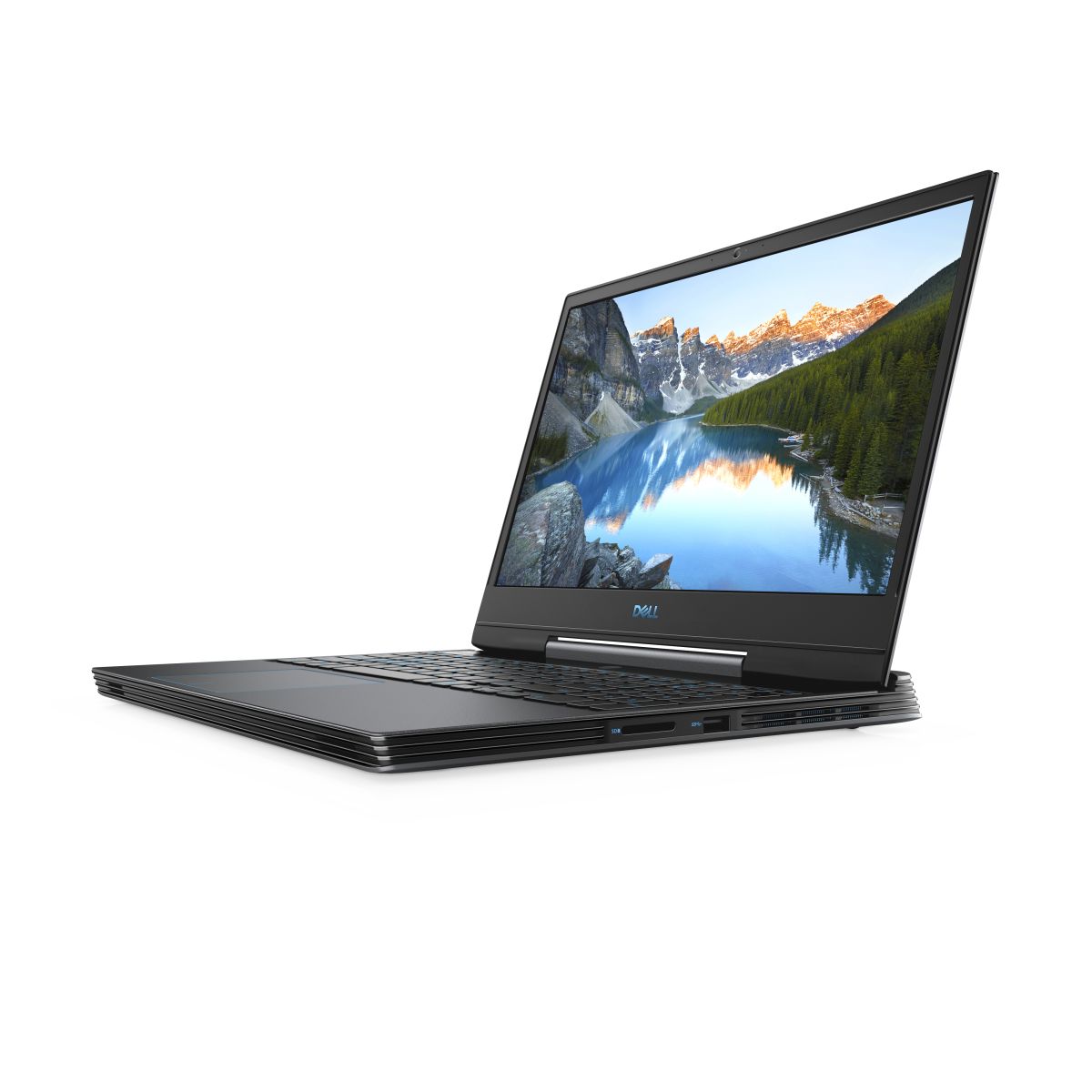

DELL G5 5590 - 5590-4940
DELL G5 5590
Product code: 5590-4940
- 💻Display diagonal: 15.6 inch
- 🔳Processor model: i7-9750H
- 🎫Internal memory: 16 GB
- 🎮On-board graphics adapter model: Intel UHD Graphics 630
- 🎮Discrete graphics adapter model: NVIDIA GeForce RTX 2070 Max-Q
- 💽Total storage capacity: 1.51 TB
- ⚖️Weight: 2.84 kg
📊 Add to compare
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Product type | Laptop |
| Form factor | Clamshell |
| Market positioning | Gaming |
| Display | |
| Display diagonal | 15.6 inch |
| Dual-screen | No |
| Maximum refresh rate | 144 Hz |
| Pixel density | 141 ppi |
| Pixel pitch | 0.179 x 0.179 mm |
| Display brightness | 300 cd/m² |
| Panel type | IPS |
| Aspect ratio | 16:9 |
| HD type | Full HD |
| LED backlight | Yes |
| Touchscreen | No |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Brand | DELL |
| Family | G5 |
| Model name | 5590 |
| Part Number | 5590-4940 |
| Release Date | 03 July 2019 |
| EAN/UPC code | 5397184284940 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Processor frequency | 2.6 GHz |
| Processor boost frequency | 4.5 GHz |
| Processor codename | Coffee Lake |
| Thermal Design Power (TDP) | 45 W |
| Processor model | i7-9750H |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor cache | 12 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA 1440 |
| Processor generation | 9th gen Intel Core i7 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | SO-DIMM |
| Memory clock speed | 2666 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 32 GB |
| Memory layout (slots x size) | 2 x 8 GB |
| Maximum internal memory (64-bit) | 32 GB |
| Graphics | |
| On-board graphics adapter | Y |
| Number of discrete graphics adapters installed | 1 |
| CUDA | Yes |
| Discrete graphics memory type | GDDR6 |
| Discrete graphics adapter | Y |
| On-board graphics adapter model | Intel UHD Graphics 630 |
| Discrete graphics adapter model | NVIDIA GeForce RTX 2070 Max-Q |
| Discrete graphics adapter memory | 8 GB |
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA GeForce RTX 2070 Max-Q |
| On-board graphics card model | Intel UHD Graphics 630 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3E9B |
| Discrete graphics card memory | 8 GB |
| Number of discrete graphics cards installed | 1 |
| Storage | |
| Total storage capacity | 1.51 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Total SSDs capacity | 512 GB |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| HDD speed | 5400 RPM |
| HDD size | 2.5" |
| SSD interface | PCI Express |
| Total HDDs capacity | 1 TB |
| Compatible memory cards | SD, SDHC, SDXC |
| Card reader integrated | Yes |
| Storage media | HDD+SSD |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| PowerShare | Yes |
| Number of USB ports with PowerShare support | 1 |
| Charging port type | DC-in jack |
| HDMI version | 2.0b |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Thunderbolt 3 ports quantity | 1 |
| Mini DisplayPorts quantity | 1 |
| Audio | |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Audio chip | Realtek ALC3204-CG |
| Number of microphones | 1 |
| Camera | |
| Front camera | Yes |
| Front camera HD type | HD |
| Video capturing speed | 30 fps |
| Front camera resolution | 1280 x 720 pixels |
| Front camera signal format | 720p |
| Front camera resolution (numeric) | 0.92 MP |
| Keyboard | |
| Numeric keypad | Yes |
| Spill-resistant keyboard | Yes |
| Full-size keyboard | Yes |
| Keyboard layout | QWERTZ |
| Keyboard backlit | Yes |
| Windows keys | Yes |
| Pointing device | Touchpad |
| Keyboard language | German |
| Performance | |
| Virtual Reality (VR) ready | Yes |
| Software | |
| Operating system installed | Windows 10 Home |
| Operating system architecture | 64-bit |
| Bundled software | Financial Tracker & Retail Information |
| Battery | |
| Battery technology | Lithium Polymer (LiPo) |
| Battery weight | 250 g |
| Battery capacity (Watt-hours) | 60 Wh |
| Battery recharge time | 4 h |
| Number of battery cells | 4 |
| Battery capacity | 60 Wh |
| Battery voltage | 15.2 V |
| Weight & dimensions | |
| Weight | 2.84 kg |
| Height (rear) | 2.14 cm |
| Height (front) | 2.37 cm |
| Depth | 273.4 mm |
| Width | 364.3 mm |
| Power | |
| AC adapter power | 180 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 19.5 V |
| AC adapter output current | 9.23 A |
| Security | |
| Cable lock slot | Yes |
| Fingerprint reader | Yes |
| Password protection | Yes |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
