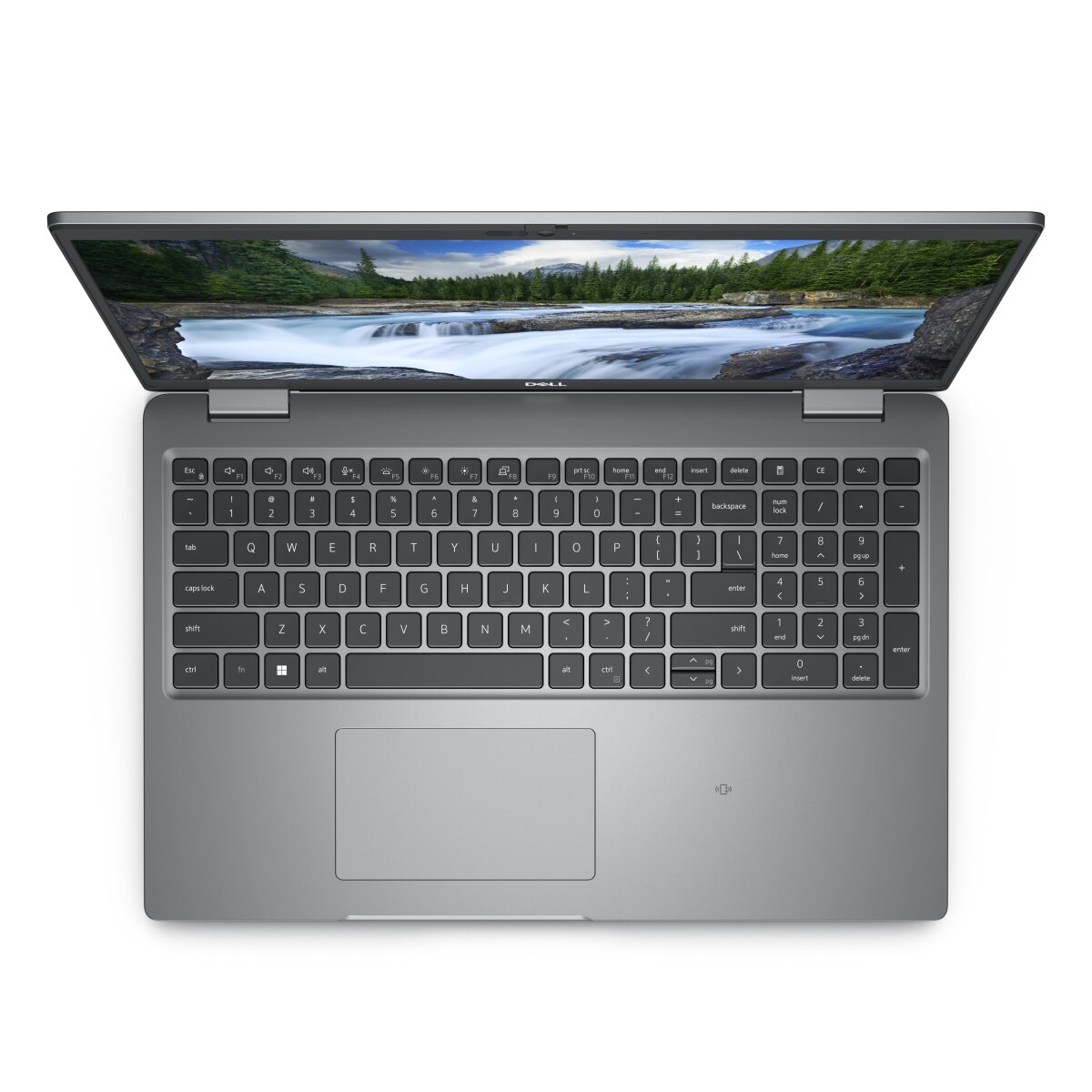

DELL Latitude 5540 - H8W39
DELL Latitude 5540
Product code: H8W39
- 💻Display diagonal: 15.6 inch
- 🔳Processor model: i5-1335U
- 🎫Internal memory: 16 GB
- 🎮On-board graphics adapter model:
- 🎮Discrete graphics adapter model:
- 💽Total storage capacity: 256 GB
- ⚖️Weight: 1.61 kg
📊 Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Grey |
| Product type | Laptop |
| Form factor | Clamshell |
| Display | |
| Display diagonal | 15.6 inch |
| Maximum refresh rate | 60 Hz |
| Display response rise/fall | 35 ms |
| Pixel density | 141 ppi |
| Contrast ratio (typical) | 700:1 |
| Pixel pitch | 0.179 x 0.179 mm |
| Display brightness | 250 cd/m² |
| Panel type | IPS |
| HD type | Full HD |
| LED backlight | Yes |
| Touchscreen | No |
| Display resolution | 1920 x 1080 pixels |
| RGB colour space | NTSC |
| Colour gamut | 45% |
| Native aspect ratio | 16:9 |
| Brand | DELL |
| Family | Latitude |
| Series | 5000 |
| Model name | 5540 |
| Part Number | H8W39 |
| Release Date | 11 May 2023 |
| EAN/UPC code | 5397184806036 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i5 |
| Processor boost frequency | 4.6 GHz |
| Processor model | i5-1335U |
| Processor cores | 10 |
| Processor threads | 12 |
| Processor cache | 12 MB |
| Processor generation | 13th gen Intel Core i5 |
| Maximum turbo power | 55 W |
| Processor base power | 15 W |
| Efficient-core boost frequency | 3.4 GHz |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | SO-DIMM |
| Memory clock speed | 3200 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 64 GB |
| Memory layout (slots x size) | 2 x 8 GB |
| Non-ECC | Yes |
| Graphics | |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Iris Xe Graphics |
| Storage | |
| Total storage capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| Total SSDs capacity | 256 GB |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Storage media | SSD |
| NVMe | Yes |
| SSD performance class | 35 |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax) |
| Wi-Fi data rate (max) | 2400 Mbit/s |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| WWAN | Upgradable |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| PowerShare | Yes |
| Number of USB ports with PowerShare support | 1 |
| USB Power Delivery | Yes |
| Charging port type | USB Type-C |
| HDMI version | 2.0 |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| Audio | |
| Built-in microphone | Yes |
| Number of built-in speakers | 2 |
| Audio system | MaxxAudio |
| Speaker power | 2 W |
| Speakers manufacturer | Waves |
| Number of microphones | 2 |
| Camera | |
| Front camera | Yes |
| Privacy camera | Yes |
| Windows Hello | Yes |
| Infrared (IR) camera | Yes |
| Front camera HD type | Full HD |
| Privacy type | Privacy shutter |
| Video capturing speed | 30 fps |
| Front camera resolution | 1920 x 1080 pixels |
| Front camera resolution (numeric) | 2.07 MP |
| Keyboard | |
| Numeric keypad | Yes |
| Keyboard backlit | Yes |
| Pointing device | Touchpad |
| Keyboard language | French |
| Performance | |
| Ambient light sensor | Yes |
| Software | |
| Operating system installed | Windows 11 Pro |
| Operating system language | Multilingual |
| Bundled software | Windows System Driver |
| Trial software | No Microsoft Office License Included 30 day Trial Offer Only |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery weight | 220 g |
| Number of battery cells | 3 |
| Battery capacity | 54 Wh |
| Battery voltage | 11.4 V |
| Fast charging | Yes |
| Weight & dimensions | |
| Weight | 1.61 kg |
| Height (rear) | 2.28 cm |
| Height (front) | 2.08 cm |
| Depth | 233.3 mm |
| Width | 357.8 mm |
| Power | |
| AC adapter power | 65 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 200 V |
| USB charging voltage | 20, 5, 9, 15 V |
| USB charging current | 3.25 A |
| Security | |
| Cable lock slot | Yes |
| Cable lock slot type | Wedge |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Other features | |
| Anti-glare screen | Yes |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
