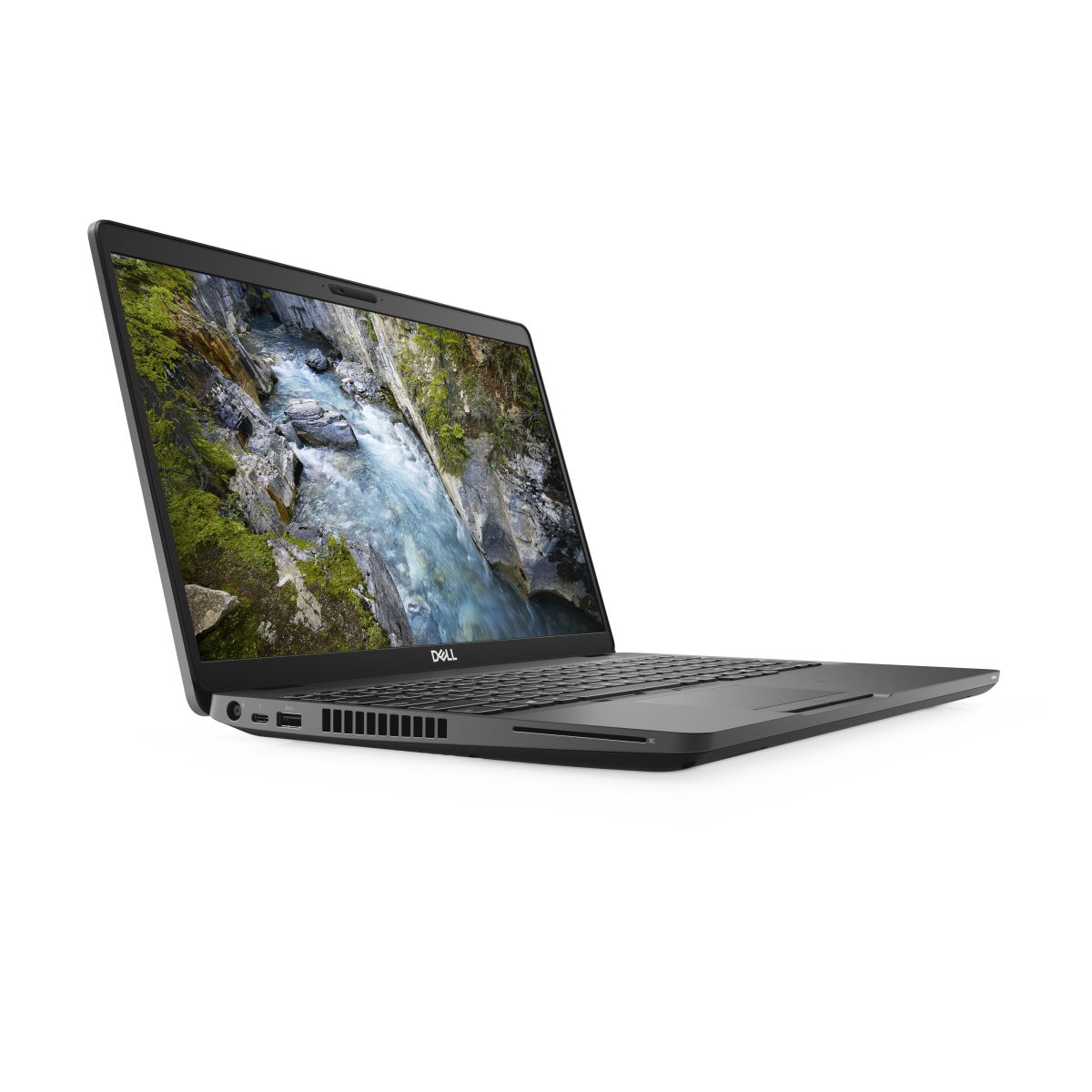

DELL Precision 3541 - 9DWW3
DELL Precision 3541
Product code: 9DWW3
- đģDisplay diagonal: 15.6 inch
- đŗProcessor model: i7-9850H
- đĢInternal memory: 8 GB
- đŽOn-board graphics adapter model: Intel UHD Graphics 630
- đŽDiscrete graphics adapter model: NVIDIA Quadro P620
- đŊTotal storage capacity: 256 GB
- âī¸Weight: 1.97 kg
đ Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Product type | Mobile workstation |
| Form factor | Clamshell |
| Display | |
| Display diagonal | 15.6 inch |
| Dual-screen | N |
| sRGB coverage (typical) | 100% |
| Maximum refresh rate | 60 Hz |
| Pixel density | 141 ppi |
| Panel type | WVA |
| Aspect ratio | 16:9 |
| HD type | Full HD |
| LED backlight | Y |
| Touchscreen | N |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Brand | DELL |
| Family | Precision |
| Series | 3000 |
| Model name | 3541 |
| Part Number | 9DWW3 |
| Release Date | 25 May 2019 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Processor frequency | 2.6 GHz |
| Motherboard chipset | Intel CM246 |
| Processor boost frequency | 4.6 GHz |
| Processor codename | Coffee Lake |
| Thermal Design Power (TDP) | 45 W |
| Processor model | i7-9850H |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor cache | 12 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA 1440 |
| Processor generation | 9th gen Intel Core i7 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 8 GB |
| Memory form factor | SO-DIMM |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 32 GB |
| Memory layout (slots x size) | 1 x 8 GB |
| Maximum internal memory (64-bit) | 32 GB |
| ECC | N |
| Graphics | |
| On-board graphics adapter | Y |
| Number of discrete graphics adapters installed | 1 |
| Discrete graphics memory type | GDDR5 |
| Discrete graphics adapter | Y |
| On-board graphics adapter model | Intel UHD Graphics 630 |
| Discrete graphics adapter model | NVIDIA Quadro P620 |
| Discrete graphics adapter memory | 4 GB |
| On-board graphics card | Y |
| Discrete graphics card | Y |
| Discrete graphics card model | NVIDIA Quadro P620 |
| On-board graphics card model | Intel UHD Graphics 630 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3E9B |
| Discrete graphics card memory | 4 GB |
| Number of discrete graphics cards installed | 1 |
| Storage | |
| Total storage capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| Total SSDs capacity | 256 GB |
| SSD interface | NVMe, PCI Express |
| SSD form factor | M.2 |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Y |
| Storage media | SSD |
| NVMe | Y |
| Optical drive | |
| Optical drive type | N |
| Networking | |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Wi-Fi | Y |
| WLAN controller model | Intel Dual Band Wireless-AC 9560 |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Antenna type | 2x2 |
| MIMO | Y |
| MIMO type | Multi User MIMO |
| Bluetooth | Y |
| Bluetooth version | 5.0 |
| 4G | N |
| 3G | N |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Charging port type | DC-in jack |
| Combo headphone/mic port | Y |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Thunderbolt 3 ports quantity | 1 |
| Audio | |
| Built-in microphone | Y |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Audio chip | Realtek ALC3204 |
| Camera | |
| Front camera | Y |
| Windows Hello | Y |
| Infrared (IR) camera | Y |
| Front camera HD type | HD |
| Video capturing speed | 30 fps |
| Front camera resolution | 1280 x 720 pixels |
| Front camera signal format | 720p |
| Keyboard | |
| Numeric keypad | Y |
| Keyboard backlit | Y |
| Windows keys | Y |
| Pointing device | DualPoint |
| Software | |
| Operating system installed | Windows 10 Pro |
| Operating system language | English, Spanish, French |
| Operating system architecture | 64-bit |
| Trial software | Microsoft Office |
| Battery | |
| Battery weight | 340 g |
| Number of battery cells | 4 |
| Battery capacity | 68 Wh |
| Battery capacity (Watt hours) | 68 Wh |
| Battery voltage | 15.2 V |
| Weight & dimensions | |
| Weight | 1.97 kg |
| Height (rear) | 2.45 cm |
| Height (front) | 2.19 cm |
| Depth | 236.2 mm |
| Width | 359.1 mm |
| Power | |
| AC adapter power | 130 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 19.5 V |
| AC adapter output current | 6.7 A |
| Security | |
| Cable lock slot | Y |
| Password protection | Y |
