DELL Precision 5520 - 1X33W

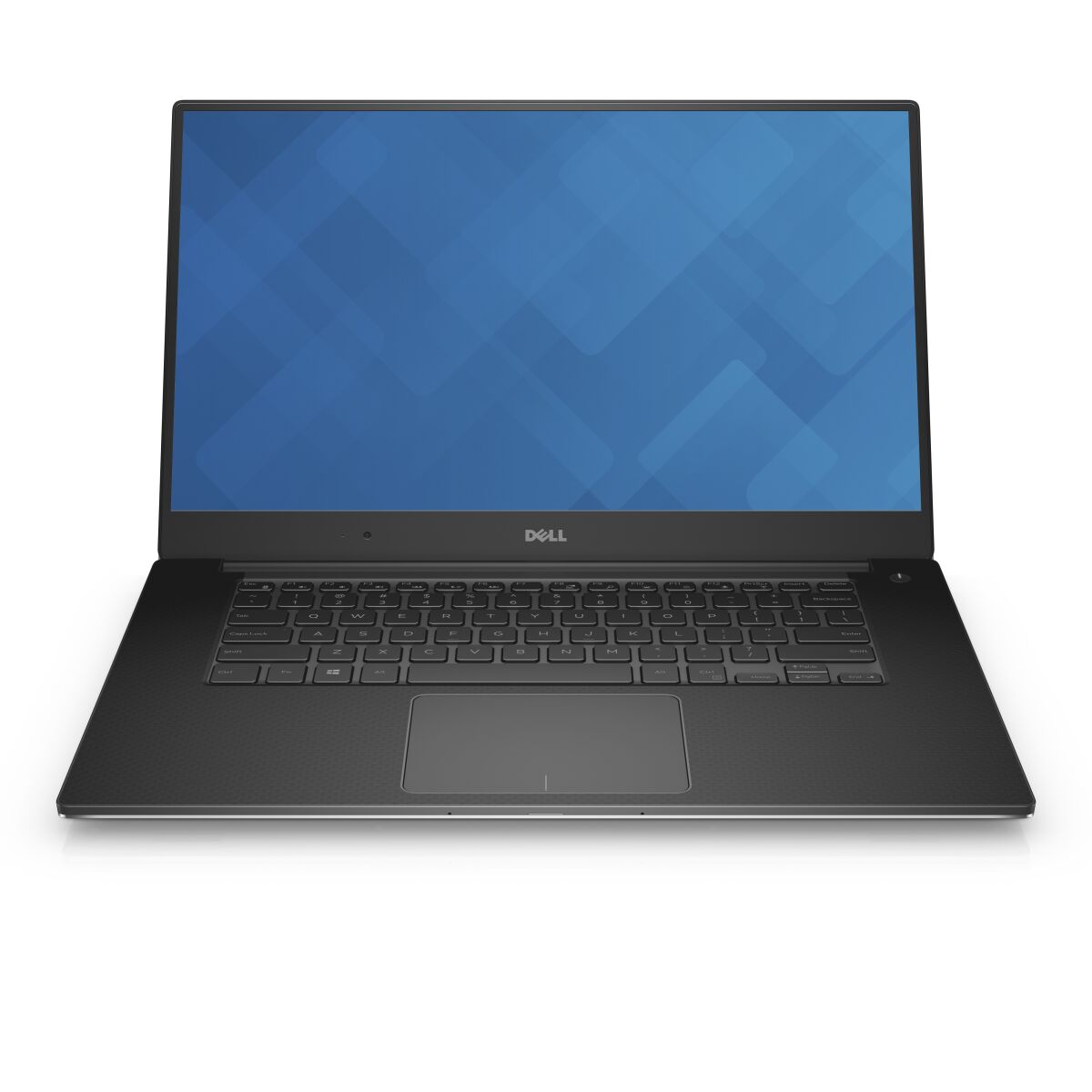

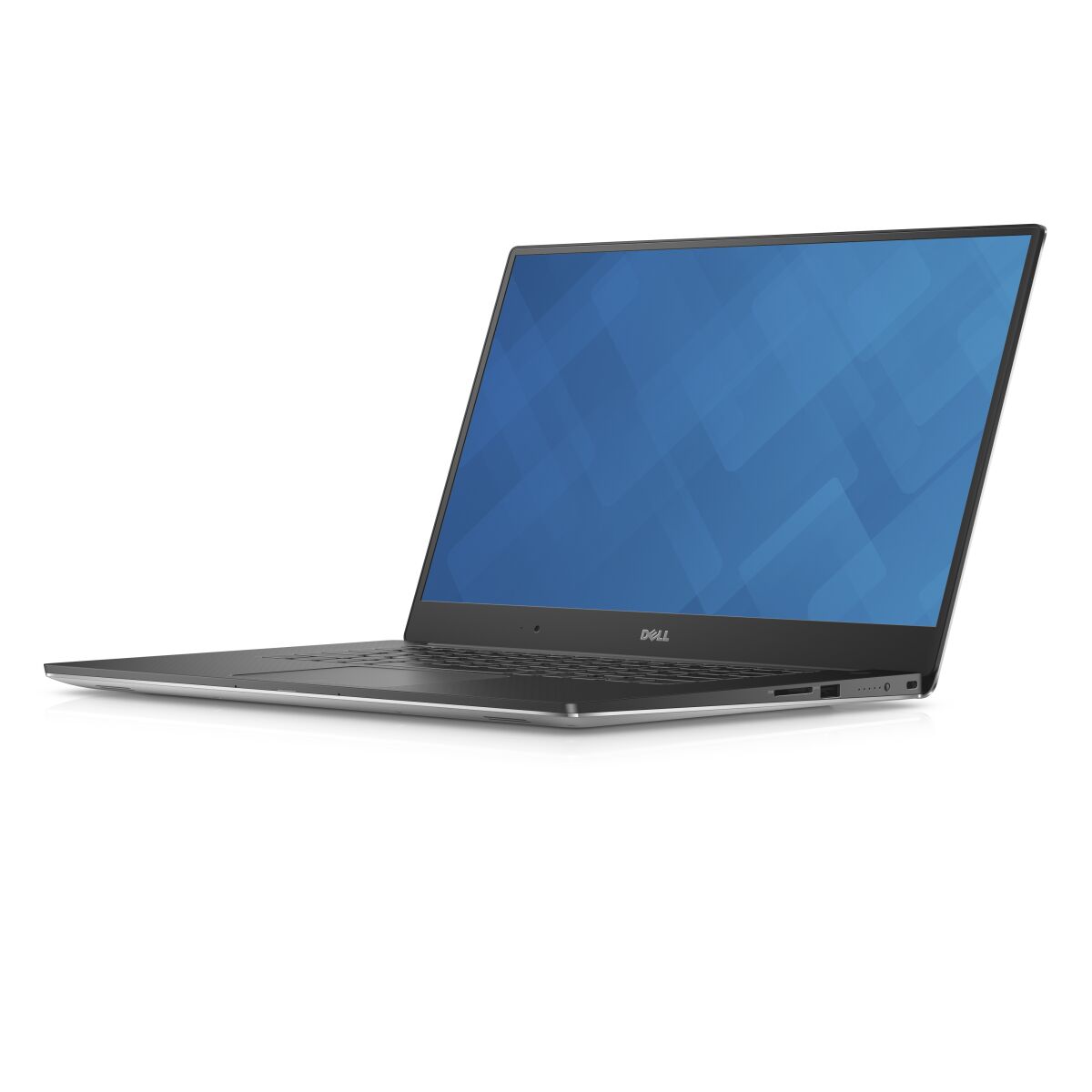

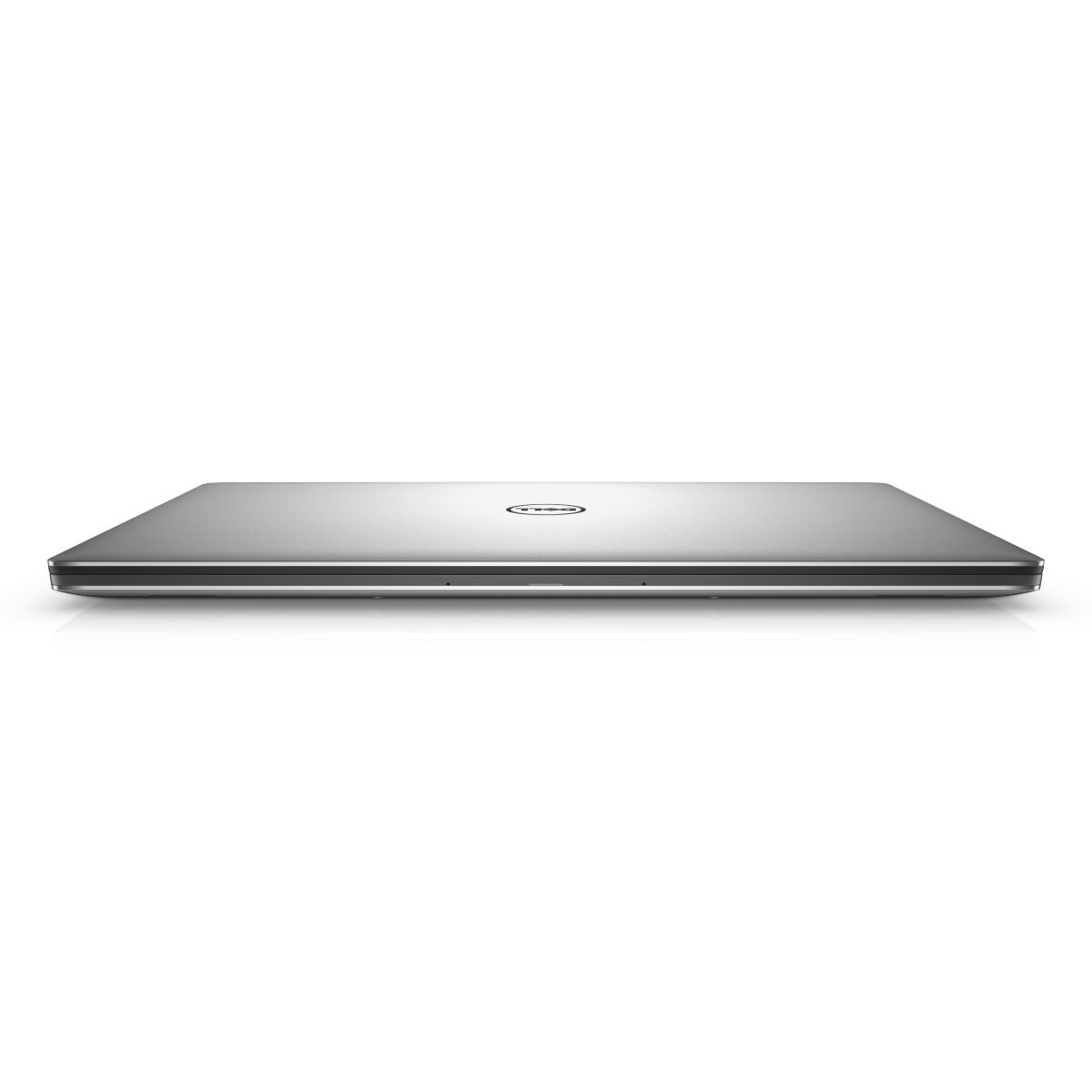

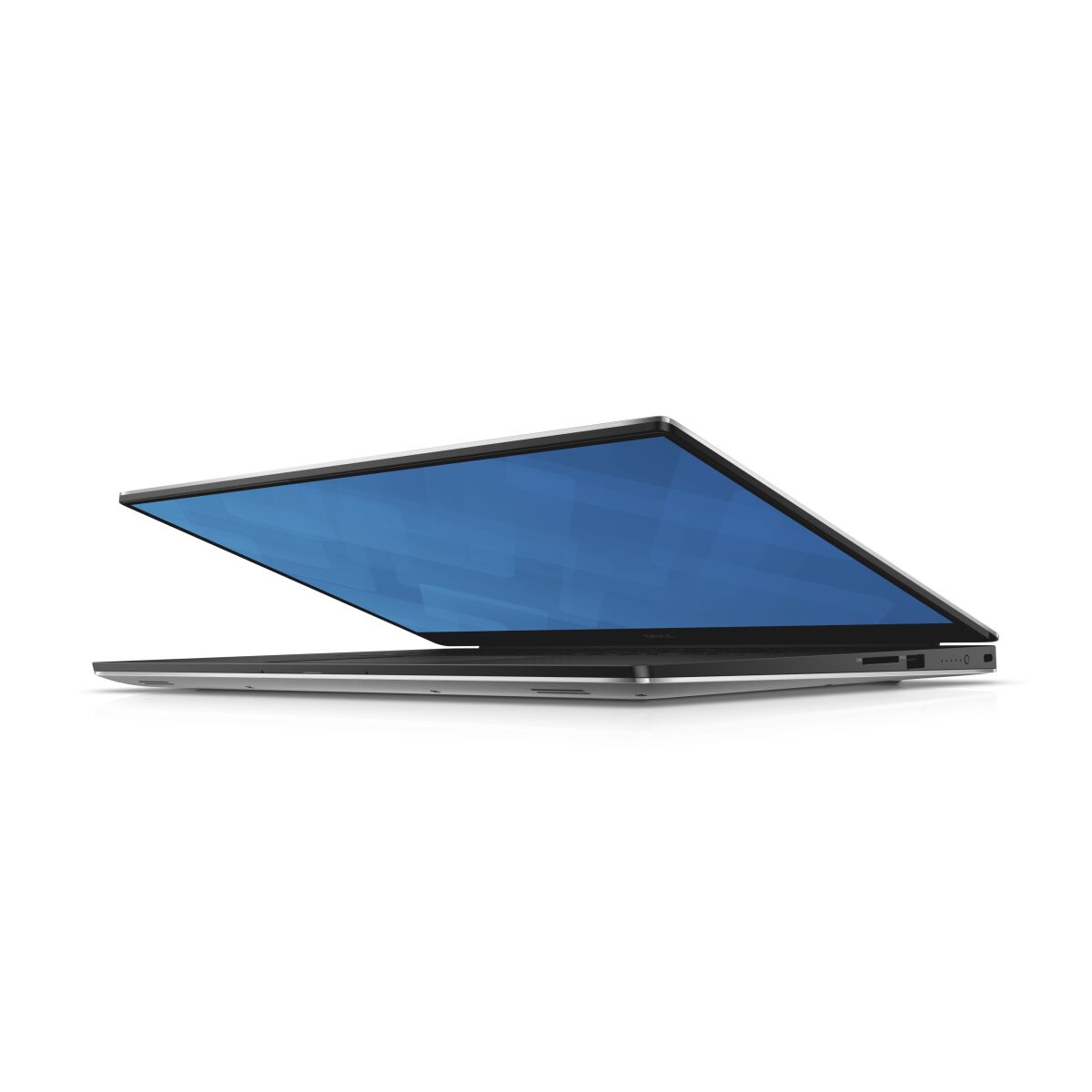

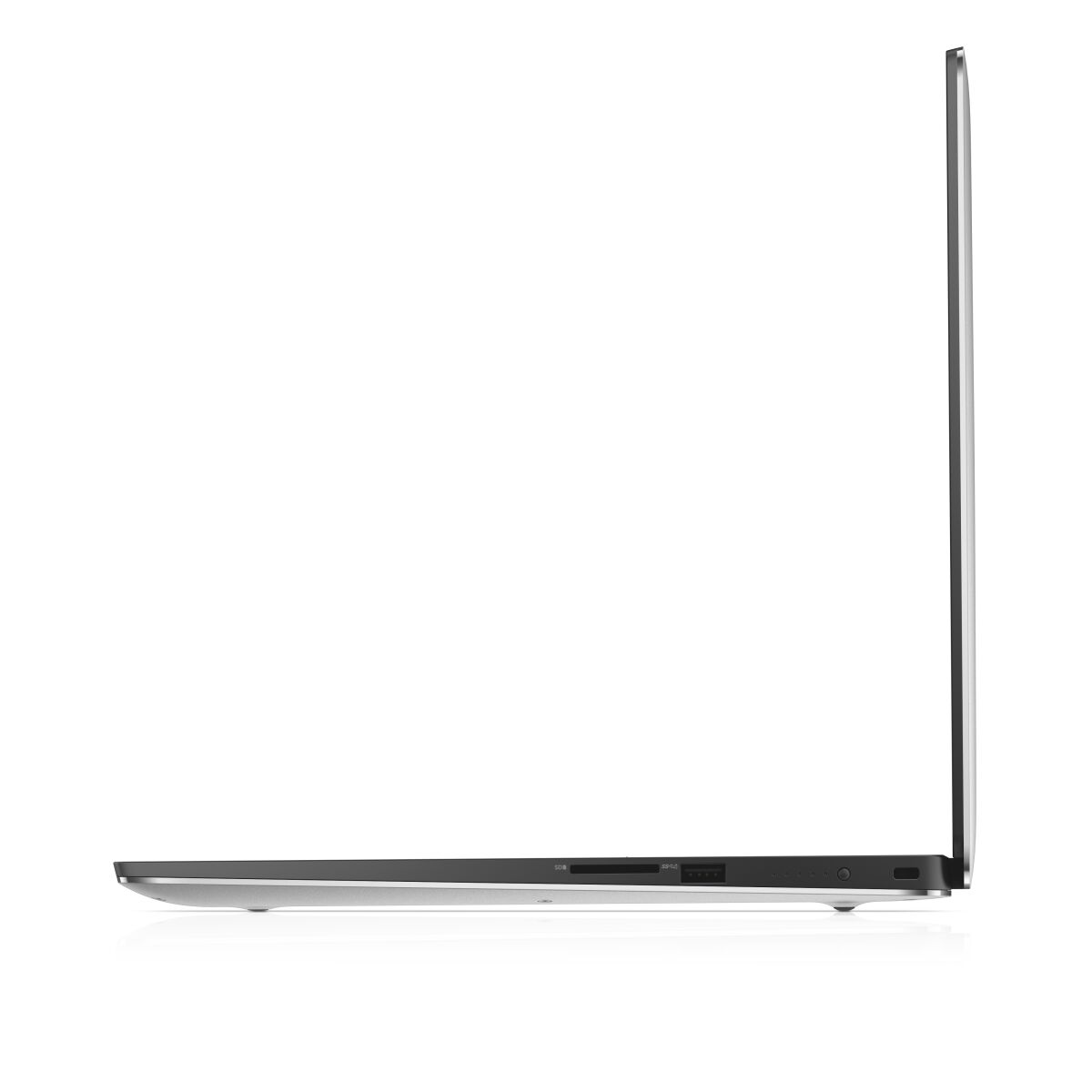

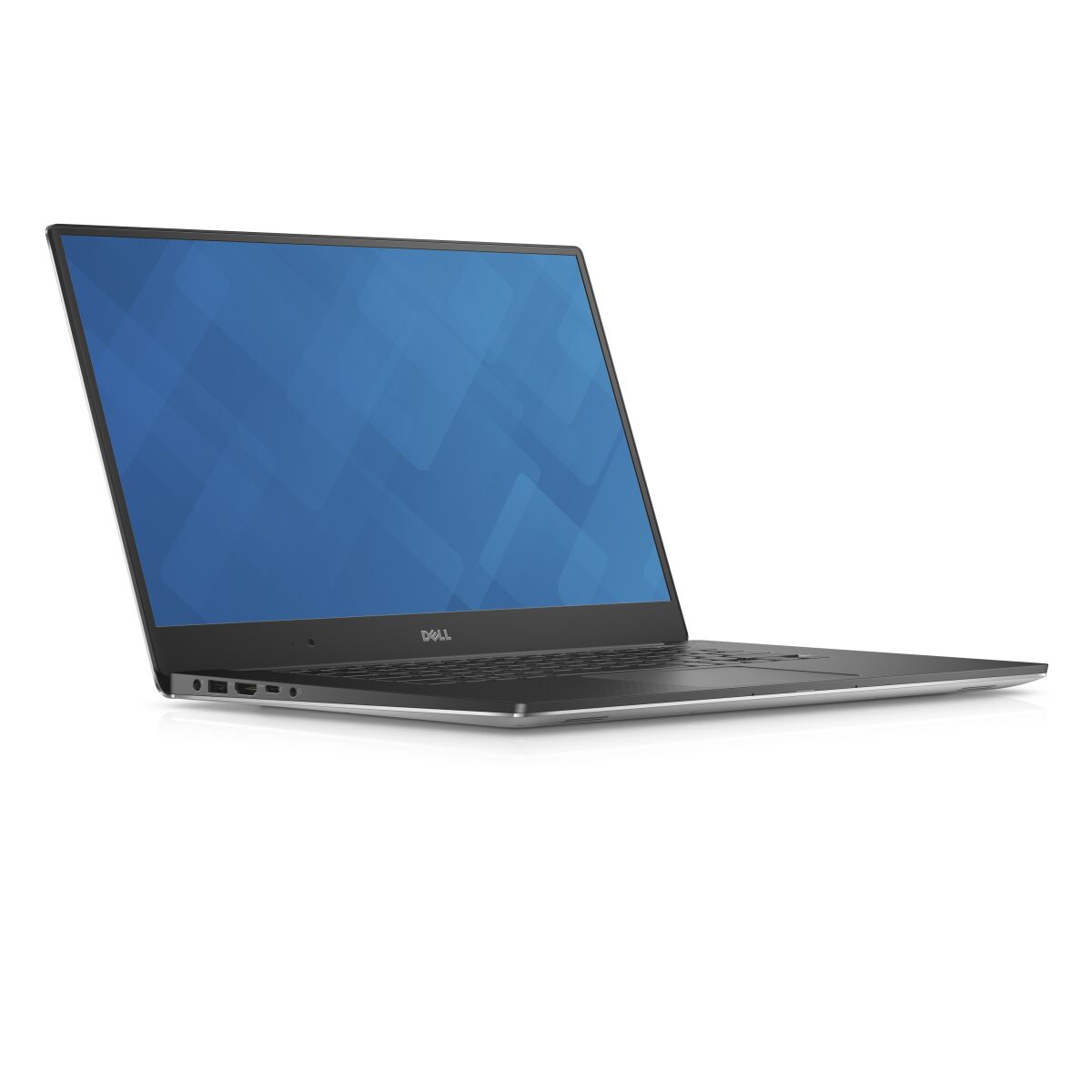

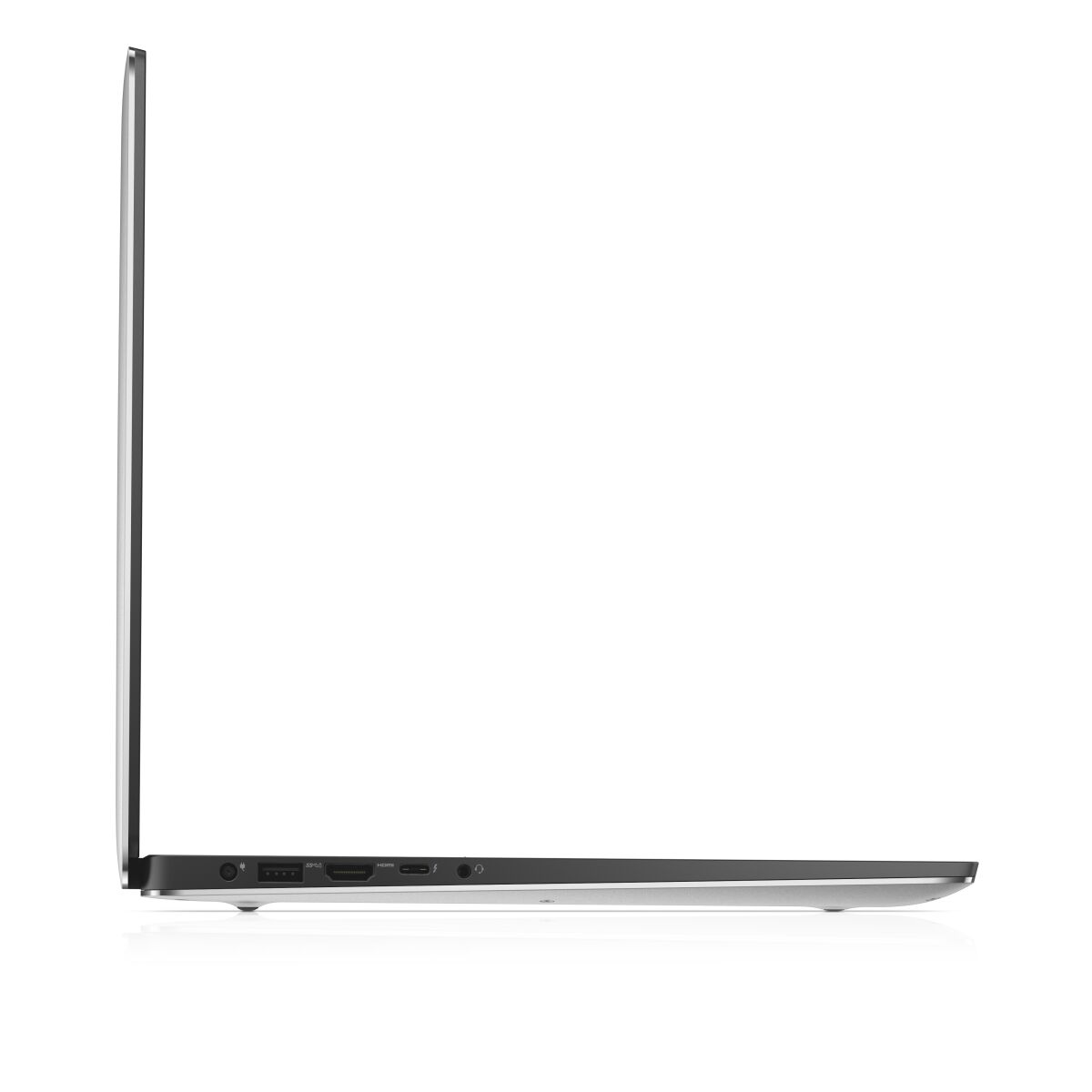

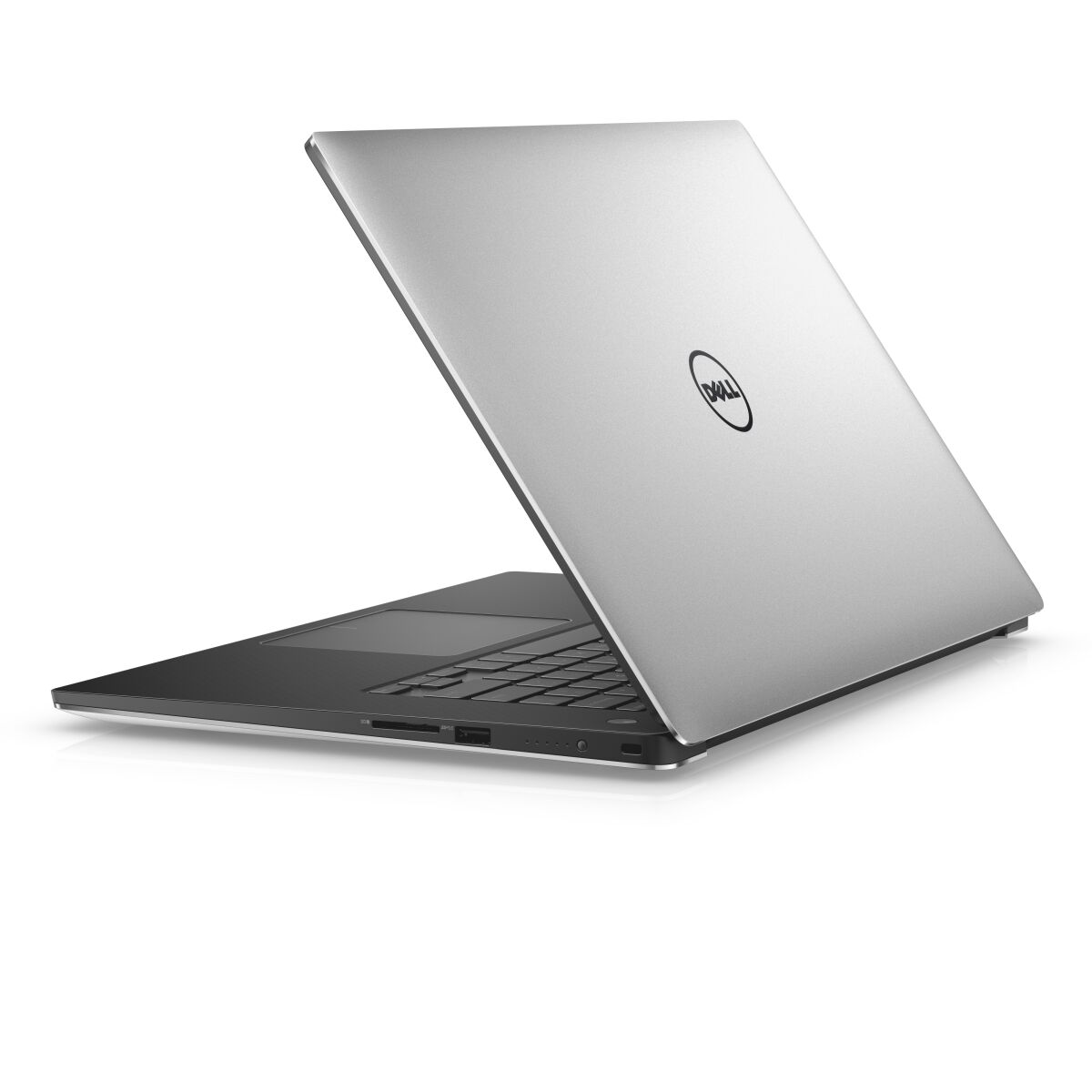

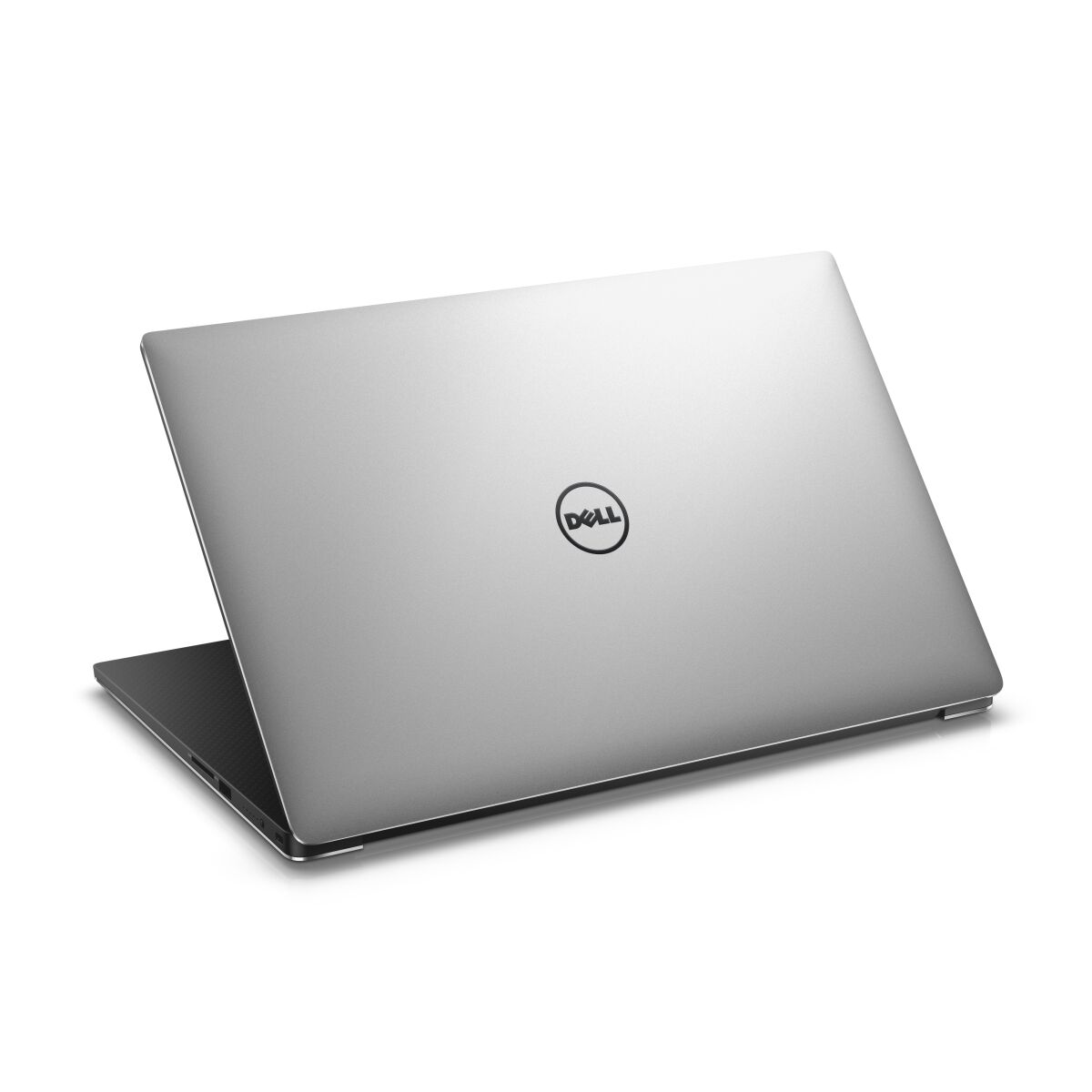

DELL Precision 5520
Product code: 1X33W
- đģDisplay diagonal: 15.6 inch
- đŗProcessor model: i7-7820HQ
- đĢInternal memory: 16 GB
- đŽOn-board graphics adapter model: Intel HD Graphics 630
- đŽDiscrete graphics adapter model: NVIDIA Quadro M1200
- đŊTotal storage capacity: 256 GB
- âī¸Weight: 1.78 kg
đ Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Black, Silver |
| Product type | Mobile workstation |
| Form factor | Clamshell |
| Market positioning | Business |
| Display | |
| Display diagonal | 15.6 inch |
| Panel type | IPS |
| Display surface | Matt |
| Aspect ratio | 16:9 |
| HD type | Full HD |
| LED backlight | Yes |
| Touchscreen | Yes |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Brand | DELL |
| Family | Precision |
| Series | 5000 |
| Model name | 5520 |
| Part Number | 1X33W |
| Release Date | 11 May 2018 |
| EAN/UPC code | 5397184077627 |
|
|
|
| Processor | |
| Processor series | Intel Core i7-7800 Mobile Series |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Processor frequency | 2.9 GHz |
| Processor boost frequency | 3.9 GHz |
| Processor codename | Kaby Lake |
| Thermal Design Power (TDP) | 45 W |
| Processor model | i7-7820HQ |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor cache | 8 MB |
| Processor lithography | 14 nm |
| Processor generation | 7th gen Intel Core i7 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | SO-DIMM |
| Memory clock speed | 2400 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 32 GB |
| Memory layout (slots x size) | 1 x 16 GB |
| Maximum internal memory (64-bit) | 32 GB |
| Graphics | |
| On-board graphics adapter | Y |
| Number of discrete graphics adapters supported | 1 |
| On-board graphics adapter family | Intel HD Graphics |
| Number of discrete graphics adapters installed | 1 |
| NVIDIA G-SYNC | No |
| NVIDIA GameWorks VR | No |
| CUDA | Yes |
| CUDA cores | 640 |
| Discrete graphics memory type | GDDR5 |
| On-board graphics adapter DirectX version | 12.0 |
| Discrete graphics adapter | Y |
| On-board graphics adapter model | Intel HD Graphics 630 |
| Discrete graphics adapter model | NVIDIA Quadro M1200 |
| On-board graphics adapter base frequency | 350 MHz |
| On-board graphics adapter dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics adapter memory | 64 GB |
| On-board graphics adapter OpenGL version | 4.4 |
| Discrete graphics adapter memory | 4 GB |
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA Quadro M1200 |
| On-board graphics card model | Intel HD Graphics 630 |
| On-board graphics card family | Intel HD Graphics |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x591B |
| Discrete graphics card memory | 4 GB |
| Number of discrete graphics cards supported | 1 |
| Number of discrete graphics cards installed | 1 |
| Storage | |
| Total storage capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
| Compatible memory cards | SD, SDHC, SDXC |
| Card reader integrated | Yes |
| Storage media | SSD |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | No |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| PowerShare | Yes |
| Number of USB ports with PowerShare support | 2 |
| Charging port type | DC-in jack |
| HDMI version | 1.4 |
| USB Sleep-and-Charge ports | 2 |
| DVI port | No |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| Thunderbolt 3 ports quantity | 1 |
| USB Sleep-and-Charge | Yes |
| Audio | |
| Built-in microphone | Yes |
| Audio system | MaxxAudio Pro |
| Speakers manufacturer | Waves |
| Number of microphones | 2 |
| Camera | |
| Front camera | Yes |
| Front camera HD type | HD |
| Video capturing speed | 30 fps |
| Front camera resolution | 1280 x 720 pixels |
| Front camera signal format | 720p |
| Front camera resolution (numeric) | 0.92 MP |
| Keyboard | |
| Numeric keypad | No |
| Full-size keyboard | Yes |
| Keyboard backlit | Yes |
| Windows keys | Yes |
| Pointing device | Touchpad |
| Software | |
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
| Drivers included | Yes |
| Trial software | Microsoft Office |
| Battery | |
| Battery technology | Lithium Polymer (LiPo) |
| Battery capacity (Watt-hours) | 56 Wh |
| Number of battery cells | 3 |
| Battery capacity | 56 Wh |
| Battery voltage | 11.4 V |
| Weight & dimensions | |
| Weight | 1.78 kg |
| Height (rear) | 1.68 cm |
| Height (front) | 1.15 cm |
| Depth | 235.3 mm |
| Width | 357 mm |
| Power | |
| AC adapter power | 130 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 19.5 V |
| AC adapter output current | 6.67 A |
| Security | |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Password protection | Yes |
| Password protection type | BIOS, Supervisor, User |
