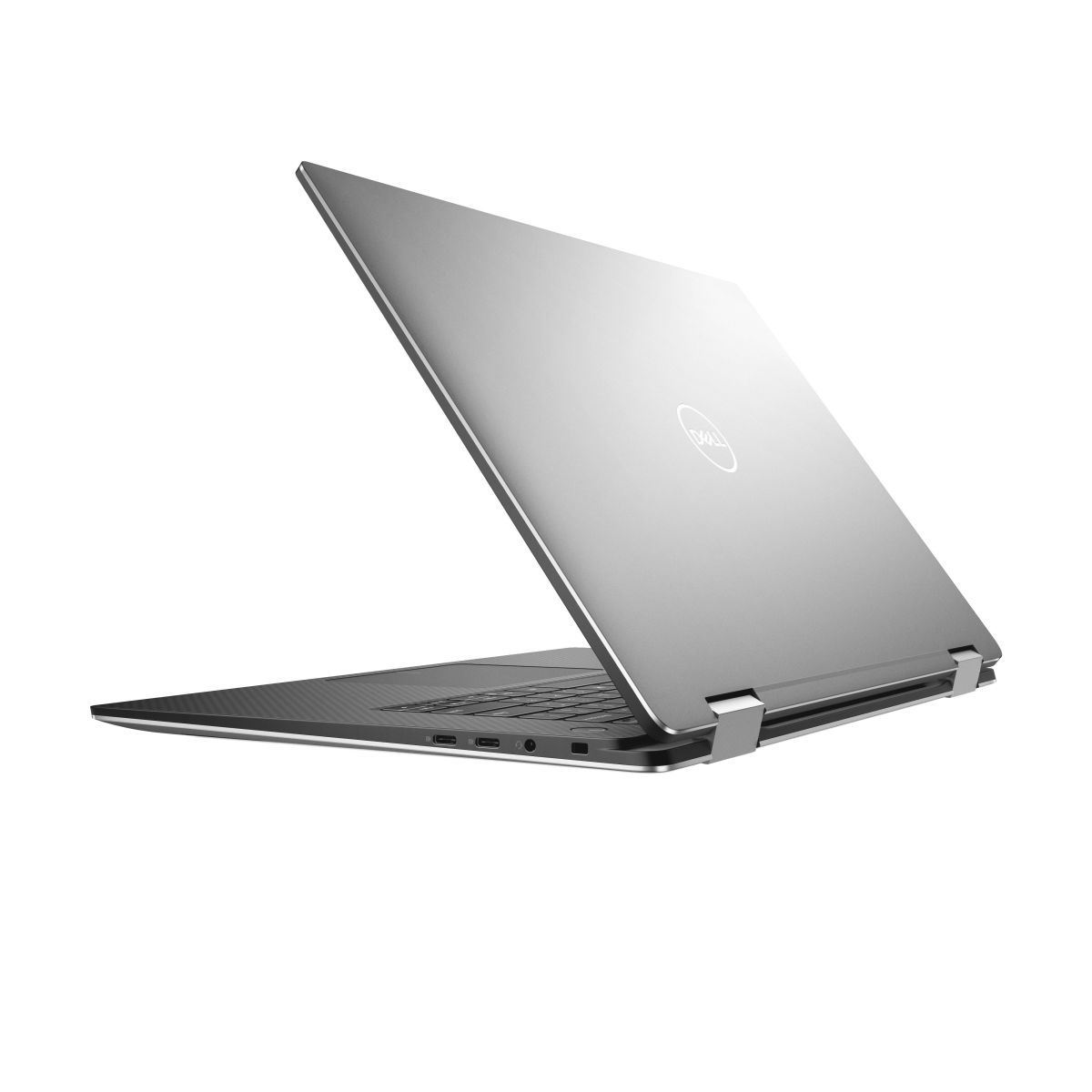

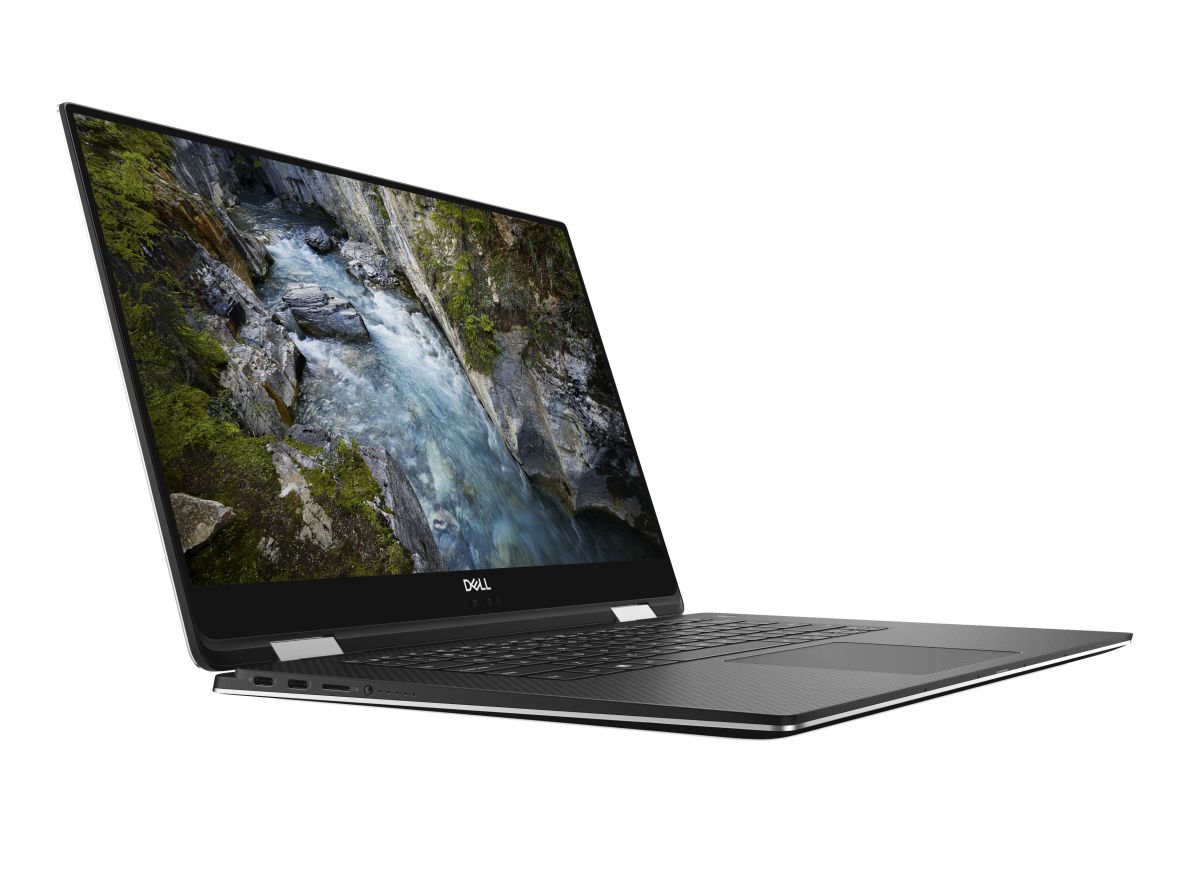

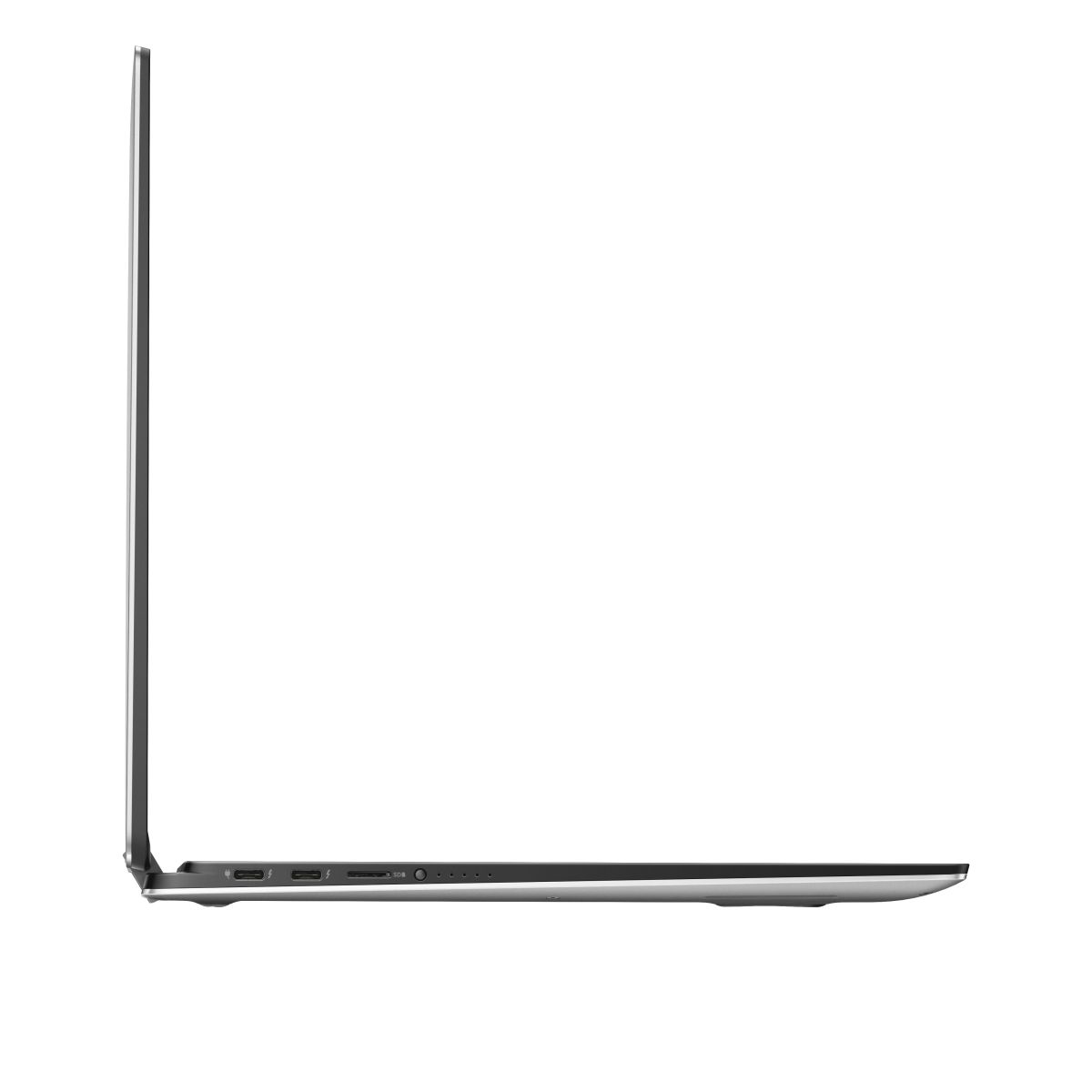

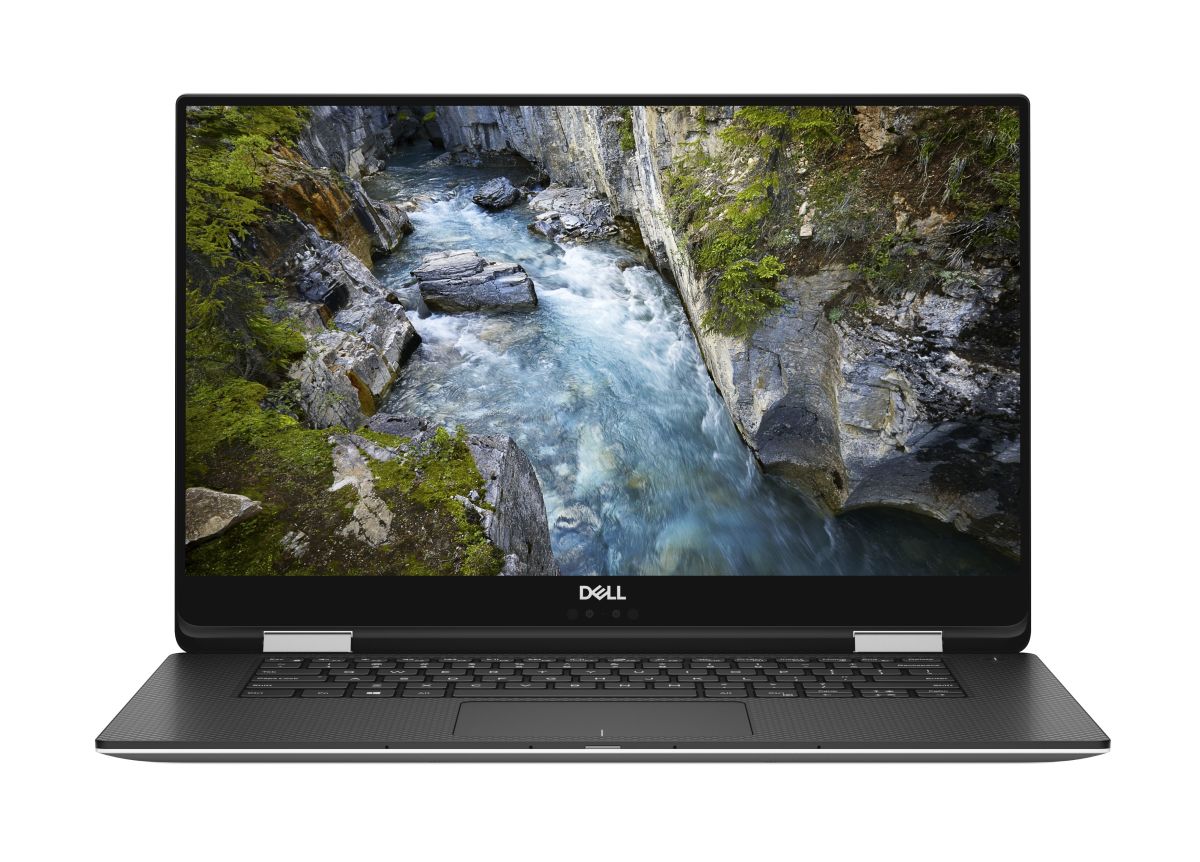

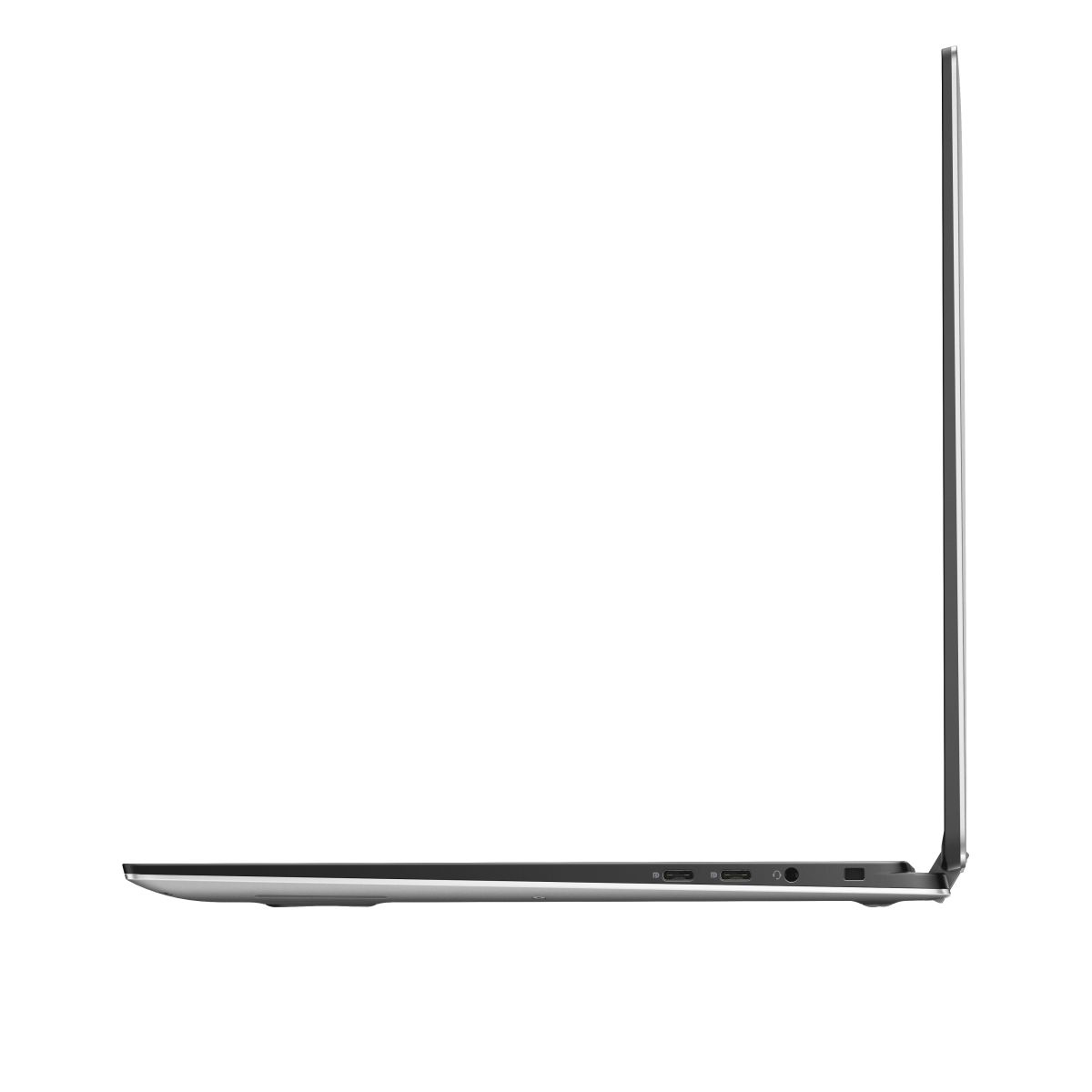

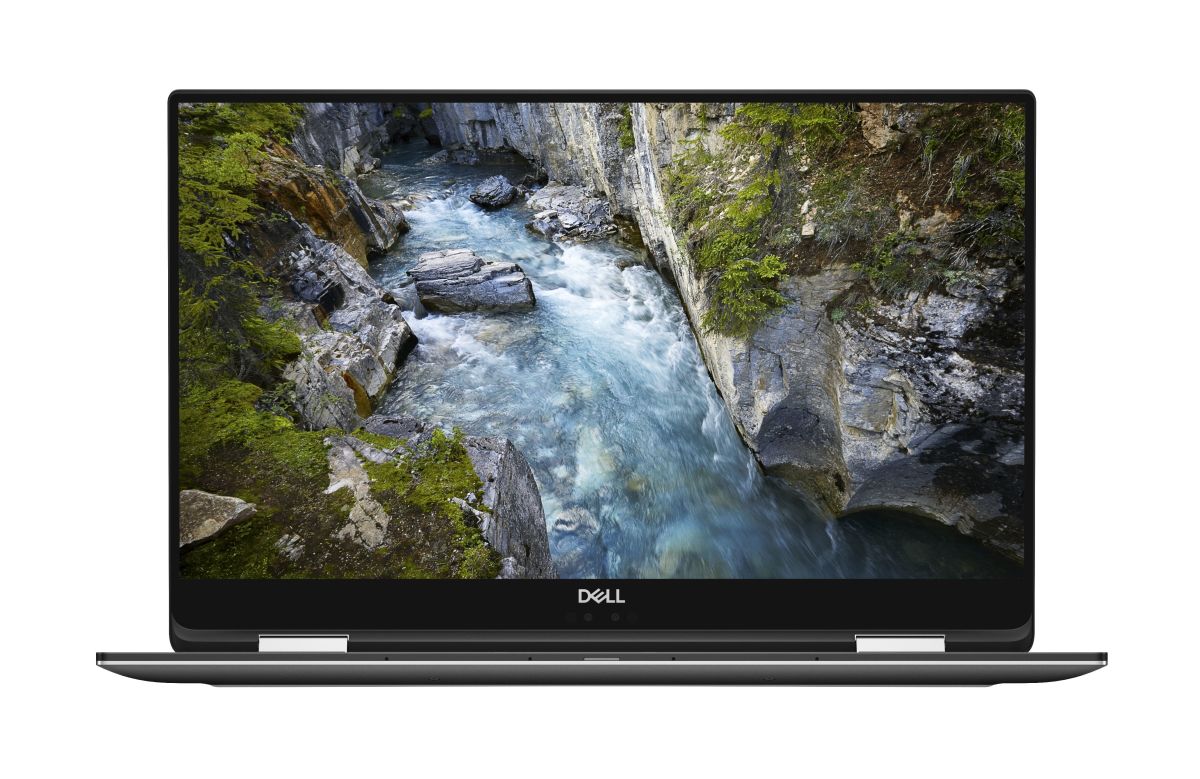

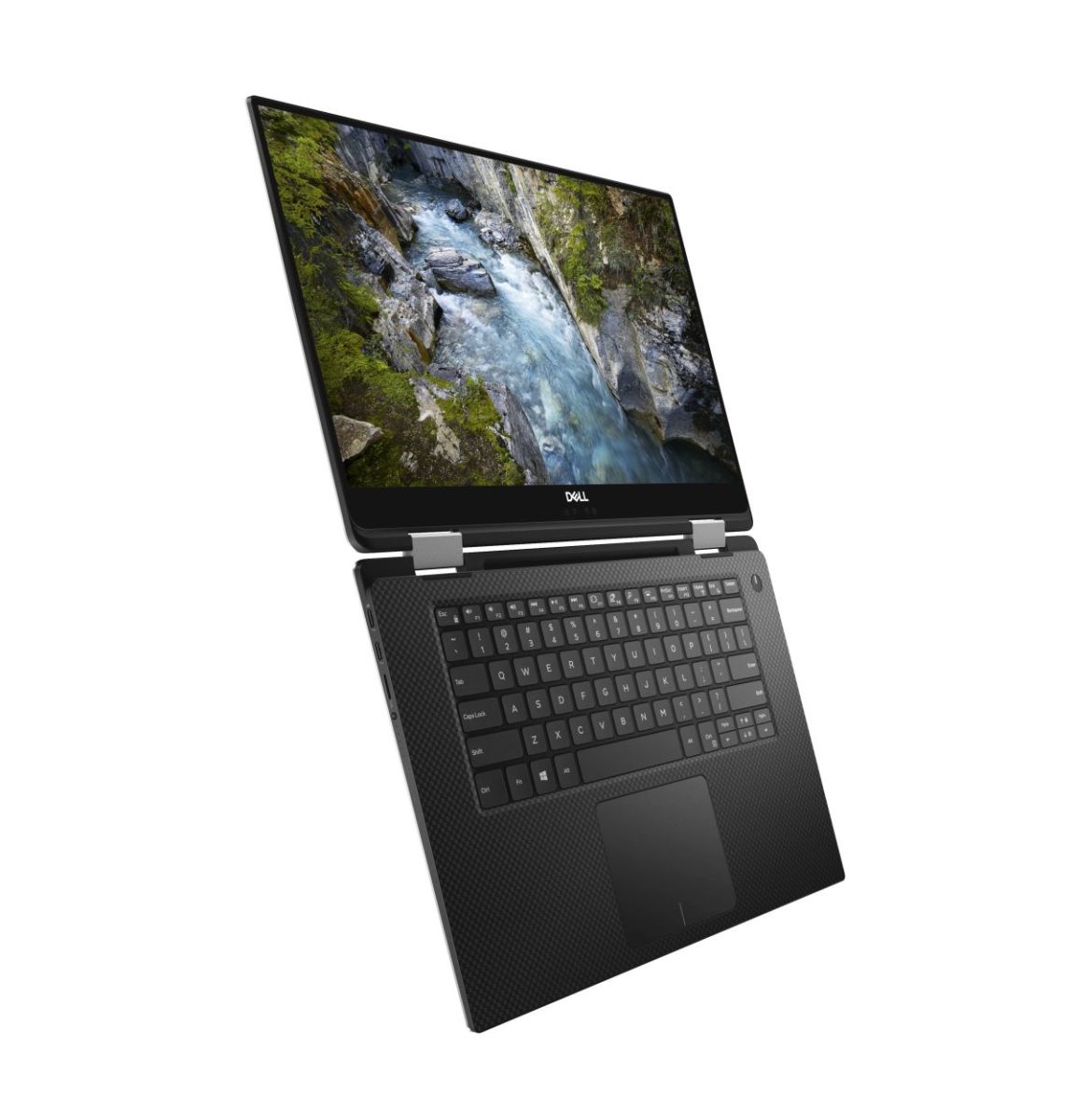

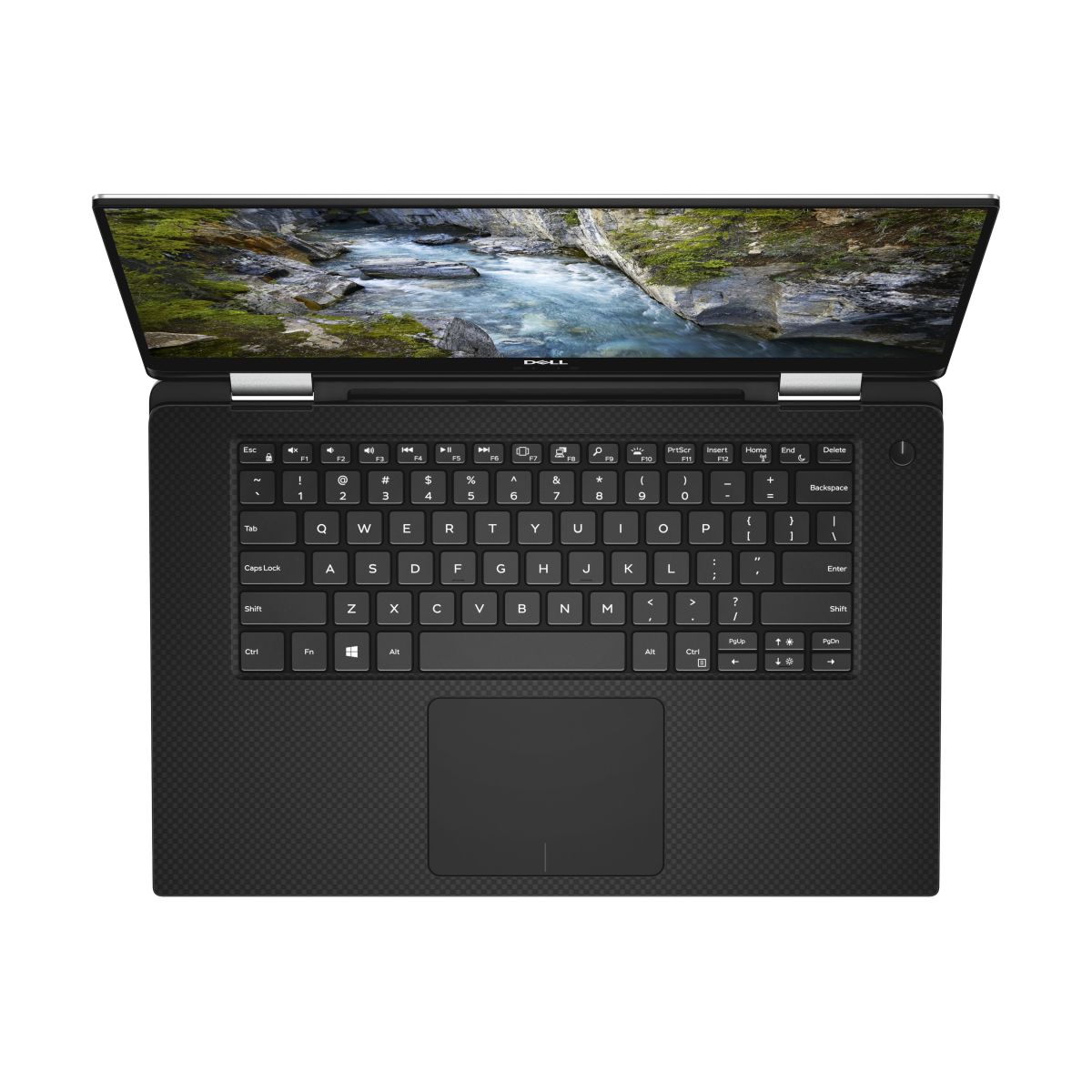

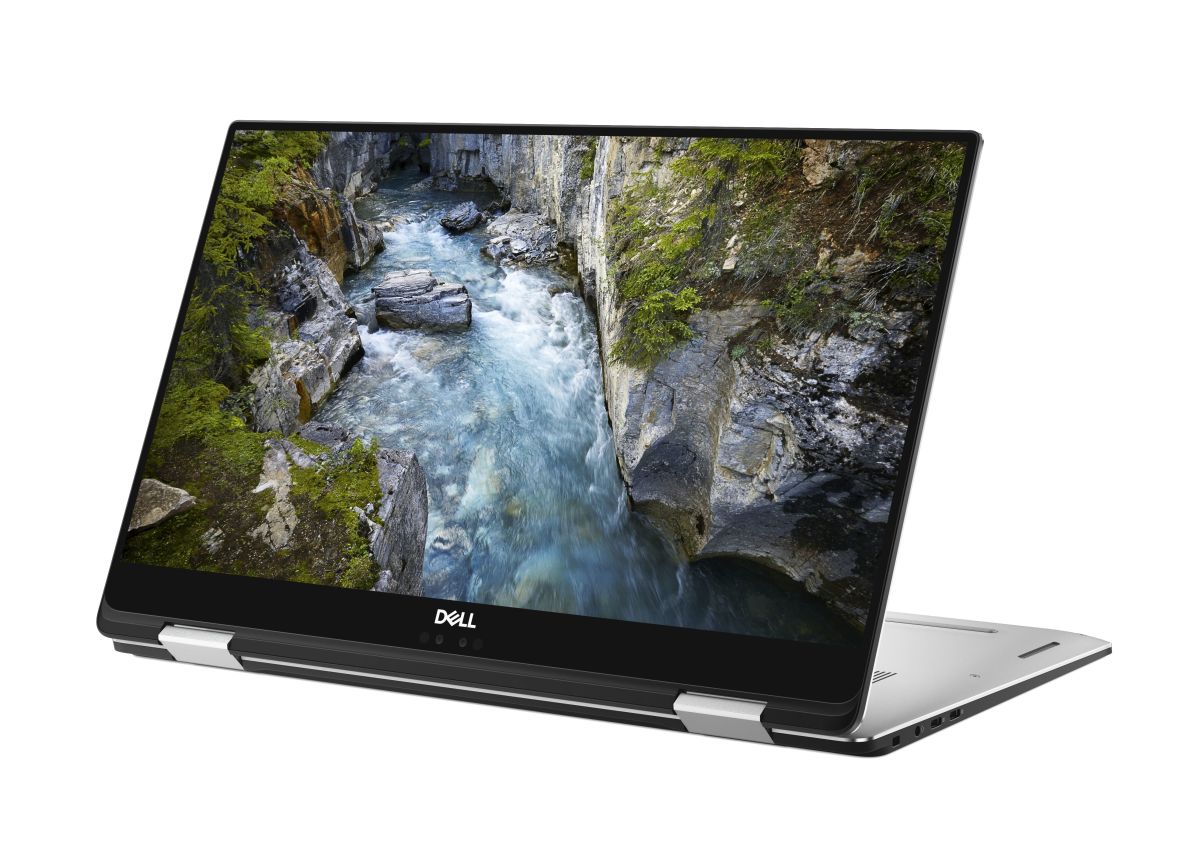

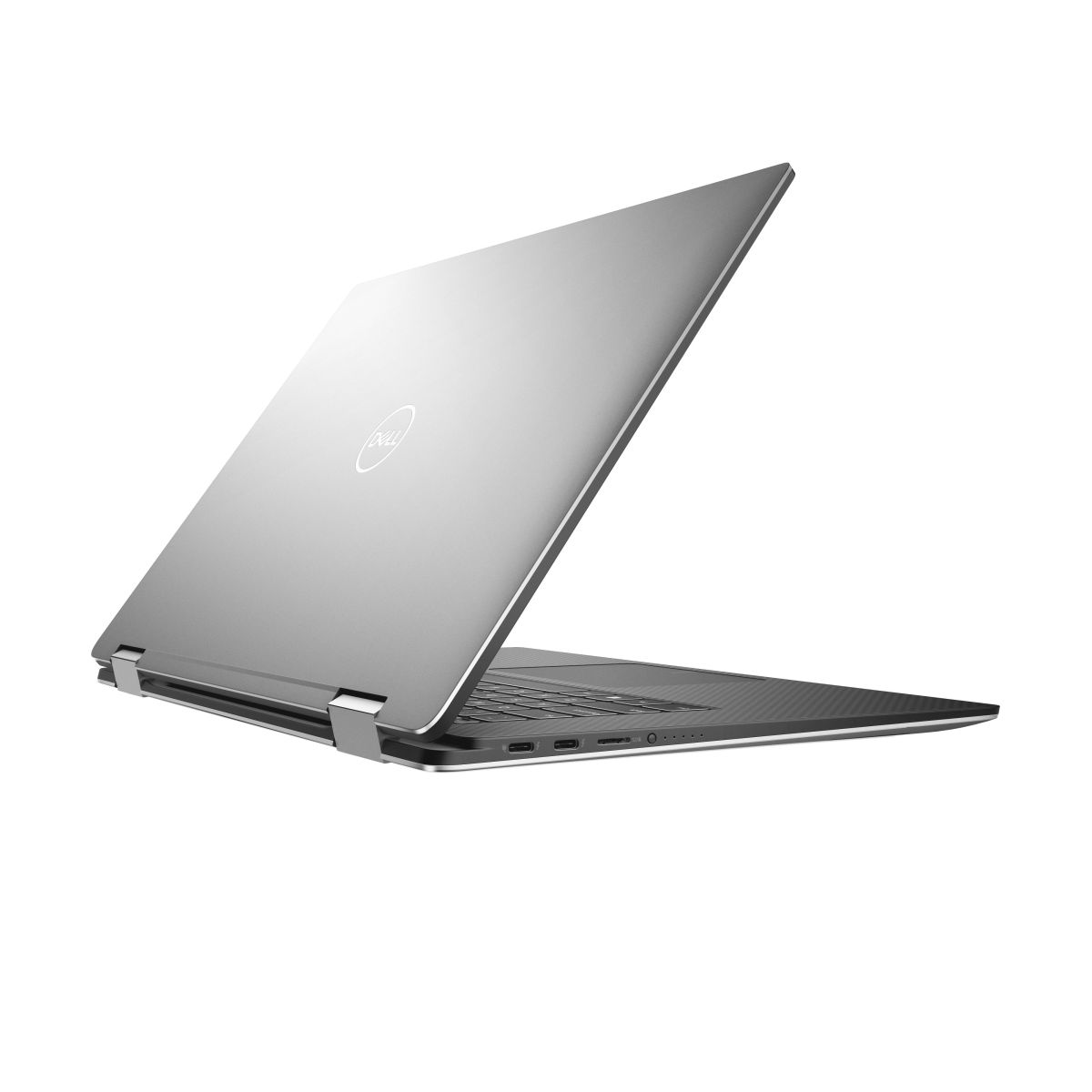

DELL Precision 5530 - XYHPX
DELL Precision 5530
Product code: XYHPX
- đģDisplay diagonal: 15.6 inch
- đŗProcessor model: i7-8706G
- đĢInternal memory: 16 GB
- đŽOn-board graphics adapter model: Intel HD Graphics 630
- đŽDiscrete graphics adapter model: AMD Radeon Pro WX Vega
- đŊTotal storage capacity: 512 GB
- âī¸Weight: 2 kg
đ Add to compare
Specifications
| Design | |
|---|---|
| Product colour | Black, Silver |
| Product type | Mobile workstation |
| Form factor | Convertible (Folder) |
| Display | |
| Display diagonal | 15.6 inch |
| Dual-screen | N |
| Display surface | Matt |
| Aspect ratio | 16:9 |
| HD type | Full HD |
| LED backlight | Y |
| Touchscreen | Y |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Brand | DELL |
| Family | Precision |
| Series | 5000 |
| Model name | 5530 |
| Part Number | XYHPX |
| Release Date | 19 December 2018 |
| EAN/UPC code | 5397184209981 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Processor frequency | 3.1 GHz |
| Processor boost frequency | 4.1 GHz |
| Processor codename | Kaby Lake G |
| Thermal Design Power (TDP) | 65 W |
| Processor model | i7-8706G |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor cache | 8 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA 2270 |
| Processor generation | 8th gen Intel Core i7 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | On-board |
| Memory clock speed | 2400 MHz |
| Maximum internal memory | 16 GB |
| Memory layout (slots x size) | 1 x 16 GB |
| Maximum internal memory (64-bit) | 16 GB |
| Graphics | |
| On-board graphics adapter | Y |
| Number of discrete graphics adapters installed | 1 |
| Discrete graphics memory type | HBM2 |
| Discrete graphics adapter | Y |
| On-board graphics adapter model | Intel HD Graphics 630 |
| Discrete graphics adapter model | AMD Radeon Pro WX Vega |
| Discrete graphics adapter memory | 4 GB |
| On-board graphics card | Y |
| Discrete graphics card | Y |
| Discrete graphics card model | AMD Radeon Pro WX Vega |
| On-board graphics card model | Intel HD Graphics 630 |
| On-board graphics card family | Intel HD Graphics |
| On-board graphics card base frequency | 931 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| Discrete graphics card memory | 4 GB |
| Number of discrete graphics cards installed | 1 |
| Storage | |
| Total storage capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
| Compatible memory cards | SD |
| Card reader integrated | Y |
| Storage media | SSD |
| Optical drive | |
| Optical drive type | N |
| Networking | |
| Ethernet LAN | N |
| Wi-Fi | Y |
| WLAN controller model | Intel Dual Band Wireless-AC 8265 |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Antenna type | 2x2 |
| Bluetooth | Y |
| 4G | N |
| 3G | N |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| Charging port type | USB Type-C |
| USB 3.0 (3.1 Gen 1) Type-C ports quantity | 2 |
| Combo headphone/mic port | Y |
| USB Type-C DisplayPort Alternate Mode | Y |
| Thunderbolt 3 ports quantity | 2 |
| Audio | |
| Built-in microphone | Y |
| Number of built-in speakers | 2 |
| Audio system | MaxxAudio Pro |
| Speaker power | 2 W |
| Audio chip | Realtek ALC3271 |
| Speakers manufacturer | Waves |
| Camera | |
| Front camera | Y |
| Infrared (IR) camera | Y |
| Front camera HD type | HD |
| Video capturing speed | 30 fps |
| Front camera resolution | 1280 x 720 pixels |
| Front camera signal format | 720p |
| Front camera resolution (numeric) | 0.92 MP |
| Keyboard | |
| Numeric keypad | N |
| Island-style keyboard | Y |
| Full-size keyboard | Y |
| Keyboard backlit | Y |
| Windows keys | Y |
| Pointing device | Touchpad |
| Keyboard language | Italian |
| Software | |
| Operating system installed | Windows 10 Pro |
| Operating system language | Multilingual |
| Operating system architecture | 64-bit |
| Drivers included | Y |
| Trial software | Microsoft Office |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery weight | 320 g |
| Battery recharge time | 4 h |
| Number of battery cells | 6 |
| Battery capacity | 75 Wh |
| Battery capacity (Watt hours) | 75 Wh |
| Battery voltage | 11.4 V |
| Weight & dimensions | |
| Weight | 2 kg |
| Height (rear) | 1.6 cm |
| Height (front) | 9 mm |
| Depth | 235 mm |
| Width | 354 mm |
| Power | |
| AC adapter power | 130 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 20 V |
| AC adapter output current | 6.5 A |
| Security | |
| Cable lock slot | Y |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
