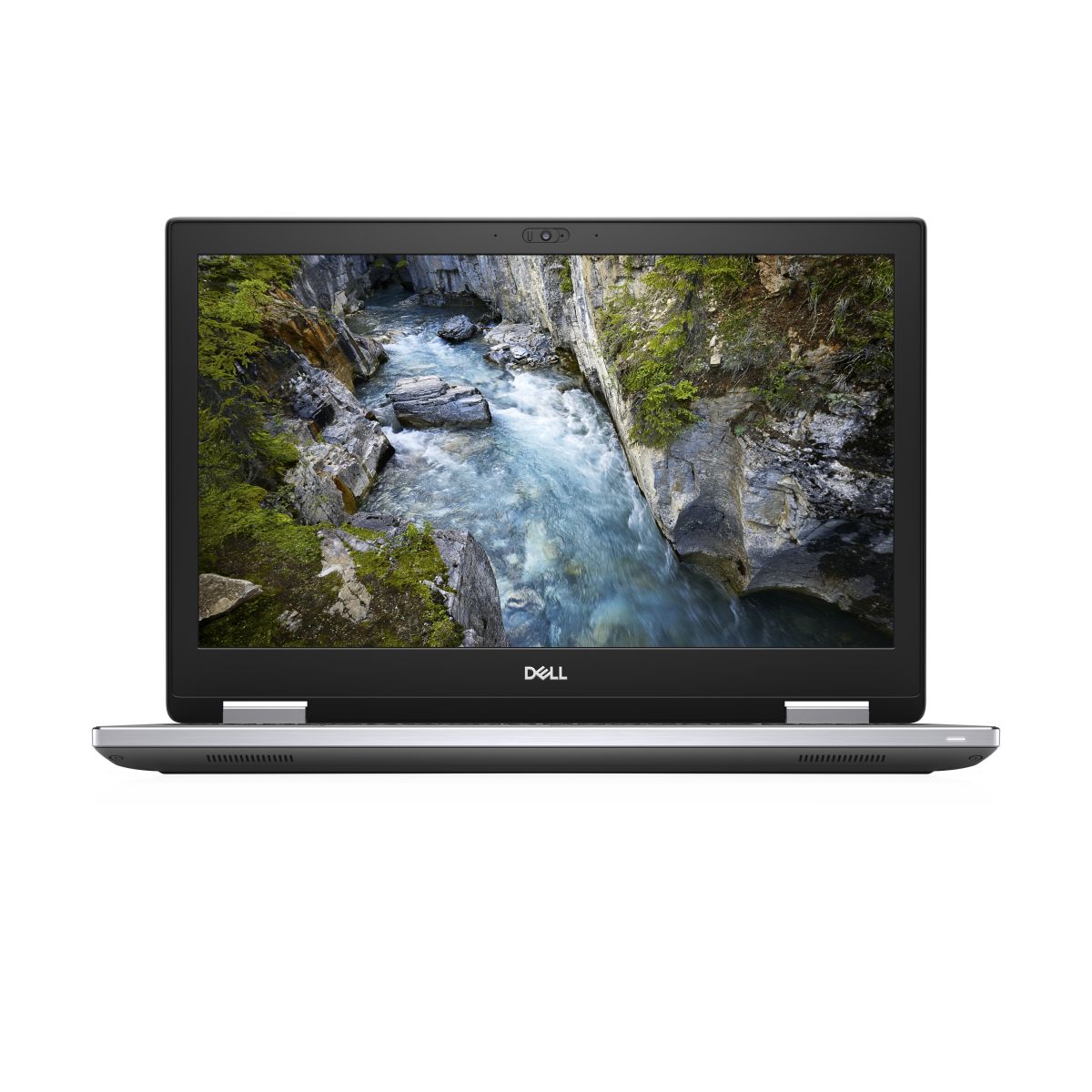

DELL Precision 7540 - MNCWP
DELL Precision 7540
Product code: MNCWP
- đģDisplay diagonal: 15.6 inch
- đŗProcessor model: i7-9850H
- đĢInternal memory: 16 GB
- đŽOn-board graphics adapter model: Intel UHD Graphics 630
- đŽDiscrete graphics adapter model: NVIDIA Quadro T2000
- đŊTotal storage capacity: 512 GB
- âī¸Weight: 2.52 kg
đ Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Product type | Mobile workstation |
| Form factor | Clamshell |
| Display | |
| Display diagonal | 15.6 inch |
| Maximum refresh rate | 60 Hz |
| Pixel density | 141 ppi |
| Pixel pitch | 0.179 x 0.179 mm |
| Panel type | IPS |
| HD type | Full HD |
| Touchscreen | No |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Brand | DELL |
| Family | Precision |
| Series | 7000 |
| Model name | 7540 |
| Part Number | MNCWP |
| Release Date | 23 April 2020 |
| EAN/UPC code | 5397184421567 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Processor frequency | 2.6 GHz |
| Processor boost frequency | 4.6 GHz |
| Processor codename | Coffee Lake |
| Thermal Design Power (TDP) | 45 W |
| Processor model | i7-9850H |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor cache | 12 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA 1440 |
| Processor generation | 9th gen Intel Core i7 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | SO-DIMM |
| Memory clock speed | 2666 MHz |
| Memory slots | 4x SO-DIMM |
| Maximum internal memory | 128 GB |
| Memory layout (slots x size) | 2 x 8 GB |
| Graphics | |
| On-board graphics adapter | Y |
| Discrete graphics adapter | Y |
| On-board graphics adapter model | Intel UHD Graphics 630 |
| Discrete graphics adapter model | NVIDIA Quadro T2000 |
| Discrete graphics adapter memory | 4 GB |
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA Quadro T2000 |
| On-board graphics card model | Intel UHD Graphics 630 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3E9B |
| Discrete graphics card memory | 4 GB |
| Storage | |
| Total storage capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Total SSDs capacity | 512 GB |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
| Compatible memory cards | SD, SDHC, SDXC |
| Card reader integrated | Yes |
| Storage media | SSD |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| WLAN controller model | Intel Wi-Fi 6 AX200 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Charging port type | DC-in jack |
| HDMI version | 2.0 |
| SmartCard slot | Yes |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Thunderbolt 3 ports quantity | 2 |
| Mini DisplayPorts quantity | 1 |
| Thunderbolt version | 3 |
| Audio | |
| Built-in microphone | Yes |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Audio chip | Realtek ALC3281 |
| Camera | |
| Front camera | Yes |
| Front camera HD type | HD |
| Video capturing speed | 30 fps |
| Front camera resolution | 1280 x 720 pixels |
| Front camera resolution (numeric) | 0.92 MP |
| Keyboard | |
| Numeric keypad | Yes |
| Keyboard backlit | Yes |
| Software | |
| Operating system installed | Windows 10 Pro |
| Operating system language | Multilingual |
| Operating system architecture | 64-bit |
| Trial software | Microsoft Office |
| Battery | |
| Battery technology | Lithium Polymer (LiPo) |
| Battery weight | 445 g |
| Battery capacity (Watt-hours) | 97 Wh |
| Number of battery cells | 6 |
| Battery capacity | 97 Wh |
| Battery voltage | 11.4 V |
| Weight & dimensions | |
| Weight | 2.52 kg |
| Height (rear) | 3 cm |
| Height (front) | 2.5 cm |
| Depth | 251.3 mm |
| Width | 377.6 mm |
| Power | |
| AC adapter power | 180 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 19.5 V |
| AC adapter output current | 9.23 A |
| Security | |
| Cable lock slot | Yes |
| Cable lock slot type | Noble |
| Password protection | Yes |
