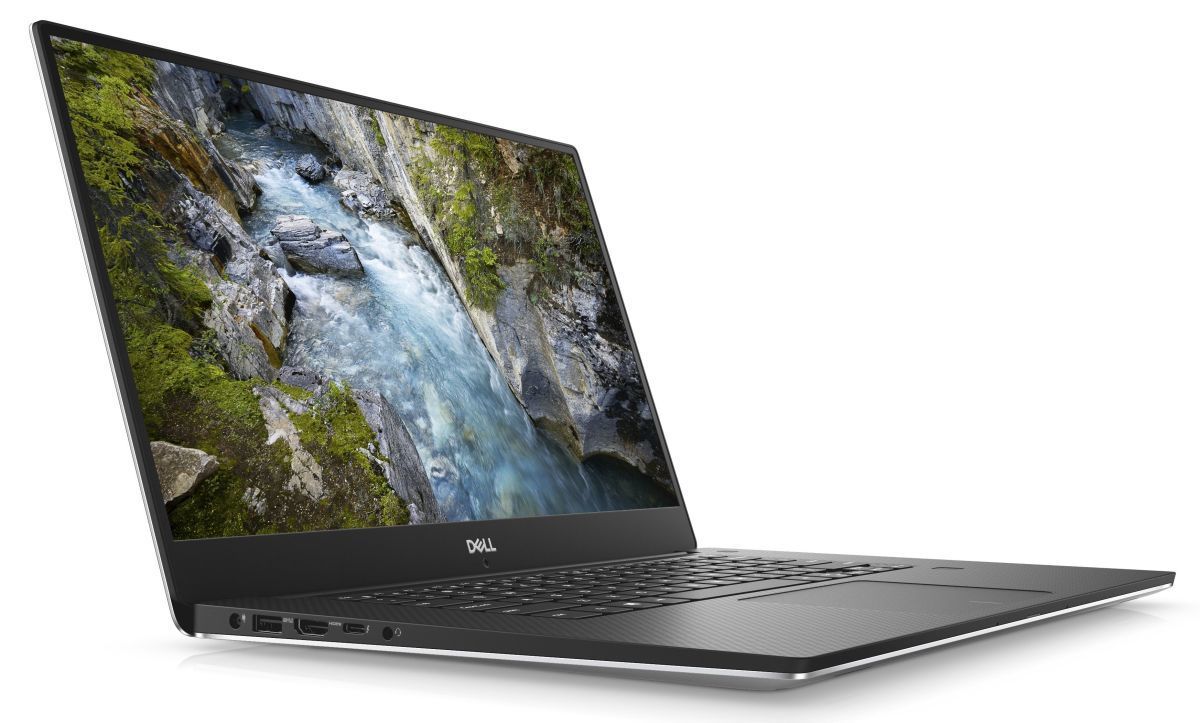

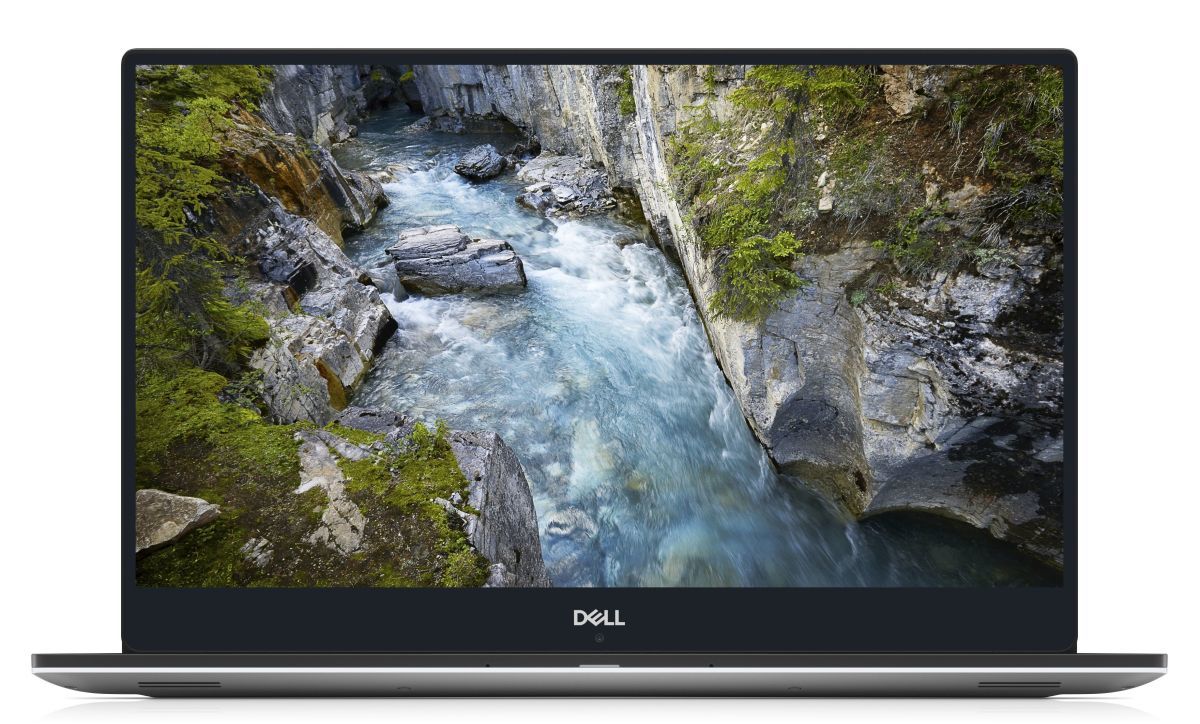

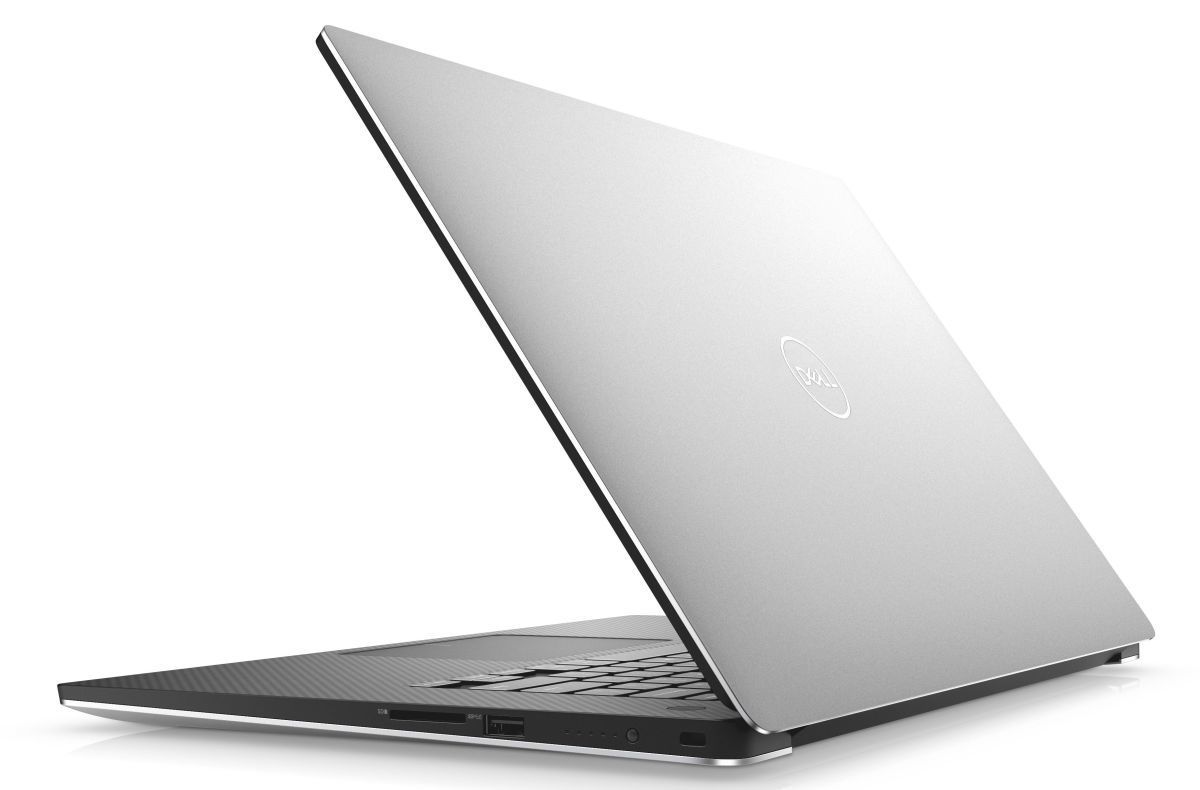

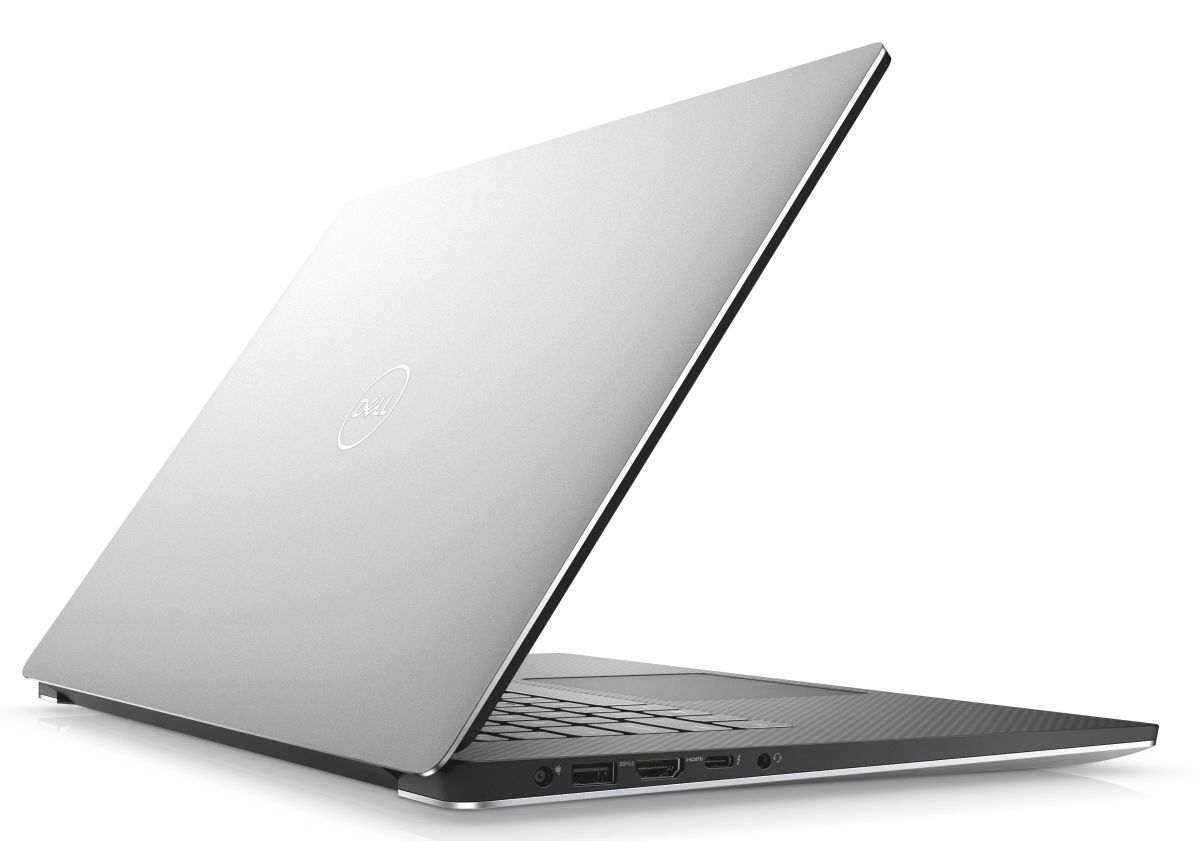

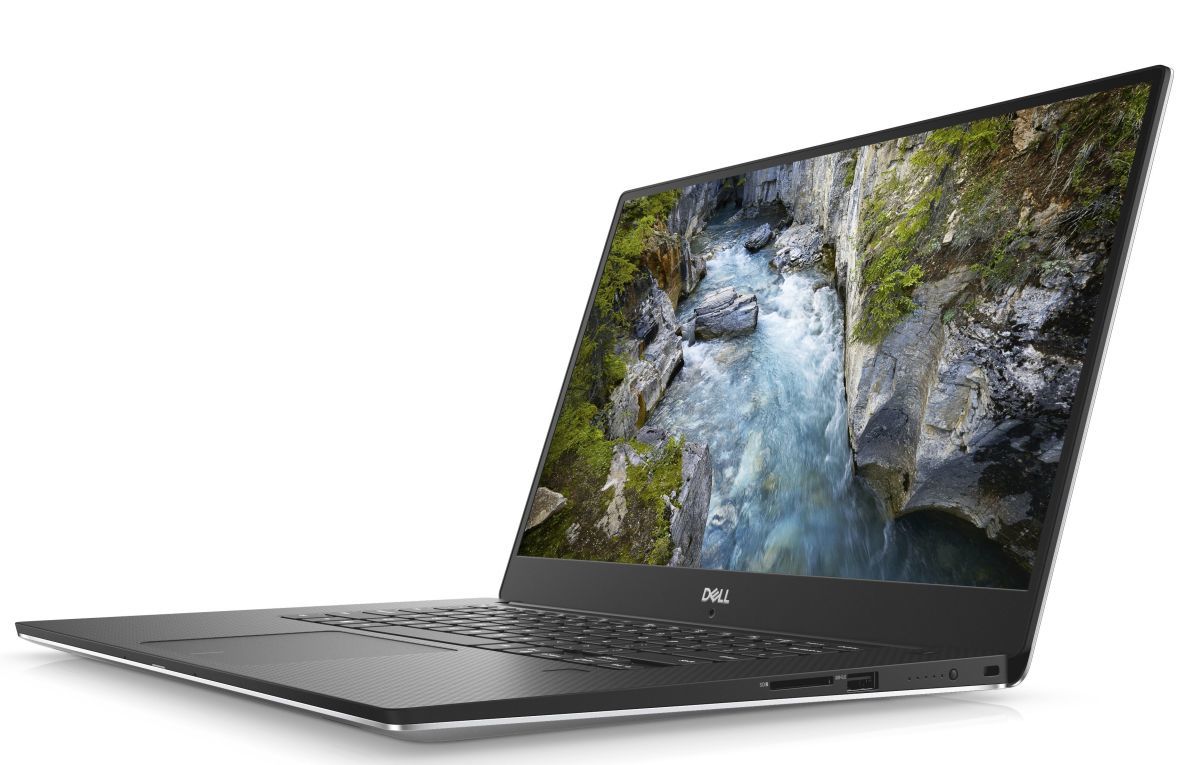

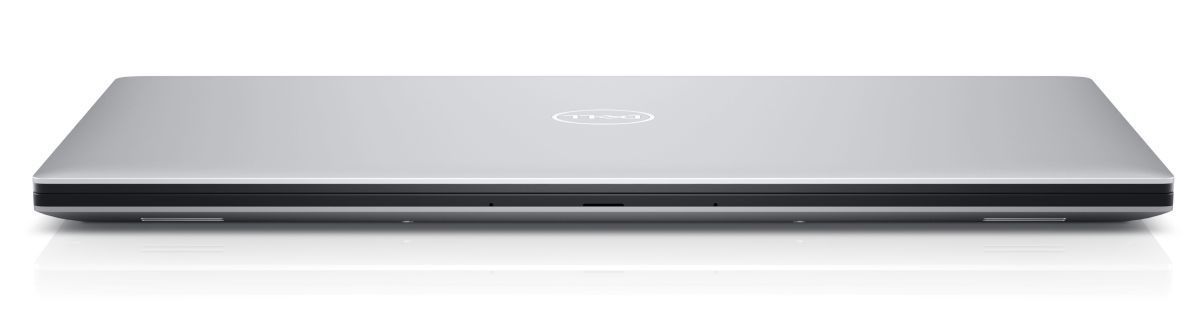

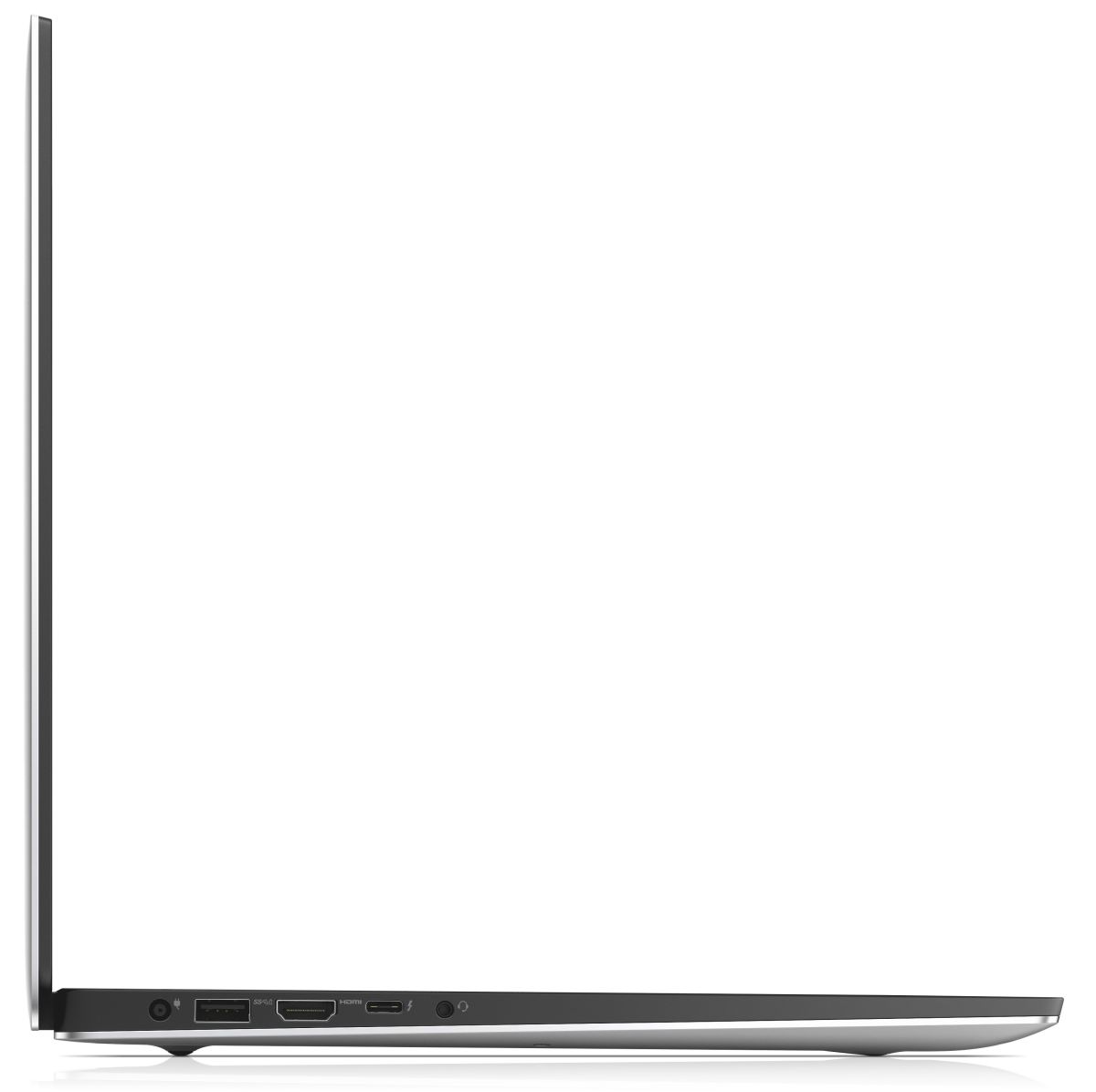

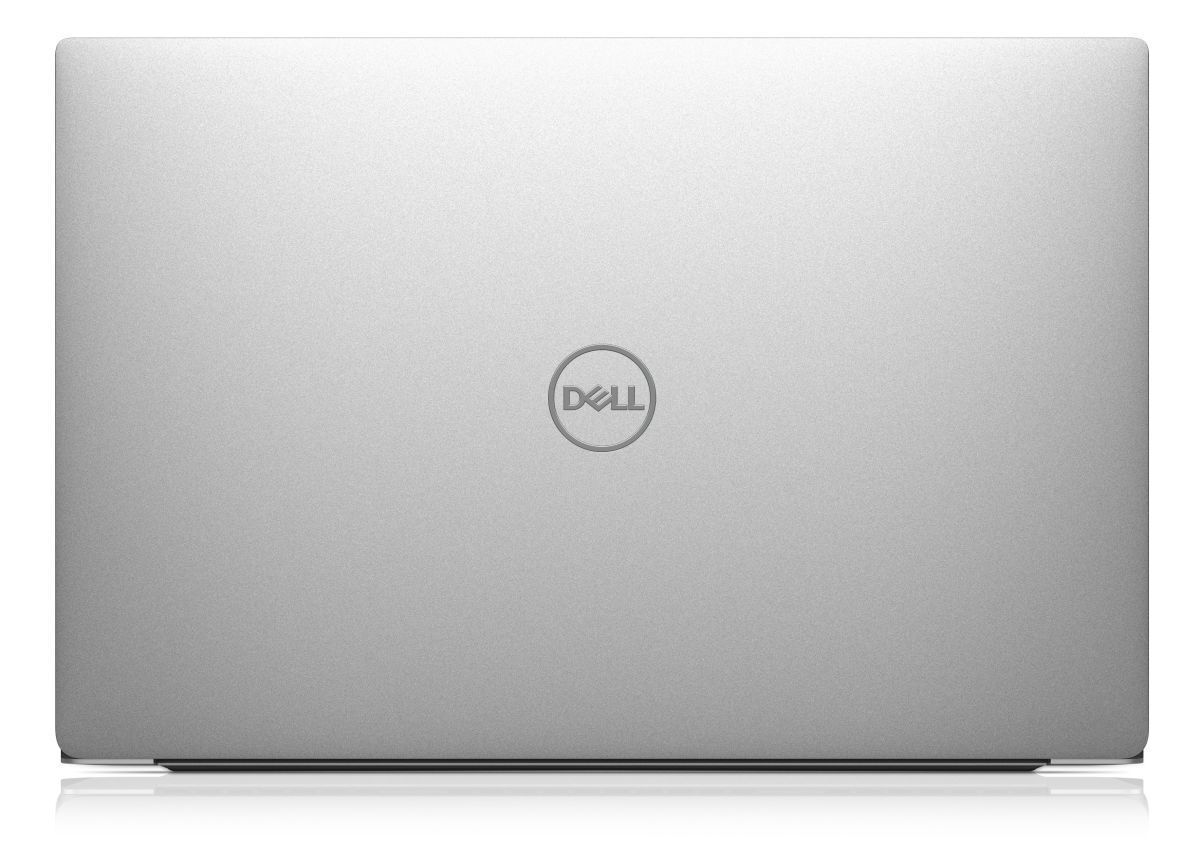

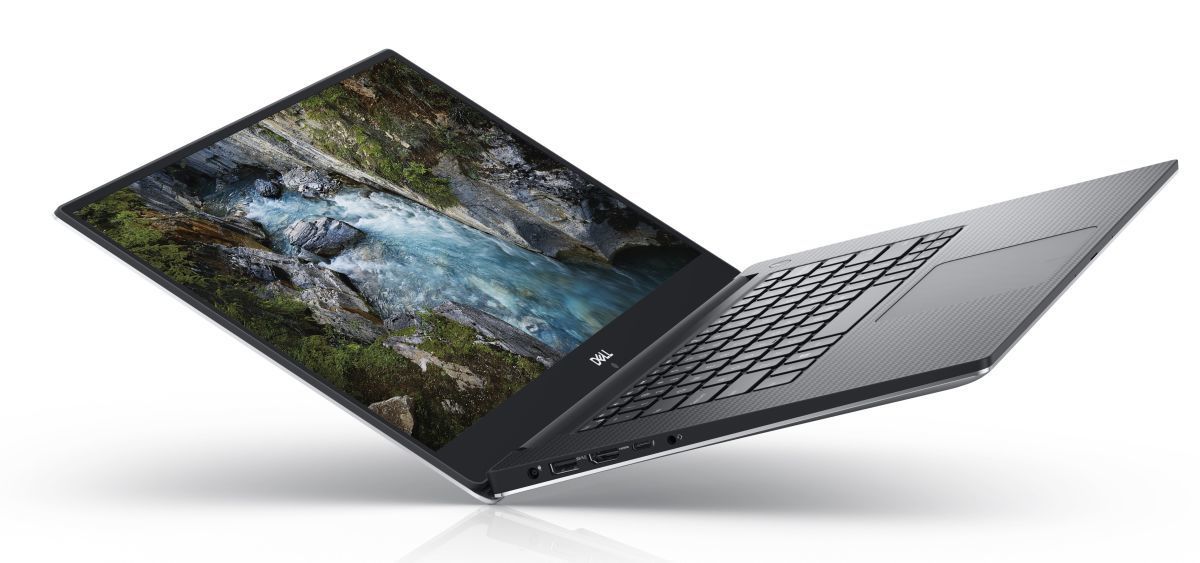

DELL Precision 5530 - WFYWD
DELL Precision 5530
Product code: WFYWD
- 💻Display diagonal: 15.6 inch
- 🔳Processor model: i9-8950HK
- 🎫Internal memory: 32 GB
- 🎮On-board graphics adapter model: Intel UHD Graphics 630
- 🎮Discrete graphics adapter model: NVIDIA Quadro P2000
- 💽Total storage capacity: 1 TB
- ⚖️Weight: 2.04 kg
📊 Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Silver |
| Product type | Notebook |
| Form factor | Clamshell |
| Display | |
| Display diagonal | 15.6 inch |
| Pixel density | 282 ppi |
| Contrast ratio (typical) | 1500:1 |
| Pixel pitch | 0.09 x 0.09 mm |
| Touchscreen type | Capacitive |
| Display brightness | 360 cd/m² |
| Panel type | IGZO |
| Display surface | Matt |
| Touch technology | Multi-touch |
| Aspect ratio | 16:9 |
| HD type | 4K Ultra HD |
| LED backlight | Y |
| Touchscreen | Y |
| Display resolution | 3840 x 2160 pixels |
| Native aspect ratio | 16:9 |
| Brand | DELL |
| Family | Precision |
| Series | 5000 |
| Model name | 5530 |
| Part Number | WFYWD |
| Release Date | 08 November 2018 |
| EAN/UPC code | 5397184210918 |
|
|
|
| Processor | |
| Processor series | Intel Core i9-8000 Mobile series |
| Processor manufacturer | Intel |
| Processor family | Intel Core i9 |
| Processor frequency | 2.9 GHz |
| Processor boost frequency | 4.8 GHz |
| Processor codename | Coffee Lake |
| Thermal Design Power (TDP) | 45 W |
| Processor model | i9-8950HK |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor cache | 12 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA 1440 |
| Processor generation | 8th gen Intel Core i9 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 32 GB |
| Memory form factor | SO-DIMM |
| Memory clock speed | 2666 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 32 GB |
| Memory layout (slots x size) | 2 x 16 GB |
| Maximum internal memory (64-bit) | 32 GB |
| Graphics | |
| On-board graphics adapter | Y |
| On-board graphics adapter family | Intel UHD Graphics |
| Number of discrete graphics adapters installed | 1 |
| Discrete graphics memory type | GDDR5 |
| On-board graphics adapter DirectX version | 12.0 |
| Discrete graphics adapter | Y |
| On-board graphics adapter model | Intel UHD Graphics 630 |
| Discrete graphics adapter model | NVIDIA Quadro P2000 |
| On-board graphics adapter base frequency | 350 MHz |
| On-board graphics adapter dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics adapter memory | 64 GB |
| On-board graphics adapter OpenGL version | 4.5 |
| Discrete graphics adapter memory | 4 GB |
| On-board graphics card | Y |
| Discrete graphics card | Y |
| Discrete graphics card model | NVIDIA Quadro P2000 |
| On-board graphics card model | Intel UHD Graphics 630 |
| On-board graphics card family | Intel UHD Graphics |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1200 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3E9B |
| Discrete graphics card memory | 4 GB |
| Number of discrete graphics cards installed | 1 |
| Storage | |
| Total storage capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
| Compatible memory cards | SD |
| Solid-state drive interface | PCI Express |
| Solid-state drive capacity | 1000 GB |
| Card reader integrated | Y |
| Storage media | SSD |
| Optical drive | |
| Optical drive type | N |
| Networking | |
| Ethernet LAN | N |
| Wi-Fi | Y |
| WLAN controller model | Intel Dual Band Wireless-AC 9260 |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi data rate (max) | 1733 Mbit/s |
| Antenna type | 2x2 |
| Bluetooth | Y |
| Bluetooth version | 5.0 |
| 4G | N |
| 3G | N |

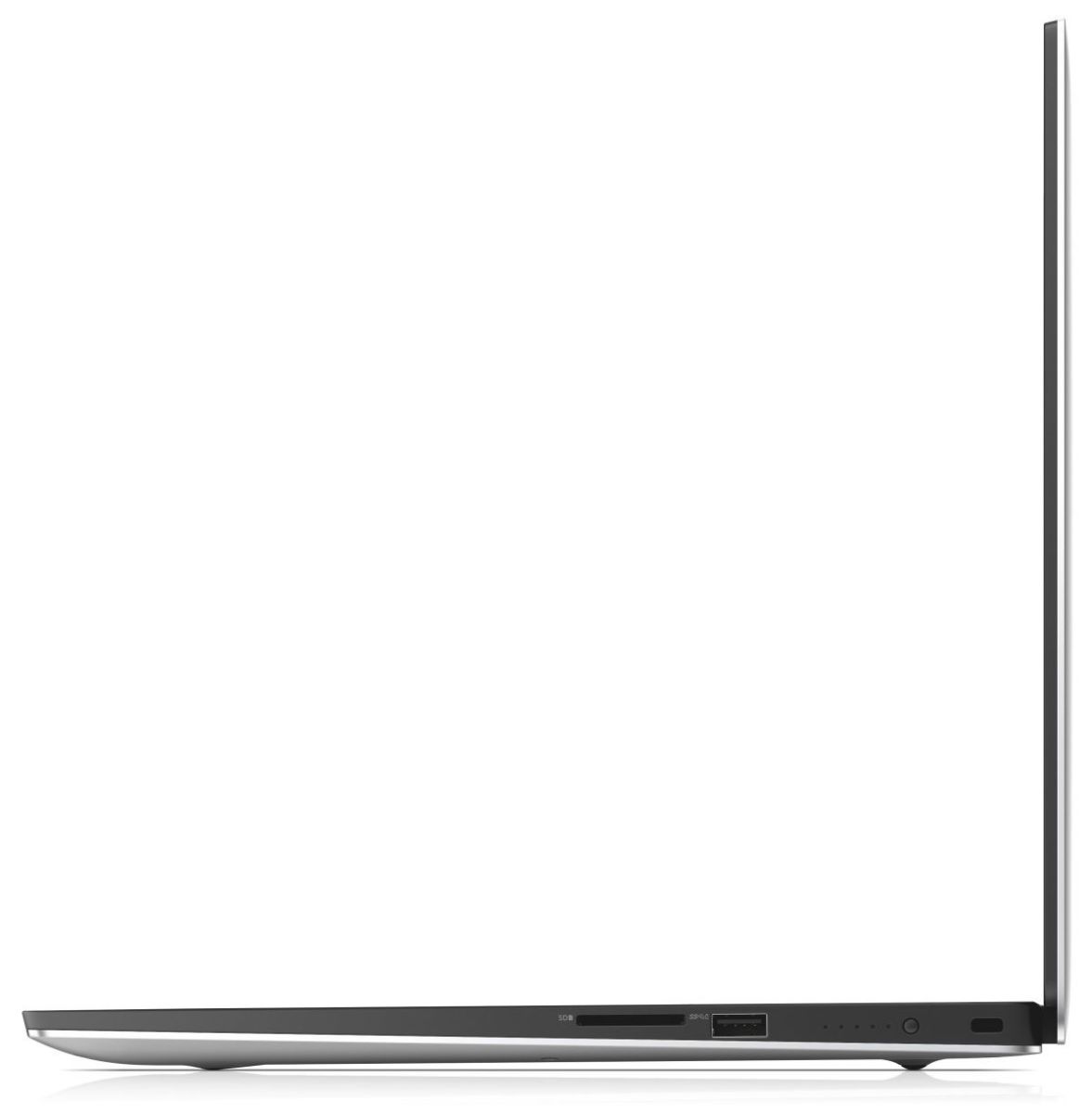

| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Number of Thunderbolt 3 ports with PowerShare support | 1 |
| PowerShare | Y |
| Number of USB ports with PowerShare support | 2 |
| Charging port type | DC-in jack |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI version | 2.0 |
| Combo headphone/mic port | Y |
| HDMI ports quantity | 1 |
| Thunderbolt 3 ports quantity | 1 |
| Audio | |
| Built-in microphone | Y |
| Number of built-in speakers | 2 |
| Audio system | MaxxAudio Pro |
| Speakers manufacturer | Waves |
| Camera | |
| Front camera | Y |
| Front camera HD type | HD |
| Video capturing speed | 30 fps |
| Front camera resolution | 1280 x 720 pixels |
| Front camera signal format | 720p |
| Front camera resolution (numeric) | 0.92 MP |

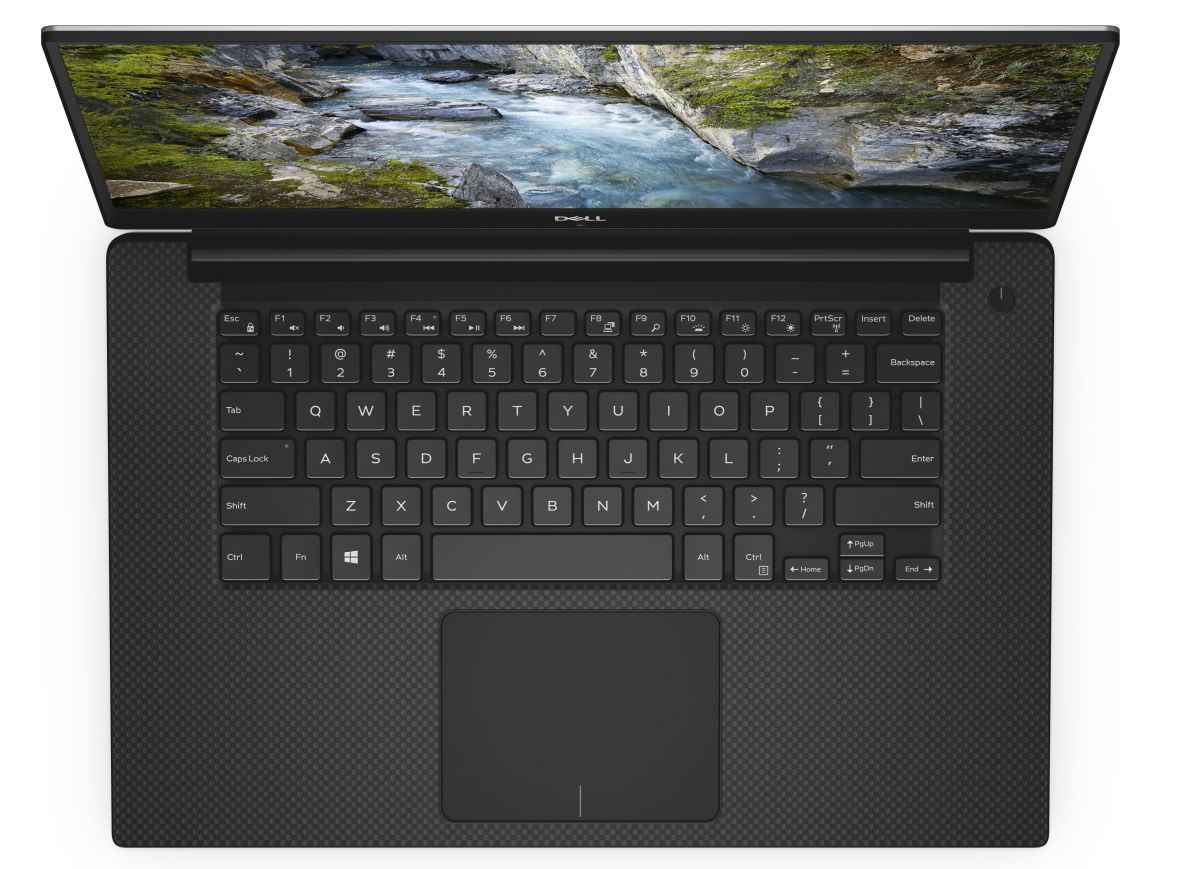

| Keyboard | |
| Numeric keypad | N |
| Island-style keyboard | Y |
| Full-size keyboard | Y |
| Keyboard backlit | Y |
| Windows keys | Y |
| Pointing device | Touchpad |
| Keyboard language | Italian |
| Software | |
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
| Drivers included | Y |
| Trial software | Microsoft Office |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery weight | 450 g |
| Number of battery cells | 6 |
| Battery capacity | 97 Wh |
| Battery capacity (Watt hours) | 97 Wh |
| Battery voltage | 11.4 V |
| Weight & dimensions | |
| Weight | 2.04 kg |
| Height | 17 mm |
| Depth | 235 mm |
| Width | 357 mm |
| Power | |
| AC adapter power | 130 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 19.5 V |
| AC adapter output current | 6.67 A |
| Security | |
| Cable lock slot | Y |
| Cable lock slot type | Noble |
| Password protection | Y |
| Password protection type | HDD, Power on |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
