HP EliteBook 630 G11 - B16DXEC
HP EliteBook 630 G11
Product code: B16DXEC
- 💻Display diagonal: 13.3 inch
- 🔳Processor model: 165U
- 🎫Internal memory: 16 GB
- 🎮On-board graphics adapter model:
- 🎮Discrete graphics adapter model:
- 💽Total storage capacity: 512 GB
- ⚖️Weight: 1.31 kg
📊 Add to compare
Specifications
| Design | |
|---|---|
| Product colour | Silver |
| Product type | Laptop |
| Form factor | Clamshell |
| Market positioning | Premium |
| Original brand name | HP |
| Display | |
| Display diagonal | 13.3 inch |
| Display brightness | 1000 cd/m² |
| Panel type | LCD |
| HD type | WUXGA |
| Touchscreen | No |
| Display resolution | 1920 x 1200 pixels |
| RGB colour space | sRGB |
| Colour gamut | 100% |
| Brand | HP |
| Family | EliteBook |
| Series | 600 |
| Model name | 630 G11 |
| Part Number | B16DXEC |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 7 |
| Processor boost frequency | 4.9 GHz |
| Processor model | 165U |
| Processor cores | 12 |
| Processor threads | 14 |
| Processor cache | 12 MB |
| Processor generation | Intel Core Ultra (Series 1) |
| Efficient-core base frequency | 1.2 GHz |
| Efficient cores | 8 |
| Performance cores | 2 |
| Performance-core Max Turbo Frequency | 4.9 GHz |
| Efficient-core Max Turbo Frequency | 3.8 GHz |
| Maximum turbo power | 57 W |
| Processor base power | 15 W |
| Performance-core base frequency | 1.7 GHz |
| Low Power Efficient-cores | 2 |
| Low Power Efficient-core Max Turbo Frequency | 2.1 GHz |
| Low Power Efficient-core Base Frequency | 700 MHz |
| Memory | |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | SO-DIMM |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 64 GB |
| Memory layout (slots x size) | 1 x 16 GB |
| Graphics | |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Graphics |
| On-board graphics card family | Intel Graphics |
| On-board GPU manufacturer | Intel |
| Storage | |
| Total storage capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Total SSDs capacity | 512 GB |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Storage media | SSD |
| NVMe | Yes |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| 4G standard | LTE-A |

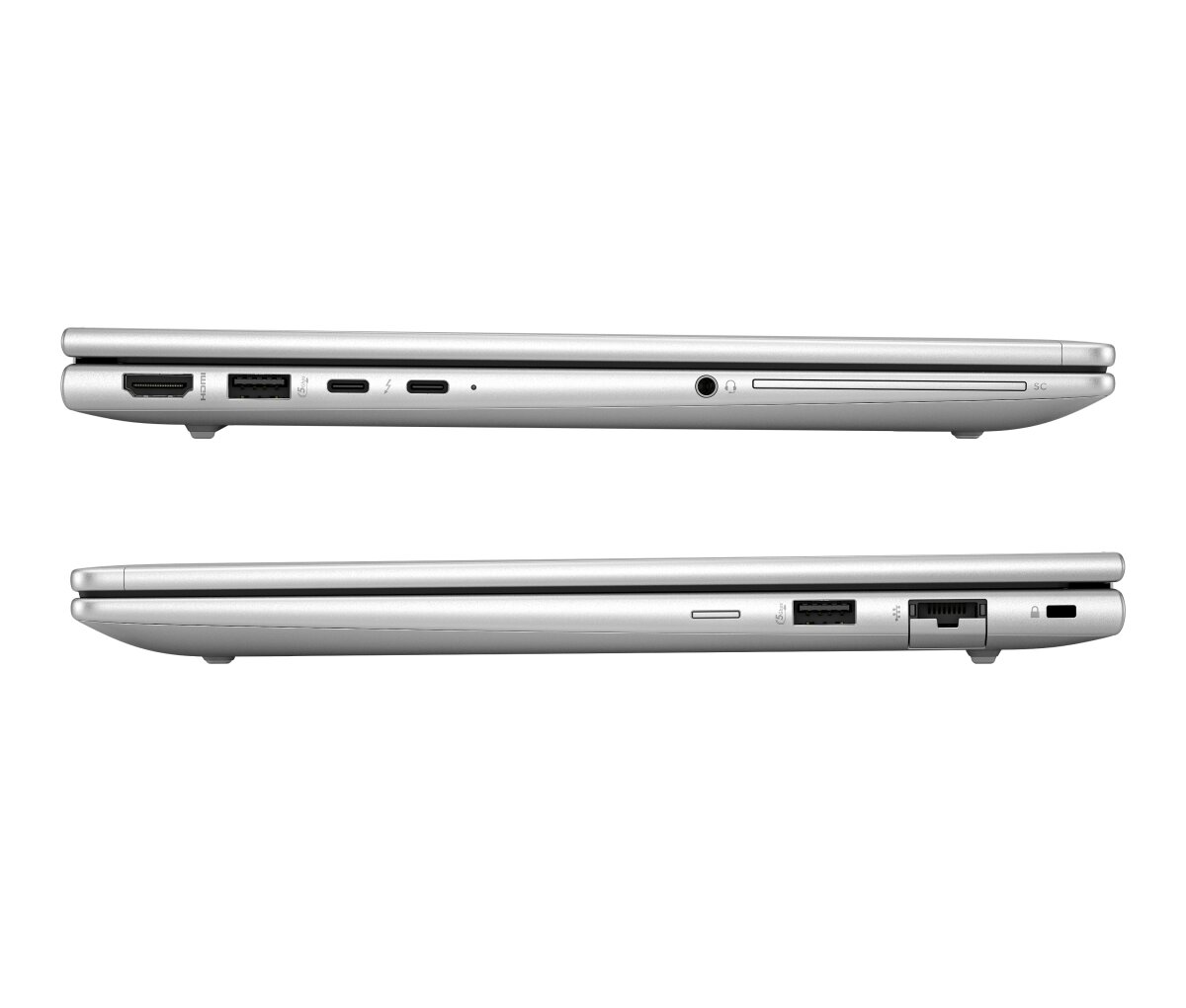

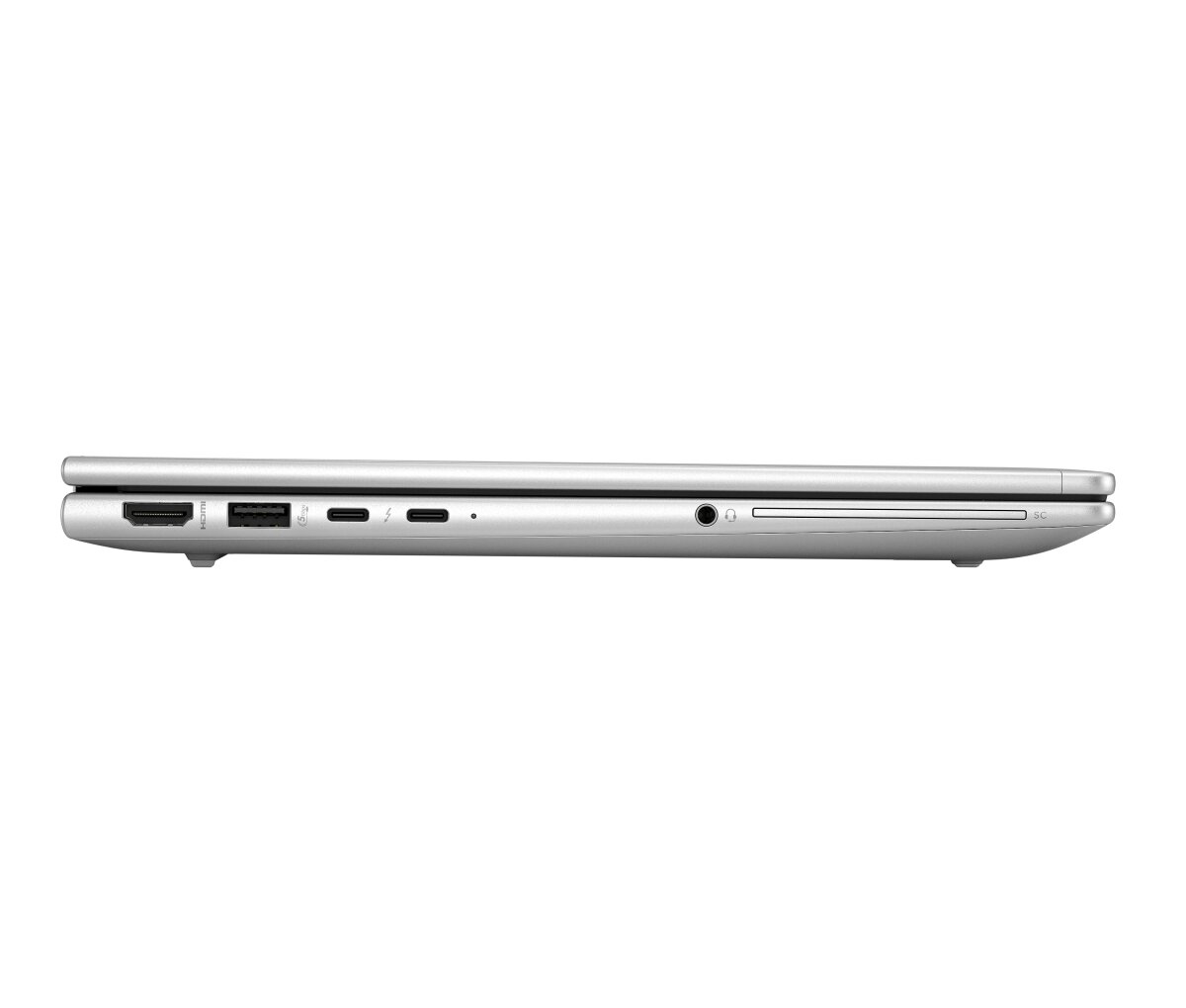

| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI version | 2.1 |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| USB Power Delivery (USB PD) | Yes |
| Audio | |
| Built-in microphone | Yes |
| Number of built-in speakers | 2 |
| Number of microphones | 2 |
| Camera | |
| Front camera | Yes |
| Infrared (IR) camera | Yes |
| Front camera resolution (numeric) | 5 MP |
| Keyboard | |
| Numeric keypad | No |
| Spill-resistant keyboard | Yes |
| Pointing device | Clickpad |
| Software | |
| Operating system installed | Windows 11 Pro |
| Battery | |
| Battery technology | Lithium Polymer (LiPo) |
| Number of battery cells | 3 |
| Battery capacity | 48 Wh |
| Fast charging | Yes |
| Fast charging time (50%) | 30 min |
| Weight & dimensions | |
| Weight | 1.31 kg |
| Height (rear) | 1.7 cm |
| Height (front) | 1 cm |
| Depth | 215.1 mm |
| Width | 303.1 mm |
| Power | |
| AC adapter power | 65 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| Security | |
| Smart card reader | Yes |
| Fingerprint reader | Yes |
| Brand-specific features | |
| HP Connection Optimizer | Yes |
| HP segment | Business |
| HP Support Assistant | Yes |
| HP speaker type | HP Dual Speakers |
| HP front camera | HP Webcam 5MP |
| Other features | |
| Display diagonal (metric) | 33.8 cm |
| Anti-glare screen | Yes |
| Neural processor unit (NPU) | |
| Neural processor unit (NPU) | Intel AI Boost |
| Maximum frequency NPU | 1.4 GHz |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML, ONNX RT, OpenVINO, Windows ML |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
Download drivers: ➡️ HP EliteBook 630 G11 B16DXEC Drivers Windows 10 - Autodetect drivers
