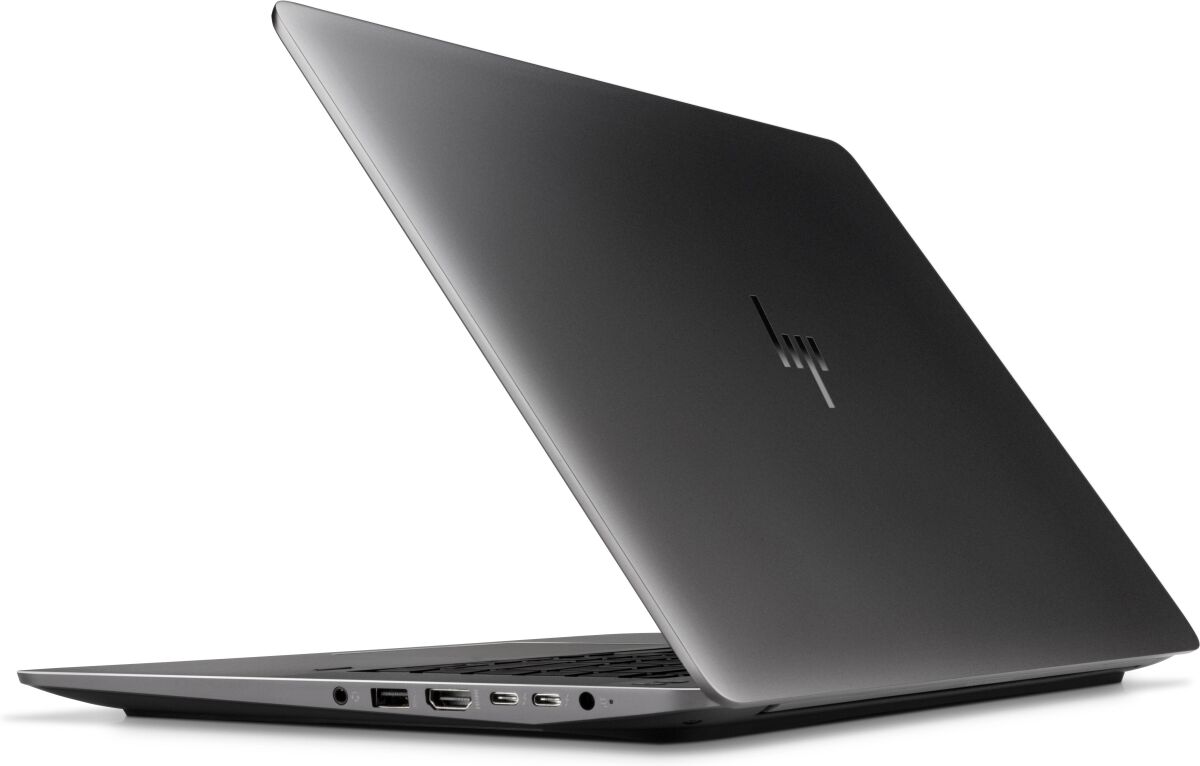

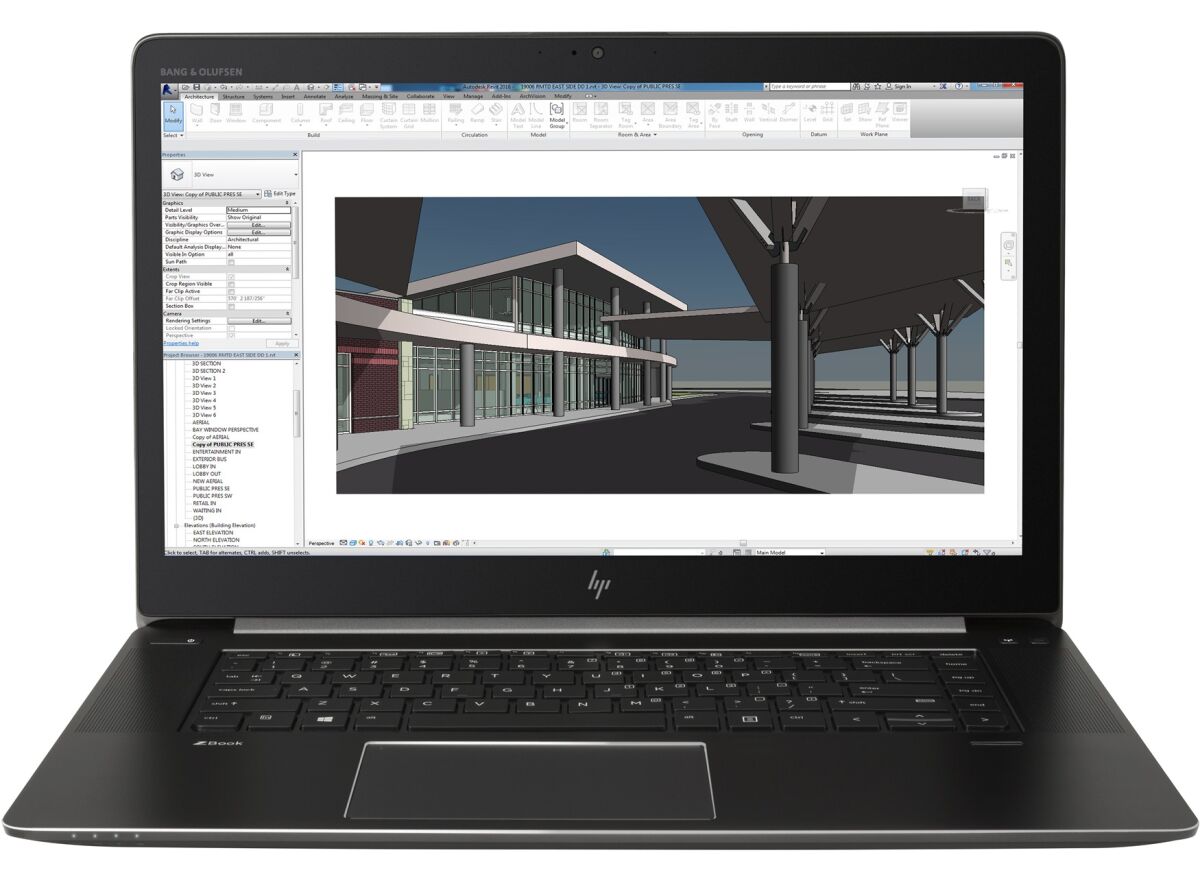

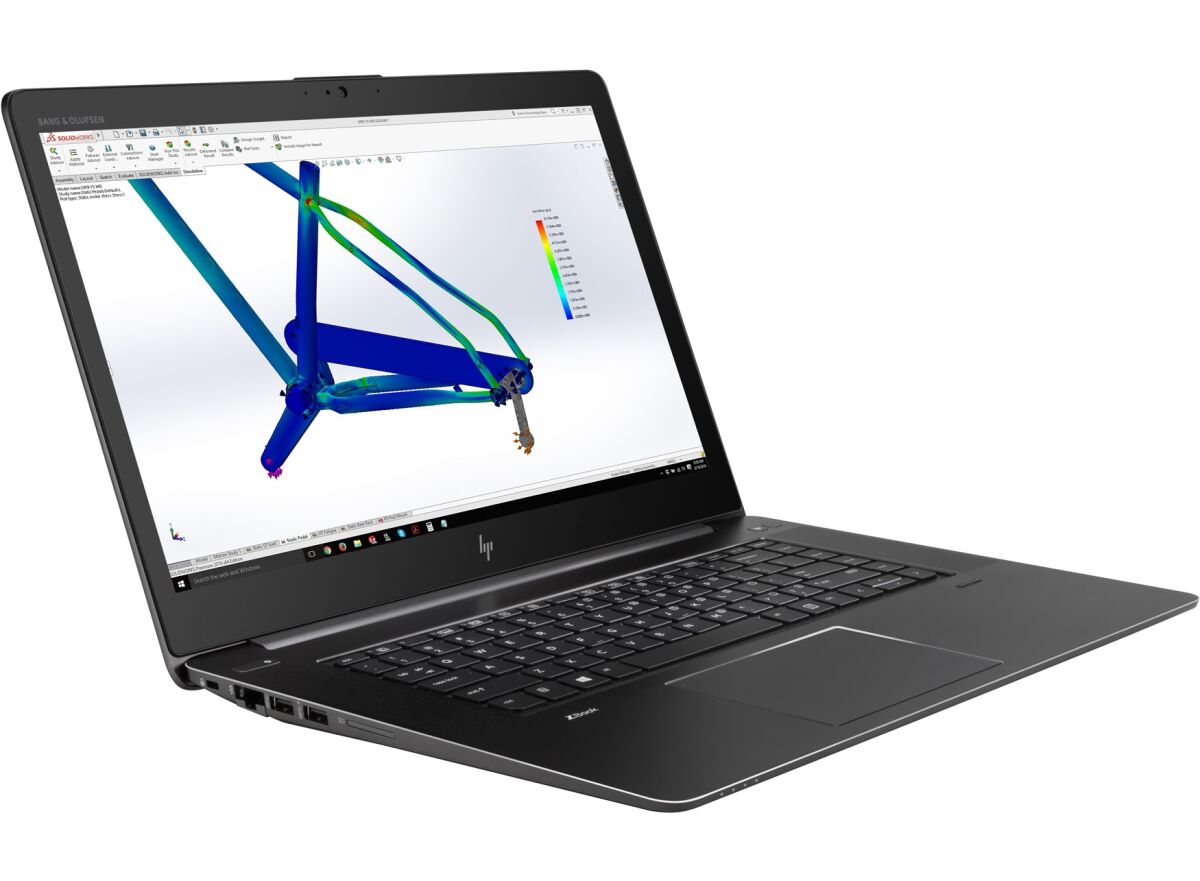

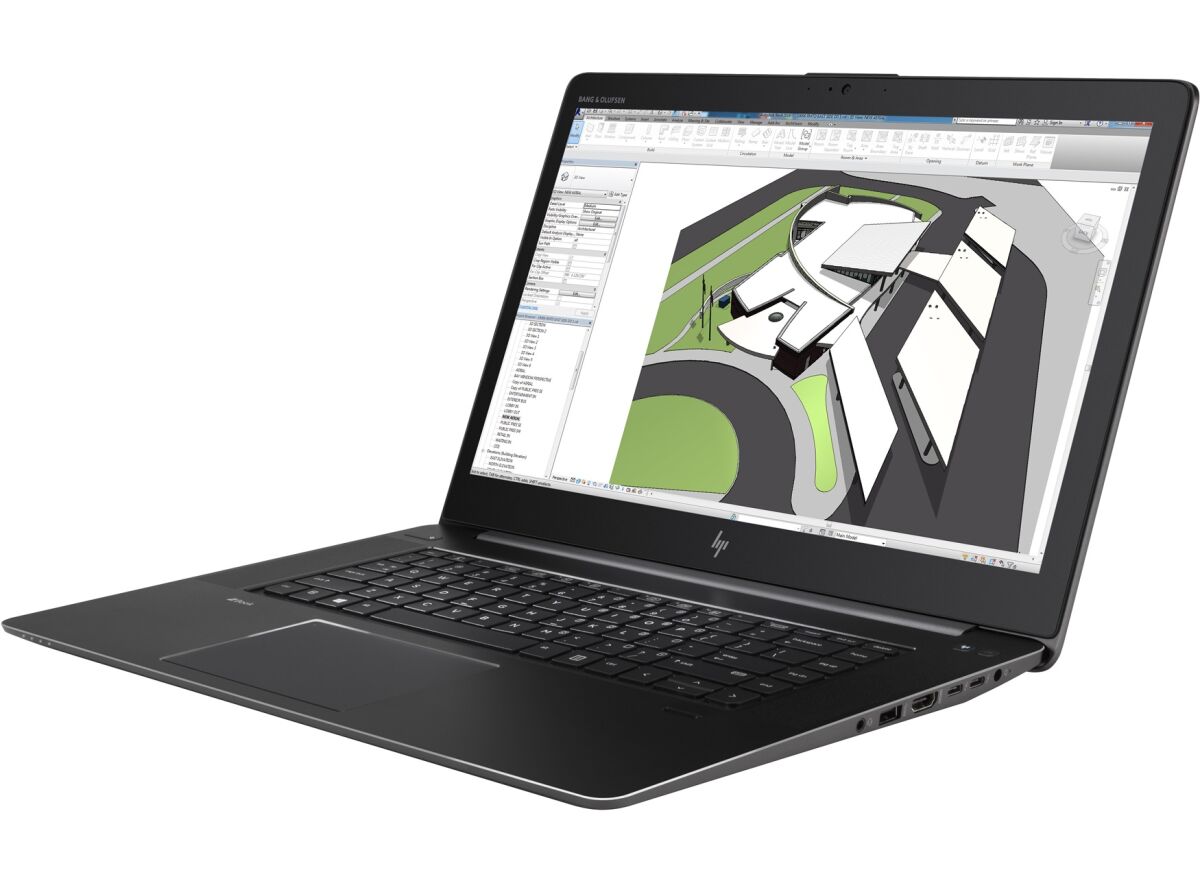

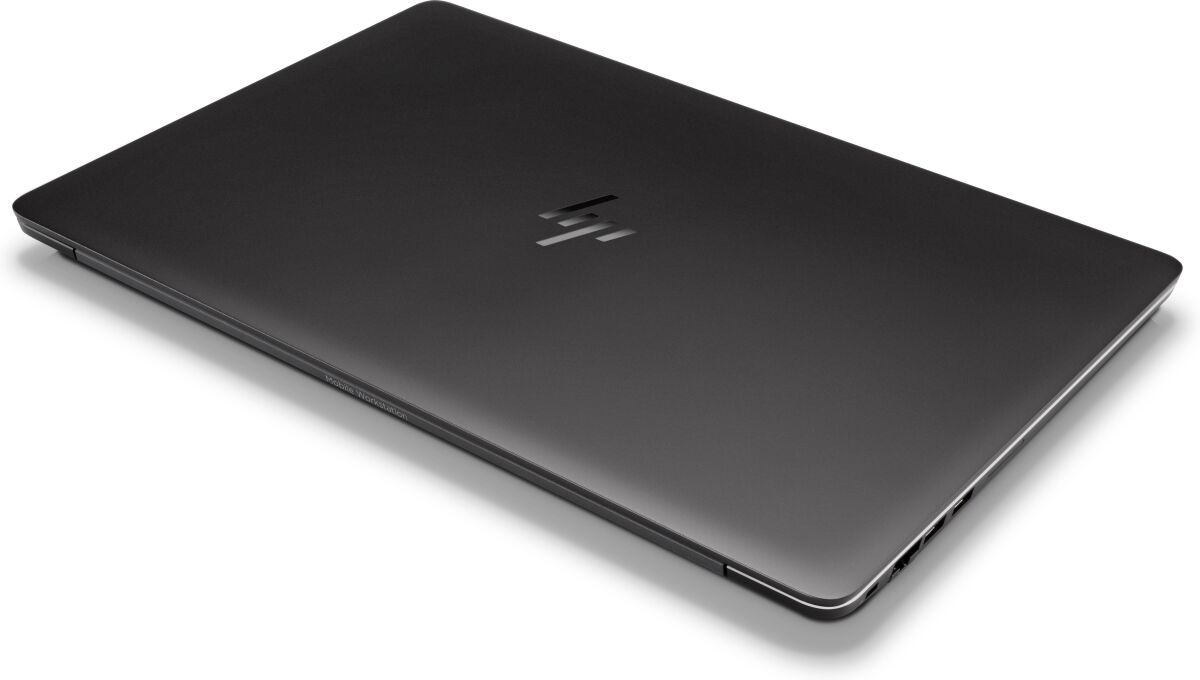

HP ZBook Studio G4 - 2WT97EA-R-RENEW
HP ZBook Studio G4
Product code: 2WT97EA-R-RENEW
- đģDisplay diagonal: 15.6 inch
- đŗProcessor model: E3-1505MV6
- đĢInternal memory: 32 GB
- đŽOn-board graphics adapter model: Intel HD Graphics P630
- đŽDiscrete graphics adapter model: NVIDIA Quadro M1200M
- đŊTotal storage capacity: 512 GB
- âī¸Weight: 2.09 kg
đ Add to compare
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Product type | Mobile workstation |
| Form factor | Clamshell |
| Display | |
| Display diagonal | 15.6 inch |
| Panel type | IPS |
| HD type | Full HD |
| LED backlight | Yes |
| Touchscreen | No |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Brand | HP |
| Family | ZBook |
| Series | Studio |
| Model name | Studio G4 |
| Part Number | 2WT97EA-R-RENEW |
| Release Date | 28 February 2018 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Xeon E3 v6 |
| Processor frequency | 3 GHz |
| Motherboard chipset | Intel CM236 |
| Processor boost frequency | 4 GHz |
| Processor codename | Kaby Lake |
| Thermal Design Power (TDP) | 45 W |
| Processor model | E3-1505MV6 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor cache | 8 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA 1440 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 32 GB |
| Memory clock speed | 2400 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 32 GB |
| Memory layout (slots x size) | 2 x 16 GB |
| Graphics | |
| On-board graphics adapter | Y |
| On-board graphics adapter family | Intel HD Graphics |
| Discrete graphics memory type | GDDR5 |
| On-board graphics adapter DirectX version | 12.0 |
| Discrete graphics adapter | Y |
| On-board graphics adapter model | Intel HD Graphics P630 |
| Discrete graphics adapter model | NVIDIA Quadro M1200M |
| On-board graphics adapter base frequency | 350 MHz |
| On-board graphics adapter dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics adapter memory | 1.7 GB |
| On-board graphics adapter OpenGL version | 4.4 |
| Discrete graphics adapter memory | 4 GB |
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA Quadro M1200M |
| On-board graphics card model | Intel HD Graphics P630 |
| On-board graphics card family | Intel HD Graphics |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics card memory | 1.7 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x591D |
| Discrete graphics card memory | 4 GB |
| Storage | |
| Total storage capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Total SSDs capacity | 512 GB |
| SSD interface | PCI Express |
| Compatible memory cards | SD |
| Card reader integrated | Yes |
| Storage media | SSD |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |

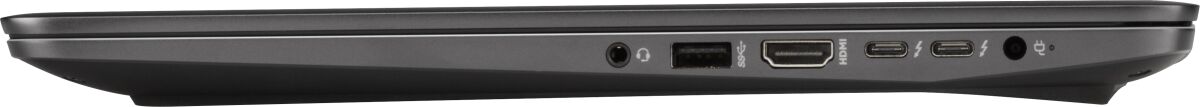

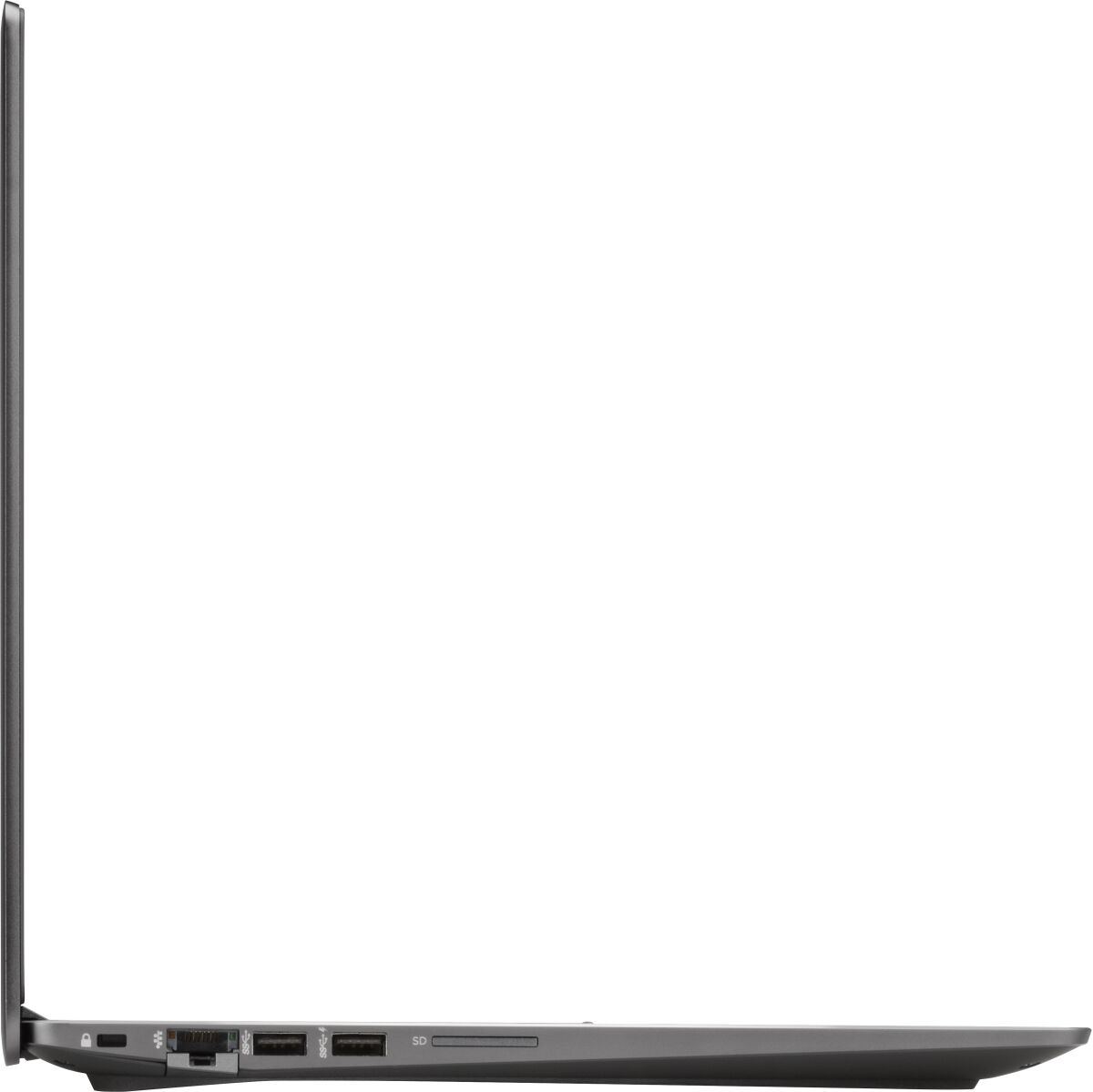

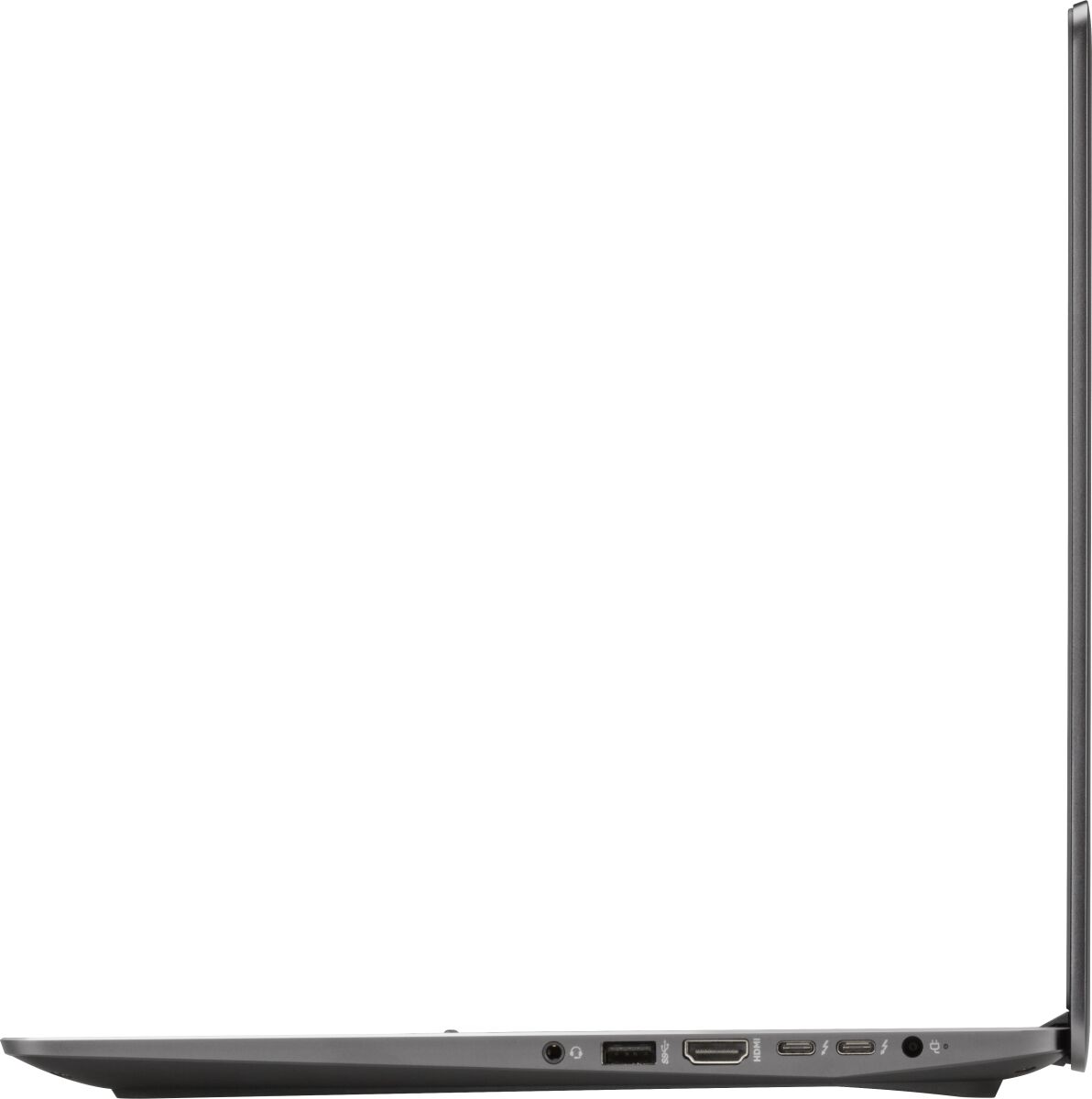

| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Charging port type | DC-in jack |
| HDMI version | 1.4 |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Audio | |
| Built-in microphone | Yes |
| Number of built-in speakers | 2 |
| Speakers manufacturer | Bang & Olufsen |
| Camera | |
| Front camera | Yes |
| Front camera signal format | 720p |
| Keyboard | |
| Numeric keypad | No |
| Spill-resistant keyboard | Yes |
| Pointing device | Clickpad |
| Software | |
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity (Watt-hours) | 64 Wh |
| Number of battery cells | 4 |
| Battery capacity | 64 Wh |
| Weight & dimensions | |
| Weight | 2.09 kg |
| Height | 18 mm |
| Depth | 255 mm |
| Width | 375 mm |
| Power | |
| AC adapter power | 150 W |
| Security | |
| Cable lock slot | Yes |
| Trusted Platform Module (TPM) | Yes |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
