HP EliteBook 830 G6 - 6XD74EA#ABH
HP EliteBook 830 G6
Product code: 6XD74EA#ABH
- đģDisplay diagonal: 13.3 inch
- đŗProcessor model: i5-8265U
- đĢInternal memory: 8 GB
- đŽOn-board graphics adapter model: Intel UHD Graphics 620
- đŽDiscrete graphics adapter model: Not available
- đŊTotal storage capacity: 256 GB
- âī¸Weight: 1.33 kg
đ Add to compare
Specifications
| Design | |
|---|---|
| Product colour | Silver |
| Product type | Notebook |
| Form factor | Clamshell |
| Display | |
| Display diagonal | 13.3 inch |
| Dual-screen | N |
| NTSC coverage (typical) | 45% |
| Display brightness | 250 cd/mò |
| Panel type | IPS |
| Aspect ratio | 16:9 |
| HD type | Full HD |
| LED backlight | Y |
| Touchscreen | N |
| Display resolution | 1920 x 1080 pixels |
| Brand | HP |
| Family | EliteBook |
| Series | 800 |
| Model name | 830 G6 |
| Part Number | 6XD74EA#ABH |
| Release Date | 01 June 2019 |
|
|
|
| Processor | |
| Processor family | 8th gen Intel Core i5 |
| Processor frequency | 1.6 GHz |
| Processor boost frequency | 3.9 GHz |
| Processor codename | Whiskey Lake |
| Thermal Design Power (TDP) | 15 W |
| Processor model | i5-8265U |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor cache | 6 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA 1528 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 8 GB |
| Memory form factor | SO-DIMM |
| Memory clock speed | 2400 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 32 GB |
| Memory layout (slots x size) | 1 x 8 GB |
| Graphics | |
| On-board graphics adapter | Y |
| On-board graphics adapter DirectX version | 12.0 |
| Discrete graphics adapter | N |
| On-board graphics adapter model | Intel UHD Graphics 620 |
| Discrete graphics adapter model | Not available |
| On-board graphics adapter base frequency | 300 MHz |
| On-board graphics adapter dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics adapter memory | 32 GB |
| On-board graphics adapter OpenGL version | 4.5 |
| Storage | |
| Total storage capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | NVMe, PCI Express |
| SSD form factor | M.2 |
| Card reader integrated | N |
| Storage media | SSD |
| Optical drive | |
| Optical drive type | N |
| Networking | |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Wi-Fi | Y |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| MIMO | Y |
| MIMO type | Multi User MIMO |
| Bluetooth | Y |
| Bluetooth version | 5.0 |
| Miracast | Y |
| 4G | N |
| 3G | N |

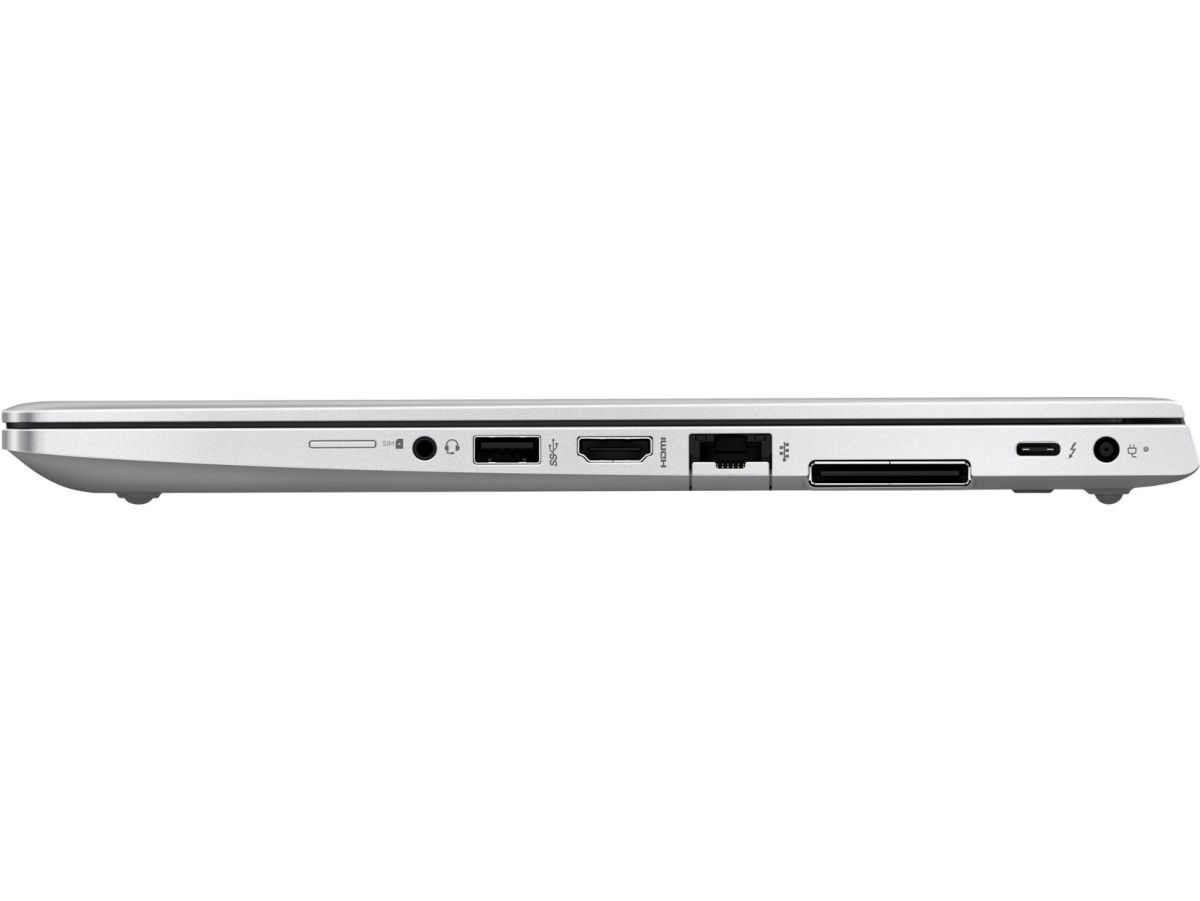

| Ports & interfaces | |
| Charging port type | DC-in jack |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI version | 1.4 |
| Docking connector | Y |
| USB 3.0 (3.1 Gen 1) Type-C ports quantity | 1 |
| Combo headphone/mic port | Y |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Audio | |
| Built-in microphone | Y |
| Number of built-in speakers | 2 |
| Audio system | Bang & Olufsen |
| Number of microphones | 3 |
| Camera | |

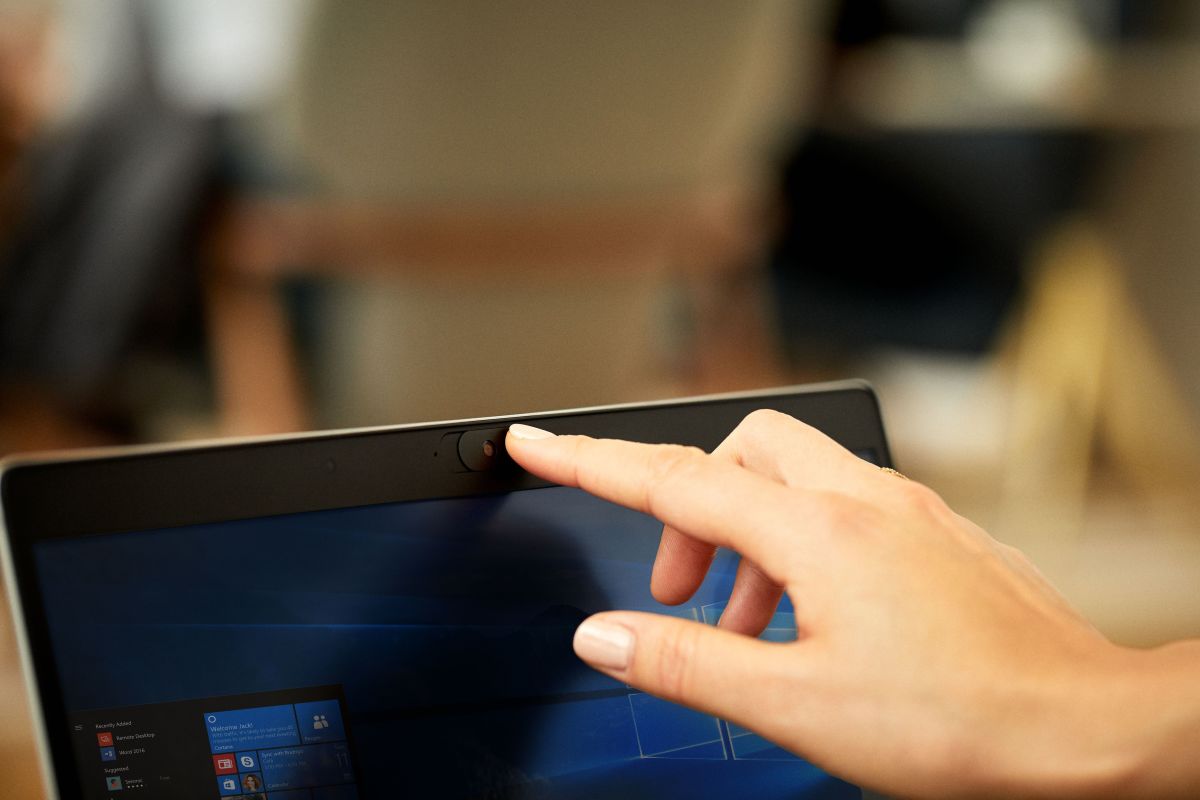

| Front camera | Y |
| Front camera HD type | HD |
| Front camera signal format | 720p |
| Keyboard | |
| Numeric keypad | N |
| Spill resistant keyboard | Y |
| Pointing device | Clickpad |
| Performance | |
| Ambient light sensor | Y |
| Software | |
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery weight | 190 g |
| Number of battery cells | 3 |
| Battery capacity (Watt hours) | 50 Wh |
| Weight & dimensions | |
| Weight | 1.33 kg |
| Height | 17.7 mm |
| Depth | 229.3 mm |
| Width | 310.4 mm |
| Power | |
| AC adapter power | 45 W |
| Security | |
| Cable lock slot | Y |
| Trusted Platform Module (TPM) | Y |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
