Lenovo ThinkPad Yoga X1 - 20QF00AEML
Lenovo ThinkPad Yoga X1
Product code: 20QF00AEML
- 💻Display diagonal: 14 inch
- 🔳Processor model: i7-8565U
- 🎫Internal memory: 16 GB
- 🎮On-board graphics adapter model: Intel UHD Graphics 620
- 🎮Discrete graphics adapter model: Not available
- 💽Total storage capacity: 512 GB
- ⚖️Weight: 1.36 kg
📊 Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Grey |
| Product type | Hybrid (2-in-1) |

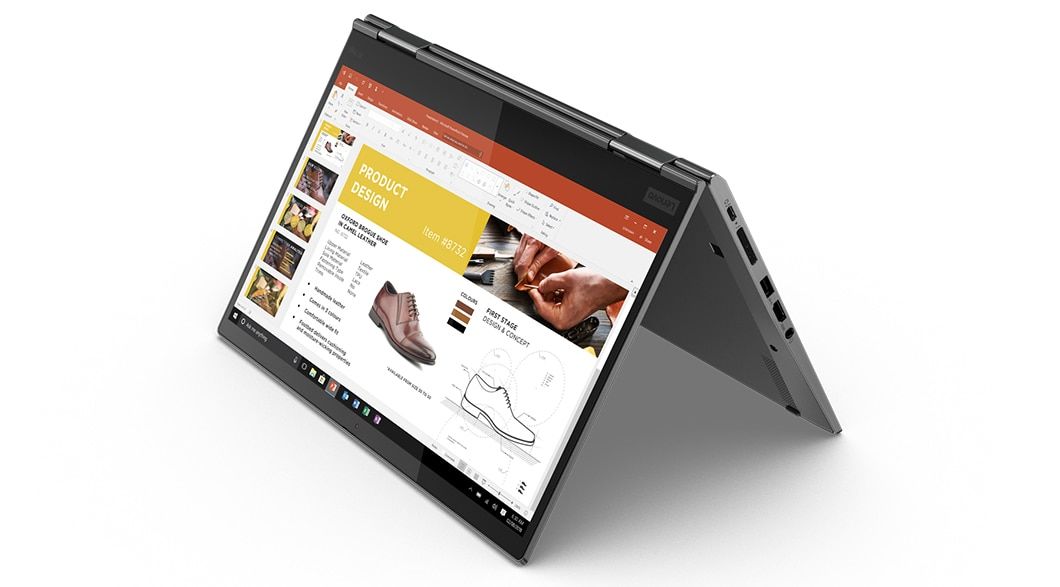

| Form factor | Convertible (Folder) |
| Housing material | Aluminium, Magnesium |
| Display | |
| Display diagonal | 14 inch |
| Dual-screen | N |
| Contrast ratio (typical) | 800:1 |
| Touchscreen type | Capacitive |
| Display brightness | 300 cd/m² |
| Panel type | IPS |
| Display surface | Gloss |
| Touch technology | Multi-touch |
| Aspect ratio | 16:9 |
| 3D | N |
| HD type | Quad HD |
| LED backlight | Y |
| Touchscreen | Y |
| Display resolution | 2560 x 1440 pixels |
| Native aspect ratio | 16:9 |
| Brand | Lenovo |
| Family | ThinkPad |
| Series | Yoga |
| Model name | X1 |
| Part Number | 20QF00AEML |
| Release Date | 23 October 2019 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Processor frequency | 1.8 GHz |
| Processor boost frequency | 4.6 GHz |
| Processor codename | Whiskey Lake |
| Thermal Design Power (TDP) | 15 W |
| Processor model | i7-8565U |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor cache | 8 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA 1528 |
| Configurable TDP-up frequency | 2 GHz |
| Configurable TDP-up | 25 W |
| Processor generation | 8th gen Intel Core i7 |
| Memory | |
| Internal memory type | LPDDR3-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | On-board |
| Memory clock speed | 2133 MHz |
| Maximum internal memory | 16 GB |
| ECC | N |
| Graphics | |
| On-board graphics adapter | Y |
| On-board graphics adapter 4K support | Y |
| On-board graphics adapter family | Intel UHD Graphics |
| On-board graphics adapter DirectX version | 12.0 |
| Discrete graphics adapter | N |
| On-board graphics adapter model | Intel UHD Graphics 620 |
| Discrete graphics adapter model | Not available |
| On-board graphics adapter base frequency | 300 MHz |
| On-board graphics adapter dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics adapter memory | 32 GB |
| On-board graphics adapter OpenGL version | 4.5 |
| On-board graphics card | Y |
| Discrete graphics card | N |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel UHD Graphics |
| On-board graphics card family | Intel UHD Graphics |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3EA0 |
| On-board graphics card 4K support | Y |
| Storage | |
| Total storage capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Total SSDs capacity | 512 GB |
| SSD interface | NVMe |
| SSD form factor | M.2 |
| Card reader integrated | N |
| Storage media | SSD |
| NVMe | Y |
| Optical drive | |
| Optical drive type | N |
| LightScribe | N |
| Networking | |
| Wi-Fi | Y |
| WLAN controller model | Intel Dual Band Wireless-AC 9560 |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Antenna type | 2x2 |
| Bluetooth | Y |
| Bluetooth version | 5.0 |
| WWAN | Installed |
| Near Field Communication (NFC) | Y |
| 4G | Y |
| 4G standard | LTE-A |
| 3G | Y |

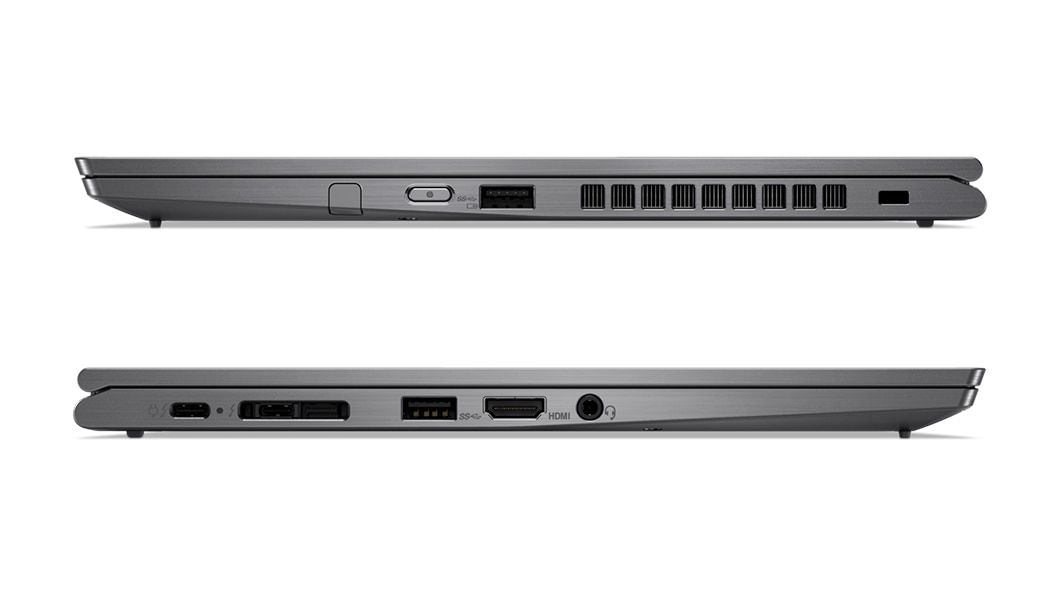

| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| TV-out | N |
| TV out | N |
| USB Power Delivery | Y |
| Charging port type | USB Type-C |
| HDMI version | 1.4b |
| ExpressCard slot | N |
| CardBus PCMCIA slot type | N |
| USB Sleep-and-Charge ports | 1 |
| DVI port | N |

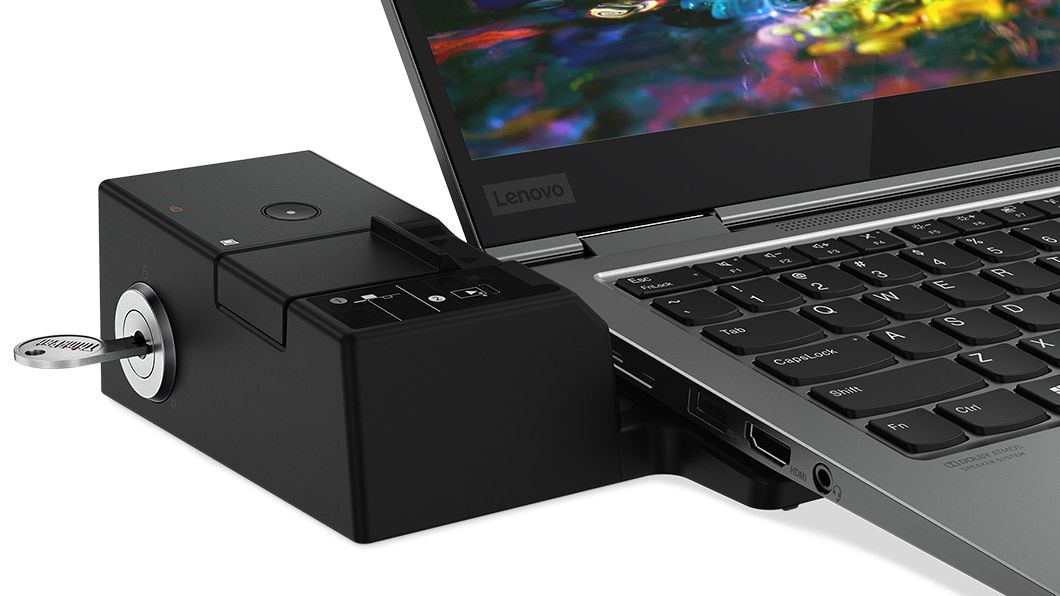

| Docking connector | Y |
| Combo headphone/mic port | Y |
| HDMI ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Y |
| USB Sleep-and-Charge | Y |
| Audio | |
| Built-in microphone | Y |
| Number of built-in speakers | 4 |
| Speaker power | 5.6 W |
| Audio chip | Realtek ALC1012L |
| Camera | |
| Front camera | Y |
| Infrared (IR) camera | Y |
| Front camera HD type | HD |
| Front camera signal format | 720p |
| Rear camera | N |
| Swivel webcam | N |
| Keyboard | |
| Numeric keypad | N |
| Spill-resistant keyboard | Y |
| Spill resistant keyboard | Y |
| Keyboard backlit | Y |
| Windows keys | Y |
| Pointing device | ThinkPad UltraNav |
| Performance | |
| Accelerometer | Y |
| GPS (satellite) | Y |
| Software | |
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Quick charge | Y |
| Battery life (max) | 18.1 h |
| Battery capacity | 51 Wh |
| Battery capacity (Watt hours) | 51 Wh |
| Fast charging | Y |
| Weight & dimensions | |
| Weight | 1.36 kg |
| Height | 15.5 mm |
| Depth | 218 mm |
| Width | 323 mm |
| Power | |
| AC adapter power | 65 W |
| Security | |
| Cable lock slot | Y |
| Fingerprint reader | Y |
| Trusted Platform Module (TPM) | Y |
| Password protection | Y |
| Password protection type | HDD, Power on, Supervisor |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
