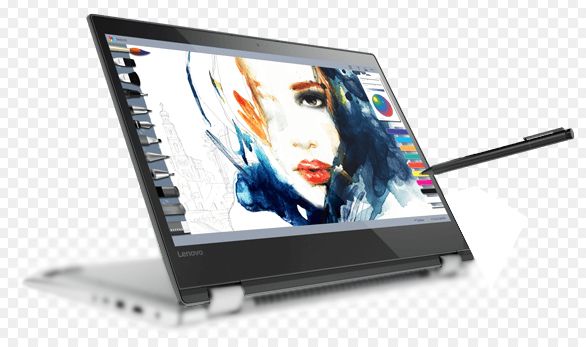

Lenovo Yoga 520 - 80X80052UK
Lenovo Yoga 520
Product code: 80X80052UK
- đģDisplay diagonal: 14 inch
- đŗProcessor model: i5-7200U
- đĢInternal memory: 8 GB
- đŽOn-board graphics adapter model: Intel HD Graphics 620
- đŽDiscrete graphics adapter model:
- đŊTotal storage capacity: 1000 GB
- âī¸Weight: 1.74 kg
đ Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product type | Hybrid (2-in-1) |
| Form factor | Convertible (Folder) |
| Display | |
| Display diagonal | 14 inch |
| Dual-screen | N |
| Screen shape | Flat |
| Touchscreen type | Capacitive |
| Panel type | IPS |
| Touch technology | Multi-touch |
| LED backlight | Y |
| Touchscreen | Y |
| Native aspect ratio | 16:9 |
| Brand | Lenovo |
| Family | Yoga |
| Series | 500 |
| Model name | 520 |
| Part Number | 80X80052UK |
| Release Date | 08 September 2017 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i5 |
| Processor frequency | 2.5 GHz |
| Processor boost frequency | 3.1 GHz |
| Processor codename | Kaby Lake |
| Thermal Design Power (TDP) | 15 W |
| Processor model | i5-7200U |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor cache | 3 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA 1356 |
| Configurable TDP-up frequency | 2.7 GHz |
| Configurable TDP-up | 25 W |
| Processor generation | 7th gen Intel Core i5 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 8 GB |
| Memory form factor | SO-DIMM |
| Memory clock speed | 2133 MHz |
| Maximum internal memory | 16 GB |
| Maximum internal memory (64-bit) | 16 GB |
| Graphics | |
| On-board graphics adapter | Y |
| On-board graphics adapter DirectX version | 12.0 |
| On-board graphics adapter model | Intel HD Graphics 620 |
| On-board graphics adapter base frequency | 300 MHz |
| On-board graphics adapter dynamic frequency (max) | 1000 MHz |
| Maximum on-board graphics adapter memory | 32 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics adapter OpenGL version | 4.4 |
| On-board graphics card | Y |
| On-board graphics card model | Intel HD Graphics 620 |
| On-board graphics card family | Intel HD Graphics |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1000 MHz |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x5916 |
| Storage | |
| Total storage capacity | 1000 GB |
| Number of HDDs installed | 1 |
| HDD capacity | 1000 GB |
| Hard drive capacity | 1000 GB |
| Number of hard drives installed | 1 |
| Compatible memory cards | MMC, SD, SDHC, SDXC |
| Card reader integrated | Y |
| Storage media | HDD |
| Optical drive | |
| Optical drive type | N |
| LightScribe | N |
| Networking | |
| Ethernet LAN | N |
| Wi-Fi | Y |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Y |
| Bluetooth version | 4.1 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Charging port type | DC-in jack |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity | 2 |
| Headphone outputs | 1 |
| Microphone in | N |
| USB Sleep-and-Charge ports | 1 |
| DVI port | N |
| Docking connector | N |
| USB 3.0 (3.1 Gen 1) Type-C ports quantity | 1 |
| Combo headphone/mic port | Y |
| HDMI ports quantity | 1 |
| USB Sleep-and-Charge | Y |
| Audio | |
| Built-in microphone | Y |
| Audio system | Dolby Audio |
| Speaker power | 1.5 W |
| Speakers manufacturer | Harman Kardon |
| Audio decoders | Dolby Audio Premium |
| Camera | |
| Front camera | Y |
| Front camera resolution | 1280 x 720 pixels |
| Front camera signal format | 720p |
| Keyboard | |
| Numeric keypad | N |
| Windows keys | Y |
| Pointing device | Touchpad |
| Software | |
| Operating system installed | Windows 10 Home |
| Operating system architecture | 64-bit |
| Battery | |
| Battery life (max) | 10 h |
| Weight & dimensions | |
| Weight | 1.74 kg |
| Height | 19.9 mm |
| Depth | 235 mm |
| Width | 330 mm |
| Power | |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
