Lenovo Legion Y540 - 81SY00N3MZ
Lenovo Legion Y540
Product code: 81SY00N3MZ
- 💻Display diagonal: 15.6 inch
- 🔳Processor model: i7-9750HF
- 🎫Internal memory: 16 GB
- 🎮On-board graphics adapter model: Not available
- 🎮Discrete graphics adapter model: NVIDIA GeForce GTX 1650
- 💽Total storage capacity: 1.51 TB
- ⚖️Weight: 2.3 kg
📊 Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Product type | Laptop |
| Form factor | Clamshell |
| Market positioning | Gaming |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| Display | |
| Display diagonal | 15.6 inch |
| Dual-screen | No |
| Maximum refresh rate | 144 Hz |
| Display brightness | 300 cd/m² |
| Panel type | IPS |
| Aspect ratio | 16:9 |
| 3D | No |
| HD type | Full HD |
| LED backlight | Yes |
| Touchscreen | No |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Brand | Lenovo |
| Family | Legion |
| Model name | Y540 |
| Part Number | 81SY00N3MZ |
| Release Date | 07 January 2020 |
| EAN/UPC code | 0194778184892, 194778184892 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Processor frequency | 2.6 GHz |
| Motherboard chipset | Intel HM370 |
| Processor boost frequency | 4.5 GHz |
| Processor codename | Coffee Lake |
| Thermal Design Power (TDP) | 45 W |
| Processor model | i7-9750HF |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor cache | 12 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA 1440 |
| Processor generation | 9th gen Intel Core i7 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | SO-DIMM |
| Memory clock speed | 2666 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 32 GB |
| Memory layout (slots x size) | 2 x 8 GB |
| ECC | No |
| Graphics | |
| On-board graphics adapter | N |
| Number of discrete graphics adapters supported | 1 |
| Number of discrete graphics adapters installed | 1 |
| Discrete graphics memory type | GDDR5 |
| Discrete graphics adapter | Y |
| On-board graphics adapter model | Not available |
| Discrete graphics adapter model | NVIDIA GeForce GTX 1650 |
| Discrete graphics adapter memory | 4 GB |
| On-board graphics card | No |
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA GeForce GTX 1650 |
| On-board graphics card model | Not available |
| Discrete graphics card memory | 4 GB |
| Number of discrete graphics cards supported | 1 |
| Number of discrete graphics cards installed | 1 |
| Storage | |
| Total storage capacity | 1.51 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Total SSDs capacity | 512 GB |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| HDD speed | 7200 RPM |
| HDD size | 2.5" |
| SSD interface | NVMe, PCI Express 3.0 |
| HDD interface | SATA III |
| Total HDDs capacity | 1 TB |
| SSD form factor | M.2 |
| Card reader integrated | No |
| Storage media | HDD+SSD |
| NVMe | Yes |
| Optical drive | |
| Optical drive type | No |
| LightScribe | No |
| Networking | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| Miracast | No |
| WWAN | Not installed |
| Near Field Communication (NFC) | No |

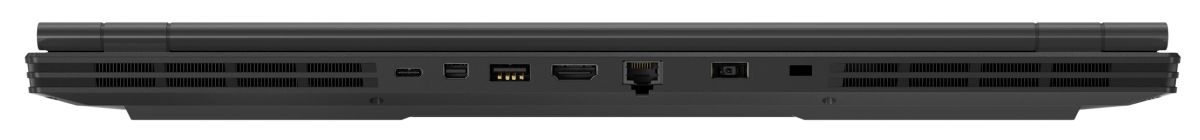

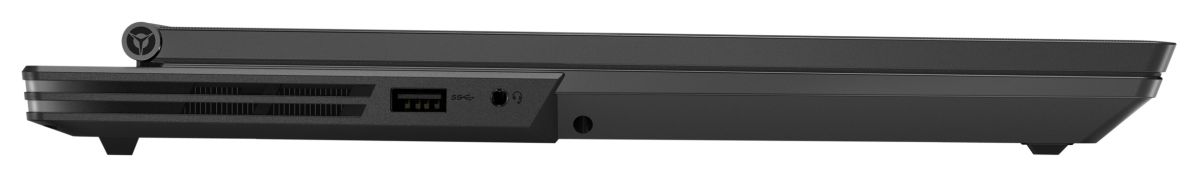

| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Charging port type | DC-in jack |
| HDMI version | 2.0 |
| USB Sleep-and-Charge ports | 1 |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Mini DisplayPorts quantity | 1 |
| USB Sleep-and-Charge | Yes |
| Audio | |
| Built-in microphone | Yes |
| Number of built-in speakers | 2 |
| Audio system | Dolby Atmos |
| Speaker power | 2 W |
| Audio chip | Realtek ALC3287 |
| Speakers manufacturer | Harman Kardon |
| Number of microphones | 2 |
| Camera | |
| Front camera | Yes |
| Front camera HD type | HD |
| Front camera signal format | 720p |
| Rear camera | No |
| Auto focus | No |
| Front camera resolution (numeric) | 1 MP |
| Swivel webcam | No |
| Keyboard | |
| Numeric keypad | Yes |
| Keyboard backlit colour | White |
| Full-size keyboard | Yes |
| Keyboard backlit | Yes |
| Windows keys | Yes |
| Pointing device | Touchpad |
| Keyboard language | Swiss |
| Performance | |
| GPS (satellite) | No |
| Software | |
| Operating system installed | Windows 10 Home |
| Operating system language | German, English, French, Italian |
| Operating system architecture | 64-bit |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity (Watt-hours) | 57 Wh |
| Battery life (max) | 4.5 h |
| Battery capacity | 57 Wh |
| Weight & dimensions | |
| Weight | 2.3 kg |
| Height (rear) | 2.52 cm |
| Height (front) | 2.42 cm |
| Depth | 267 mm |
| Width | 360 mm |
| Power | |
| AC adapter power | 170 W |
| Security | |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Fingerprint reader | No |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | HDD, Power on, Supervisor |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
