Lenovo ThinkPad T470 - 20JNS12B0D-07

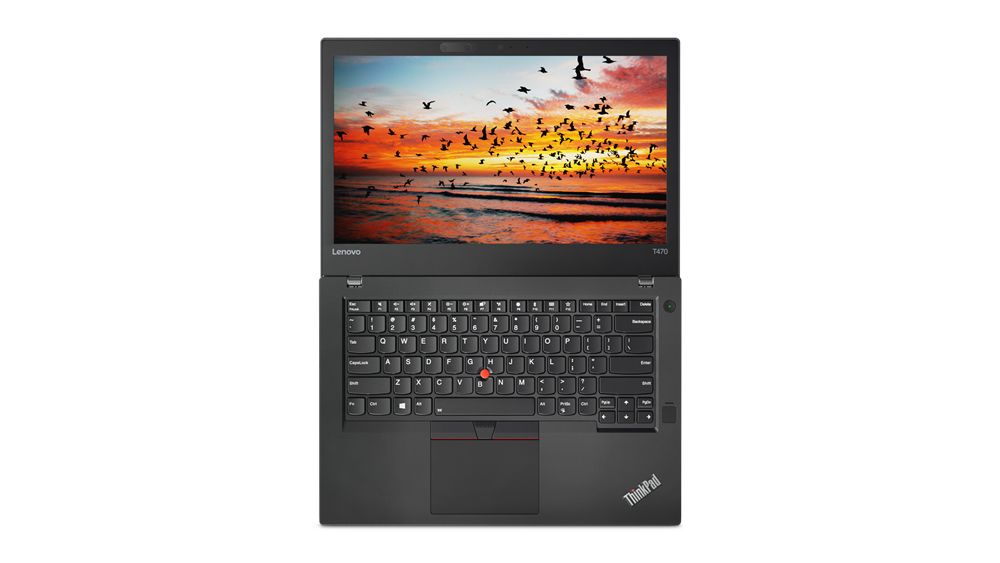

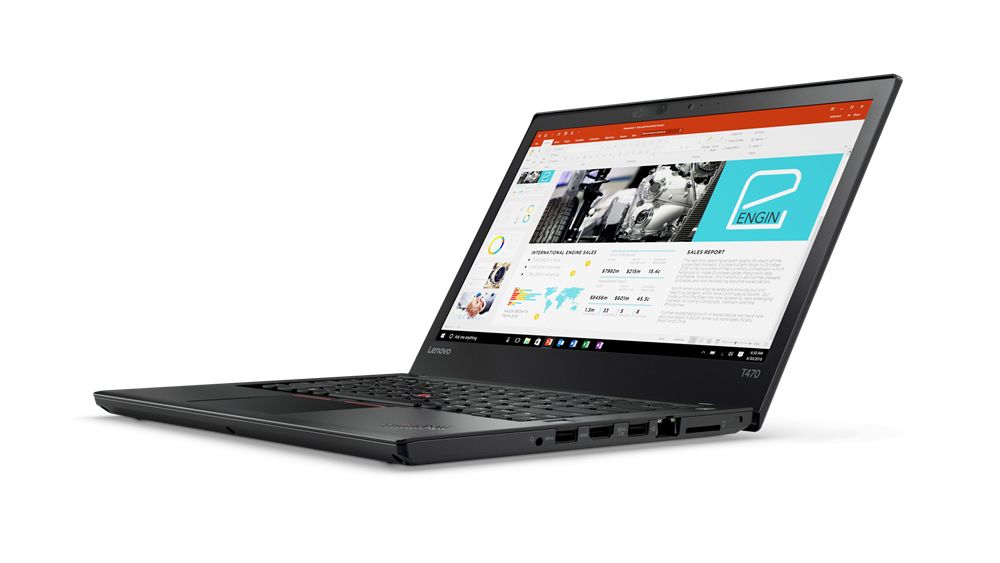

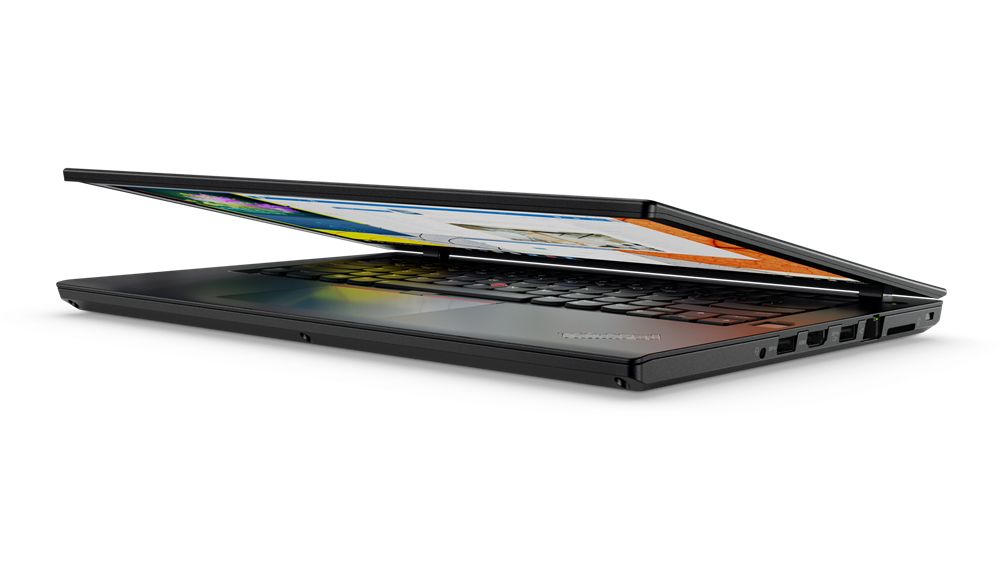

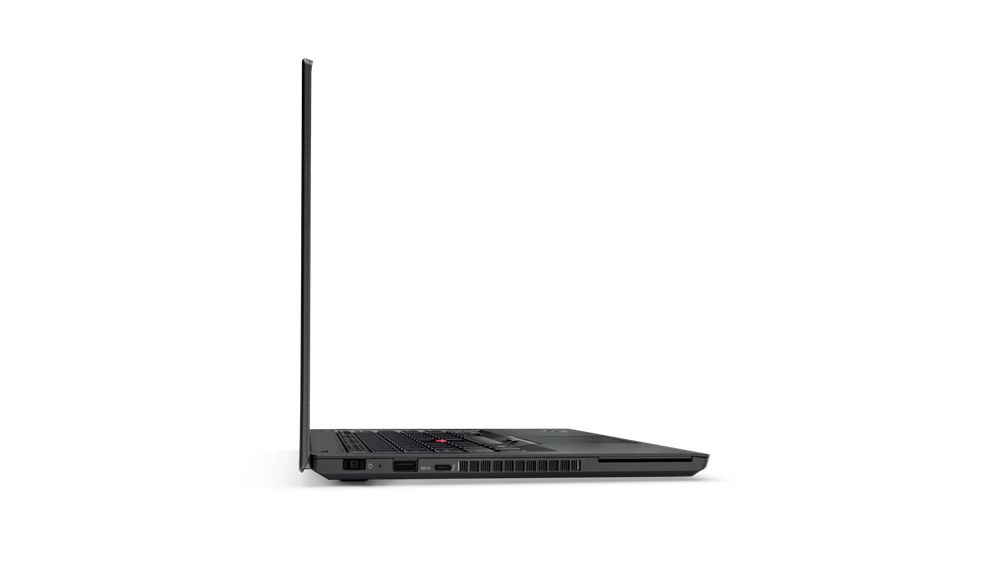

Lenovo ThinkPad T470
Product code: 20JNS12B0D-07
- đģDisplay diagonal: 14 inch
- đŗProcessor model: i5-6300U
- đĢInternal memory: 8 GB
- đŽOn-board graphics adapter model: Intel HD Graphics 520
- đŽDiscrete graphics adapter model:
- đŊTotal storage capacity: 256 GB
- âī¸Weight:
đ Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Product type | Laptop |
| Form factor | Clamshell |
| Display | |
| Display diagonal | 14 inch |
| Aspect ratio | 16:9 |
| LED backlight | Y |
| Native aspect ratio | 16:9 |
| Brand | Lenovo |
| Family | ThinkPad |
| Series | T |
| Model name | T470 |
| Part Number | 20JNS12B0D-07 |
| Release Date | 07 March 2020 |
|
|
|
| Processor | |
| Processor series | Intel Core i5-6300 Mobile Series |
| Processor manufacturer | Intel |
| Processor family | Intel Core i5 |
| Processor frequency | 2.4 GHz |
| Processor boost frequency | 3 GHz |
| Processor codename | Skylake |
| Thermal Design Power (TDP) | 15 W |
| Processor model | i5-6300U |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor cache | 3 MB |
| Processor lithography | 14 nm |
| Processor socket | LGA 1356 (Socket B2) |
| Configurable TDP-up frequency | 2.5 GHz |
| Configurable TDP-up | 25 W |
| Processor generation | 6th gen Intel Core i5 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 8 GB |
| Memory form factor | SO-DIMM |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 32 GB |
| Graphics | |
| On-board graphics adapter | Y |
| On-board graphics adapter model | Intel HD Graphics 520 |
| On-board graphics card | Y |
| On-board graphics card model | Intel HD Graphics 520 |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1000 MHz |
| Maximum on-board graphics card memory | 1.74 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 1916 |
| Storage | |
| Total storage capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| Total SSDs capacity | 256 GB |
| Compatible memory cards | SD |
| Card reader integrated | Y |
| Storage media | SSD |
| Optical drive | |
| Optical drive type | N |
| Networking | |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Antenna type | 2x2 |
| Bluetooth | Y |
| Bluetooth version | 4.1 |

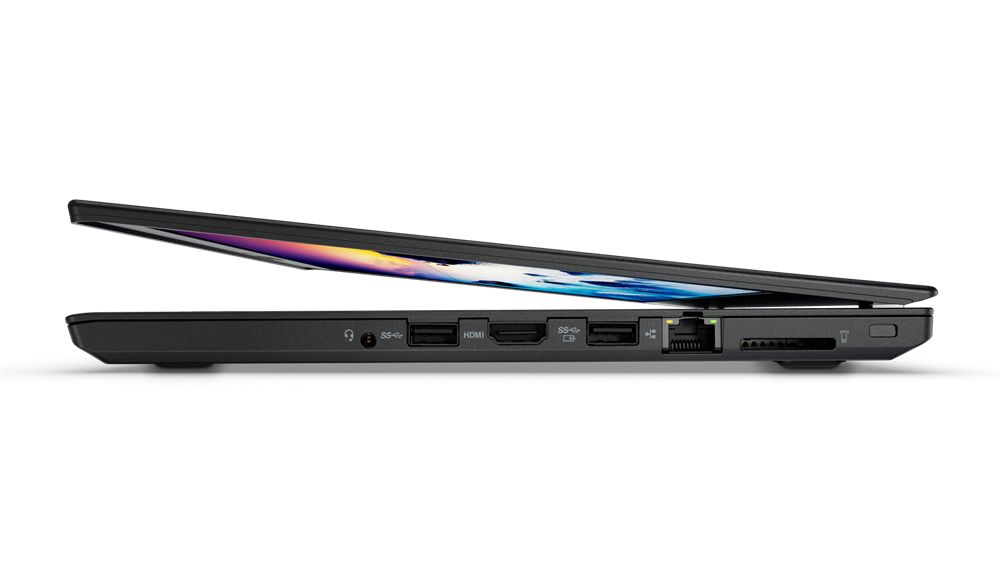

| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Sleep-and-Charge ports | 1 |
| Docking connector | Y |
| Combo headphone/mic port | Y |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB Sleep-and-Charge | Y |
| Audio | |
| Built-in microphone | Y |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Audio chip | Realtek ALC3268 |
| Number of microphones | 2 |
| Camera | |
| Front camera | Y |
| Front camera HD type | HD |
| Keyboard | |
| Numeric keypad | N |
| Full-size keyboard | Y |
| Pointing device | ThinkPad UltraNav |
| Weight & dimensions | |
| Height | 19.9 mm |
| Depth | 232.5 mm |
| Width | 336.6 mm |
| Security | |
| Cable lock slot | Y |
| Trusted Platform Module (TPM) | Y |
| Password protection | Y |
| Password protection type | HDD, Power on, Supervisor |
