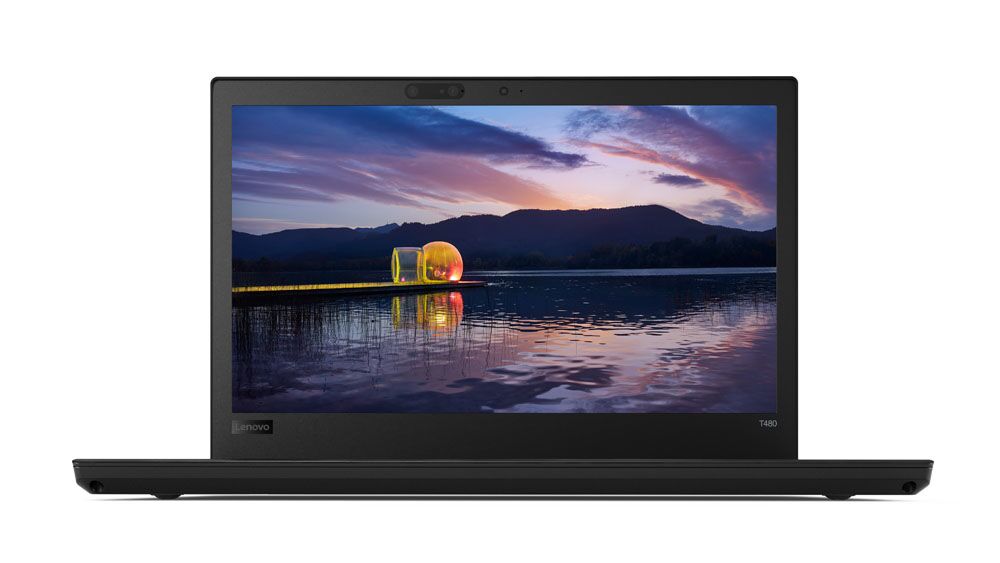

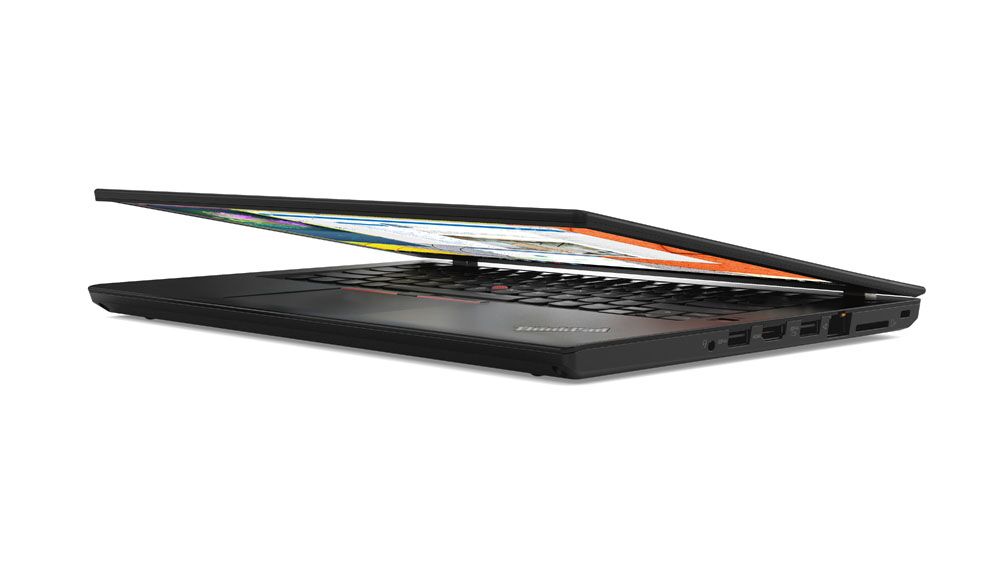

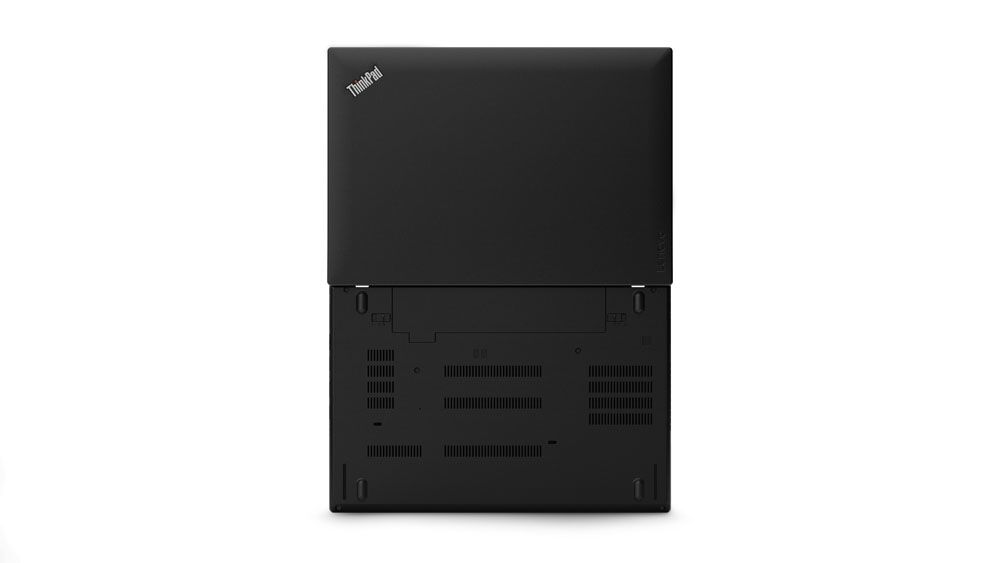

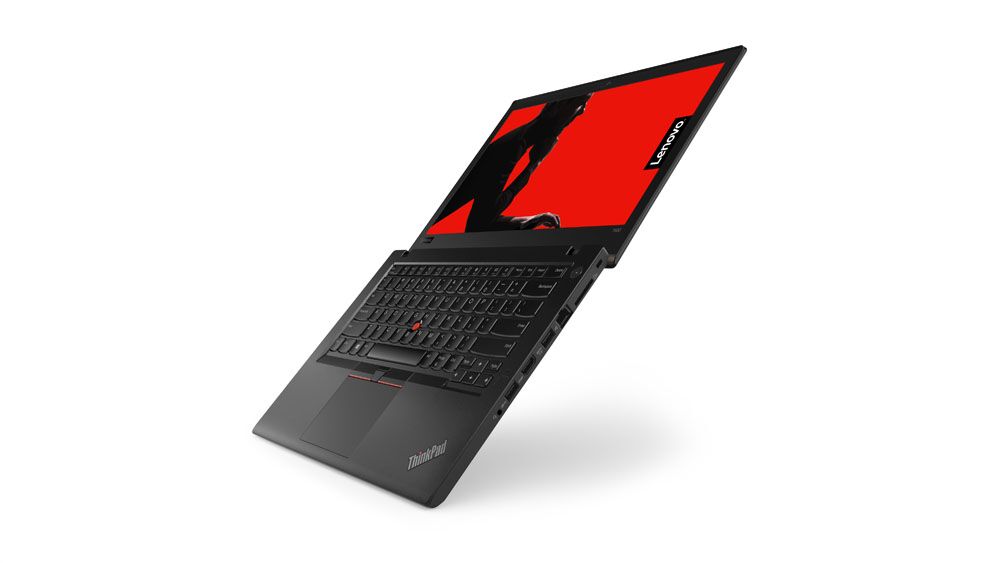

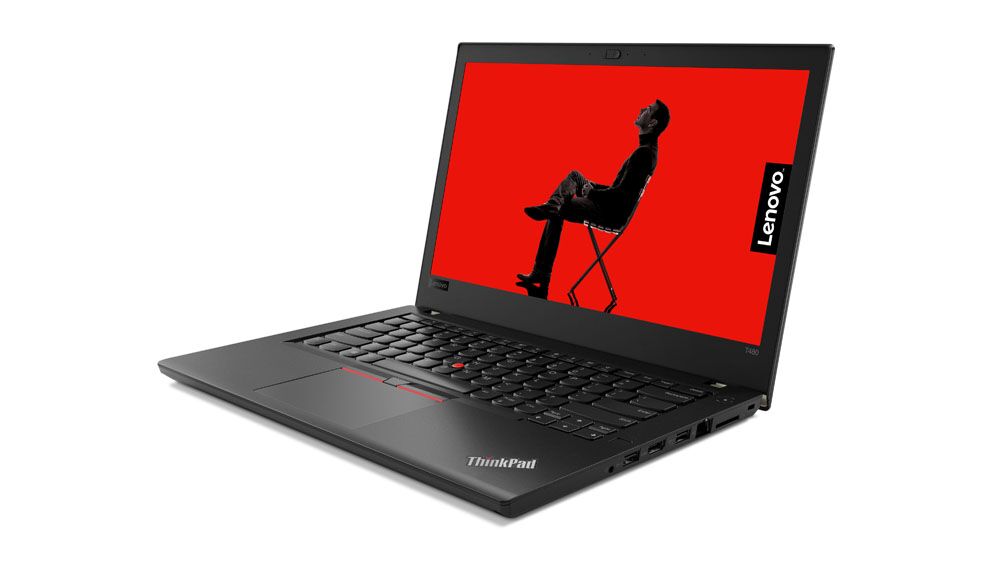

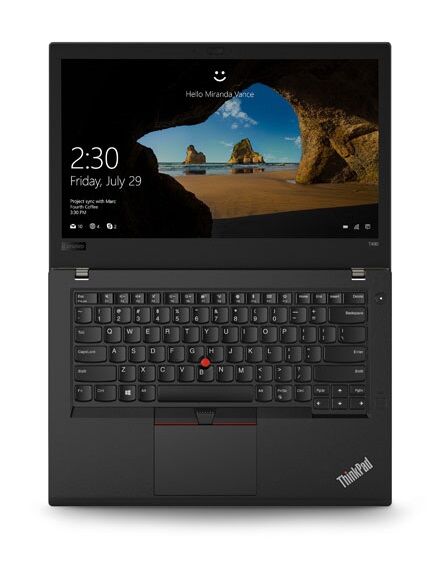

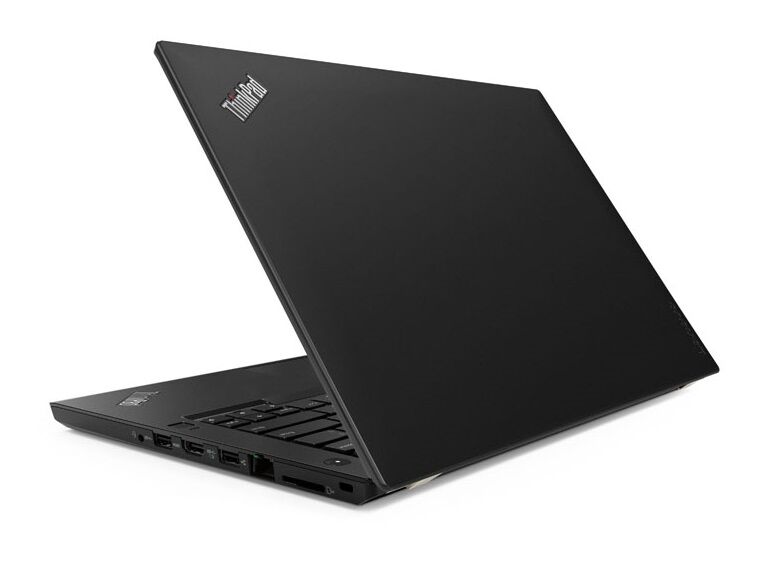

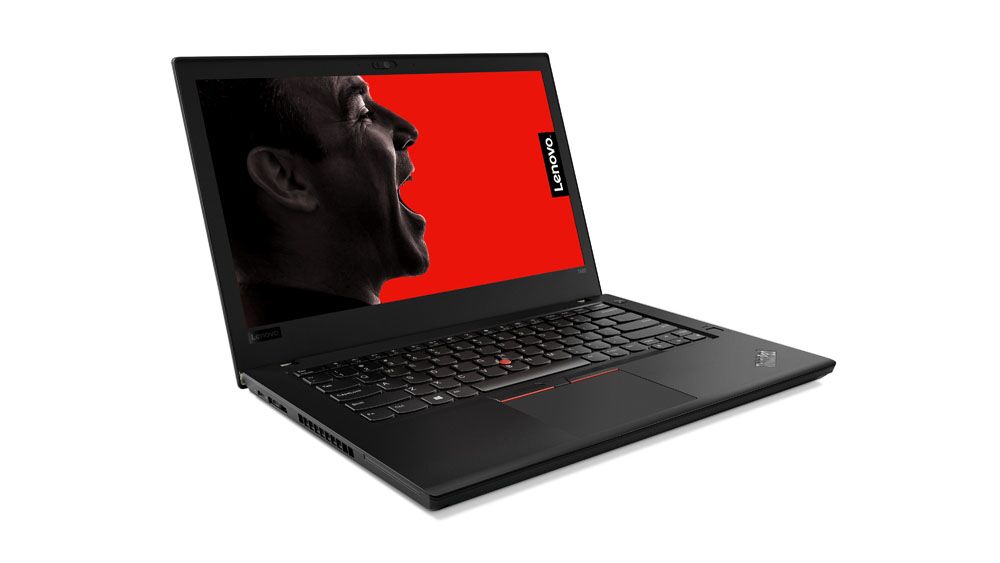

Lenovo ThinkPad T480 - 20L6S9HC06
Lenovo ThinkPad T480
Product code: 20L6S9HC06
- đģDisplay diagonal: 14 inch
- đŗProcessor model: i5-7200U
- đĢInternal memory:
- đŽOn-board graphics adapter model: Intel HD Graphics 620
- đŽDiscrete graphics adapter model:
- đŊTotal storage capacity:
- âī¸Weight:
đ Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Product type | Laptop |
| Form factor | Clamshell |
| Market positioning | Business |
| Housing material | FRP (Fiber Reinforced Plastic), Magnesium |
| Display | |
| Display diagonal | 14 inch |
| Dual-screen | No |
| Display surface | Matt |
| Aspect ratio | 16:9 |
| 3D | No |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Brand | Lenovo |
| Family | ThinkPad |
| Series | T |
| Model name | T480 |
| Part Number | 20L6S9HC06 |
| Release Date | 11 February 2019 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i5 |
| Processor frequency | 2.5 GHz |
| Motherboard chipset | Intel SoC |
| Processor boost frequency | 3.1 GHz |
| Processor codename | Kaby Lake |
| Thermal Design Power (TDP) | 15 W |
| Processor model | i5-7200U |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor cache | 3 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA 1356 |
| Configurable TDP-up frequency | 2.7 GHz |
| Configurable TDP-up | 25 W |
| Processor generation | 7th gen Intel Core i5 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Memory form factor | SO-DIMM |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 32 GB |
| Maximum internal memory (64-bit) | 32 GB |
| Graphics | |
| On-board graphics adapter | Y |
| On-board graphics adapter family | Intel HD Graphics |
| On-board graphics adapter DirectX version | 12.0 |
| On-board graphics adapter model | Intel HD Graphics 620 |
| On-board graphics adapter base frequency | 300 MHz |
| On-board graphics adapter dynamic frequency (max) | 1000 MHz |
| Maximum on-board graphics adapter memory | 32 GB |
| On-board graphics adapter OpenGL version | 4.4 |
| On-board graphics card | Yes |
| On-board graphics card model | Intel HD Graphics 620 |
| On-board graphics card family | Intel HD Graphics |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1000 MHz |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x5916 |
| Storage | |
| Compatible memory cards | MMC, SD, SDHC, SDXC |
| Card reader integrated | Yes |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Wi-Fi | Yes |
| WLAN controller model | Intel Dual Band Wireless-AC 8265 |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Antenna type | 2x2 |
| Bluetooth | Yes |

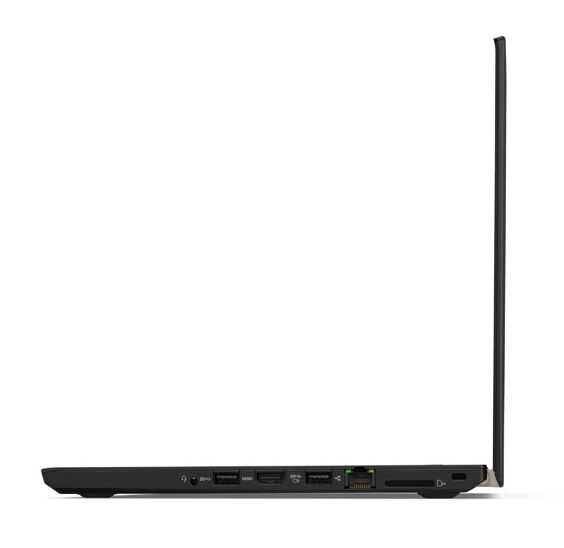

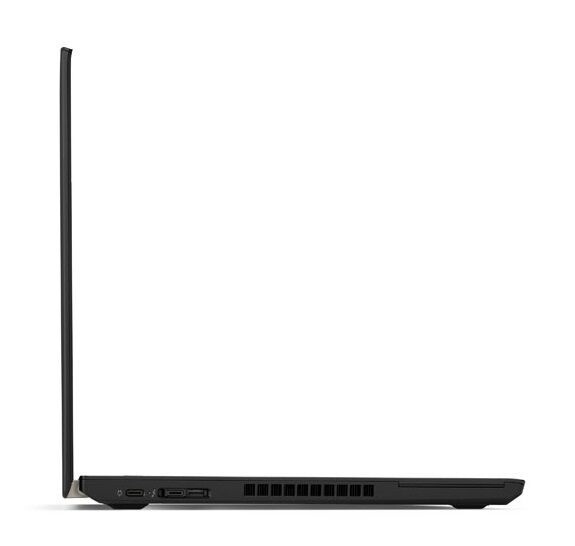

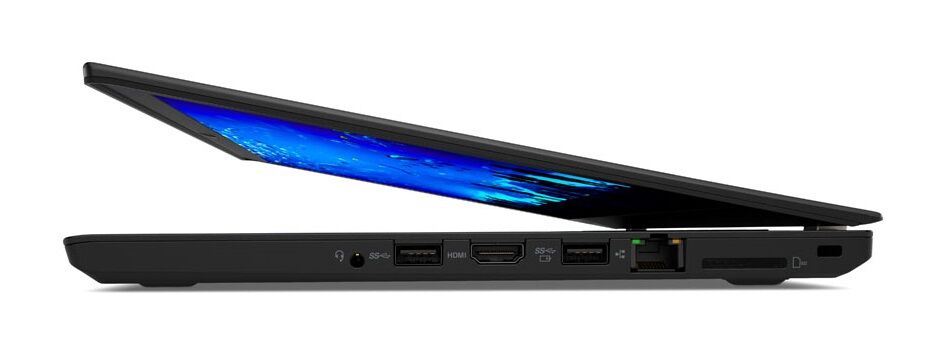

| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | No |
| HDMI version | 1.4b |
| USB Sleep-and-Charge ports | 1 |
| Docking connector | Yes |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB Sleep-and-Charge | Yes |
| Audio | |
| Built-in microphone | Yes |
| Number of built-in speakers | 2 |
| Audio system | Dolby Audio Premium |
| Speaker power | 2 W |
| Audio chip | Realtek ALC3287 |
| Camera | |
| Front camera | Yes |
| Front camera HD type | HD |
| Front camera resolution | 1280 x 720 pixels |
| Front camera signal format | 720p |

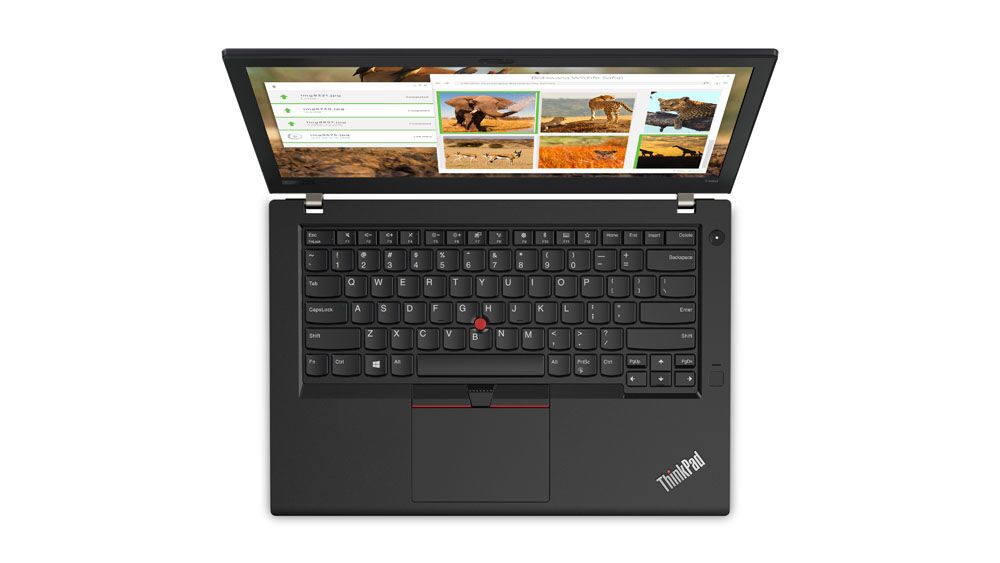

| Keyboard | |
| Numeric keypad | No |
| Spill-resistant keyboard | Yes |
| Windows keys | Yes |
| Pointing device | ThinkPad UltraNav |
| Software | |
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Weight & dimensions | |
| Height | 19.9 mm |
| Depth | 232.5 mm |
| Width | 336.6 mm |
| Power | |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| Security | |
| Cable lock slot | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | HDD, Power on, Supervisor |
