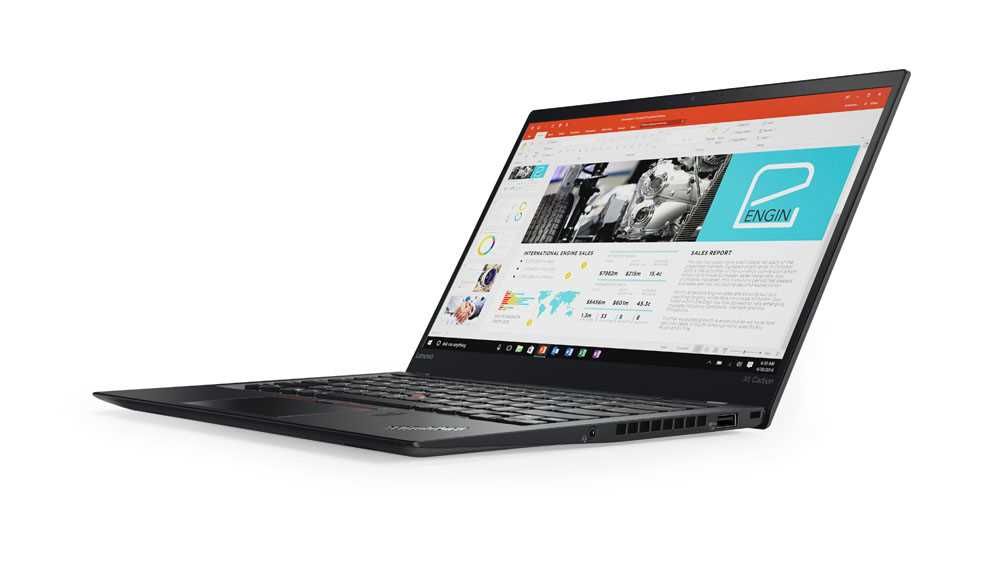

Lenovo ThinkPad X1 Carbon - 20HQS17409
Lenovo ThinkPad X1 Carbon
Product code: 20HQS17409
- đģDisplay diagonal: 14 inch
- đŗProcessor model: i7-7600U
- đĢInternal memory: 16 GB
- đŽOn-board graphics adapter model: Intel HD Graphics 620
- đŽDiscrete graphics adapter model: Not available
- đŊTotal storage capacity: 256 GB
- âī¸Weight: 1.13 kg
đ Add to compare
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Product type | Laptop |
| Form factor | Clamshell |
| Display | |
| Display diagonal | 14 inch |
| Aspect ratio | 16:9 |
| HD type | Full HD |
| LED backlight | Yes |
| Touchscreen | No |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Brand | Lenovo |
| Family | ThinkPad |
| Series | X |
| Model name | X1 Carbon |
| Part Number | 20HQS17409 |
| Release Date | 10 February 2020 |
|
|
|
| Processor | |
| Processor series | Intel Core i7-7600 Mobile Series |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Processor frequency | 2.8 GHz |
| Processor boost frequency | 3.9 GHz |
| Processor codename | Kaby Lake |
| Thermal Design Power (TDP) | 15 W |
| Processor model | i7-7600U |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor cache | 4 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA 1356 |
| Configurable TDP-up frequency | 2.9 GHz |
| Configurable TDP-up | 25 W |
| Processor generation | 7th gen Intel Core i7 |
| Memory | |
| Internal memory type | LPDDR3-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | On-board |
| Maximum internal memory | 16 GB |
| Graphics | |
| On-board graphics adapter | Y |
| Discrete graphics adapter | N |
| On-board graphics adapter model | Intel HD Graphics 620 |
| Discrete graphics adapter model | Not available |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel HD Graphics 620 |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x5916 |
| Storage | |
| Total storage capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| Total SSDs capacity | 256 GB |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Storage media | SSD |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | No |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 4.1 |

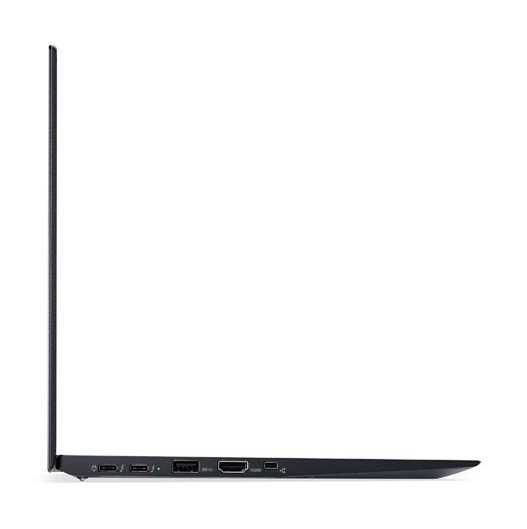

| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Headphone outputs | 1 |
| Microphone in | No |
| HDMI version | 1.4b |
| USB Sleep-and-Charge ports | 1 |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| USB Sleep-and-Charge | Yes |
| Audio | |
| Built-in microphone | Yes |
| Speaker power | 2 W |
| Camera | |
| Front camera | Yes |
| Keyboard | |
| Numeric keypad | No |
| Spill-resistant keyboard | Yes |
| Pointing device | ThinkPad UltraNav |
| Software | |
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
| Battery | |
| Battery technology | Lithium Polymer (LiPo) |
| Battery capacity (Watt-hours) | 57 Wh |
| Number of battery cells | 3 |
| Battery life (max) | 15.5 h |
| Battery capacity | 57 Wh |
| Weight & dimensions | |
| Weight | 1.13 kg |
| Height | 15.9 mm |
| Depth | 217.1 mm |
| Width | 323.5 mm |
| Power | |
| AC adapter power | 65 W |
| Security | |
| Password protection | Yes |
